SPECIFICATIONS

Brand Name: JINGYANGPV

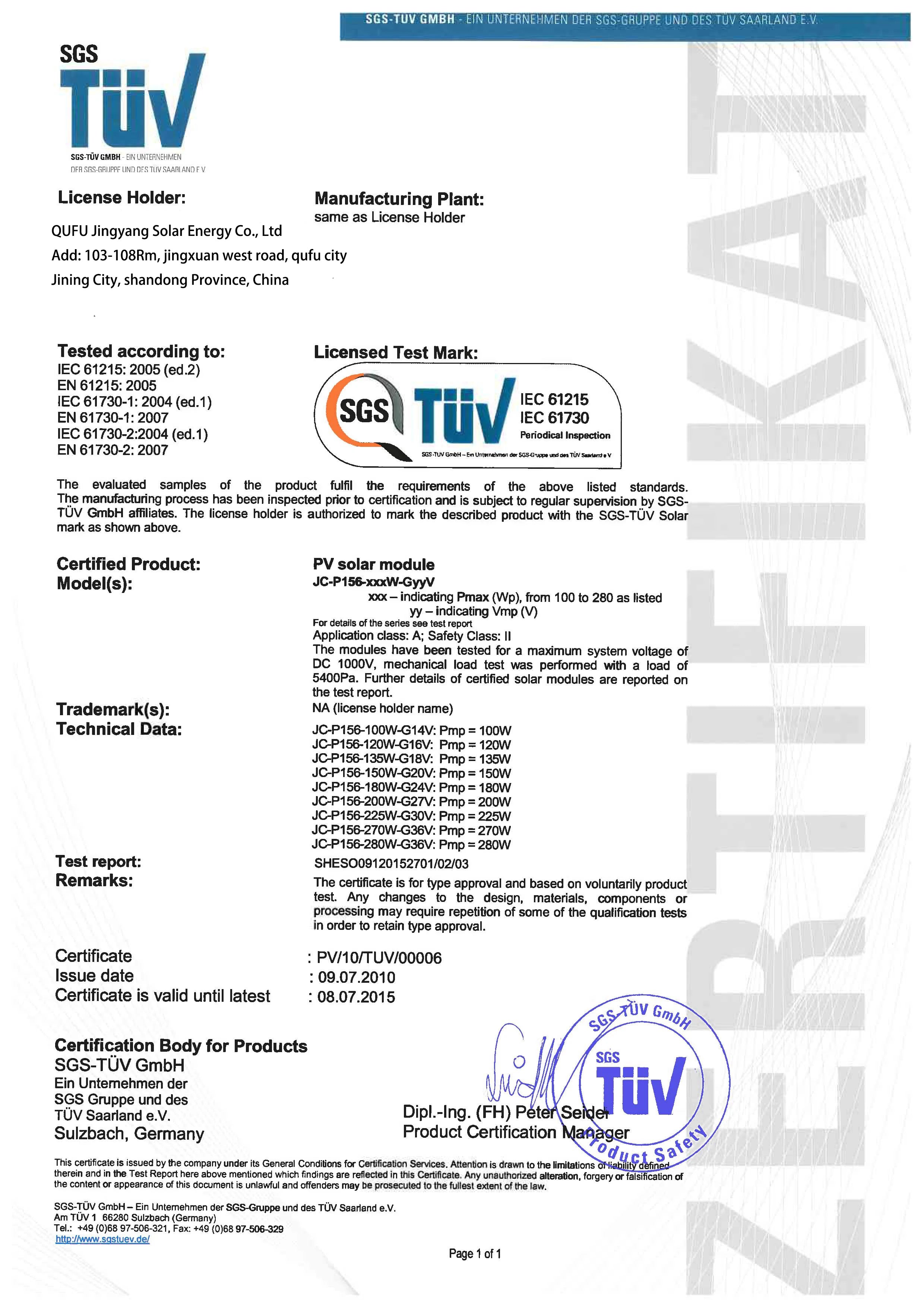

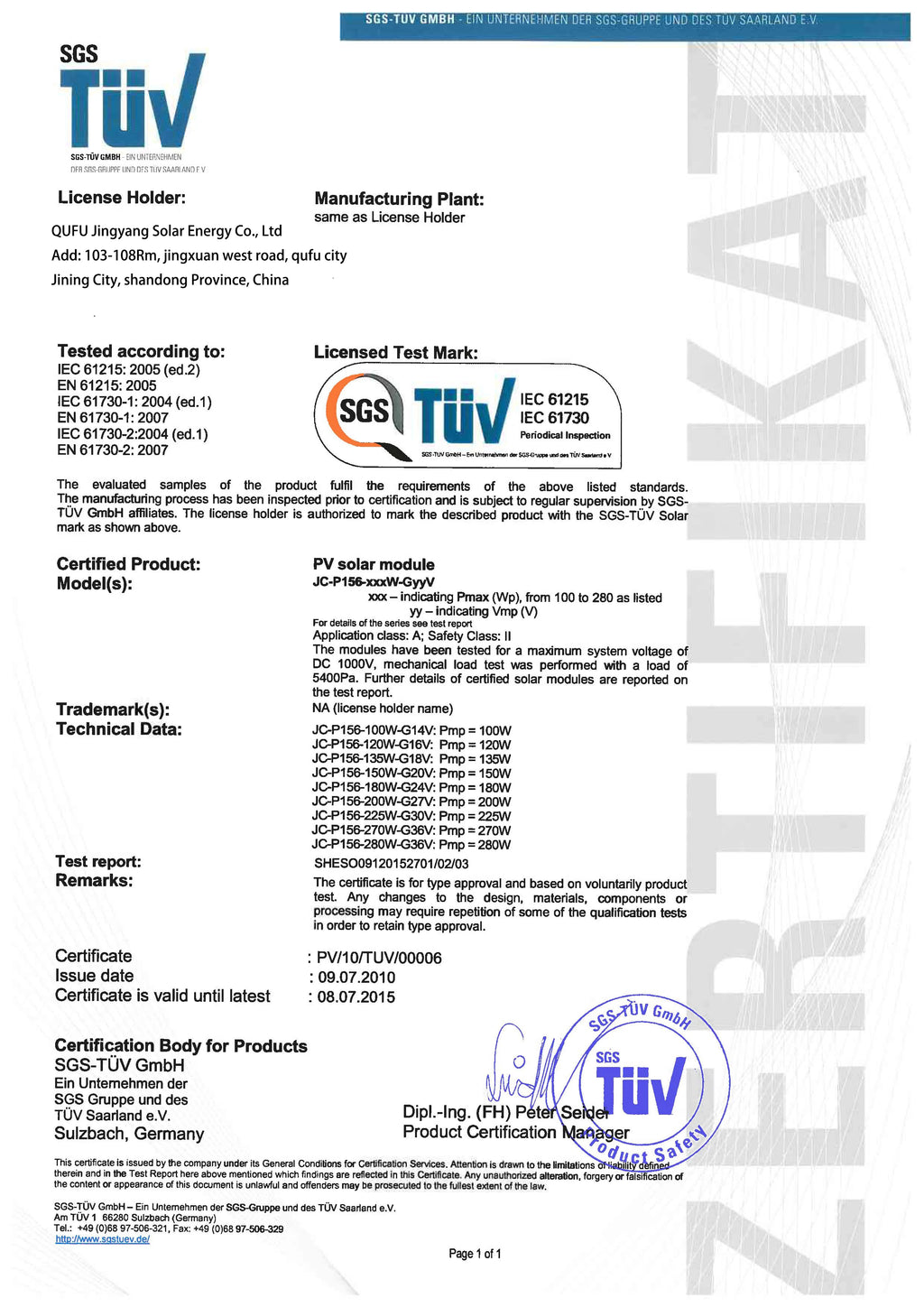

Certification: CE

Flexible Solar Panel: Yes

Foldable Solar Panel: No

High-concerned chemical: Urethane (Ethyl carbamate)

Material: Monocrystalline Silicon

Max. Power: 130w

Model Number: BSP 33-18BB-125

Module Efficien: 24%

Nominal Capacity: 125w

Number of Cells: 33

Number of Panels: 1

Origin: Mainland China

Rigid Solar Panel: No

Size: 1050mm*568mm*2.5mm

Type: Solar Panel

is_customized: Yes

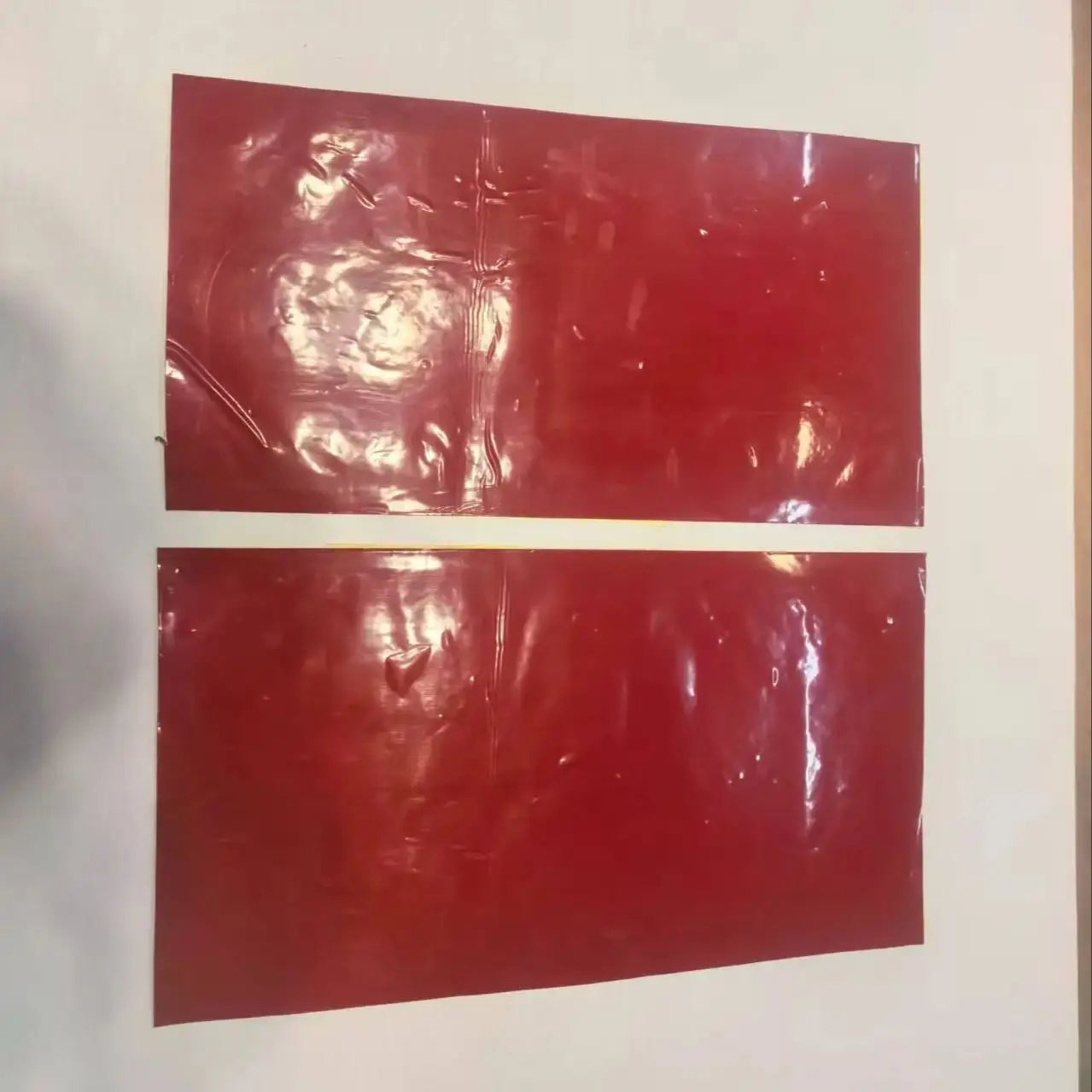

IF BUYER NEED DOUBLE SIDED GLUE TAPE, BUYER CAN BUY IT VIA THIS PHOTO:

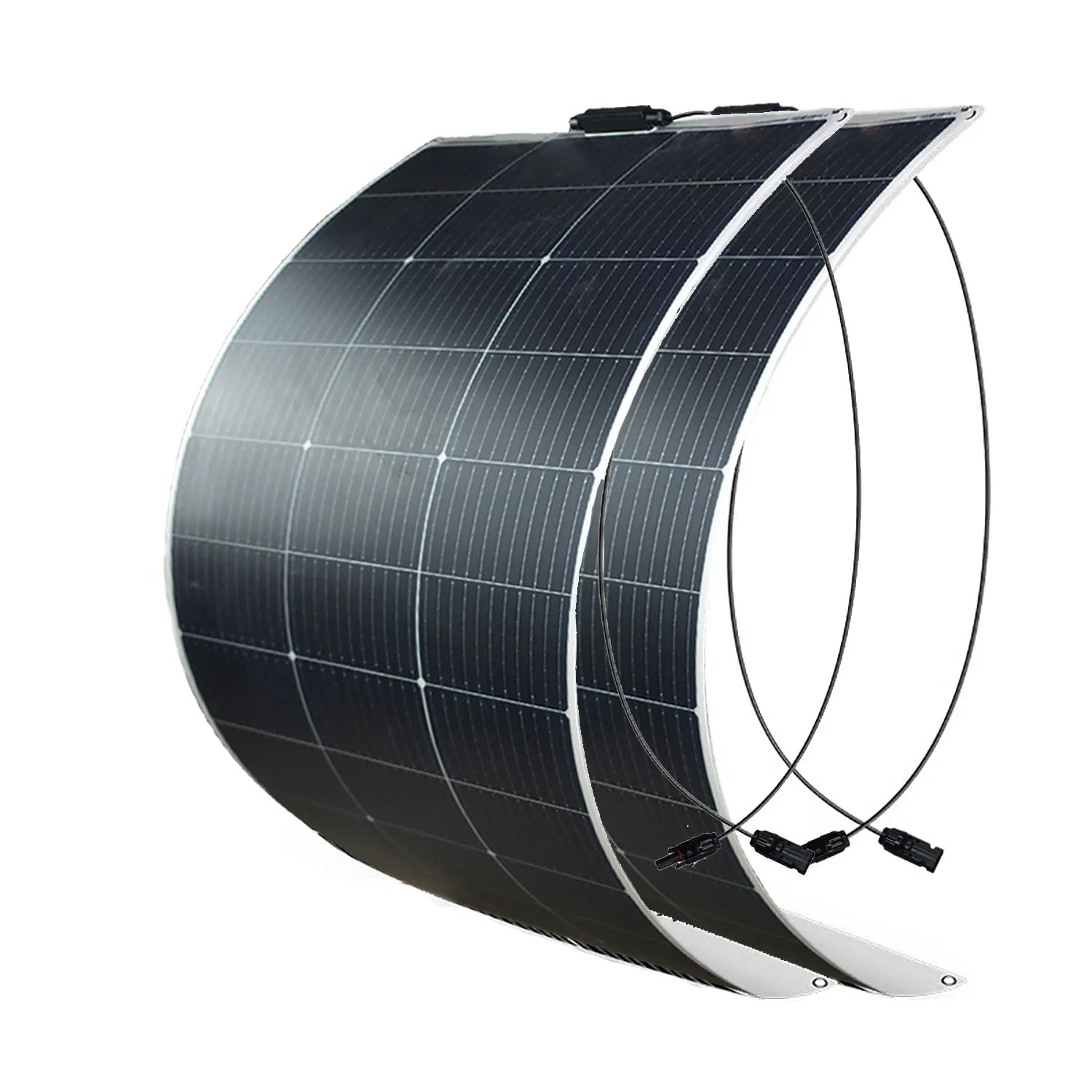

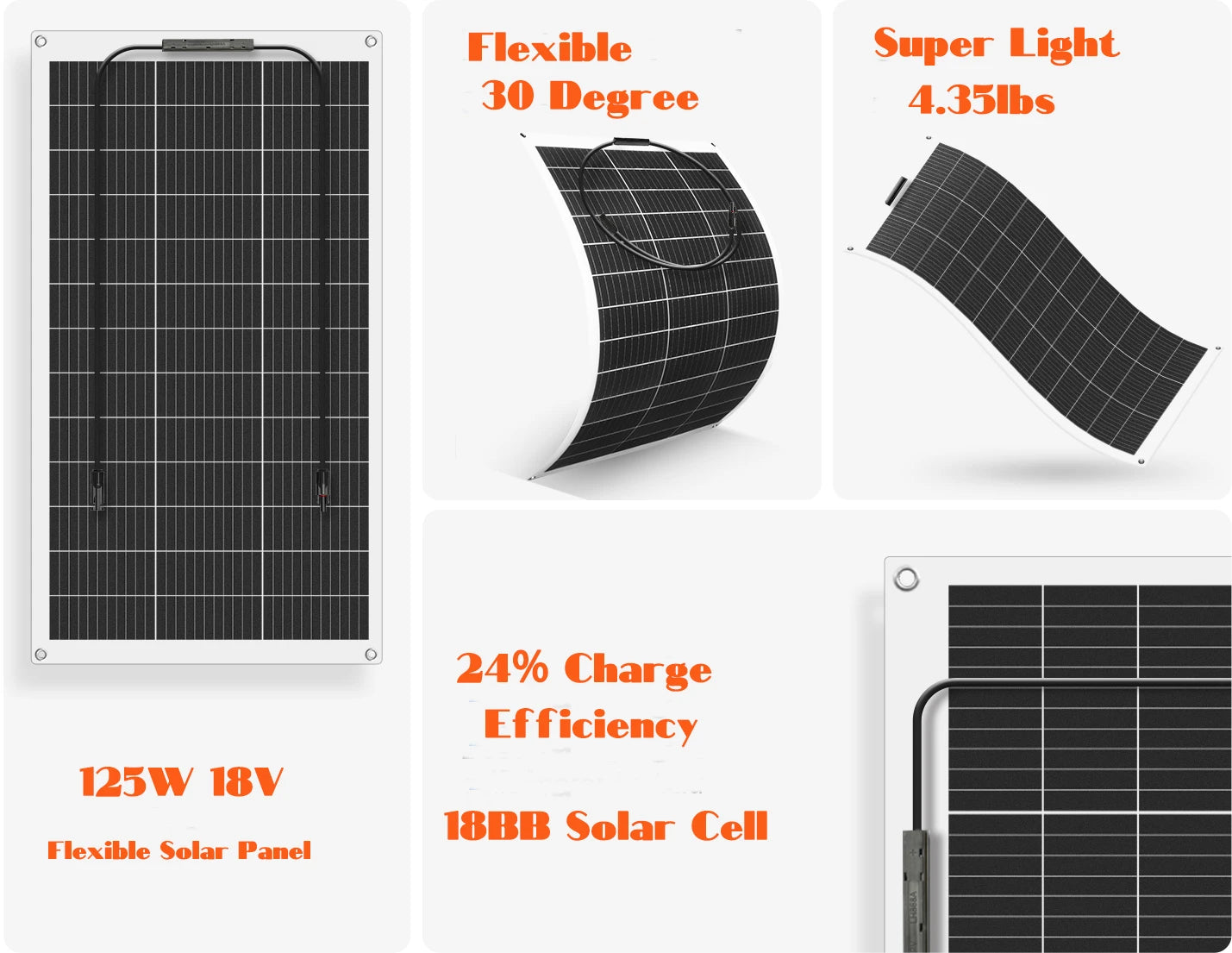

High Efficiency Solar Panel

The 125W 250W Flexible Panel Solar features unique 18BB technology, ensuring high efficiency and optimal power generation.

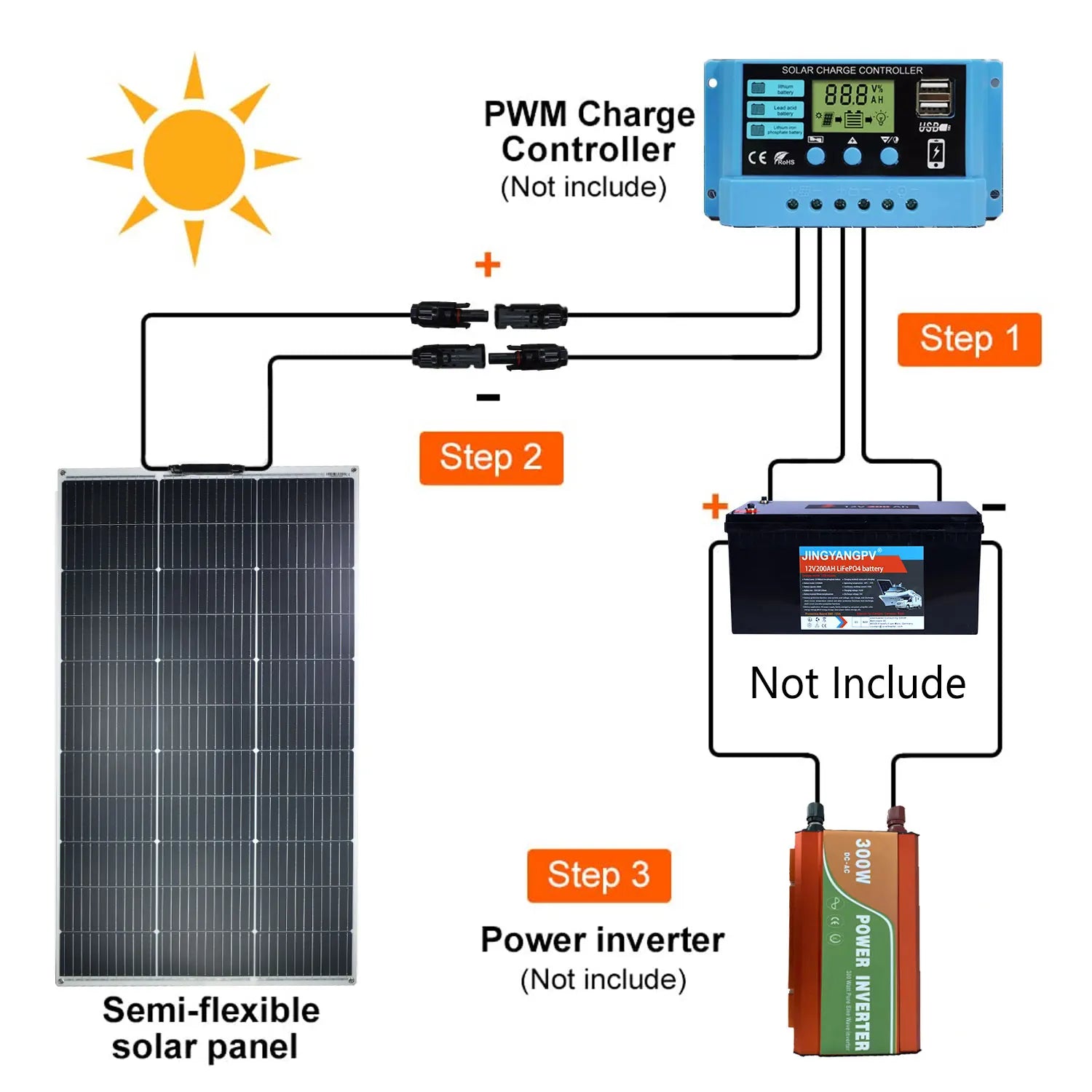

12V Battery Charger

Equipped with a 12V battery charger, this solar panel system ensures your devices are always powered up and ready to use.

Flexible Design

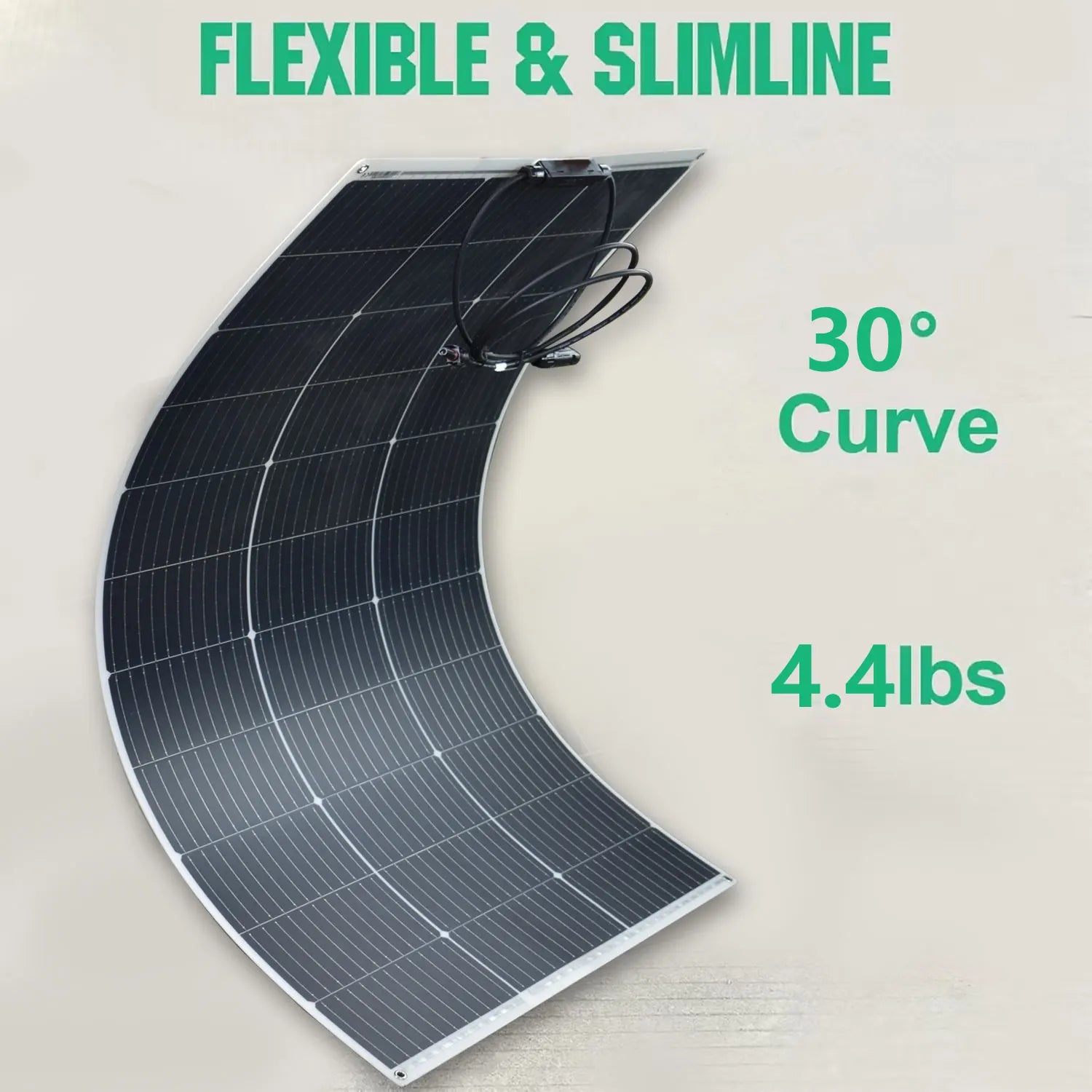

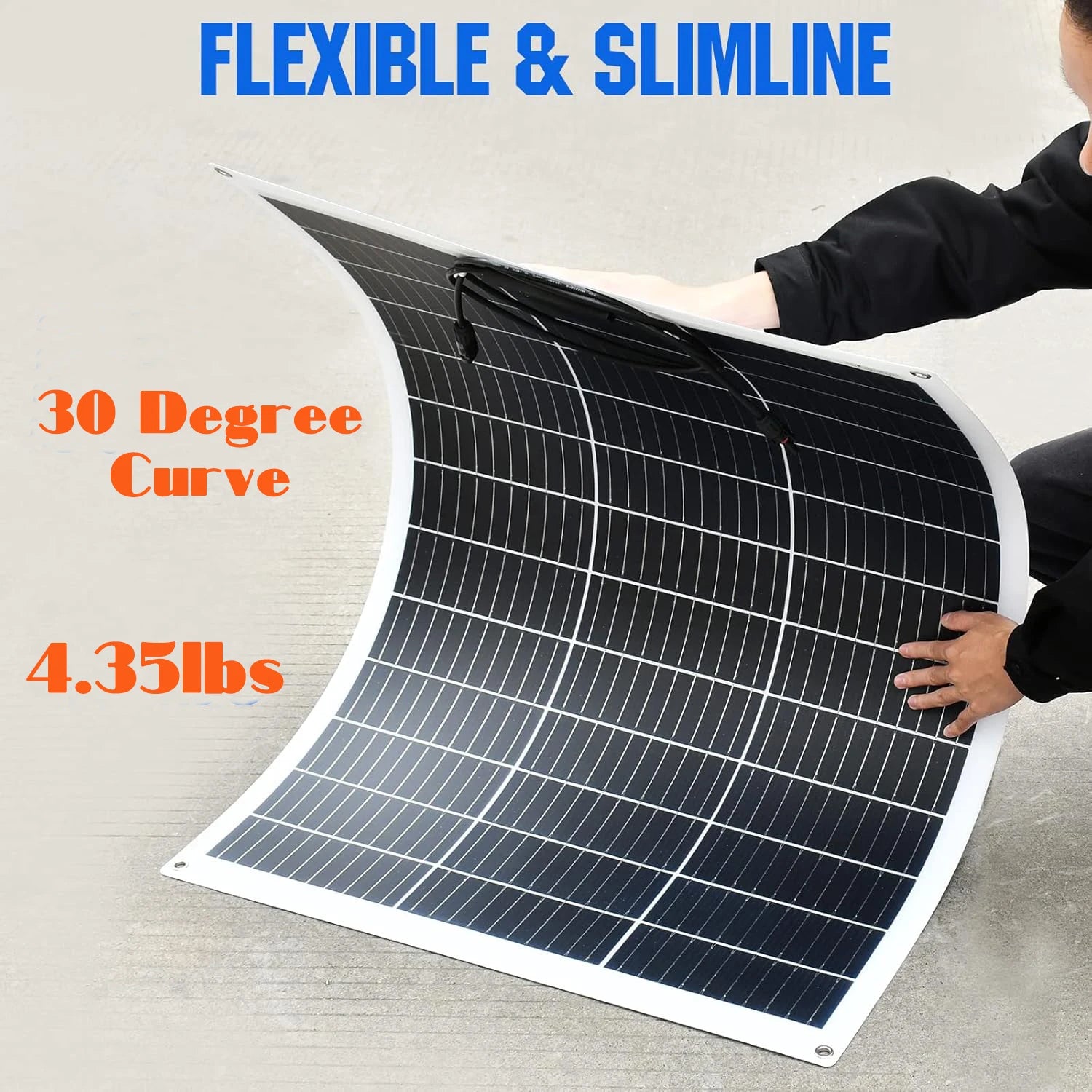

The flexible design of this solar panel makes it easy to install and adjust to different environments, maximizing sunlight exposure.

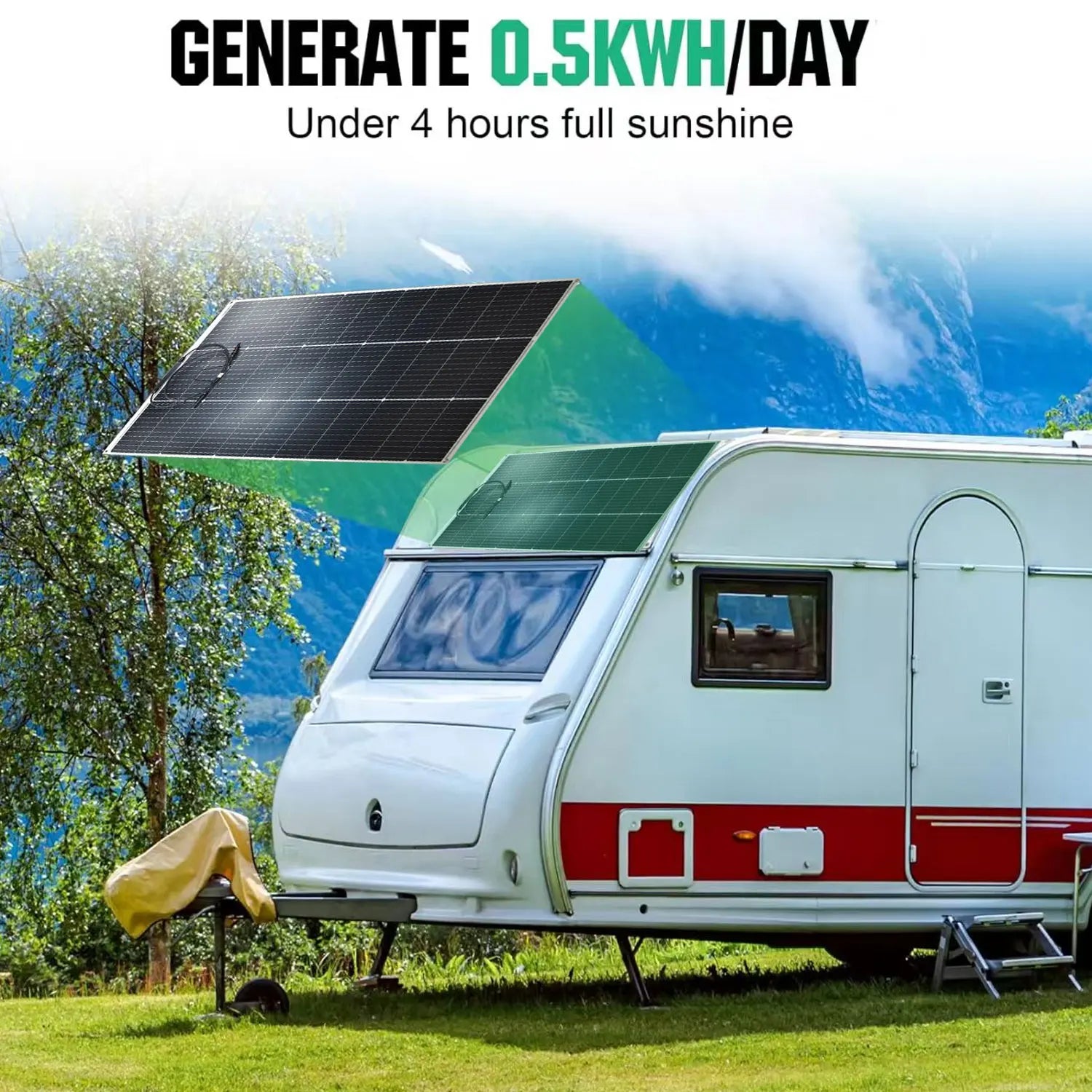

Versatile Power Station

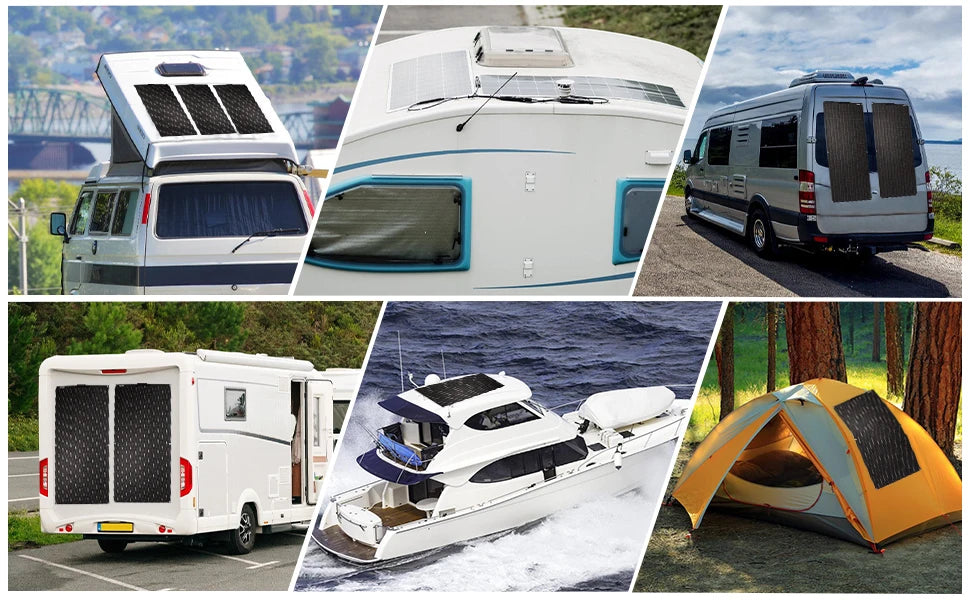

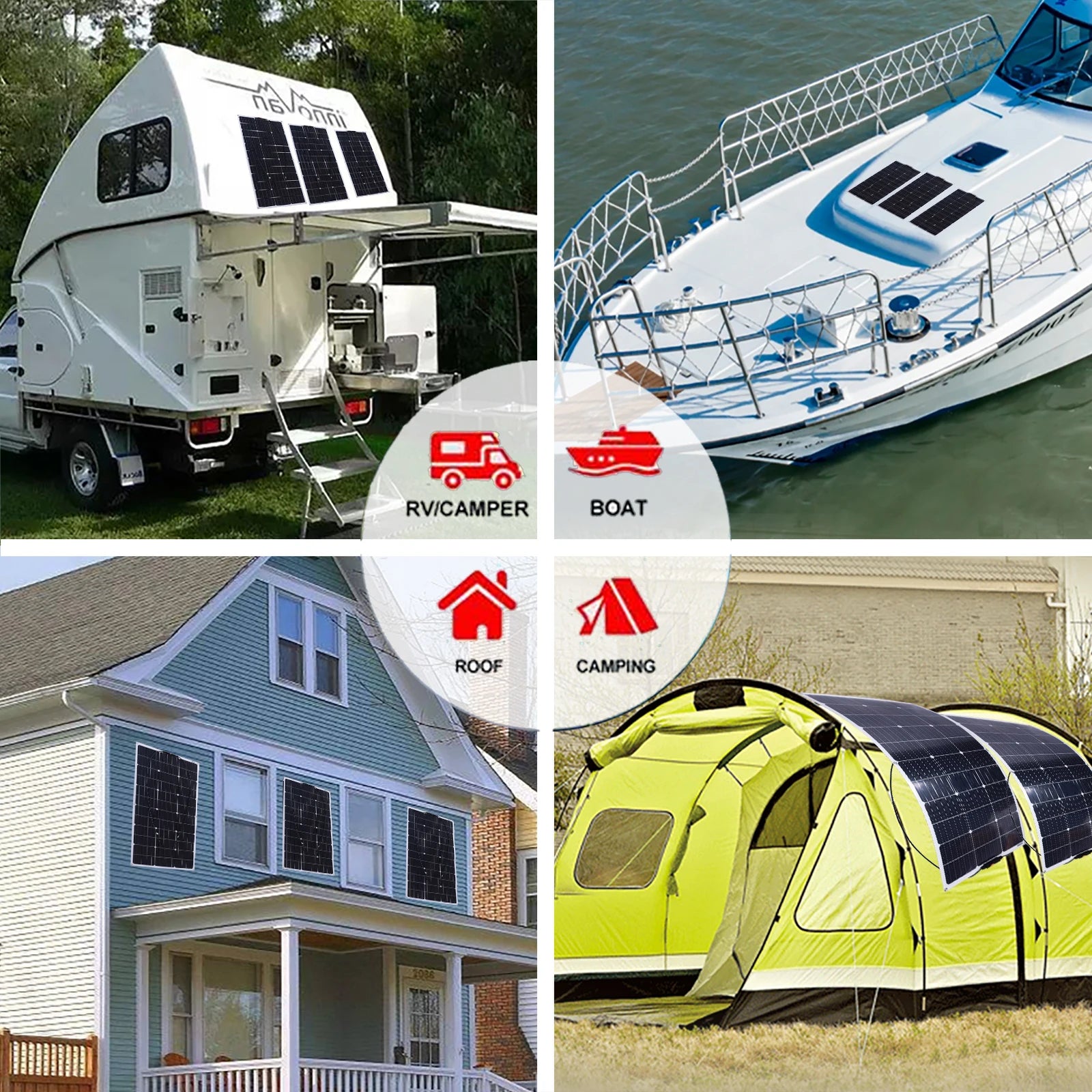

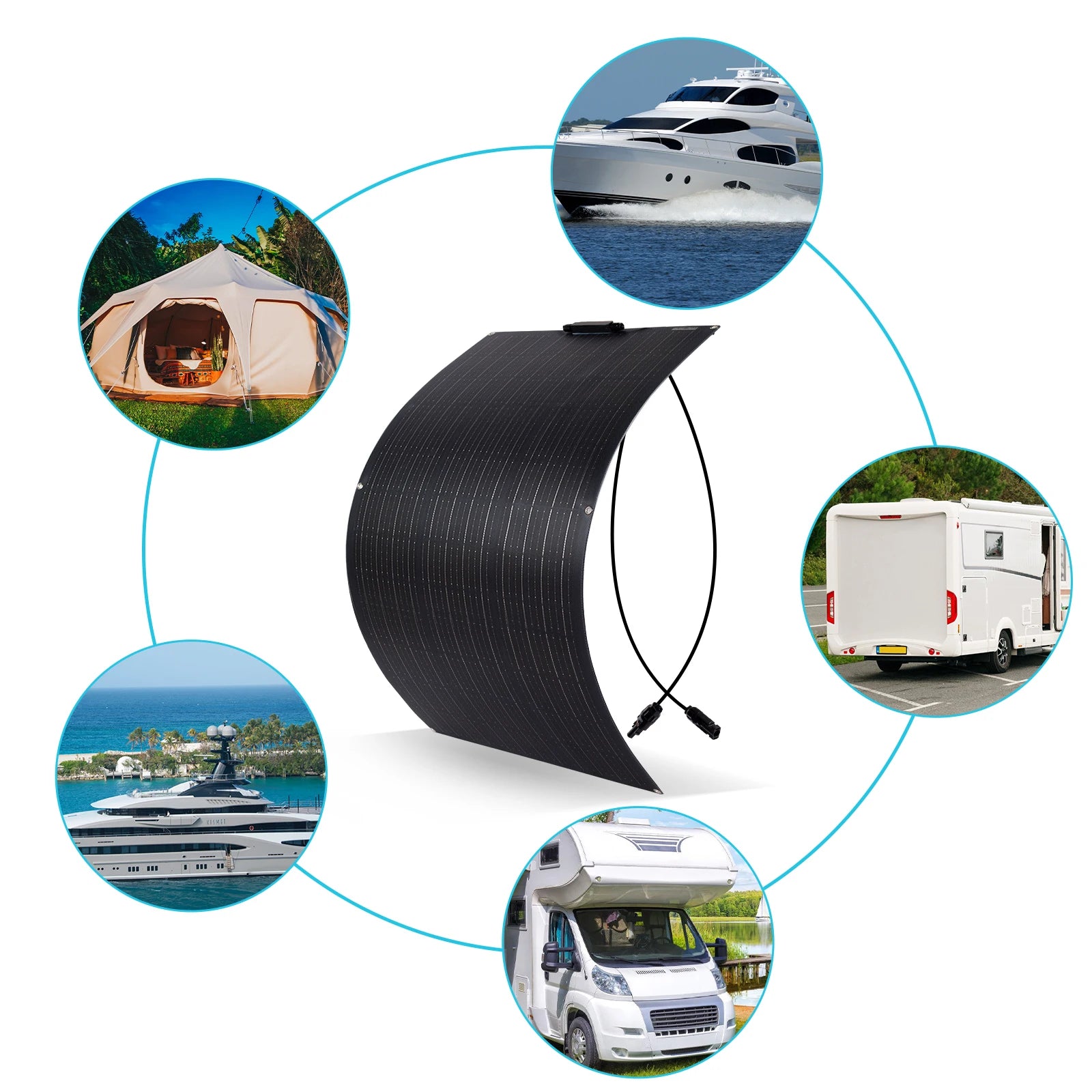

This solar panel system is perfect for camping, boats, and RVs, providing reliable power wherever you go.

Durable Material

Constructed with durable materials, this solar panel withstands harsh weather conditions, ensuring long-lasting performance.

Newly BSP 18BB-33-125

Material: Monocrystalline silicon
Maximum Power(Pmax):125W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):6.67A
Open-Circuit Voltage (Voc): 21V
Short-Circuit Current (Isc):7.72A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage:DC1000V
Maximum Series Fuse:15A

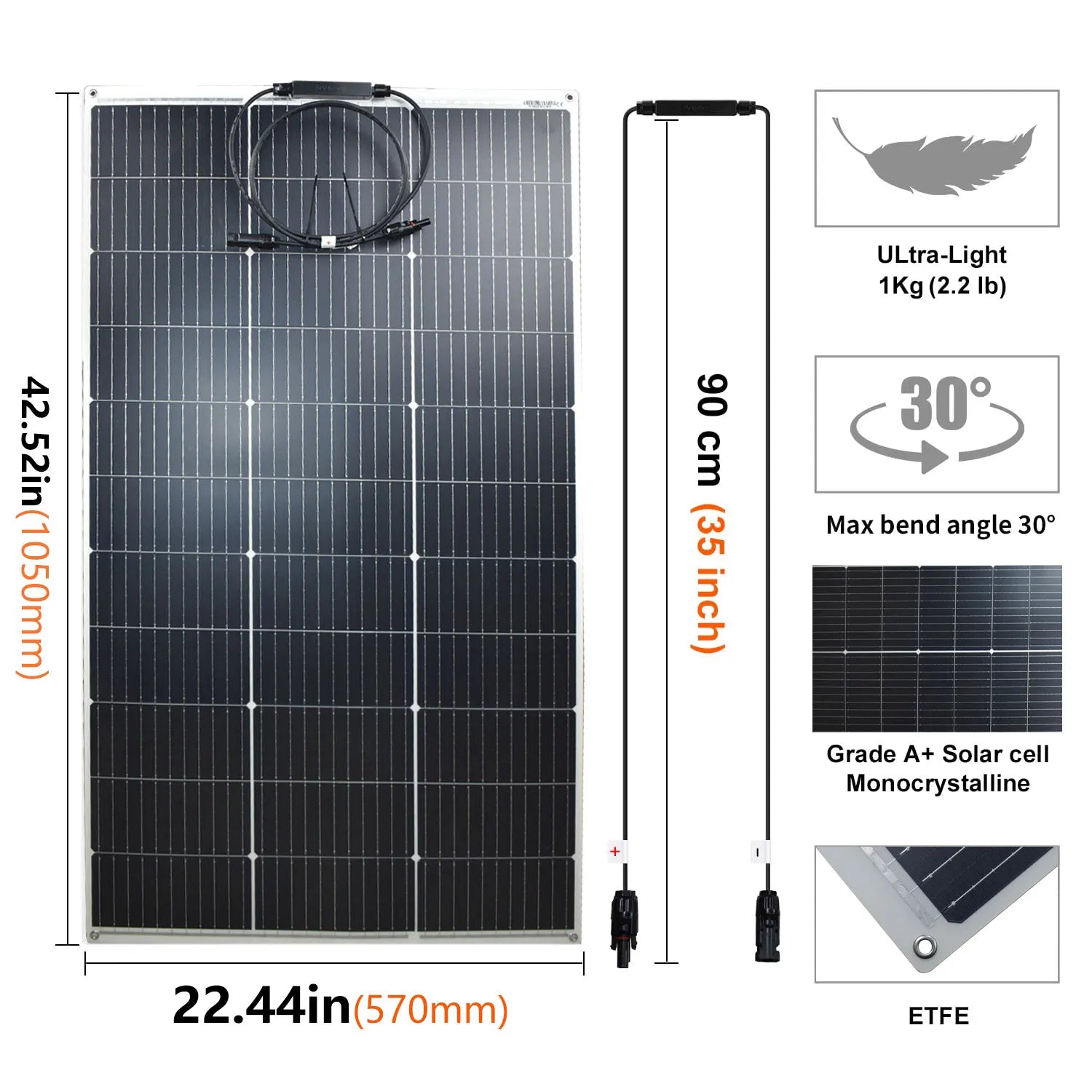

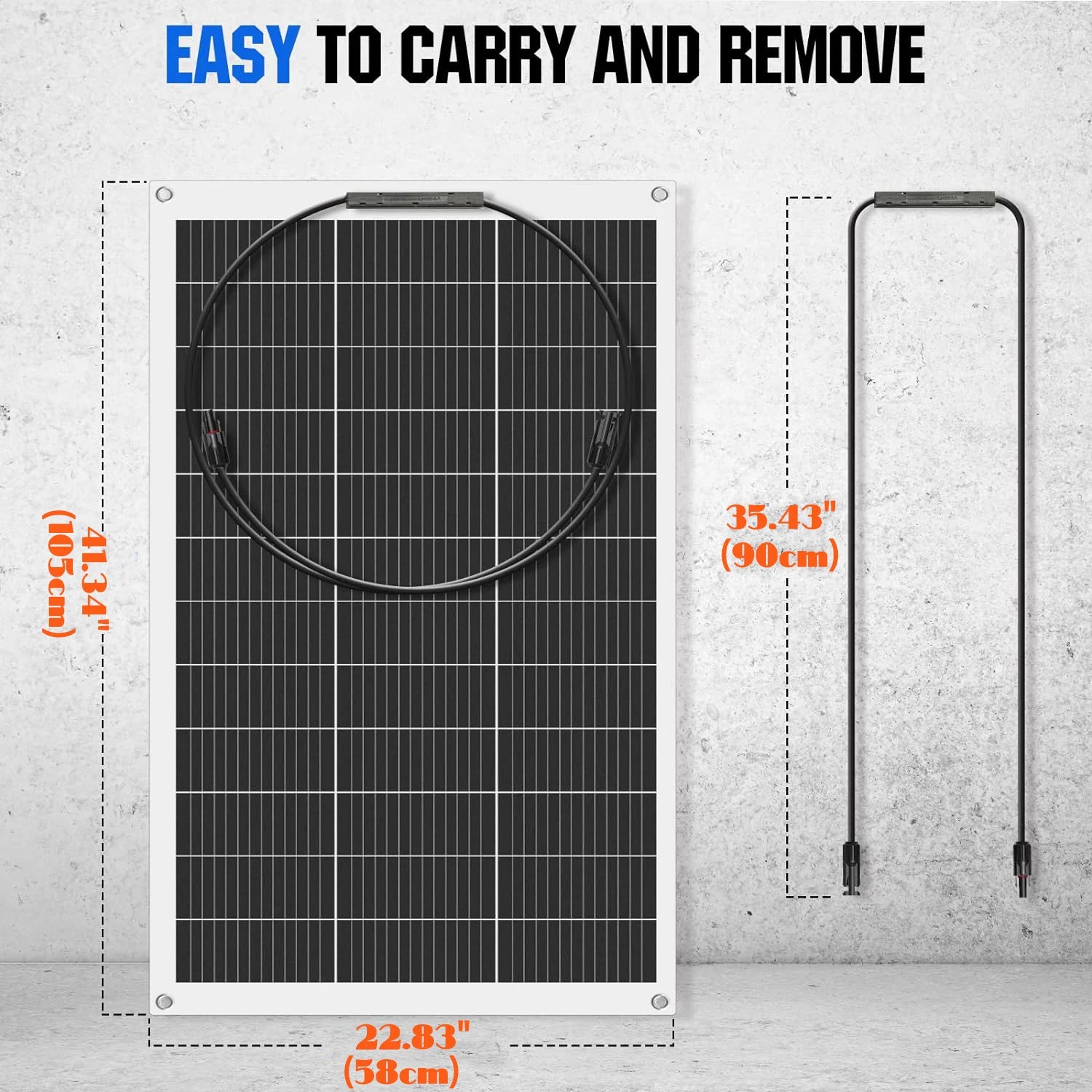

Dimension:1050MM(L)*568MM(W)*2.5mm(H) Equal
Package Weight:3.25kg
Package Dimension:1080MM*590MM*40MM
(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.13AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）

1 Years Warranty, 6-8 Year Lifetime

Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-5%) of the STC efficiency (1000 W/m2) is achieved.

Extra: We keep right to change the specification of the data, and there is about ±5%deviation for all specification, pls notice this point.

Advantages of JINGYANG Solar Panels

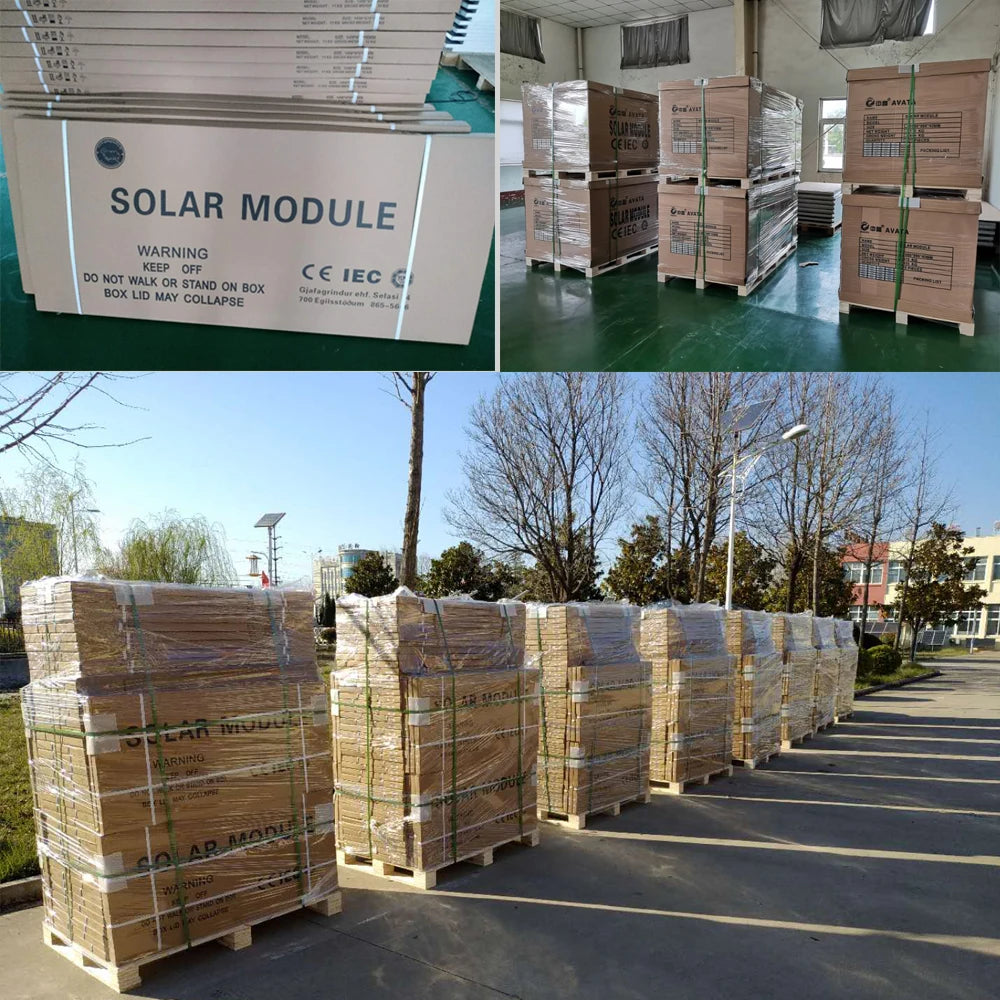

Stronger Box Package, sturdy and durable, good heat dissipation. No hot spots will appear.

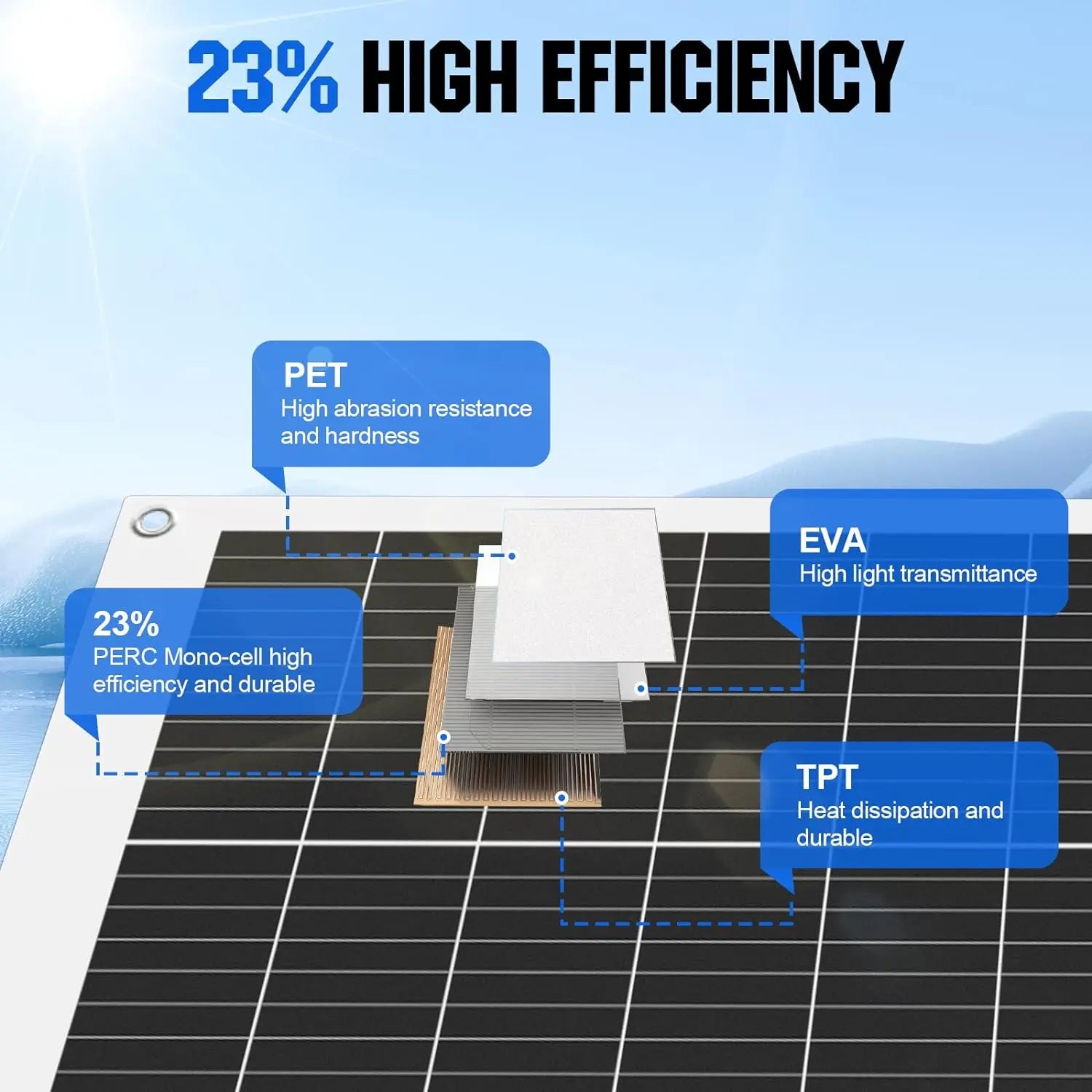

Japan A Grade Film Coating is corrosion resistant, Bear Higher Temperature; Higher Efficiency and is suitable for both indoor and outdoor use.

With a service life of more than 8-10 years, it is Very Thin And Durablle With Less Weight. It is the best choice for motorhomes and Camping, Boat, Marine, RV, Bus Car Roof. It has a very high cost performance and is the best choice for home energy investment Or Outdoor Usage.

Product description:

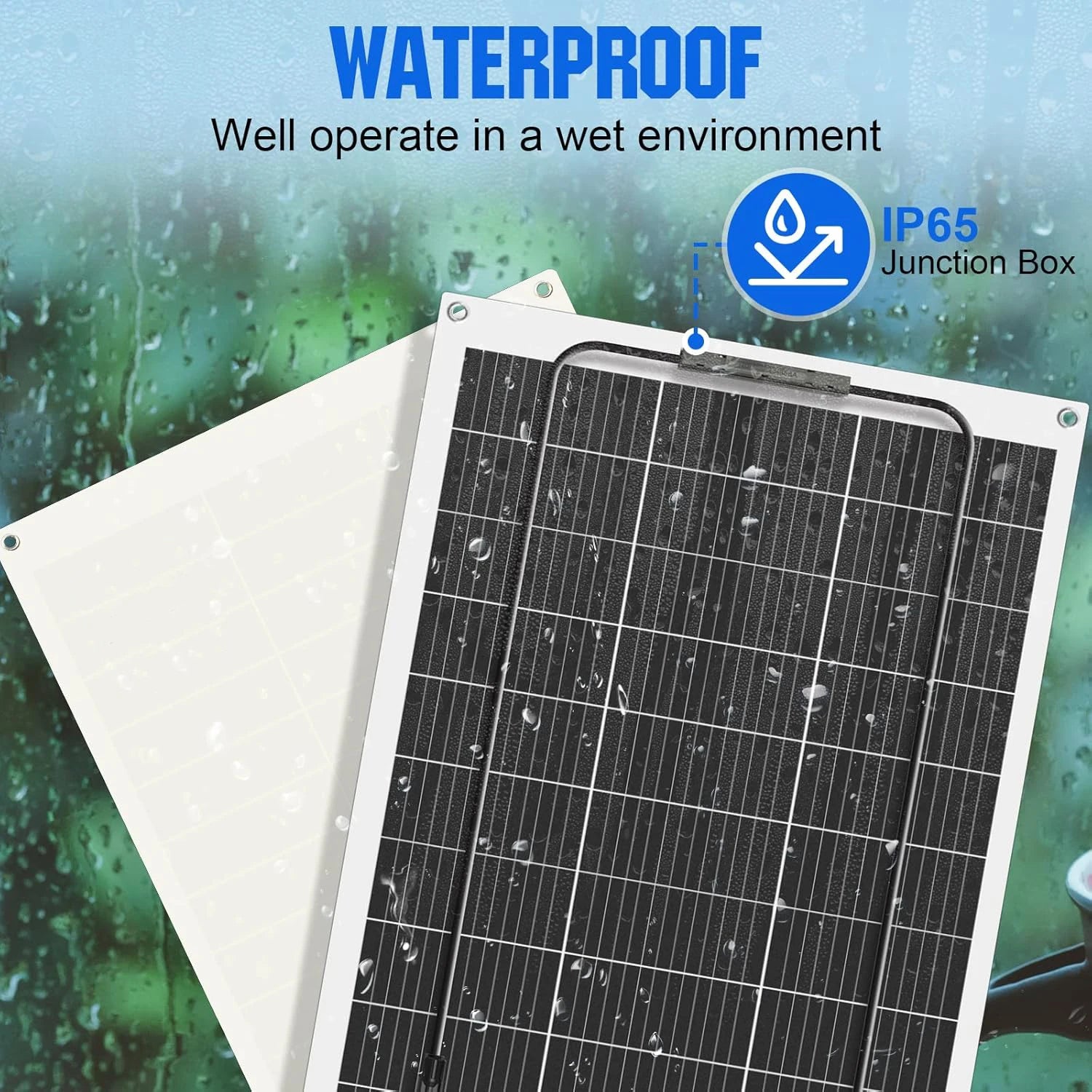

The surface is Total Japan ETFE Film Coating, waterproof, snowproof, resistant to small hail.

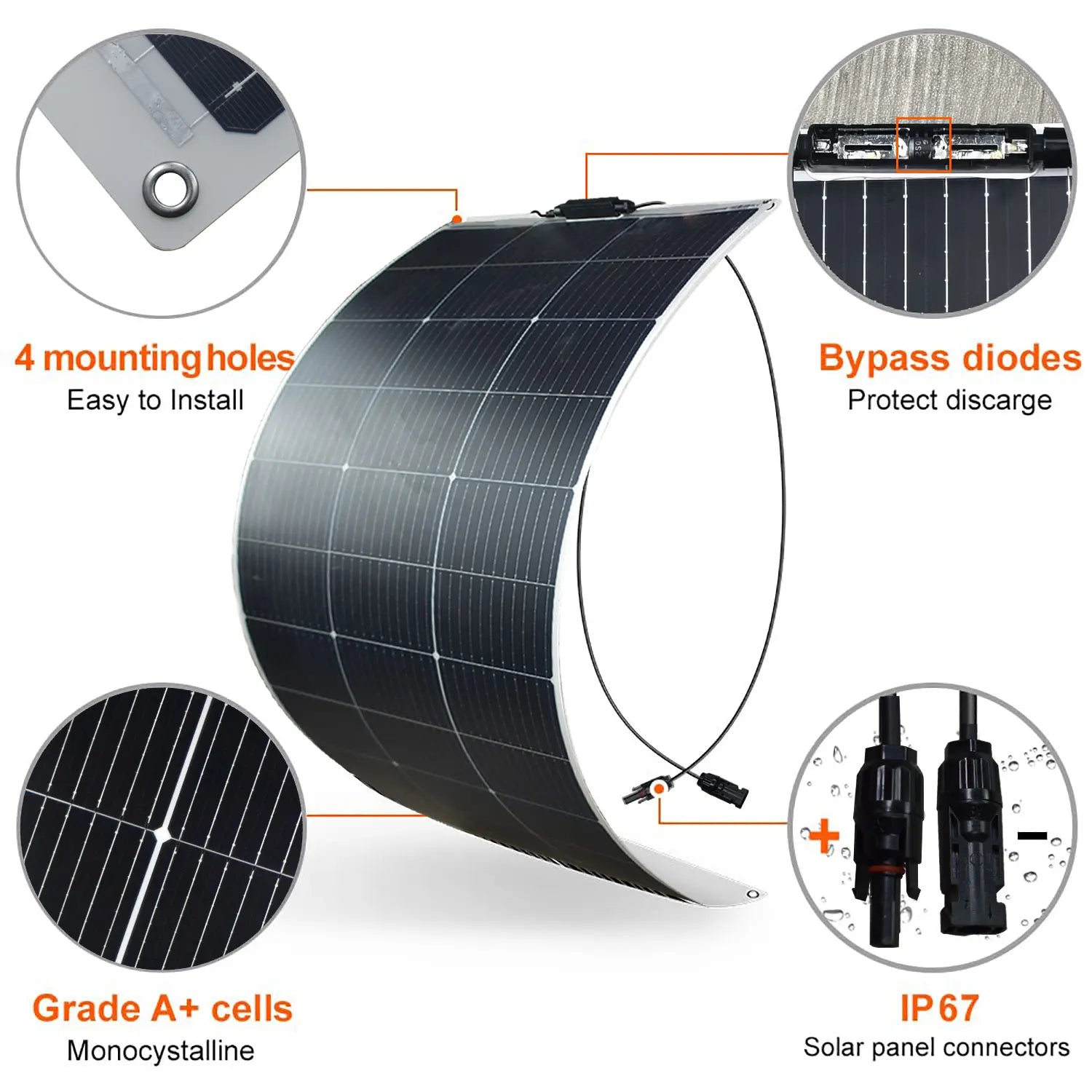

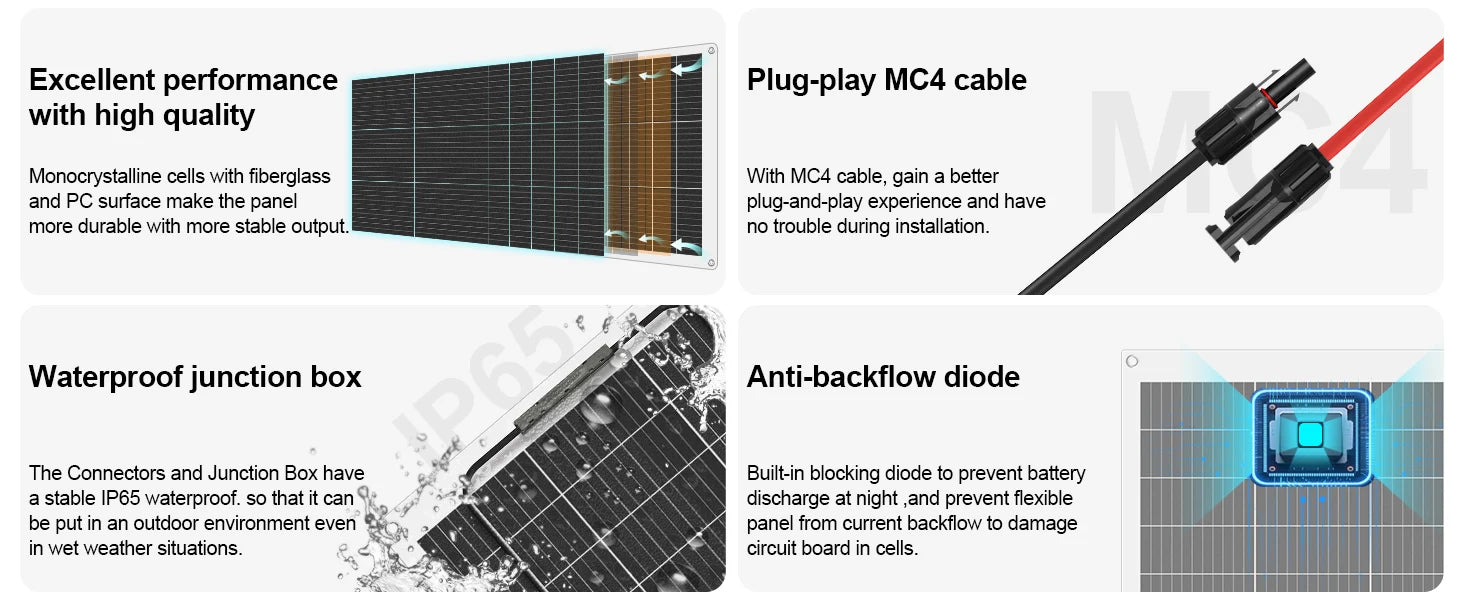

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with connectors comes with the panel automatically, Cable Length with About 900MM

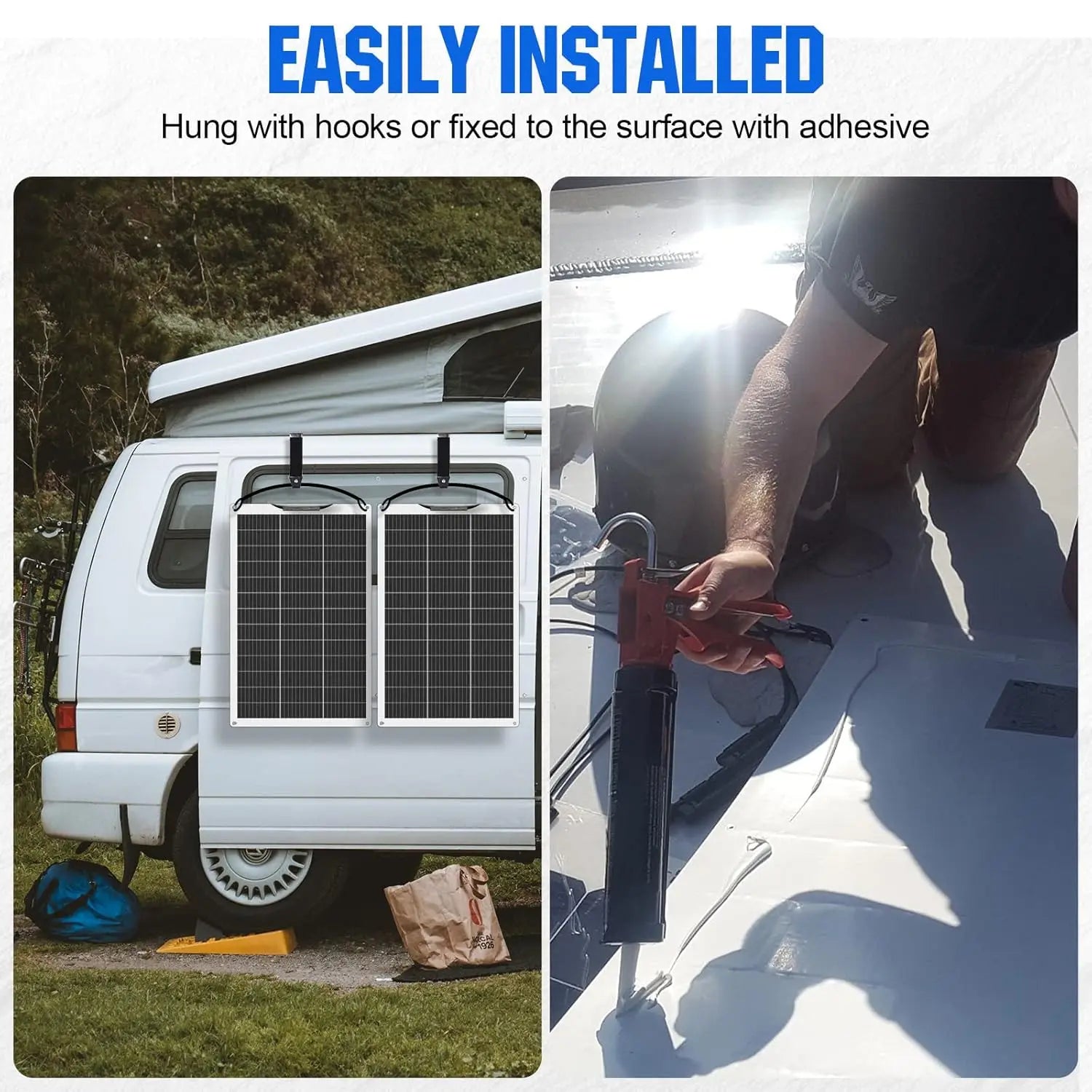

The back has 6 drill holes that can be quickly installed.

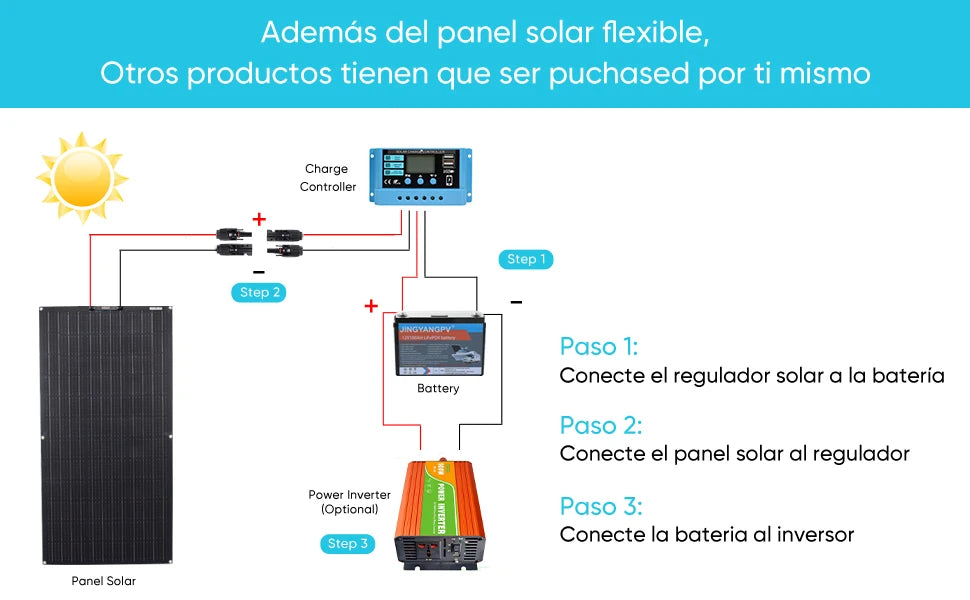

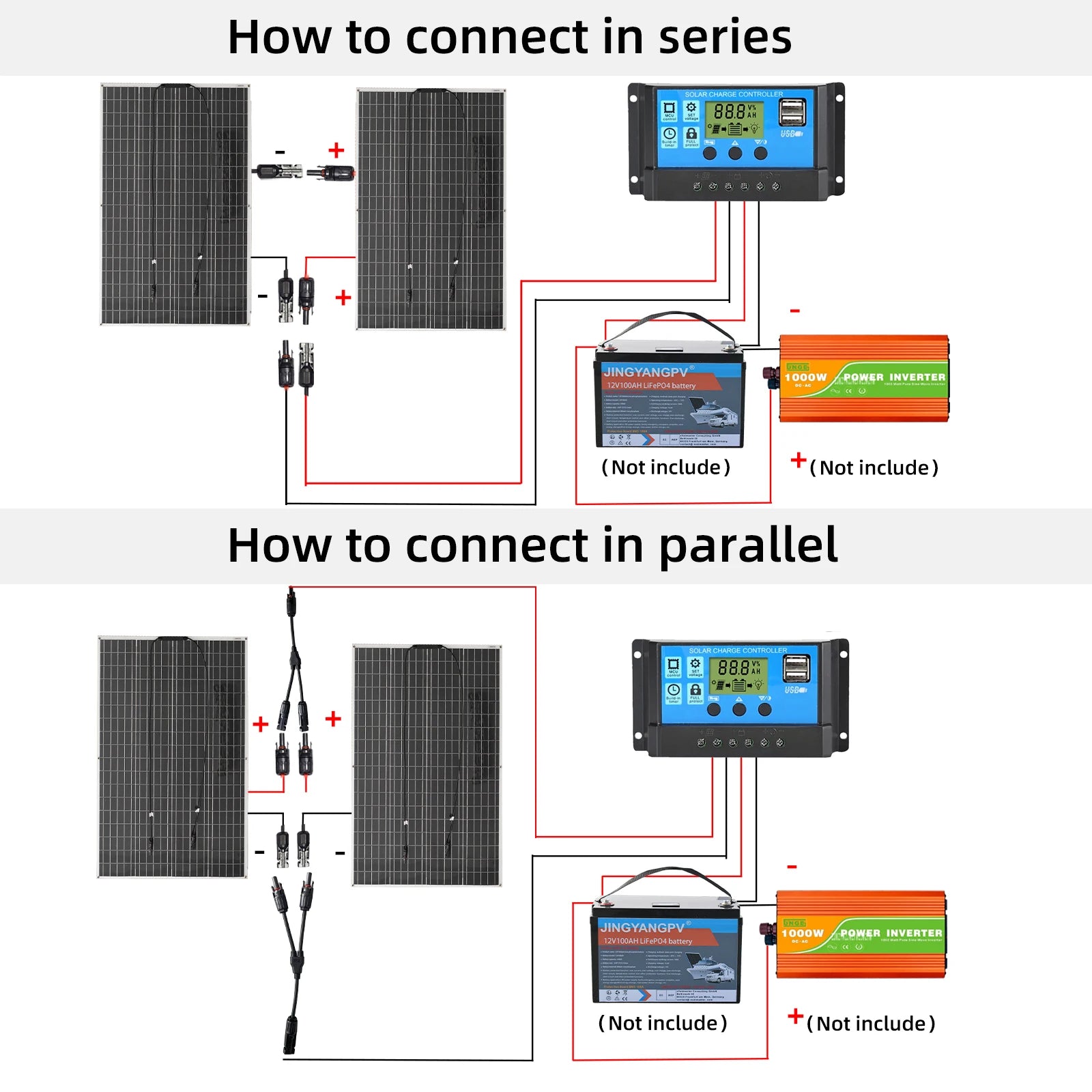

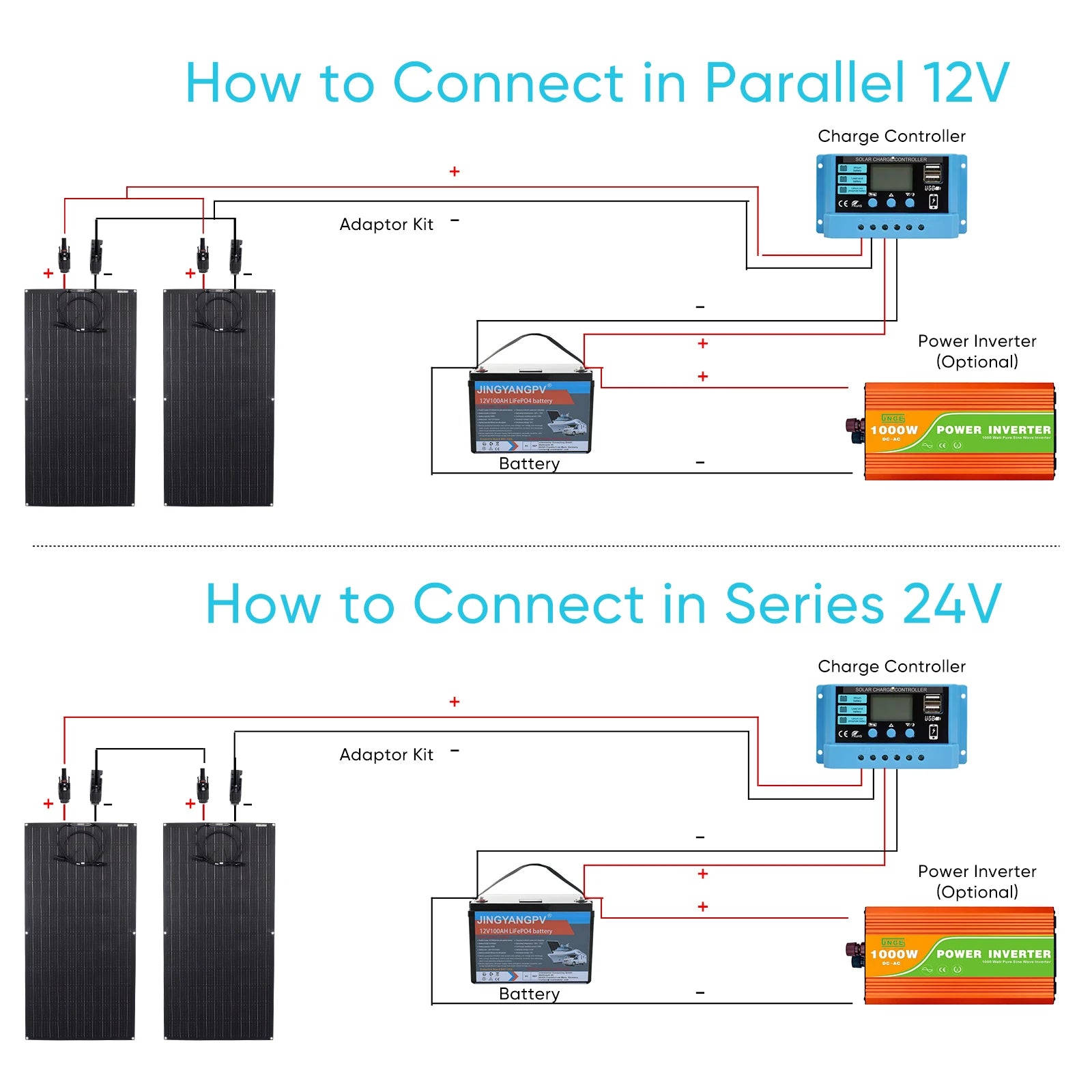

100W OR 200W or 300w or 400w Solar System
