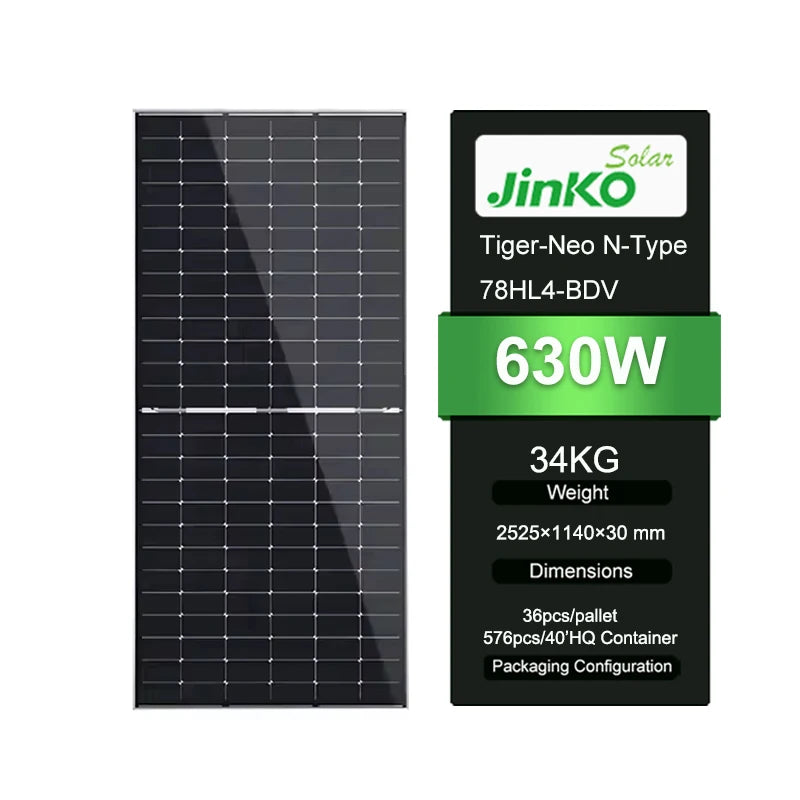

JKM625-650N-78HL4-BDV
630 Watt
MONO-FACIAL
MODULE
N-type

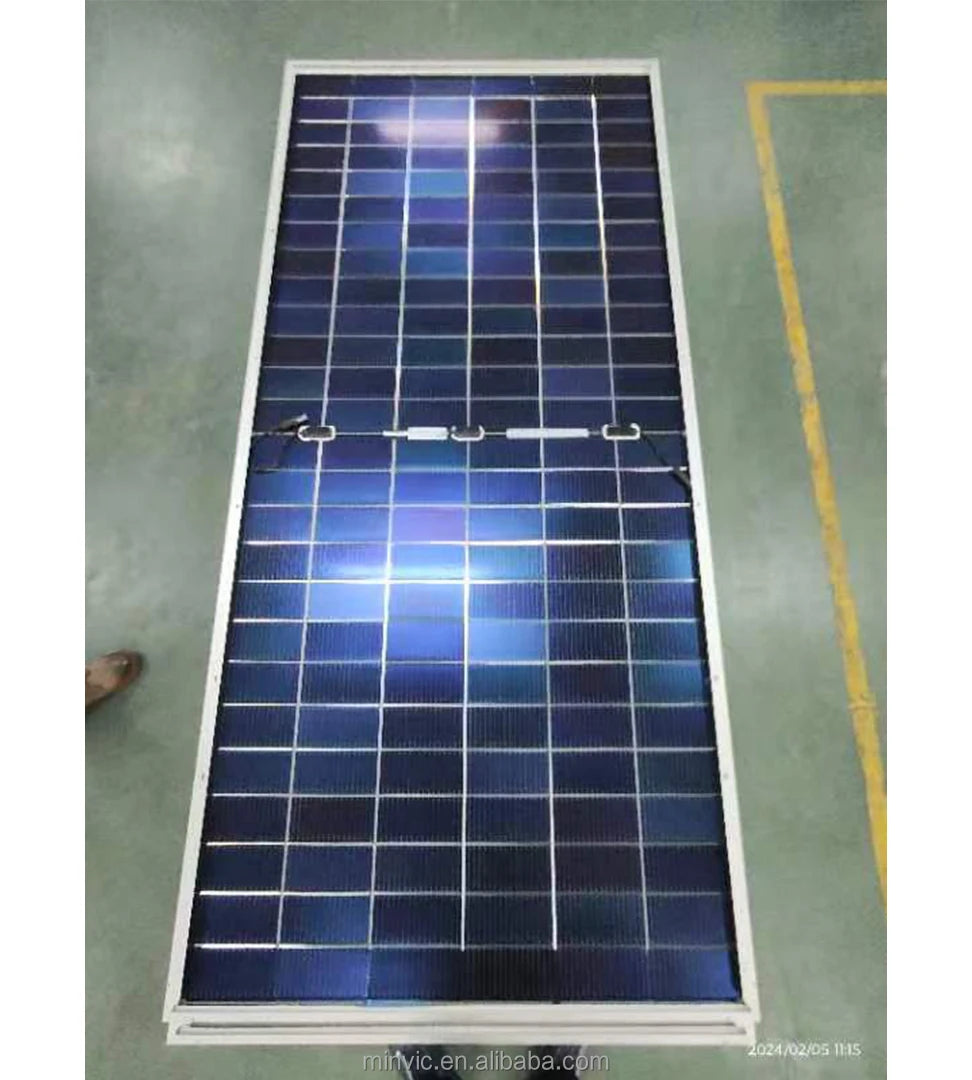

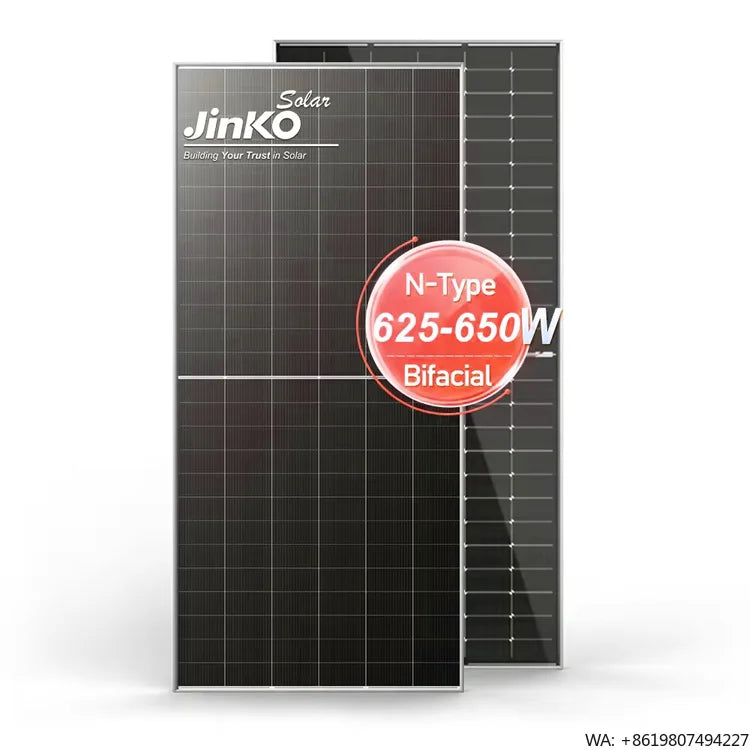

JINKO JKM625-650N-78HL4-BDV 625W 630W 650W N-Type Bifacial Solar Panel TUV IEC 12-Year Warranty Ready Stock
Default Title
₱7,853.72PHP
Sale price
₱7,853.72PHP
Regular price
Skip to product information
JINKO JKM625-650N-78HL4-BDV 625W 630W 650W N-Type Bifacial Solar Panel TUV IEC 12-Year Warranty Ready Stock
₱7,853.72PHP
Sale price
₱7,853.72PHP
Regular price
Pickup currently not available
SPECIFICATIONS
Brand Name: NONE
Cell Type: N-type Mono-crystalline
Cell size: 182mmx182mm
Frame: Anodized Aluminium Alloy
High-concerned chemical: None
IEC Fire type: class C
Junction Box: IP 68 Rated
Model Number: JKM625-650N-78HL4-BDV
No. of cells: 156
Origin: Mainland China
Panel Dimensions: 2525*1140*30mm
Panel Efficiency: 22.5%
Place of Origin: Anhui
Protection class: class II
Type: Half Cell, Bifacial, N-TYPE, Double-glass, TOPCON, Overlapping, House use, Home use, Commercial use, 630W, HOT SALE, A-grade, Tier one
Warranty: 12years
Weight: 34kg
Dear Customer,
Thank you for visiting our product page. We are glad you are interested in Qianrui Solar & Energy Storage.
We specialize in customized solar power systems and energy storage solutions for residential, commercial and industrial use, providing reliable, efficient and green power supply.
Our motto: Power your future, store your energy.
I am the product manager and will be your exclusive contact.
All solutions are customized, so prices on the platform are for reference only. Please contact me before ordering.
We will offer you the most competitive price and best service. Whether you choose us or not, we are always ready to help. Hope you find the ideal energy solution for you.
Contact
Manager: Harvey
WhatsApp: +86 198 0749 4227
Email: qianruiheaven@gmail.com

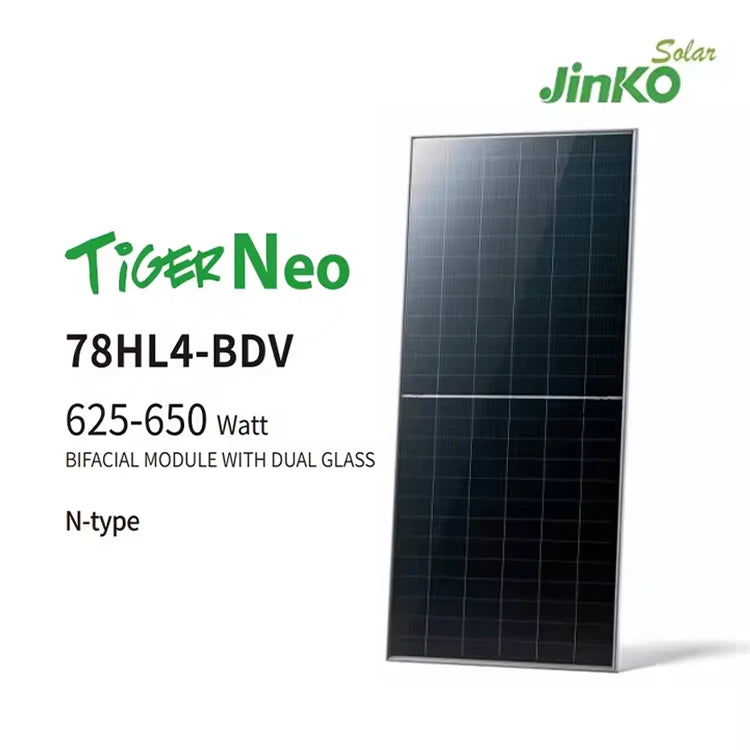

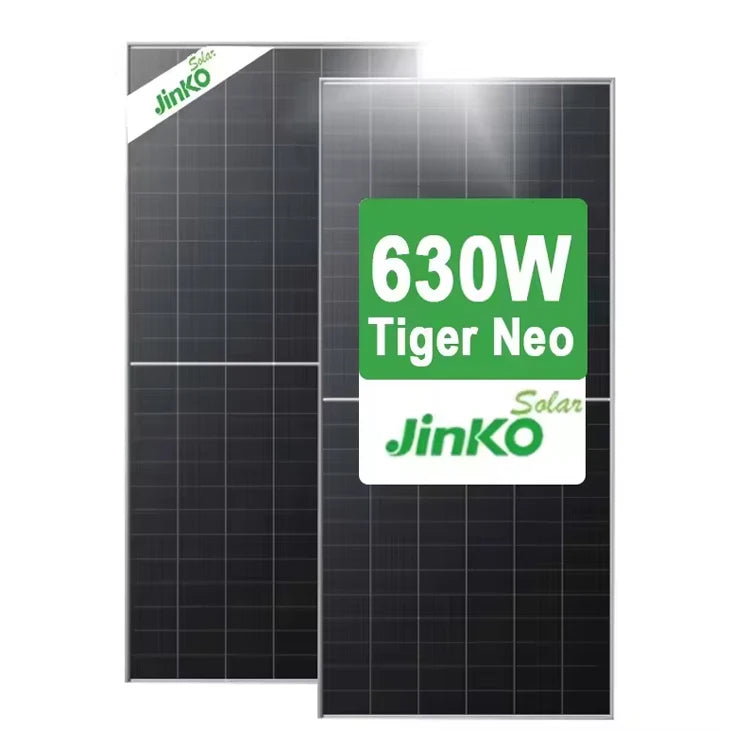

Jinko Tiger Neo
Whether it's for your own use or transferred into grids, solar power generation offers a new way to generate revenue.but it still depends on whether you choose the right modules and the best partners
Product Description

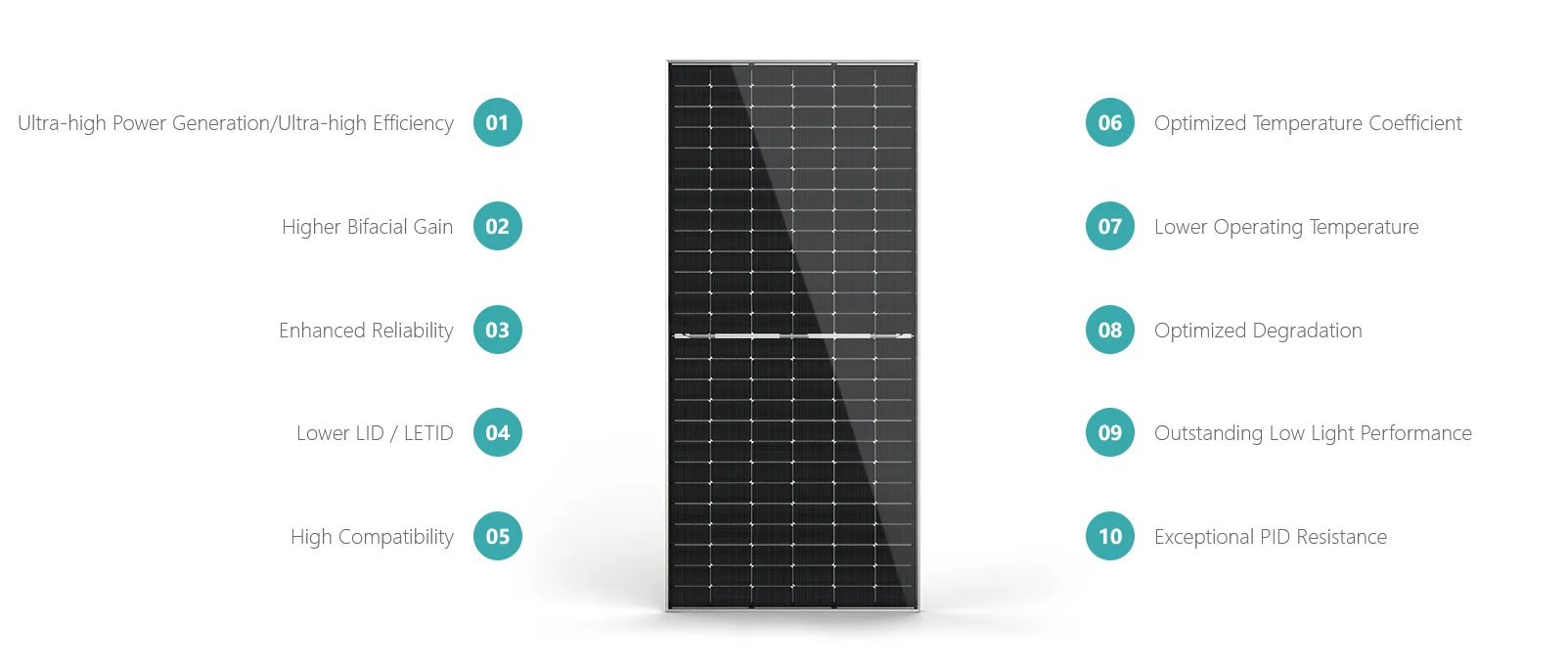

Product Advantages

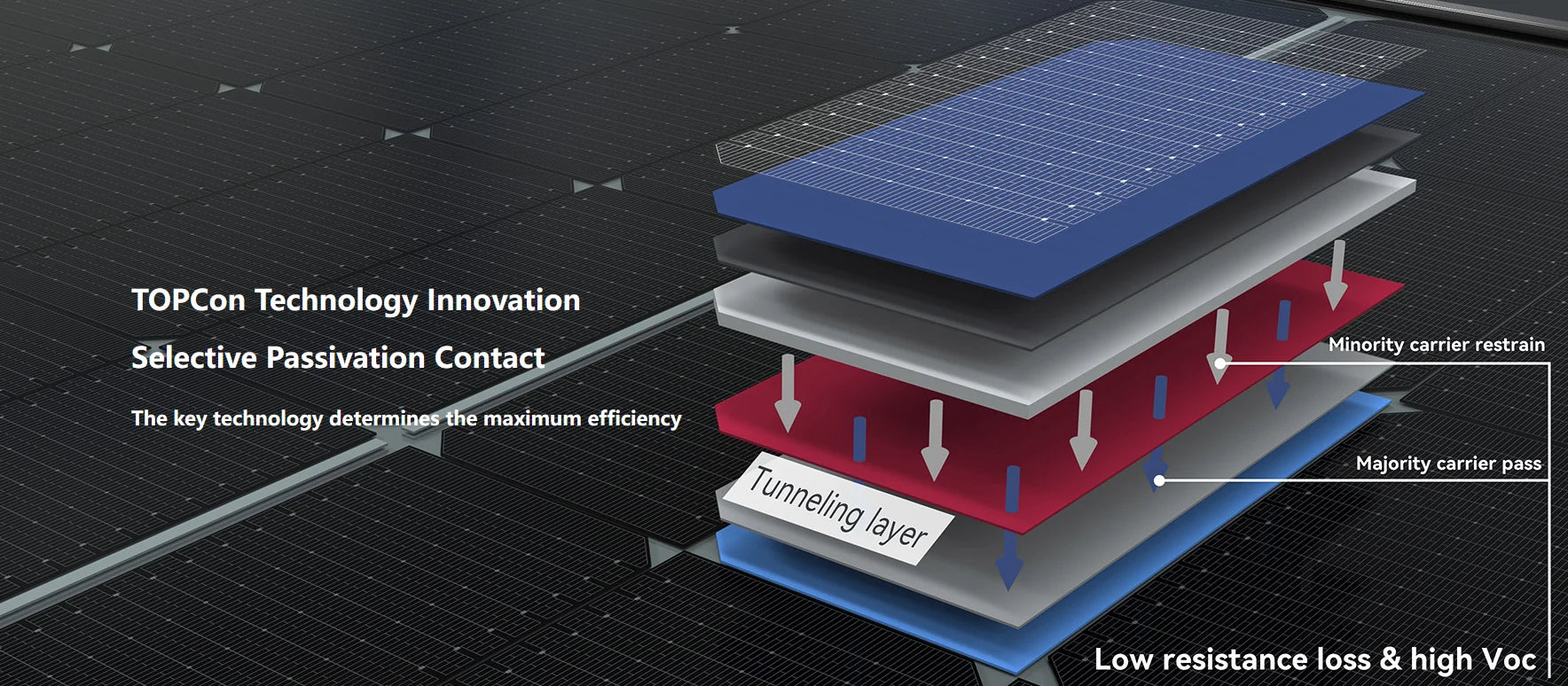

N-type Technology:
N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low light performance.
|
HOT 2.0 Technology:
N-type modules with Jinko Solar's HOT 2.0 technology offer better reliability and efficiency.
|
Durability Against
Extreme Environment:
High salt mist and ammonia resistance.
|
Mechanical Load Enhanced:
Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load
|
SMBB Technology:
Better light trapping and current collection to improve module power output and reliability.
|
Anti-PID Guarantee:
Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
|
Product Paramenters
Mechanical Characteristics |
||
Cell type |
N-type Mono-crytalline |
|
No.of cells |
156 |
|
Dimensions |
2525*1140*30 |
|
34Weight |
34kg |
|
Frame |
Anodized Aliminium Alloy |
|
Junction Box |
IP68 Rated |
|
Protection Class |
Class II |
|
IEC fire Type |
Class C |
|
Output Cables |
4.0mm2 (+): 400mm , (-): 200mm or Customized Length |
|
Front Glass |
3.2mm, Anti-Reflection Coating |
|
Packaging Configuration |
||
Pallet Dimensions |
2525×1140×1251 mm |
|
Packing Detail (Two pallets=one stack) |
36pcs/pallets, 62 pcs/stack, 576pcs/40'HQ Container |
|
Specifications (STC) |
||||||||||||
Maximum power-Pmax (Wp) |
625 |
630 |
635 |
640 |
645 |
650 |
||||||
Maximum Power Voltage - Vmp(V) |
47.54 |
47.70 |
47.86 |
48.02 |
48.17 |
48.33 |
||||||
Maximum Power Current - Imp(A) |
13.15 |
13.21 |
13.27 |
13.33 |
13.39 |
13.45 |
||||||
Open-circuit Voltage - Voc (V) |
56.95 |
57.08 |
57.21 |
57.34 |
57.47 |
57.60 |
||||||
Short-circuit Current - Isc(A) |
13.80 |
13.86 |
13.92 |
13.98 |
14.04 |
14.10 |
||||||
Module Efficiency STC(%) |
22.40 |
22.50 |
22.70 |
22.90 |
23.10 |
23.30 |
||||||
Power Tolerance |
0- +3% |
|||||||||||
Temperature Coefficients of Pmax |
-0.29%/℃ |
|||||||||||
Temperature Coefficients of Voc |
-0.25%/℃ |
|||||||||||
Temperature Coefficients of Isc |
0.045%/℃ |
|||||||||||
Application Conditions |
||
Operation Temperature |
-40℃~+70℃ |
|
Maximum System Voltage |
1500VDC(IEC) |
|
Maximum Series Fuse Rating |
30A |
|
Nominal Operating Cell Temperature- NOCT |
45±2℃ |
|
Solutions

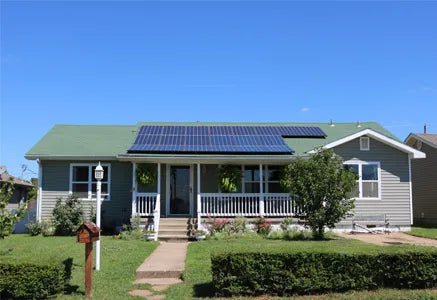

Residential house roof
More than a million homes around the world have been furnished with Jinko's modules, which provide your home with reliable clean energy and reduce your electricity costs throughout the year.

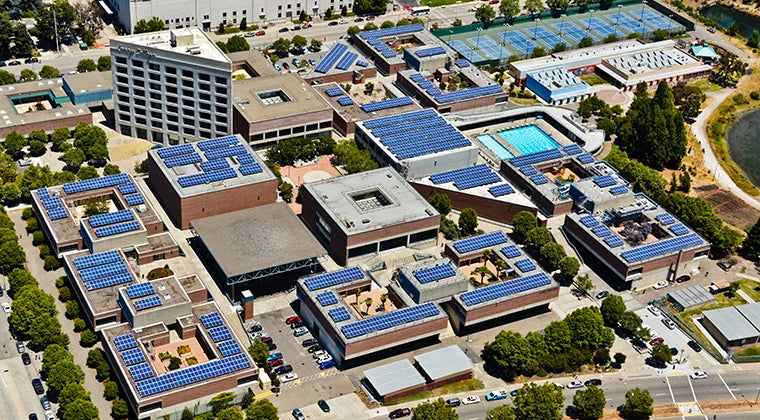

Industrial and commercial distribution
Industrial and commercial distribution
Do you want to invest in PV projects in the market with a high-performance system that maximizes your return on investment?

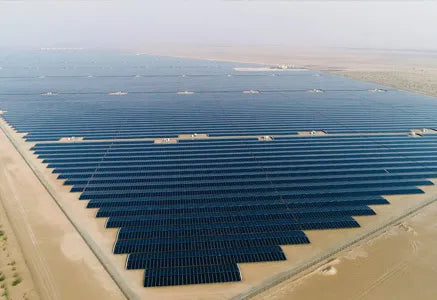

Surface power plants
Recommend Products

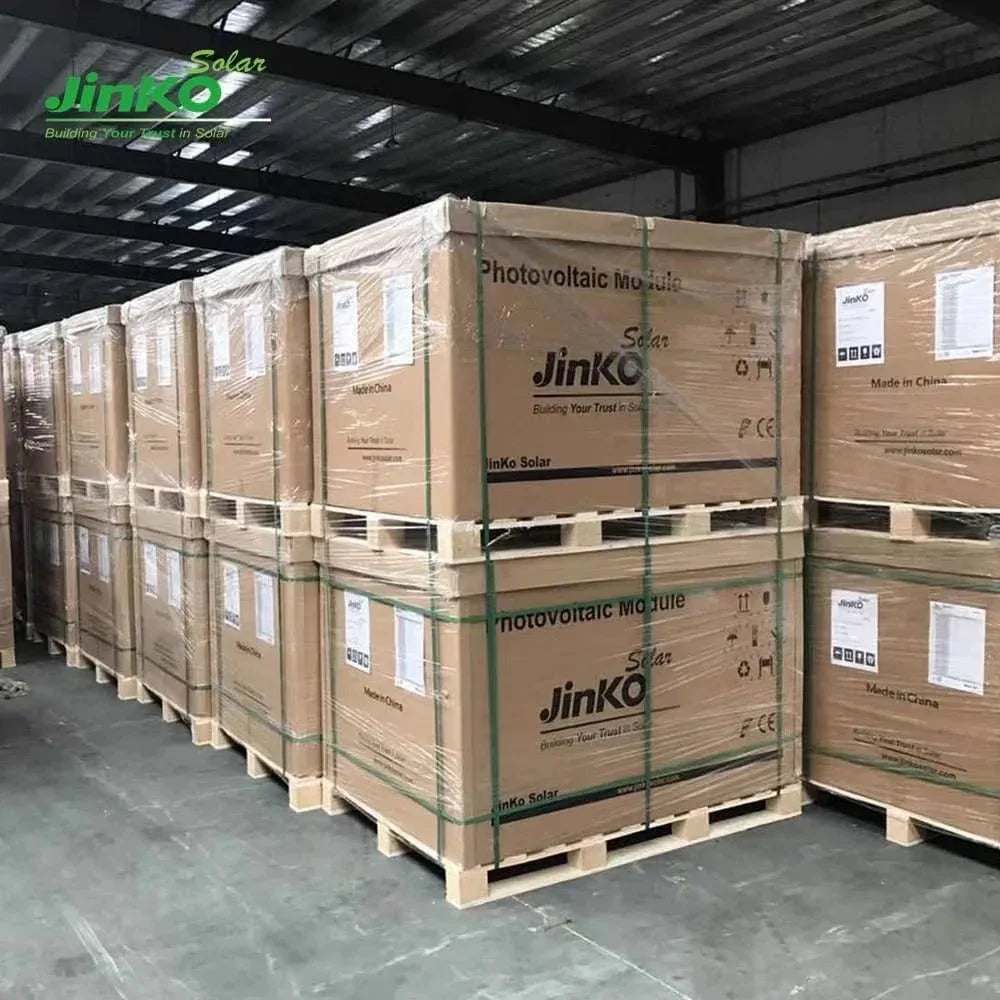

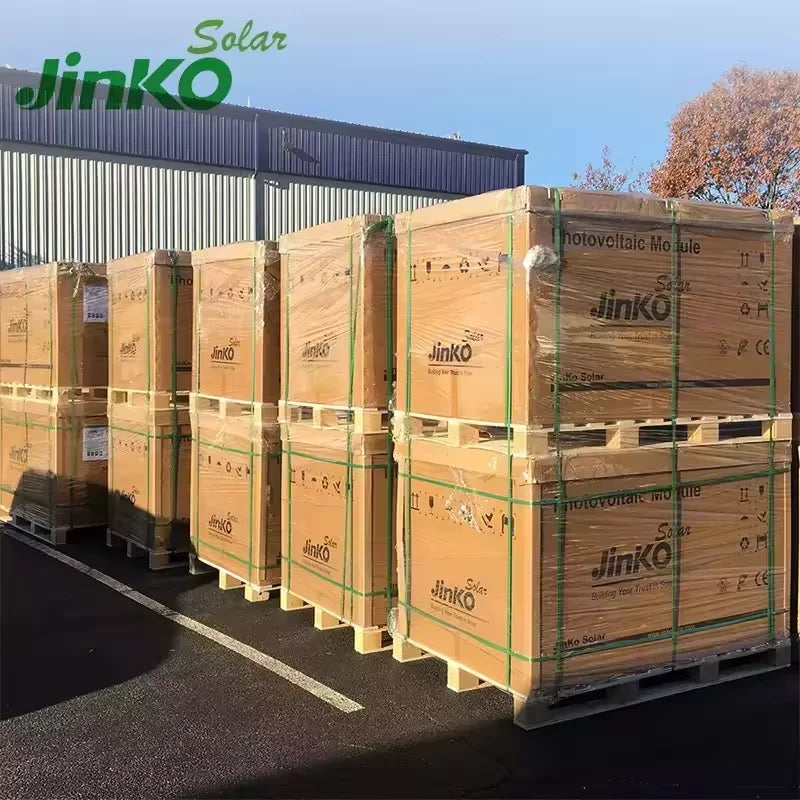

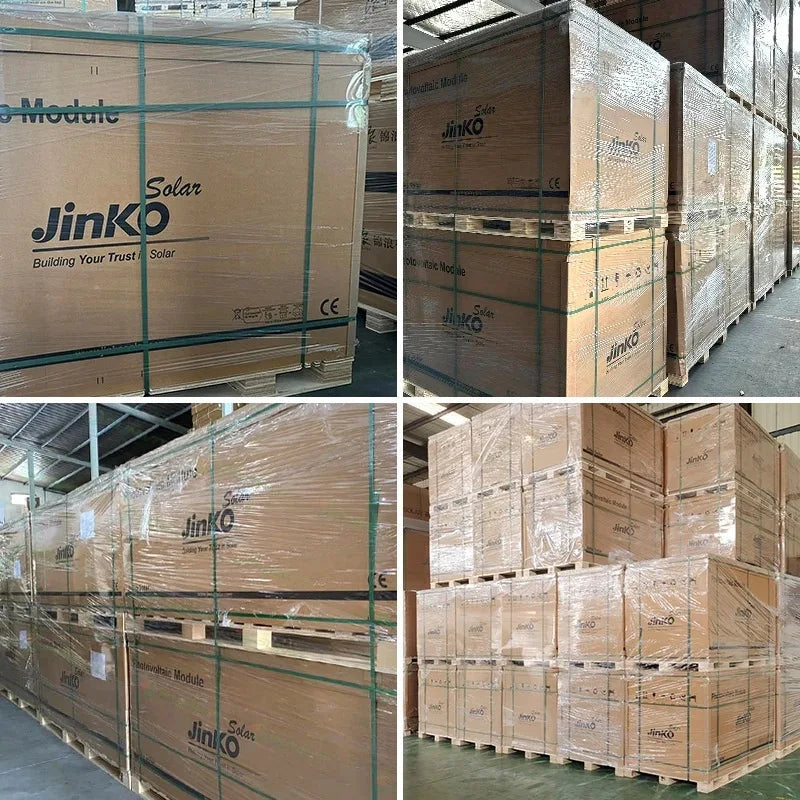

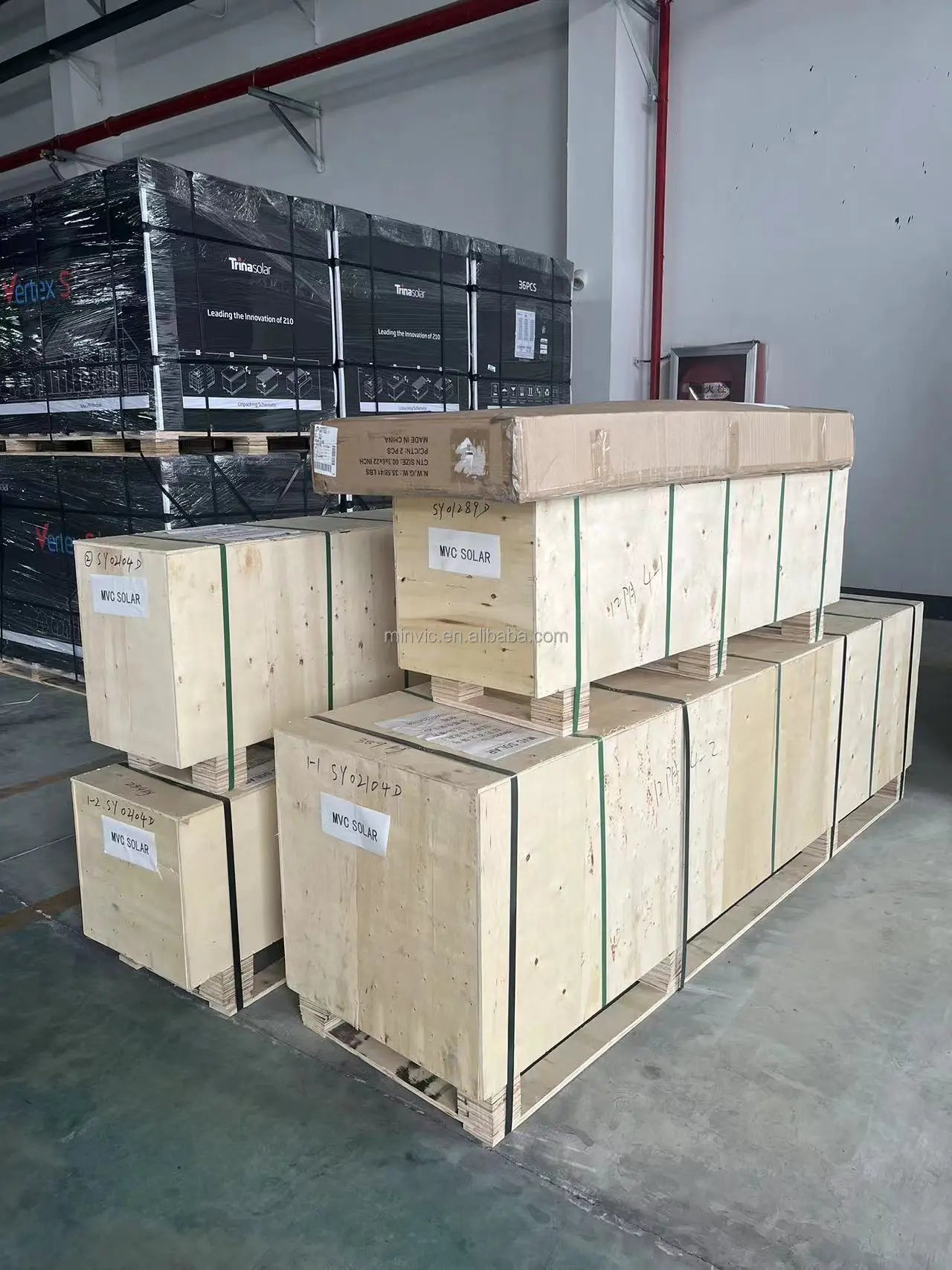

Packing & Delivery
Packing |
36 pcs/pallets, 72 pcs/stack, 576 pcs/ 40'HQ Containe |
||||||
Shipping Way |
By express, by sea |
||||||
Lead Time |
Within 7-10 working days after receiving the down payment |
||||||
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

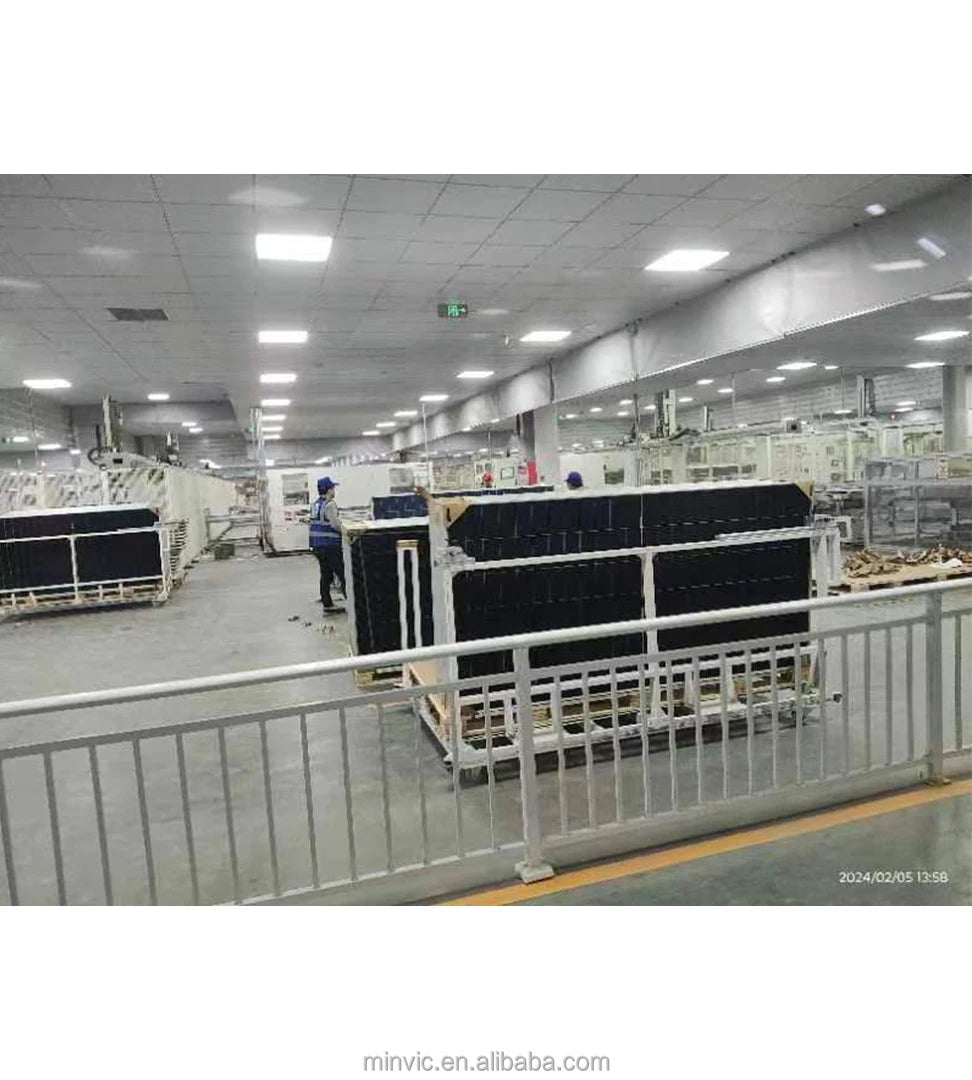

Company Profile
Anhui Minvic New Energy Technology Co., Ltd, established in 2018, has a subsidiary, Anhui Minvic Import & Export Trading Co. We focus on the development, production and sales of photovoltaic new energy products. We are committed to helping our global partners make great strides in products, technologies and solutions related to new energy generation. We are adhering to our vision of linking the world's trading partners and driving the global PV industry forward to achieve a carbon neutral world.
