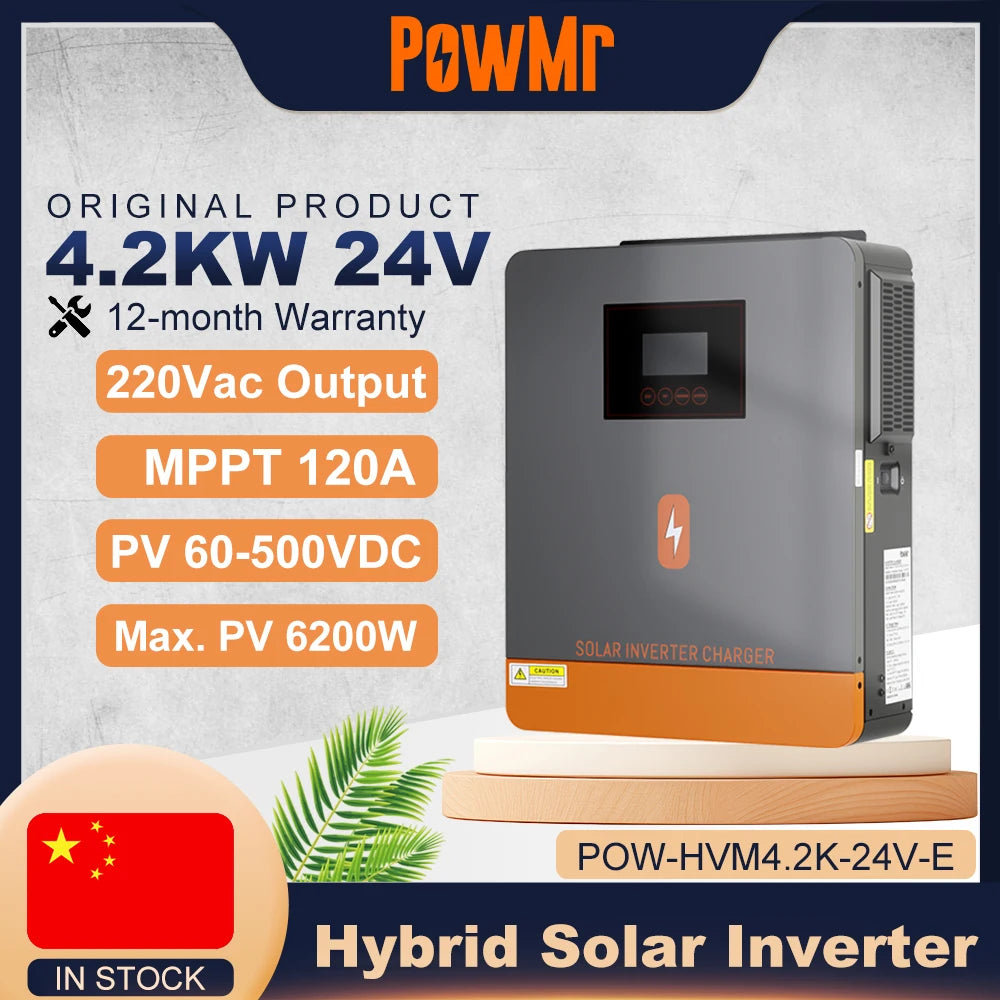

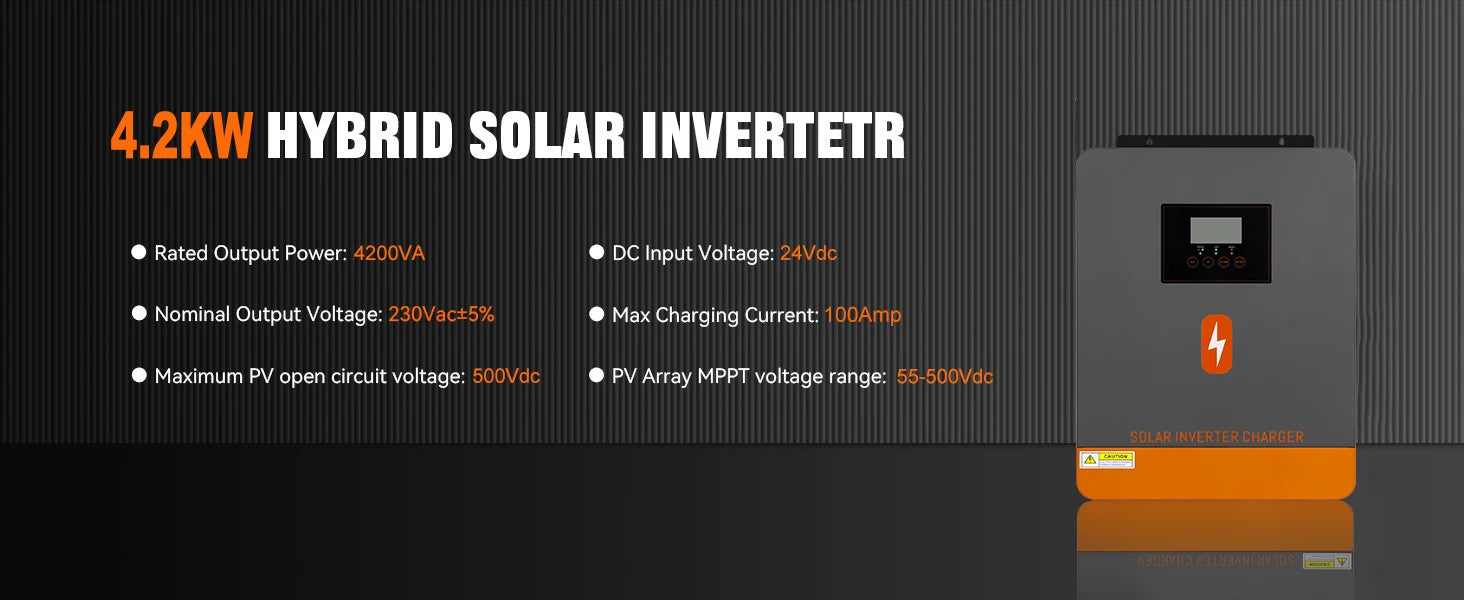

PowMr 4.2KW Hybrid Solar Inverters 24VDC to 220VAC Output PV Range 60~500VDC With MPPT 120A Solar Charge Controller Support WIFI
PowMr 4.2KW Hybrid Solar Inverters 24VDC to 220VAC Output PV Range 60~500VDC With MPPT 120A Solar Charge Controller Support WIFI
Pickup currently not available
SPECIFICATIONS
Applicable area: Asia, Europe, Africa and North America (220-240VAC drivers)

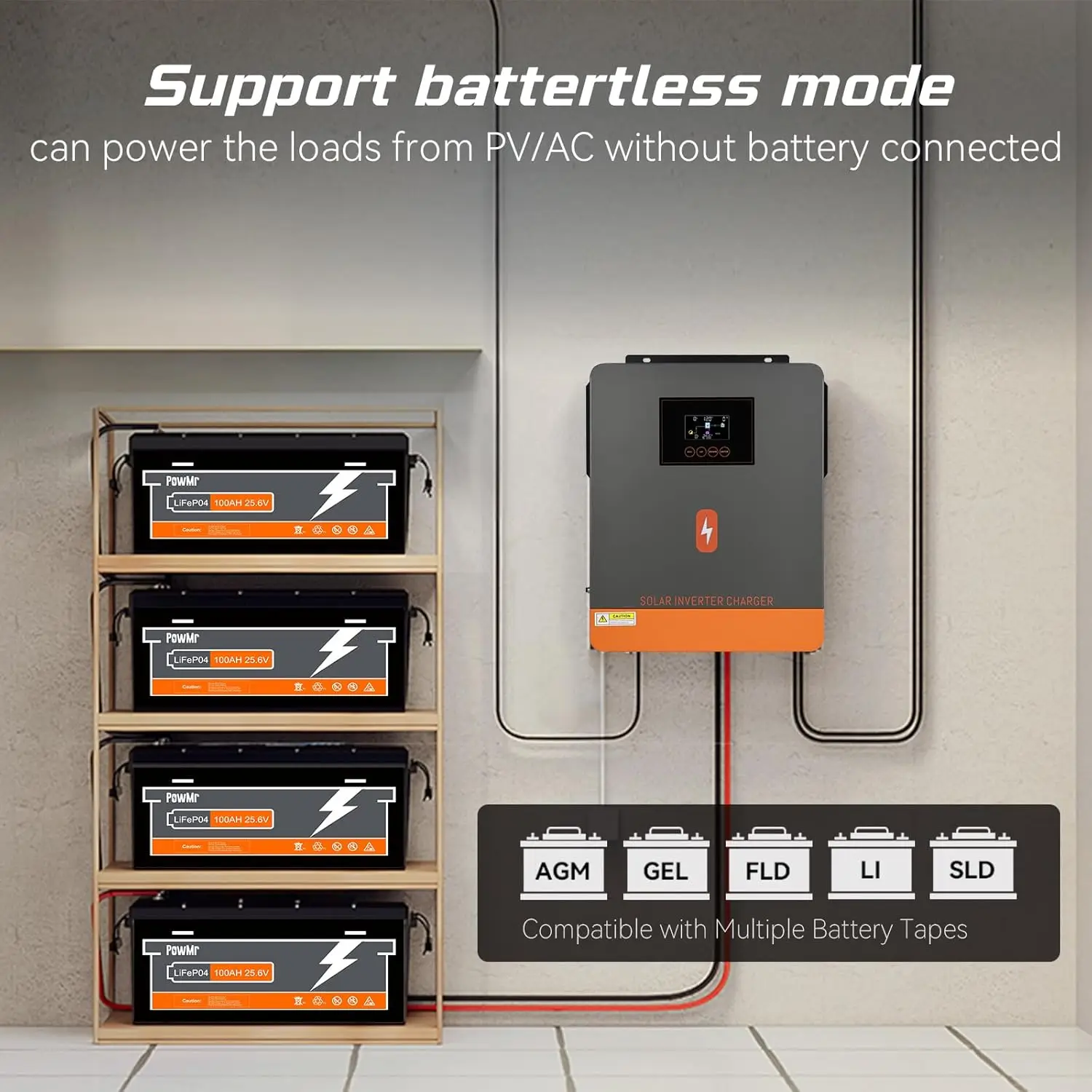

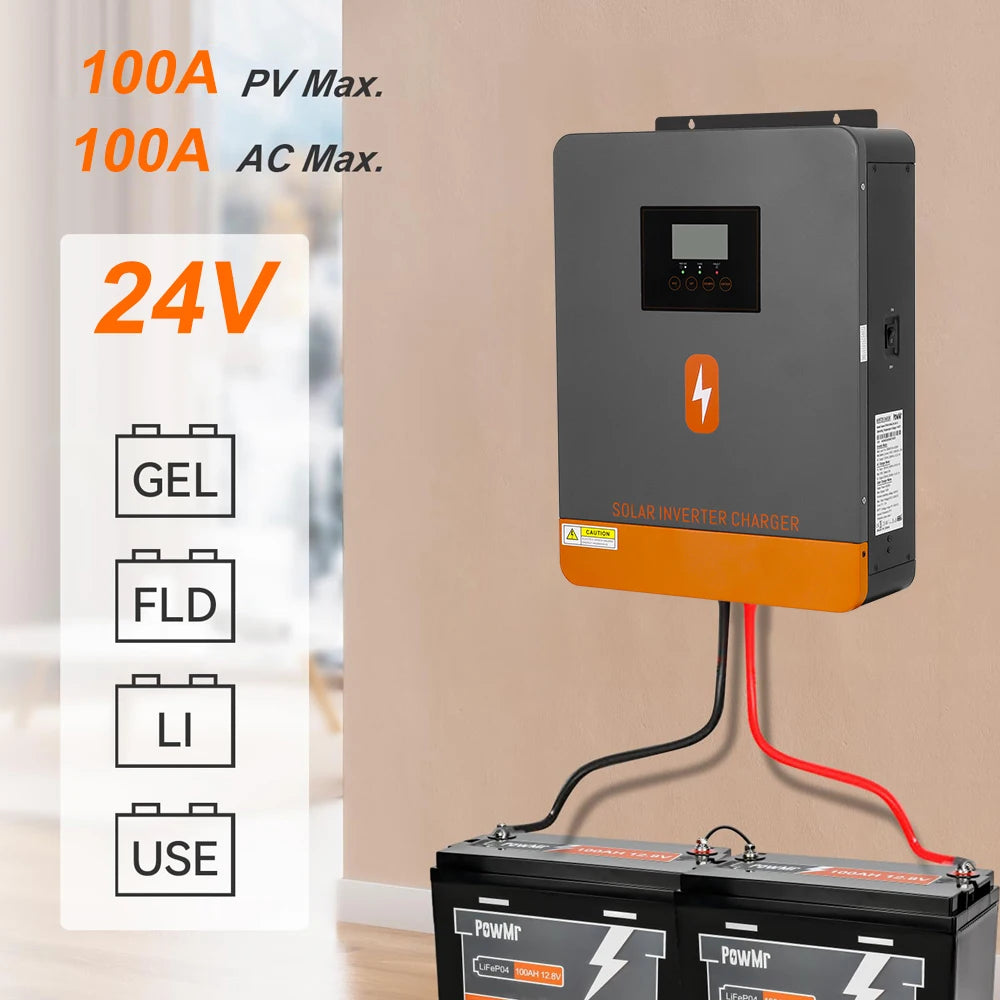

Battery type: Lifepo4, Lithium, Flooded, Gel, Lead-acid Batteries
Battery voltage: 24VDC
Brand Name: PowMr
Certification: CE
Charging: pure sine wave inverter
Description: photovoltaic hybrid inverter
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: None
Is Smart Device: Yes
Load type: Household appliances, farm tools, farm tools

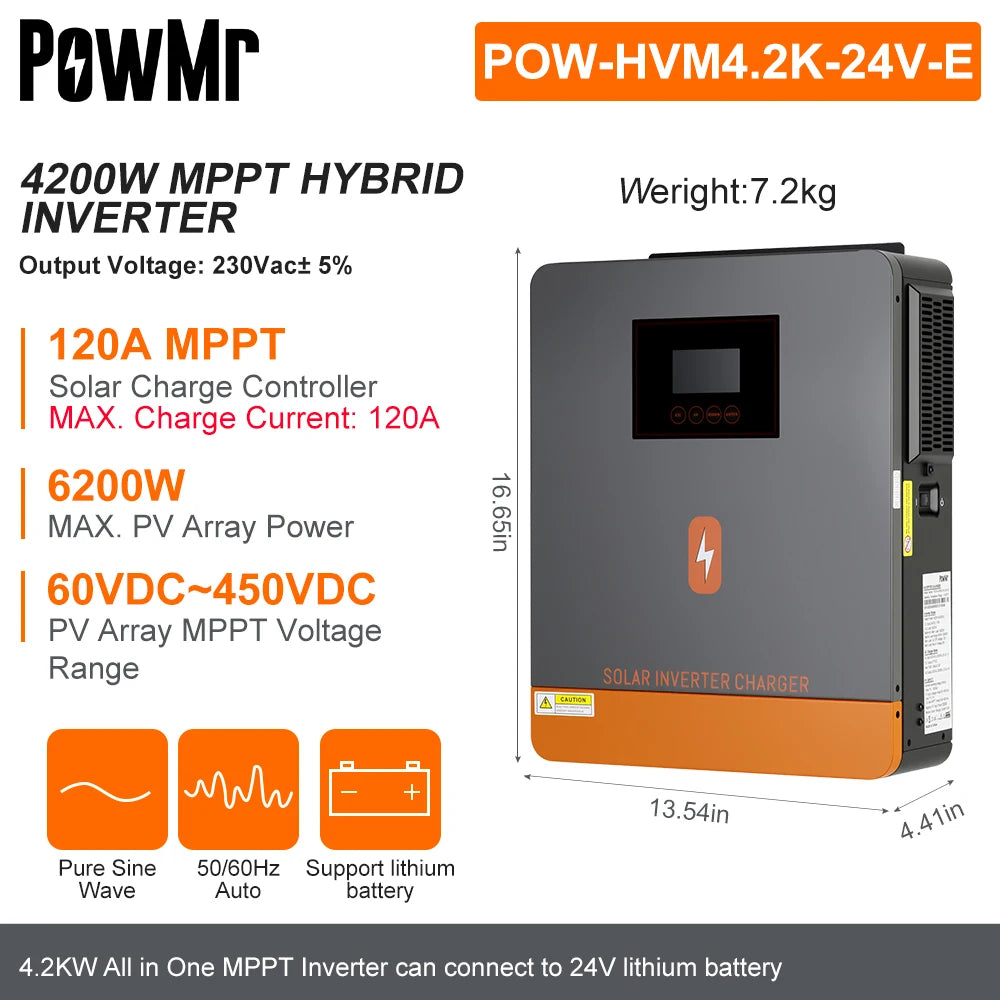

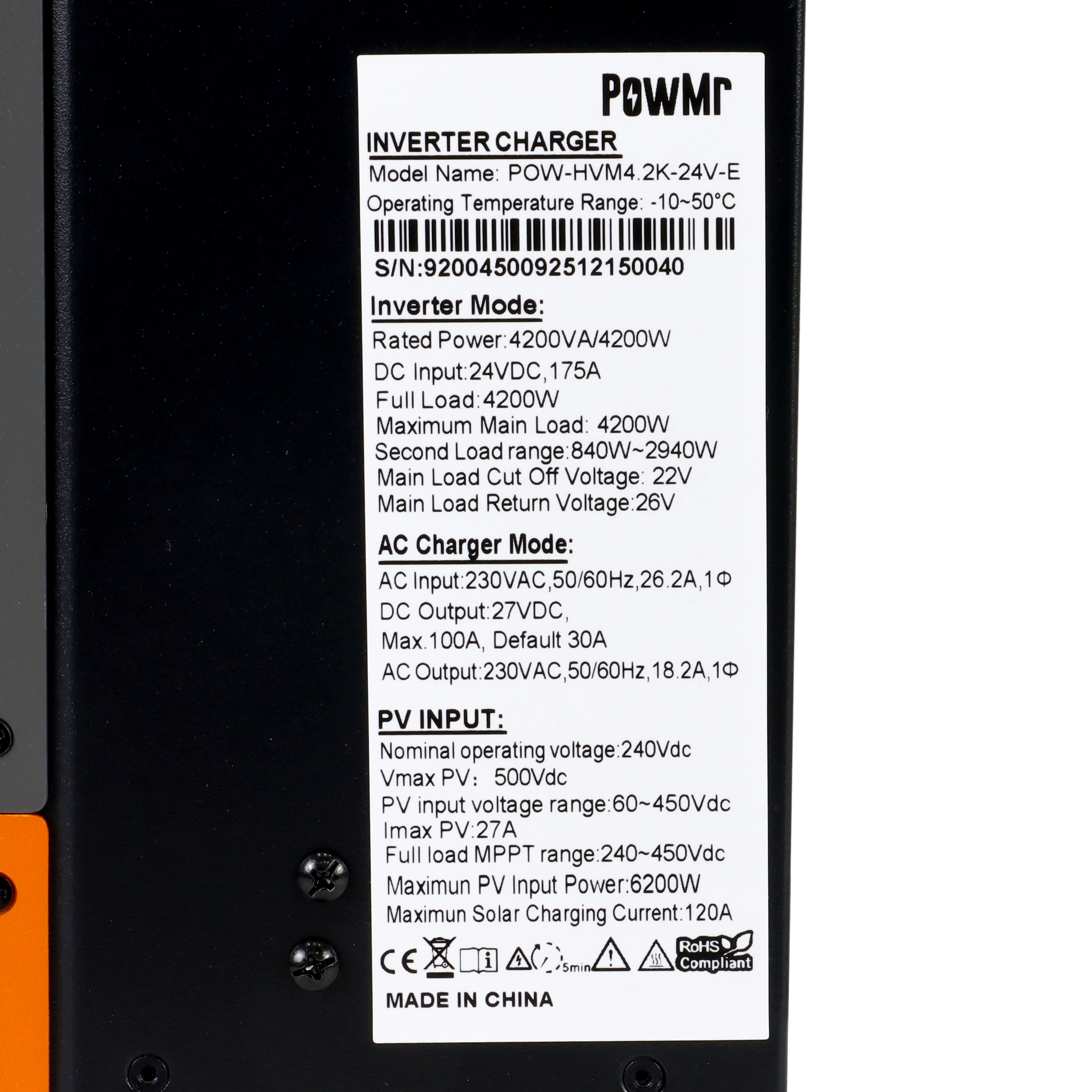

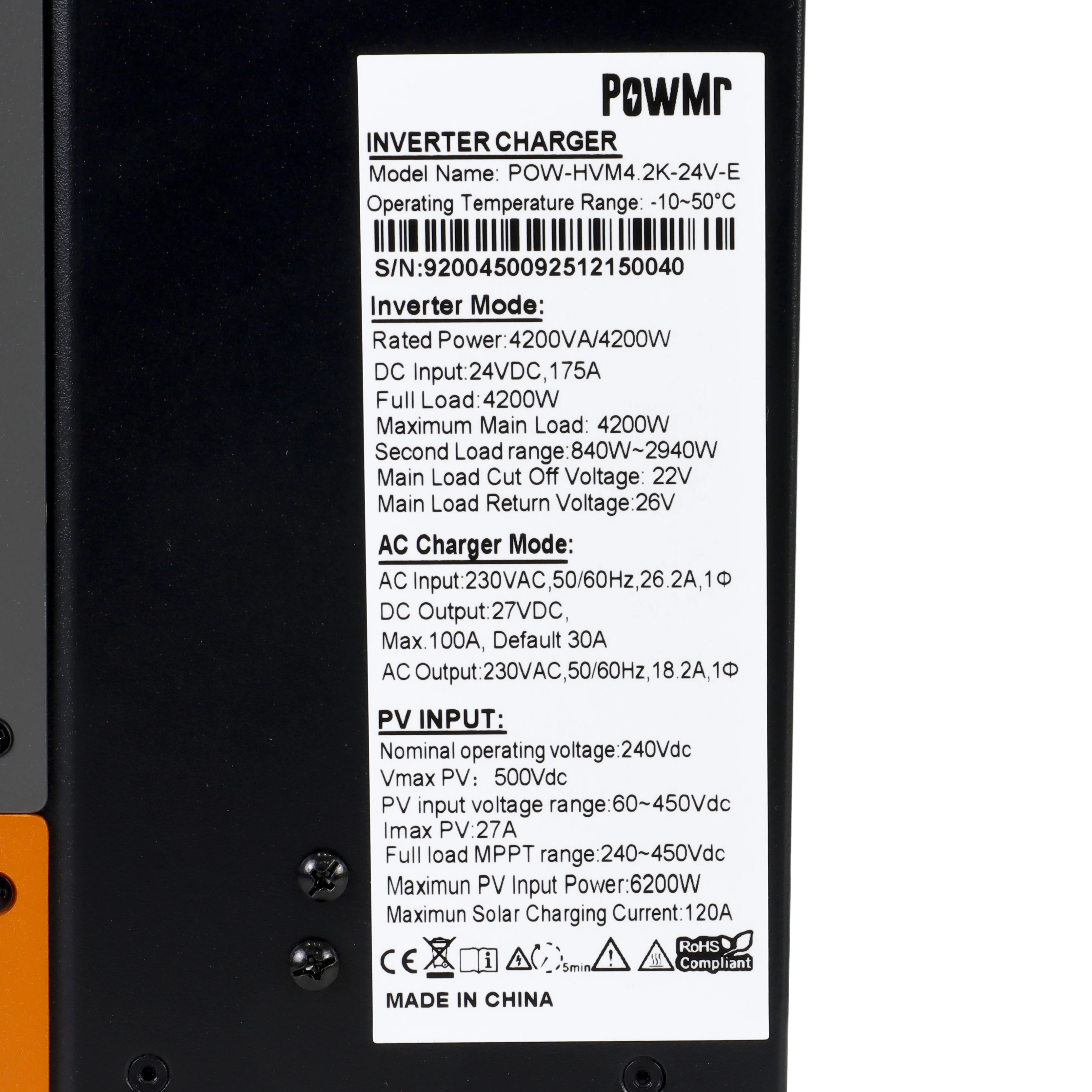

Model Number: POW-HVM4.2K-24V-E
Origin: Mainland China
Output Current: MPPT 120A
Output Frequency: 50HZ/60HZ
Output Type: SINGLE
Output voltage range: 230VAC±5%
PV Array MPPT Voltage Range: 55VDC~500VDC
Peak efficiency: >94%
Product: hybrid solar inverter
Rated output power: 4.2KVA/4.2KW
Size: 423x344x112mm
Weight: 7.2kg
is_customized: Yes
PowMr 4.2KW Hybrid Solar Inverters 24VDC to 220VAC Output PV Range 60~500VDC With MPPT 120A Solar Charge Controller Support WIFI
Introduction:

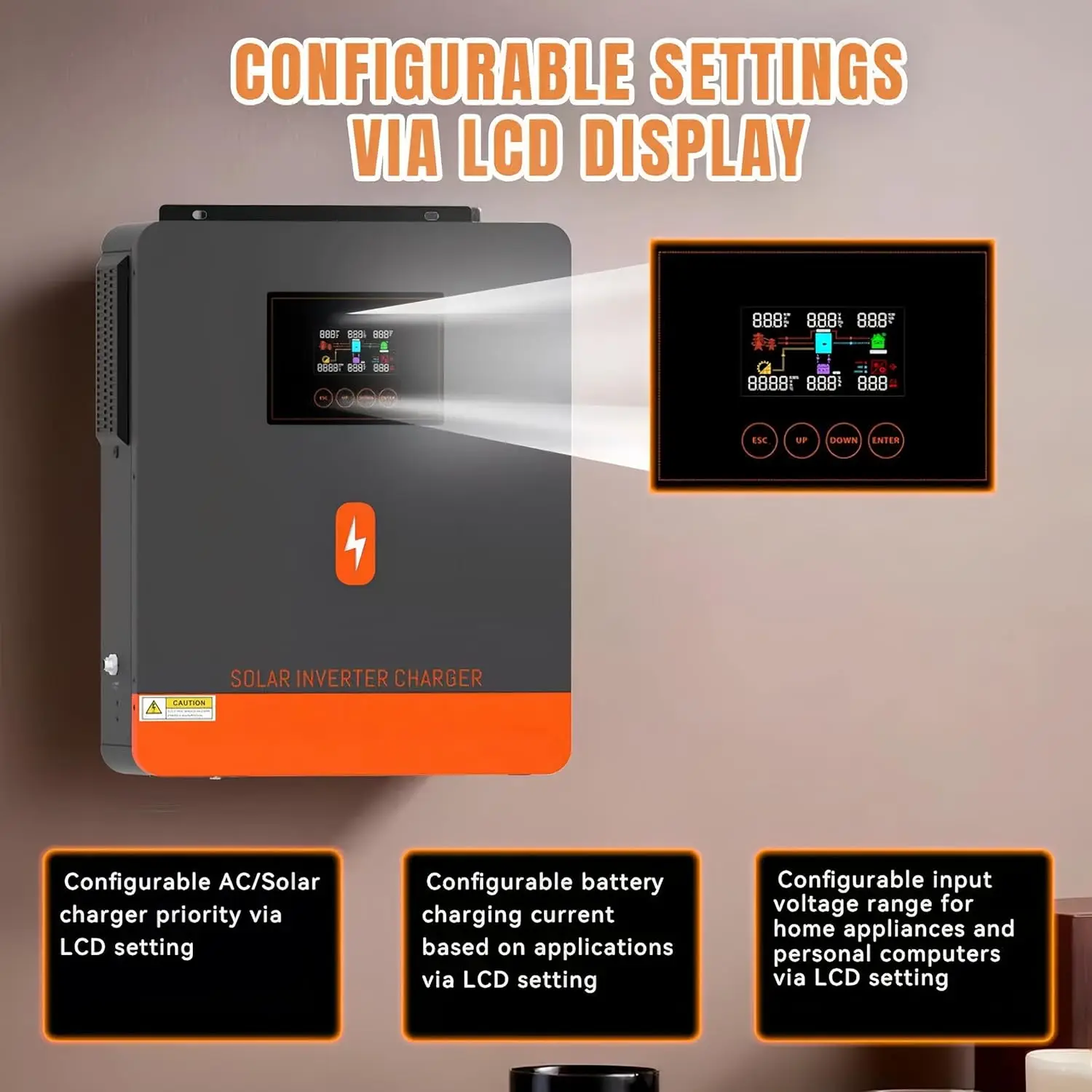

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Feature:
1.The machine can use two load output power, Full Load: 4200W, Maximum Main Load:4200W, Second Load Range:840W-2940W.
2.Pure sine wave output inverter.
3.According to the requirements of load (household appliances/personal computers), the input voltage range of utility grid can be selected.
4.According to the battery requirements, the charging current can be set through LCD.

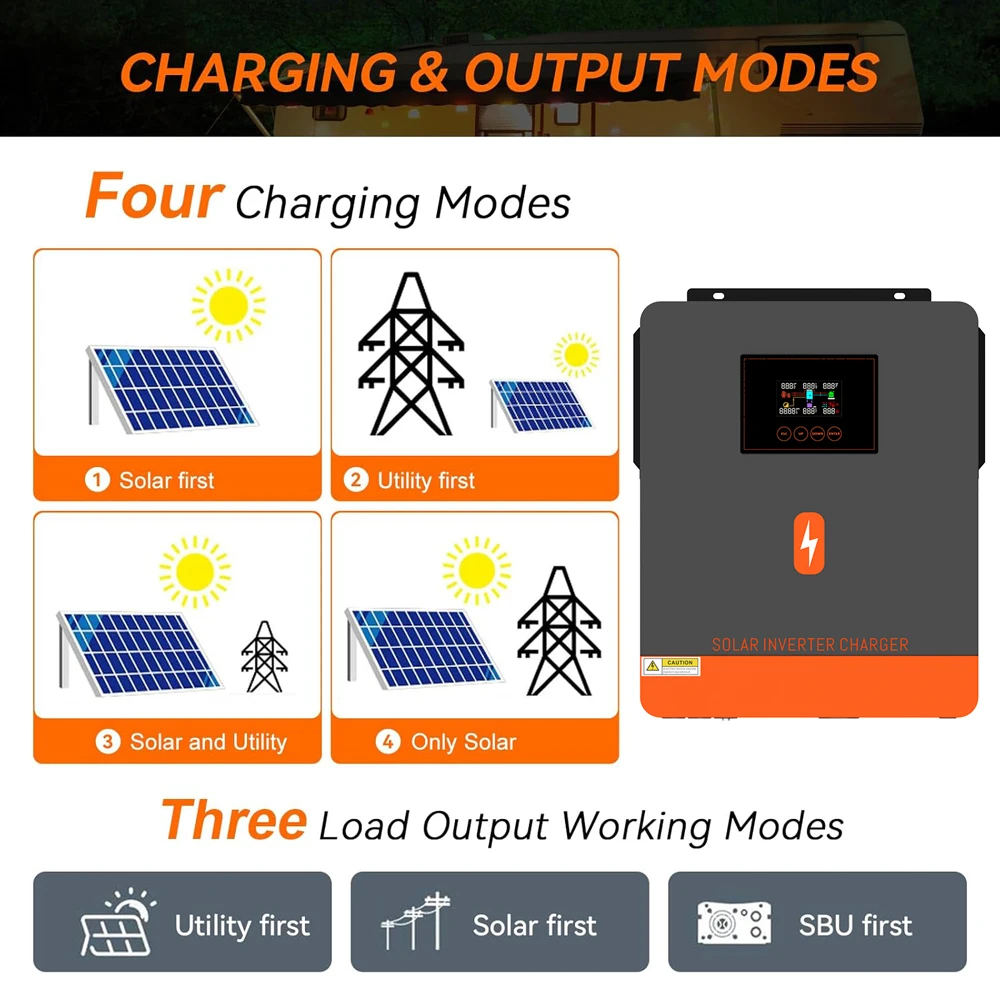

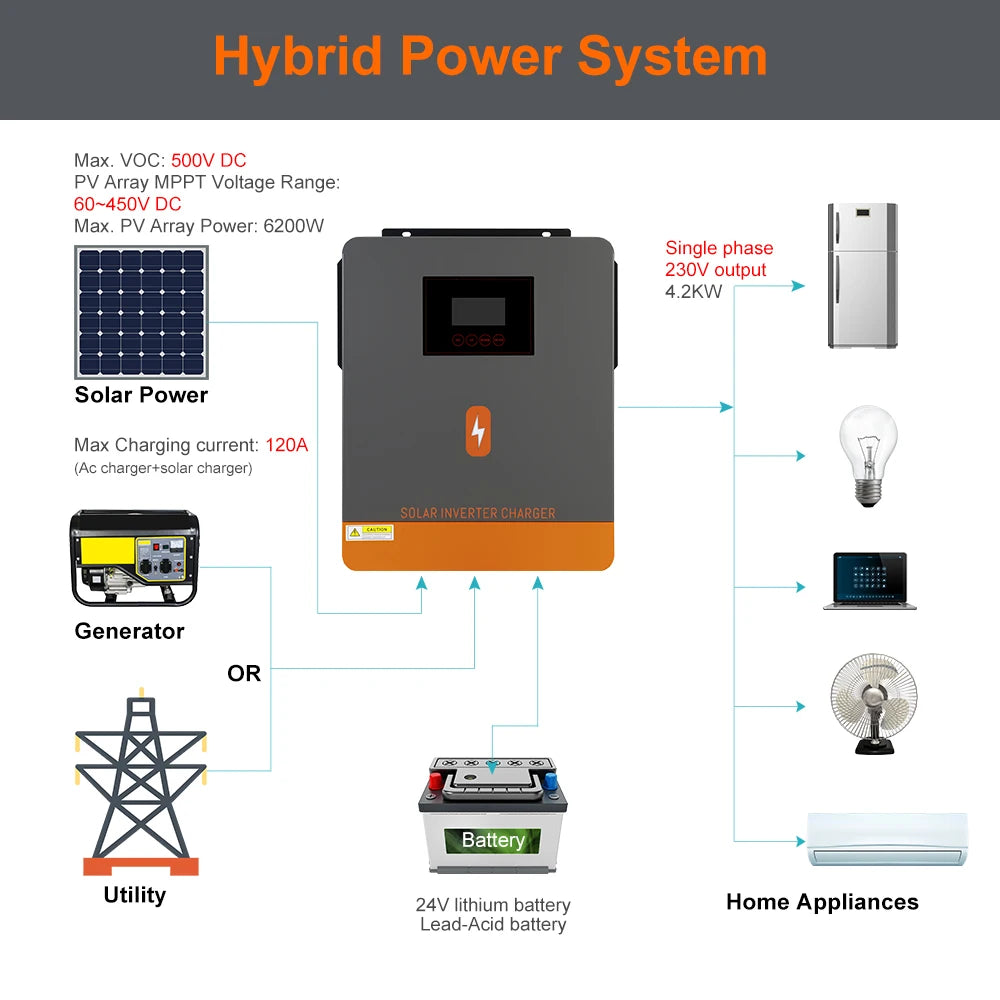

5.Solar energy and utility grid can power loads at the sametime.
6.AC input is compatible with mains and generator.
7.Automatic restart function when mains power is restored.

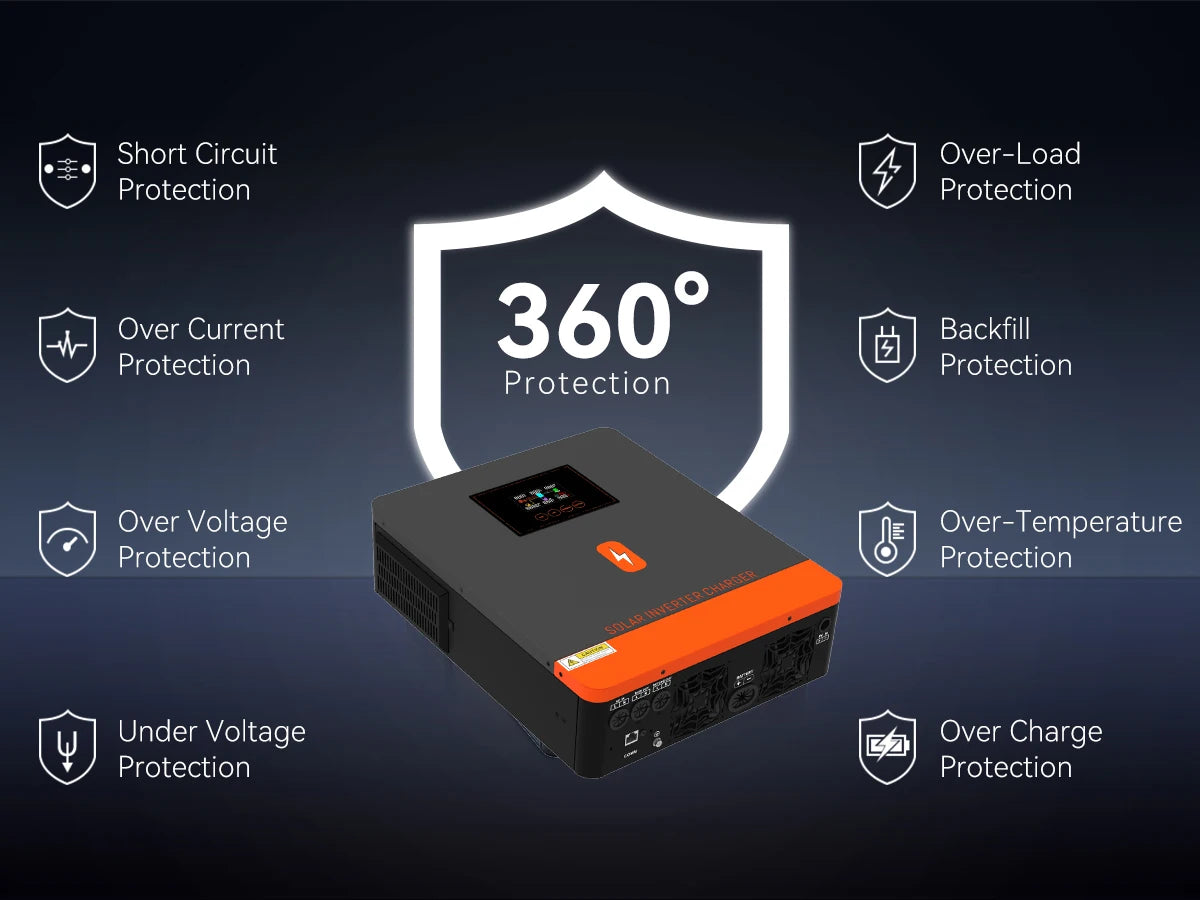

8.Overload/Over temperature/short circuit protection.
9.The intelligent charging design of battery makes the battery more fully utilized.
10.RS485 port Used for communication with BMS.
11.Cold start function.
12.Built-in MPPT, operating voltage range 55V~500V, open circuit voltage 500Voc.
13.WIFI remote monitoring（optional).
14.RGB lamp,which displays different colors according to inverter status (optional).
Specification:
Inverter Model |
POW-HVM4.2-24V- |
|
Picture |
|
|
Table 1 Line Mode Specifications | ||
Input Voltage Waveform |
Pure Sine Wave(Utility or Generator) |
|
Nominal Input Voltage |
230Vac |
|
Max AC Input Voltage |
300Vac |
|
Efficiency(Line Mode) |
>95%( Rated R load,battery full charged) |
|
Transfer Time |
10ms typical(UPS);20ms typical(Appliances) |
|
Table 2 Inverter Mode Specifications | ||
Rated Output Power |
4.2KW |
|
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50HZ |
|
Peak Efficiency |
93% |
|
Overload Protection |
3s@≥150% load;5s@101%~150% load |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
24Vdc |
|
Cold Start Voltage |
23.0Vdc |
|
No Load Power Consumption |
25W |
|
Table 3 Charge Mode Specifications | ||
Utility Charging Mode | ||
Charging Algorithm |
3-Step |
|
AC Charging Current (Max) |
100A |
|
MPPT Solar Charging Mode | ||
Max. PV Array Power |
6200W |
|
Nominal PV Voltage |
240Vdc |
|
PV Array MPPT Voltage Range |
60Vdc~450Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|

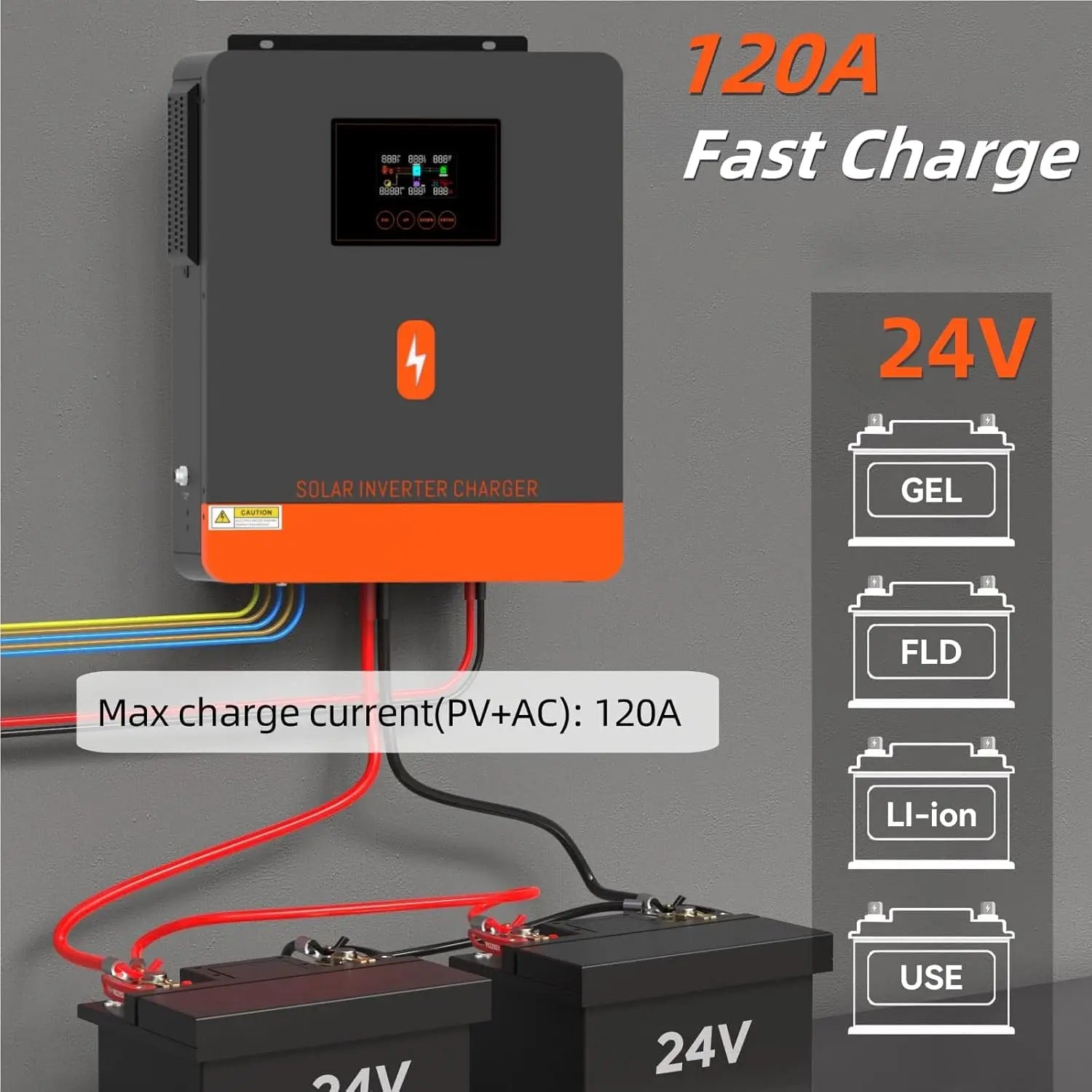

Max Charging Current(AC charger plus solar charger) |
120A |
|
Table 4 Two Load Output Power | ||
Full Load |
4200W |
|
Maximum Main Load |
4200W |
|
Second Load Range |
840W-2940W |
|
Main Load Cut Off Voltage |
22VDC |
|
Main Load Return Voltage |
26VDC |
|

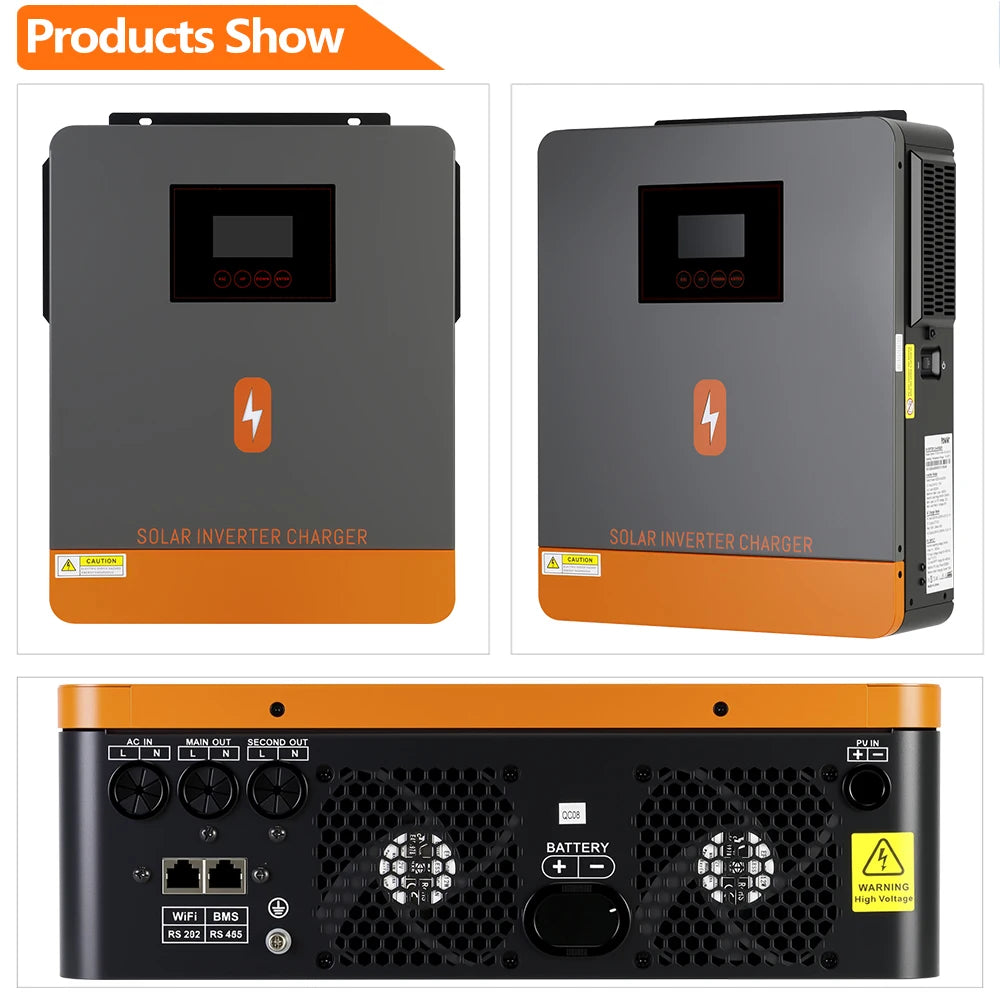

Product Overview
