SPECIFICATIONS

Application: Toys,Power Tools,Home Appliances,Consumer Electronics,Boats,Golf Carts,SUBMARINES,Electric Bicycles/Scooters,electric vehicles,Electric Wheelchairs,Electric Power Systems,Solar Energy Storage Systems,Uninterruptible Power Supplies,Electric Forklifts,Solar and wind power system, RV, caravan... Back-up system and UPS

BMS: Built-in BMS Protection

Brand Name: GoKWh

Cathode Materials: LiFePO4

Charge Temperature: 0~45°C (32~113°F)

Color: Black+Yellow

Cycle Life: 4000 cycles

Cycle life: ≥4000 times

Discharge Temperature: -20~60°C (-4~140°F)

Internal Resistance: ≤30mΩ

Max Load Quantity(cells): 16

Model Number: 12V 100Ah

OEM/ODM: Yes(Accepted)

Operating Temperature(℃): -20-65℃

Place of Origin: China

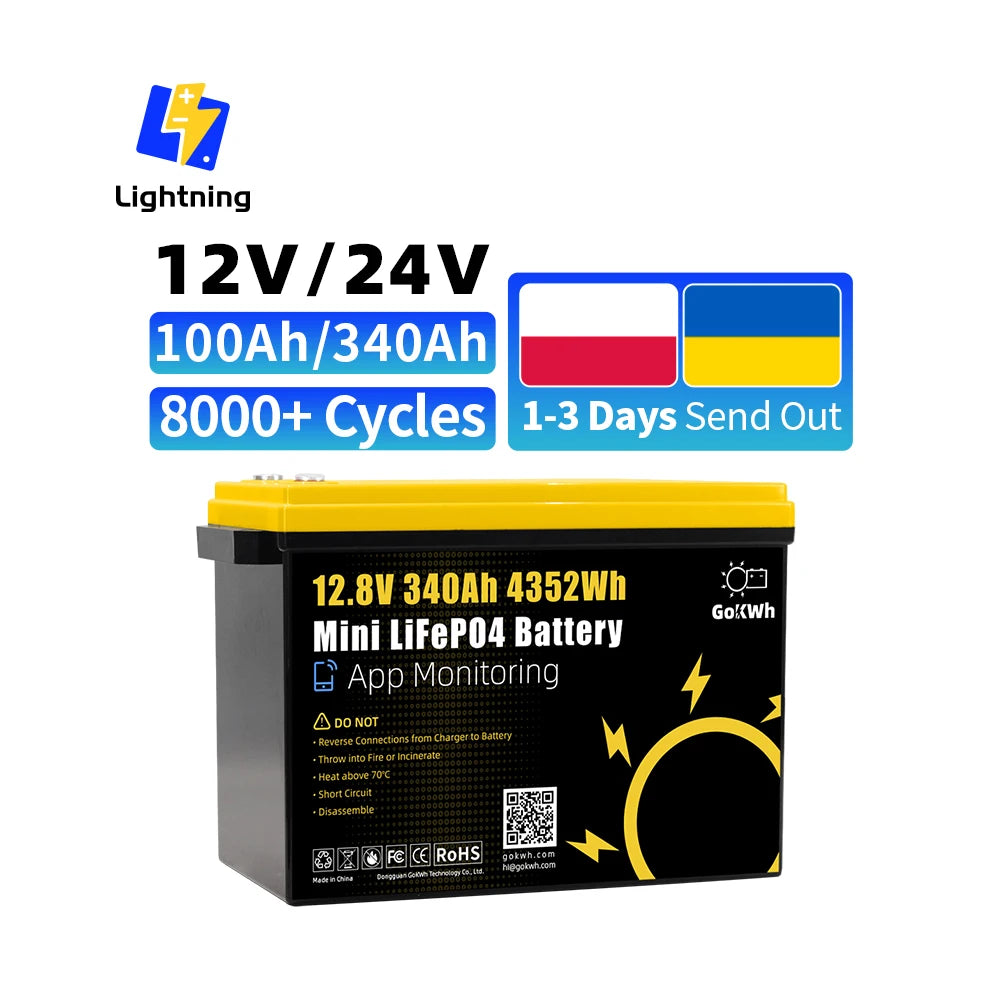

Product name: GoKWh 12V 24V Lithium 100Ah 200Ah Lifepo4 LFP Battery

Service Life: 10 Years (25°C/77°F)

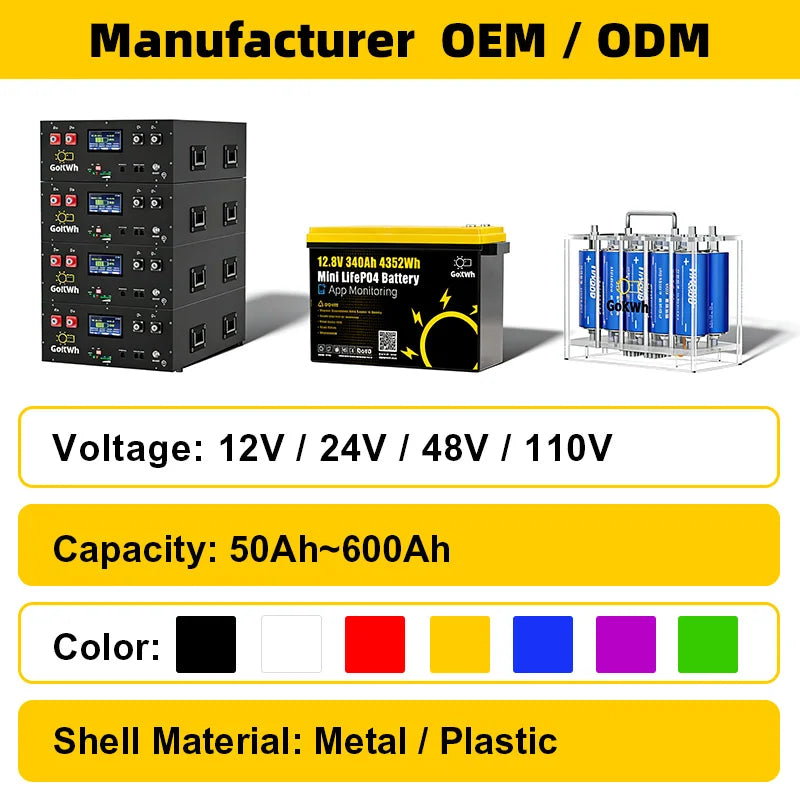

OEM&ODM/Distributor/Dropshipping Welcome

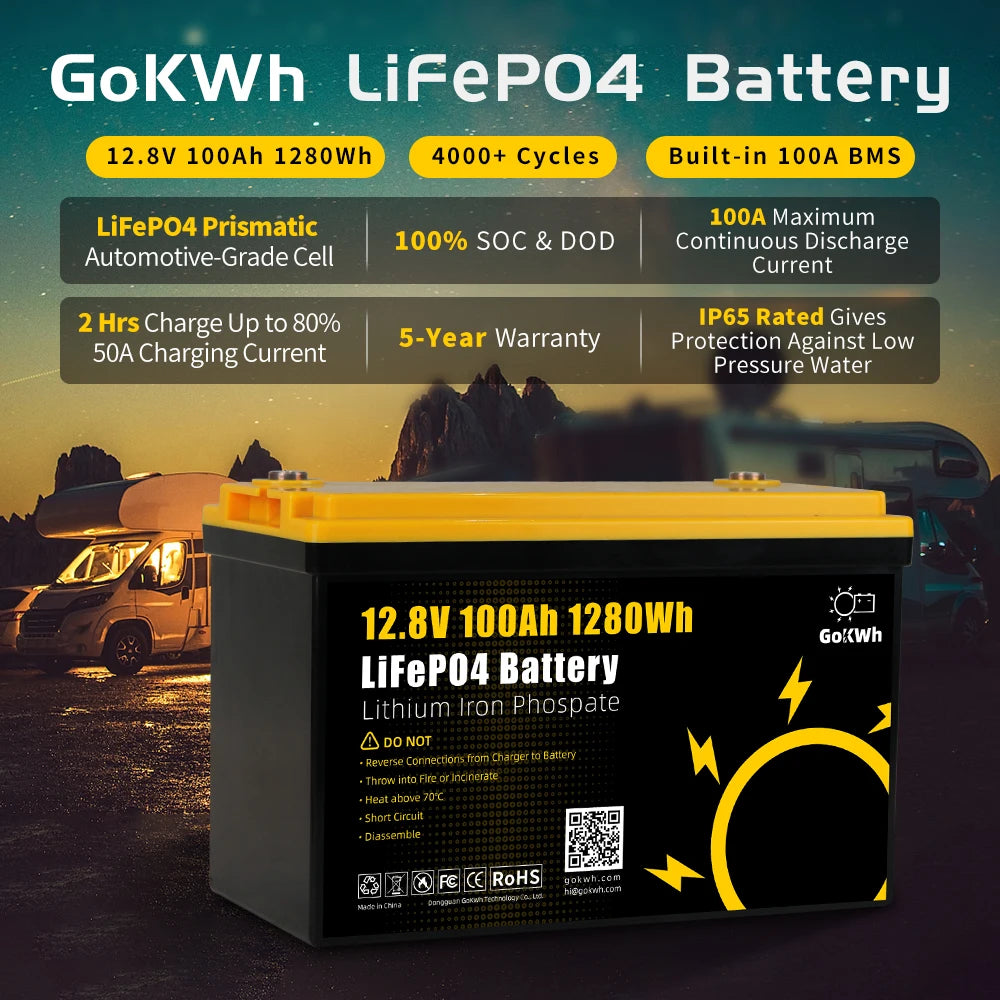

Overview	GoKWh LiFePO4 Battery 25.6V 100Ah 2560Wh | 4000+ Cycles | Built-in 100A BMS #Grade A Blade Pouch Cell #Buit-in BMS #LCD Capacity Display #IP65 Rated Gives Protection Against Low Pressure Water  #5-Year Warranty
Specifications	BASICAL SPECIFICATIONS	Model: 12V/24V 100Ah/200Ah
			Rechargeable:Yes
			Cell Type:LiFePO4 (LFP)
			Grade: Grade A
			Case Material:ABS
			Warranty:5 Years
		ELECTRICAL     SPECIFICATIONS	Nominal Voltage: 12.8V/25.6V
				Nominal Capacity: 100Ah/200Ah
	Dimension and Weight			Nominal Energy: 1280Wh/2560Wh
				Standard Charge Voltage: ≤14.6V/29.2V
				Recommend Charge Current: ≤50A/100A
				Recommend Discharge Cut-Off Voltage: ≥10V/20V
				Recommend  Discharge Current: ≤100A/200A
				Internal Resistance: ≤30mΩ
		PERFORMANCE SPECIFICATIONS	Cycle Life: ≥4000 Times (80%DoD)
				Service Life: 10 Years (25°C/77°F）
				Charge Temperature Range: 0~45°C (32~113°F)
				Discharge Temperature Range: -20~60°C (-4~140°F)
				Protection: IP65, Built-in BMS

For More Specification Click Here

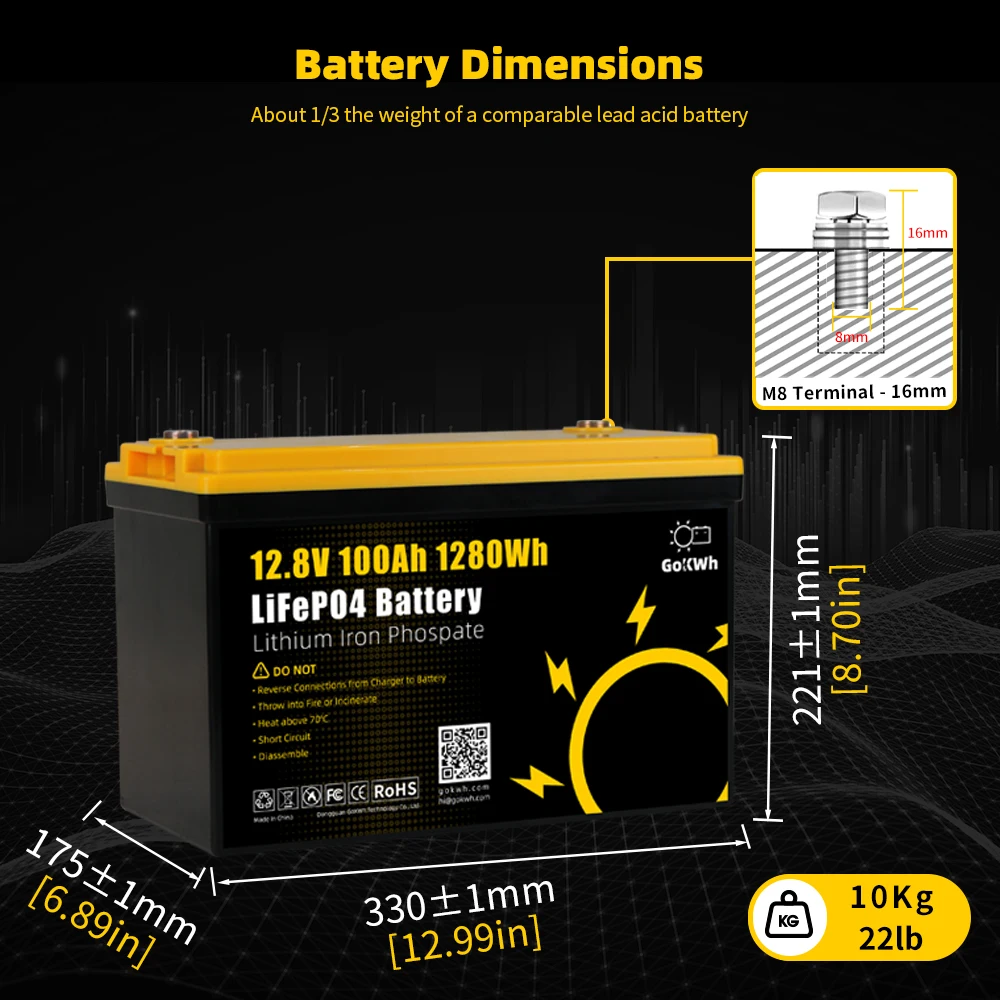

Battery Dimensions

About 1/3 the weight of a comparable lead acid battery. M8 Terminal - 16mm

Why Choose Us

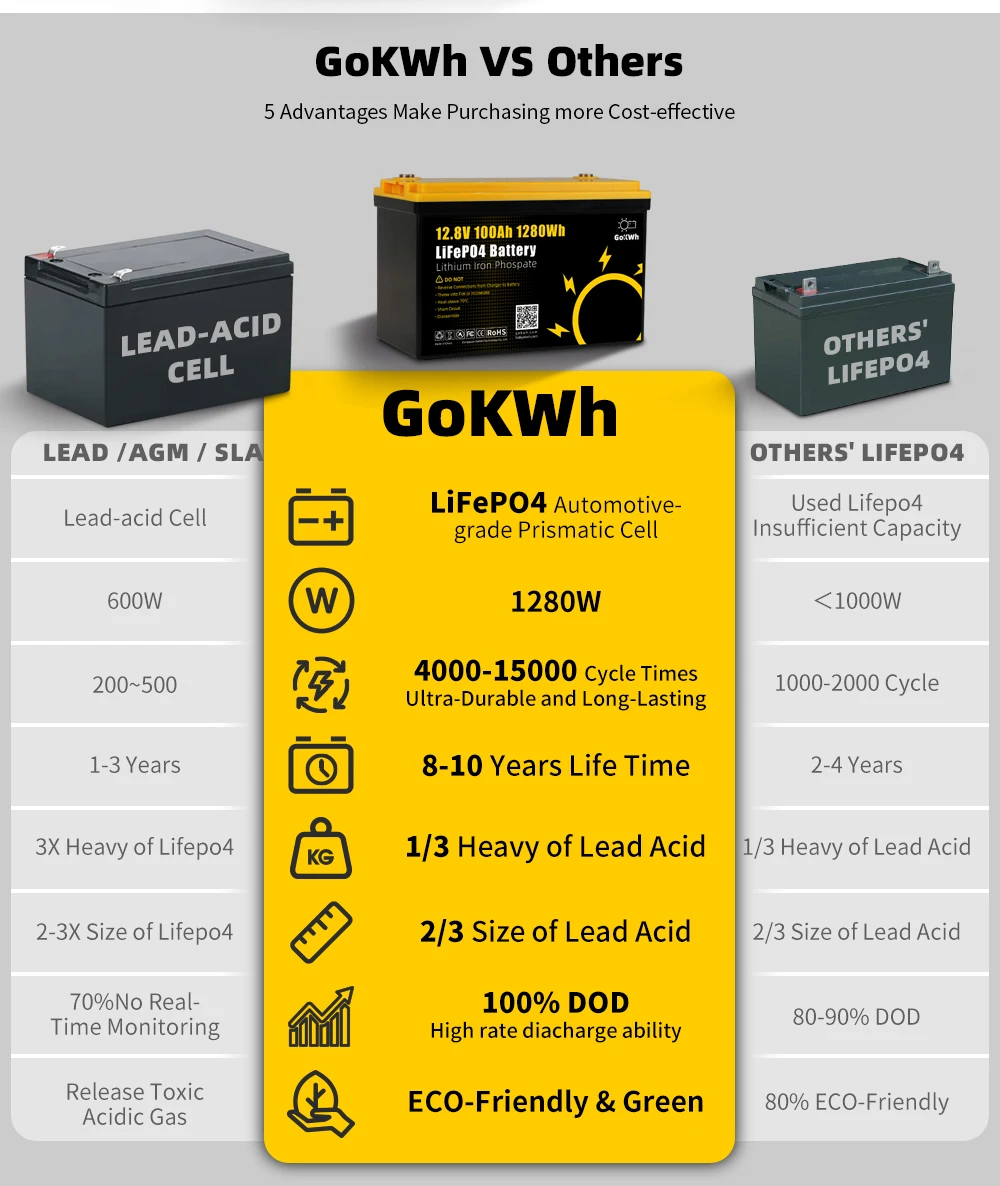

GoKWh VS Others

Automotive-grade Blad Cell

Usable Energy 1280W 100% DOD

4000-15000 Cycles and 8-10 Years Life Time

Light Weight and Samll Size of Lead Acid

Eco-Friendly&Green

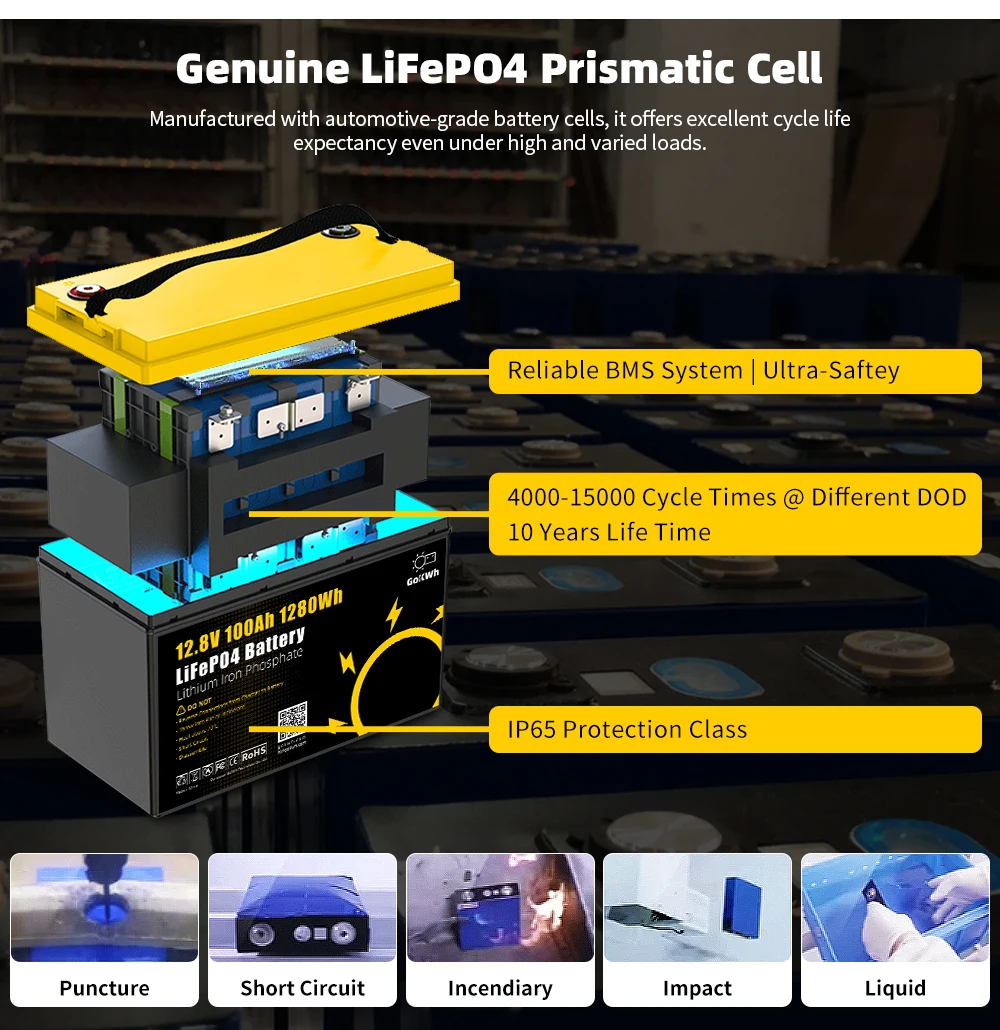

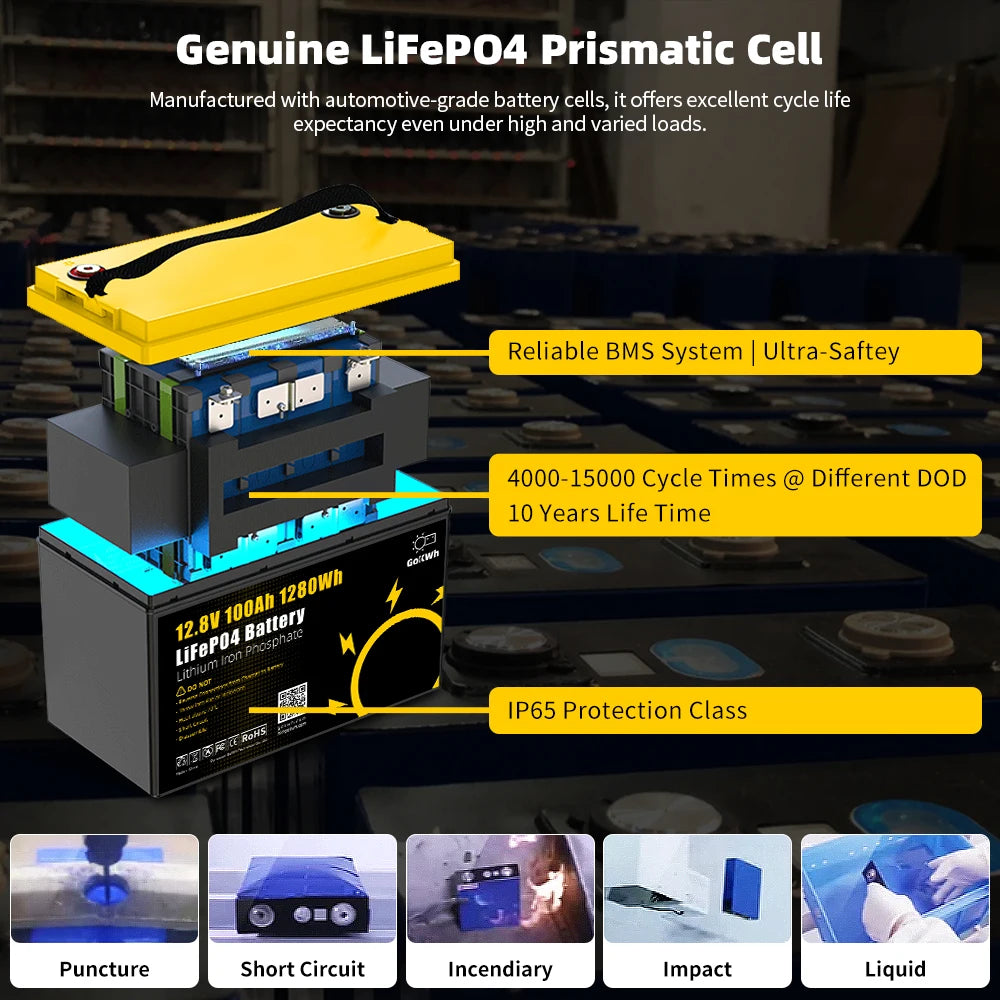

Genuine LiFePO4 Prismatic Cell

Manufactured with Grade A Blade Cells, it offers excellent cycle life expectancy even under high and varied loads.

4000-15000 Cycle Times @ Different DOD 10 Years Life Time

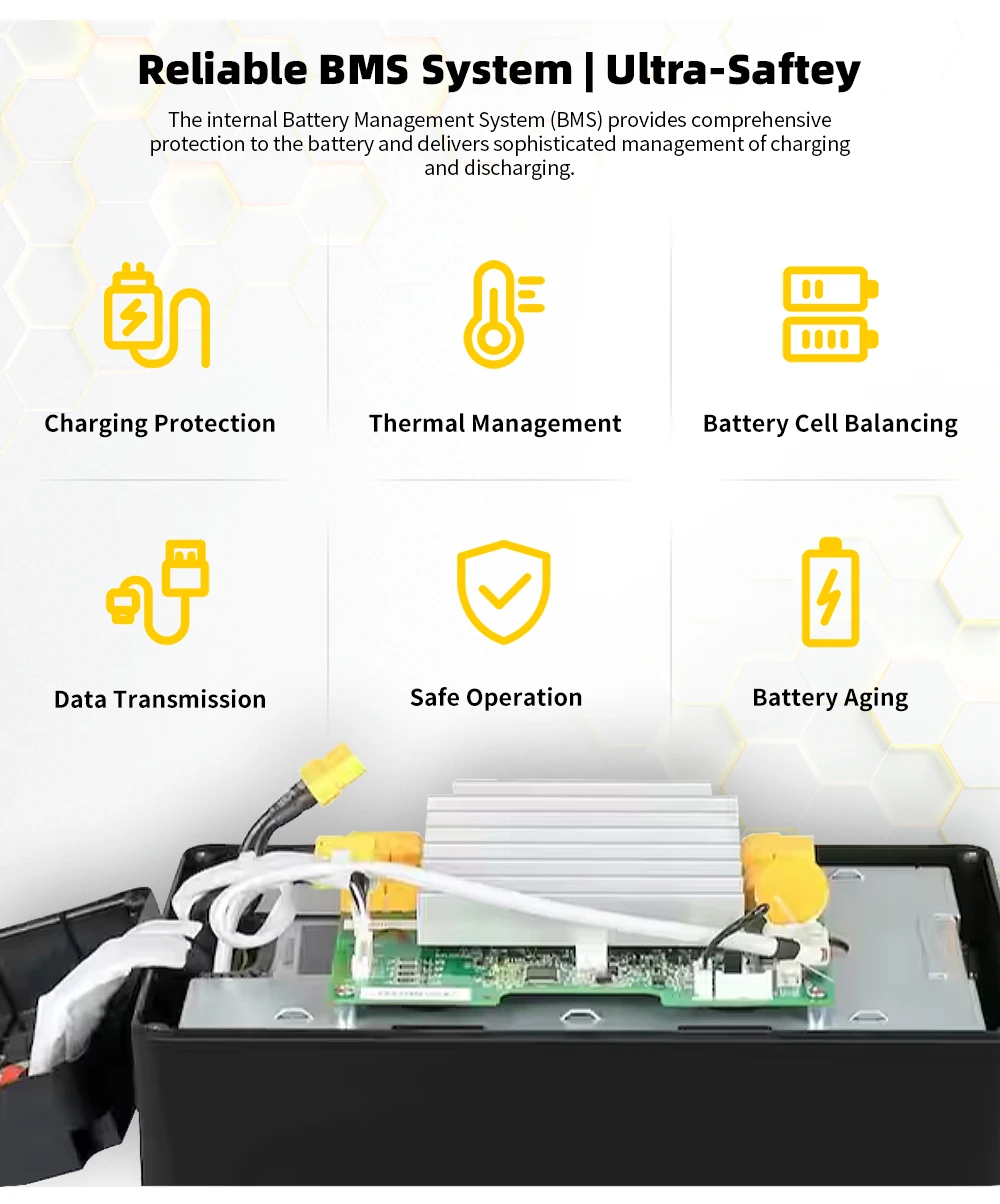

Reliable BMS System | Ultra-Saftey

The internal Battery Management System (BMS) provides comprehensive protection to the battery and delivers sophisticated management of charging and discharging.

Charging Protection Thermal Management Battery Cell Balancing Data Transmission Safe Operation Battery Aging

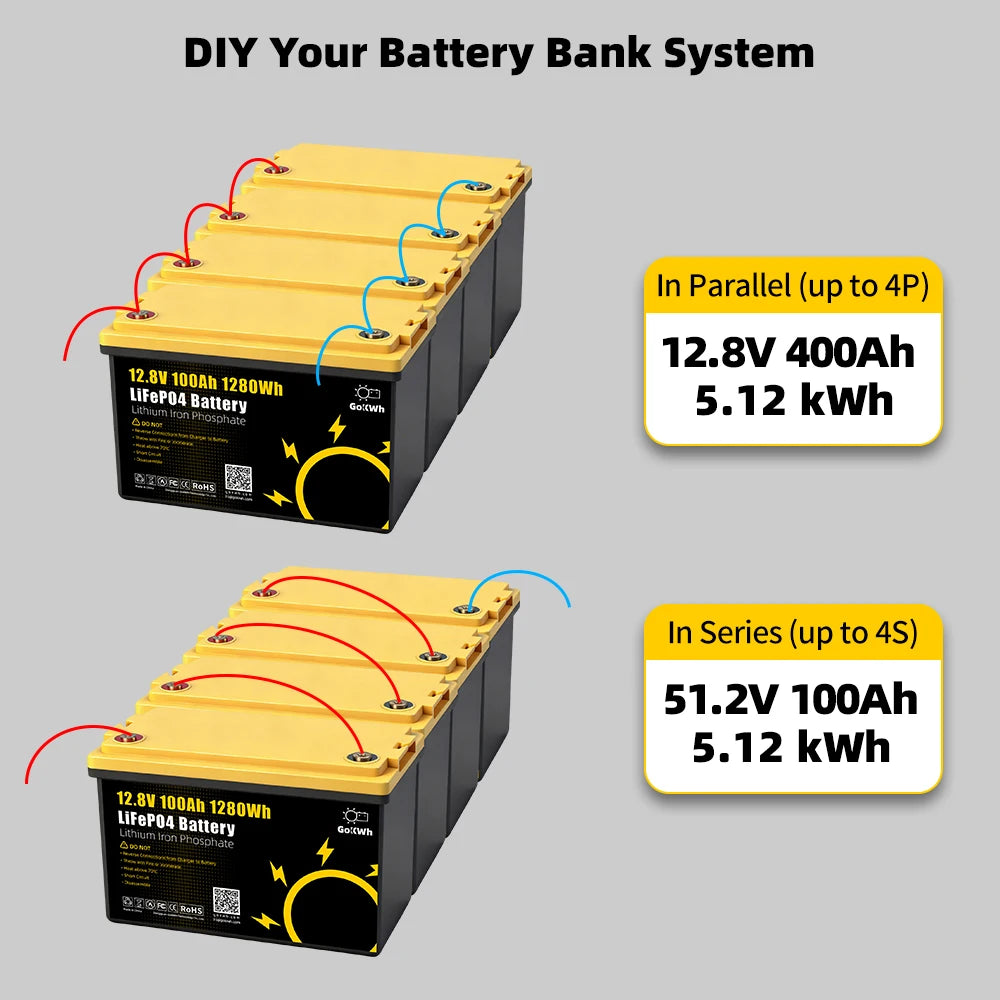

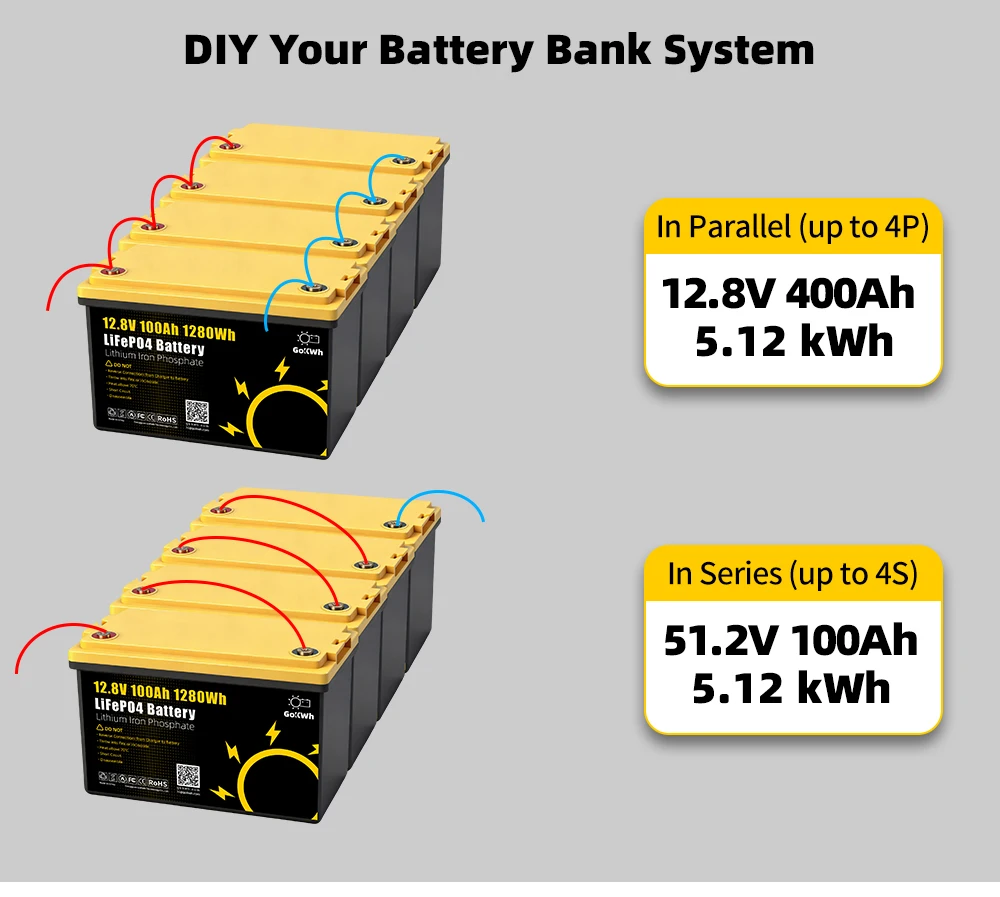

DIY Your Battery Bank System

The batteries pack support max 4S or 4P, but in practical applications, consumers need to calculate based on their own load situation.

Due to the limitations of BMS, the default model does not support series and parallel connection at the same time. If necessary, please contact our Sales

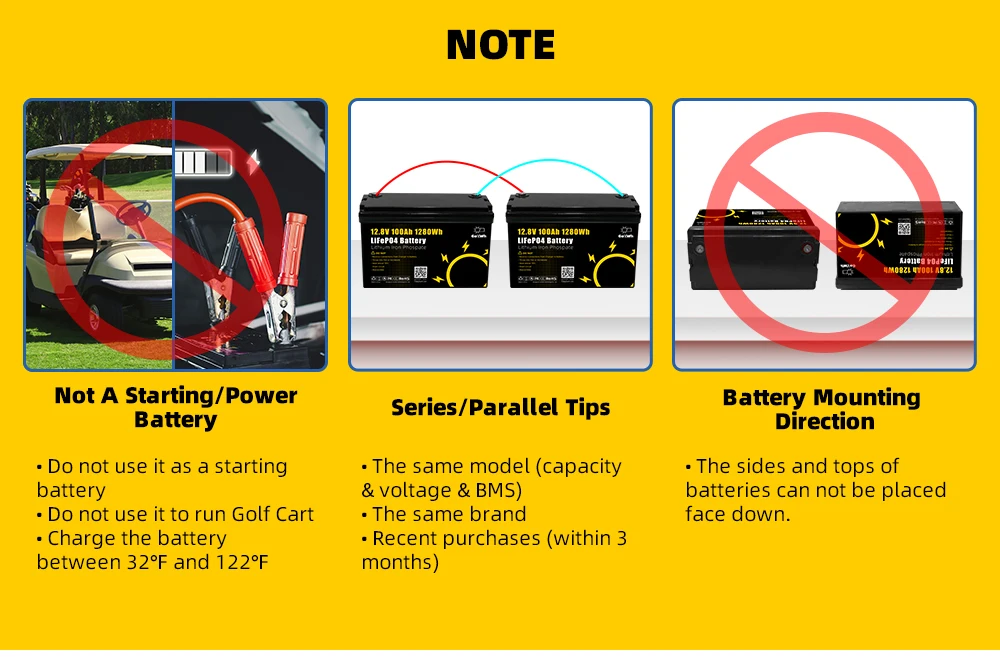

Note

Not A Starting/Power Battery • Do not use it as a starting battery • Do not use it to run Golf Cart • Charge the battery between 0~45°C (32~113°F) Series/Parallel Tips • The same model (capacity & voltage & BMS) • The same brand • Recent purchases (within 3 months) Battery Mounting Direction • The sides and tops of batteries can not be placed face down.

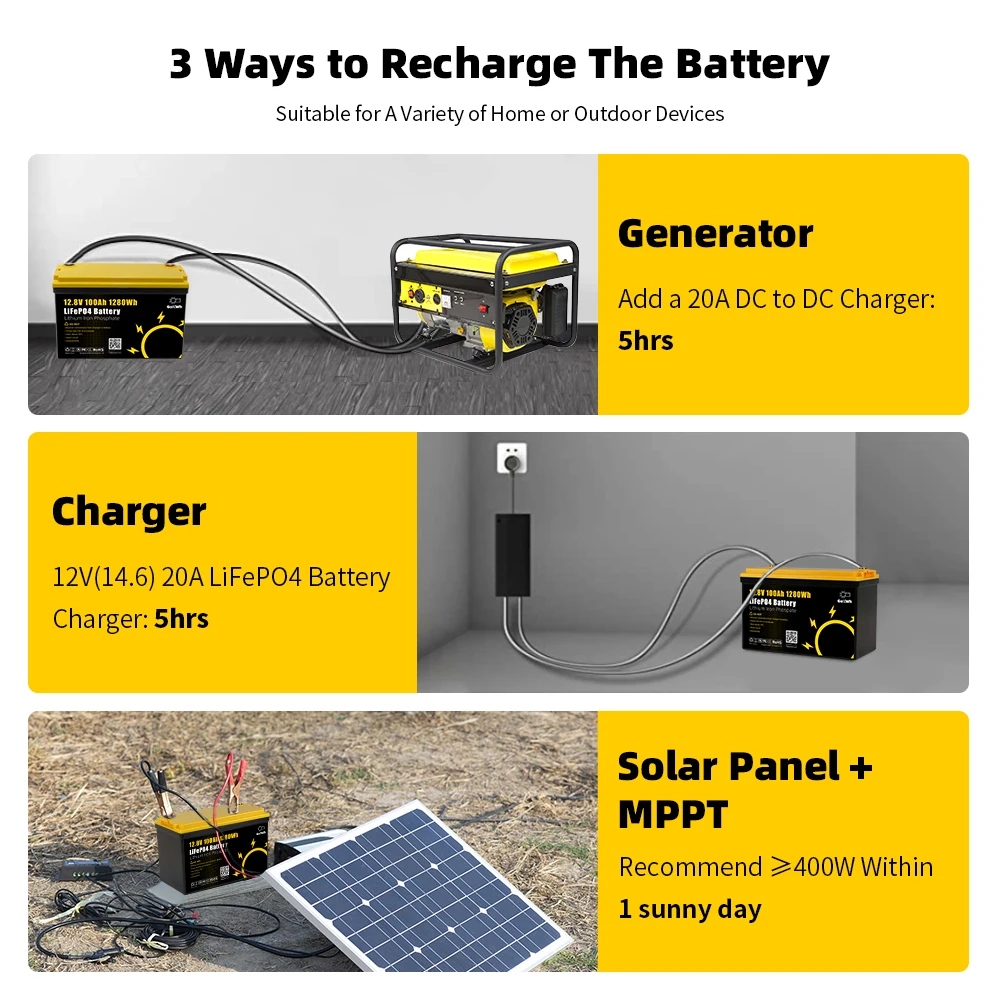

3 Ways to Recharge The Battery

• Charger • Solar Panel + MPPT • Generator

* Please make sure your charger supports lithium batteries. * Due to the difference in charging voltage, it is recommended to choose only one method of charging at a time.

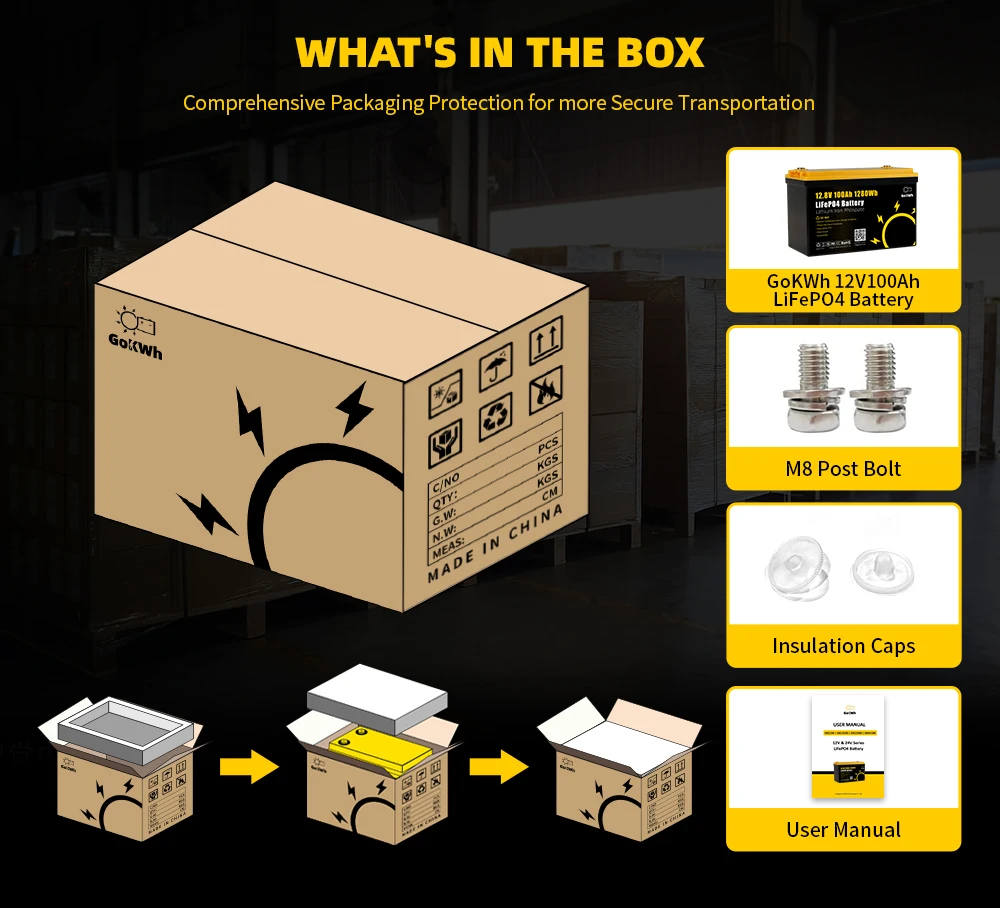

What's in the box

1 * GoKWh 12V 200Ah Battery 2 * Insulation Caps 2* M8 Post Bolts 1 * User Manual

Certification

MSDS UN38.3 CE

Shipping&Delivery

Total Delivery Time = Handling Time + Transit Time (+ any holidays and weekends)

Purchase Region	Warehouse	Shipping Option	Handling Time	Estimated Delivery Time
USA/Canada	USA/CA	FedEx/DHL/UPS	1~7 working days	2~7 working days
		CN		By sea+Express(FedEx/DHL/UPS, Tax free)		30~60 working days
EU Country	DE(*2)/PL	DPD/UPS/TNT	1~7 working days	2~7 working days
		CN		By railway or sea+Express(DPD/UPS/TNT, Tax free)		30~60 working days
Asia	CN	By sea/railway+Express(DPD/Toll/UPS/FedEx/TNT, most country are Tax free)	1~7 working days	25~60 working days
Australia or other	CN
We can't deliver the following address directly
A	USA: PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online.
B	Portugal: Azores and Madeira
C	Spain:Canary Islands, hueda,Missily and melilia and some other Island
D	Russia: Kamchatka Peninsula
E	Other:Some remote areas not listed，Please provide shipping address and zip code to to us to check.
Noted: *The above transportation time is only the reference time of most orders, excluding inspection time or other special time,such as natural accidents, congestion and other uncontrollable factors.*The tracking will be update after pick up by local express. Please wait patiently or contact us for help. *Countries that do not appear in the table, Please Clickhttps://shandian.en.alibaba.com/contactinfo.html Here to consult us for freight charges

FAQ

1). Q: I need more function such Bluetooth and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?

A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.

2).Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low,can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.

3).Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the
discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no
talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.

4).Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.

5).What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.

6).Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use and no any additional device.

Pls kindly know due to the limitations of BMS, the default model does not support series and parallel connection at the same time.
