LEADER SOLAR 5 Pairs 25 Years Guarantee TUV Standard IP67 Pv Solar Connector for Solar Panels and Photovoltaic Systems
Default Title
₱392.02PHP
Sale price
₱392.02PHP
Regular price
Skip to product information
LEADER SOLAR 5 Pairs 25 Years Guarantee TUV Standard IP67 Pv Solar Connector for Solar Panels and Photovoltaic Systems
₱392.02PHP
Sale price
₱392.02PHP
Regular price
Pickup currently not available
SPECIFICATIONS
Brand Name: BLUSUNSOLAR
Certification: CE,RoHS,UL
Contact material: Copper,tin plated
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: None
Housing material: PPO
Model Number: Solar Connector
Origin: Mainland China
Pin dimension: 4.0mm
Pollution degree: 2
Proof voltage: TUV 6000AC (1MIN)
Protection class: class II
Rated Voltage: TUV1000V DC/600V DC
Rated current: 20A~30A
Suitable cable cross sections: 2.5mm sq~~6.0mm sq
Voltage: 1000 V

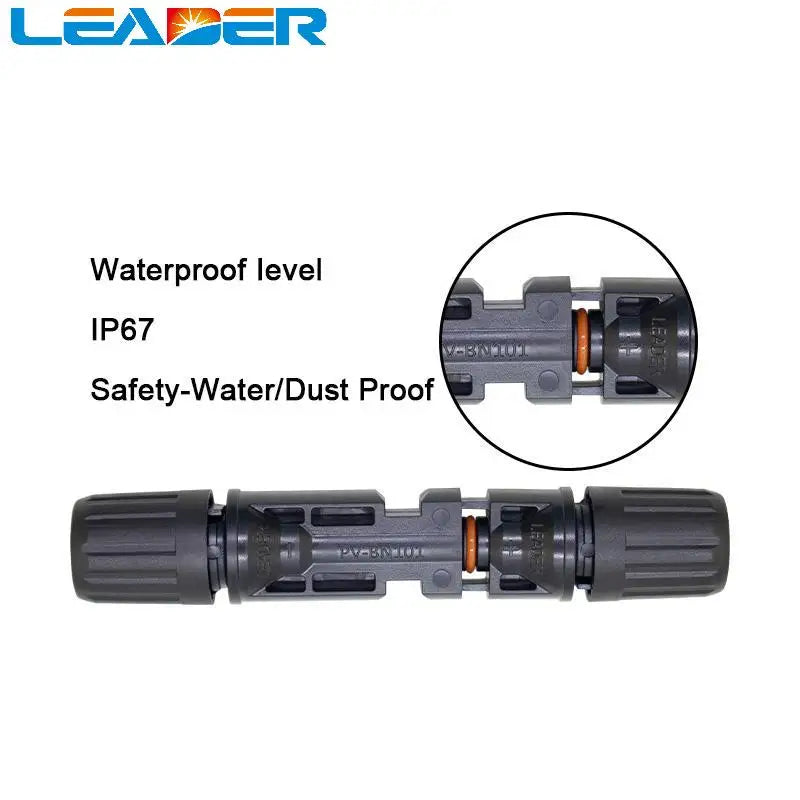

Waterproof: IP67

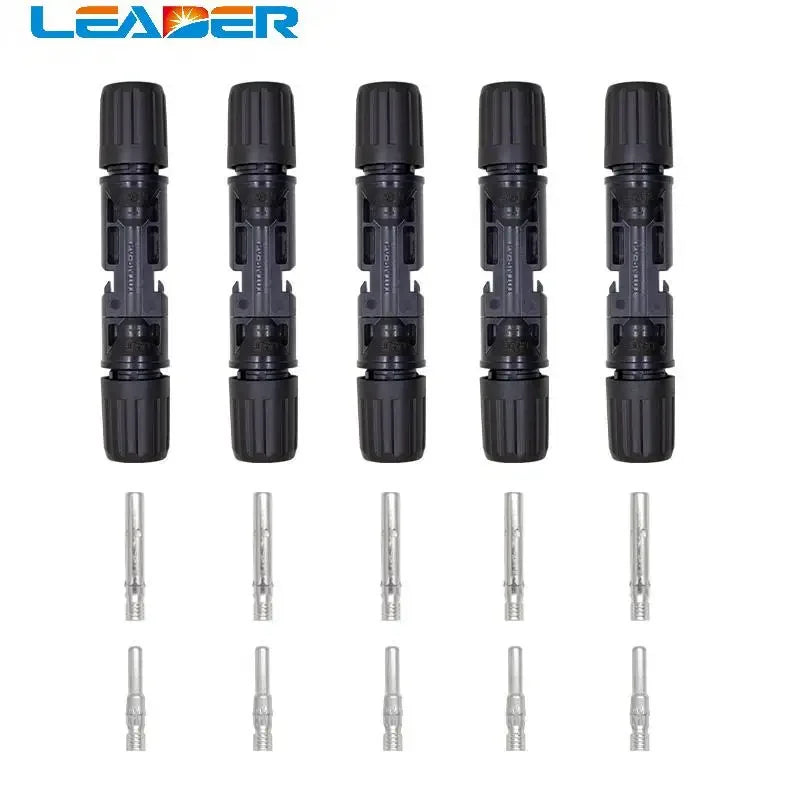

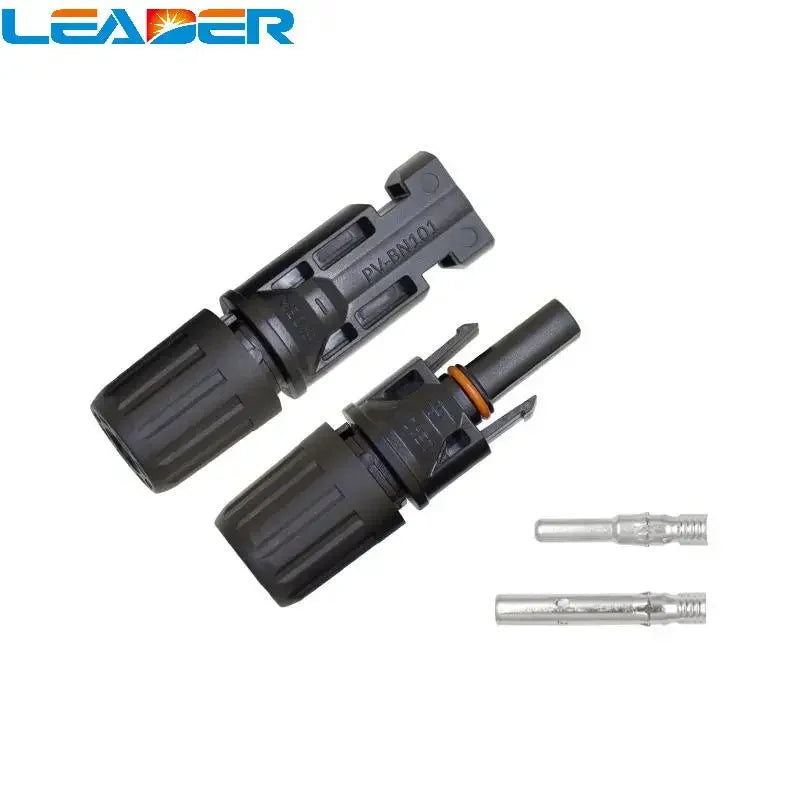

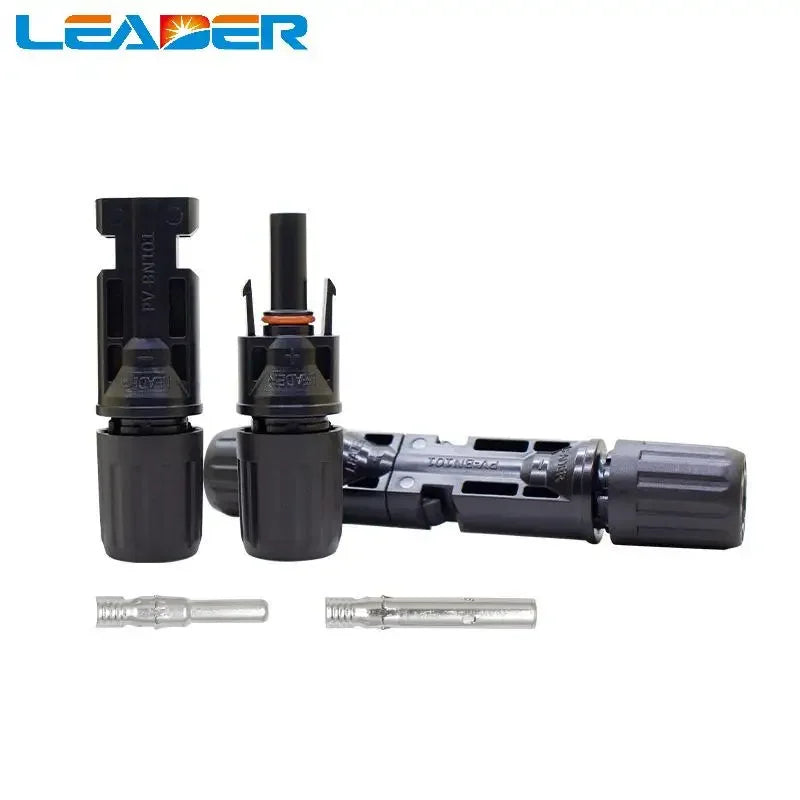

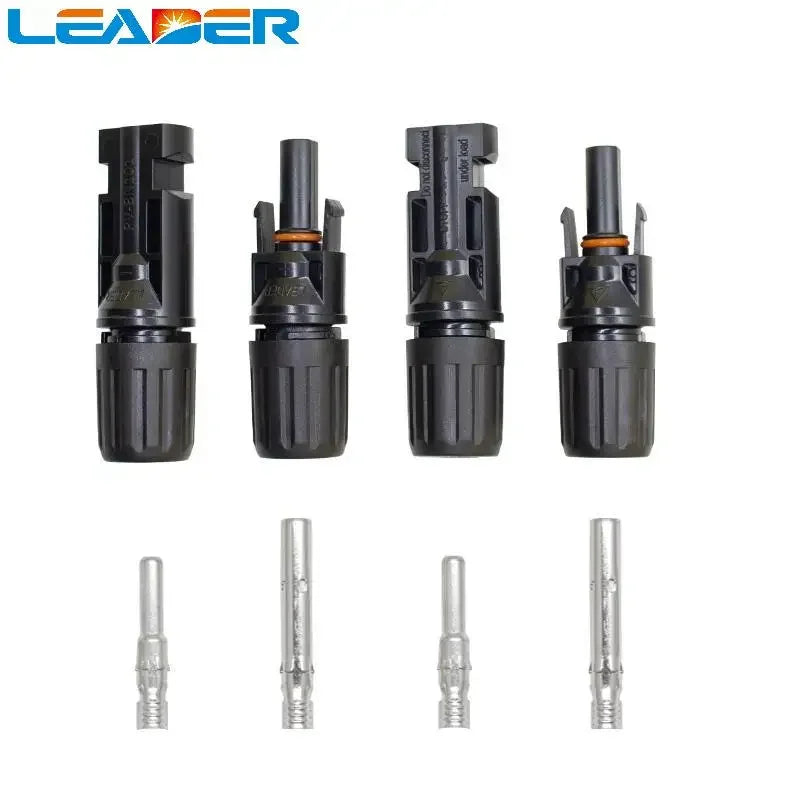

Solar Connector Set - Male and Female
Suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2

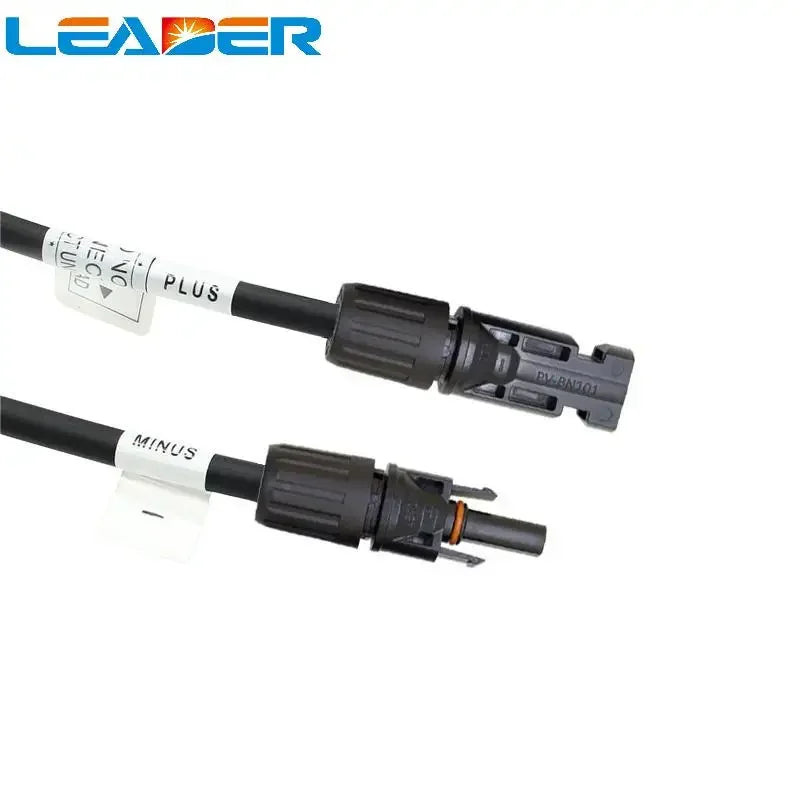

Easy , quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
Technical data
1.Connector adopts touch of reed with inner -knob type .
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation.
4.Quickly to connector.
5.Water proof and prevent dust.
6.Long life.
CHARACTERISTICS:
Insulation material: |
PPO |
Rated Voltage |
TUV 00 DC/ 600V DC |
Test voltage |
6KV(50Hz,1Min) |
Contact material |
copper, tin plated |
Contact resistance |
less than 0.5 m ohm |
Degree of protection |
IP67 |
Pollution Degree |
2 |
Protection class |
Class II |
Flame calss |
94-V0 |
Plug Force |
less than 50N |
Withdrawal force |
more than 50N |
Ambient temperature range |
-40 ~ + 90. |
Compatible cable cross sections Solar cable |
2.5mm⊃2; ,4.0 mm⊃2; and 6.0 mm⊃2; (14 awg,12awg,awg) |
Pin dimention |
4.0mm |
Solar PV connector:
