SPECIFICATIONS
Battery Type: LiFePO4
Brand Name: Delongtop
Communication Port: CAN,Wifi,RS-232,RS485
Dimension (L*W*H): 690*590*290mm
Grid connection: Hybrid grid
Model Number: HS51200-10
Output Power Range: 10-20Kw
Place of Origin: Guangdong, China
Protection Class: IP54
System Type: Stackable
System Voltage: 51.2 V
Type: Split
Weight: 90kg
Stackable Lithium LifePO4 Battery 48V 51.2V 200Ah 10Kwh,Built-in A Grade BYD Cells and 200A BMS, Widely compatible with inverters, Perfect for Home Energy Storage

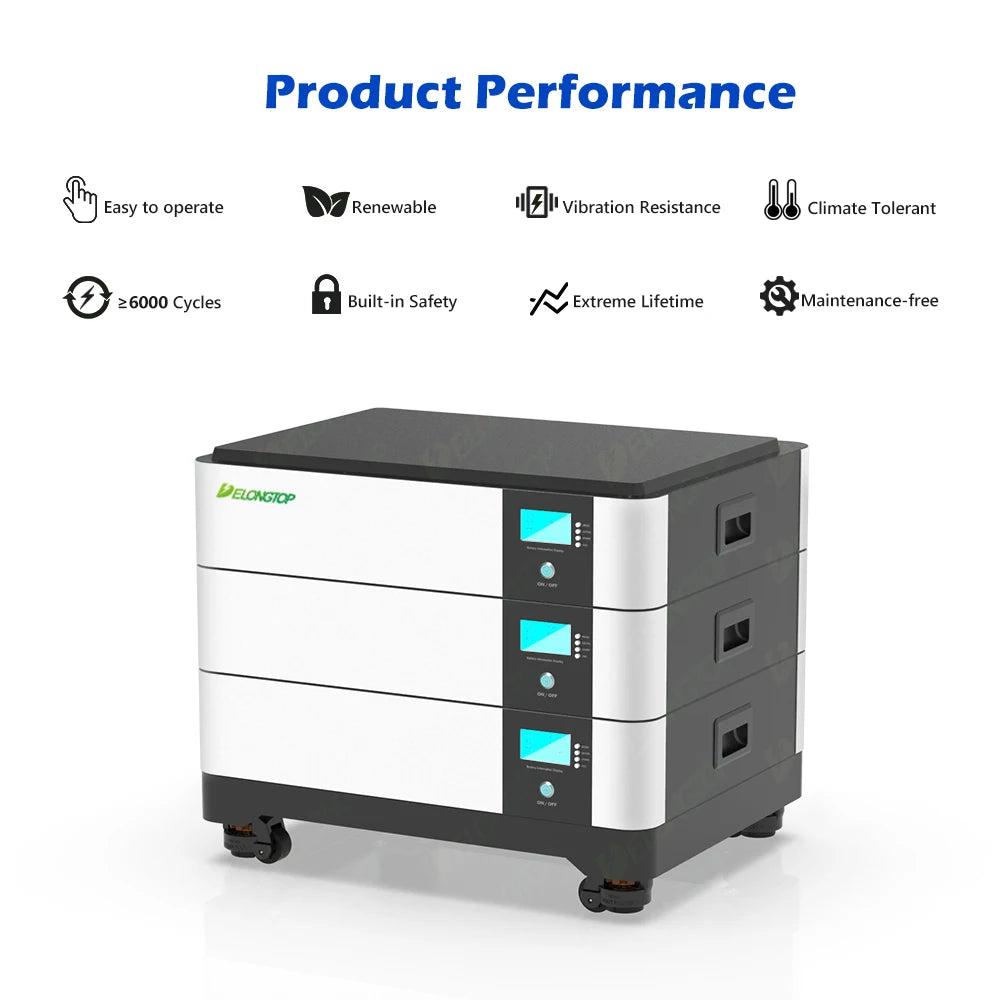

1>Advantages of 10kwh Stackable Lithium Battery
* Indoor mobility & space saving
* High-quality grade A LiFePO4 cells
* Over 6500 deep cycle life
* Design for 12+ years lifespan
* Supports for parallel connection
* Built-in smart BMS with RS485/CAN function
* Surface design, more stable and safe to use.
* 10 years warranty and professional engineer
2>Use Grade A Battery Cells
Delong batteries use grade A lifepo4 cells to support 6500+ long cycle life.
3>Built-in Intelligent BMS
The built-in intelligent BMS provides comprehensive safety protection and prevents the battery from overcharging,over-discharging, over-voltage, over-current, over-temperature, etc. They enhance the battery’s stability, maintain a balanced state, improve performance, and extend service life.
Product Power |
|
|
|
|
Nominal voltage |
|
|
|
|
Nominal capacity |
|
|
|
|
Model Number |
|
|
|
|
Cell type |
LiFePO4 Battery ( Lithium iron Phosphate Battery ) |
|
|
|
Standard charge voltage |
|
|
|
|
Max charge current |
|
|
|
|
Discharge cut-off voltage |
|
|
|
|
Max discharge current |
|
|
|
|
Display |
|
|
|
|
Communication interface |
|
|
|
|
Cycle life |
|
|
|
|
Charge temperature range |
|
|
|
|
Discharge temperature range |
|
|
|
|
Certification |
IEC62619,CE, CB, ETL,MSDS, UN38.3，Identification and Classification Report for Sea Transport of Goods etc. |
|
|
|
Dimensions |
690*560*290mm |
690*560*450mm |
690*560*610mm |
690*560*930mm |
Gross Weight |
About 91Kg |
About 167Kg |
About 243Kg |
About 395Kg |
Optional Accessories |
Movable Base / M8 Parallel Cables(30cm) / RS485 Communication Internet Cables for inverter and parallel |
|
|
|
Delongtop 10Kwh Stackable Battery Internal Structure
Solar LifePO4 Battery Pack
51.2V 200Ah 10.24Kwh
1.Combination: 16S2P
2.Built in 32pcs A grade BYD cells
3.Built in smart balance16S 200A BMS
4.Each cell has a new complete QR code
Our quality is guaranteed.
We guarantee that the batteries you receive are the same as what you ordered
We can assure you that our batteries are made of Grade A cells from BYD. We can provide an original datasheet and certificate from the BYD company to support this. You can inspect the cells upon receipt, and if any of them are not made by BYD, we offer a full refund with no need for a return.
Installation Instructions
1）. Compatible Inverter list:
Delong’s 10kwh stackable home battery is compatible with 99% of inverters on the market, such as Voltronic power, Sermatec,
Studer, Goodwe, Growatt, Victron, LXP, Deye, FoxESS, Renac, SREN/TBB, SMA, MUST, PYLONTECH, Sofar, etc. Solving inverter
compatibility issues can save you a small fortune.
2). Grade A+ New lifepo4 battery cells.Cycle life up to 6000+ times at 80% DOD
! These are Stackable Modular Battery 48V 51.2V 10KWH 20KWH 30KWH 40KWH 50KWH LiFePO4 Battery Solar Home Energy Storage Battery

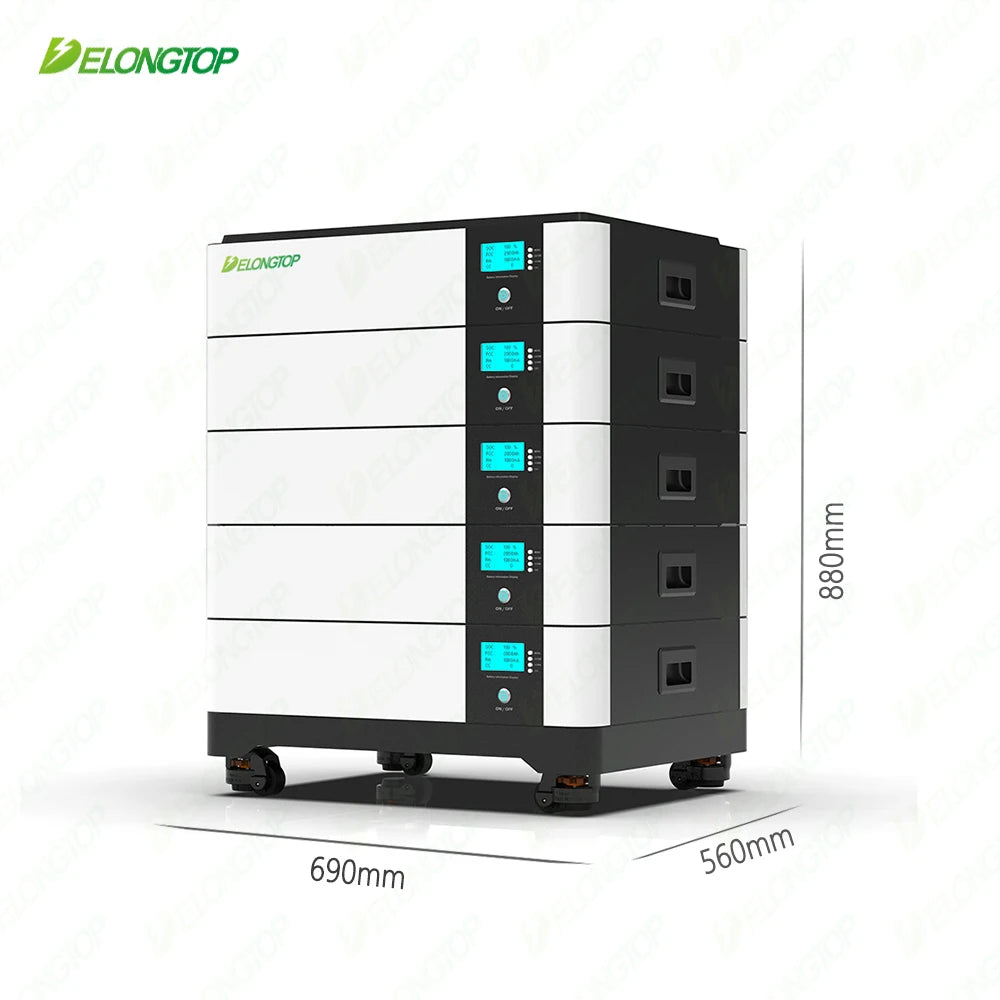

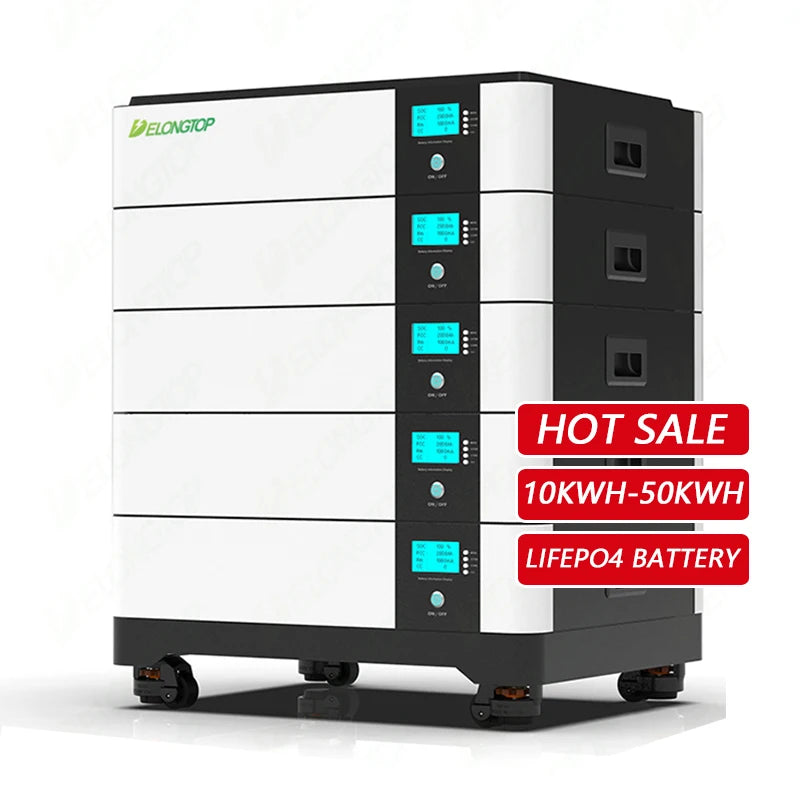

Stackable LiFePO4 10KWH 20KWH 30KWH 40KWH 50KWH Battery vertical Cabinet:
1>One Module 10KWH 51.2V 200AH LiFePO4 Battery , 2pcs Stackable modules in parallel will get 20KWH,3PCS Stackable modules in parallel will get 30KWH...unit max each cabinet contains 5pcs( 50kwh）
2> Battery Support smart communication function RS485/ RS232/ CANbus and can compatible with most of famous Hybrid off grid inverters / MPPT controllers
3> Built in accurate coulomb counter (LCD display), ON/OFF Switch, Handles，bracket and movable base.
4>For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall lifepo4 battery install on the wall and ground.

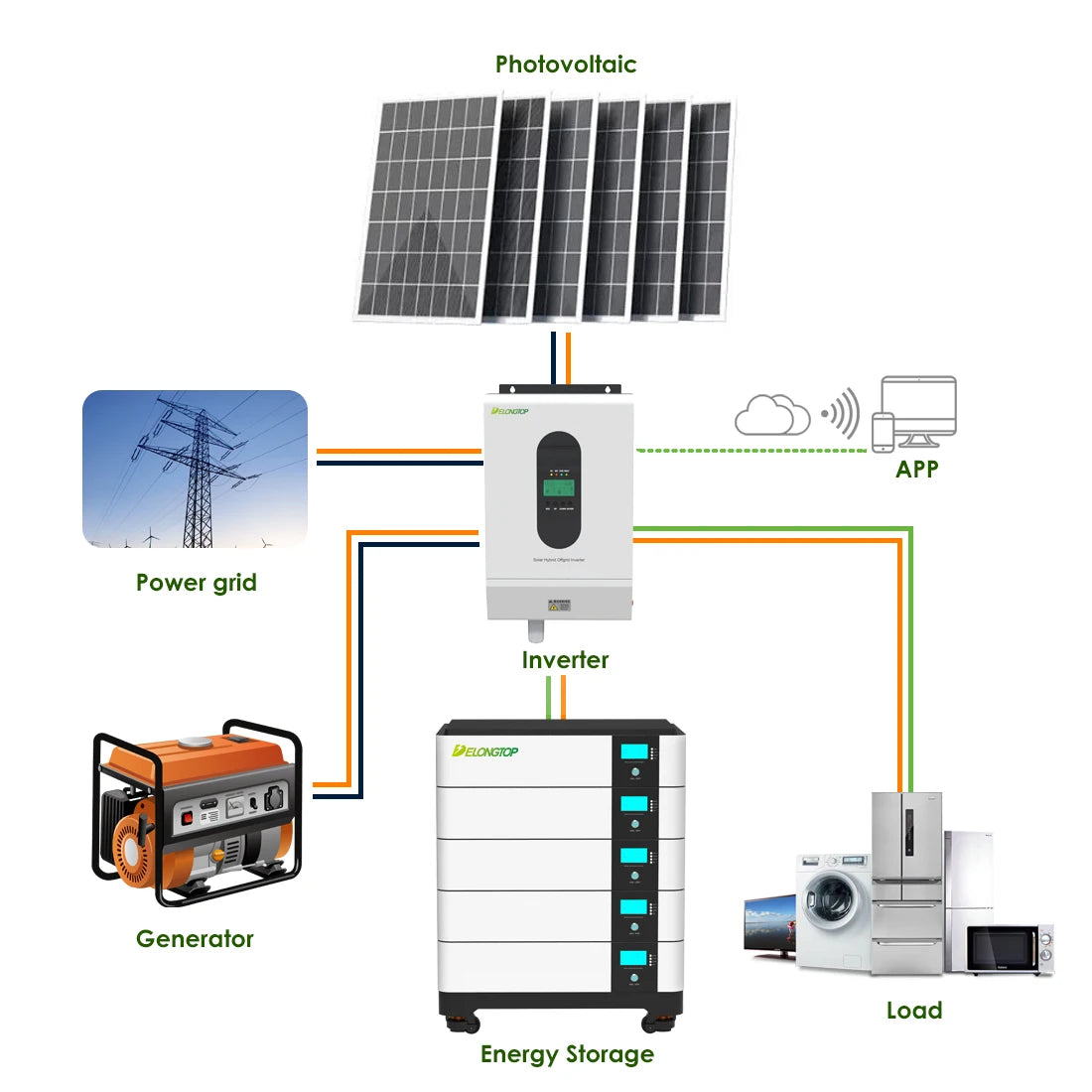

Widely Application – 10kwh Stacked Lithium Battery
This 10kwh stacked lithium battery can be used in
* Household Energy Storage
* Solar Energy Storage System
* commercial energy storage systems
* UPS System
* Central Office
* Base Transceiver Station
* Electric Power System
* Telecommunication Systems
* Communication Equipment
* Switching Applications and More

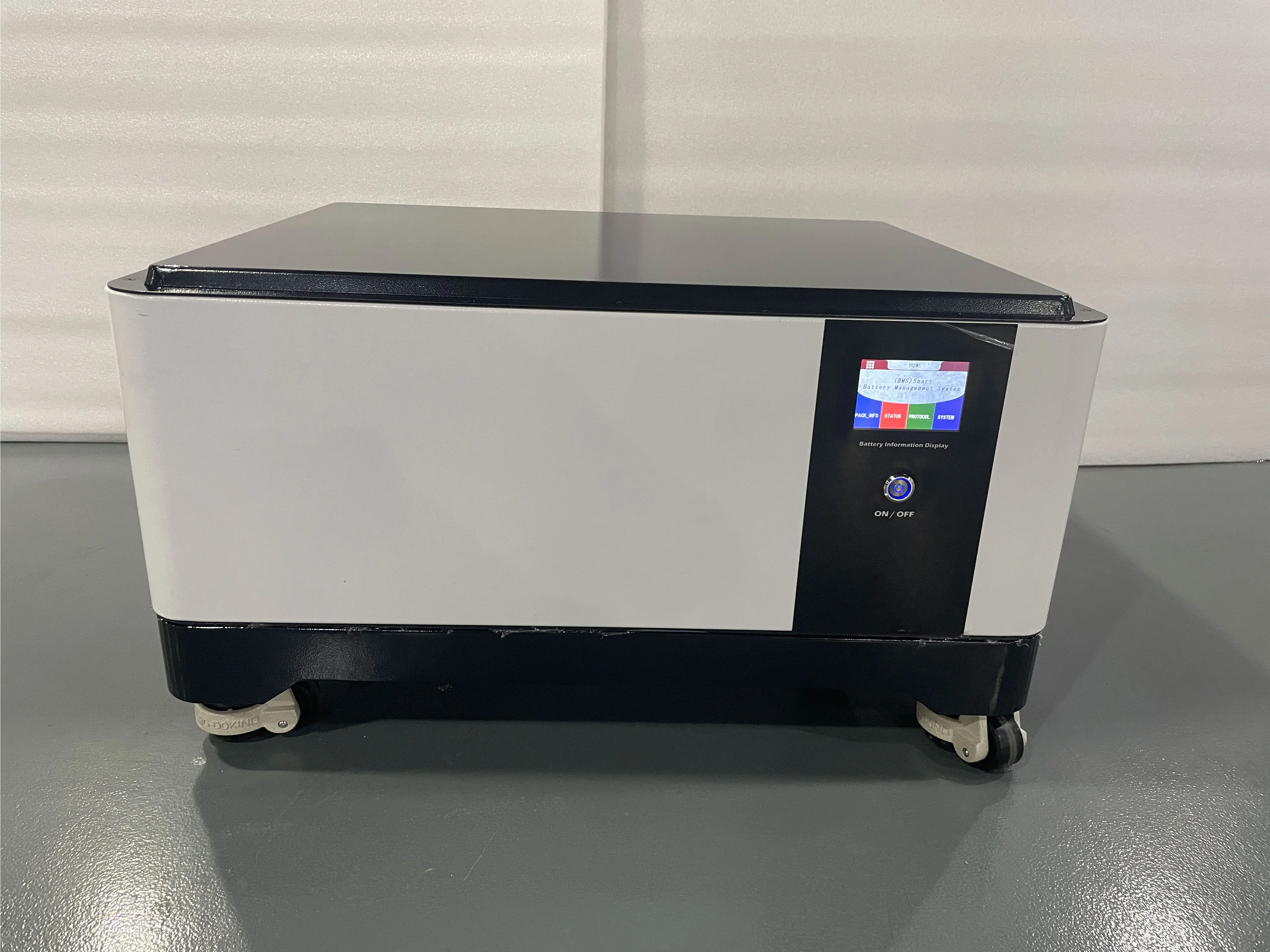

51.2V 300AH 15KWH Stackable Battery with Touch Screen.

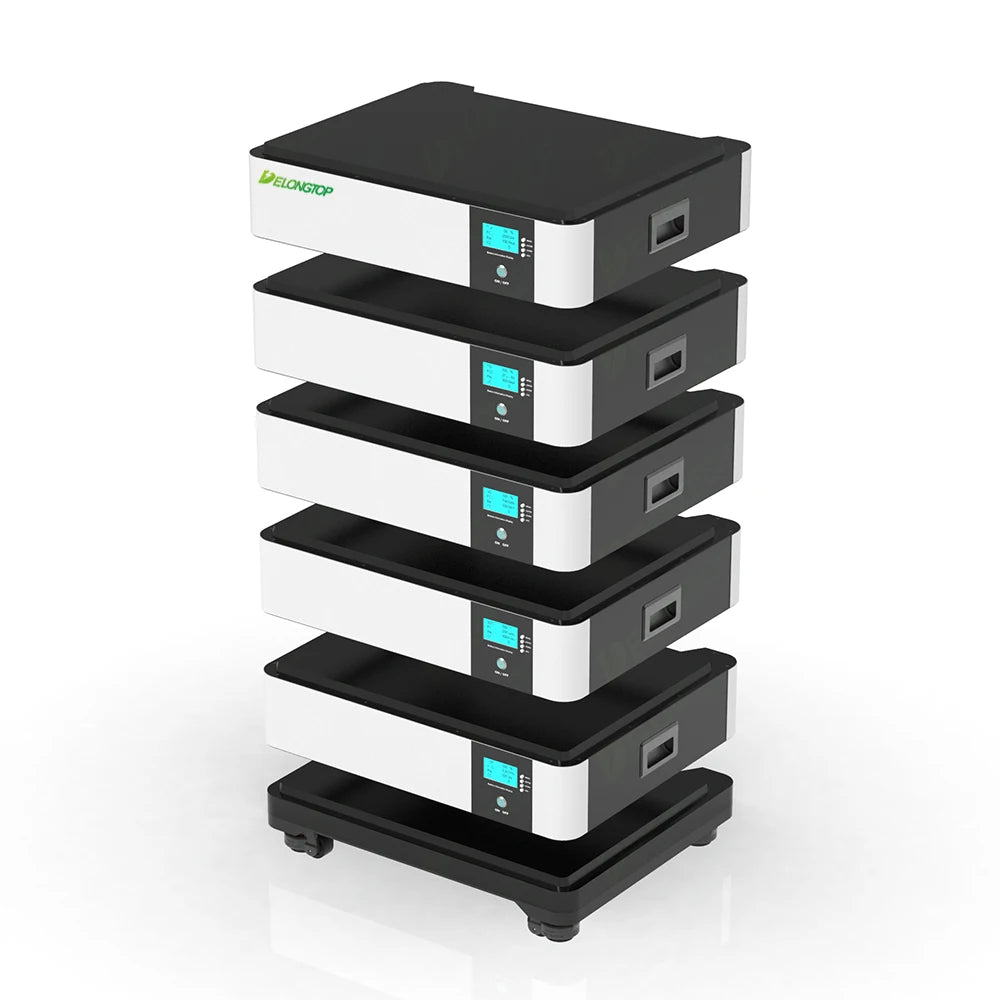

Stackable & Movable Battery to Space Saving
1. Energy Dense Cells & Long Deep Cycle Life-Surface Design, More Stable and Safe to Use.

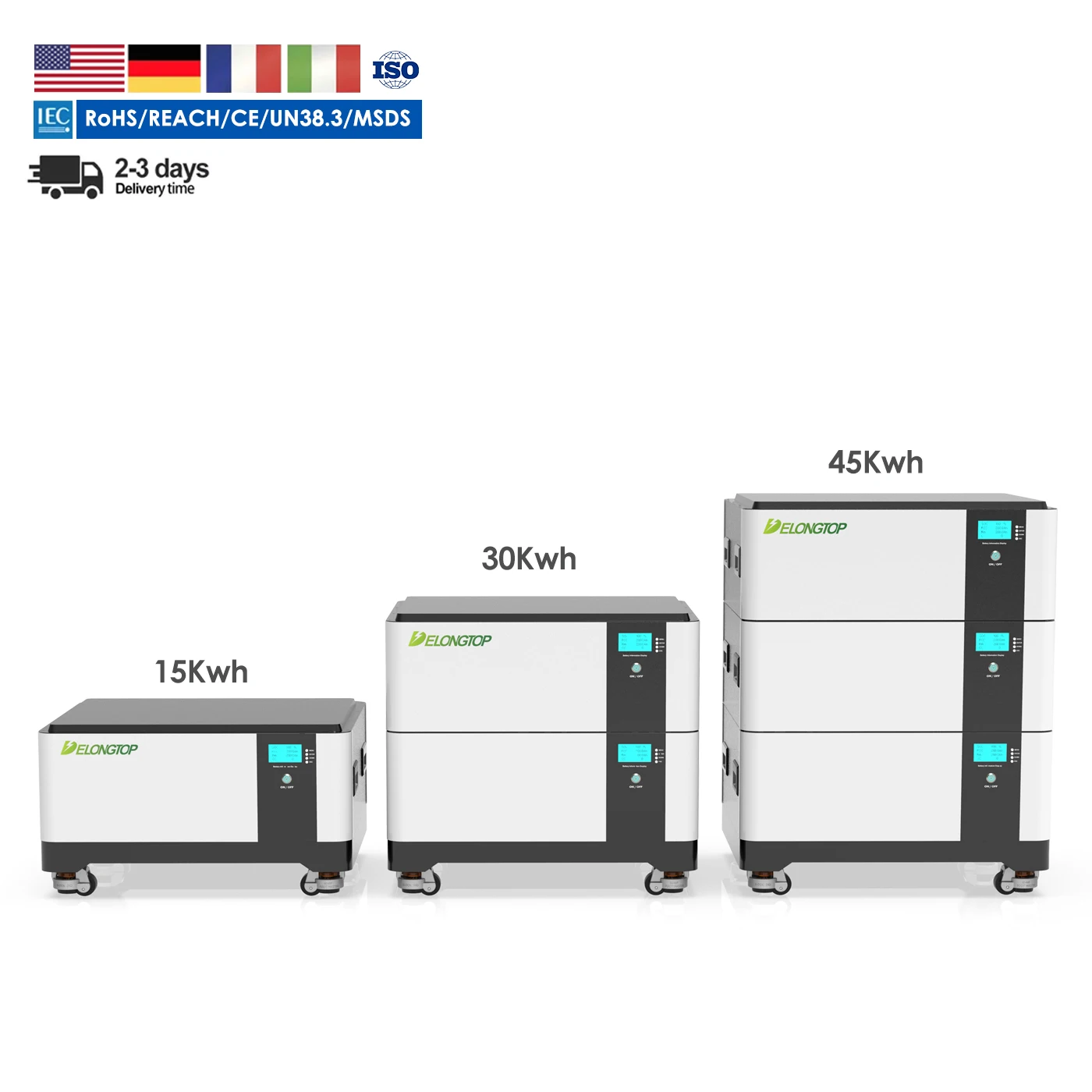

2. Supports Parallel Connection, 300ah 15kwh, size: 630*590*390mm, net weight: 132kg 600ah 30kwh, size: 630*590*631mm, net weight: 248kg 900ah 45kwh, size: 630*590*874mm, net weight: 364kg 1200ah 60kwh, size: 630*590*1117mm, net weight: 480kg
3.Built-in Smart BMS, RS485/CAN Inverter Communications (BMS function: charge protection, over charge protection, over discharge protection, short circuit protection,etc)

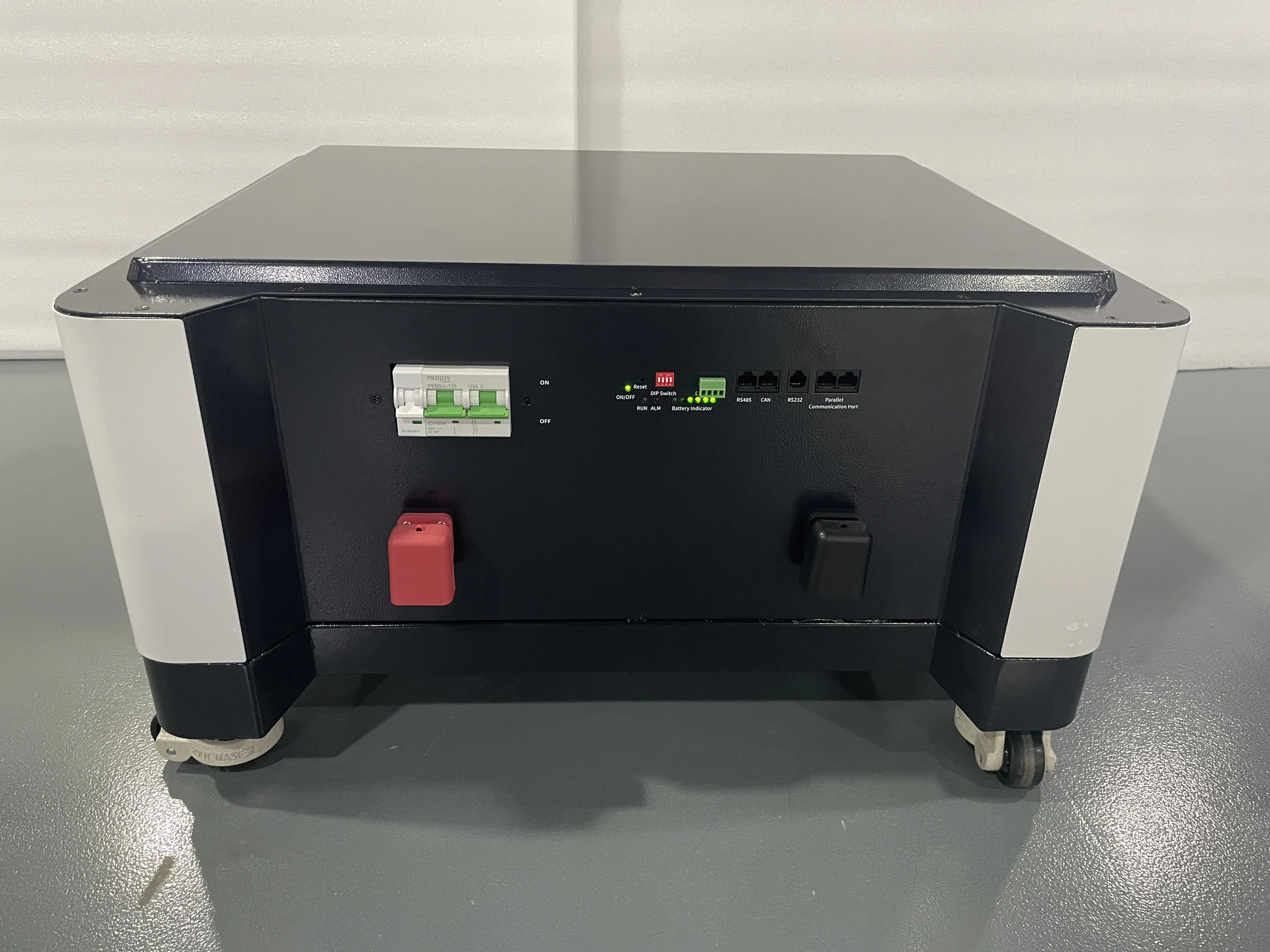

UL 15KWH Battery with FUSE and Breaker
4. UL/CE/IEC62619 REAL certificate 5. 12+ Years Lifespan & 10 Years Warranty
6. Support Customization & OEM /ODM Service
7. Provide Technical Support For You Anytime
8. Touch screen + Bluetooth/WiFi+Breaker+FUSE
9. Compatible Inverter List Delong lithium batteries are compatible with most inverters, providing you with a more convenient user experience.
Q: Are you trading company or manufacturer?
A: We are DELONG original factory from shenzhen , China.
Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.
Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the balance before shipment
Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
