SPECIFICATIONS

Application: Home

Battery Type: N/A

Blades material: Reinforced nylon fiber

Brand Name: Elege

Certificate: CE

Color: Customizable

Model Number: EL-D

Option: custom

Output Frequency: 50HZ/60HZ

Output Voltage (V): 12V/Customizable

Place of Origin: Jiangsu, China

Pre-sales project design: YES

Rated Voltage: 12V/Customizable

Safe wind speed (m/s): ≤40m/s

Service: Complete system guide installation

Start-up wind speed: 1.5m/s

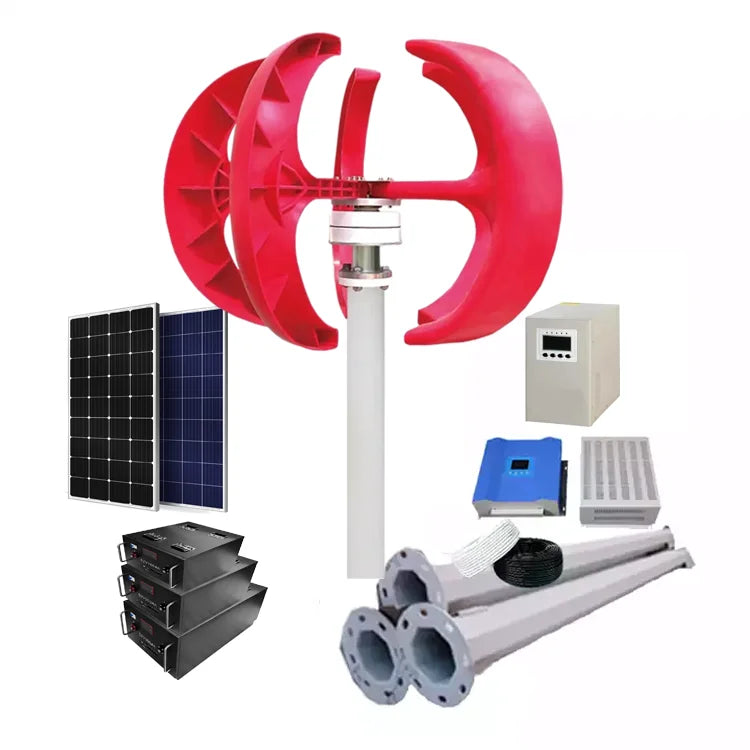

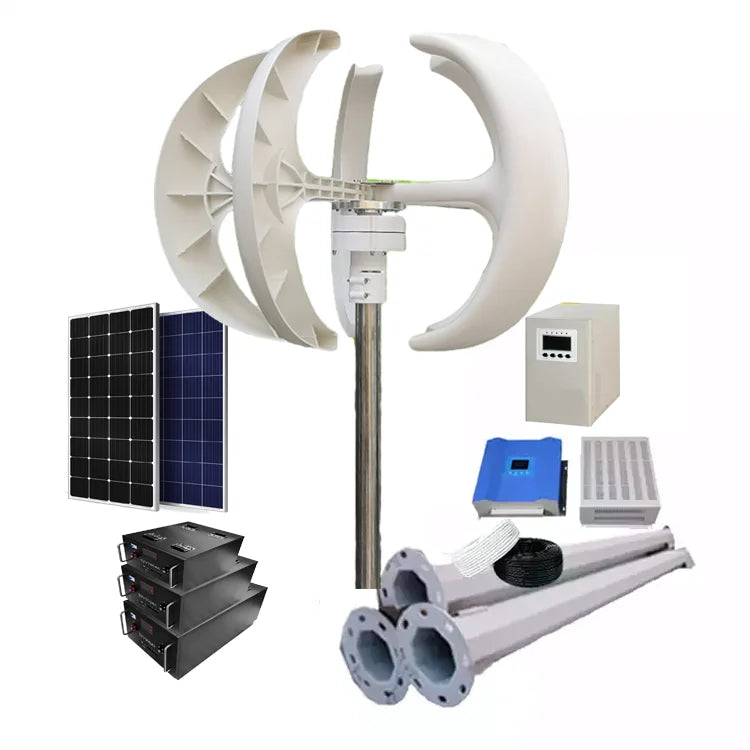

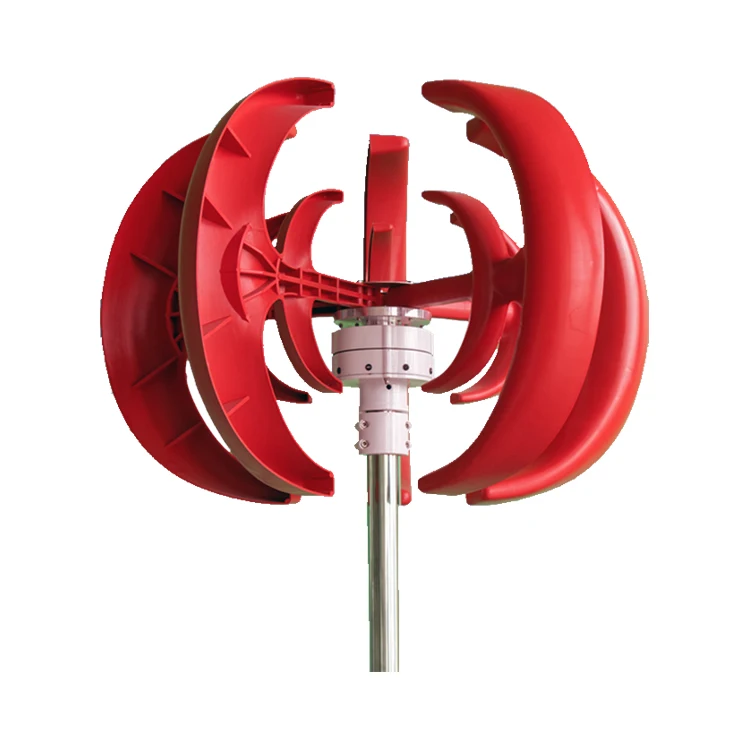

High Efficiency Windmill 100w 200w 300w 400W 600W Vertical Axis Wind Turbine Generator 12v 24V Off/ON Grid System for Home Use

Rated power	300W	500W	800W	1000W	1200W	1500W
Maximum power	300W	500W	800W	1010W	1250W	1550W
Rated voltage	12V
Start the wind speed	2m/s
Operating wind speed	3.5m/s-13m/s
Safe wind speed	55m/s
Blade length/diameter	0.6m/0.9mm
Number of blades	3/5
Blade material	Reinforced nylon fiber
Fuselage material	Reinforced die-cast aluminum
Magnetic steel material	NdFeB
Generator type	Three-phase AC permanent magnet synchronous generator
Control mode	Electromagnetic brakes
Wind direction adjustment	Automatic windward

● This small vertical axis wind turbine features a low cut-in speed and an automatic yaw system with a folding tail vane for enhanced typhoon resistance. It automatically adjusts its direction to face the wind for optimal performance.

● Constructed with high-strength nylon composite blades, the turbine offers excellent toughness, UV resistance, corrosion
resistance, and durability in strong winds. It utilizes imported NSK bearings, known for high efficiency, wear resistance, and a
service life of up to 15 years.

This controller features MPPT boost charging and a PWM dump load, automatically managing solar input. It accepts dual power from
batteries and solar panels. An LCD clearly displays key parameters for monitoring and adjustment, while three configurable DC
output modes are provided. The conformal-coated PCB ensures protection against dust, moisture, and static electricity.

Employing a dual-CPU design for intelligent control, this system ensures high reliability and pure sine wave output with strong
load capacity. It integrates comprehensive protections including overload, overtemperature, short-circuit, and over/under voltage safeguards. The compact and lightweight unit utilizes centralized control and SMT technology. A smart CPU-regulated cooling fan enhances longevity and energy efficiency.

Lead-acid batteries offer a cost-effective solution for large-scale applications, with high reliability and stability under normal
operation. They are rechargeable, support efficient high-current discharge, and are available in a wide range of capacities.
Additionally, their low self-discharge rate helps maintain charge longer during storage.

The cable features copper conductors for excellent corrosion resistance and long-term reliability. It utilizes low-temperature
insulation, enabling operation as low as -40°C for cold climate applications. The high-temperature, low-smoke, halogen-free
sheathing withstands temperatures up to 120°C, ensuring performance integrity in demanding environments.
