SPECIFICATIONS

Battery Module Capacity: 200Ah

Battery Module Energy: 10.2kwh

Battery Type: LiFePO4,Li-Ion/lithium/lifepo4

Brand Name: Deye

Certification: UN38.3, IEC62619, CE, UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A

Communication Port: CAN, rs485,CAN2.0, RS485

Cycle life: >=6000 25°C 0.5c

Dimension (L*W*H): 70*85*30cm

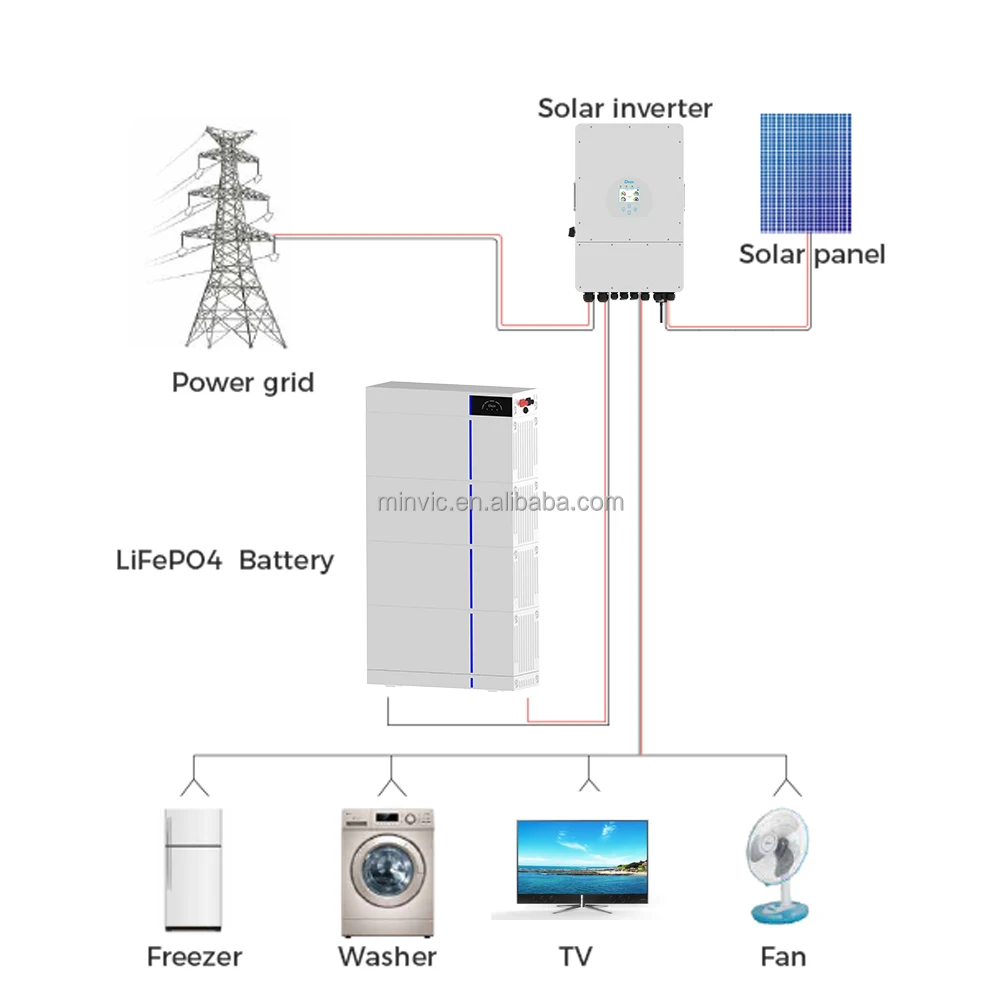

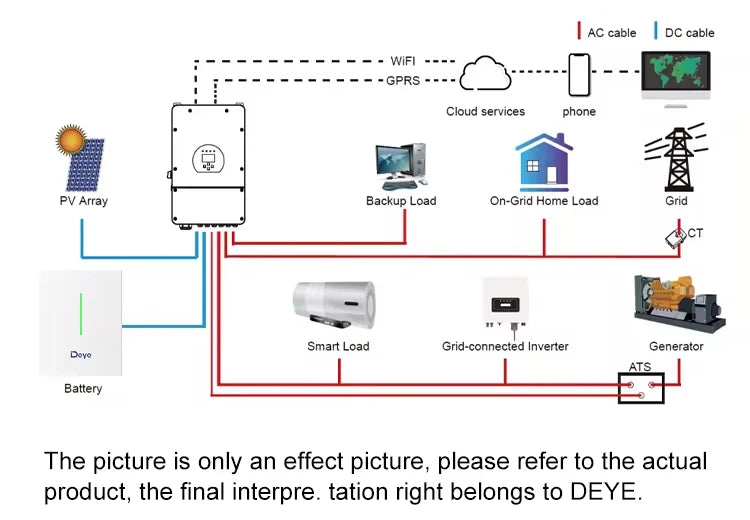

Grid connection: Hybrid grid, Off grid, Lithium Battery Solar Energ

IP Ratingof Enclosure: IP65

Model Number: LFPWall-5000

Output Power Range: 51.2 V

Place of Origin: Anhui,China

Protection Class: IP65

Storage Temperature: 0℃~35℃

System Type: Rack-mounted,Wall-Mounted

System Voltage: 51.2 V

Type: All-In-One

Voltage: 51.2V

Warranty: 10 Years

Weight: 108kg

Product Description

Specification

Model			SE-G5.1 Pro	SE-G5.3
Main Parameter
Battery Chemistry			LiFePO 4
Capacity(Ah)			100	104

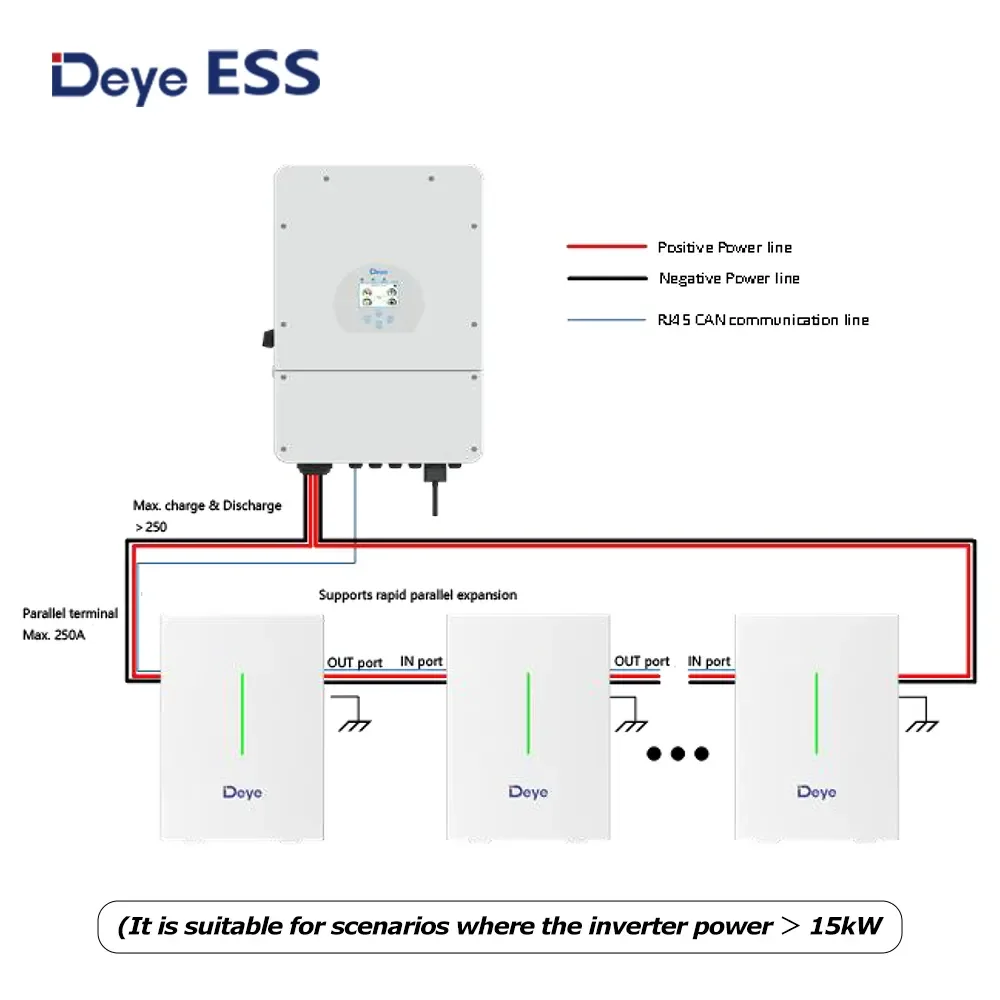

Scalability			Max. 64 pcs pack in parallel (Max. 32 pcs no external setup)
Nominal Voltage(V)			51.2
Operating Voltage(V)			43.2~57.6
Energy(kWh)			5.12	5.32
Usable Energy(kWh)			4.6	4.79
Charge/ Discharge Current(A)	Recommend	50
		Max.	100
		Peak	150 (2mins,25℃）
Other Parameter
Recommend Depth of Discharge			90%
Dimension(W/H/D,mm)			440×133×540	440*133*560
Weight Approximate(kg)			45	44
Master LED Indicator			5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting)
IP Rating of Enclosure			IP20
Operating Temperature			Charge:0~ 55°C (Optional heating) / Discharge: -20°C～55°C
Storage Temperature			0°C~35°C
Humidity			5%~95%
Altitude			≤2000m
Cycle Life			≥6000(25°C±2°C , 0.5C/0.5C, 90%DOD, 70%EOL)	≥6000(25°C±2°C, 0.3C/0.3C, 90%DOD, 70%EOL)
Installation			19-inch standard rack (depth ≥600mm), Floor -Mounted, Wall -Mounted
Communication Port			CAN2.0 , RS485
Warranty Period			10years	5years
Energy Throughput			16MWh@70%EOL
Certification			UN38.3, IEC62619, CE,UK, VDE2510-50, CEI 0-21, FCC, UL1973, UL9540A	UN38.3, CE, IEC62619

Battery Pack Accessories

Model	Accessories Parts Description	Remark
3U-LBCable150	Battery Parallel Cable (Included)	Battery power and communication parallel connection cable (when using the 3U-bracket floor mount)
3U-LPCable1500	Hybrid inverter Cable (Included)	Battery power and communication cable connect with hybrid inverter
3U-LRfe	Battery Rack Fixed Ears (Included)	Used for battery fixing with 19inch rack or cabinet
3U-Bracket	Battery Brackets (Included)	Simple stacking bracket, 1 unit including 4 pcs brackets, Max. stacking 4 floors
3U-W-Bracket	Battery Wall-Mounted Brackets and screws (Included)	Simple wall hanging support.

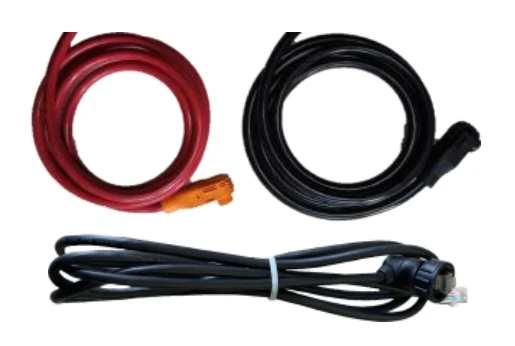

Model: 3U-LPCable1500
Details: Pair of 4AWG DC power cable (one end has a waterproof terminal, the other end is
M10 copper terminal) and one RJ45 communication cable connect with hybrid inverter. The default length is 1500mm.

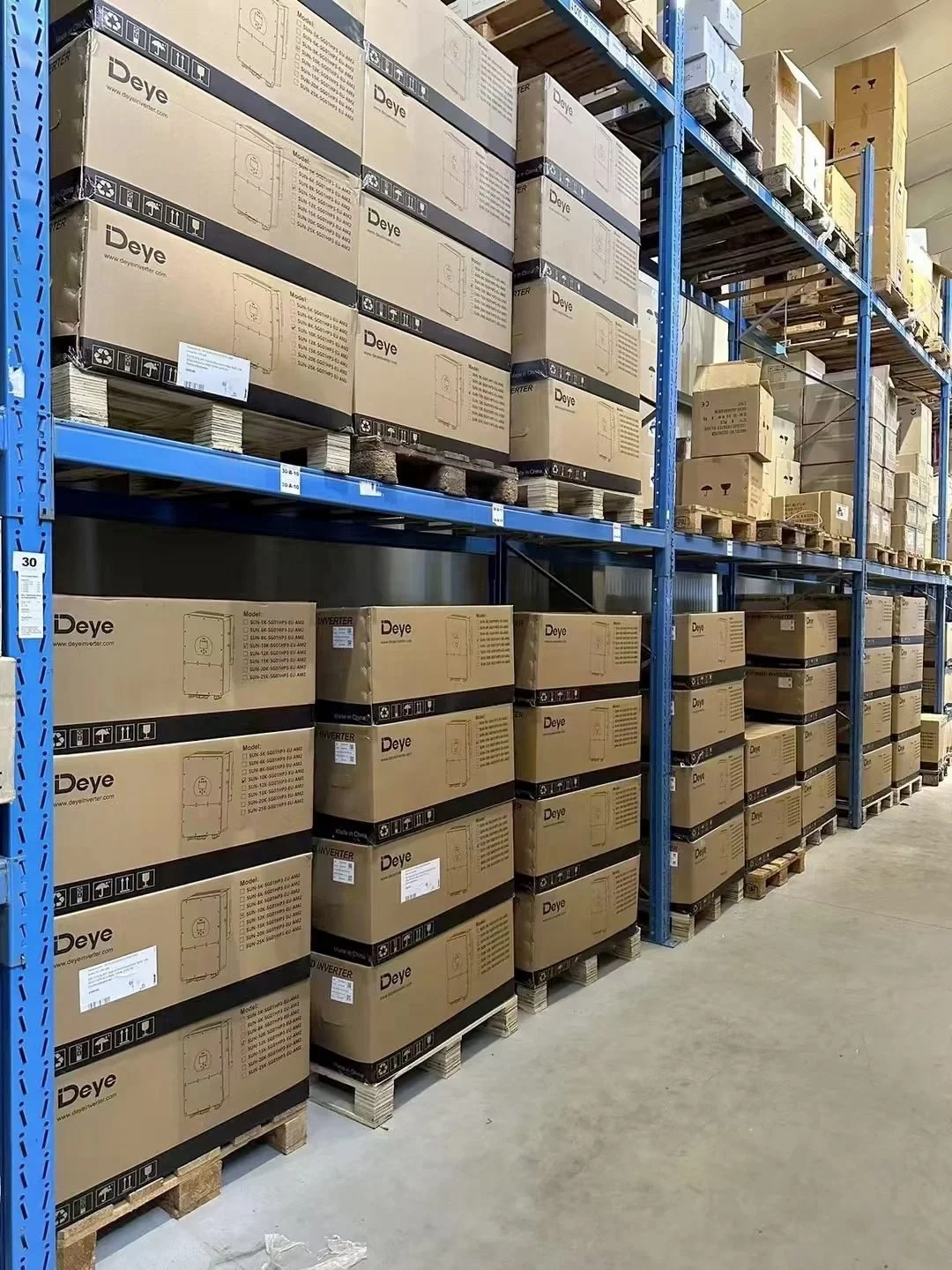

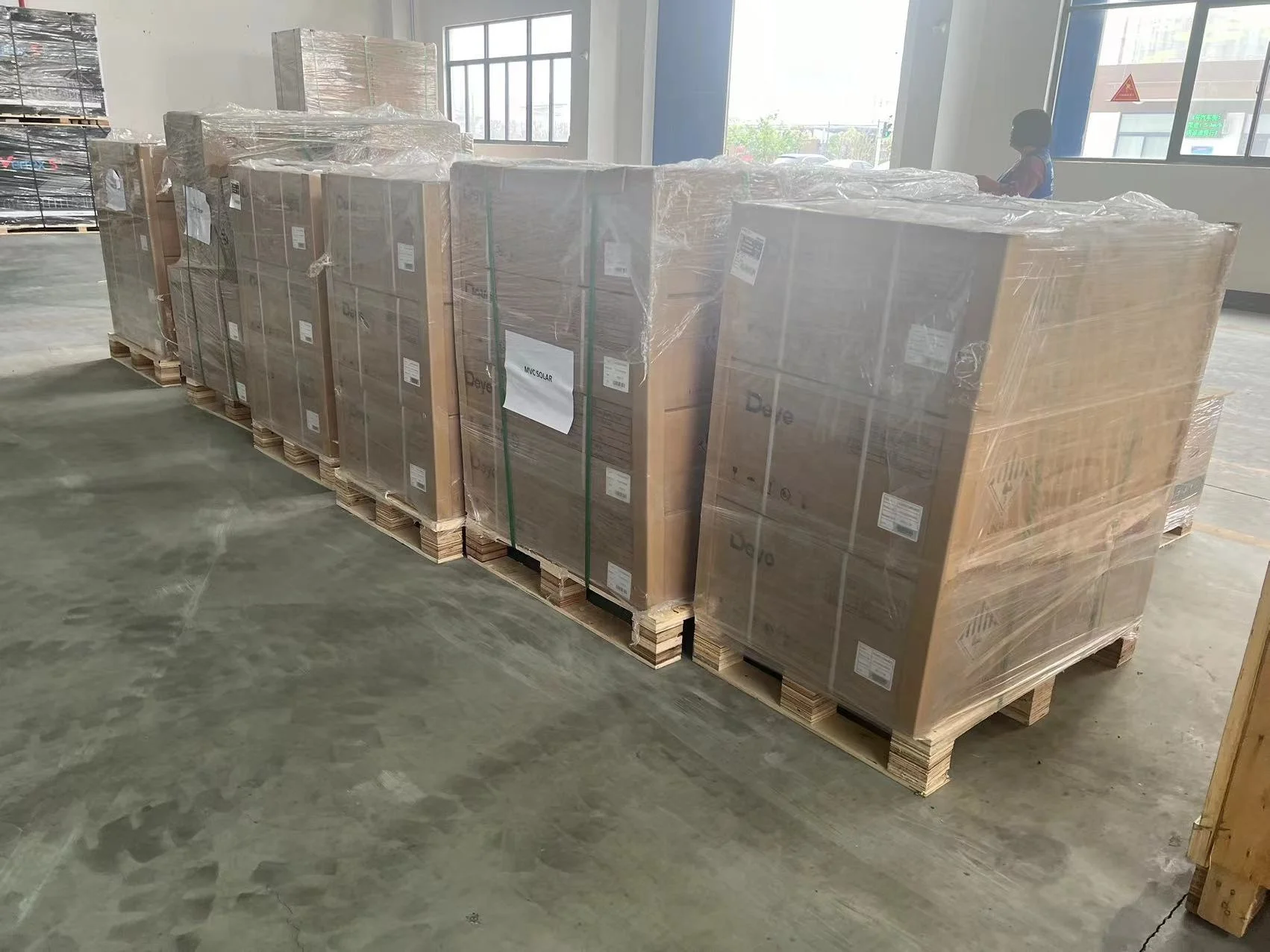

Packing & Delivery
