SPECIFICATIONS

Application: Solar Storage System,Solar panel. solar house

Battery Type: LiFePO4

Battery cell: 3.2V 200ah BYD Prismatic Lifepo4 Cell

Brand Name: delongtop

Certification: CE,MSDS,UN38.3/ul/IEC62619/ETL

Chemistry: Lithium Iron Phosphate (Lifepo4)

Combination: 16S1P

Communication Port: CAN,Wifi,RS-232,RS485

Cycle Life: 8000 times 80% dod

Dimension (L*W*H): 690*560*290mm

Grid connection: Hybrid grid

Model Number: HS51200-10

Output Power Range: 10-20Kw

Place of Origin: Guangdong, China

Product name: Energy storage battery for 5kw 10kw hybrid Inverter

Protection: Built in Smart 200a BMS

Protection Class: IP65

System Type: Stackable

System Voltage: 51.2 V

Type: Split,Lithium solar storage battery

Warranty: 10 Years

Weight: 95kg

Product Description

Stackable Lithium LifePO4 Battery 48V 51.2V 200Ah 10Kwh,Built-in A Grade BYD Cells and 200A BMS, Widely compatible with inverters, Perfect for Home Energy Storage

Product Power	10Kwh	20Kwh	30Kwh	50Kwh
Nominal voltage	51.2V	51.2V	51.2V	51.2V
Nominal capacity	200Ah	400Ah	600Ah	1000Ah
Model Number	HS51200-10
Cell type	LiFePO4 Battery ( Lithium iron Phosphate Battery )
Standard charge voltage	57.6V
Max charge current	80A(Single Pack)
Discharge cut-off voltage	44.8V
Max discharge current	200A
Display	LCD
Communication interface	RS232 / RS485 / CAN
Cycle life	≥6000 cycles at 80% dod
Charge temperature range	0~55℃
Discharge temperature range	-20°C to + 60°C
Certification	IEC62619,CE, MSDS, UN38.3，Identification and Classification Report for Sea Transport of Goods etc.
Dimensions	690*560*290mm	690*560*450mm	690*560*610mm	690*560*930mm
Gross Weight	About 91Kg	About 167Kg	About 243Kg	About 395Kg
Optional Accessories	Movable Base / M8 Parallel Cables(30cm) / RS485 Communication Internet Cables for inverter and parallel

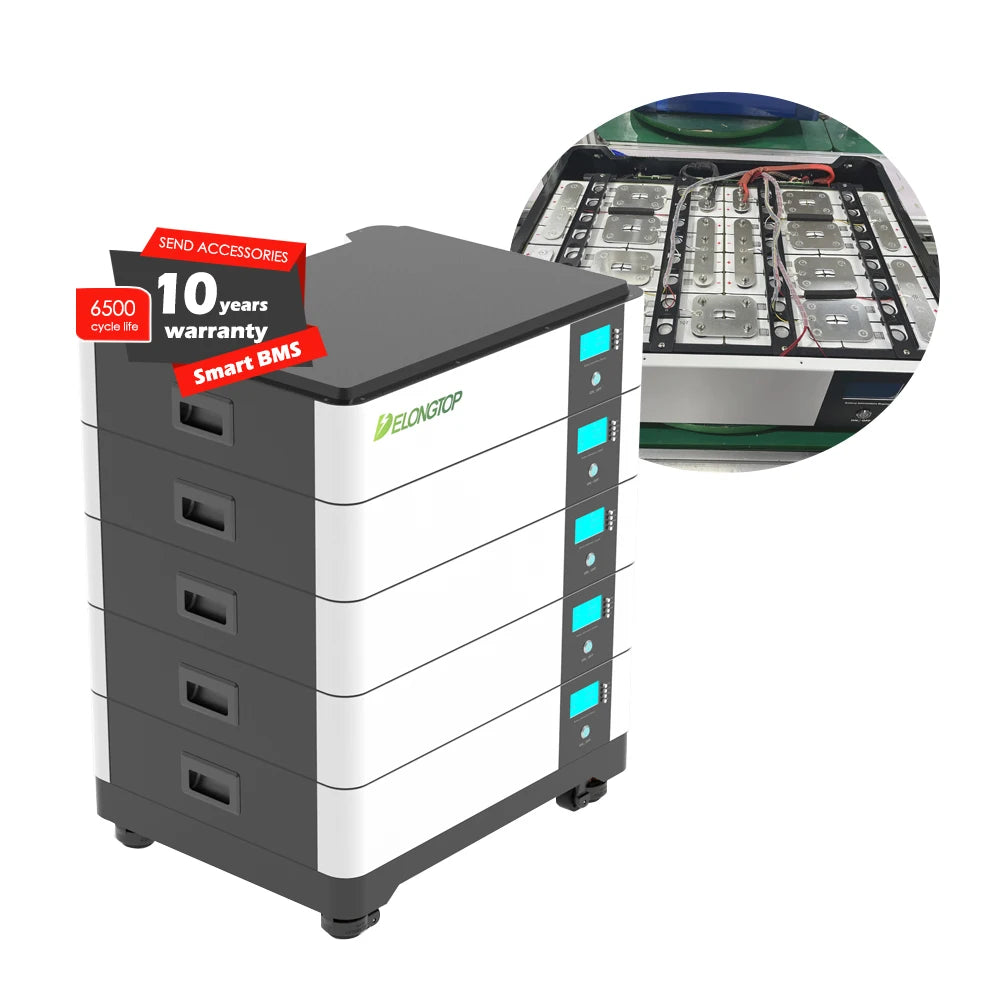

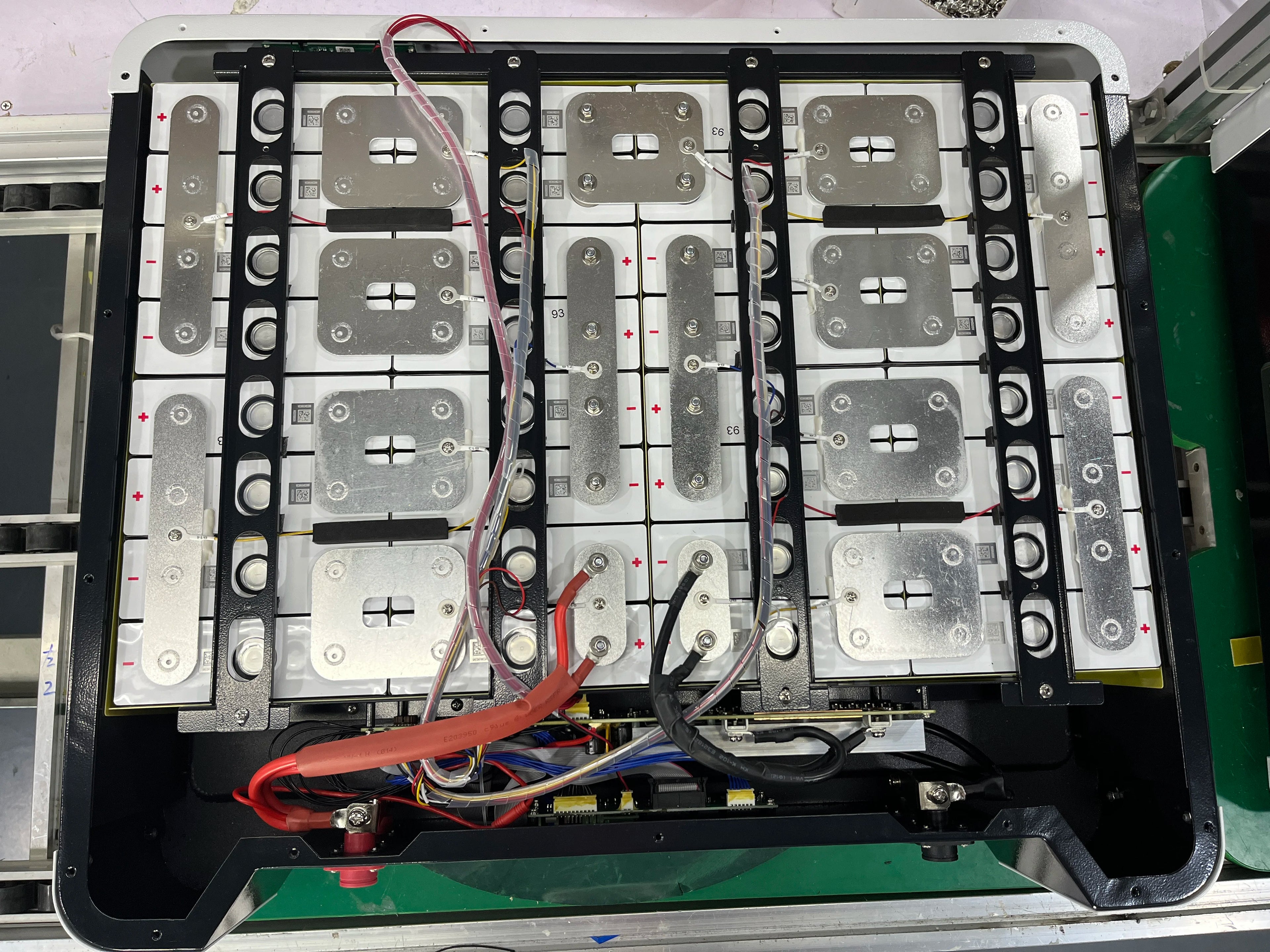

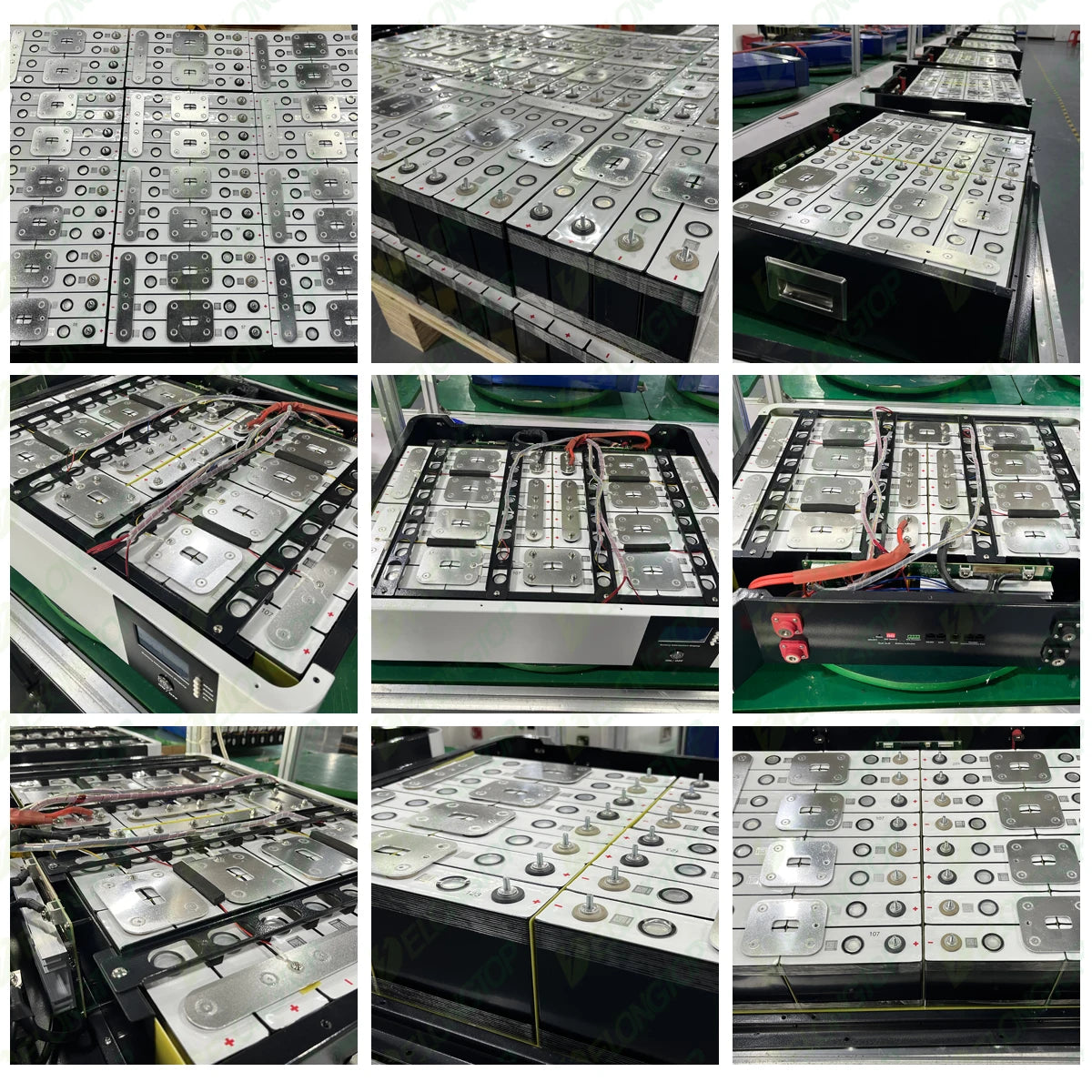

Delongtop 10Kwh Stackable Battery Internal Structure

Solar LifePO4 Battery Pack

51.2V 200Ah 10.24Kwh

1.Combination: 16S2P

2.Built in 32pcs A grade BYD cells

3.Built in smart balance16S 200A BMS

4.Each cell has a new complete QR code

Our quality is guaranteed.

We guarantee that the batteries you receive are the same as what you ordered

We can assure you that our batteries are made of Grade A cells from BYD. We can provide an original datasheet and certificate from the BYD company to support this. You can inspect the cells upon receipt, and if any of them are not made by BYD, we offer a full refund with no need for a return.

Installation Instructions

1）. Compatible Inverter:

2). Grade A+ New lifepo4 battery cells.Cycle life up to 6000+ times at 80% DOD

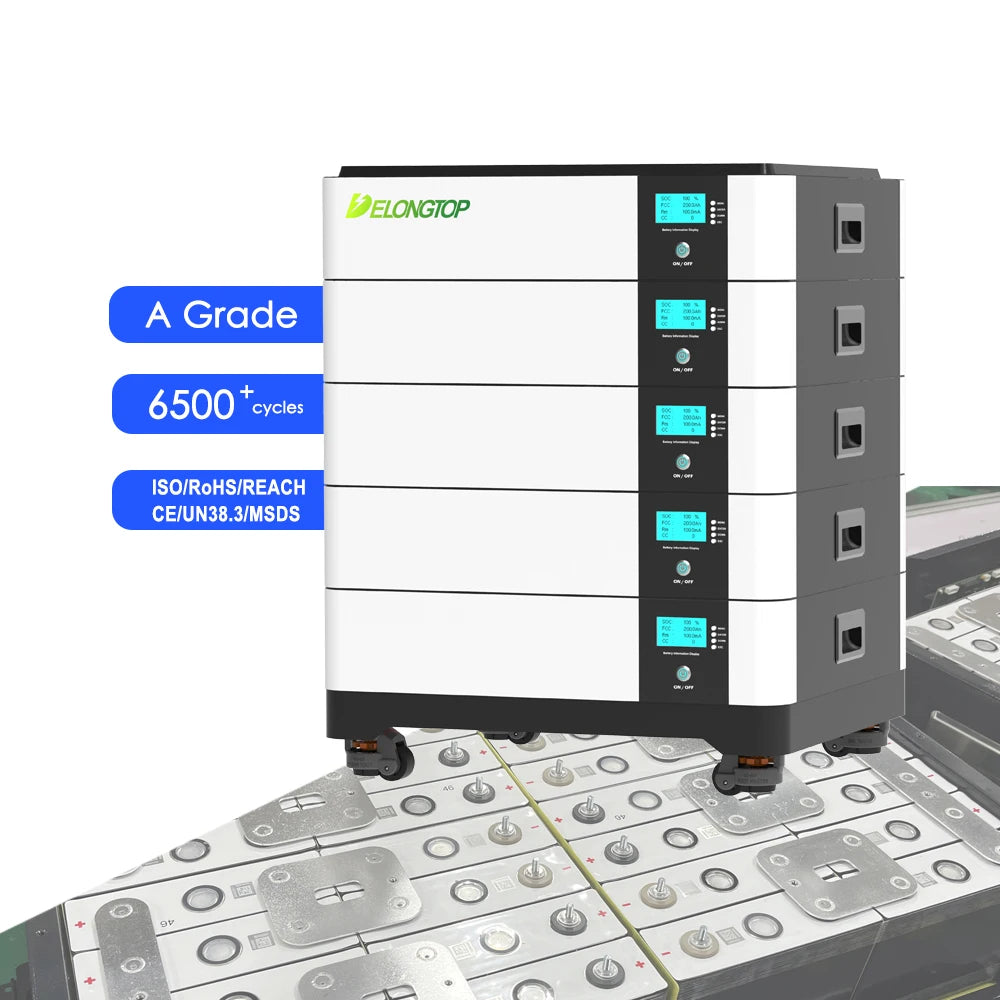

! These are Stackable Modular Battery 48V 51.2V 10KWH 20KWH 30KWH 40KWH 50KWH LiFePO4 Battery Solar Home Energy Storage Battery

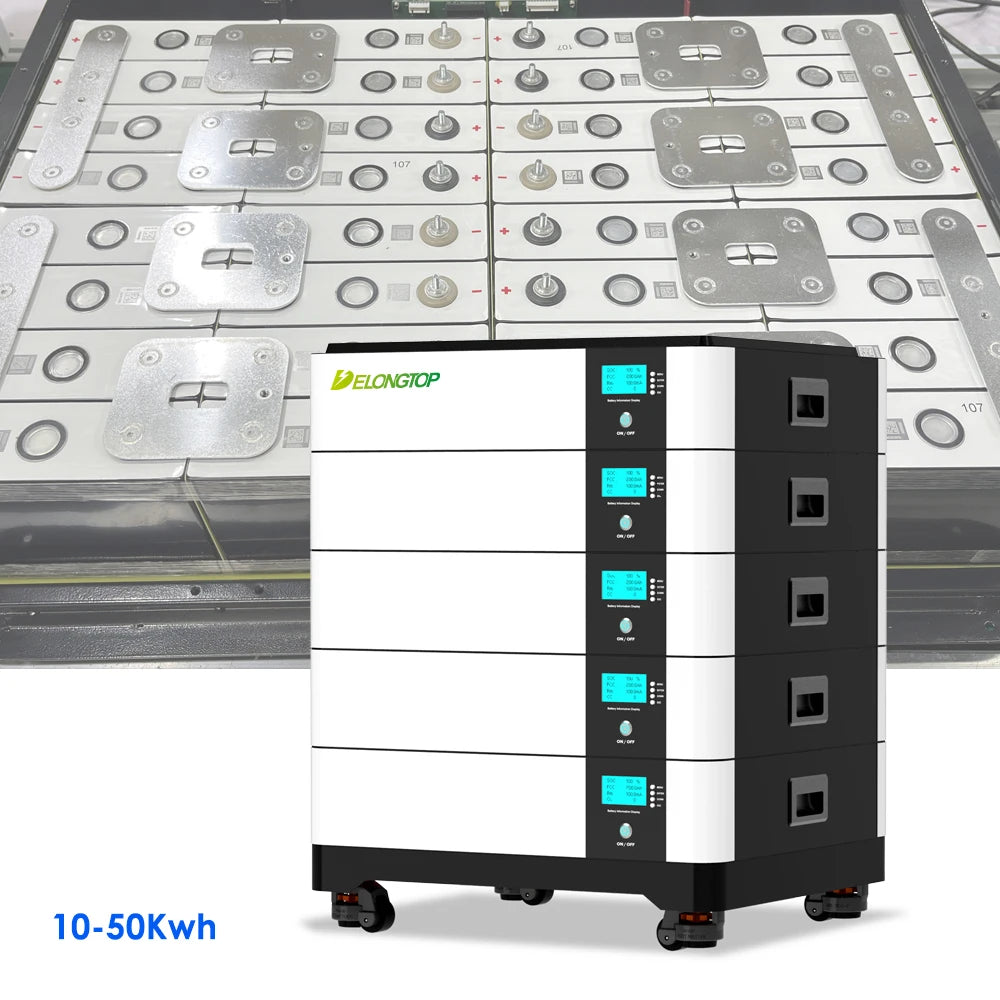

Stackable LiFePO4 10KWH 20KWH 30KWH 40KWH 50KWH Battery vertical Cabinet:
1>One Module 10KWH 51.2V 200AH LiFePO4 Battery , 2pcs Stackable modules in parallel will get 20KWH,3PCS Stackable modules in parallel will get 30KWH...unit max each cabinet contains 5pcs( 50kwh）

2> Battery Support smart communication function RS485/ RS232/ CANbus and can compatible with most of famous Hybrid off grid inverters / MPPT controllers
3> Built in accurate coulomb counter (LCD display), ON/OFF Switch, Handles，bracket and movable base.

4>For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall lifepo4 battery install on the wall and ground.

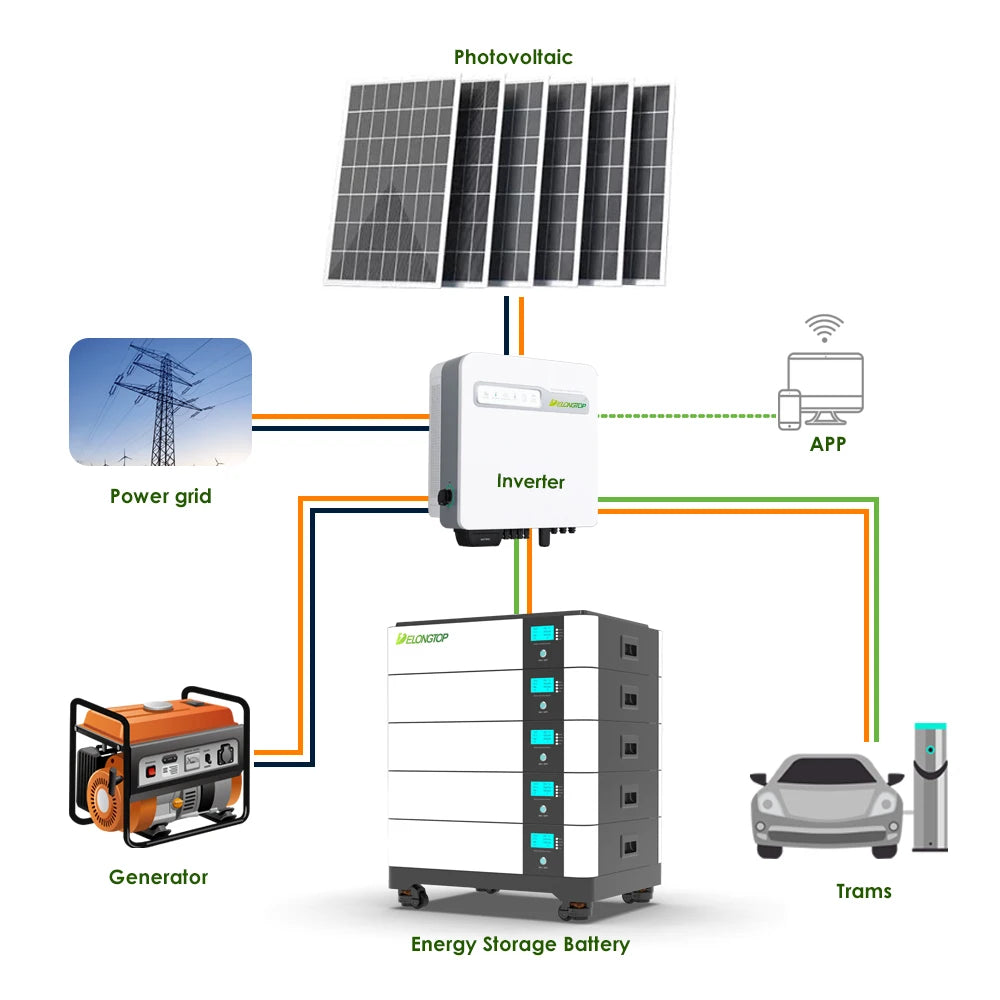

Product Applications

Product Packaging

REVIEWS

FAQ

Q: Are you trading company or manufacturer?
A: We are DELONG original factory from shenzhen , China.

Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the balance before shipment

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
