Color
Output Voltage220-240V
Ships From|Input Voltage

SPECIFICATIONS

Brand Name: ANERN

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Is Smart Device: Yes

Origin: Mainland China

Output Frequency: 50HZ

Output Power: 1 - 200 KW

Output Type: DUAL

Size: 110*334*423MM

Weight: 9.5/10kg



Inverter use notice

1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.

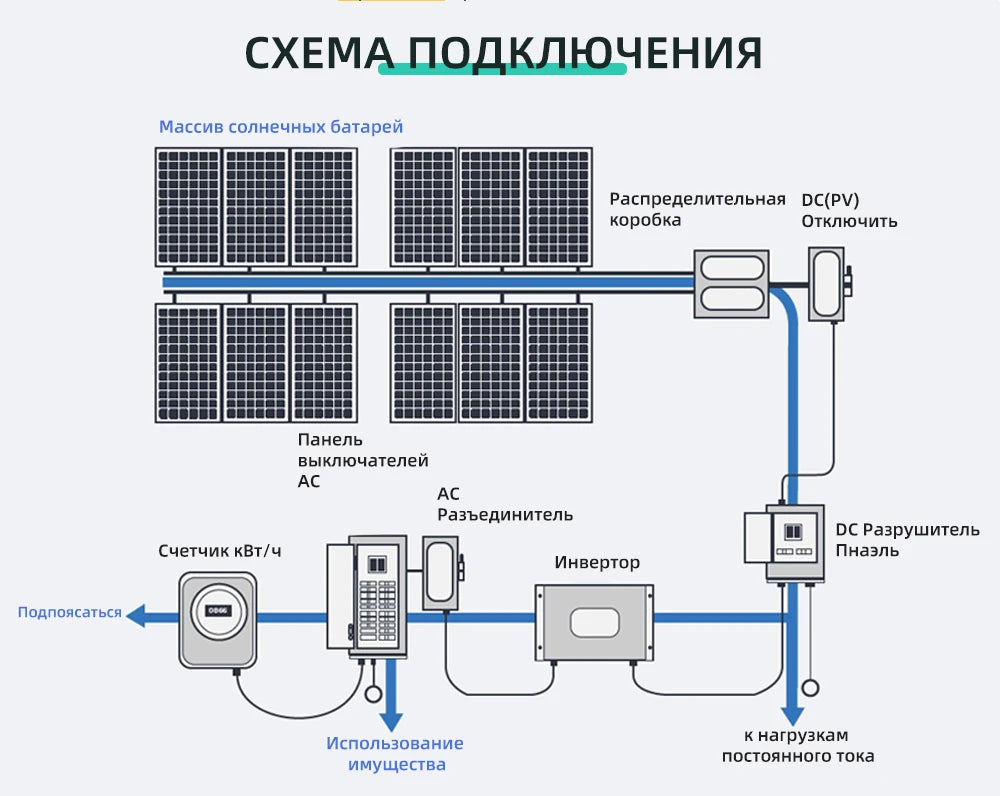

2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.

3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.

4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.

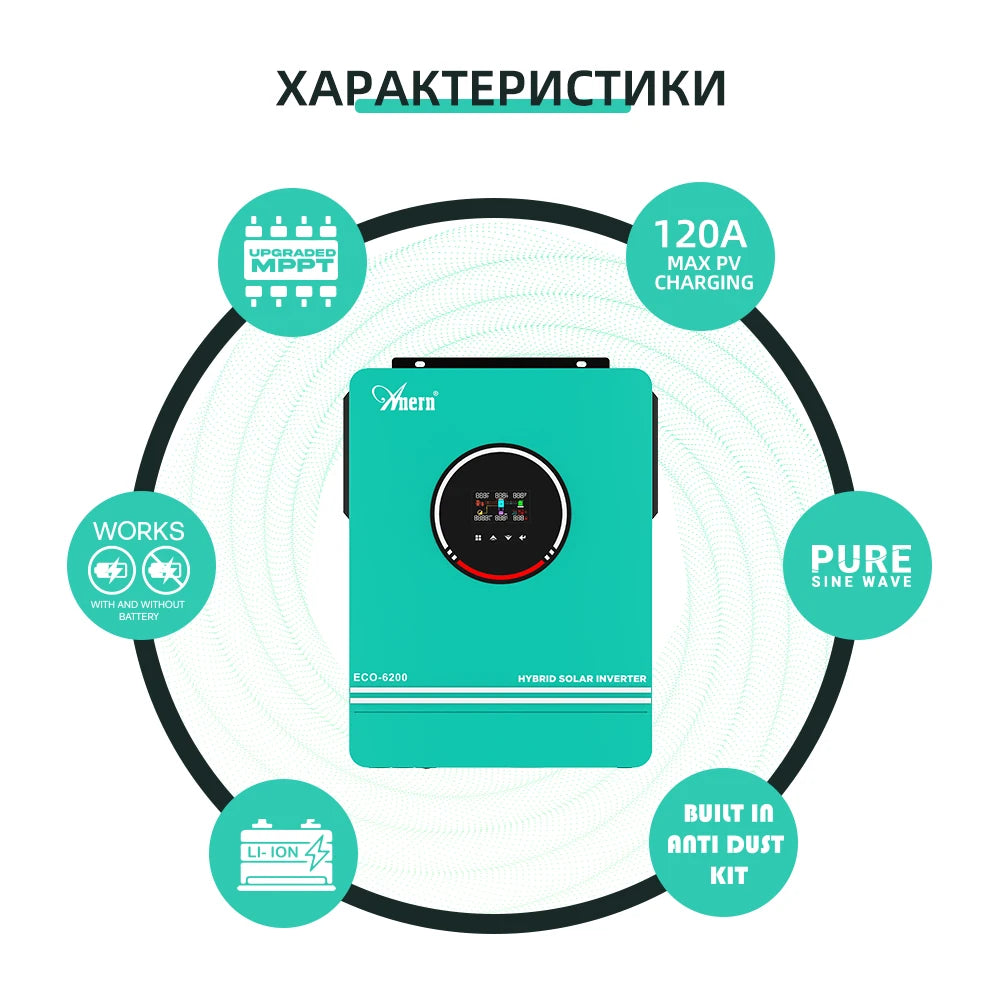

Features of Module
Pure sine wave solar inverter
Inverter running without battery
One-key restoration to factory settings
With function of Lithium battery automatic activation by PV
Bulit-in 120A MPPT solar controller
Max 6200W(for 4.2KW) & 6500W(for 6.2KW) solar charge
High PV input voltage range(60-450VDC)
Built in anti-dusk kit for harsh environment
Smart battery charge design to optimize battery life
Dual output
WIFI available for IOS and Android


NVERTER MODEL

SCI-ECO-4.2KW

SCI-ECO-6.2KW

Inverter Mode Specifications

Rated Output Power

4.2KW

6.2KW

Output Voltage Waveform

Pure Sine Wave

Output Voltage Regulation

230Vac±5%

Output Frequency

50Hz

Peak Efficiency

93%

Overload Protection

3s@≥150%load; 5s@101%~150% load

Surge Capacity

2* rated power for 5 seconds

Nominal DC Input Voltage

24Vdc

48Vdc

Cold Start Voltage

23.0Vdc

46.0Vdc

No Load Power Consumption

35W

50W

Two Load Output Power

Full Load

4200W

6200W

Maximum Main Load

4200W

6200W

Maximum Second Load(battery model)

1400W

2066W

Main Load Cut Off Voltage

22VDC

44VDC

Main Load Return Voltage

26VDC

52VDC

Charge Mode Specifications

Utility Charging Mode

Charging Algorithm

3-Step

AC Charging Current (Max)

100Amp

Floating Charging Voltage

27Vdc

54Vdc

MPPT Solar Charging Mode

Max. PV  Array Power

6200W

6500W

Nominal PV Voltage

240Vdc

360Vdc

PV Array MPPT Voltage Range

60Vdc~500Vdc

Max. PV Array Open Circuit Voltage

500Vdc

Max Charging Current
(AC charger plus solar charger)

120Amp

Grid-Tie Operation

Nominal Output Voltage

220/230/240 VAC

Feed-in Grid Voltage Range

195~253VAC

Feed-in Grid Frequency Range



Nominal Output Current

18.2A

26.9A

Power Factor Range

>0.99

Maximum Conversion Efficiency (DC/AC)

97%

General Specifications

Safety Certification

CE

Operating Temperature Range

–10°C - 50°C

Storage temperature

–15°C - 60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

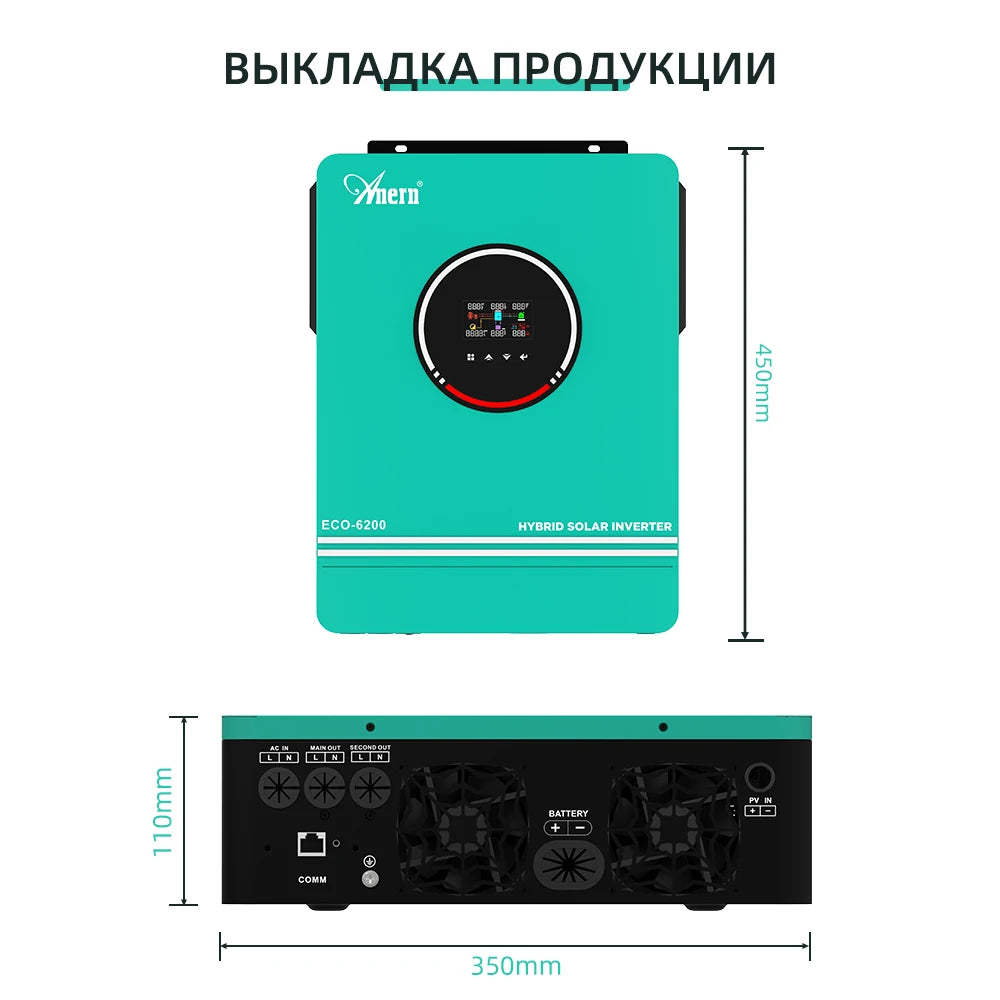

Dimension, D x W x H (mm)

110*334*423

Net Weight (kgs)

9.5

10
