Anern 5KW 6.5KW Hybrid Inverter 24V 48V Dual AC Output MPPT 160A 120A Solar Inverters Max PV 500Vdc For Lithium and Lead-acid
Anern 5KW 6.5KW Hybrid Inverter 24V 48V Dual AC Output MPPT 160A 120A Solar Inverters Max PV 500Vdc For Lithium and Lead-acid
Pickup currently not available
SPECIFICATIONS
Brand Name: ANERN
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: None

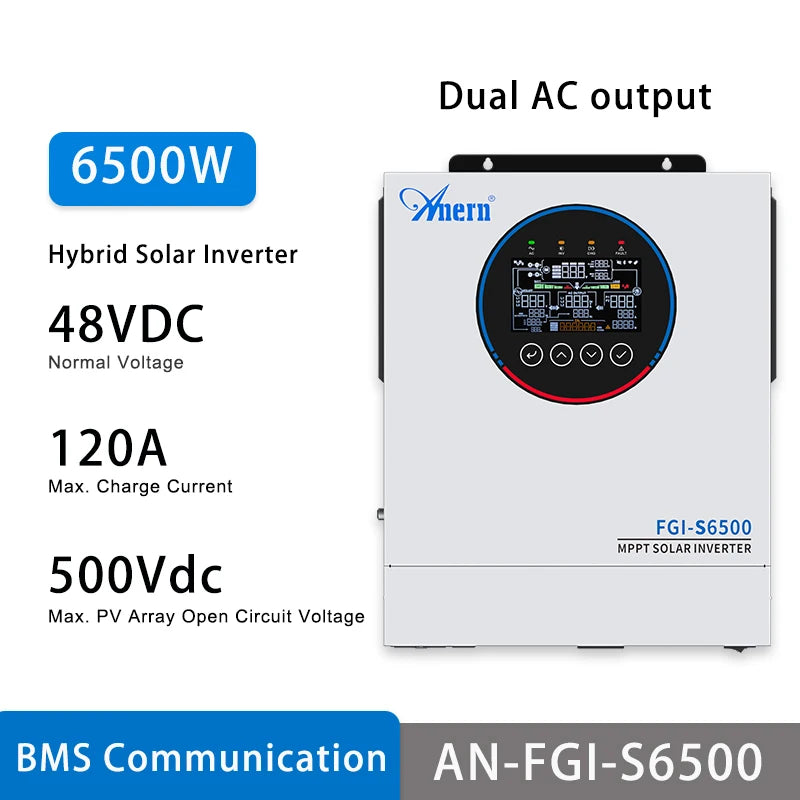

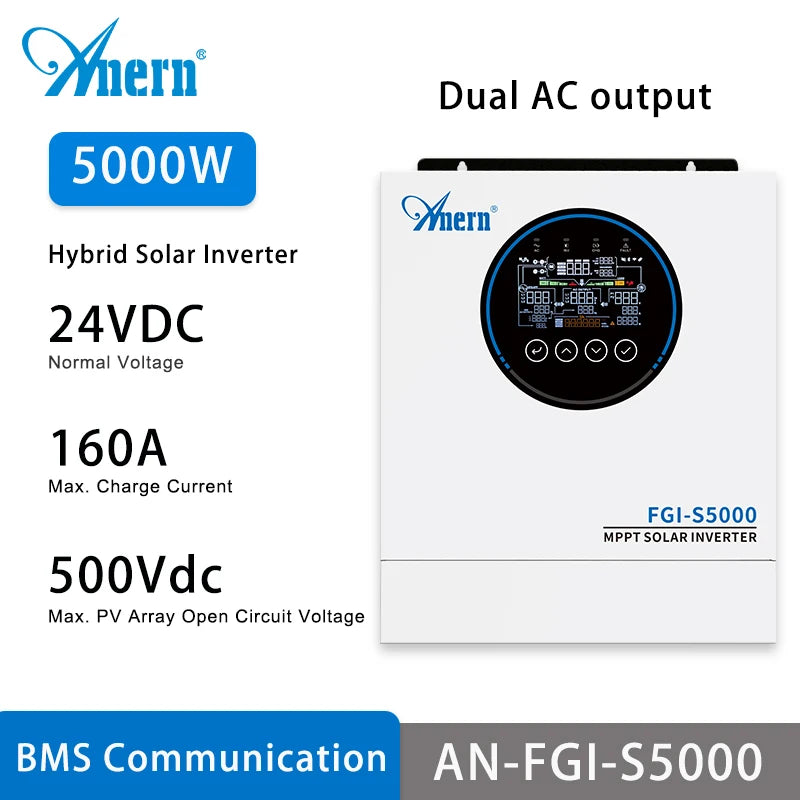

Model Number: AN-FGI-S5000/AN-FGI-S6500
Origin: Mainland China
Output Frequency: 50/60Hz
Output Type: DUAL
Features
Rated power 5.0KW/5.0KVA 6.5KW/6.5KVA, power factor 1
MPPT ranges 60V~450V, 500Voc
High frequency inverter with small size and light weight
Pure sine wave AC output

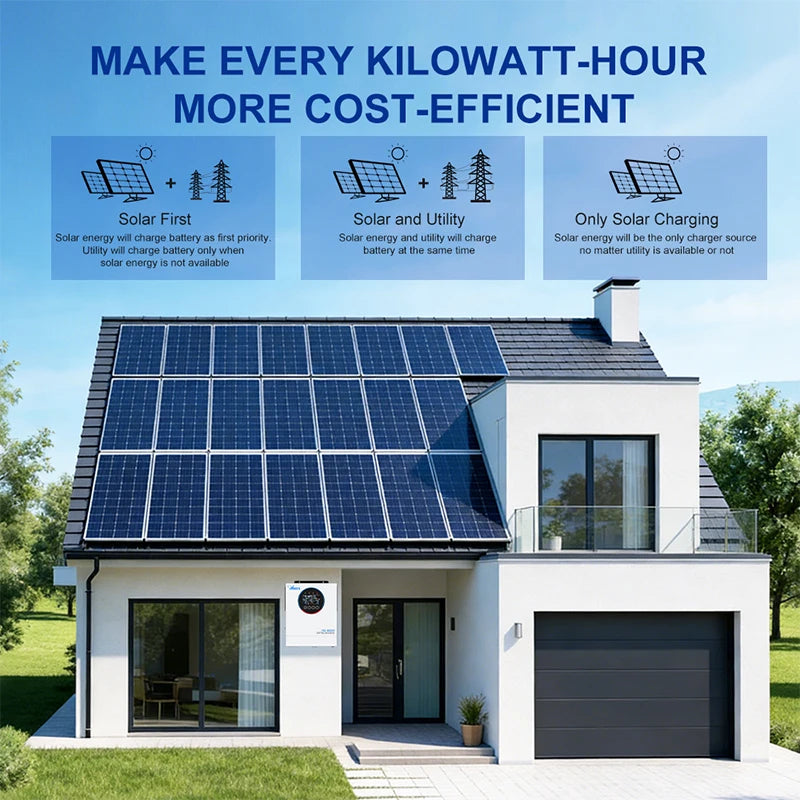

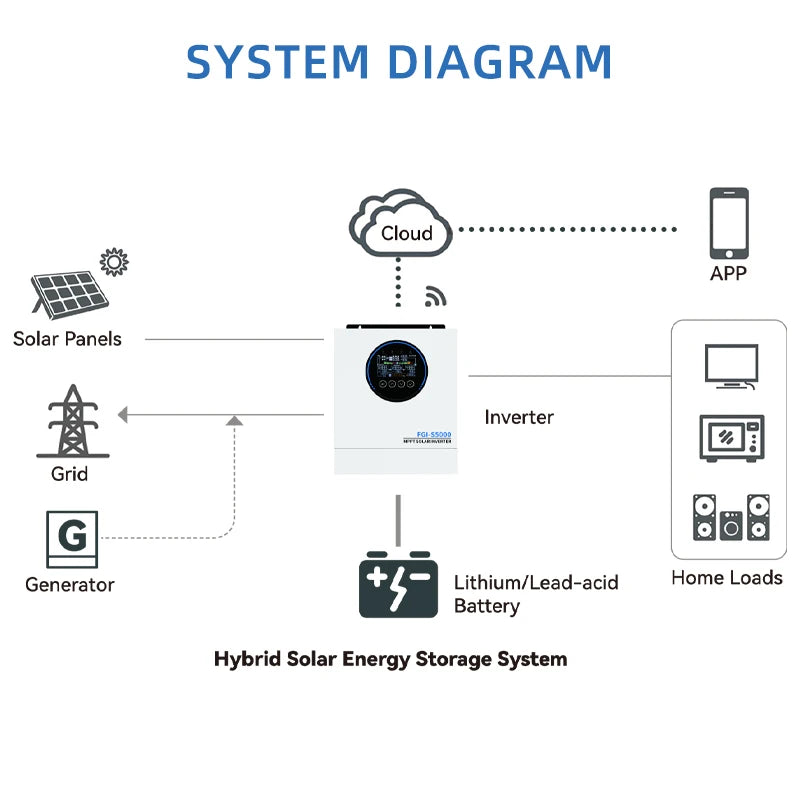

Solar and utility grid can power loads at the same time
With CAN/RS485 for BMS communication

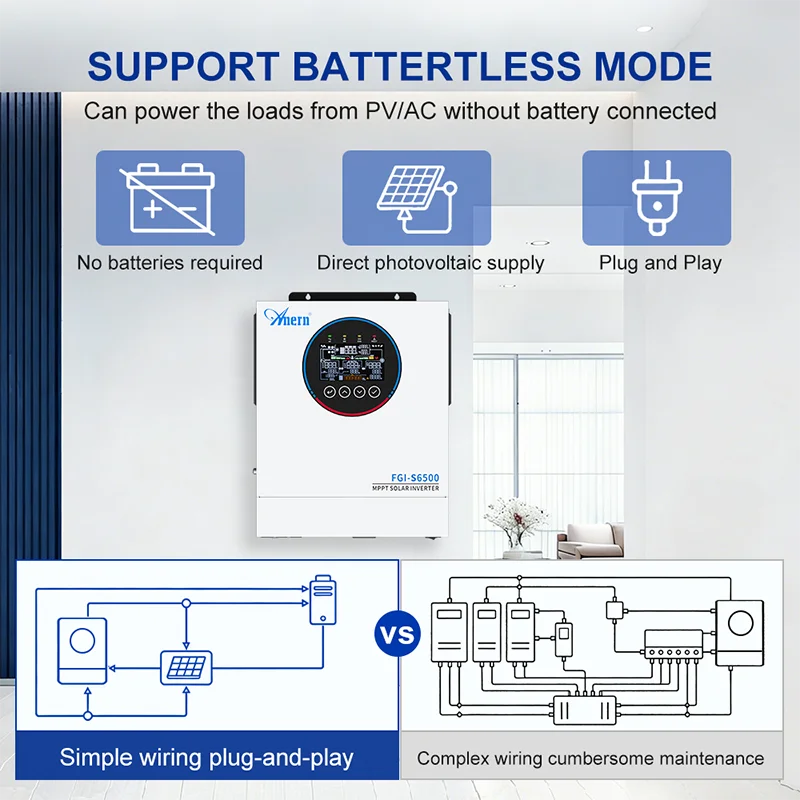

With the ability to work without battery
WIFl remote monitoring (optional)

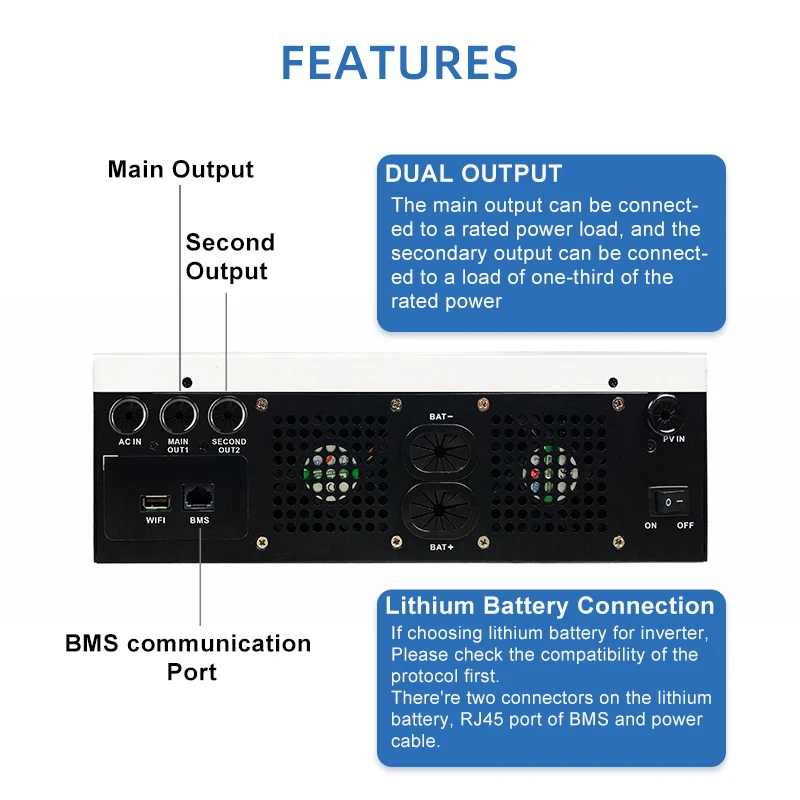

Dual AC output
Feed-in to grid
MODEL |
AN-FGI-S5000 |
AN-FGI-S6500 |
AC Input | ||
Rated Input Voltage (VAC) |
208/220/230/240; L+N+PE |
|
Voltage Range (VAC) |
90~280(APP mode);170~280(UPS mode) |
|
Frequency (Hz) |
50/60(Auto Adaptive) |
|
AC Output | ||
Rated Capacity (kW) |
5(Output Power rating will be reduced to 90%, |
6.5(Output Power rating will be reduced to 90%, |
Surge Power (kVA) |
10 |
12 |
Voltage (VAC) |
208/220/230/240 |
|
Power Factor (PF) |
1 |
|
Frequency (Hz) |
50/60±0.1% |
|
Switch Time (ms) |
10 (APP/UPS mode)/ 20 (GEN mode) |
|
WaveForm |
Pure SineWave |
|
Overload Capacity (Battery Mode) |
1min@102%~120% load, 10s@ >120% load |
|
Max. Efficiency (Battery Mode) |
93.5%@24V |
94%@48V |
Charger(PV/AC) | ||
Solar Charger Type |
MPPT |
|
Max PV Input Current/Power |
27A/9000W |
|
MPPT Range@Operating Voltage (VDC) |
60~450 |
|
PV Start-up Voltage |
60Vdc |
|
Max PV Open Circuit Voltage (VDC) |
500 |
|
Max PV Charge Current (A) |
160 |
120 |
Max AC Charge Current (A) |
160 |
120 |
Max. Charge Current (PV+AC) (A) |
160 |
120 |
Battery | ||
Normal Voltage (VDC) |
24 |
48 |

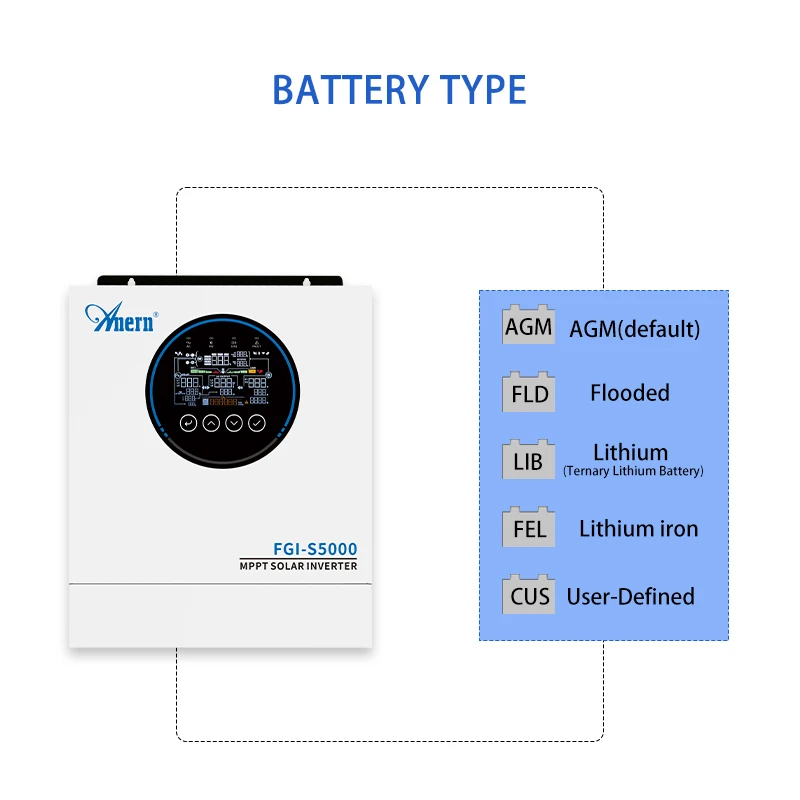

Battery Type |
Lithium and Lead-acid |
|
General Data | ||

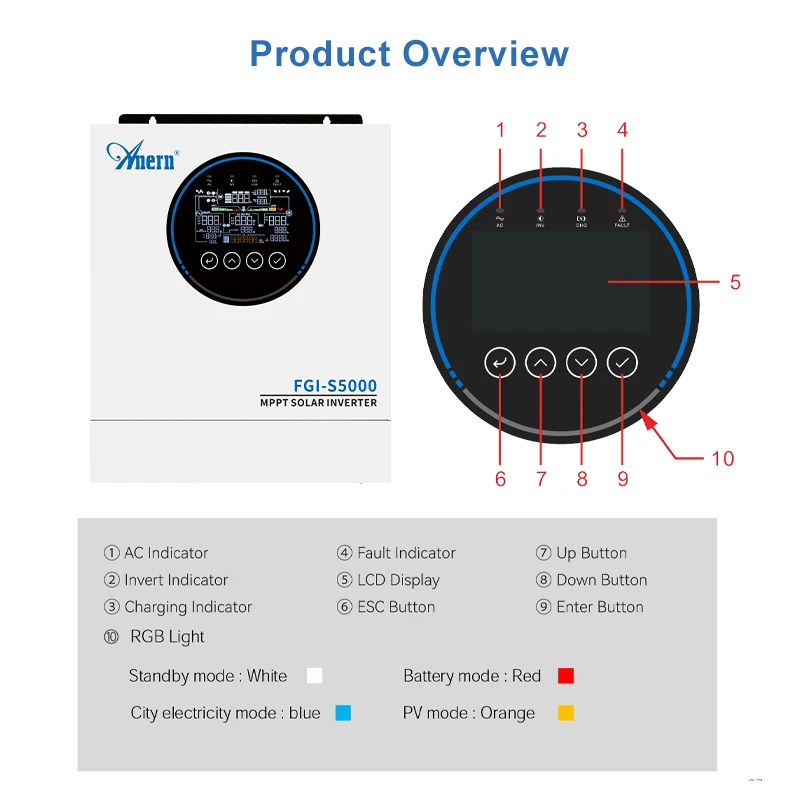

HMI |
LCD |
|
Interface |
RS485/CAN/RS232 |
|
Monitoring |
WiFi(Optional) |
|
General Data | ||
Ingress Protection |
IP21 |
|
Operating Temperature |
-10℃~60℃ |
|
Relative Humidity |
5%~95%(Non-condensing) |
|
Storage Temperature |
-15℃~60℃ |
|
Max. Operating Altitude |
4000m (Derating above 1000m) |
|
