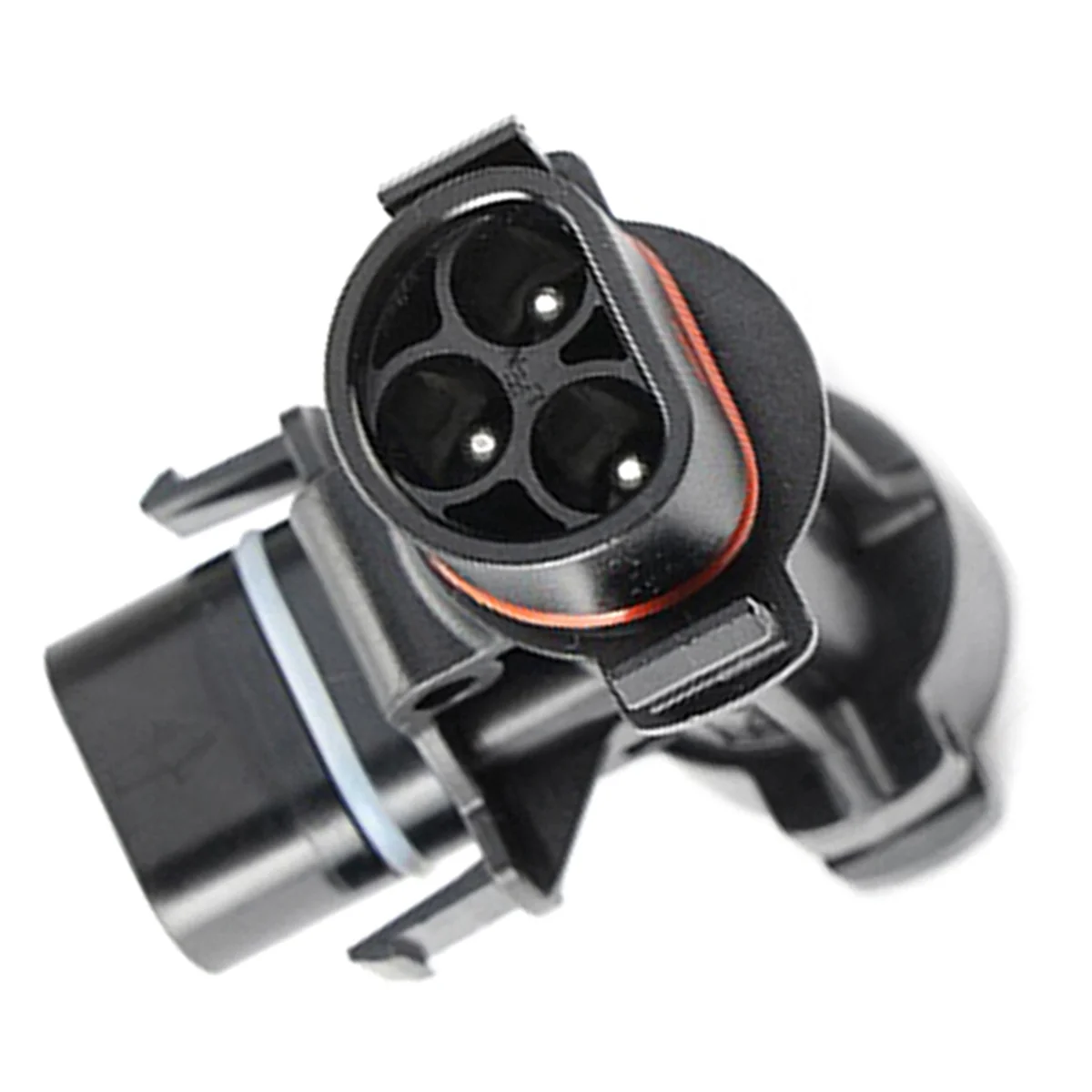

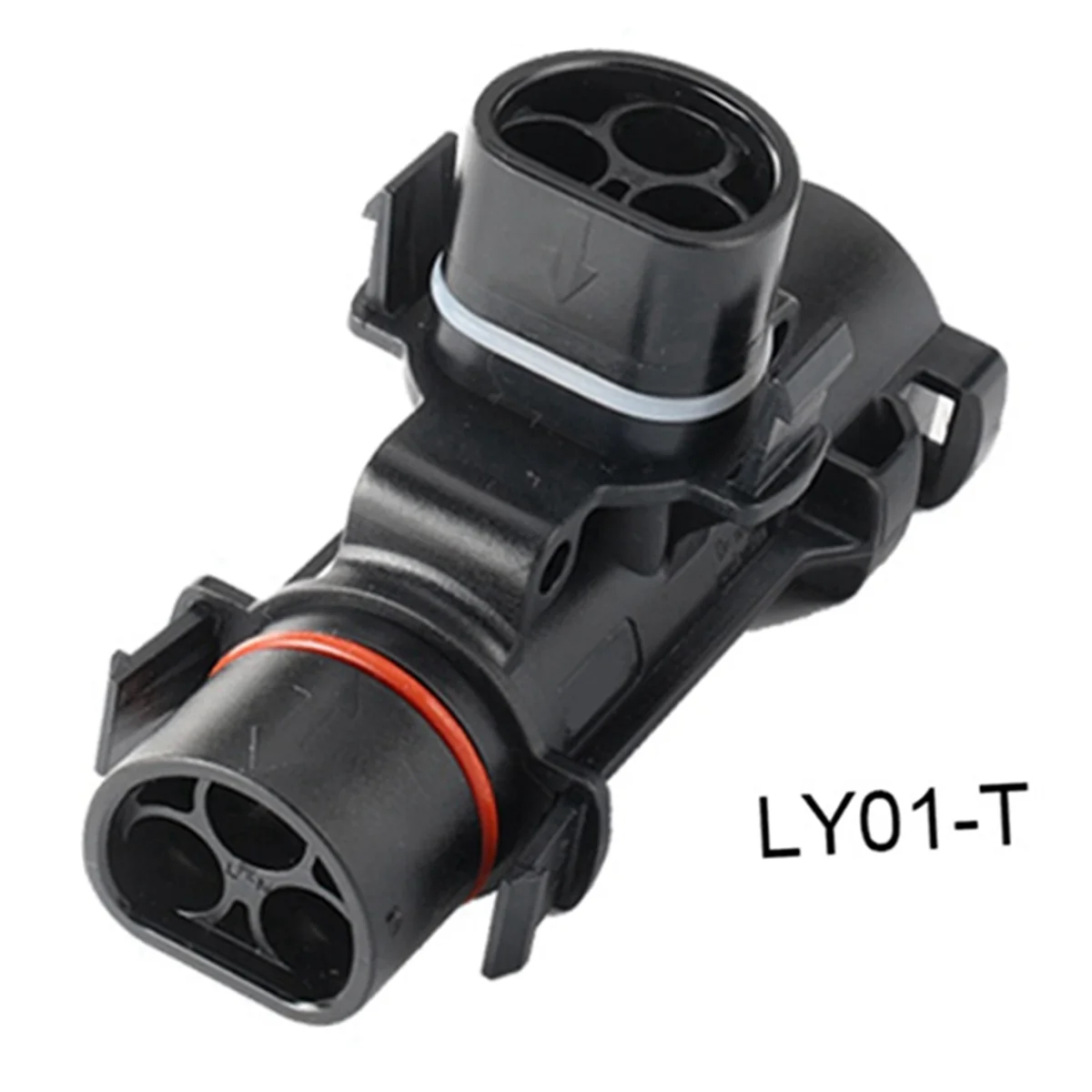

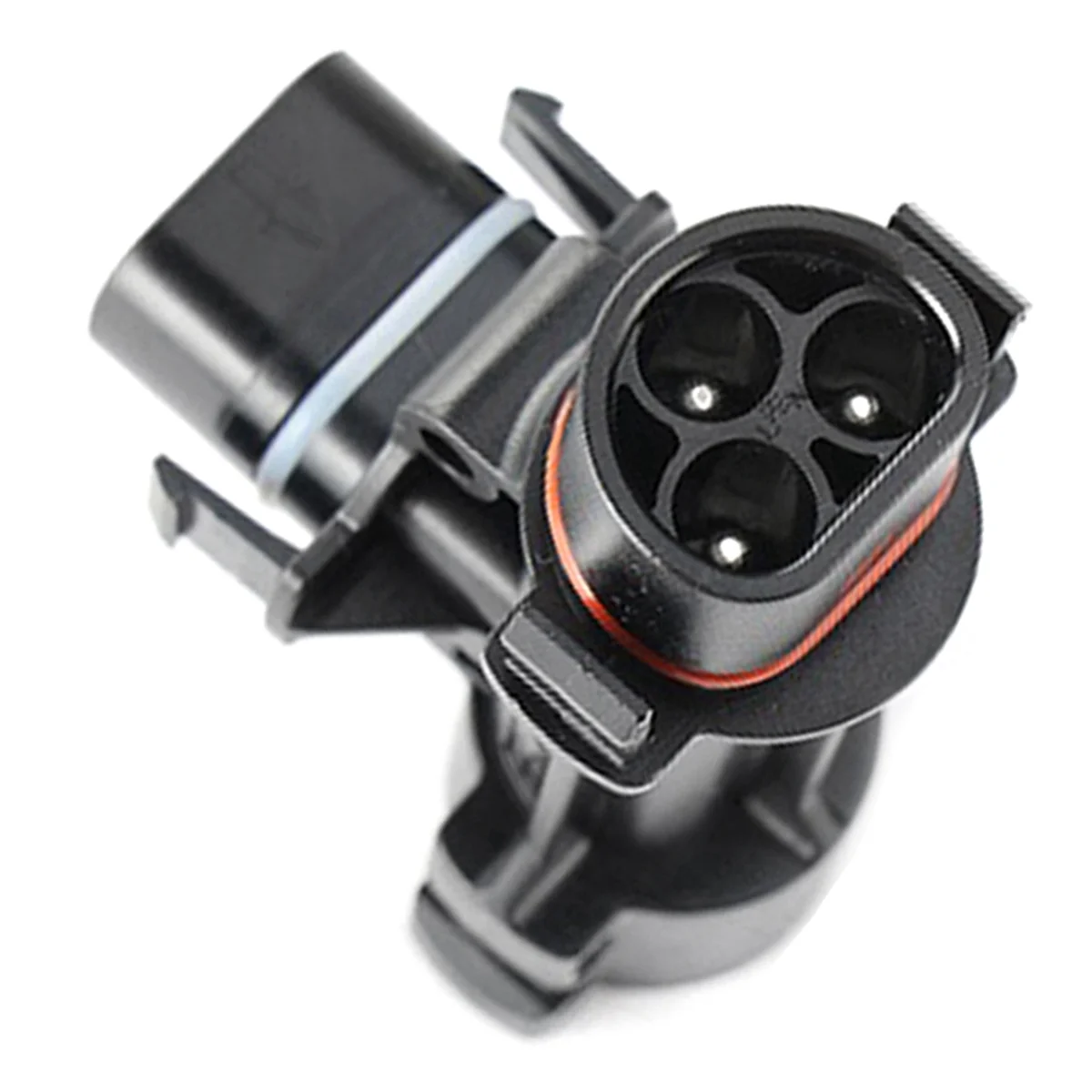

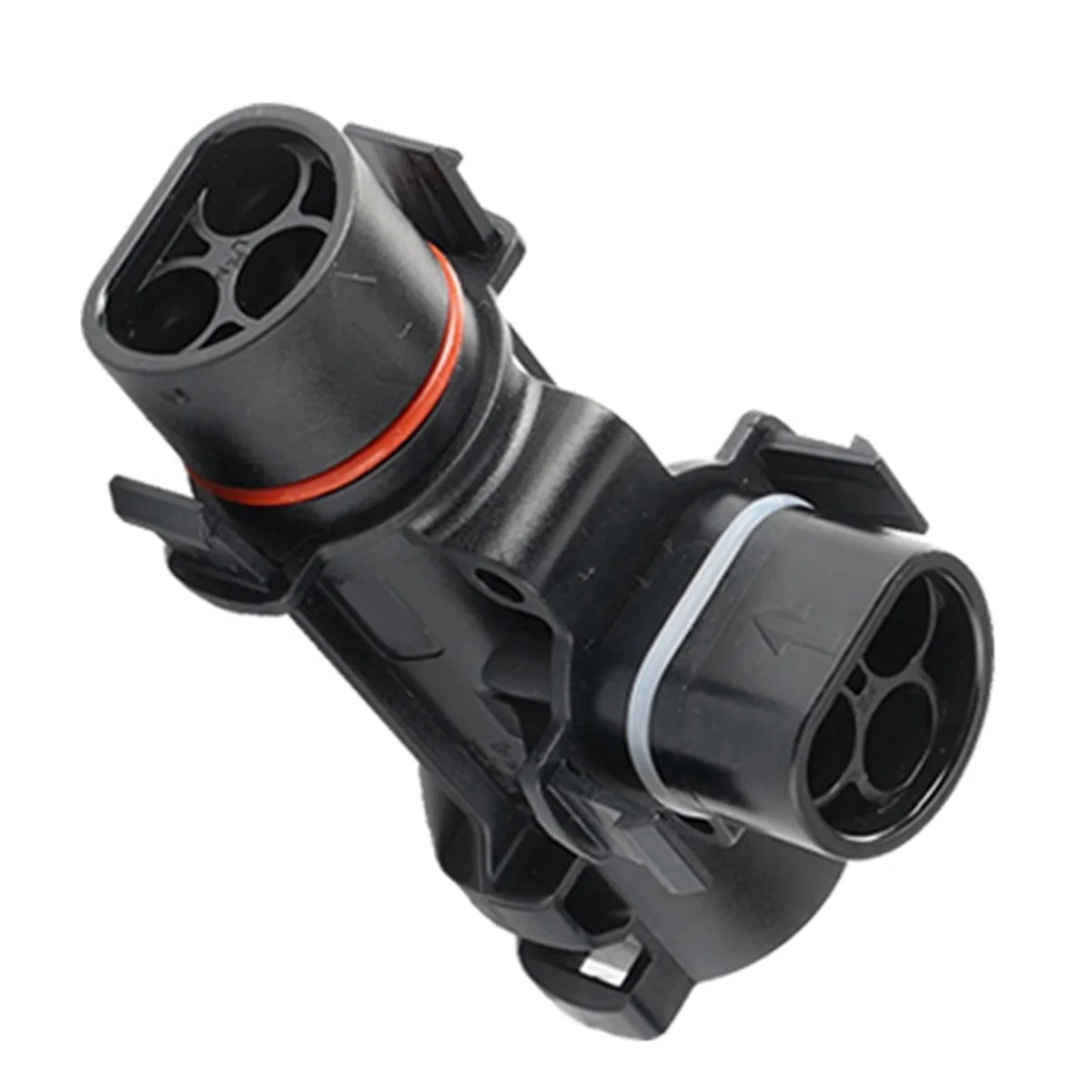

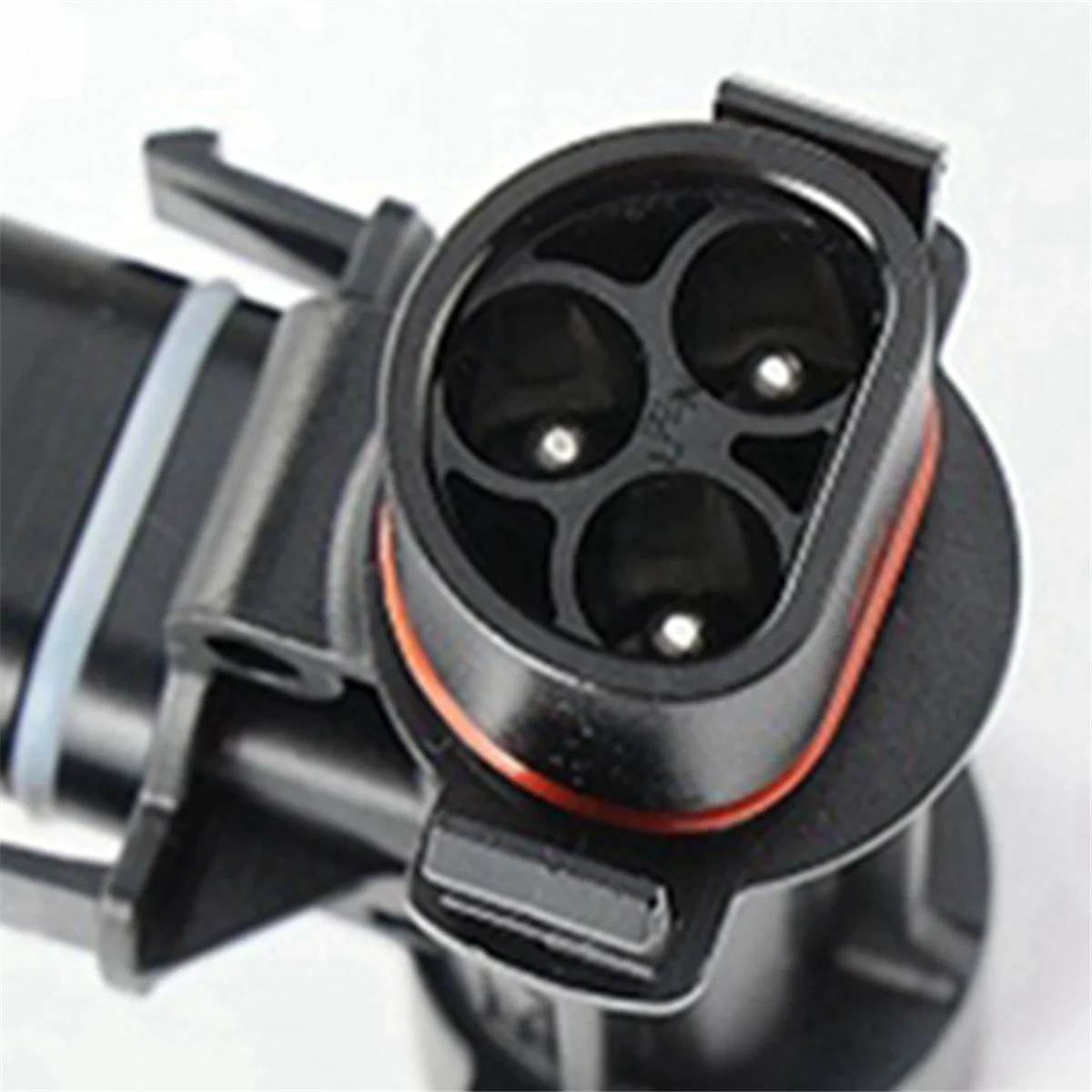

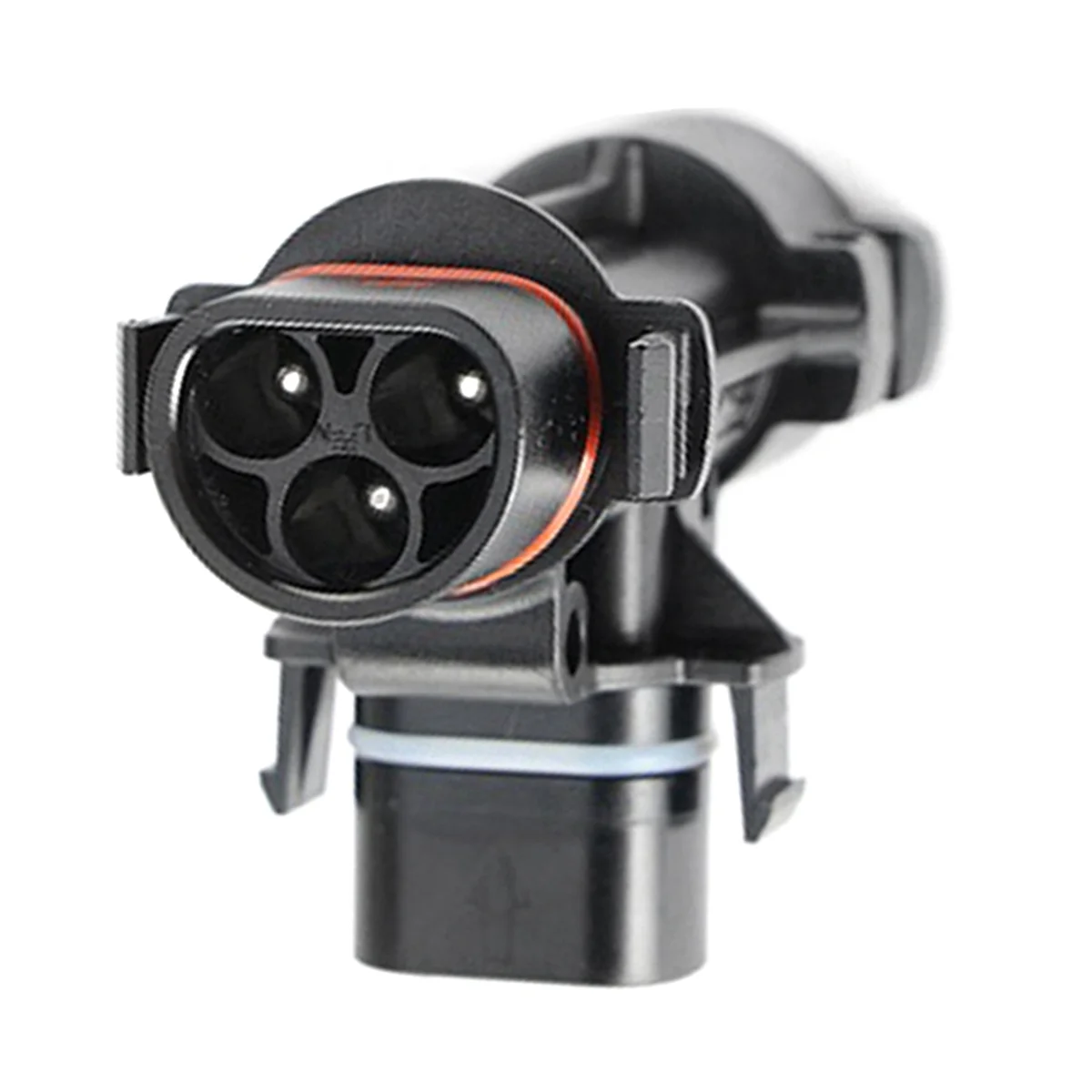

1. Photovoltaic AC 3-pin connector
2. LY01 wire end, 3 poles, screw crimping
3. Applicable cables with an outer diameter of 7.5-13mm, specifications 2.5/4.0mm² or 14/12AWG three-core wire Application Field: Mini Grid-connected Inverter
Installation style: wire end
-sectional area: 2.5 to 4 square
Product series: AC 3 cores
Ambient temperature: -45°C to 80°C
Power frequency voltage: 4000V AC
Protection class: IP68
Product Name: AC Connector
Number of cores: 3P
Mounting type: screw connection
IP rating: IP68
Rated current A: 40
Rated voltage V: 690
Outer wire diameter: 13mm
-sectional area: ≤4 square millimeters
Colour:Black
Material:PPO Package Contents:
1 x Micro-Inverter Parallel Connector Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
