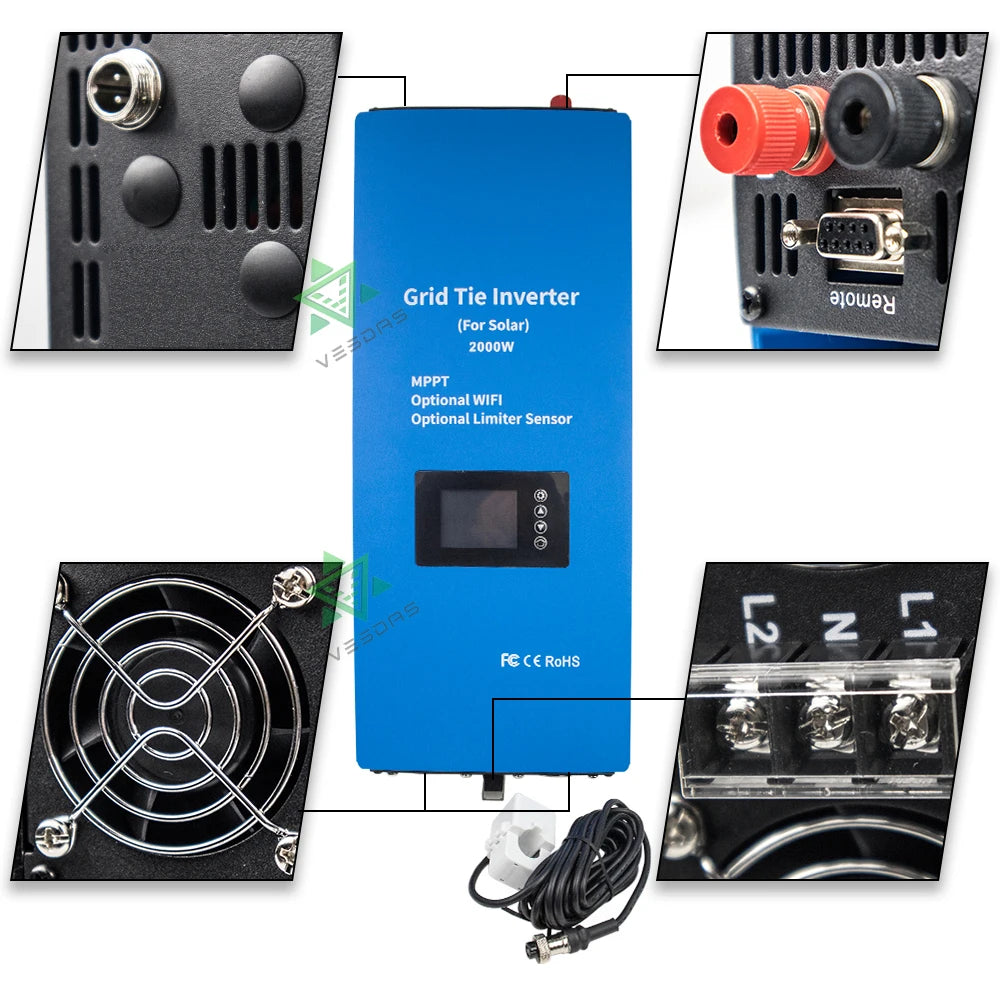

2000W 2-Phase 240V On-Grid Tie Solar Inverter 3M Limiter Sensor MPPT DC 45-90V Microinverter for US CE 1-Year Free Maintenance Lifetime Support
2000W 2-Phase 240V On-Grid Tie Solar Inverter 3M Limiter Sensor MPPT DC 45-90V Microinverter for US CE 1-Year Free Maintenance Lifetime Support
Pickup currently not available
SPECIFICATIONS
Brand Name: NONE
Certification: CE
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: None
Is Smart Device: Yes
Model Number: 2000W PV Inverter With limiter
Origin: Mainland China
Output Frequency: 50HZ 60HZ
Output Power: >1000KW
Output Type: SINGLE
is_customized: Yes
Why we produced the GRID TIE INVERTER WITH LIMITER ?
It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem
This is the 2nd generation grid tie inverter with limiter.

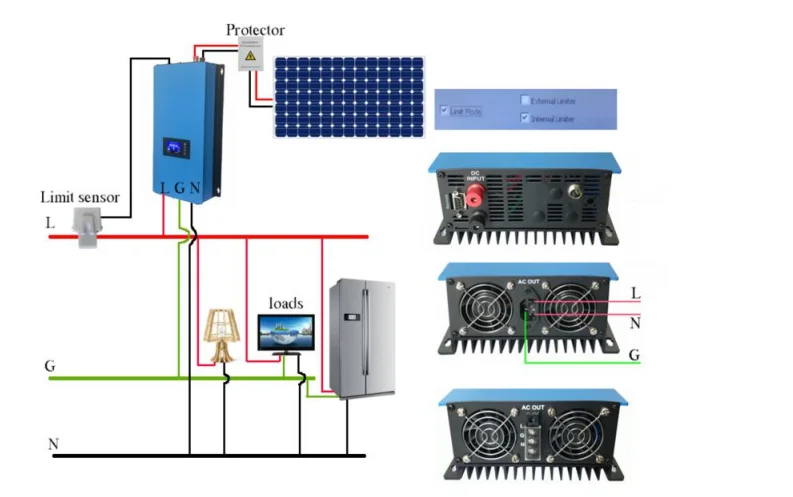

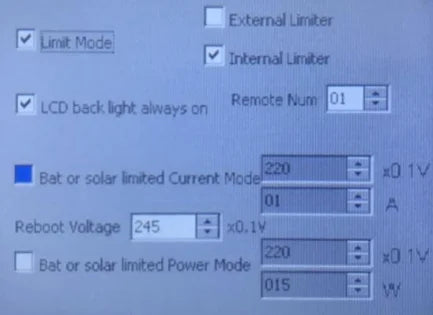

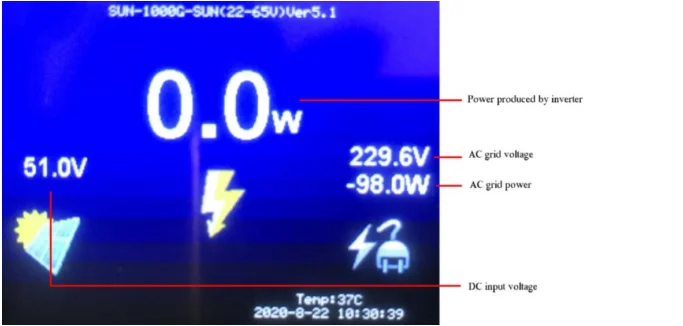

With the 2nd generation GTIL,we integrated the limit function inside the GTI-We call this internal limiter.In this way,No additional limiter module is needed,reduced customer’s cost,more easier for installation.But in case customer install inverter far away from the main circuit breaker,we also enable the 2nd GTIL work with stand-alone limiter,we call this-external limiter.For sure,the inverter can work under normal Grid tie-no limit mode,just set on the nice LCD and save your setting.
New upgraded firmware enable battery or solar limiter current and power model.
Advantage of The Sunshine Grid Tie Power System
1. Advanced patented technology, MPPT efficiency is higher.
2. High-quality imported components, more stable quality, lower failure rate. Significantly longer life, more than 10 years.
3. Each inverter need to pass twice testing (20 hours) before leaving factory.
4. Warranty: 1 years of free maintenance and replacement, lifetime technical support.
5. Low cost and easy installation .
6. Free combination.
7. Combination of SGPV does not interact.
8. Improving the efficiency of the entire solar power system.
9. Low power consumption

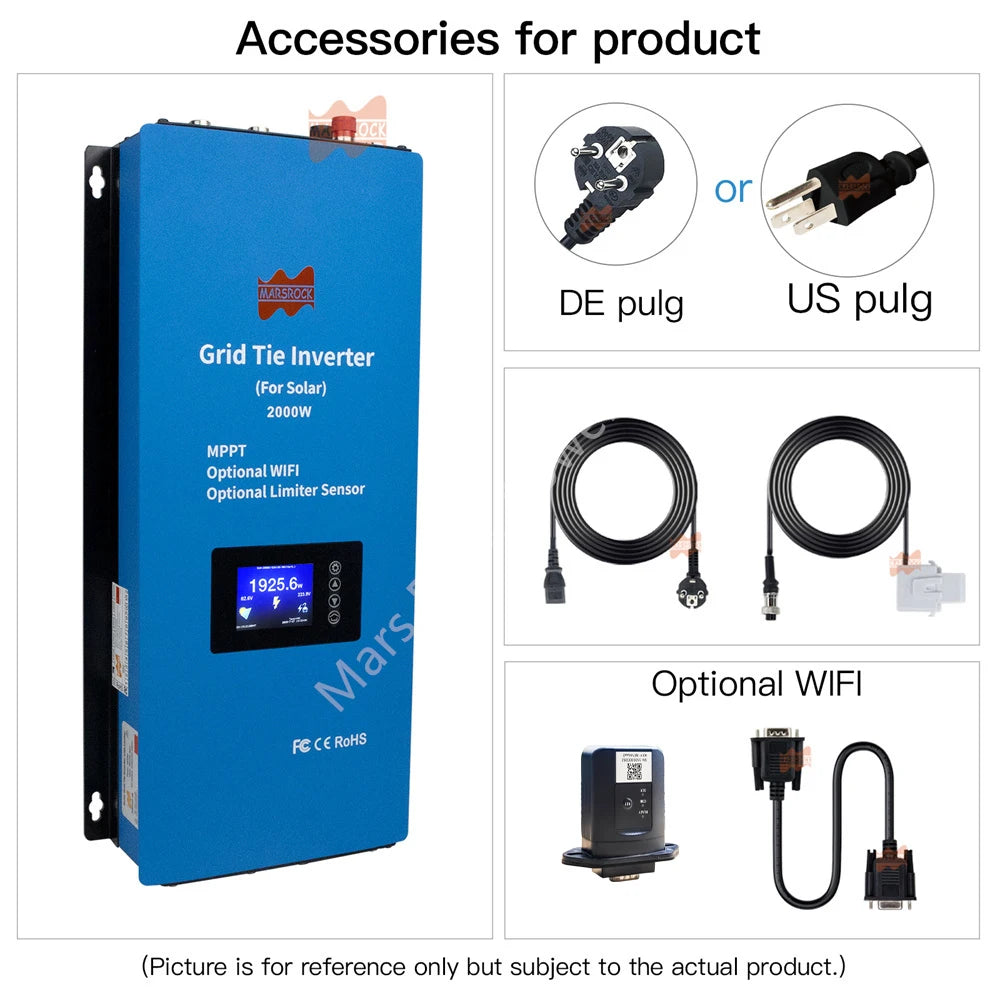

Package list:
●2000W inverter*1 (Standard)
●3M Limiter Sensor*1（Stanard）
●EU Plug*1
●WIFI Modem*1 (Optional)
Special tips:

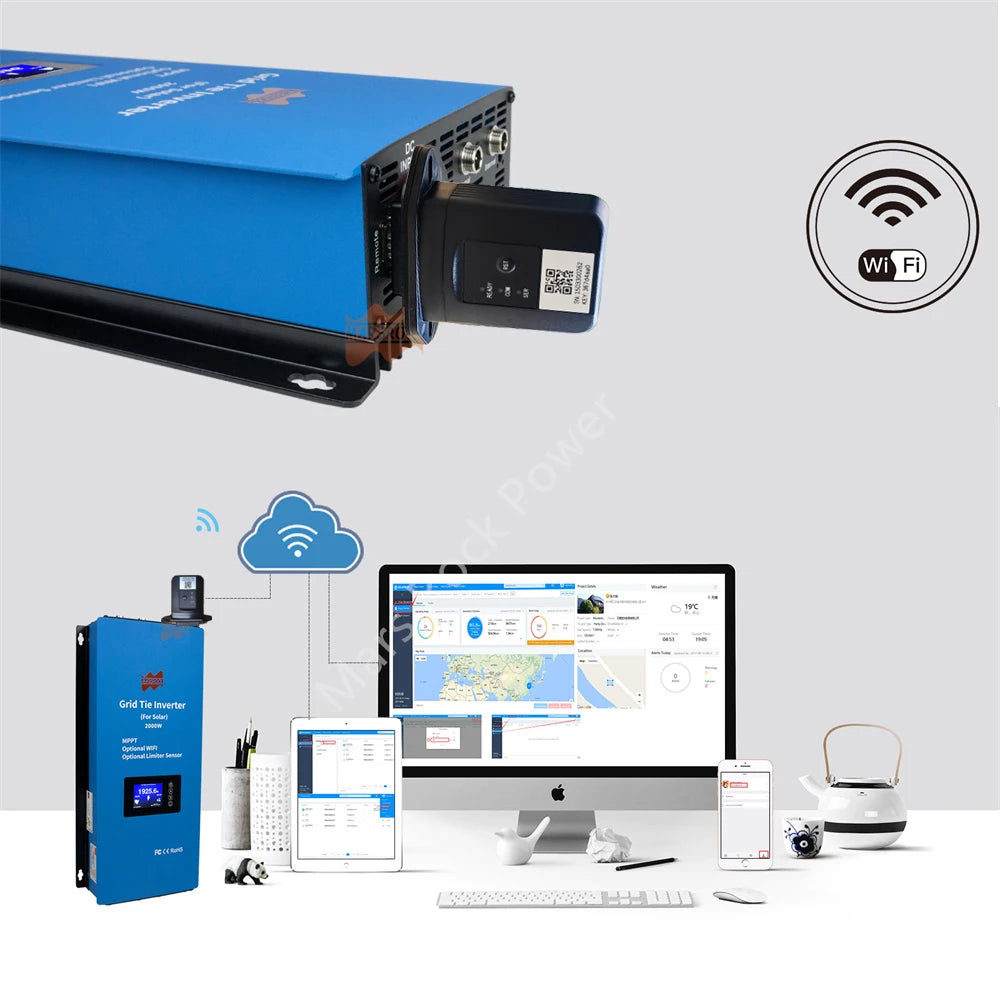

Due to the different communication protocols of different manufacturers, we strongly recommend that users who purchase our G2 series inverter to purchase this WIFI. (we adopt Eybond’s protocols). Otherwise, communication between WIFI and INVERTER may not be established due to different protocols.
Input Data | |
Input Voltage Range |
45-90vdc(Vmp=60/72V) |
Max input DC voltage |
90V |
Peak power tracking voltage |
50-90V |
Output Data | |
Max output power |
2000W |
Nominal Voltage |
230VAC Or 2phase 240VAC |
Nominal Voltage Range |
185-265V |
Frequency Range |
47.5-51.5 for 50hz,59.3-60.5 for 60hz |
Power Factor |
>0.95 |
Output Waveform |
Pure sine wave |
Characteristic Data | |
MPPT Efficiency |
99% |
Over current protection |
yes |
Over temperature protection |
yes |
Reverse polarity protection |
yes |
Anti-island protection |
yes |
Stackable |
Just for AC output |
Operating temperature range |
-20 0C ~ +50 0C |
Inverter inside temperature |
-20 0C ~ +85 0C |
Current THD |
<5% |
Voltage THD |
<5% |
Standard |
UL1741,IEEE1547,VDE4105 |
Cooling |
Fans |
Peak Inverter Efficiency |
>92% |
Warranty |
1 years |

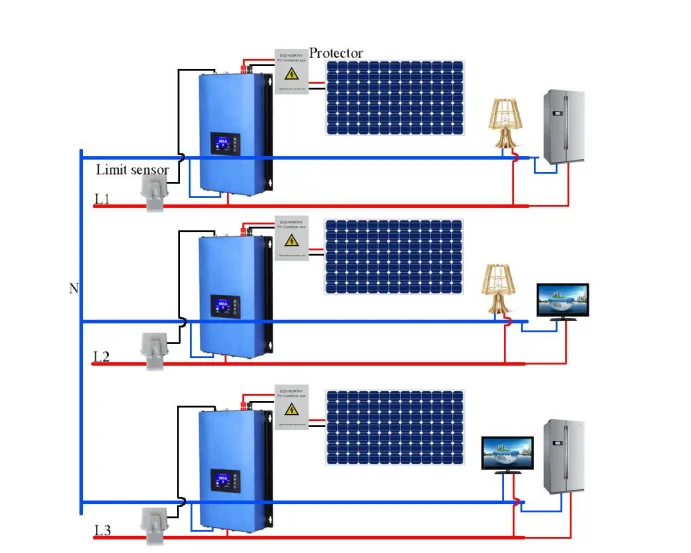

Connecting method for three phases 230AC grid
