SPECIFICATIONS

AC Output: 220V-240V; 50Hz-60Hz

Battery Type: LiFePO4

Brand Name: DELONGTOP

Controller Type: MPPT

Cycle life: 6500 Times

Energy: 15KWH

Inverter: 5000W

Inverter Type: Pure Sine Wave

Model Number: LFP51300

Nominal Capacity: 300AH

Nominal Voltage: 51.2V

OEM/ODM: Warmly Welcomed

Payment: Credit Card.Paypal.TT.Escrow.Western Union

Place of Origin: Guangdong, China

Power Source: AC Adaptor,Car,Gas Generator,Solar Panel,Other

Shipping: By Sea / By Air

Size: 500*340*903mm (With Wheel Base)

Special Features: Remote Control,Type C,Wireless Charging,Flashlight,RV Port,External Battery,Cigar Lighter

Trade Assurance

WHY CHOOSE DELONGTOP

1> Over 13 Years Lithium Battery Production Experiences Factory, R&D Department, Free for OEM & ODM

2> Alibaba Golden SKA Supplier: Three Alibaba Store: 13 Years DELONGBATTERY, 8 Years DELONGTOP, 3 Years DELONG FACTORY

3> Two Company Website: delongtop.com, delongbattery.com

4> Promise what we say and what we do

Details Images

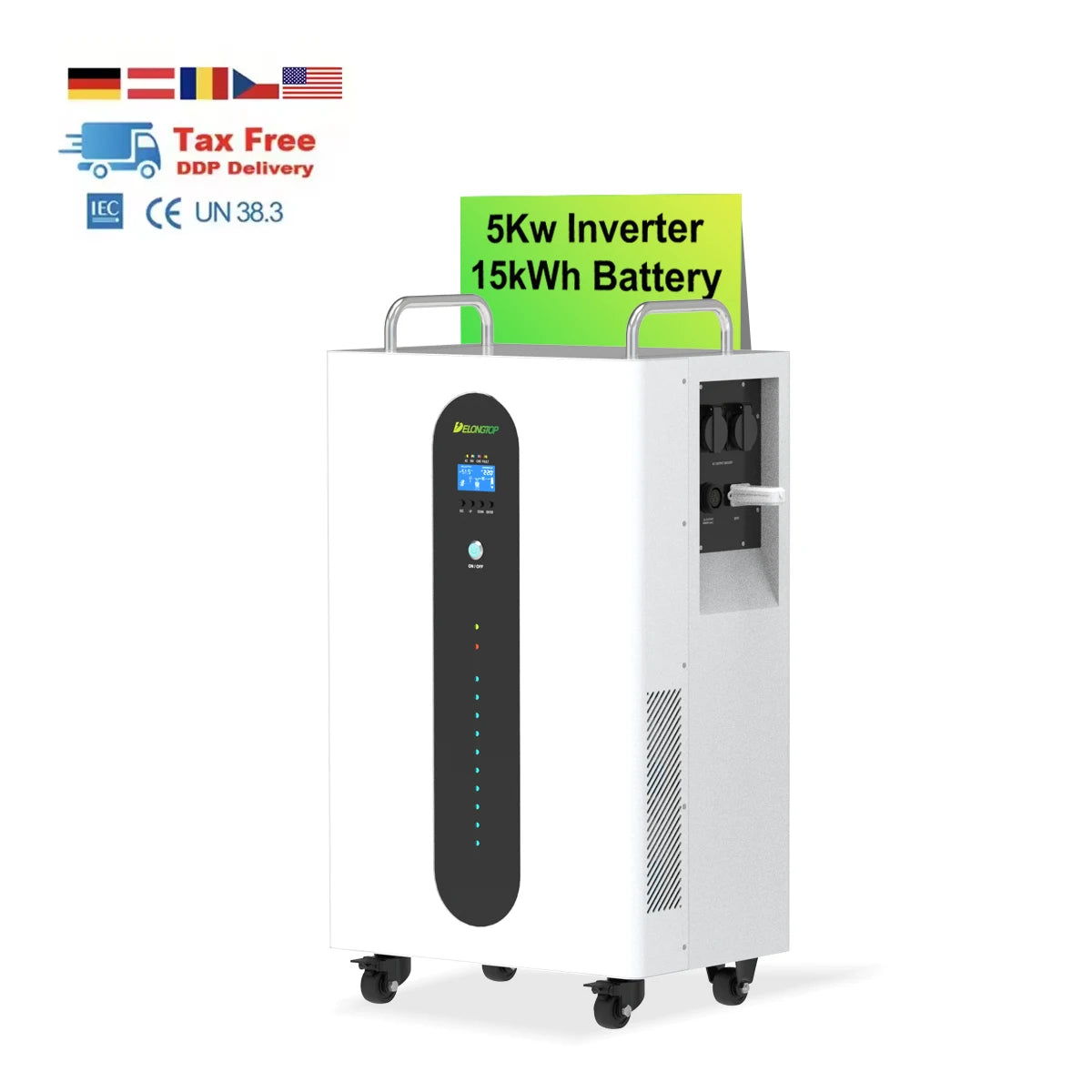

All in One 5KWH 15KWH LiFePO4 Battery with 5000W Inverter AC 220V Portable Power Station

→Portable LiFePO4 Battery Type 220V 5000W AC Power Station
→Long Life for All High Power Output Applications
→Low Self-discharge and Good Discharge Performance at Low Temperature
→Ultra reliable Lithium Iron Phosphate (LiFePO4) Battery Technology, Cycle Life Over 6500 Times
→Environmentally Friendly
→Easy to Use (Plug and Play)
→With Portable Movable Wheels and Functional Plug, Support AC 220V-240V 50/60Hz Output
→With PV input and AC Input Plug
→Support WiFi Monitoring
→With User Manual

Product Parameter

All in One 5KWH 15KWH LiFePO4 Battery with 5000W Inverter 220V AC Portable Power Station
Battery Data
Nominal Voltage	51.2V
Nominal Capacity	100AH	280AH	300AH	314AH
Battery Energy	5120WH	14336WH	15360WH	16076WH
Operating Voltage Range	44.8V-57.6V
Cell Type	Lithium Iron Phosphate(LiFePO4) Prismatic Cell(Grade A Brand New)
Number of Cells	16PCS 16S1P
Cycle Life	6500+ @ 25℃
Battery Indicator	LED Indicator & Display
Inverter Data
Max. PV Input Power	5000W
PV Input Voltage Range	120Vdc-430Vdc
Max. Operating PV Input Current	15A
PV Input Port Type	XT90
Max. AC Input/Output Power	5000W
AC Input/Output Voltage	200Vac-240Vac
AC Input/Output Frequency	50-60Hz
AC Output Voltage Waveform	Pure Sine Wave
Communication	RS485, CAN, RS232, WiFi
AC Input Port Type*1	1*3 Pin AC Socket(2000W Max.), 1*M32-3Pin(5000W Max.)
AC Input Port Type*2	2* EU(Support Customized Other Counties) AC Socket (2000W/pc Max.), 1*M28-3Pin(5000W Max.)
Output THDv (@Linear Load)	<3%(of Normal Power)
UPS Transfer Time	10ms Typical, 20ms Max.
Interactive Interface	LED Indicator & Display
General Data
Operating Temperature Range	0℃~45℃
Storage Temperature	-15℃~55℃
Humidity	5%-90% Relative Humidity (Non-condensing)
Altitude	<2000m
Case Material	Metcal Case
Dimension	460*280*690mm	500*340*903mm
Weight	60KG	132KG	135KG	138KG
WHAT WE CAN DO MORE
Warranty	10 Year Warranty
Product Standard	CE, UL, IEC, RoHS, MSDS, UN38.3

All in One 5KWH 15KWH LiFePO4 Battery with 5000W Inverter AC 220V Portable Power Station

Portable Power Station 5000W is a key product independently developed by Delong Energy.

As a portable emergency AC power supply station, It has multi-function Including AC 100V~ 120V/50Hz or 60Hz; AC200V~240V/50Hz or 60Hz optional, mainstream national plug specifications. Customized AC 220V output, PV Input and fast charge and normal charging socket, which is apply to outdoor portable power supply, medical equipment emergency power supply, home emergency power, laptop PD Power bank, fast charging of mobile phones and tablets, etc. We trust our products can be necessity for your long-term daily life.

Advantages of DELONGTOP

10 YEARS WARRANTY

We offer 10 years truly warranty to provide after-sale service and technology support.

1> Re-sending new battery within 1st year if something is wrong with the quality of the product

2> Provide purchase accessories free within 2nd~5th years warranty

3> Provide technology support free within 6th~10th years warranty

WHAT BATTERY CELL WE USE:

As a 13-year-old store engaged in the battery business, we are responsible for our customers and our brand. Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH/ 25AH/ 50AH/ 100AH/ 200AH / 300AH / 560AH/ 600AH...

1> Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.

2> Through a number of certification and testing, quality assurance.

3> There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed , stable performance, mature market, more popular at present.

MAINLY MARKET AND CUSTOMERS' FEEDBACK

Our batteries are all over the world, the main markets are North America, Europe, Australia, Middle East and Southeast Asia.

Solar home energy storage LiFePO4 battery Stackable, Wall Mounted- Rack Mounted, Movable series is especially suitable for use in countries and regions where there is a shortage of mains electricity, which is environmentally friendly and safe.

"Quality is our Culture", our batteries are worked well and received many good comments:

Related Products

High Voltage 102.4V 100AH Module Stackable LiFePO4 Battery

204.8V 100AH 20.48KWH

307.2V 100AH 30.72KWH

409.6V 100AH 40.96KWH

512V 100AH 51.2KWH

614.4V 100AH 61.44KWH

High Voltage 102.4V 157AH Module Stackable LiFePO4 Battery

204.8V 157AH 32.15KWH

307.2V 157AH 48.23KWH

409.6V 157AH 64.3KWH

512V 157AH 80.38KWH

614.4V 157AH 96.39KWH

High Voltage 102.4V 16KWH 30KWH Module LiFePO4 Battery Cabinet

307.2V 280AH 86KWH

409.6V 280AH 114.68KWH

512V 280AH 143.36KWH

614.4V 280AH 172.03KWH

51.2V 100AH Solid State Wall Mounted LiFePO4 Battery

48V 100AH 4.8KWH

51.2V 100AH 51.2KWH

51.2V 10KWH 14.3KWH 15KWH Vertical Movable LiFePO4 Battery

51.2V 200AH 10.24KWH

51.2V 280AH 14.33KWH
51.2V 300AH 15.36KWH
51.2V 314AH 16.07KWH

51.2V 15KWH 28KWH 30KWH 32KWH Movable LiFePO4 Battery

51.2V 300AH 15.36KWH

51.2V 314AH 16.07KWH

51.2V 560AH 28.67KWH
51.2V 600AH 30.72KWH

51.2V 5KWH 10KWH 15KWH Stackable LiFePO4 Battery

51.2V 100AH 5KWH

51.2V 200AH 10KWH

51.2V 300AH 15KWH

51.2V 10KWH 20KWH 30KWH 40KWH 50KWH Stackable LiFePO4 Battery

51.2V 200AH 10KWH

51.2V 400AH 20KWH

51.2V 600AH 30KWH

51.2V 800AH 40KWH

51.2V 1000AH 50KWH

51.2V 15KWH 30KWH 45KWH 60KWH Stackable LiFePO4 Battery

51.2V 300AH 15KWH

51.2V 600AH 30KWH

51.2V 900AH 45KWH

51.2V 1200AH 60KWH

Certifications

FAQ

Q1: What are there included for a battery or pack , may I buy charger from you?

A1: Battery case, BMS, battery pack, can buy customised connector, charger

Q2: How long frequency does recharge the battery?

A2: Usually per 2 months to recharge the battery pack , to charge full the battery depends on the charger current you use. 20A charger can charge full for 12V 100Ah battery in 5 hours, fast charger 50A in 2 hours.

Q3: What's the sample lead time, and bulk order delivery. How long I can get it?
A3: Fast delivery: If small quantity, can be finished in 3-5 days days after payment, bulk in 10-25 days depends on the quantity
Shipping: sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 50KG, can ship by air or by sea, sea shipping is more cheaper. Customer can tell your nearest airport name and sea port name for sales person to check the best option for you.

Q4. What is your warranty?

A4: We offer 10 years warranty for different situation. We ensure at least 6500 cycle life for the LiFePO4 battery pack, You can use it for at least 10 years for normal 1 time charge and discharge everyday.

Q5: Can I customize the size of battery?

A5: Of course yes if yourquantity MOQ workable.

Q6. Can we put different LiFePO4 battery pack in parallel or series by ourself?

A6: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;

1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to
the same rate.

2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole
battery pack.

3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the
suitable BMS for each battery.

4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of battery.

Q7. Can we use it for car engine?

A7: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
