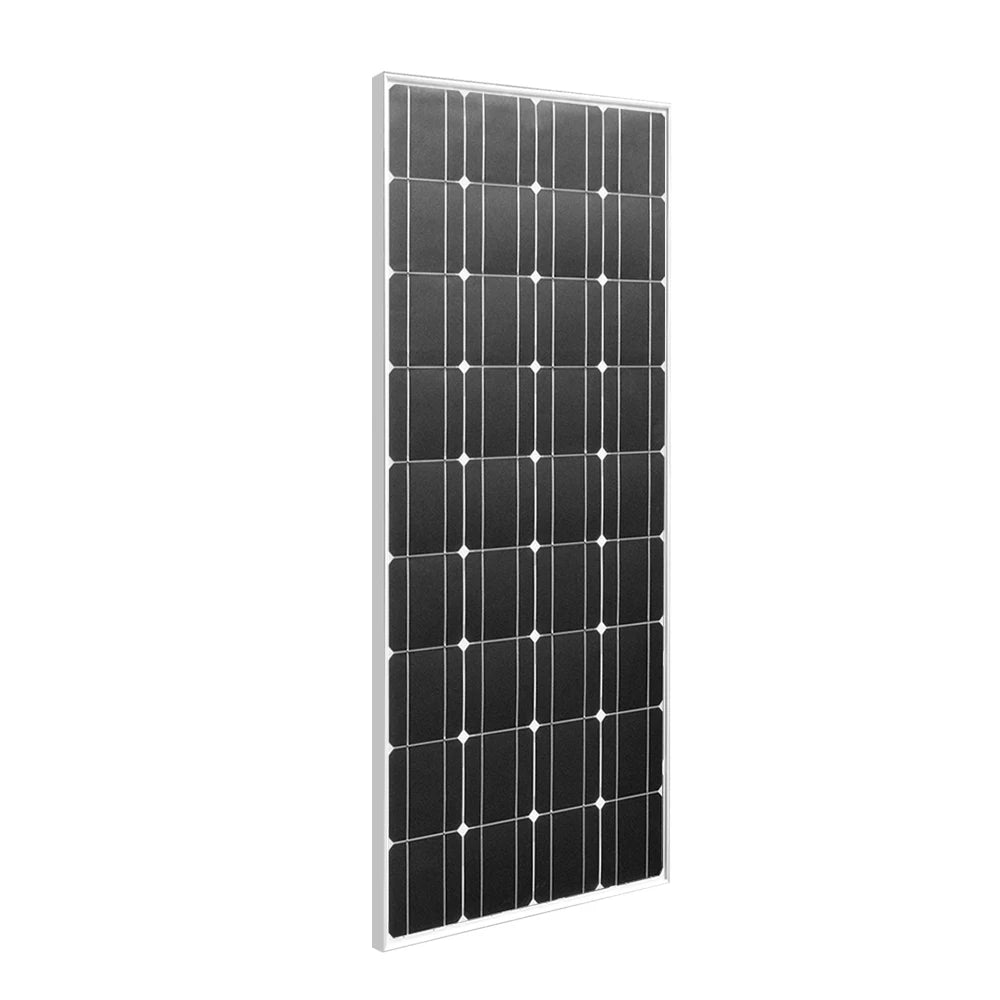

BOGUANG 150W 18V Lightweight Solar Panel Module PV Power Cell 12V Battery Charging Boat Caravan Grid Off-Grid CE FCC RoHS WEEE
BOGUANG 150W 18V Lightweight Solar Panel Module PV Power Cell 12V Battery Charging Boat Caravan Grid Off-Grid CE FCC RoHS WEEE
Pickup currently not available
SPECIFICATIONS
Brand Name: BOGUANG
Certification: CE,FCC,RoHS,weee
Flexible Solar Panel: No
Flexible solar panel frame: aluminum
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 150w
Model Number: solar panel
Module Efficien: 24%
Nominal Capacity: 150 Watt 18 Volt
Number of Cells: 36 solar cells
Number of Panels: 1
Origin: Mainland China
Rigid Solar Panel: No
Size: 1160mm*530mm*25m/,1140*530*25mmm
Solar panel Maximum system voltage: 700V DC
Solar panel cell: 21%
Solar panel voltage: 18V
Type: Solar Panel
is_customized: Yes
solar panel: solar panel 150w
solar panel solar cable: 0.9 m
solar panel solar cell: solar panel 150 w
solar panel solar cell, solar charger: solar panel 12v solar battery
If the corner of the solar panel you received has black things Please note that it protects the solar panels Please remove it when using
Please note: This solar panel is not a glass solar panel, it is a PET solar panel with a frame
Feature

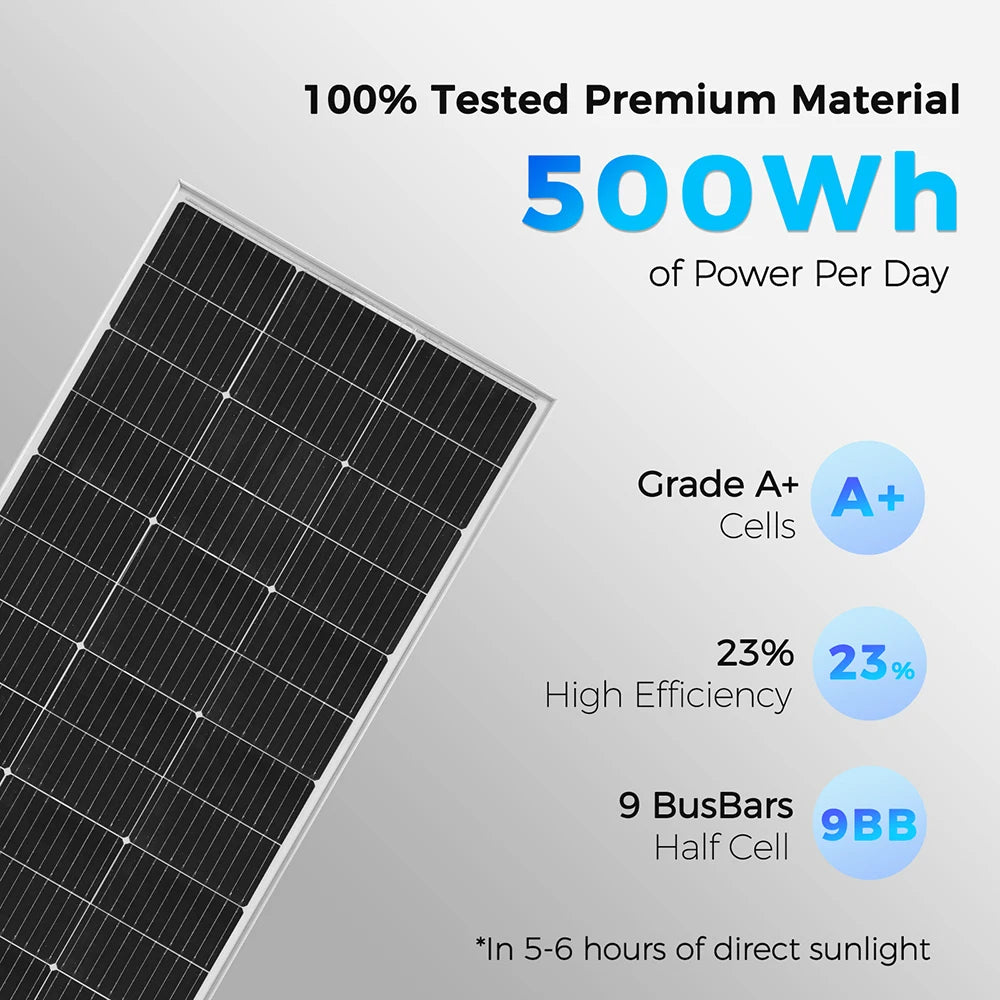

a. High efficiency: cell efficiency is about 1.2 times that of conventional polycrystalline
b. Using the latest component packaging technology, thinner, lighter, softer and longer life.
c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
e. The junction box has an IP67 waterproof design, which includes a bypass diode, and the circuit adopts input overcurrent protection and reverse protection design.
f. The PV cables connectors for photovoltaic modules are used for outgoing cables. The outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connectors are easy to use, plug and play.
g. This product is a solar module. It is recommended to be used with controllers and batteries.

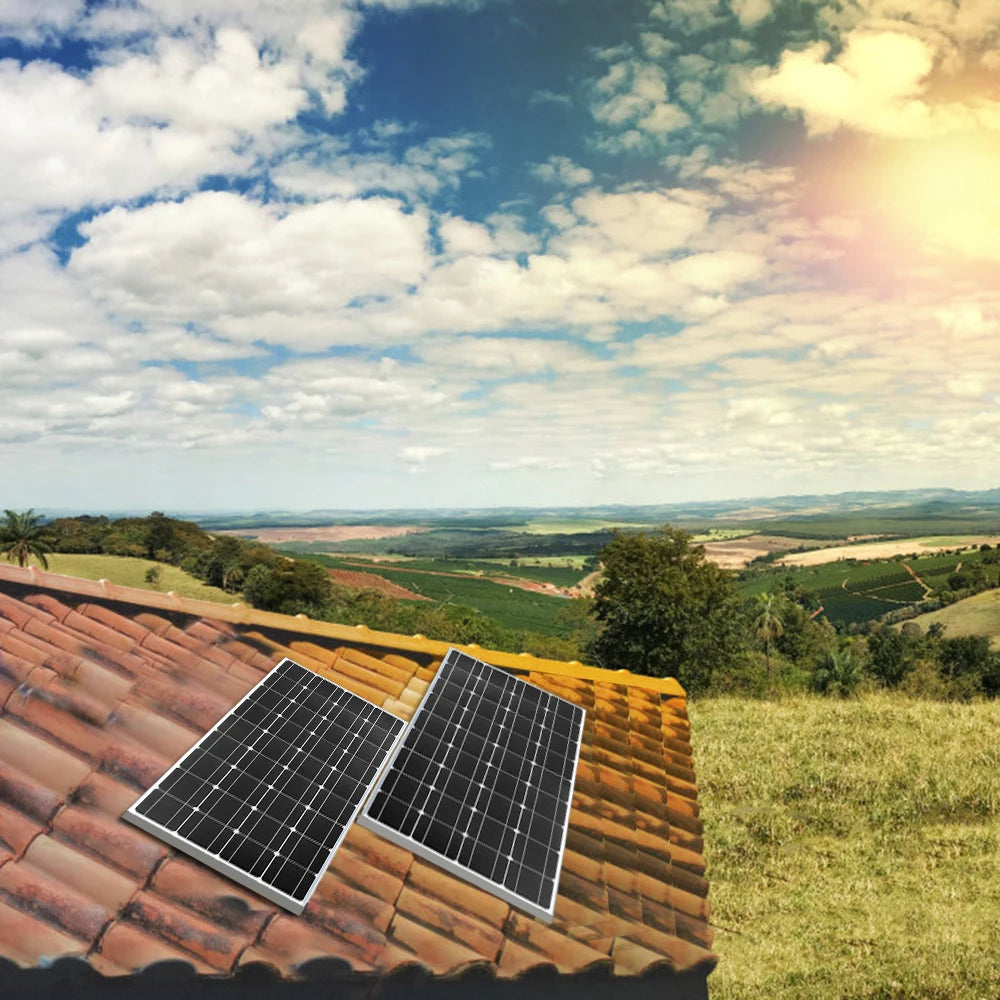

It can be used in a variety of scenarios such as RVs, households, camping, yachts, street lights and solar power stations.
Specification
Maximum power(Pmax) 150W
Output tolerance ± 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Maximum power voltage(Vmp) 18V
Cell efficiency 22%
Operating temperature（NOCT） 45±2℃
Temperature range -40℃～+80℃
Number of cells 36pcs
Weight 3100g

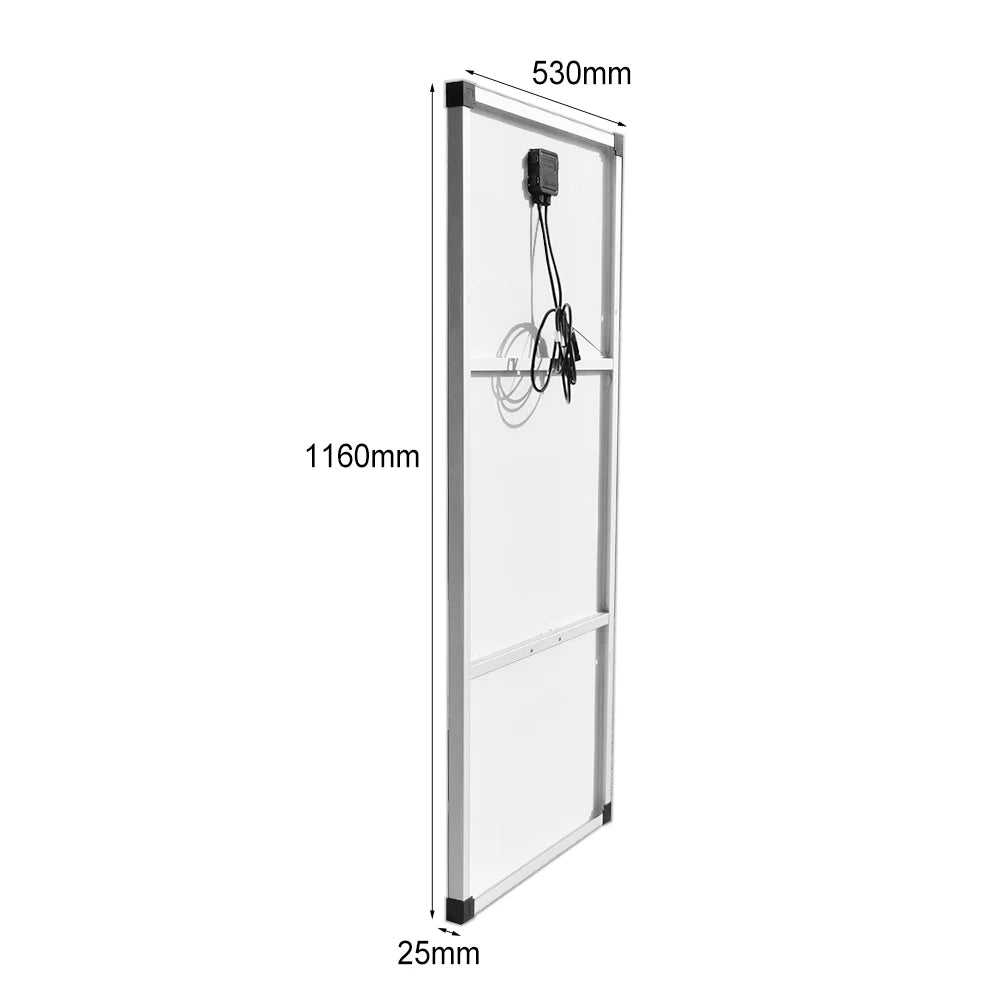

Size 1160*530*25 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
150W PET Solar Panel Specification:
Maximum power (Pmax) 150W
Maximum system voltage 1000V DC
Open circuit voltage (cov) 19,8 V
Short circuit current (Isc) 7,9 A
Vmp 19,8V
Maximum power current(Imp) 7,57 A
Temperature range -40℃～+80℃
Cell Monocrystalline silicon cell
Number of cells 36 pieces
Cell efficiency 23%.
Weight 2.74kg

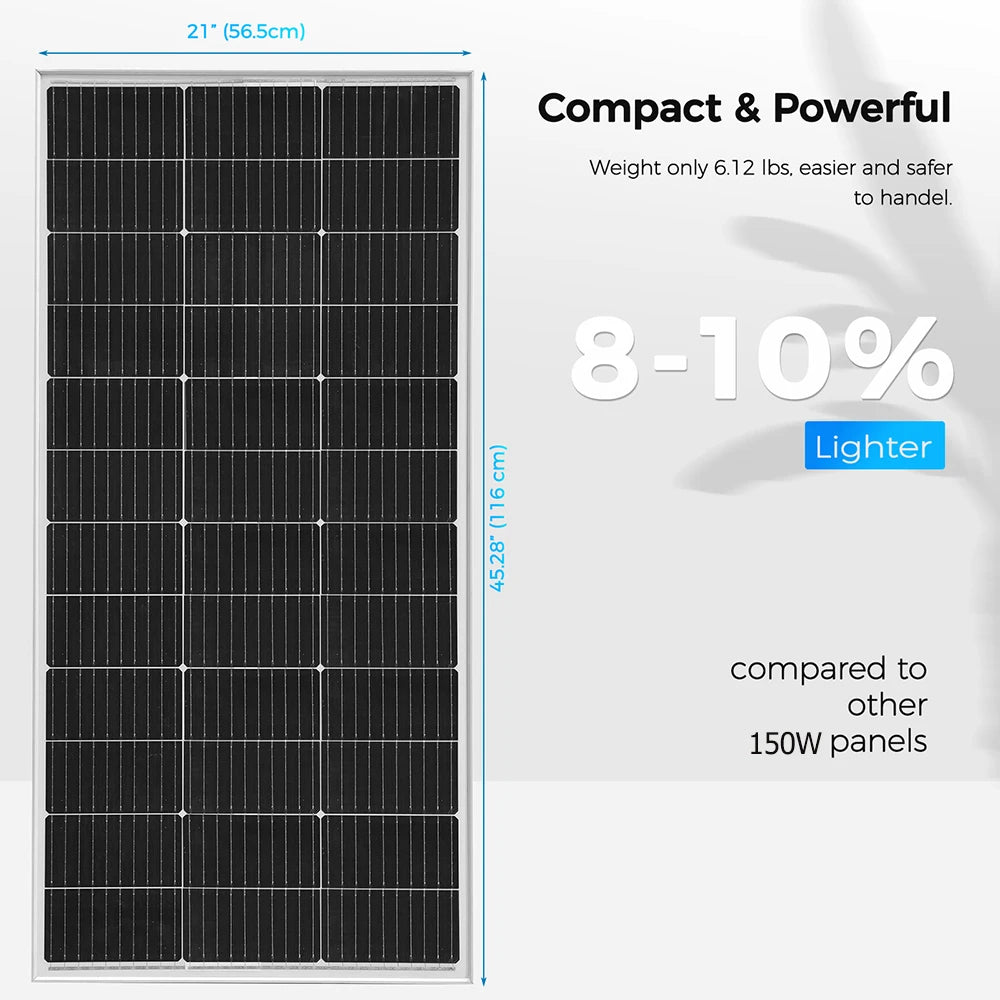

Size 1160 x 565 x 25mm
Standard test conditions lrradiance 1000w/m^2,Temperature 25℃, AM=1.5
Output port 0.9 m long MC 4 connector wire
Lighter than glass solar panels, longer service life than flexible solar panels, suitable for installation in places with light weight requirements

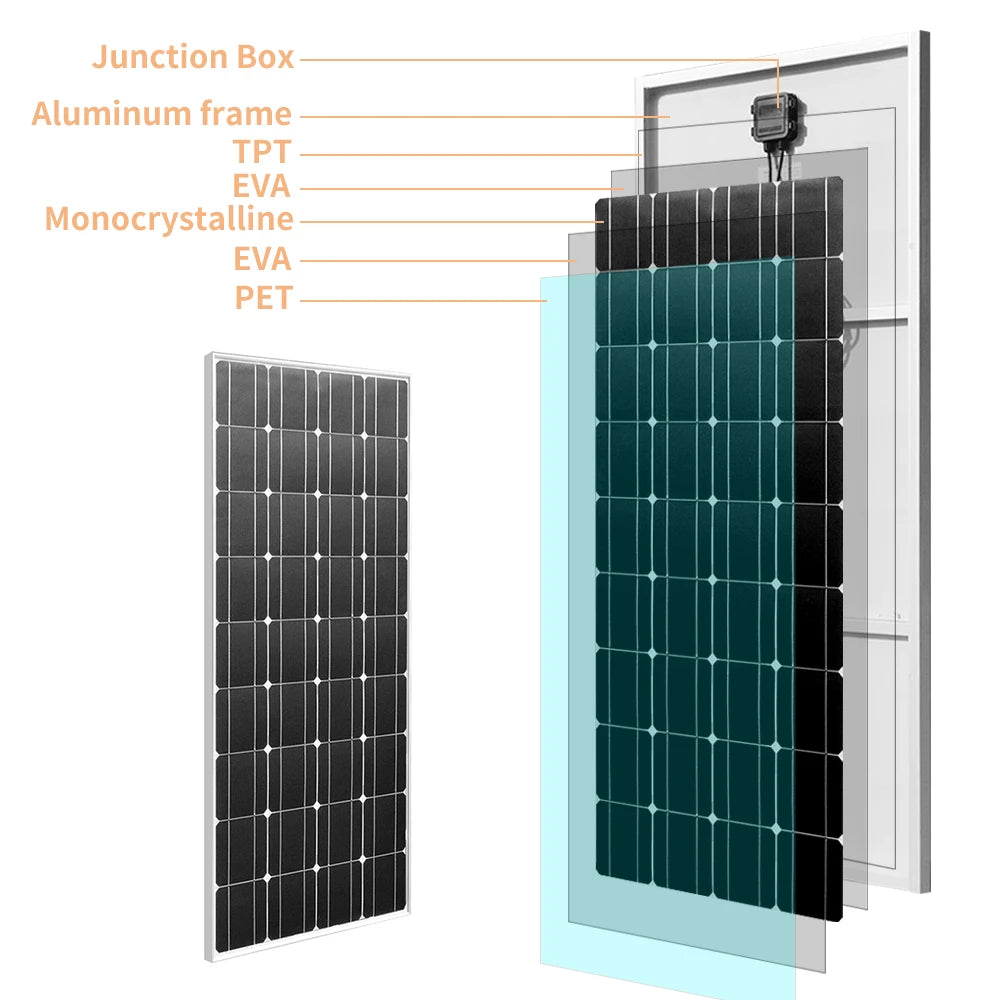

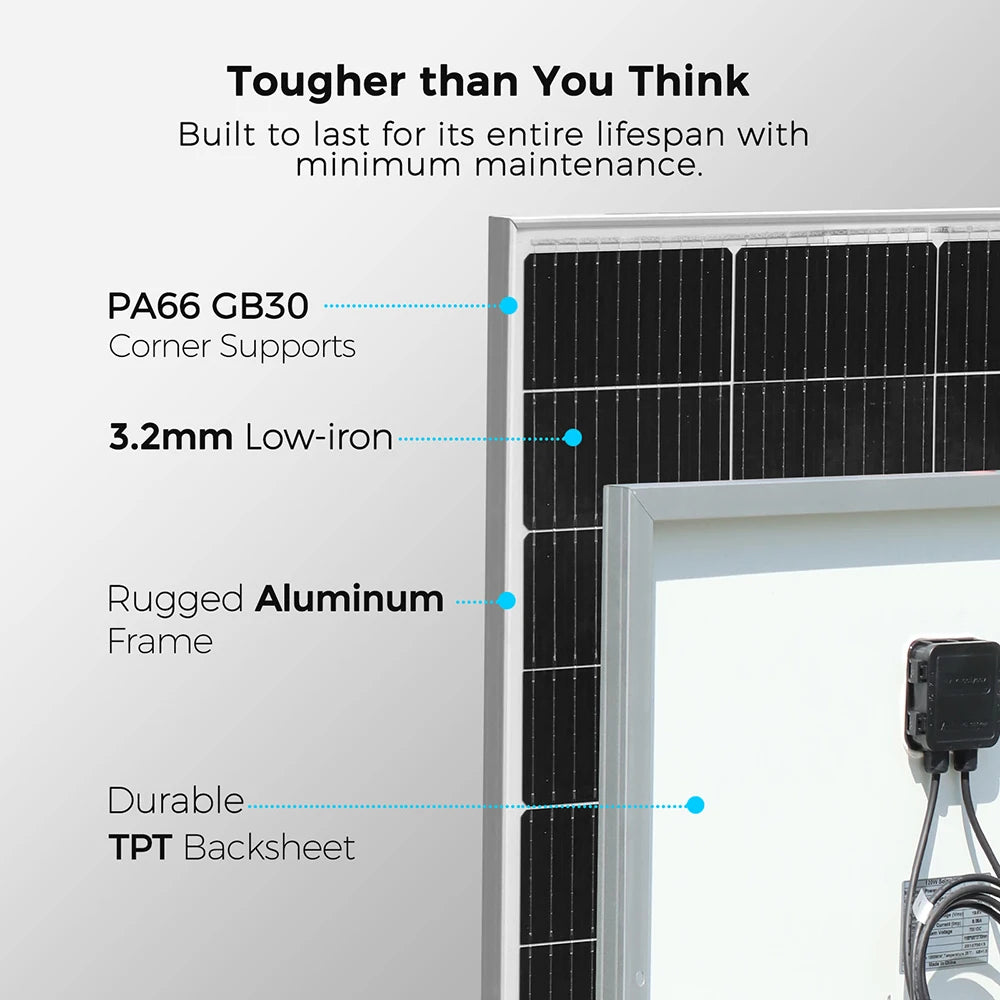

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell
performance and provide a long service life.

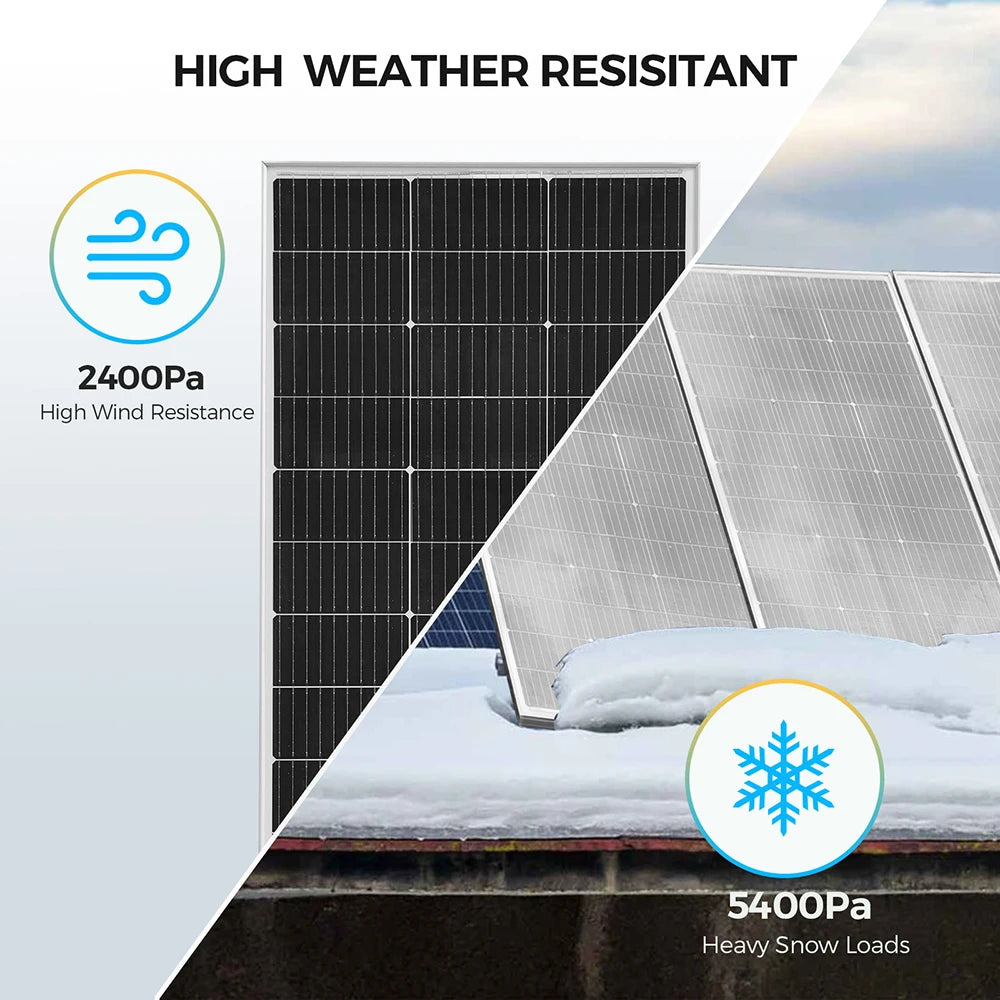

【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and
snow loads (4000Pa)

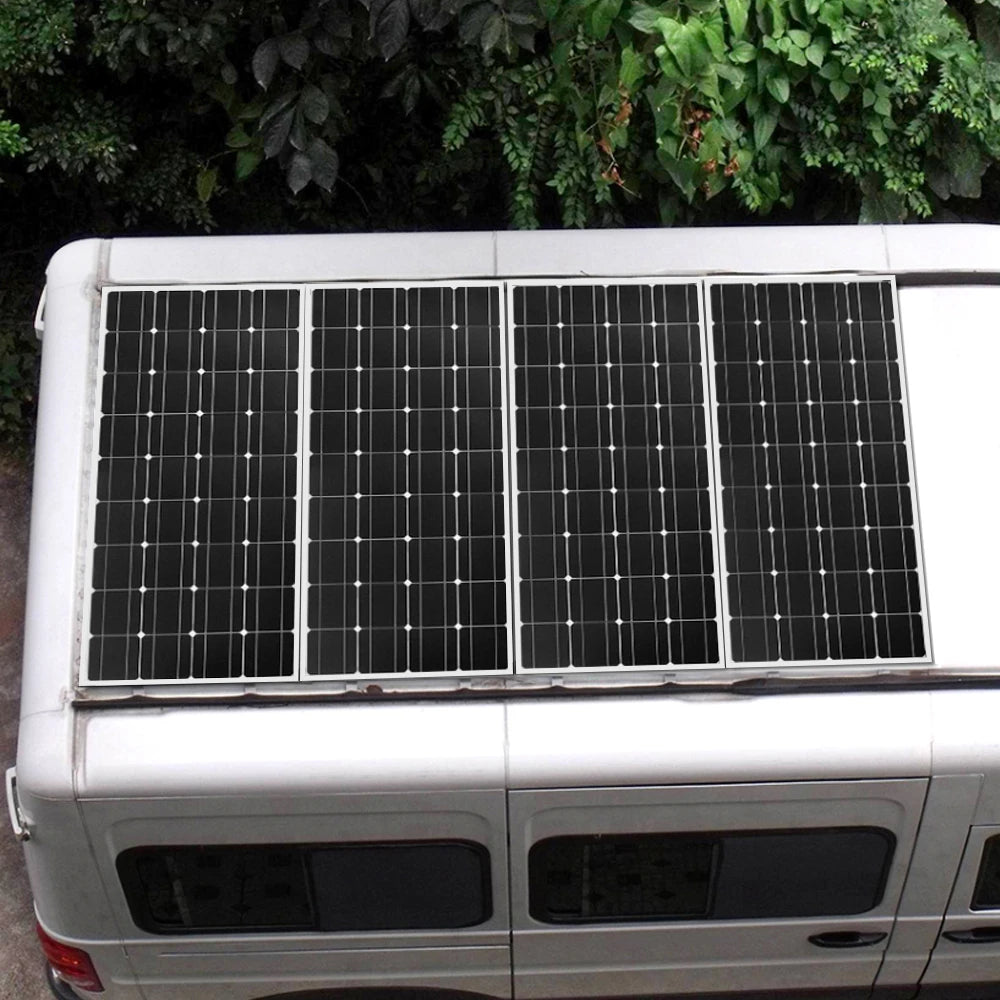

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way
this monocrystalline panel provides you with the most efficiency per space.

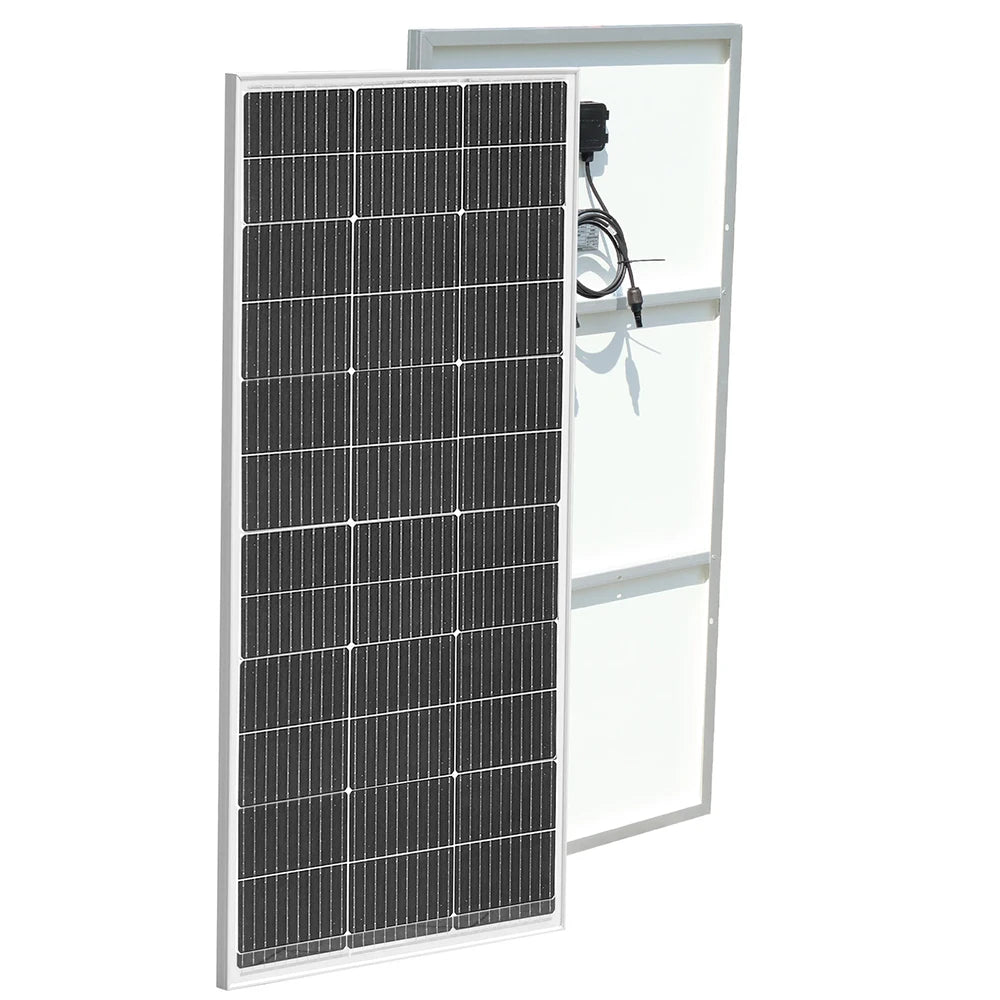

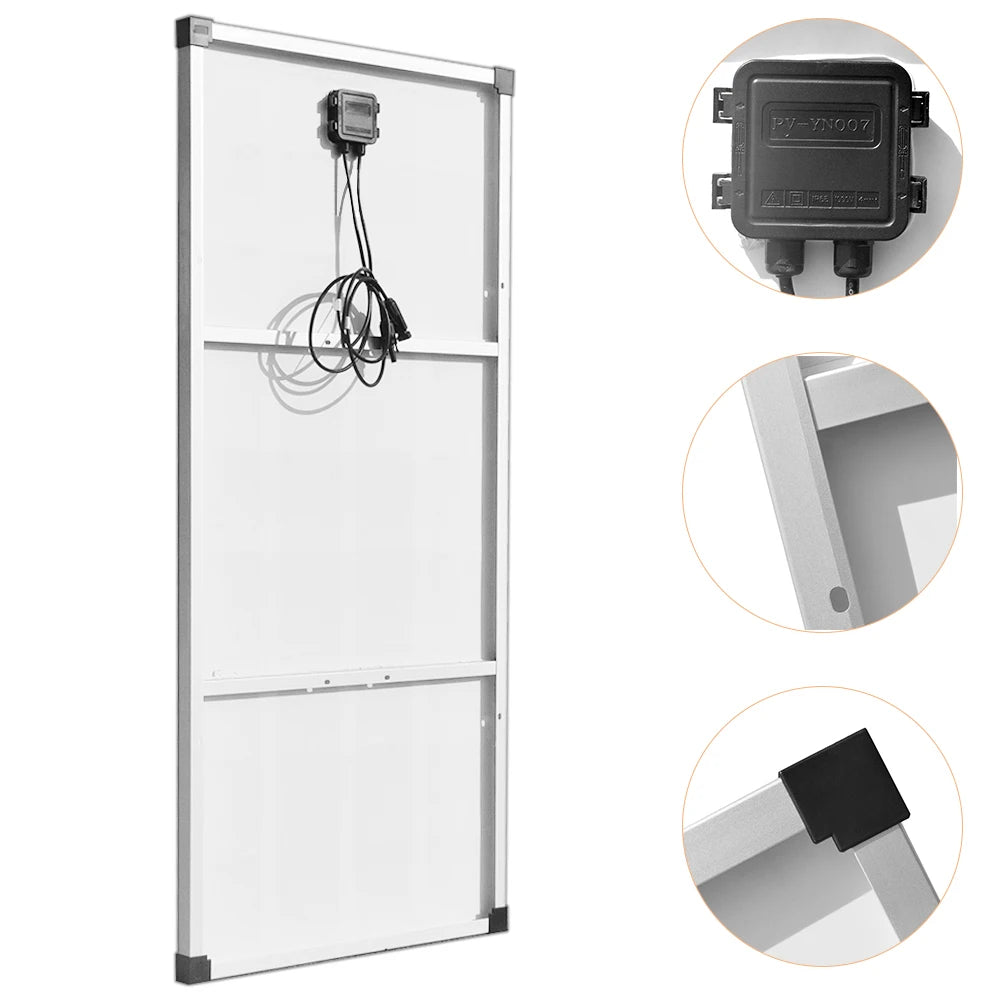

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing.
