Specifications

Application: Charger Controller,Collector Controller,Solar Working Station,Lighting Controller

Brand Name: Y&H

Max PV Power: 12V/1200w;24V/2400w;36V/3600w;48V/4800w

Max PV Voltage: 12/24/36/48V

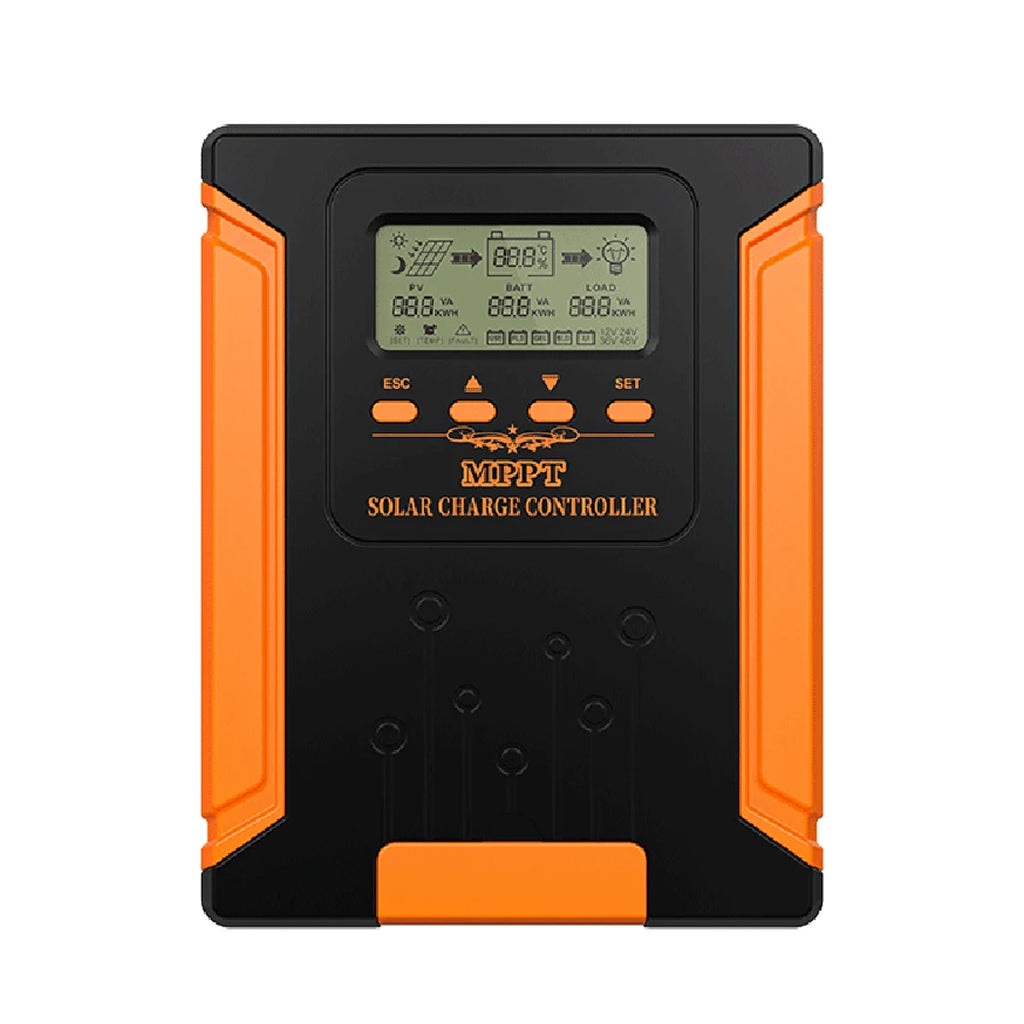

Model Number: CM-100A

Place of Origin: Guangdong, China

Type: MPPT

Work Time (h): 24H

Description:

Specificities：
1. Twin-peak MPPT tracking technology: Even if the PV module is partially shaded or damaged, it can still accurately lock the maximum power point and improve power generation efficiency.
2. High-efficiency MPPT algorithm: Charging efficiency is about 25% higher than traditional PWM, significantly improving energy utilization.
3. Extremely fast response to I-V curve: Intelligent algorithm can track the best working point in a very short time to ensure
efficient operation.

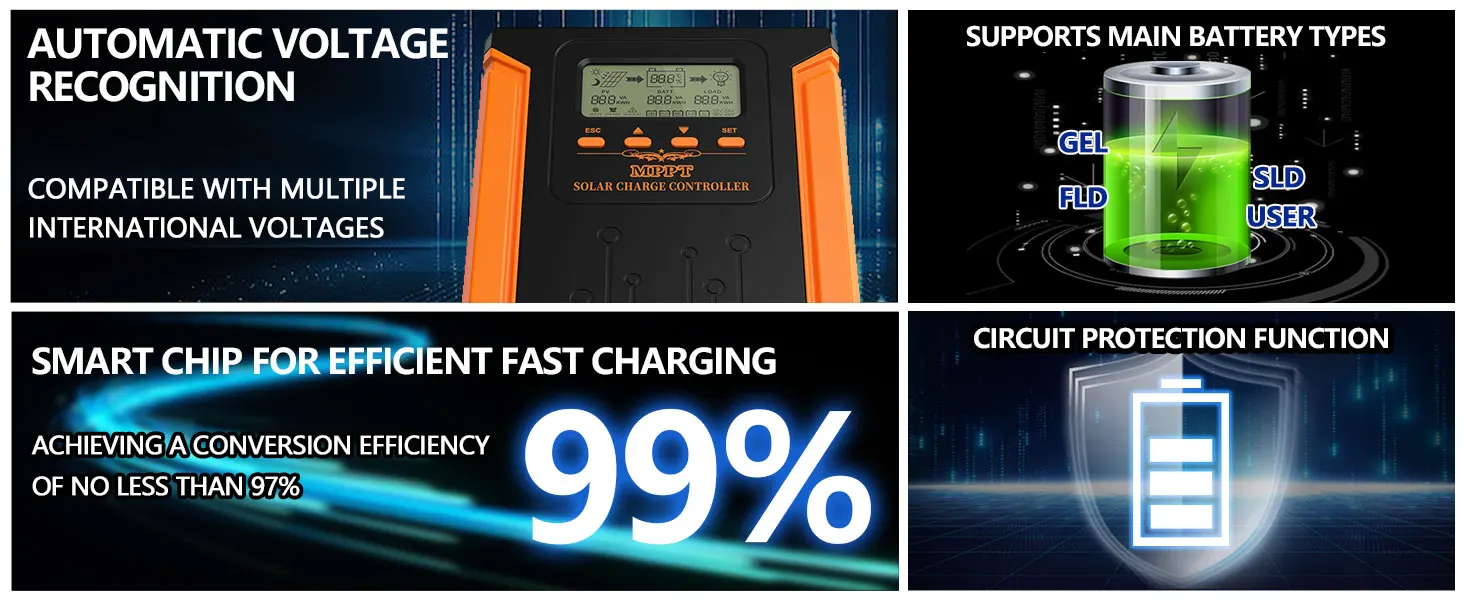

4. Automatic recognition of battery voltage 12V/24V.

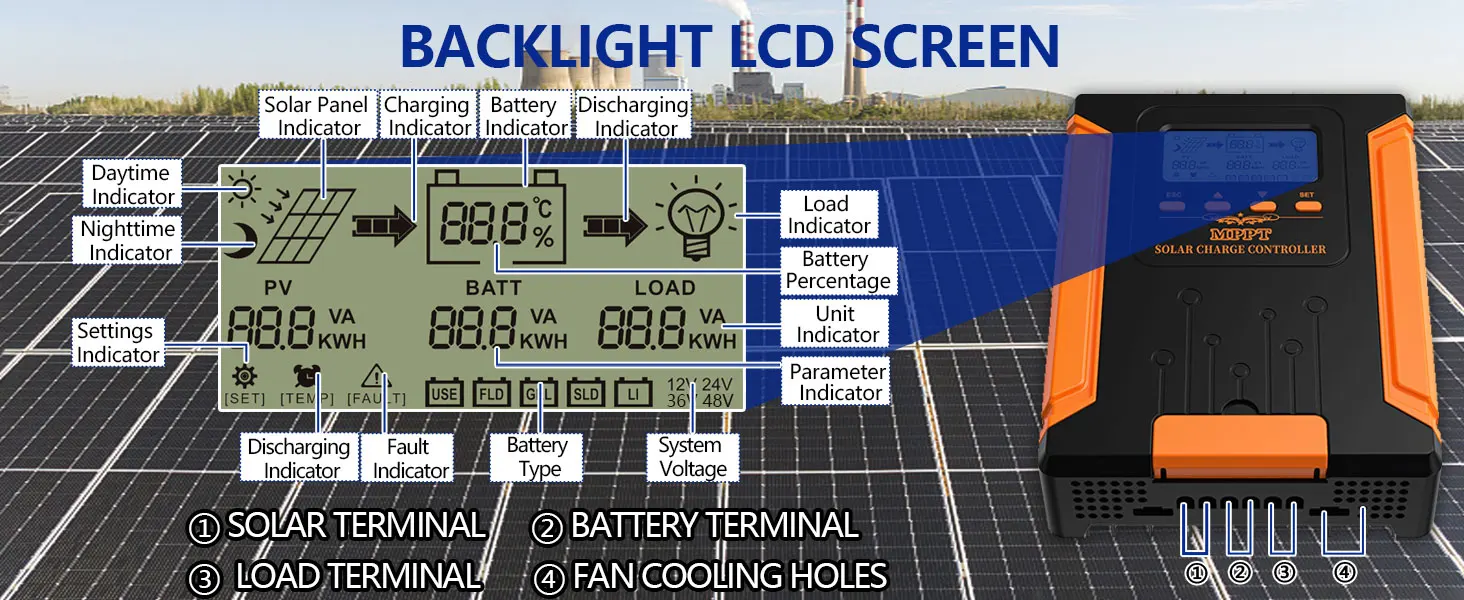

5.LCD fault display: real-time diagnosis of system status, convenient maintenance.
6. Over-temperature protection mechanism: automatically reduces the charging current when the temperature exceeds the limit, preventing the equipment from overheating and damage.
7. Intelligent temperature compensation: adjust charging and discharging parameters according to the ambient temperature to extend battery life.

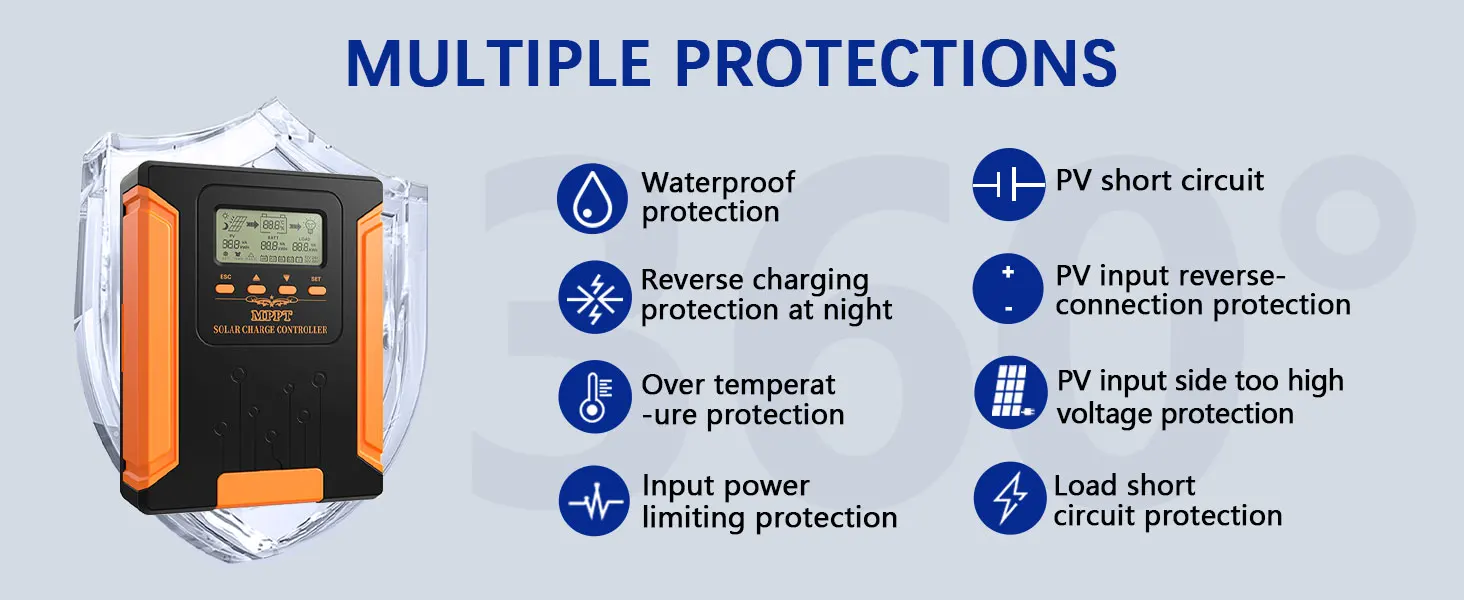

8. All-round electronic protection to ensure safe and stable operation of the system.
9. Better heat dissipation to enhance durability.
10. 0V charging function of lithium battery.
11. High-voltage input, reducing solar wiring specifications and system costs.

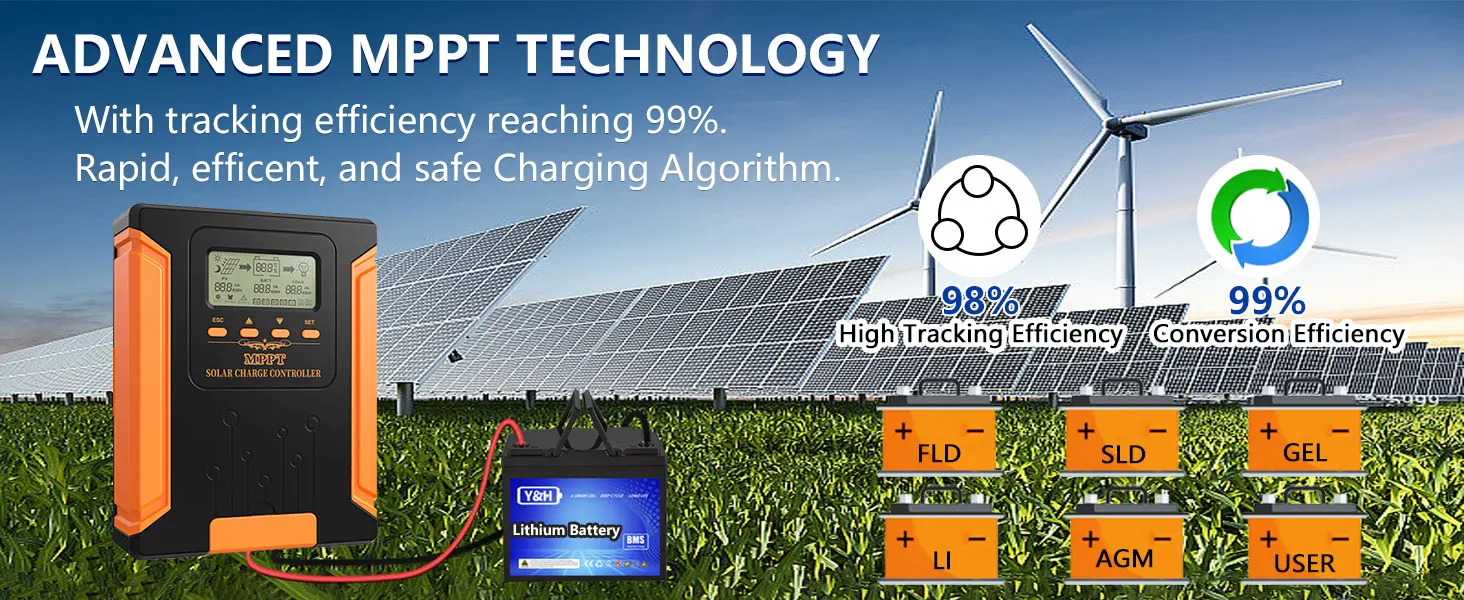

12.MPPT efficiency up to 99.9%, fully utilize PV energy. Circuit conversion efficiency up to 98%, reducing energy loss.
13. Compatible with a variety of battery types: supports gel batteries, sealed batteries, open batteries and lithium batteries.
14. Current-limited charging mode: when the solar panel power is too high, automatically adjust the charging current to ensure safe operation.
15. Support instantaneous high-current startup, easily drive capacitive loads.

Parameter	Value
Model	CM-100A	CM-120A
System voltage	12V/24V/36V/48V/Auto
No-load loss	≤0.4W
Max. solar input voltage	160V
Battery voltage	9~64V
Max. power point voltage range	Battery voltage +2V~150V
Rated charging current	100A	120A
Rated load current	40A

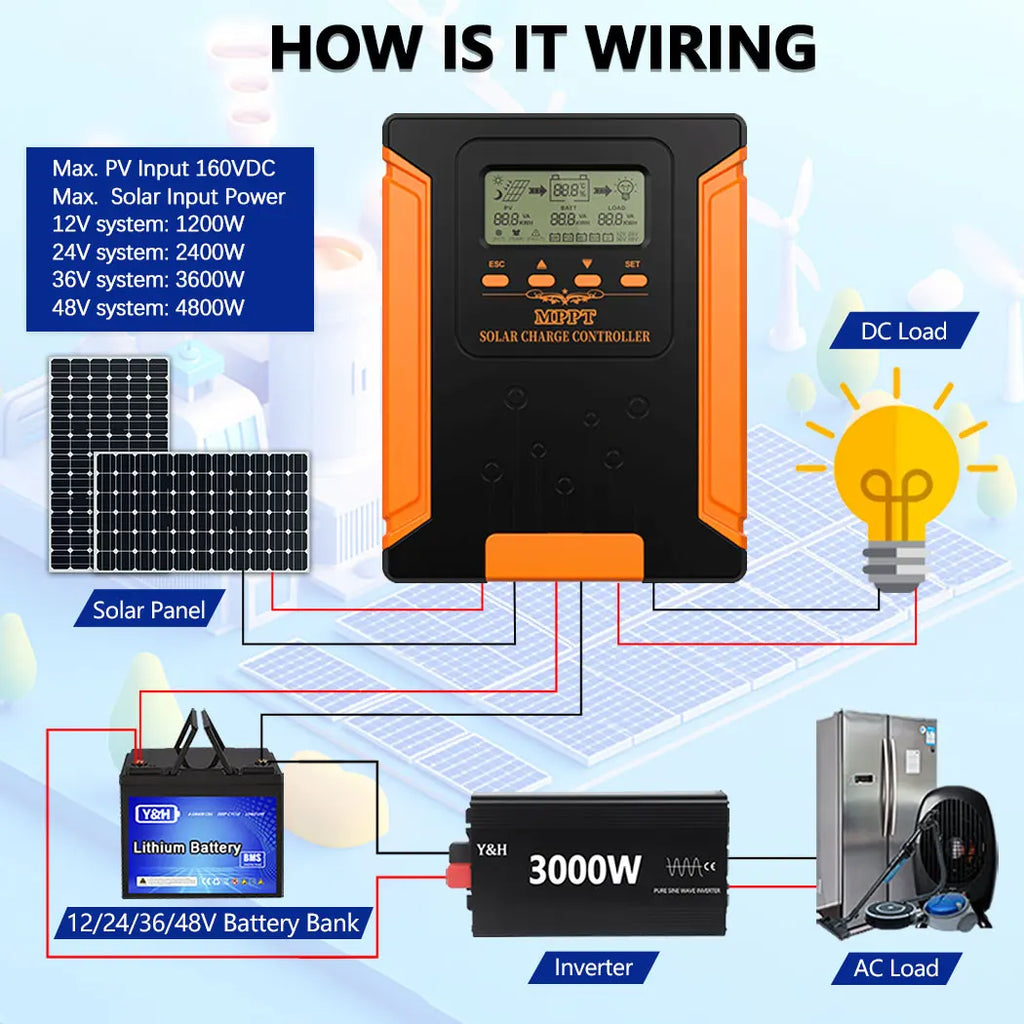

Max. photovoltaic system input power	1200W/12V 2400W/24V 3600W/36V 4800W/48V	1440W/12V 2880W/24V 4320W/36V 5760W/48V
Conversion efficiency	≤98%
MPPT tracking efficiency	>99%
Temperature compensation factor	(-2mv/°C/2V(default)0
Operating temperature	（-10℃~+65℃℃）
Waterproof level	IP21
Net weight	2.9KG
Gross weight	3.15KG
Electromagnetic compatibility	Accord to EN61000,EN55022,EN55024
Communication method	Rs485(Need to choose and buy)
Altitude	≤3000m

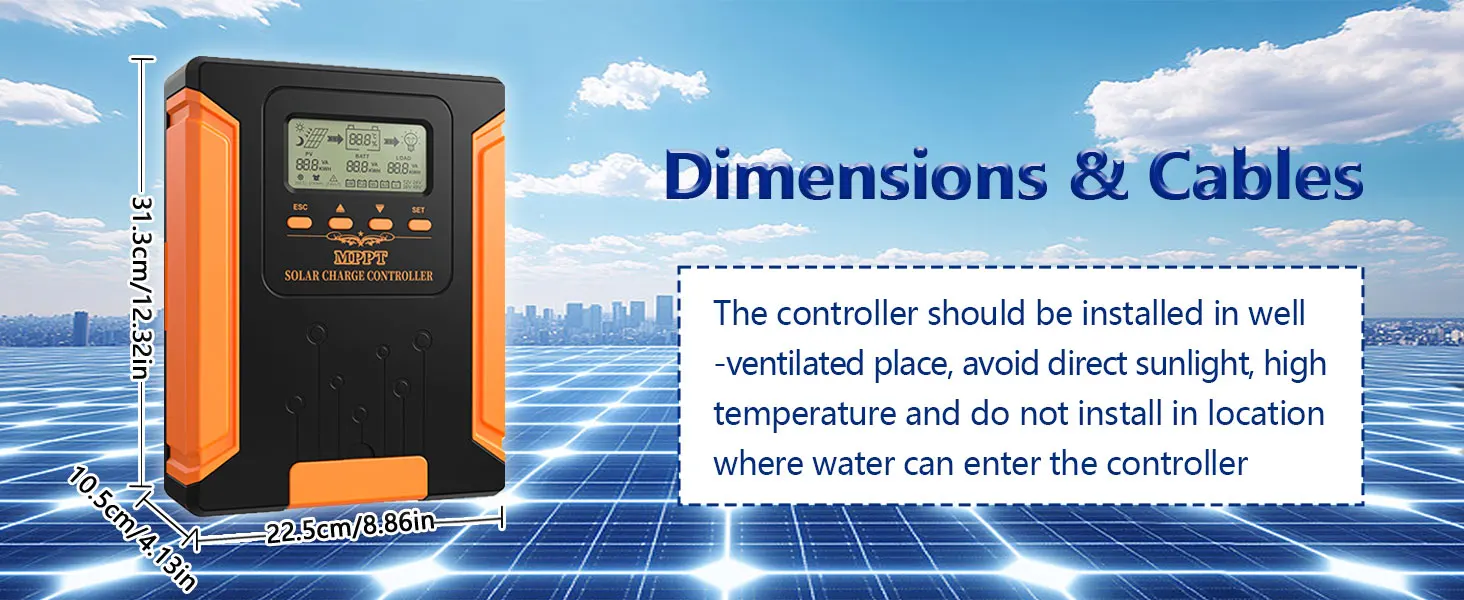

Product dimensions	313x225x105mm

FAQ

1. How to insatll and use the solar inverter?
A1: We have the English teaching manual and videos; All the videos about every step of machine Disassembly, assembly, operation
will be sent to our customers.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Solar Inverter,Solar Charge Controller,Solar Power System,Solar Panel,Solar Lithium Ion Battery

4:What is the payment method?
We normally require a T/T advance payment. 30% deposit and 70% before shipping.

5. Can I buy one sample for testing?
Sure,we have a 8 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.

6. How is the delivery?
Sample:2-3 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample

7. Can you get the the solar inverter customized for us ?
Of course, brand name, machine color, designed unique patterns available for customization.
