Specifications

Application: Home

Battery Type: Lithium Ion

Brand Name: Jinko /DEYE/GROWATT/HF Solar

Certificate: UL/ CSA and other certifications

Controller Type: MPPT

Free installation service: No

Function: Power Support

Inverter: Single Phase/Split Phase/3Phase

Load Power (W): 50 kW,30 kW,20 kW,10 kW

Model Number: HFS-30kw-Hybrid System

Monitoring: Smart Wifi; RS485; 4G; CAN

Mounting Type: Roof Mounting

Output Frequency: 50/60HZ

Output Voltage (V): 110-240V

Packing: Wooden Box

Place of Origin: Guangdong, China

Product Name: Residential Industrial and Commercial Hybrid Solar System

Solar Panel Type: Monocrystalline Silicon,Monocrystalline Silicon

System Type: Off-grid /Hybrid Solar Photovoltaic System

Technical Support: Complete Technical Support

Work Time (h): 24H

Product Description

US standard Split-Phase solar system

System Features:

- Two output modes: mains bypass and inverter output

- Four charging modes: Only Solar, Mains Priority, Solar Priority, and Mains & Solar hybrid charging

- Power saving mode to reduce no-load loss - Intelligent variable speed fan for efficient heat dissipation and extended system life

- Lithium battery activation by PV solar or mains, allowing access to both lead-acid battery and lithium battery

- Complete protections against short circuit, over/under voltage, overload, and reverse protection.

Spot goods available in local warehouses in Los Angeles、Las Vegas and Phoenix USA.

Jinko solar panels are in stock in Las Vegas and Phoenix, USA. Delivery to your door takes 2-6 days, and fast shipping is
available throughout the US. Prices include Jinko solar panels and US customs duties, offering very competitive pricing. We
calculate local delivery costs based on your US shipping address.

We provide a 15-year warranty on Jinko solar panels and excellent after-sales service.

Certificate

Solar Energy System For US UL & CSA Certification

All solar system products are UL certified and meet US Department of Energy standards, enabling rapid system approval and installation:

Solar panels: Jinko, Trina, JA, etc.

Inverters: Growatt, Deye, Solis, or Megarevo, etc.

Batteries: Growatt, Deye, or

HF Solar batteries.

ETL Certificate Introduction

CSA Certificate Introduction

CSA ertificate Introduction

10KW Resiential Storage Solar System Components List
Model	Description	Quantity
Solar Panel	Mono 590W solar panel	16-18 pieces
Hybrid Inverter	10KW USA Standard	1 piece
Lithium Battery	48V Lithium/Lead Acid Battery	1 set
Mounting Support	Commonly used roofing materials in the United States and Canada include tile roofs, asphalt roofs, and concrete roofs, or ground-mounted bracket kits.	1 set
PV Cable	Single-core 4mm2 PV cable	100meters
Connector	PV connector	20 pairs
Tools Bag（Optional）	5 kinds of PV installation tools	1 bag

15KW Resiential Storage Solar System Components List
Model	Description	Quantity
Solar Panel	Mono 590W solar panel	26-28 pieces
Hybrid Inverter	12-15KW USA Standard	1 piece
Lithium Battery	48V Lithium/Lead Acid Battery	1 set
Mounting Support	Commonly used roofing materials in the United States and Canada include tile roofs, asphalt roofs, and concrete roofs, or ground-mounted bracket kits.	1 set
PV Cable	Single-core 4mm2 PV cable	100meters
Connector	PV connector	20 pairs
Tools Bag（Optional）	5 kinds of PV installation tools	1 bag

20KW Resiential Storage Solar System Components List
Model	Description	Quantity
Solar Panel	Mono 590W solar panel	34-36 pieces
Hybrid Inverter	12-15KW USA Standard	2 piece
Lithium Battery	48V Lithium/Lead Acid Battery	1 set
Mounting Support	Commonly used roofing materials in the United States and Canada include tile roofs, asphalt roofs, and concrete roofs, or ground-mounted bracket kits.	1 set
PV Cable	Single-core 4mm2 PV cable	200meters
Connector	PV connector	20 pairs
Tools Bag（Optional）	5 kinds of PV installation tools	1 bag

30KW Resiential Storage Solar System Components List
Model	Description	Quantity
Solar Panel	Mono 590W solar panel	50-54 pieces
Hybrid Inverter	12-15KW USA Standard	2 piece
Lithium Battery	48V 30kwh Lithium/Lead Acid Battery	1 set
Mounting Support	Commonly used roofing materials in the United States and Canada include tile roofs, asphalt roofs, and concrete roofs, or ground-mounted bracket kits.	1 set
PV Cable	Single-core 4mm2 PV cable	200meters
Connector	PV connector	20 pairs
Tools Bag（Optional）	5 kinds of PV installation tools	1 bag

40KW Resiential Storage Solar System Components List
Model	Description	Quantity
Solar Panel	Mono 590W solar panel	68-70 pieces
Hybrid Inverter	12-15KW USA Standard	3 piece
Lithium Battery	48V 50kwh Lithium	1 set
Mounting Support	Commonly used roofing materials in the United States and Canada include tile roofs, asphalt roofs, and concrete roofs, or ground-mounted bracket kits.	1 set
PV Cable	Single-core 4mm2 PV cable	200meters
Connector	PV connector	20 pairs
Tools Bag（Optional）	5 kinds of PV installation tools	1 bag

50KW Resiential Storage Solar System Components List
Model	Description	Quantity
Solar Panel	Mono 590W solar panel	85-90 pieces
Hybrid Inverter	12-15KW USA Standard	4 piece
Lithium Battery	48V 50kwh Lithium/Lead Acid Battery	1 set
Mounting Support	Commonly used roofing materials in the United States and Canada include tile roofs, asphalt roofs, and concrete roofs, or ground-mounted bracket kits.	1 set
PV Cable	Single-core 4mm2 PV cable	200meters
Connector	PV connector	20 pairs
Tools Bag（Optional）	5 kinds of PV installation tools	1 bag

Detailed Images

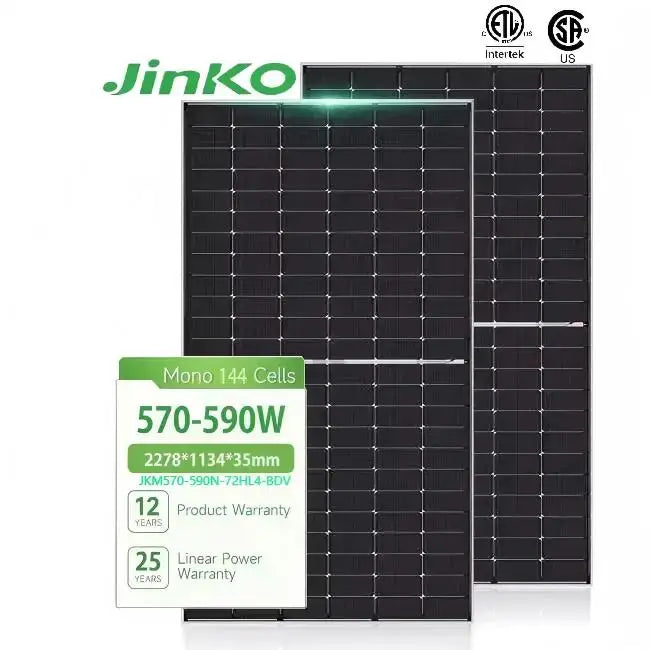

Jinko Solar Half Cut/Topcon Bifacial 590W Solar Panel

Peak Power Watts: 590W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2278x1134x30mm

Weight:26.9 kg

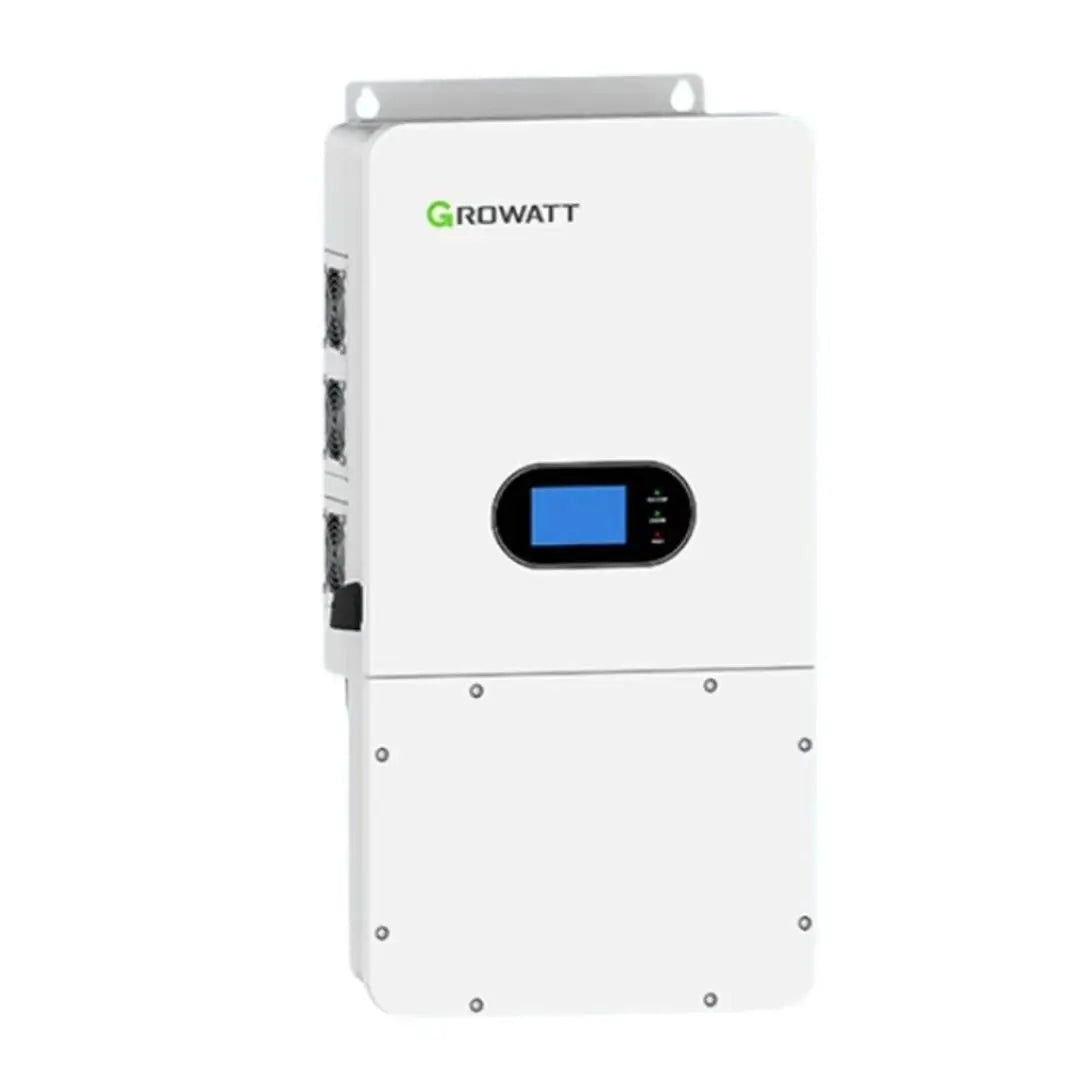

Split-Phase Hybrid/Offgrid Solar Inverter

48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max.
charging/discharging current of 240A Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system

GROWATT Inverter:Inverters, Converters, Controllers and Interconnection System Equipment for use with Distributed Energy
Resources [UL 1741:2010 Ed.2+R:16Sep2020]
Power Conversion Equipment [CSA C22.2#107.1:2016 Ed.4]

Monitoring System

Open station supports one-click installation and registration Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

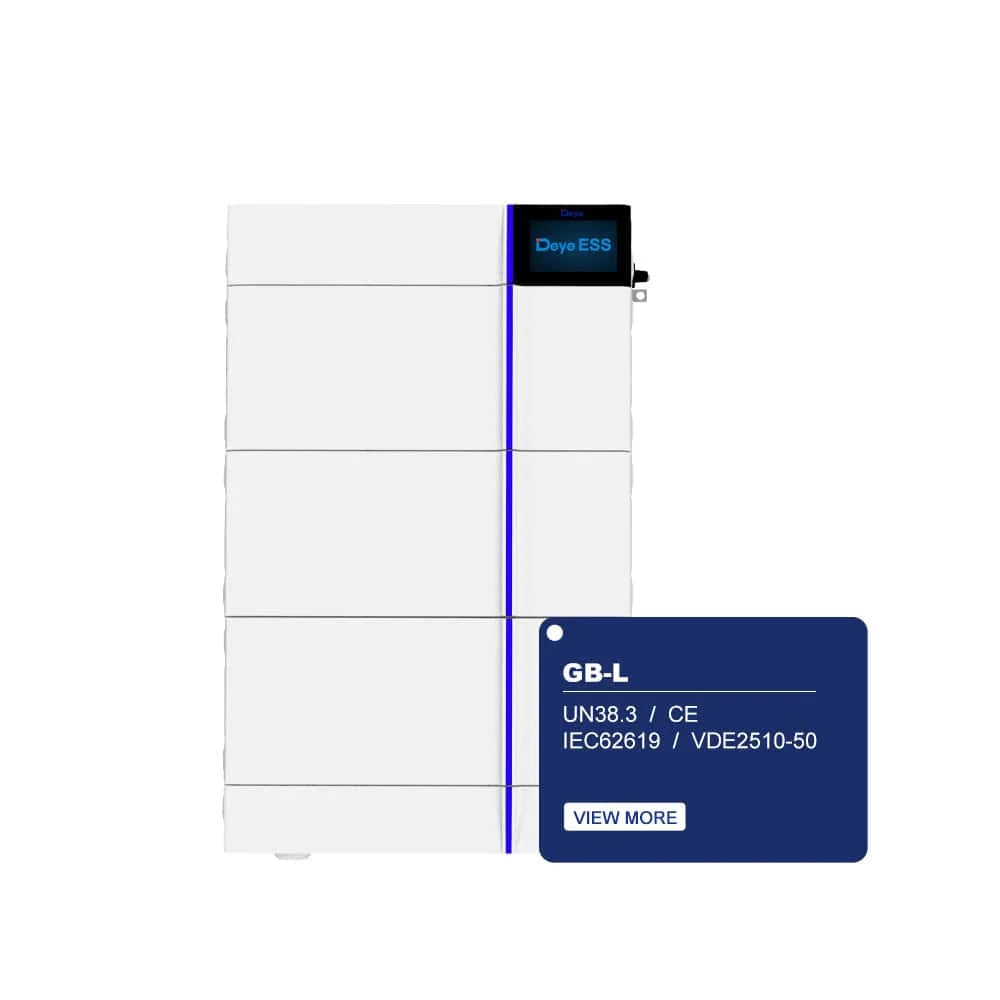

Stackable/Wall Mounted LiFePo4 Battery

15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.
HF Solar Battery:ANSI/CAN/UL 9540:2023,Third Edition, Dated June 28, 2023.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

PV Combiner Box

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A

PV Tools

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

Packing&Shipping

HUAFENG standard packaging uses wooden boxes or wooden pallets and standard cartons, which complies with the import requirements of various regions such as the EU Packaging Law and the US Packaging Law.

Company Introduction

Huafeng Solar USA The intelligent warehousing design concept, combined with the production process, adopts secondary sorting to solve the problem of too many sorting gears for battery box. According to the module function, it is mainly divided into AGV intelligent car, manual platform, double-speed chain line, belt line, sorter, elevator, stacker, warehousing and other related modules. Unmanned production is the main method, and emergency personnel working conditions are reserved; use imaging, network communication technology and other technologies to identify and read key information in the production process to achieve intelligence, visualization and digitization.

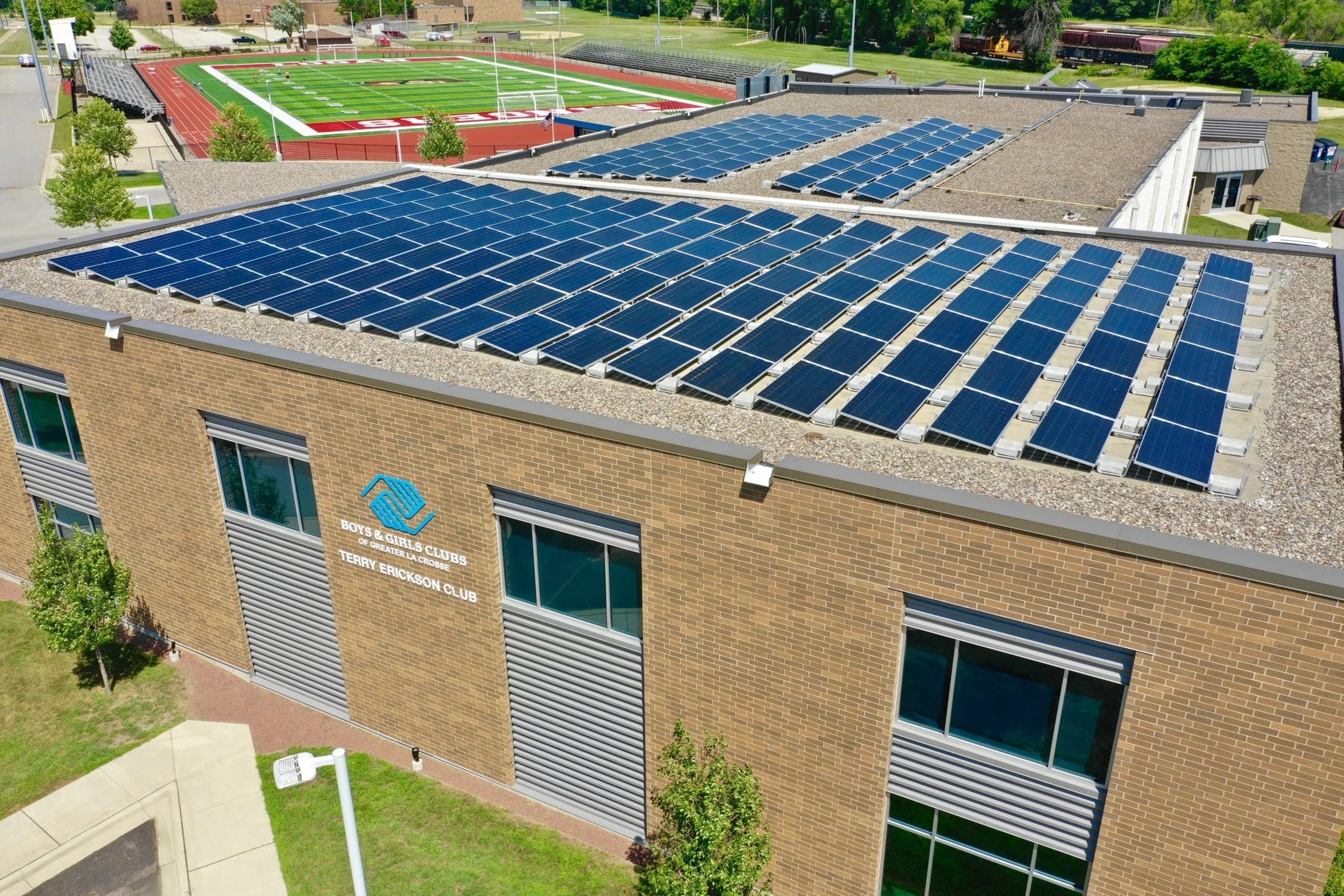

HUAFENG SOLAR Successful Projects

Thank you for your recognition and continued cooperation with Huafeng Solar.

FAQ

1、Do you have local warehouses in the US? How long does delivery take? What is the price per system? Yes, we have warehouses in Las Vegas and Phoenix, and we plan to establish local warehouses in the eastern US as well. Local delivery takes approximately 2-6days to your door. We need to calculate an accurate price for you based on the products in each system, including customs duties.

2、What size solar system is needed to power a house? Normally 5-10kw solar system is sufficient for home use, actually depends on the amount of power a household uses.

3、How long do solar panels last?Solar panels are designed to last for decades. According to the Solar Energy Industries
Association (SEIA), solar panels last between 20 and 30 years. Some well-made panels may even last up to 40 years.

4、What is the lifespan of a solar inverter?A typical hybrid inverter will last about 10 to 15 years, generally have standard
warranties for 5years, and you can extend the warranty to 10-15 years.

5、Is 10 kW enough to run a house? 10kW solar system can generate 1500kwh/month under 5 PSH (peak sunshine hour), whether it is enough, depends on your actual consumption.

6、Can I use car battery instead of solar battery? You can. But car batteries are NOT designed for deep discharge. They won't last long in a solar electric application because they are only designed to provide a lot of current for short intervals (to start the car).
