SPECIFICATIONS

Application: Home Appliances,Boats,Golf Carts,Electric Bicycles/Scooters,electric vehicles,Electric Wheelchairs,Electric Power Systems,Solar Energy Storage Systems,Uninterruptible Power Supplies,UPS/solar energy system

Battery Type: Solid state

Battery type: Lifepo4

Brand Name: X-POWER

Capacity: 10Ah 20Ah 50Ah 100Ah 200Ah

Cathode Materials: LiFePO4

Cell: prismatic

Cycle Life: 6000 cycles,>3000

Dimension (L*W*H): 384*194*255mm

Max Load Quantity(cells): 4

Model Number: XP-LFP12200

Operating Temperature(℃): -20-55

Place of Origin: Guangdong, China

Protection: Over Charge, Over Discharge, Over Current, Short Circuit

Size: 384*194*255mm

Terminal: M8

Voltage: 12.8v

Weight: 20KG

series connection: Yes

Specification

Model	XP-LFP12200
Casing	ABS
Cell	LiFePo4 prismatic
Voltage	12.8V
Capacity	200Ah
Cycle Life	>3000
Charge Cut-Off Voltage	14.4V
Charge Current	40A
Discharge Current	200A
Discharge Current (Peak)	300A (50mS)
Discharge Cut-Off Voltage	10V
Charge Temperature	0℃-55℃
Discharge Temperature	-20℃-55℃
Terminal	M8
Protection	Over Charge, Over Discharge, Over Current, Short Circuit
Protocol (BMS)	Optional
Size	384*194*255mm
Weight	20KG
Certificate	MSDS, UN38.3, Sea Transfer of Goods
Package	UN Carton
Warranty	12 months

Product Description

OUR ADVANTAGE

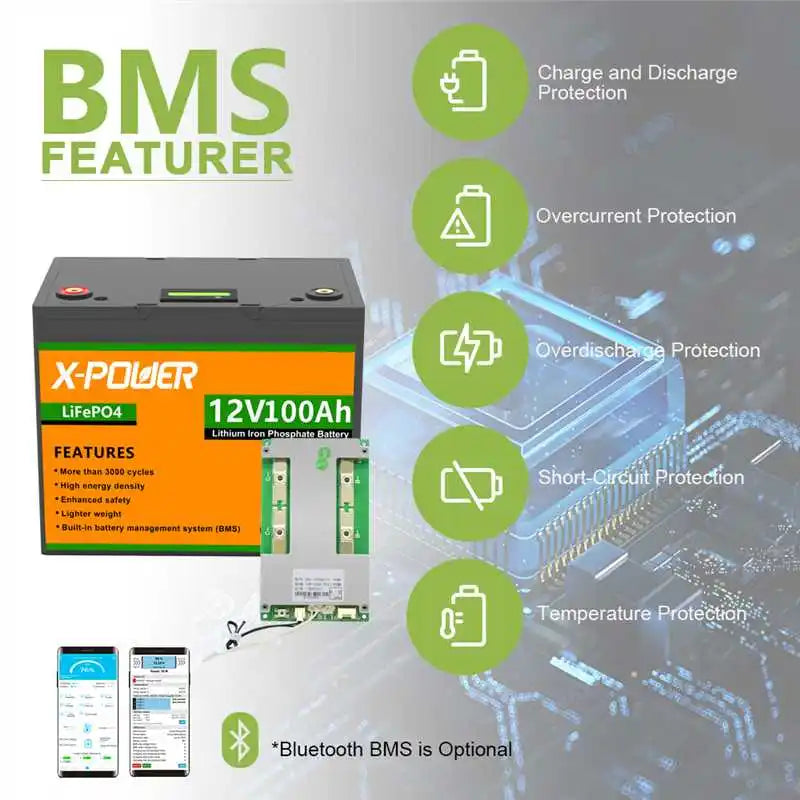

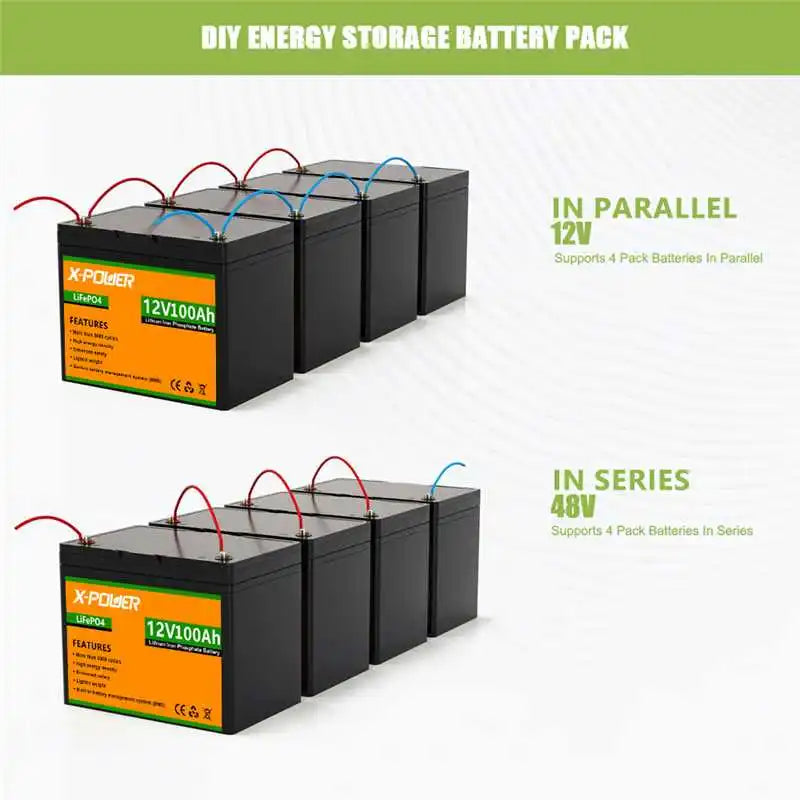

^{【Automotive Grade Battery】 X-POWER LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power. Highest-level safety based on UL Testing Certificate for the cell inside. Perfect for solar home, RV, campers, solar, motor homes, off-grid applications 【100% Safe】 100% safe, nontoxic, renewable energy. LiFepo4 battery will not burn when overcharged, over discharged, over current or short circuit, and can withstand high temperatures without decomposition. Smart BMS inside can handle cell balancing, low & high voltage cutoff, short circuit protection and temperature protection. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged. 【Lightweight and Widely Use】 Our lithium battery weighs only 1/3 weight of the same capacity lead acid batteries! With no acid in the battery, you're able to safely mount it in any position. Perfect choice for variety types of backup power application, such as UPS, Fishfinder, Ride on toys, RV etc. Allow to be extended up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (Max 800Ah) and higher voltage (12V, 24V, 36V, 48V). 【Efficient & Convenient】 X-POWER LiFePO4 Battery can be 100% discharged while lead acid battery can only 40%-50% discharged. Charge the same time while use 2 times longer. Also, Tycorun battery has constant power while lead acid battery has steady power drop when use it. Tycorun battery more reliable and powerful. 【Best Service】 Providing 4000+ cycles while lead acid battery last 300-500 cycles. 2 year battery warranty & lifetime technical support. If you have any questions, please feel free to contact us. 【Support Oem】 X-Power has 10 years of experience in lithium battery production! We can customize 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah lithium batteries. We can also customize any size and function you need.}

Please Refer To More Similar Models
Model	Voltage	Capacity	Max size	Weight
XP-LFP1206	12.8V	6Ah	150*65*94mm	0.9KG
XP-LFP1212	12.8V	12Ah	150*65*94mm	1.3KG
XP-LFP1218	12.8V	18Ah	181*77*160mm	2.1KG
XP-LFP1224	12.8V	24Ah	181*77*160mm	2.9KG
XP-LFP1230	12.8V	30Ah	181*77*160mm	3.6KG
XP-LFP1250	12.8V	50Ah	223*135*178mm	5.06KG
XP-LFP12100	12.8V	100Ah	260*168*209mm	9.9KG
XP-LFP12150	12.8V	150Ah	330*175*220mm	15KG
XP-LFP1200	12.8V	200Ah	483*170*240mm	22.2KG
Support to customize more size, capacity, voltage battery pack, please send email !

Packing & Delivery

Company Profile

Dongguan X-Power Intelligent Technology Co., Ltd is a leading manufacturer, with more than 10 years' experience in Light Electric Vehicle smart battery & energy storage industry.  Our ambition is committed to a sustainable future by providing green, smart, high efficiency energy solution for both new and existing applications. We continually enhances our R&D, management, and production facilities, and adhering to ISO9001, SQP, and BSCI standards. We ensuring the safety and reliability of our battery packs  through meticulous design verification, supply chain management, correct cell selection, and rigorous testing. At the same time, our products tested by third-party lab, like UL, TUV, Intertek, SGS, and etc. Today, X-Power's global footprint spans China, USA, Japan, Germany, France, Israel, Australia, Austria, Indonesia, Brazil, South Africa,  etc. We hold a 1.5 million US Dollar global  Product Liability Insurance to cover our product ranges to reflect our commitment to quality and safety.

FAQ Q1:Can I have samples to test? And what is lead time for sample order? A1:Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost. Q2: Do you provide after-sales serive? A2: Yes,the warranty is 1-3 years, if any quality problems on our side in this period, we can send new one as replacement. Q3 What is your company's advantage? A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service. Q4: Do you accept OEM/ODM? A4: Yes,it is avaliable. Q5: What information do you need to make a customized battery pack? A5: We need the details below: 1. Size of the battery pack you need in mm. 2. Capacity of the Battery pack. 3. Voltage of the battery pack. 4. Max discharge current. 5. Cable and connector types you need. 6. Casing and Terminals if required. 7. Any protection circuits you may need. Q6:Are you battery real capacity? A6:All of our battery cells with Grade A,100% new and real capacity. Q7:Are you a factory or a trading company? A7:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit. Q8: What kind of certificates do you have? A8: We can provide CE,ROHS,IEC62133,MSDS,UN38.3 if your need. Q9: What is your lead time for the mass production? A9: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
