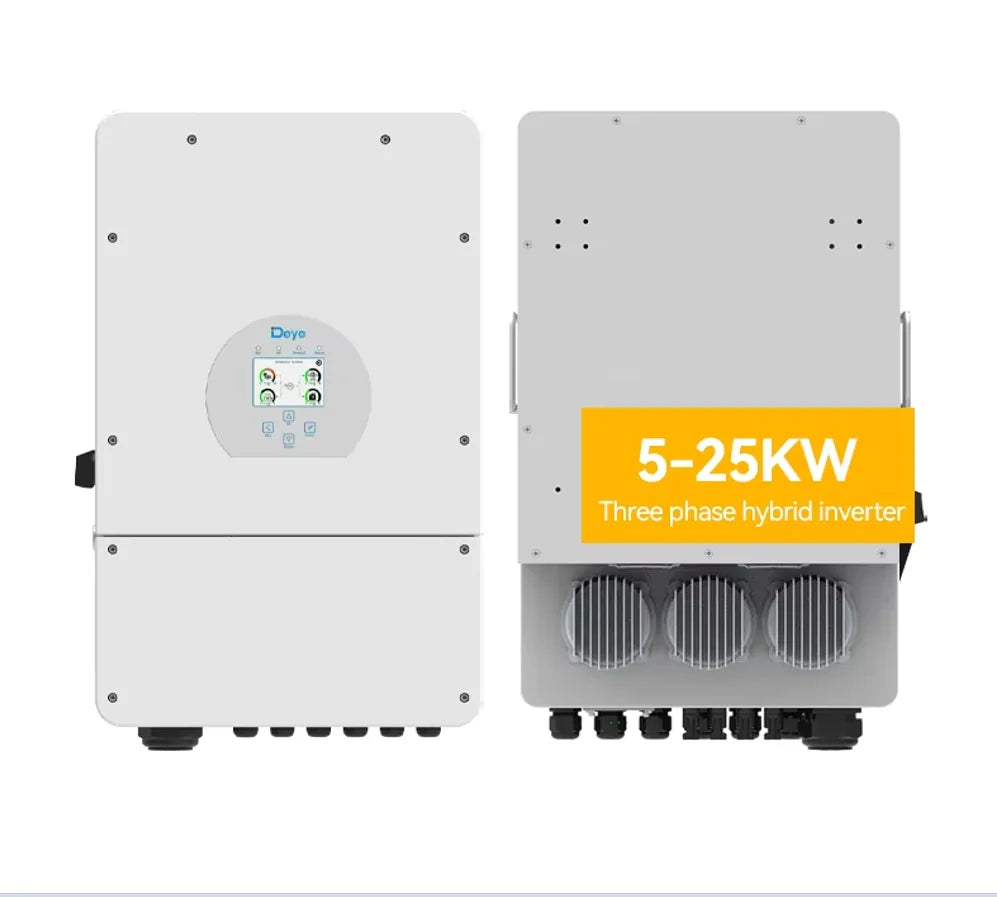

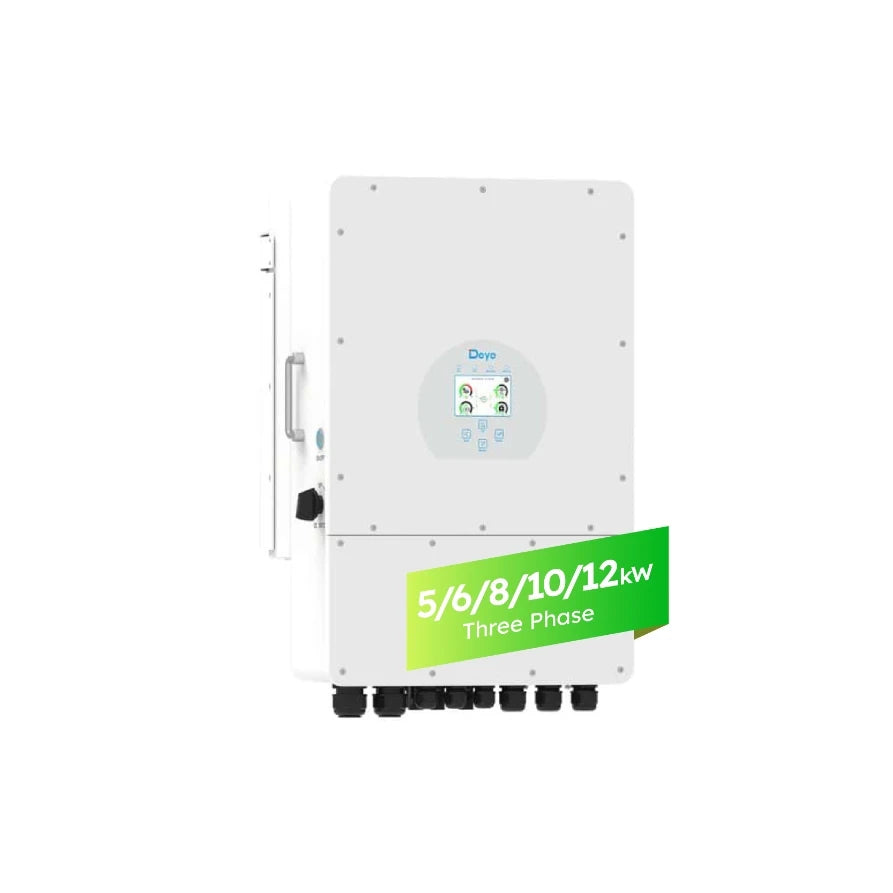

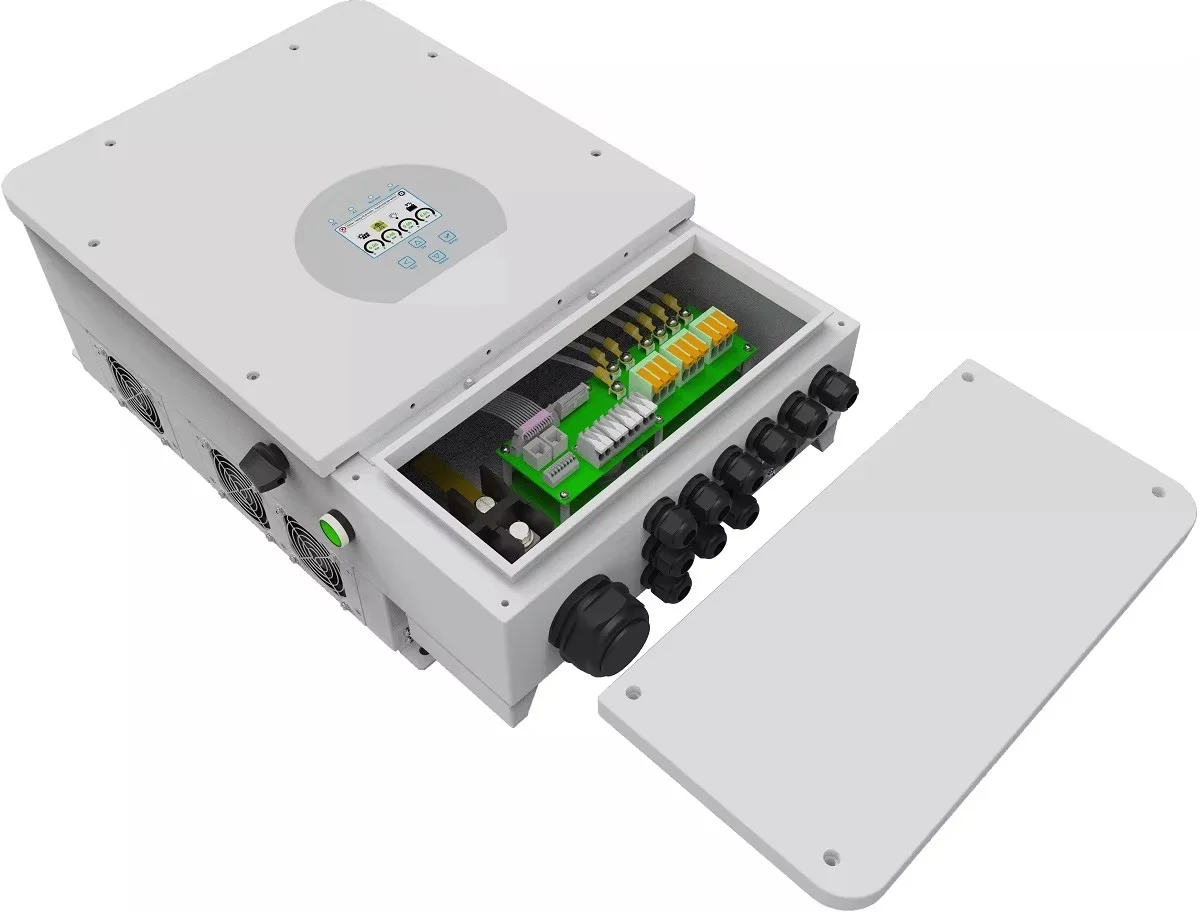

SUN-12K-SG04LP3-EU 3Phase High-Efficiency Hybrid Inverter 10kW 12kW Three Phase Low Voltage Inverter Compatibility Monitoring

Hybrid Solar System / 12 kW / String Inverter

₱126,376.97

1/6

SUN-12K-SG04LP3-EU 3Phase High-Efficiency Hybrid Inverter 10kW 12kW Three Phase Low Voltage Inverter Compatibility Monitoring

₱126,376.97

SPECIFICATIONS

Brand Name: Deye

Input Voltage: 48V

Inverter Efficiency: 99.9%

Model Number: Deye Three Phase Inverter

Output Current: 10-100A

Output Frequency: 50/60Hz

Output Type: Three Phase

Output Voltage: 100-240V / 380-415V

Place of Origin: Anhui, China

Size: 46*80*30

Type: DC/AC Inverters

Weight: 30kg

Product Paramenters

Model	SUN-8K -SG04LP3-EU	SUN-10K -SG04LP3-EU	SUN-12K -SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Li-lon
Battery Voltage Range (V)	40~60
Max. Charging Current (A)	190	210	240
Max. Discharging Current (A)	190	210	240
External Temperature Sensor	Yes
Charging Curve	3 Stages / Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	10400	13000	15600
Rated PV Input Voltage (V)	550 (160~800)
Start-up Voltage (V)	160
MPPT Voltage Range (V)	200-650
Full Load DC Voltage Range (V)	350-650
PV Input Current (A)	26+13
Max. PV ISC (A)	34+17
Number of MPPT / Strings per MPPT	2/2+1
AC Output Data
Rated AC Output and UPS Power (W)	8000	10000	12000
Max. AC Output Power (W)	8800	11000	13200
AC Output Rated Current (A)	12.1	15.2	18.2
Max. AC Current (A)	18.2	22.7	27.3
Max. Continuous AC Pass through (A)	45
Peak Power (off grid)	2 time of rated power, 10 S
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three Phase
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%

Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection
Output Over Voltage Protection	DC Type II/AC Type III
Certifications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃)	-45~60℃, >45℃ derating
Cooling	Smart cooling
Noise (dB)	<45 dB
Communication with BMS	RS485; CAN
Weight (kg)	33.6
Size (mm)	422W x 699.3H x279D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5~10 years

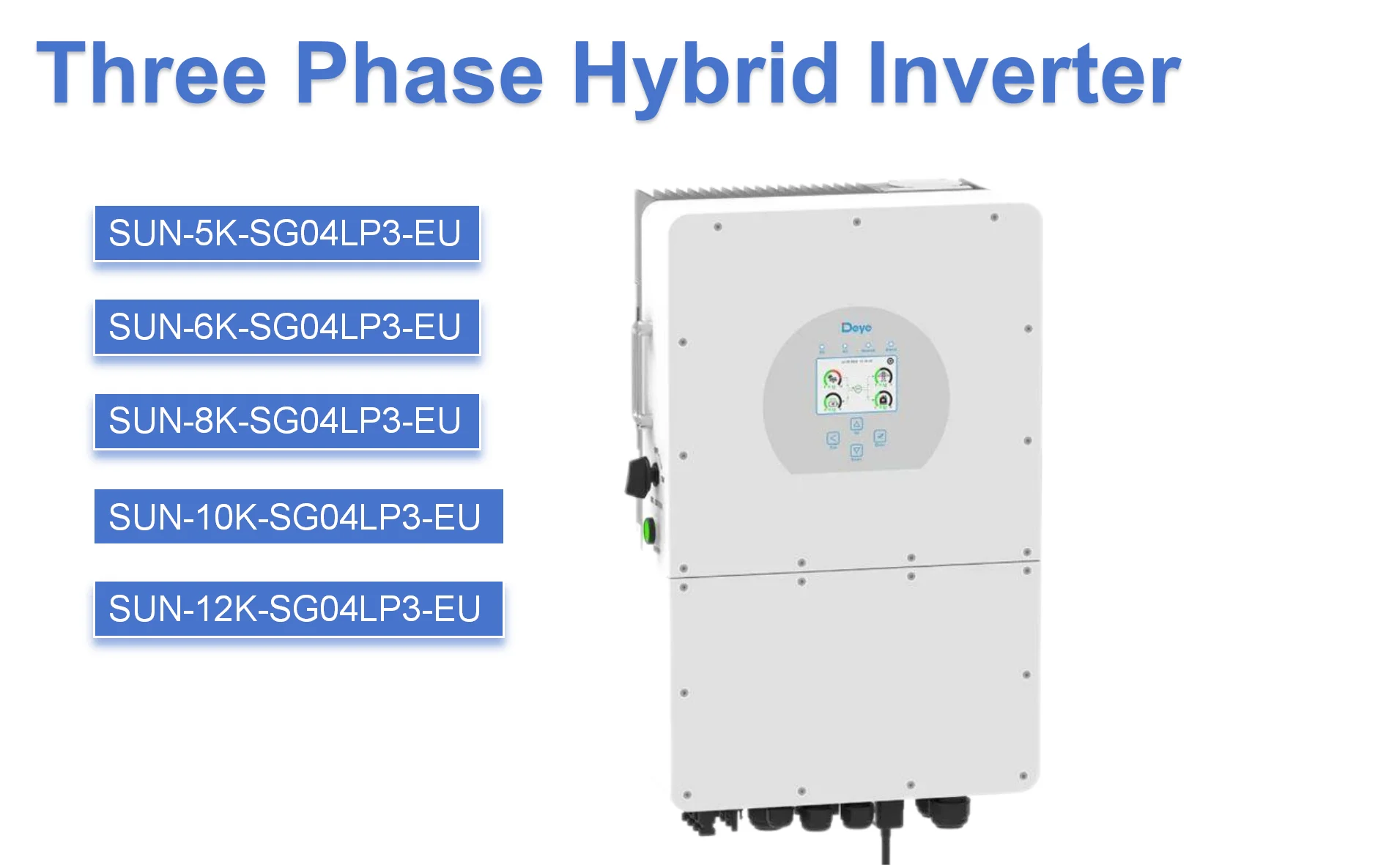

Deye Three-phase Hybrid Inverter

* 100% unbalanced output
* Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
* Max. charging/discharging current of 240A
* 6 time periods for battery charging /discharging

High-Efficiency Smart Inverter

* With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment.
* It supports three phaseunbalanced output, extending the application scenarios.

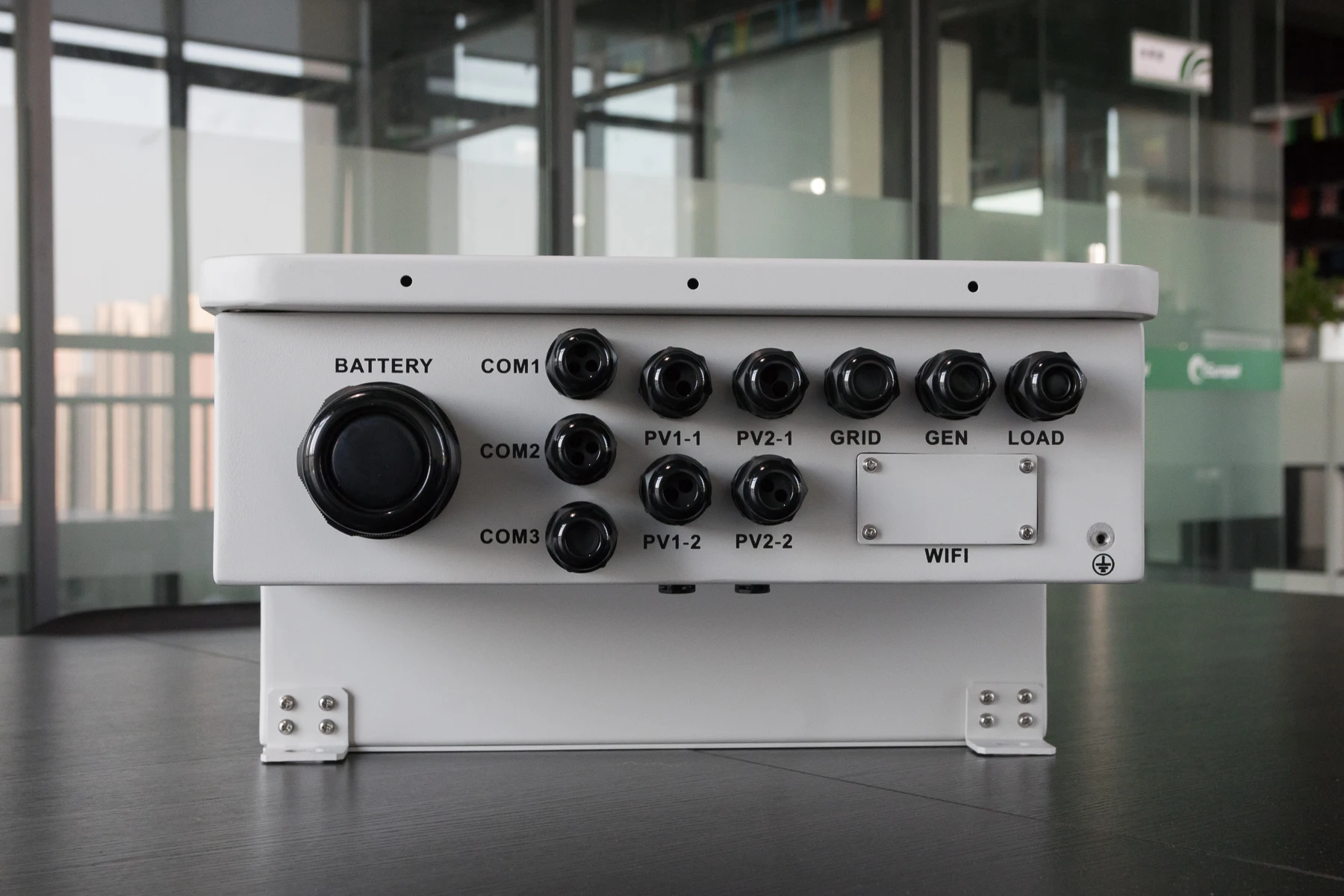

* Equipped with CAN port BMS and parallel, RS485 port for BMS, RS232 port for remotely control, DRM port, which makes the system smart and flexible.

Specifications

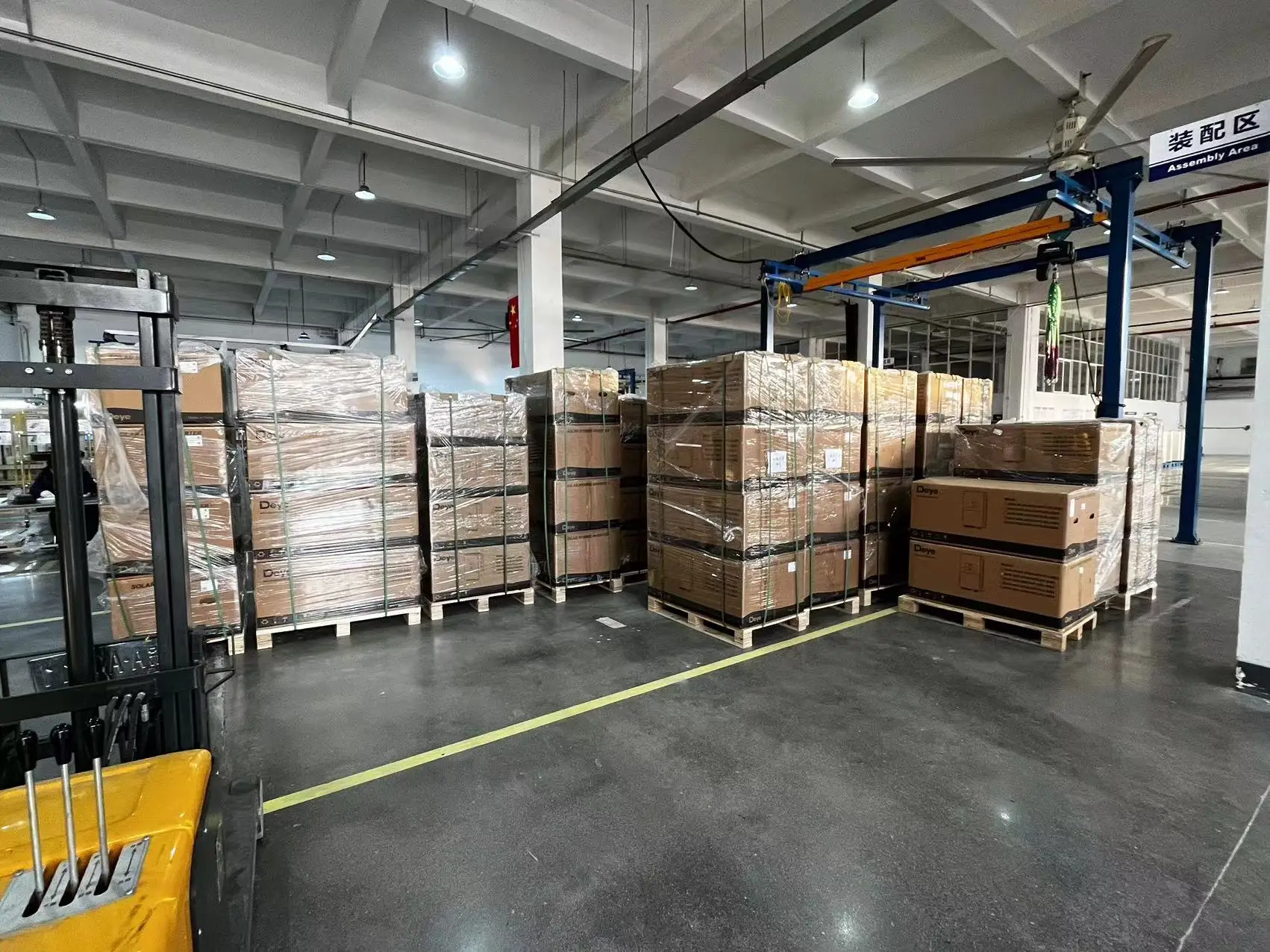

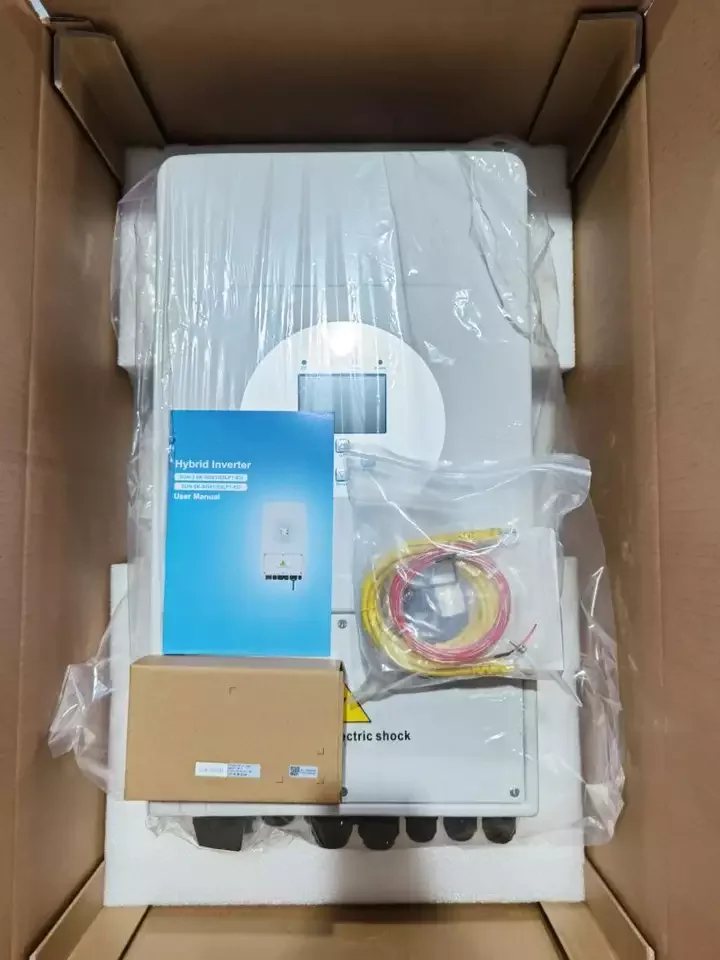

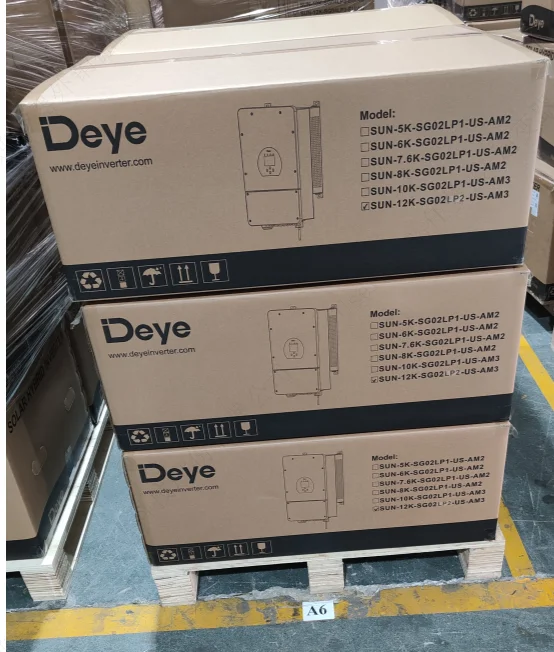

Package & Warehouse

Factory-Direct Inverters: Secure Packaging, Fast Delivery

Factory-direct inverters! We use high-density foam, reinforced cardboard, and waterproof films for multi-layer protection, ensuring your inverters—whether solar, hybrid, or grid-tie—arrive in perfect condition. Compliant with UL, CE, IEC standards, our products are ready for fast global shipping.

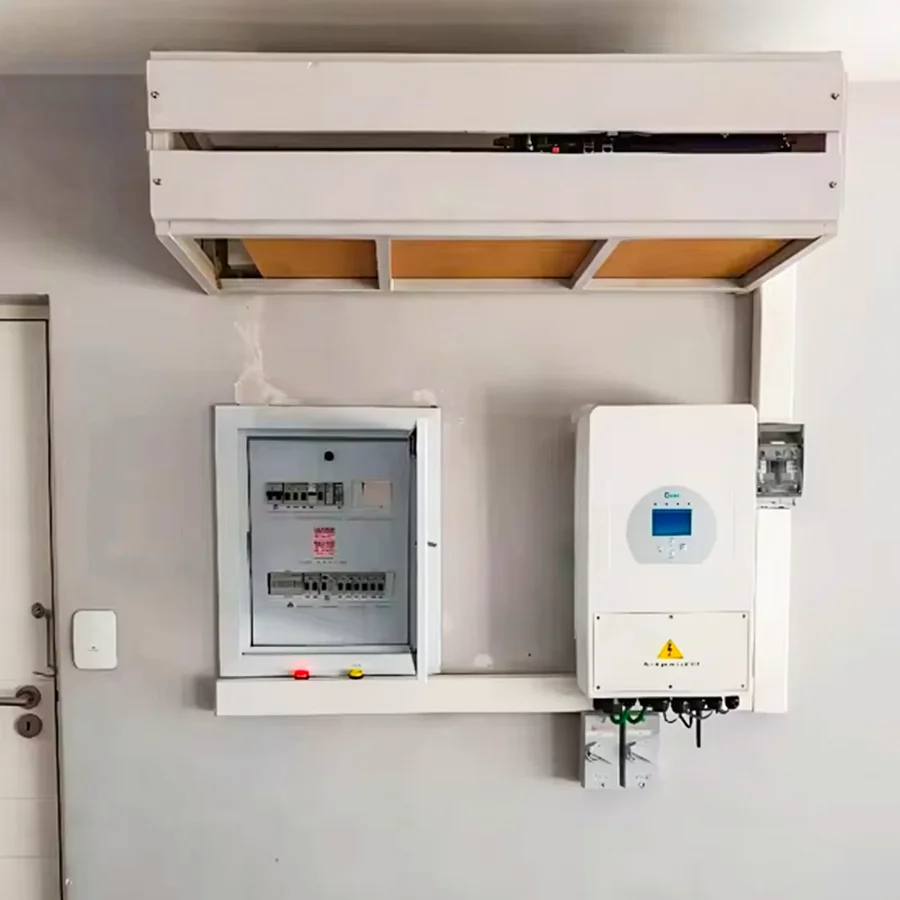

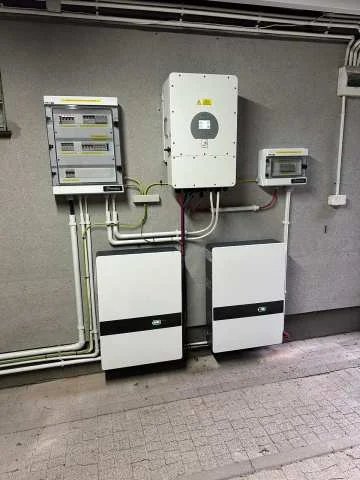

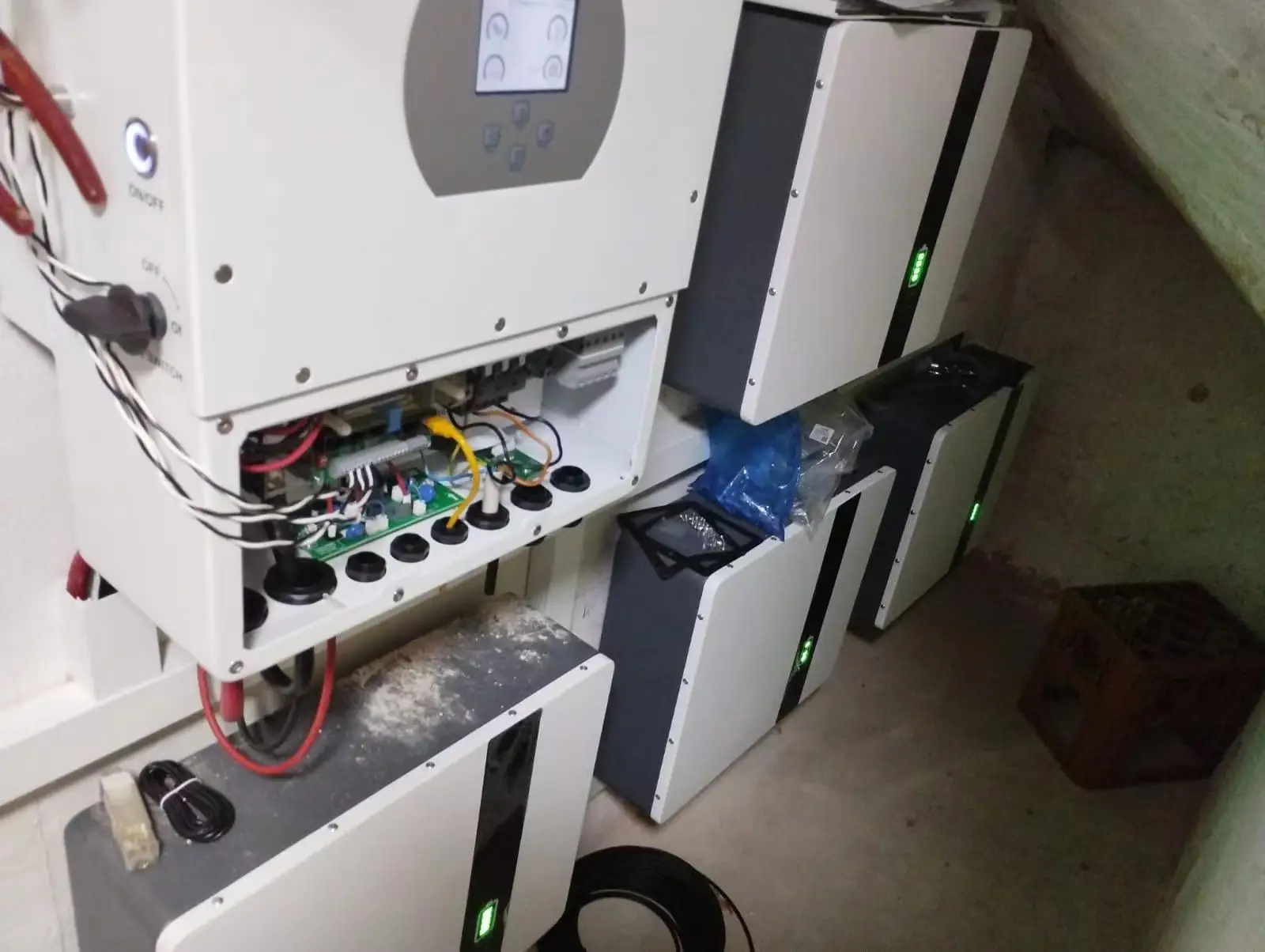

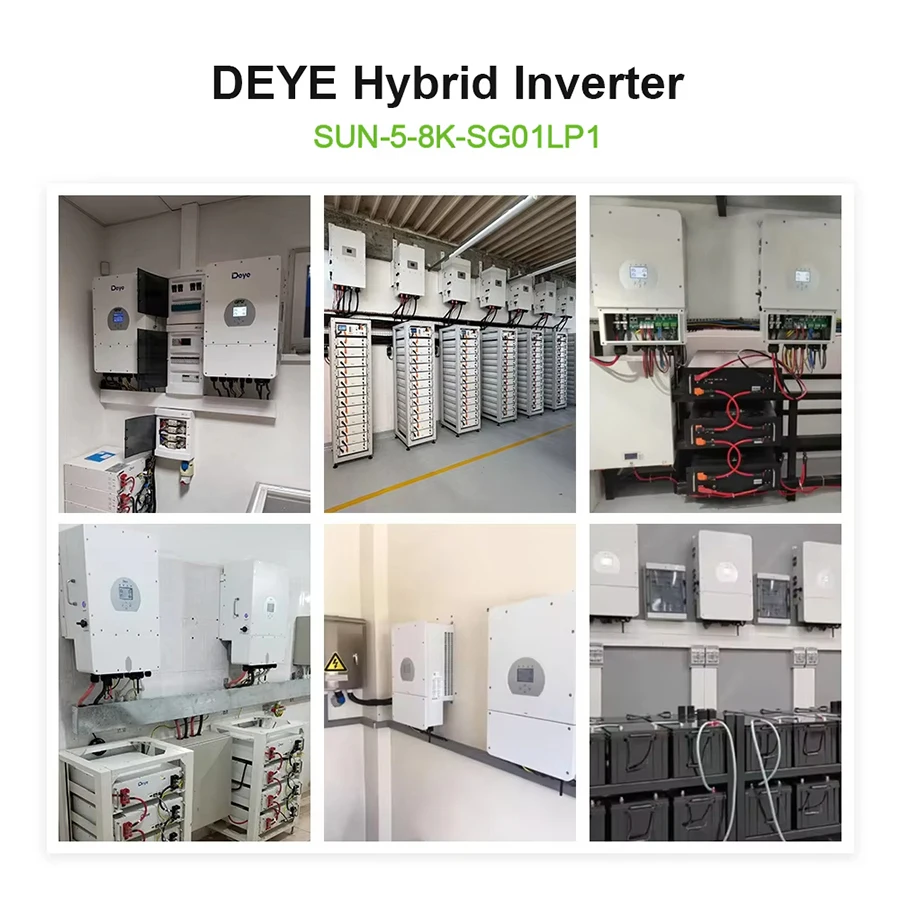

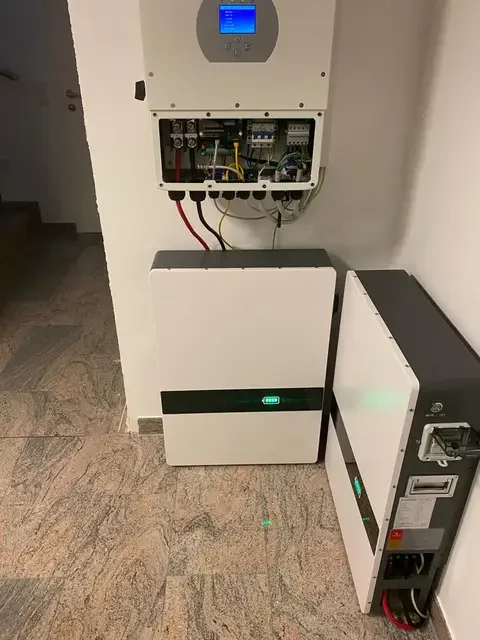

Customer Project

Recommend Products

Company Profile

Company Introduction

Enerlution Power Technology Co., Ltd was established in May 2017, a China’s leading lithium BESS manufacturer, specialize in R&D and production of Residential, Commercial and Industrial energy storage systems(ESS), Energy Management System(EMS), Battery Management System(BMS). Committed to bring world-leading battery systems for every kind of customers of the whole world.
Enerlution is focused on Residential ESS market, has lots of successful footprints in Germany, France, Czech, Poland, UK, Netherlands, Portugal, Belgium, Hungary, South Africa etc. markets. Annual production capacity is 1GWh, big capable for providing ODM and OEM services. Enerlution, a guardian of electric power for your home. Certifications wall: ISO9001, UN38.3, MSDS, IEC62619, CE , CB , UL1973，UKCA , PSE, CEC,CEI, VDE etc.
At present, Our factory covers an area of 8000 square meters in which contains production workshop, package workshop and laboratories. The monthly production capacity reaches6000~10000 sets batteries. Combined the lithium ion phosphate A+ Grade cell with self-developed EMS, BMS and other core components, our products have features on long life, high safety and high reliability.
Enerlution Lithium Lifepo4 Solar Home Battery Solar Energy Systems, which can match most global brand inverters.

Enerlution Power Technology Co., Ltd

THE REAL SOURCE MANUFACTURER OF LITHIUM BATTERY

Enerlution Lithium Lifepo4 Solar Home Battery Solar Energy Systems

which can match most global brand inverters. We supply to many onlin

and offline brands who do business on Alibaba.

Welcome ODM and OEM orders !

We provide you with 'Enough capacity, Short Lead Time, Full set of certificates !’

Please contact us if you have any questions!

What is recognized is our cost-effectiveness
Sales price - (purchase price+after-sales cost)=profit
Customer recognition+excellent quality=a continuous stream of customers

Since its launch, this product has received numerous distributors visiting the factory and

signing orders, believing that reliable quality is more cost-effective than low prices

Exhibition history

In the past five years, we have participated in various exhibitions of all sizes and have gained recognition from many customers

Battery Cell
1： What battery cell you are using?
We are using Gotion brand new prismatic cell. If necessary, please contact us for battery cell specifications.
2： How many cycles can achieve for your battery cells?
After multiple screening procedures of CATL / BYD / GOTION brand new A+ cells can achieve 6000 cycles @ 25℃, 0.5C conditions.

Low Voltage Battery
1：Which hybrid inverter your battery BMS has been communicated?
Our BMS has built protocol communication with most of inverter brands in market. You can please find the brand information above picture.

High Voltage Battery
1：Which hybrid inverter your high voltage battery BMS has been communicated?
Our high voltage battery BMS has built protocol communication with Deye , Afor. Growatt, Sofarsolar, Goodwe, INVT, Megarevo etc brand three phase hybrid inverters, You can please find the brand information above picture or please contact us for new list.
2： Why we use high voltage battery?
High voltage battery always works with three phase hybrid inverters, which need a higher battery output. So we need high voltage battery solution to achieve a bigger kW power.
3： How much total voltage I need?
This depends on inverter battery side specifications. For three hybrid inverter, it is always around 150V to 600V. We just need to consider this HV battery system voltage is in this range.

Warranty
1：What's your warranty years?
The warranty period is ten years if the conditions are met.The product shall be free from material or workmanship defects for a period of ten years from the start date of the warranty.The product will be subject to usage restrictions based on the ambient temperature listed in the table below, and will operate in a normal manner according to the guidelines/specifications/warning labels provided by our company. After different years, there will still be 80% remaining usable power.
2：If battery has issues, how you proceed for warranty?
Our engineer will remotely check the issues by software, this need local installer assistance. If it is software issue, the
battery can be repaired by firmware update. If it is battery hardware issue, We provide replacement parts for customers to replace.

Service
1：Can you offer OEM or ODM?
Yes, we are LFP battery specialized solution provider mainly in energy storage field. You can please inform us your applications, inverter brand and model name. We will select or customize LFP battery system for you.

Delivery date
1: How long can I ship the goods after I make the payment?
If it is not a customized version, we usually prepare some stock. We have 3 warehouses in Europe for hot selling items that can be picked up on the same day.
If it is an OEM, we need to ship from China and can ship it of 7-15 days; If it is ODM, it also needs to be designed and
customized from China, and then shipped, with a design cycle of 15-30 days.

After-sale service
1.What should I do if the product I received is damaged?
If the product is damaged upon receipt, we will provide you with a new item as soon as possible, without delaying your use or sale.
2.What assistance can I provide if I encounter difficulties during installation?
Our sales team provides detailed installation videos and instructions, as well as remote installation guidance throughout the entire process. We regularly organize installation guidance meetings in Europe and other places, provide face-to-face technical training, and provide free food and accommodation throughout the entire process.
3.What if I encounter quality issues with the product?
No matter what caused the problem and it is no usable, we will replace the battery with a new one from our warehouse in Europe as soon as possible. By the way, please rest assured that our product has not received any quality complaints for many years, and the probability of quality problems is currently very low.
4.What kind of sales assistance can I receive after purchasing?
If you are for sales purposes, we will provide a complete set of formal and valid certificates and authorize you to use them, provide high-definition images and promotional materials of the product, and provide free remote training for your sales and engineers.
