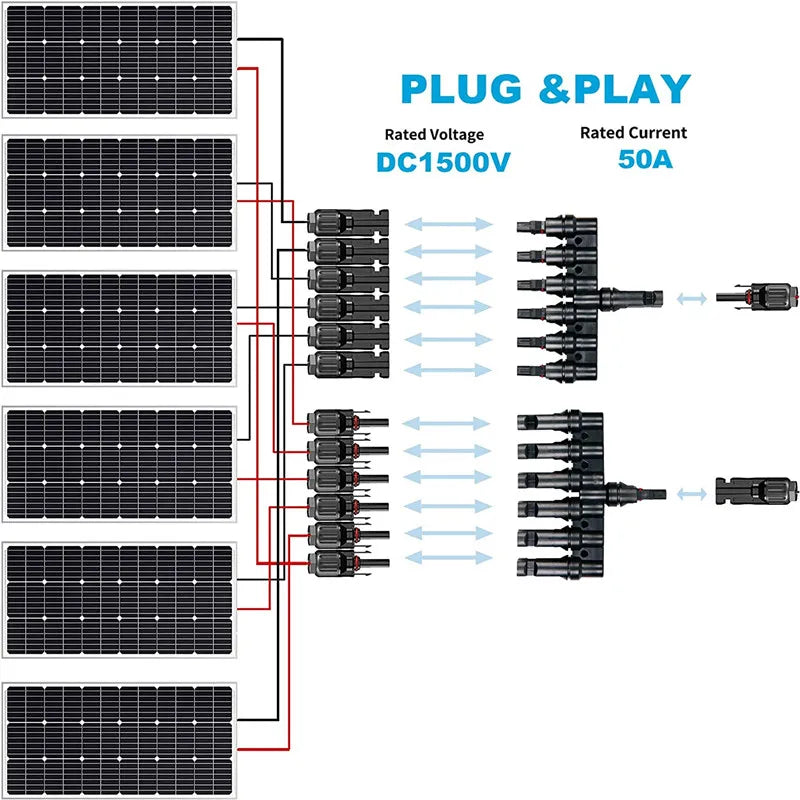

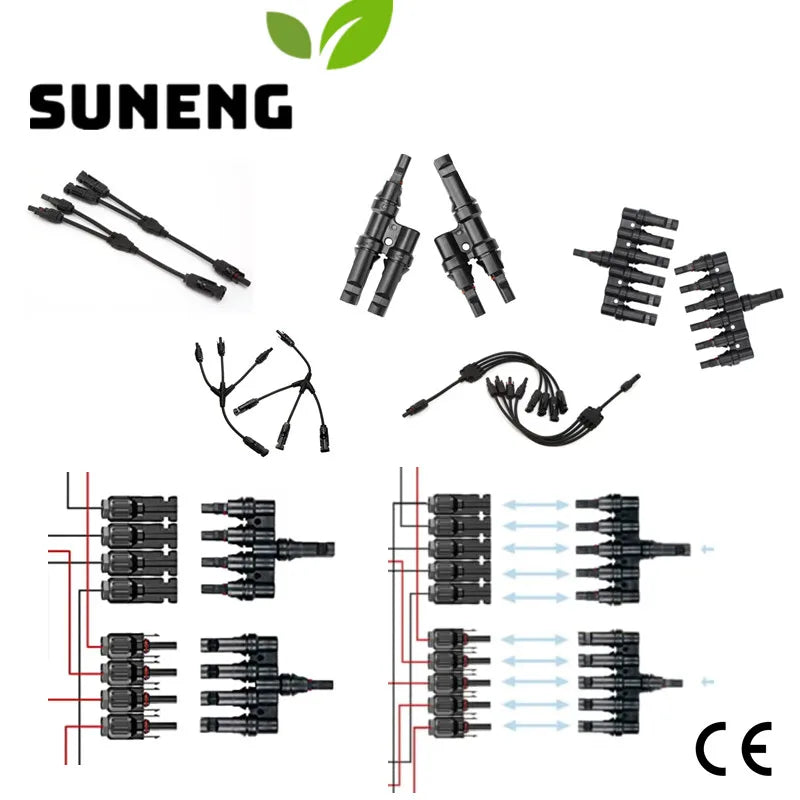

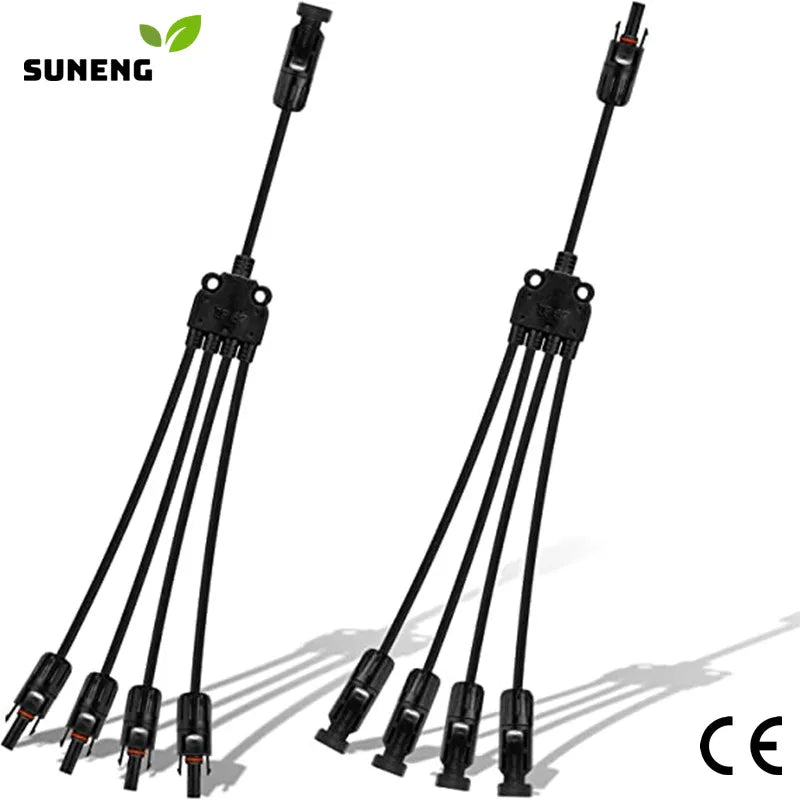

T Branch Solar PV Connector 2T 3T 4T 5T 6T Branch parallel connection 30A 1000V Electrical PV Panel Cable Connector

Features

• * Waterproof grade IP68: adopts high-quality waterproof ring, with waterproof and dustproof effect

• * Thicker copper core, brass tinned inner core: more anti-corrosion, anti-oxidation, and increase service life

• * The shell is made of PPO high-strength material: high heat resistance, low flammable point, wear-resistant and durable

• * Insulation parts: The hole contacting head of the product is equipped with a guiding insulator, which plays a role of guiding and preventing electric shock

• *Standard size: The connection is connected by pressing, and the male and female heads are equipped with self-locking mechanism, which can be opened and closed freely.

• * Connection: 2.5mm2/4mm2/6mm2 ( 14AWG/ 12AWG/ 10AWG)

Specification:

Rated voltage: 1000V DC

Rated current: 30A

Waterproof degree: IP67

Material: PPO

Contact material: Copper sliver plated

Operating temperature: -40°C~+110°C

Flame class: UL94-V0

Suitable cable: 1.31mm²/4mm²/6mm²(AWG16/12/10)

Locking system: Snap in

Connecting system: crimping connection

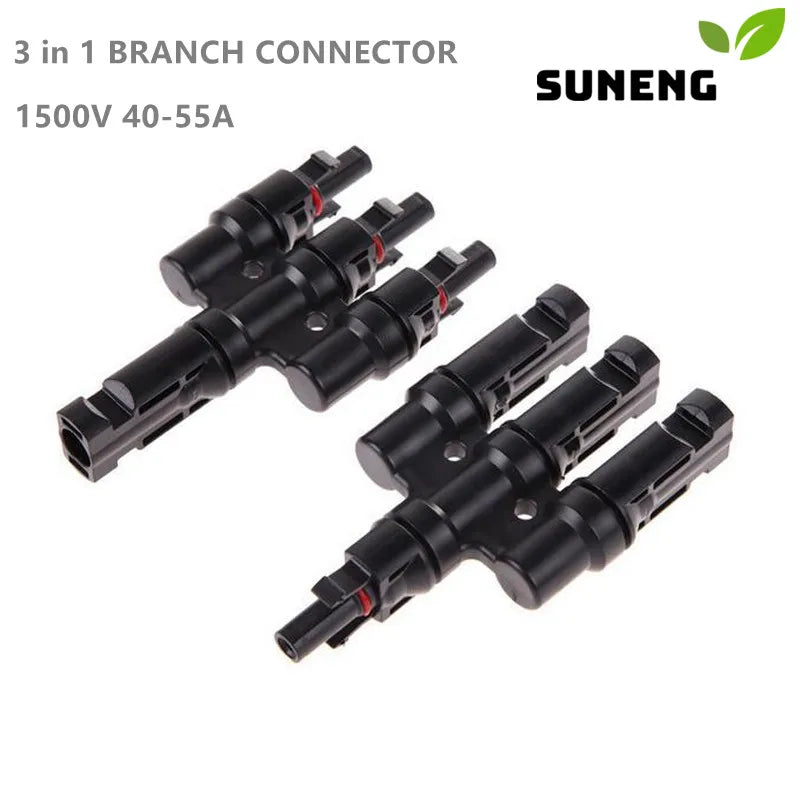

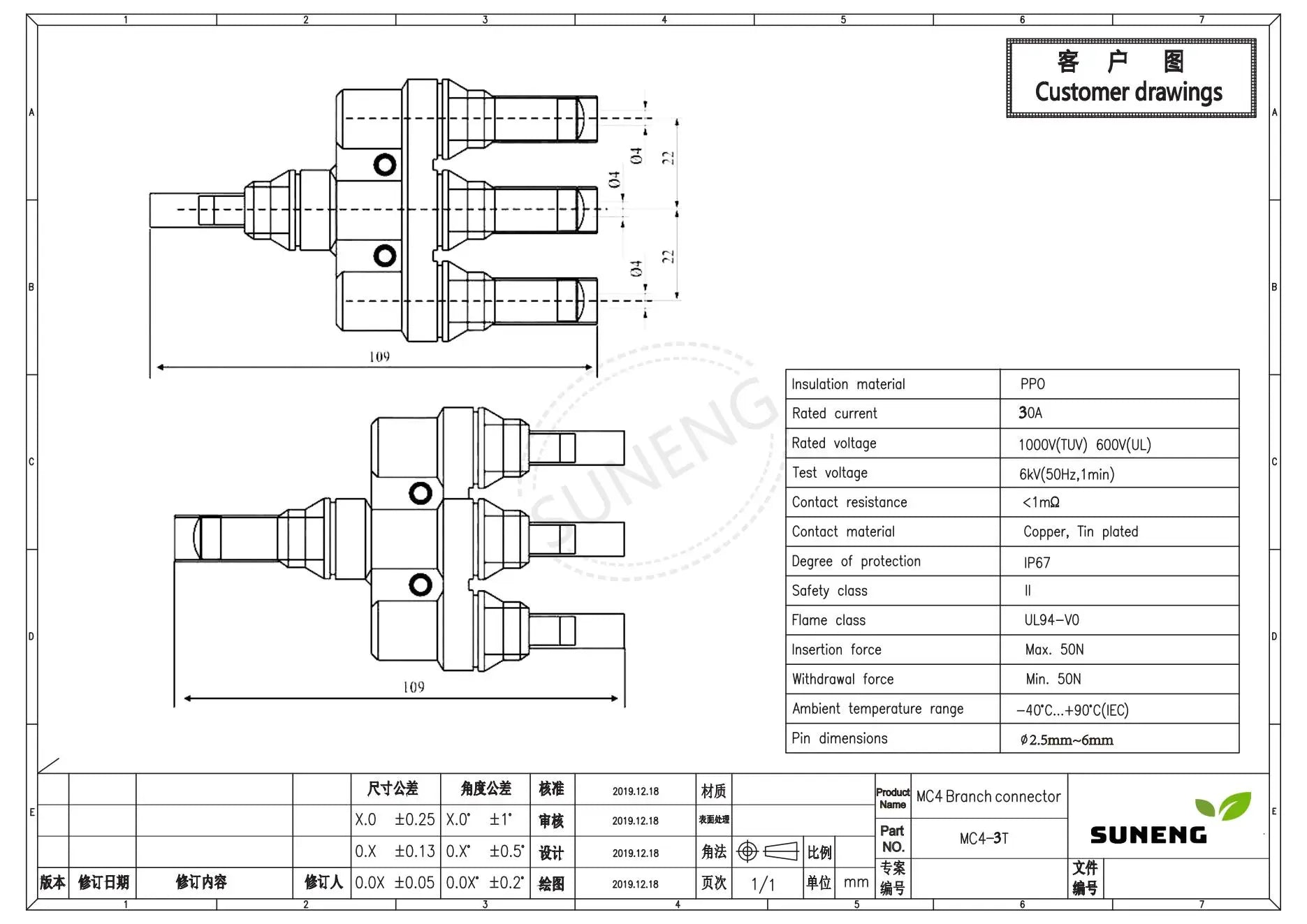

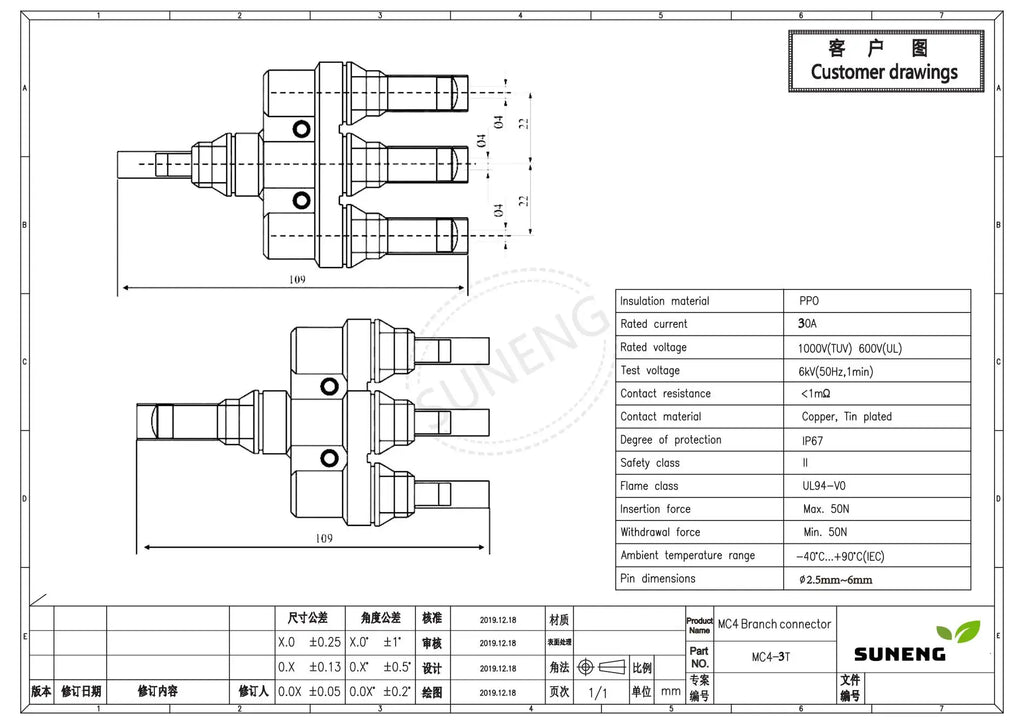

3 in 1 branch Connector
