SPECIFICATIONS

Alarm Type: App

Alarm sound: >120dB

App Support: Tuya

Application: Outdoor

Brand Name: SICUREZZA

Detecting angle: 9m To 12m / 110 degree

Detection Range: Up To 10 m

Feature: PIR Motion Sensor

Item: Tuya Wifi Outdoor PIR Motion Sensor Alarm With Sound And Light

Material: Plastic

Model Number: HS-WS20

Network: Wi-Fi

Pet immune: 25kg

Place of Origin: Guangdong, China

Power supply: Solar Charging/USB 5V power supply

Sensor Type: Motion Sensor

Size: 135*76*71mm

WIFI standard: IEEE 802 11 b 2.4GHz

Waterproof standard: IP67

Working current: Standby≤50uA ;Alarm≤100mA

Product Paramenters

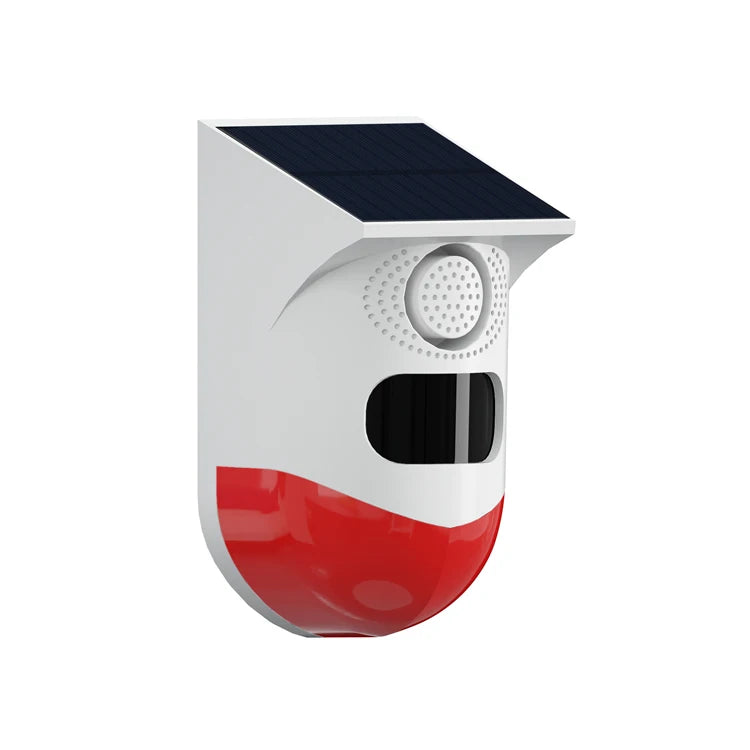

Solar Powered Tuya Wifi Outdoor PIR Motion Sensor Alarm With Sound And Light

This is a tuya pir sensor. When intruder enters the detecting area, the product will send out 120 decibel sound and light alarm, and send wireless signal to the phone.Detectiion distance 9-12 meters,flashing prompts in dangerous areas, day and night alarm modes; Easy to install, no need wiring, widely used for outdoor anti-theft alarm, alarm prompts in dangerous areas (such as construction sites, ponds, high-voltage dangers, etc);

- Remote mobile phone APP control;
- 24-hour alert mode, with sound and light;
- 24-hour silent mode, with light and no sound;
- Intelligent judgment not alarm during the day and enters an alert state at night
- Disturbance mode, silent alarm at night;
- Waterproof, easy to install, no need for debugging and wiring;
- Detection angle 110 degrees;
- Detection distance 9-12 meters;
- Pet immunity 25KG
- The patented Fresnel lens is used to overcome the false alarm effectively caused by sunlight interference;

Specification for tuya pir sensor
Mani Power Supply	Solar charging/USB charging DC 5V power supply
Alarm current	≤100mA
Standb current	≤20uA
Detecting angle	9-12m wide angle 110 degree
Pet immune	25kg
Installation height	1.8~2.4m
Alarm sound	120 decibels
Transmission mode	WIFI transmission
WIFI Standard	IEEE 802 11 b 2.4GHz
Fireproof protection	ABS material
Mounting	Wall Mounted
Application	Outdoor
Waterproof standard	IP67
Operation environment:	-10℃-50℃
Size	135mm*76mm*71mm

Packing & Delivery

Packing Details for pir passive infrared detector
PACKING	Neutral color box or customer's packing
PCS/CARTON	50PCS
GW/CARTON	12.0KG
CARTON SIZE	42*31*41CM

Products Description

Outdoor Wifi PIR Motion Sensor

Pet immune 20kg / 9-12 meters detection renge / Tuya Wifi APP/ With Remote Control / Solar Powered/USB Charging DC 5V Power Supply

Solar Powered

Solar powered, USB charging DC 5V power supply,built-in rechargeable lithium battery

Outdoor Waterproof IP65

Not afraid of water and sunlight, suitable for outdoor use

Tuya APP

Tuya APP mobile phone remote control

Sound-light Alarm, Strong Guard

With large-volume horn, it emits a high-decibel alarm

Long-range Detection

SDetection range 12m 110 degree

3 Alarm Modes

Mode 1: Full day flash and sound
Mode 2 : Night flash and sound

Mode 3 : Night flash only

Remote control,4 remote control settings

Full day flash and sound

Off alarm
Night flash and sound

Night flash only

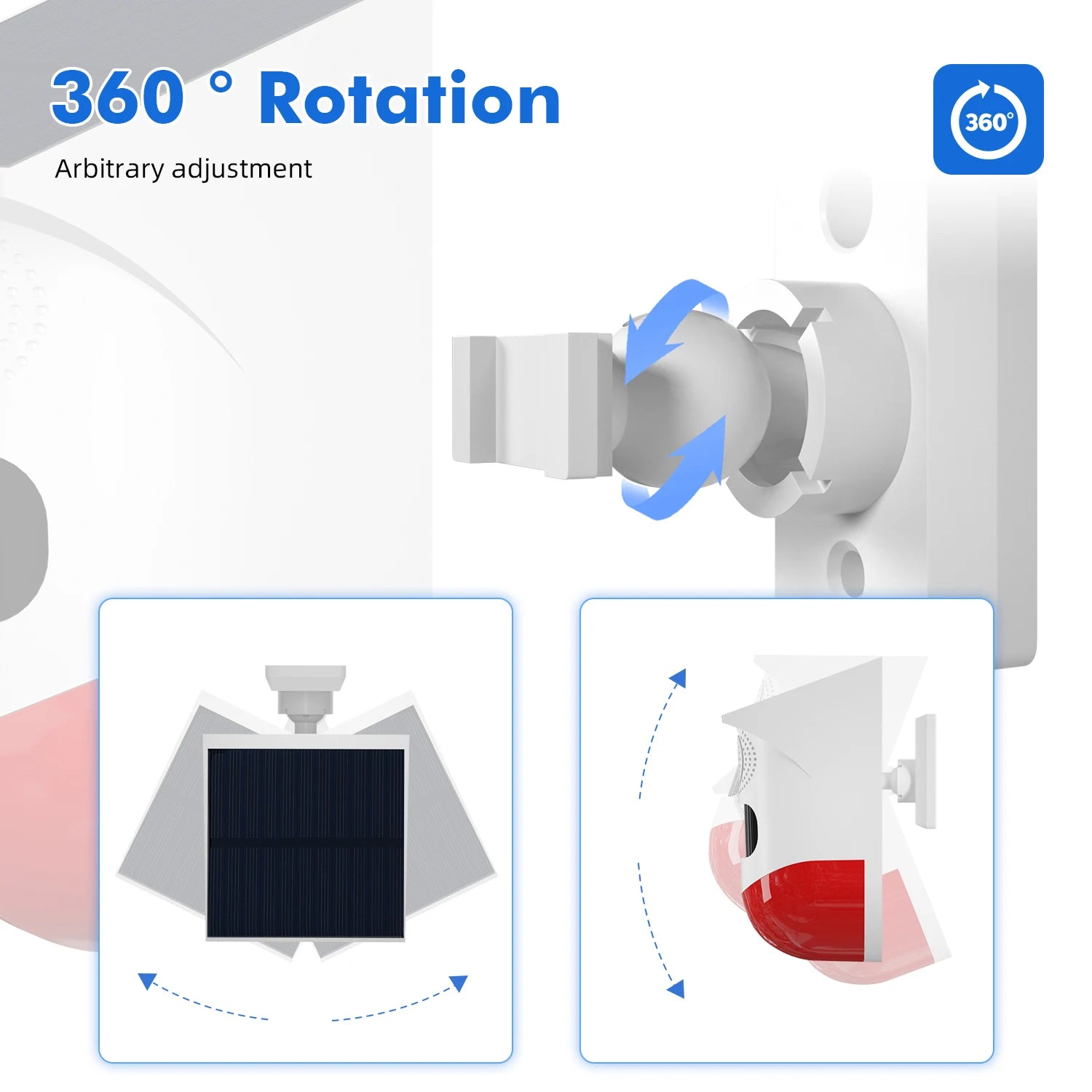

360 degree rotation arbitrary adjustment

Easily adjust up, down, left, right
