Specifications

Brand Name: SUMRET

Certification: CE

Model Number: DZ47

Origin: Mainland China

Type: Mini,Circuit breaker

● Rated voltage: DC 12V, 24V, 36V, 48V, 72V, 96V,100V 120V ,220Vetc
● Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A,80A,100A,125A

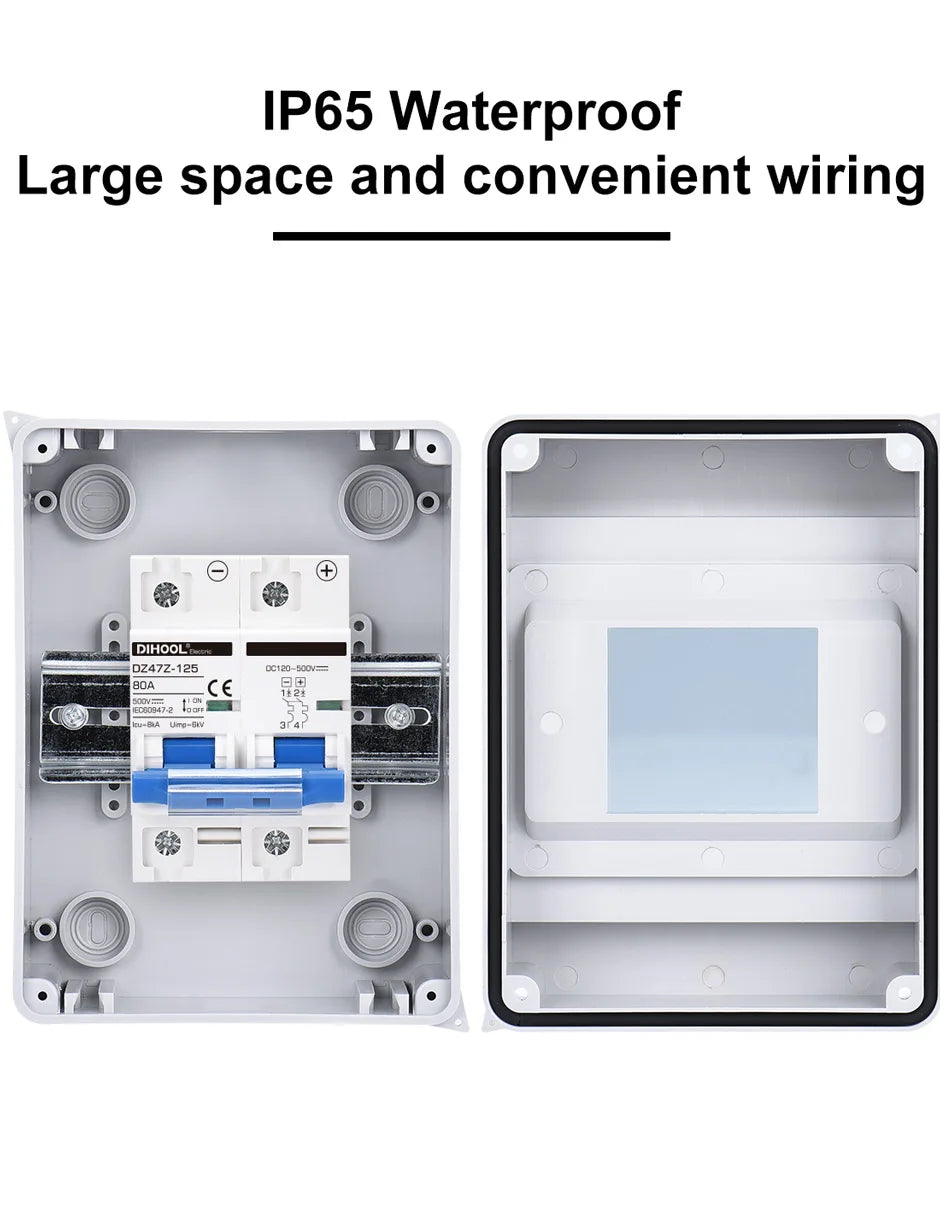

● Enclosure:The shell is made of ABS plastic, the cover is made of transparent PC, the sealing ring is made of silicon rubber, and the guide rail is made of tin plate.

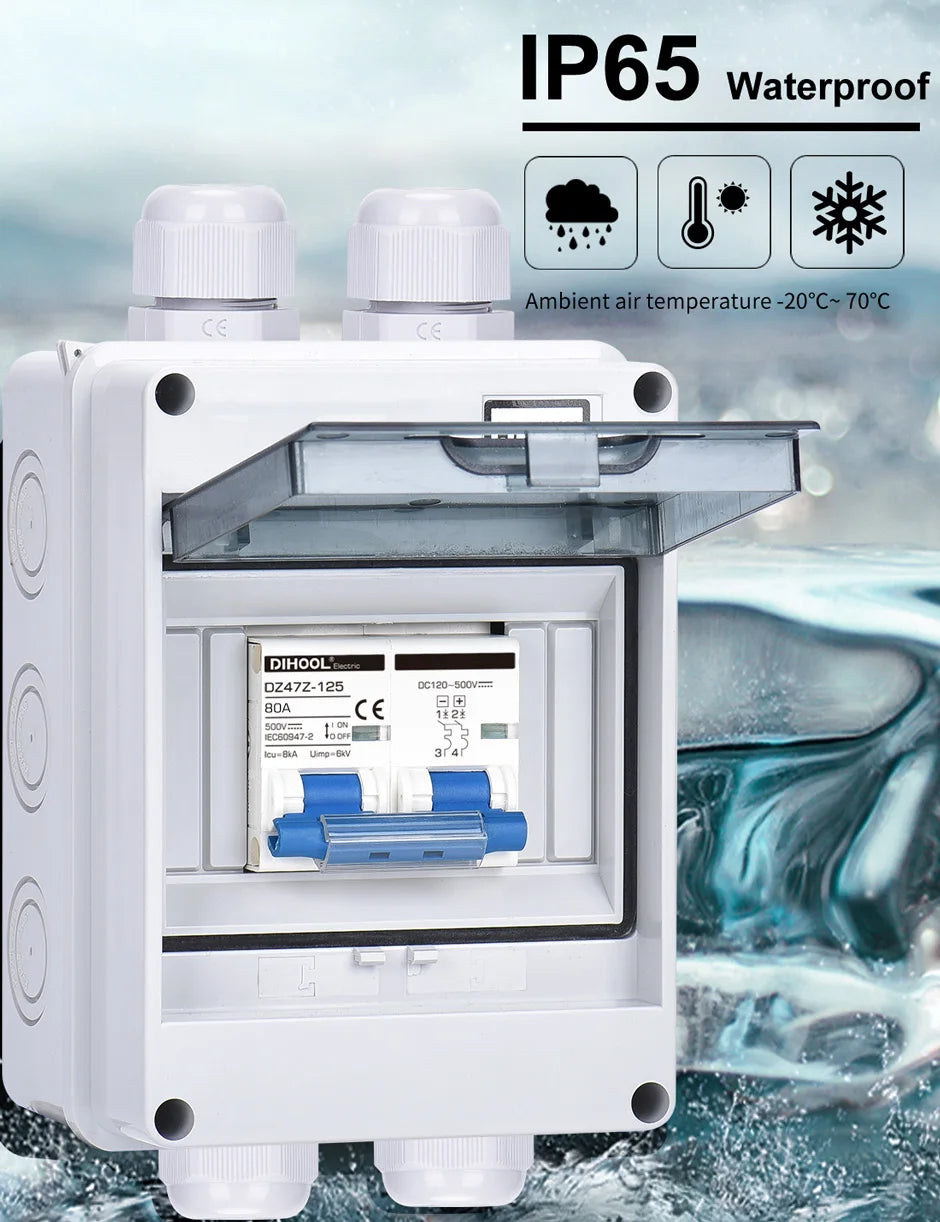

●Waterproof rating: IP65 Enclosure;

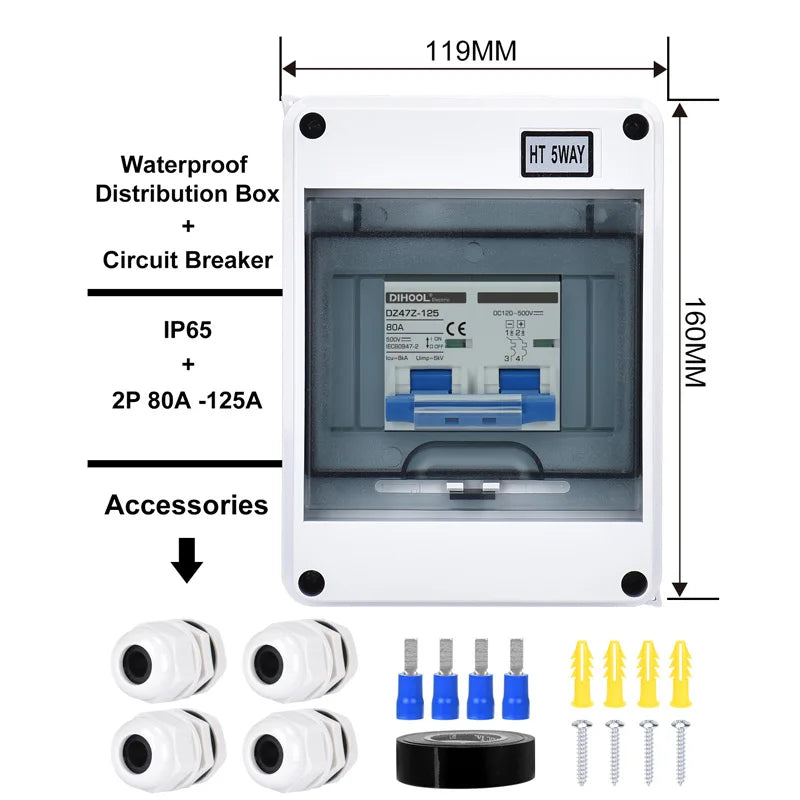

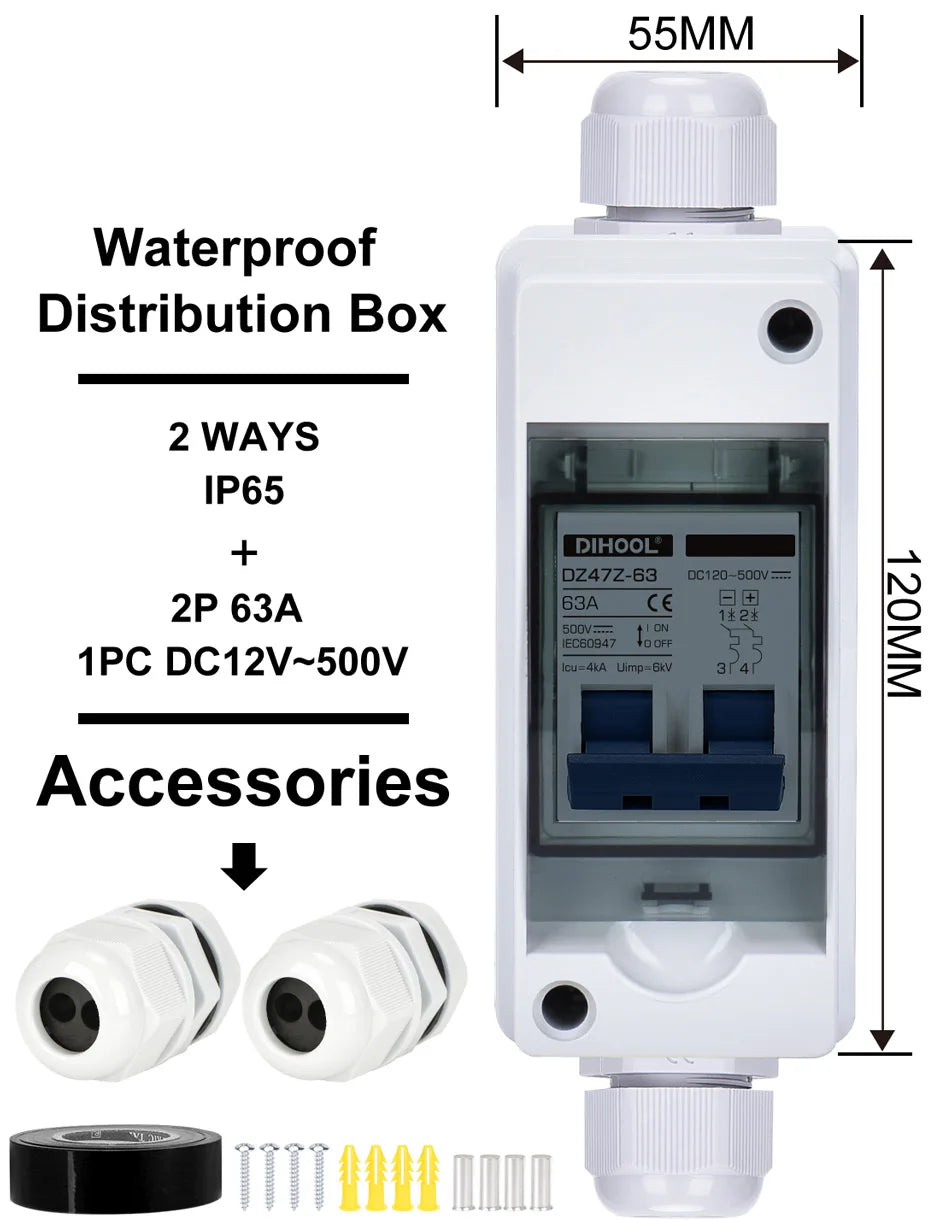

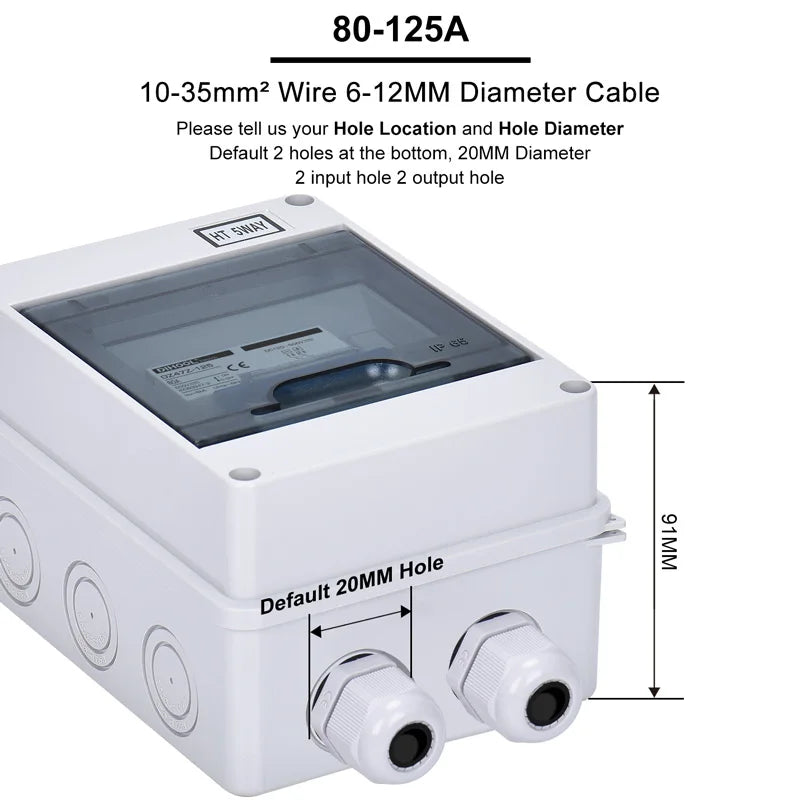

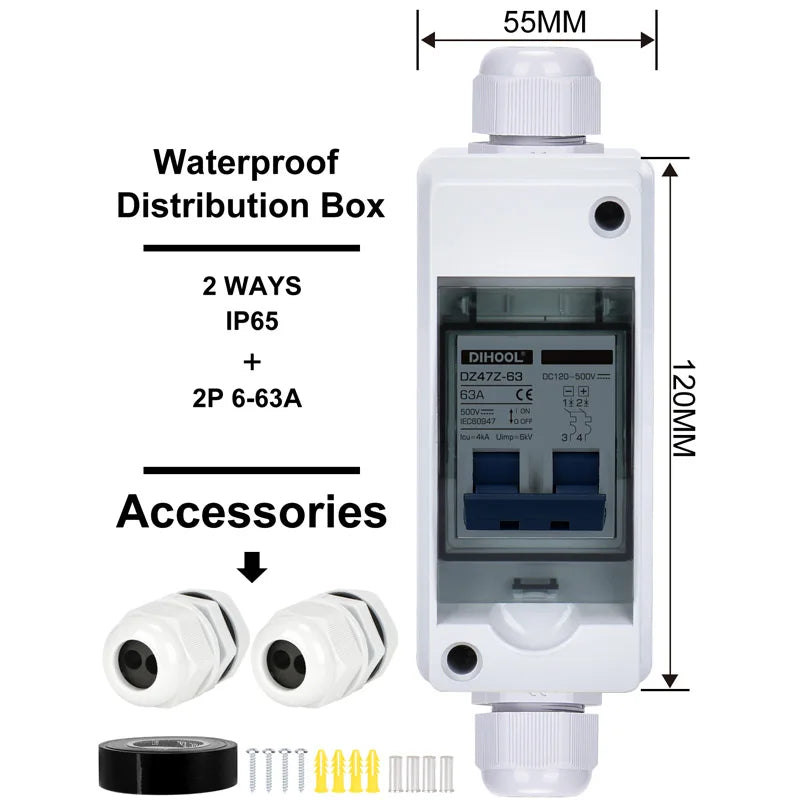

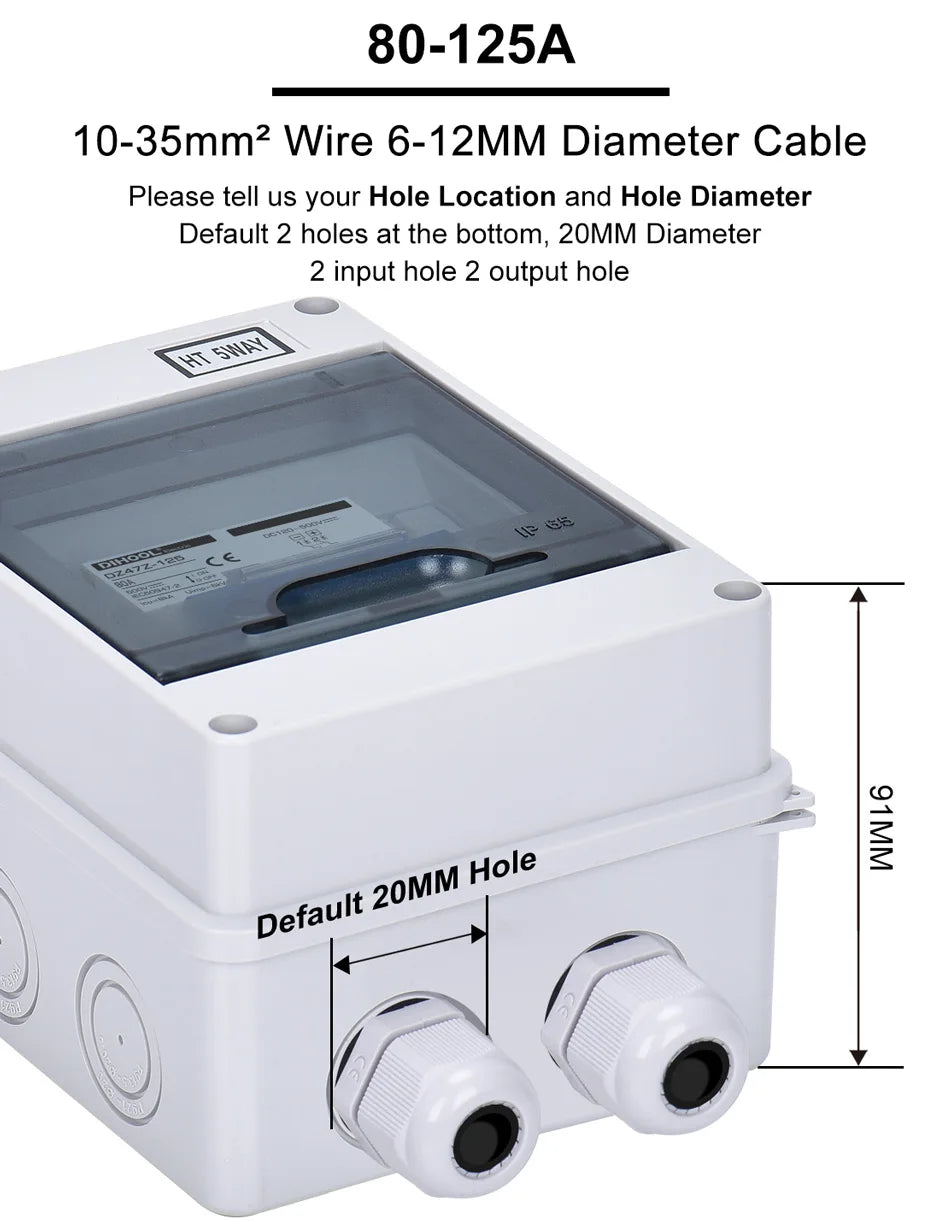

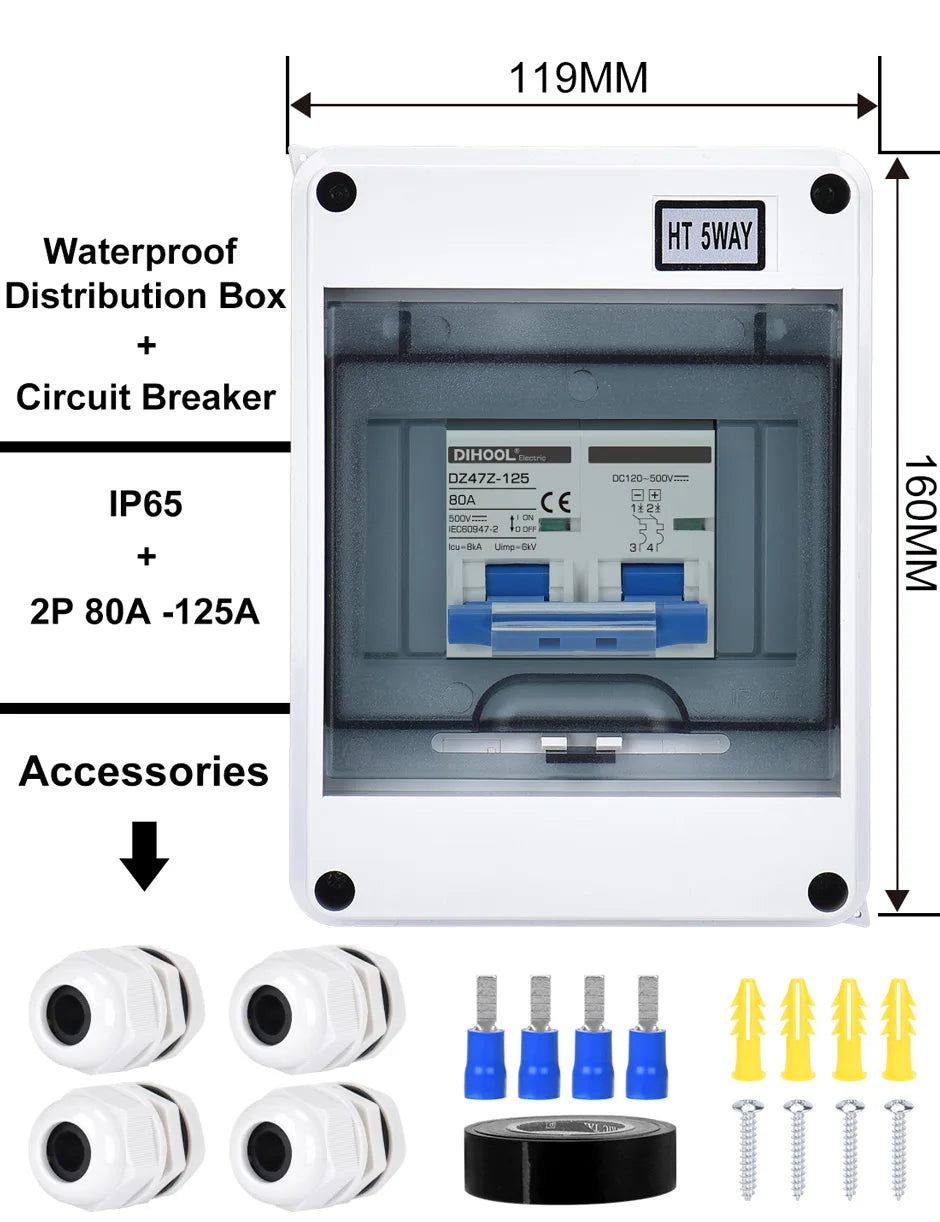

●Size: 6-63A:120x55x90mm;120 x 160 x 92mm;
● Breaking capacity: 4.5KA
● Trip characteristics: B (3-5)In
● Polar number: 2P (1 Poles)
● Current limit level: 3
● Quick closing
● Electrical life: 10,000 times
● Mechanical life: 20,000 times
● Operating ambient temperature:-30 °C to +70 °C
● Conform to standard: GB10963/ IEC60898
● Warraty: 18th Month

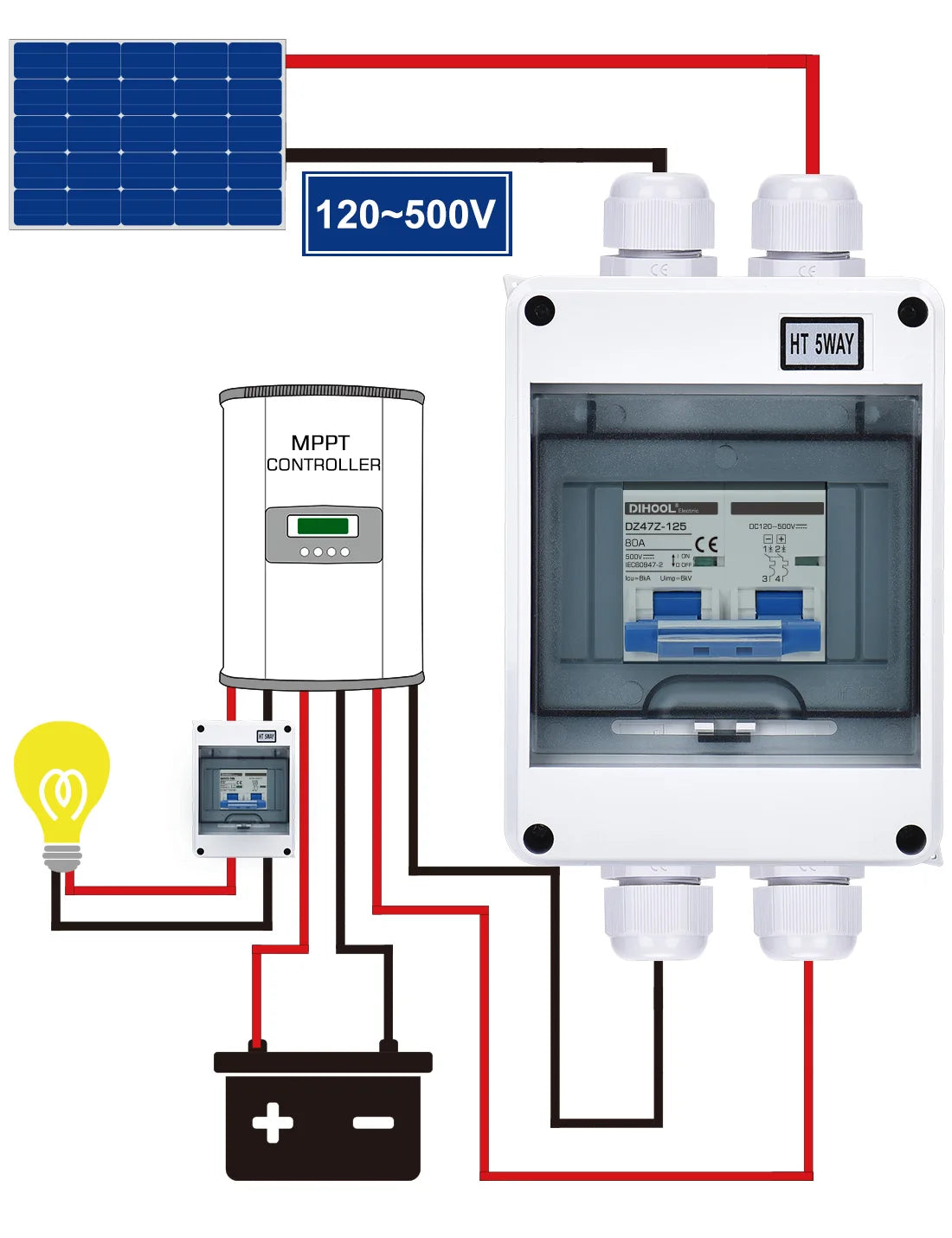

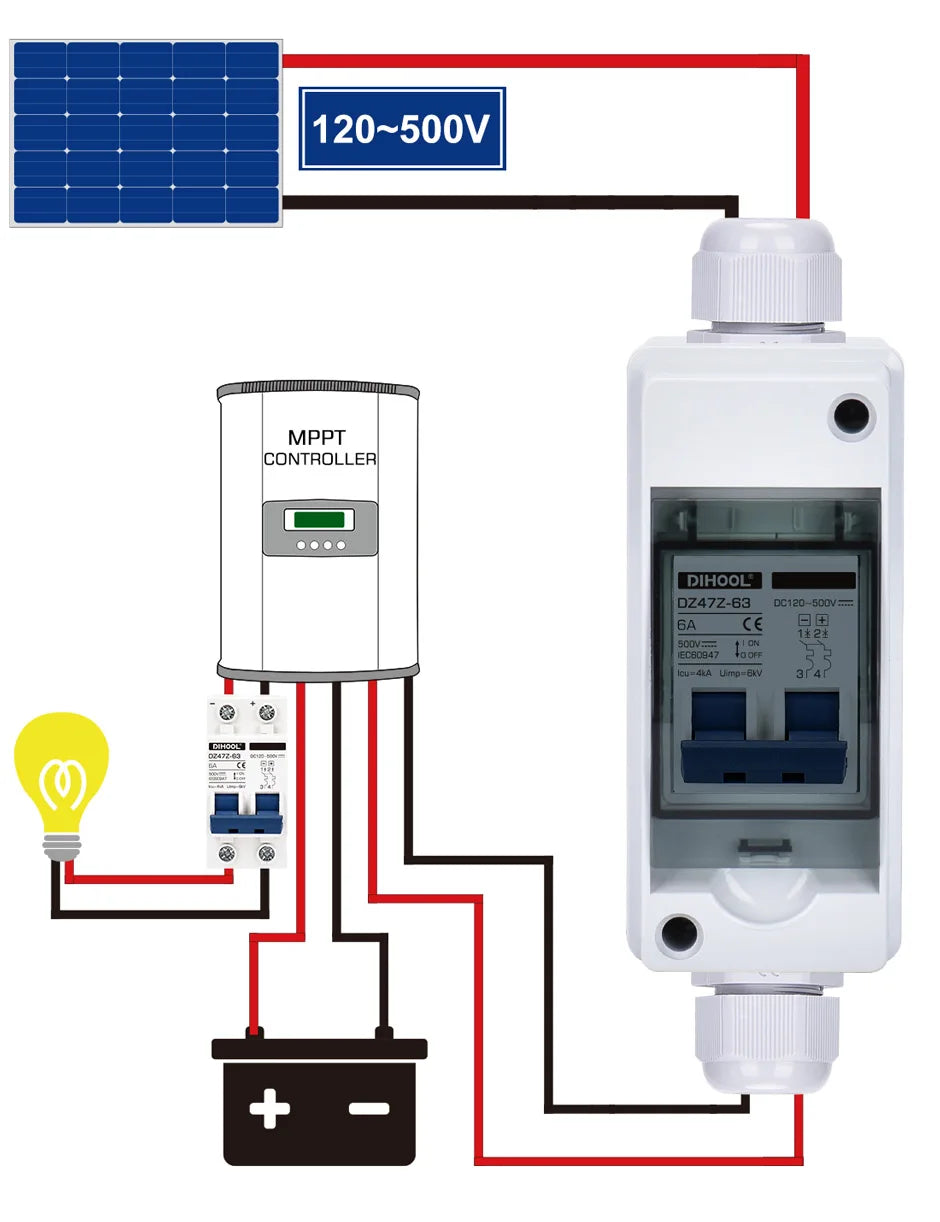

DC circuit breakers for Solar Power ,Battery Banks ,Inverters ,electric vehicles (air switches for electric vehicles, circuit breakers for battery vehicles), MINI circuit breakers for electric motorcycles, with overload and short circuit protection, at the same time It can also be used for on-off electrical devices and electric vehicle lighting circuits that are not frequent under normal conditions. DC circuit breakers comply with GB10963.1 and IEC60898-1 standards.
