SPECIFICATIONS

Application: Home,Household, School, Farm, Factory, Island, etc

Battery Type: Lithium Ion,lithium ion battery

Brand Name: AMIBA

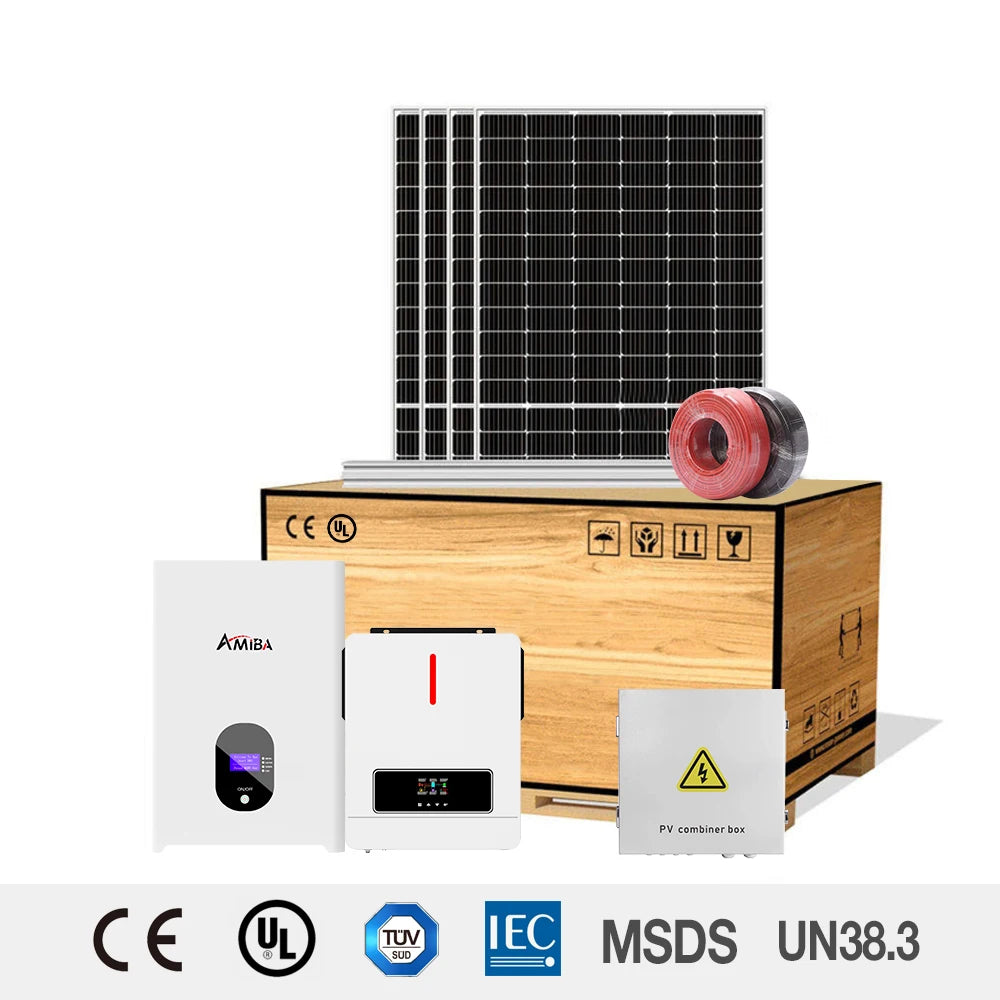

Certificate: CE, ROHS, TUV, IEC.UN38.3.UL

Controller: MPPT Solar Charge Controller

Controller Type: MPPT

Free installation service: Yes

Keywords: Photovoltaic Solar Energy System

Load Power (W): 3 kW,5 kW,10 kW,6 kW,8 kW

Model Number: HESO8WTV

Mounting Type: Roof Mounting

OEM: Acceptable

Output Frequency: 50HZ/60HZ

Output Voltage (V): 110/120/220/230V

Place of Origin: Guangdong, China

Pre-sales project design: Y

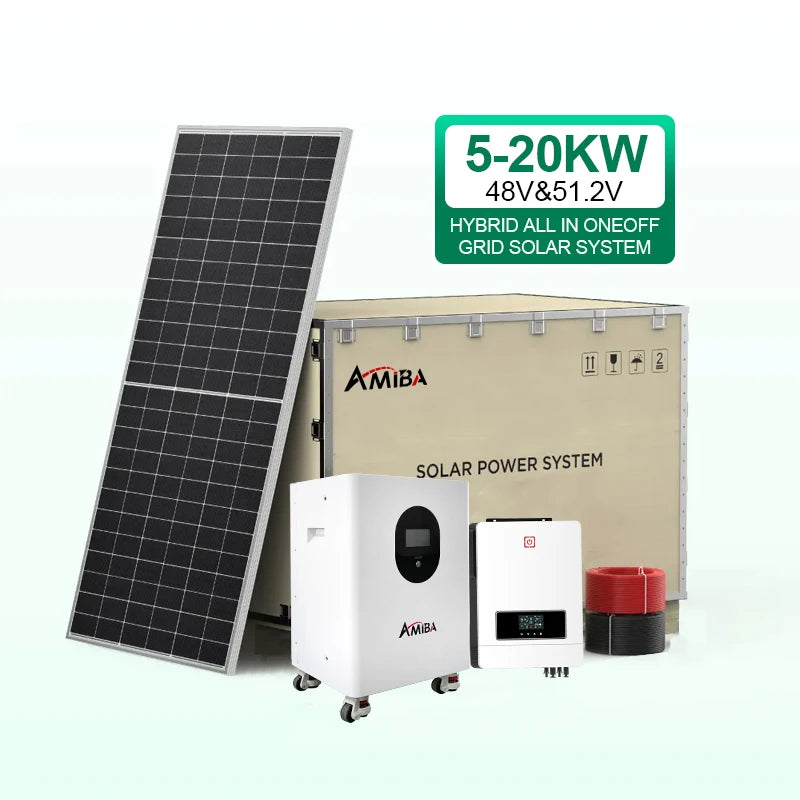

Product name: 10KW Solar Home System

Solar Panel Type: Monocrystalline Silicon,Polycrystalline Silicon

Solar panel: Monocrystalline Solar Panel

Type: Solar Home Energy Power System

Warranty: 25 YEARS

Work Time (h): 24

Products Description

Product Paramenters

Solar Panel

Power Output(Pmax /W)：550W

Warranty：25 YEARS

Solar Panel Type：Monocrystalline sillicon

Front Glass：2.0 mm (0.08 inches), High Transmission, AR Coated Heat Strengthened Glass

Inverter

Rated Output Power:10.2KW

PV INPUT (DC)

MPPT Voltage Range：90V-500VDC

Maximum Solar Charge Current：160A

Number of MPPT Trakers / Maximum input current：2/18A

AC OUTPUT(AC)

Nominal Output Current（AC）:44.3A

Nominal Output Voltage(AC):220V/230V/240VAC

AC INPUT(AC)

Maximum AC input Current:50A

Nominal Operating Frequency:50HZ/60HZ

Battery

Nominal Voltage:51.2V

Capacity(Ah):314AH

Rated Energy(kWh):16KWH

Cycle Life:>10000 Cycles

Battery cell:FeLiFo4

Warranty：10years

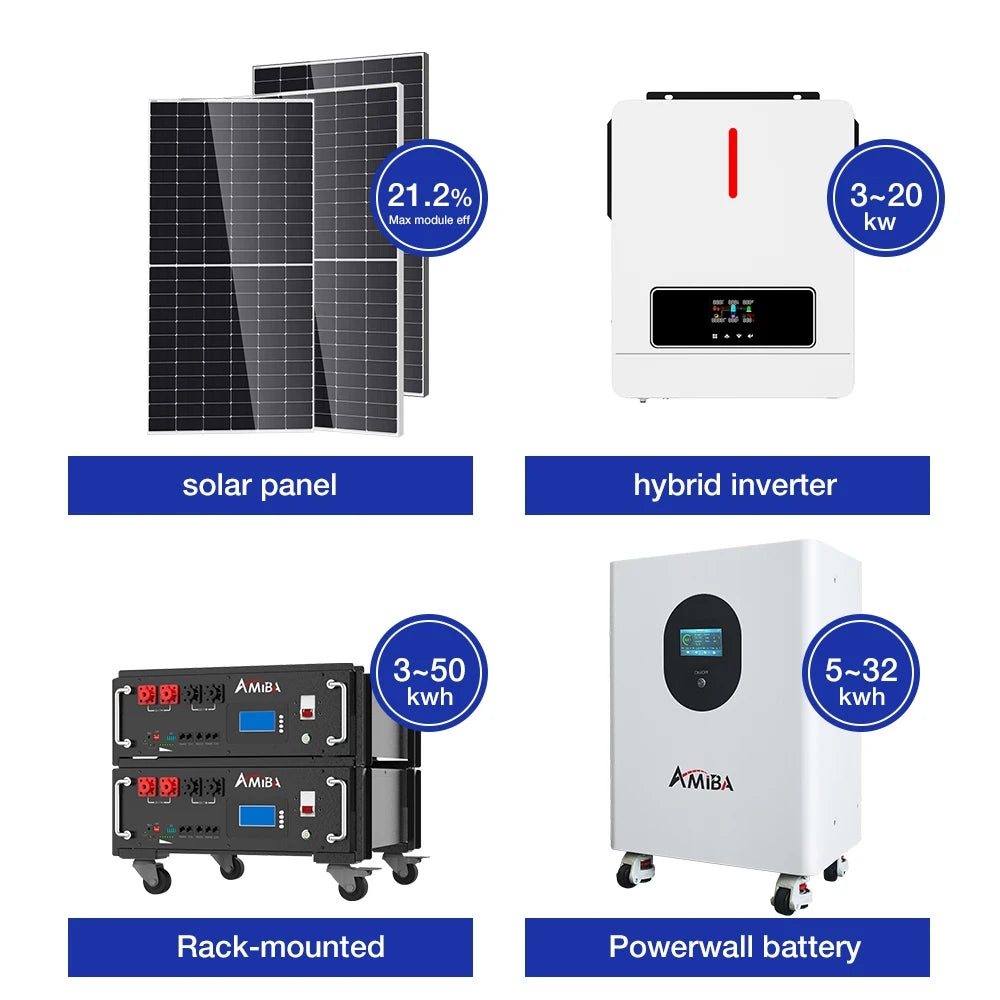

Configuration List
Products	Description
Solar Panel	Tier 1 Brands: Solar Module Power: 430W-700W, Mono-facial or Bifacial
Solar Inverter	Tier 1 Brands, etc.
Mounting System	Customized as per your needs.
Design drawings	Solar pane layout, Solar Carport Mounting Design, Electrical Wiring System Design
Distribution Box	Top brands Products
Cables	Full Set, Solar cable 4mm2, 6mm2 and MC4 PV connector
Accessories	Top brands Products
Service	Professional PV Engineer, Experienced Sales Manager, After-sales Service
