Specifications

Application: Charger Controller,Solar Working Station,Thermal Controller,Voltage Controller,Solar System Controller,solar energy system home

Brand Name: JNGE

Charge mode: MPPT

Communication: RS485 Online Monitoring

Current: 10A 20A

Display: LED Display

Function: Overcharge Overdischarge;over load;over temperature

MPPT efficiency: >99.5%

Max PV Power: 600W

Max PV Voltage: 80V

Model Number: JN-MPPT-MINI 20A

Place of Origin: Anhui, China

Product name: Lithium Battery MPPT 20A Solar Panel Charge 12V/24V Controller

Type: MPPT

Work Time (h): 24 hours

Working temperature: -20℃~50℃

Product Introduction

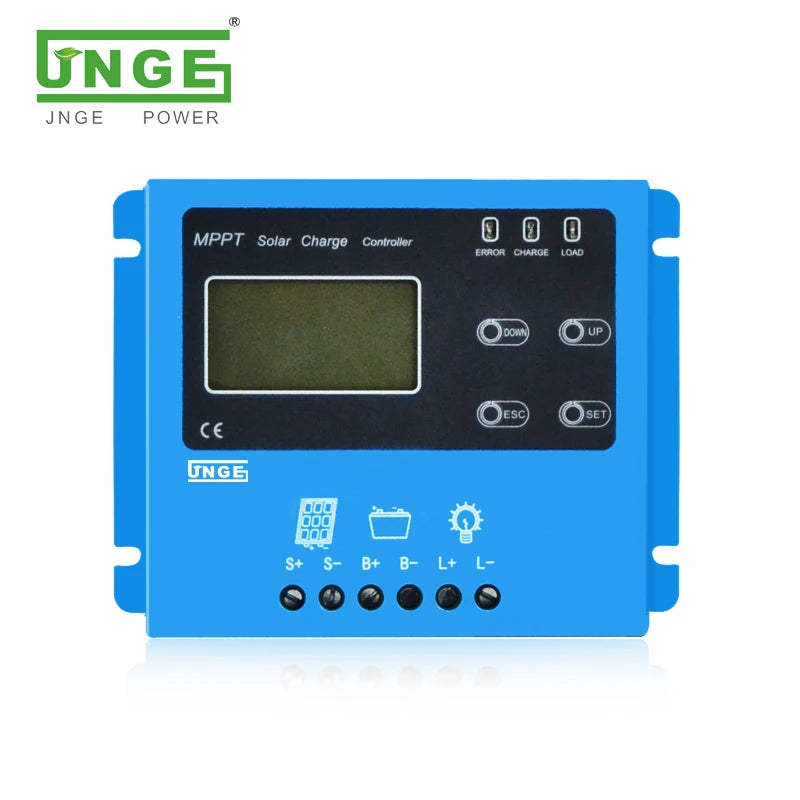

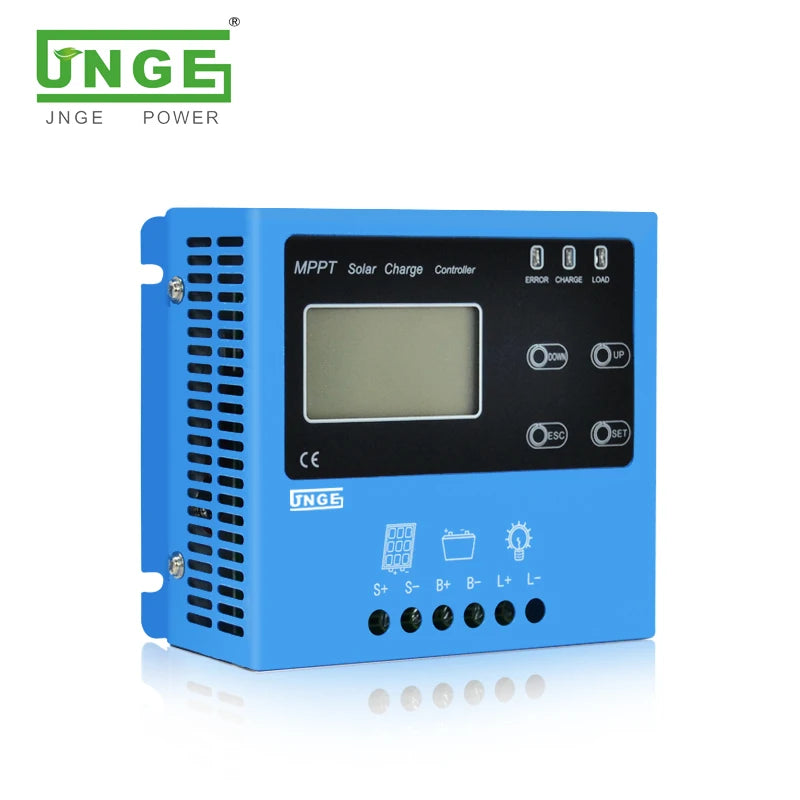

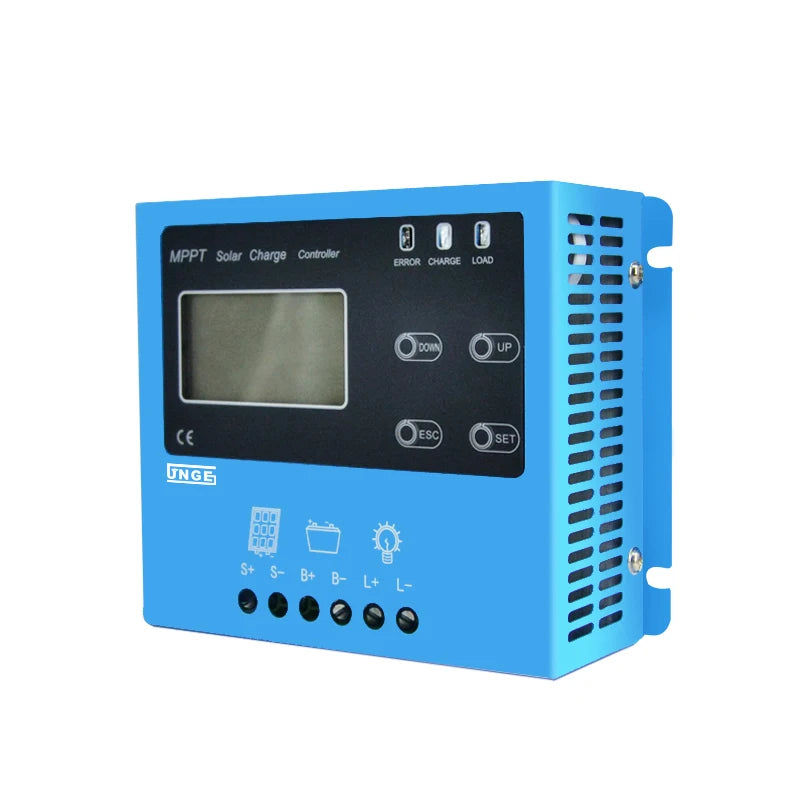

Off Grid Lithium Battery MPPT 20A Solar Panel Charge 12V/24V Controller

Product Parameters

Model			JN-MPPT-MINI (new)
Current rating (A)			10	20
Max charging current (A)			10	20
PV Max input power 12V(W)			120	240
PV Max input power 24V(W)			240	480
Output max current (A)			7	14
Solar panels into			12V battery system    20V- 80V
Open circuit voltage (Voc)			24V battery system    40V- 80V
System identification			12V battery system	DC9V-16V
Voltage range (V)			24V battery system	DC18V-32V
MPPT efficiency			>99.5%
Conversion efficiency			>98%

Off Grid Lithium Battery MPPT 20A Solar Panel Charge 12V/24V Controller

Product Details

▷ 12/24V automatic recognition

▷ Fit all kind of batteries, Lead acid, Gel, LIFEPO4, LiNiCoMn

▷ Advanced MPPT maximum power point tracking technology,tracing efficiency > 99.5%, maximum conversion efficiency > 98%; full-load efficiency can reach 97%

▷ Heatsink Cooling

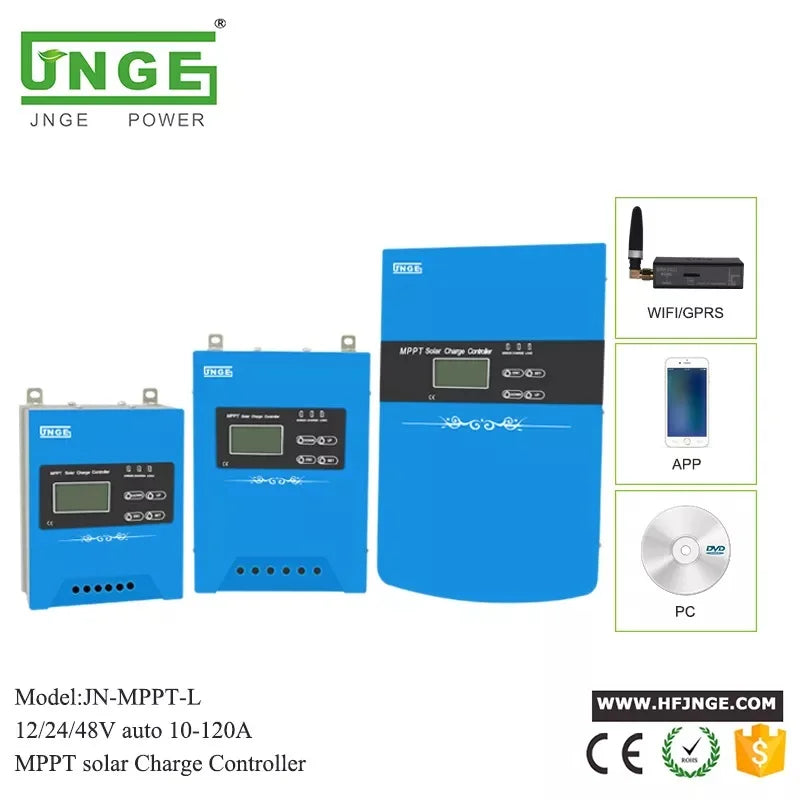

▷ Suppot WIFI/GPRS/ETHERNET monitor for Android cell phone (Optional)

▷ Support for data storage, storage time can be up to 10 years

▷ Aluminum alloy radiator, no noise, maintenance-free

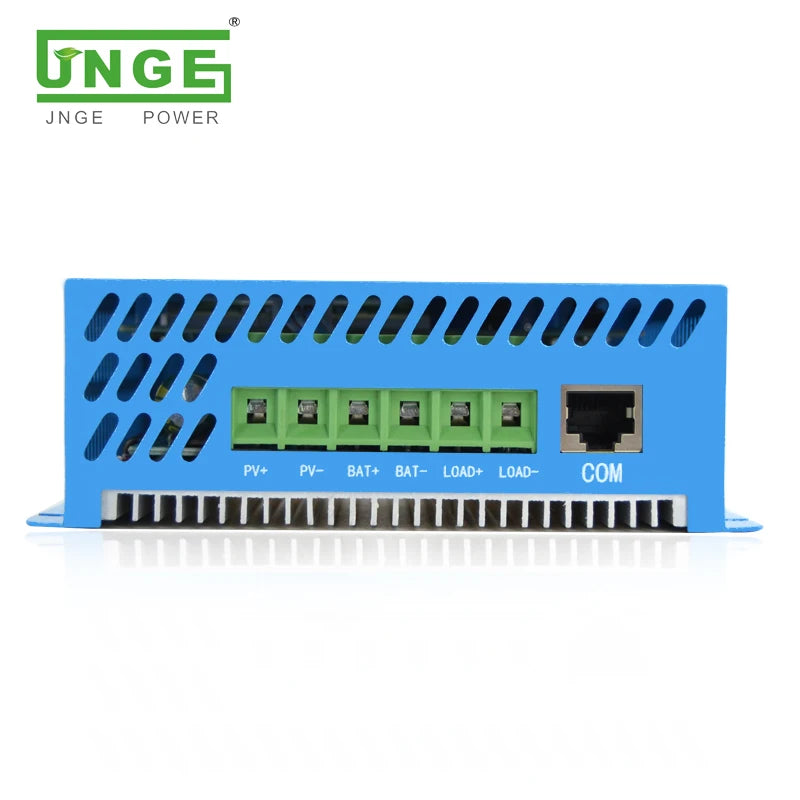

▷ Equipped R485 communication port.

▷ Sheet metal outter housing, strong, firm and nice looking

Off Grid Lithium Battery MPPT 20A Solar Panel Charge 12V/24V Controller
