Specifications

Application: Charger Controller,Solar Working Station,Solar System Controller

Battery type: Lead acid/Gel/Phosphate/Ternary battery/Lithium battery/LiFePo4

Brand Name: MYAMi

Certificate: CE

Charge mode: MPPT Maximum Power Point Tracking

Display: LCD Display

MPPT efficiency: Tracking efficiency 99%, conversion efficiency 97%

Max PV Power: Max 230V PV Input

Max PV Voltage: Max 230V PV Input

Model Number: MY-MPPT120A/MY-MPPT60A/MY-MPPT30A

Place of Origin: Guangdong, China

Product name: Intelligence MPPT Solar Charge Controller

Protection: OCP/OLP/SCP

Rated Current: 30A/60A/120A optional charging current

System voltage: 12V/24V/36V/48V/60V/72V/84V/96V DC

Type: MPPT

Work Time (h): /

Specification

Cheap Price MYAMi Intelligence MPPT Solar Charge Controller 120A 60A 30A Auto 12V/24V/36V/48V 12V-96V with LCD Display & High efficiency,Max 230 V Input, fits for LiFePO4/Lithium/Lead-acid/Gel Battery for Home/RV/Car/Farm/Solar System

Basic Functions:

●Innovative maximum power point tracking technology can significantly improve the energy utilization efficiency of solar energy systems, with a conversion efficiency of up to 97%; ●Quickly scan the entire area- V-curve, efficient tracking of maximum power point;

●Three types of lead-acid and lithium battery series charging programs are available: sealed, colloidal, and open type; ● It has automatic protection functions for overcharge, overdischarge, overload, and short circuit; RS485 communication interface, capable of multi machine communication, convenient for viewing the operating parameters of the controller.

Characteristics of MPPT controller

This controller is used in solar off grid power generation systems to automatically regulate battery charging and discharging. It has advanced tracking algorithms to obtain the maximum power of solar cell modules for charging the battery; Meanwhile, its low voltage disconnect (LVD) function can prevent damage caused by excessive discharge of the battery. The battery charging process of MPPT controller is optimized to extend battery life and improve system performance. Its comprehensive self-test function and electronic protection function can prevent damage caused by installation errors and system failures. Although the controller is easy to operate and use, in order to enable you to better utilize all the functions of the controller and improve your photovoltaic system, please carefully read the instructions and instructions in this manual.

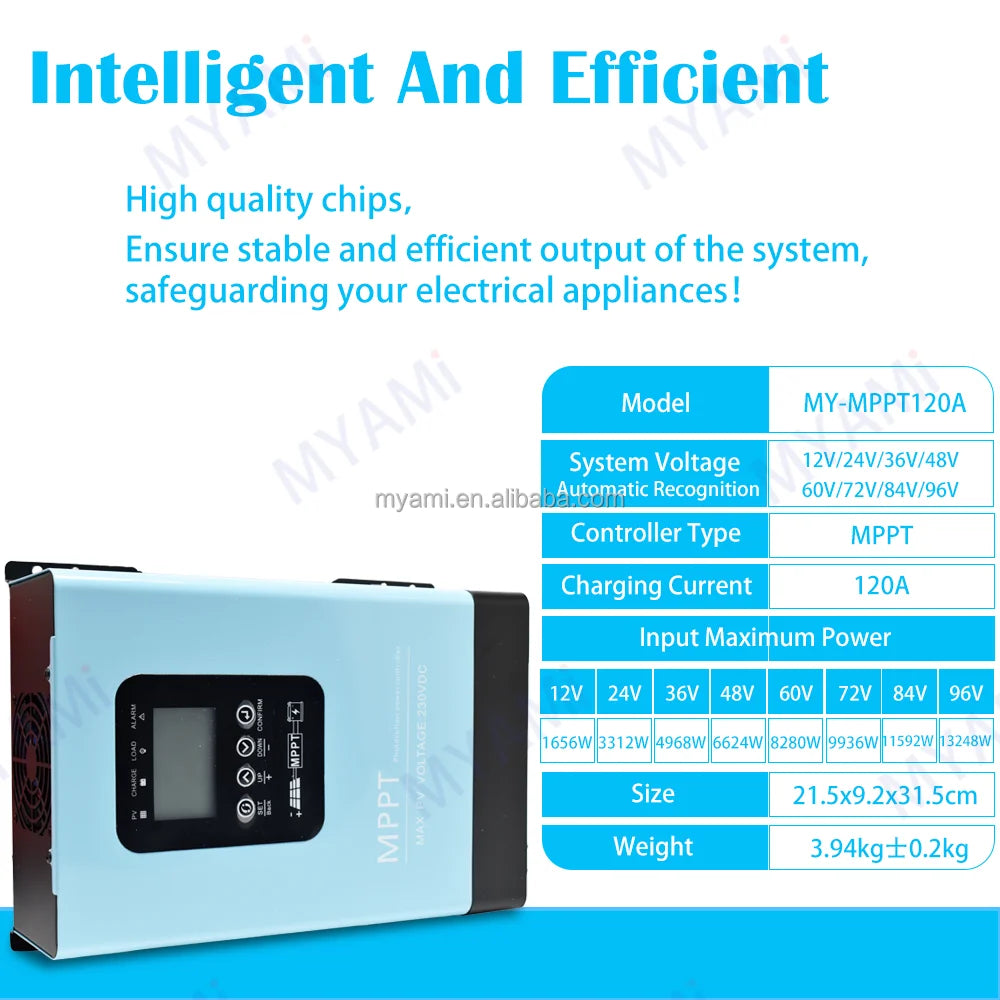

Modle			MY-MPPT30A	MY-MPPT60A	MY-MPPT120A
Charge Type			MPPT
Battery Type	Lead Acid	automatic recognition 12V/24V/36V/48V/96V,and can adjustable 12V/24V/36V/48V/60V/72V/84V/96V
		Gel	12V/24V/36V/48V/60V/72V/84V/96V
		Phosphate	Single cell voltage 3.2 * number of strings (adjustable from 4-45 strings), saturation voltage 3.65V
		Ternary	Single cell voltage 3.7 * number of strings (adjustable from 4-45 strings), saturation voltage 4.2V
		User Defined	Equal charging, float charging，adjustable DC discharge limit voltage: 8V-170V

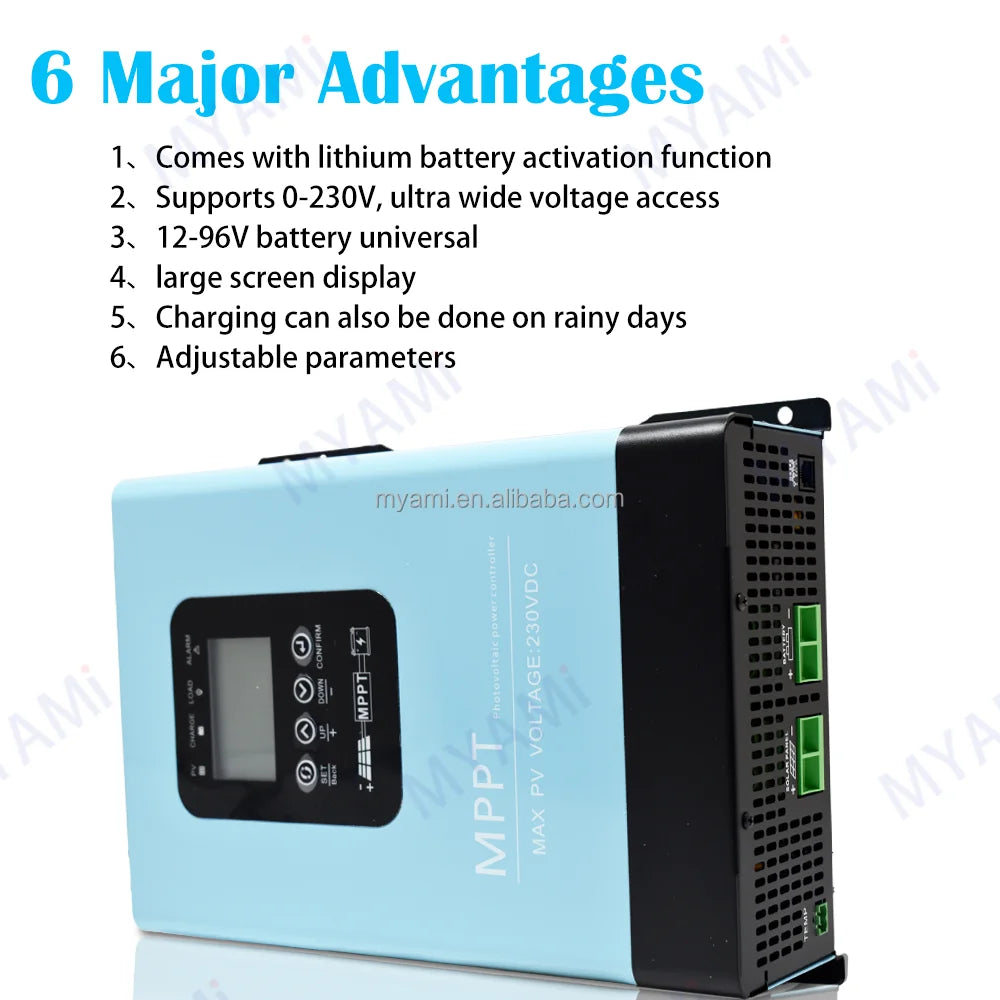

Lithium Battery Activation Function			With photovoltaic input, there is charging voltage (activating lithium batteries) that can be used without battery DC output
Maximum Input Voltage			0-230V
Charging Current（Adjustable）			10-30A	10-60A	10-120A
Start Charging			Photovoltaic voltage is greater than battery voltage 3V （can charge with low current on cloudy and rainy days  ）
Charging Current Output			Continuous DC output 30A	Continuous DC output 60A	Continuous DC output 120A
Temperature Compensation			Automatically compensates for charging voltage and current based on battery temperature, extending battery life.
Display			Using touch sensitive button LCD display: (power generation/photovoltaic voltage/battery voltage/charging current/power/operating status) Chinese and English display settings: (battery type, charging current restored to factory)

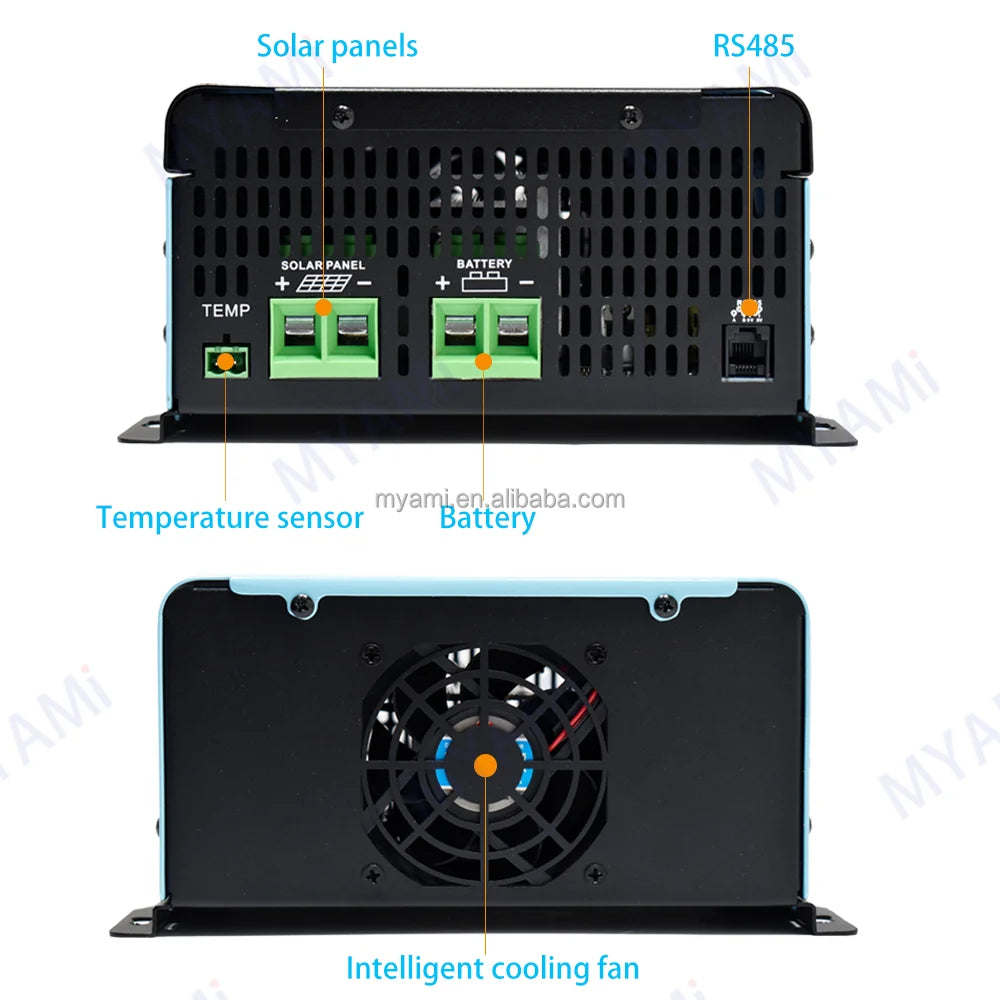

Communication			8-pin RS485 communication interface (capable of querying operational status and settings)
Ambient Temperature			-20℃~40℃
IP Protection Level			IP 21
Altitude			0~3000M
