SPECIFICATIONS

Application: BOATS, Golf Carts, Solar Energy Storage Systems, RV

Battery Type: Lithium Ion,LiFePO4

Brand Name: MERITSUN

Cycle life: >4000 cycles

Maintenance Type: Free

Model Number: 12v Lifepo4 Lithium Battery

No memory effect: Yes

OEM/ODM: Welcome! Available!

Place of Origin: Guangdong, China

Products Series: LiFePO4 Lithium Polymer Battery

Shipping: By express, By air, By sea

Status: China Battery Industry Access Enterprise

The discharge rate: 1c

Type: lifepo4

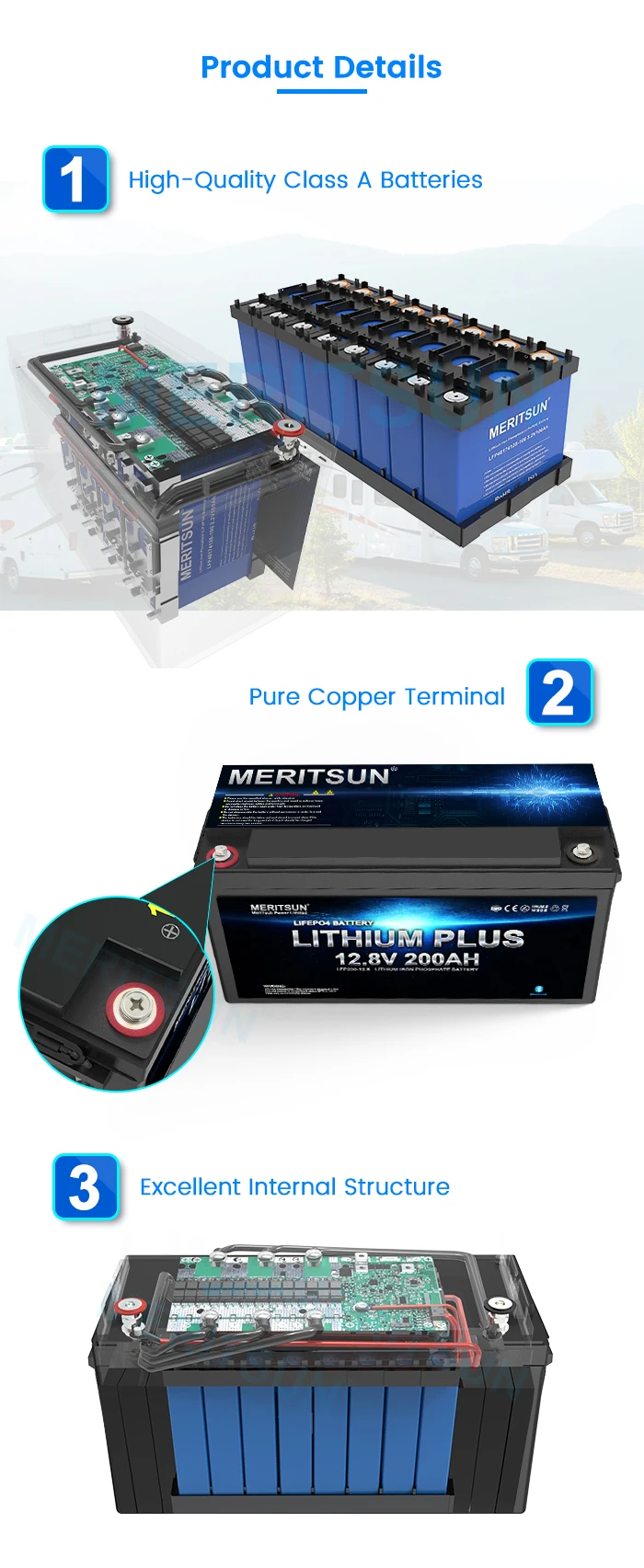

Product Details

Product Paramenters

Model	LFP100-12	LFP200-12	LFP300-12
Nominal Voltage(V)	12.8	12.8	12.8
Nominal Capacity(Ah)	100	200	300
Usable Capacity(Wh)	1280	2560	3840
Dimension(mm)	330*175*215	485*175*240	520*268*220
Weight(Kg)	11	25	30
Cycle Life	≥4000 @ 25℃	≥4000 @ 25℃	≥4000 @ 25℃
Working Temperature ℃	-20~55	-20~55	-20~55
Discharge Voltage (V)	12.8	12.8	12.8
Charge Voltage(V)	13.5~14.6	13.5~14.6	13.5~14.6
Internal Impedance(mΩ)	≤20	≤10	≤10
Charge / Discharge Current (A)	charge:50	charge:40	charge:60
		discharge:50	discharge:40	discharge:60
Design Life(Years)	10	10	10

Why Choose Us

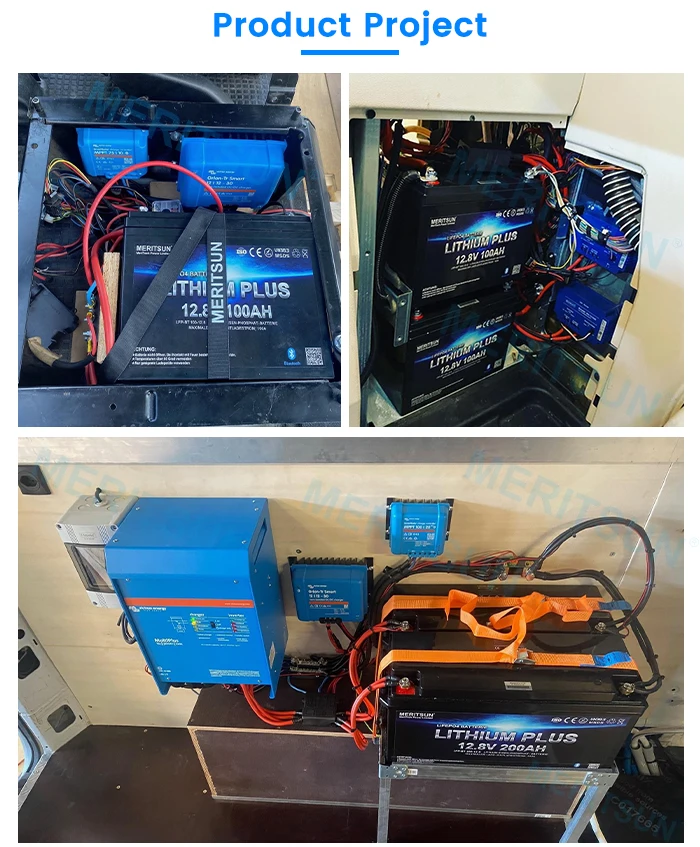

Application

Company Profile

Contact Us

For more information, Please contact us now

You will get the best design solution for FREE !!!

( Just click here , or click on the customer service on the right side)
