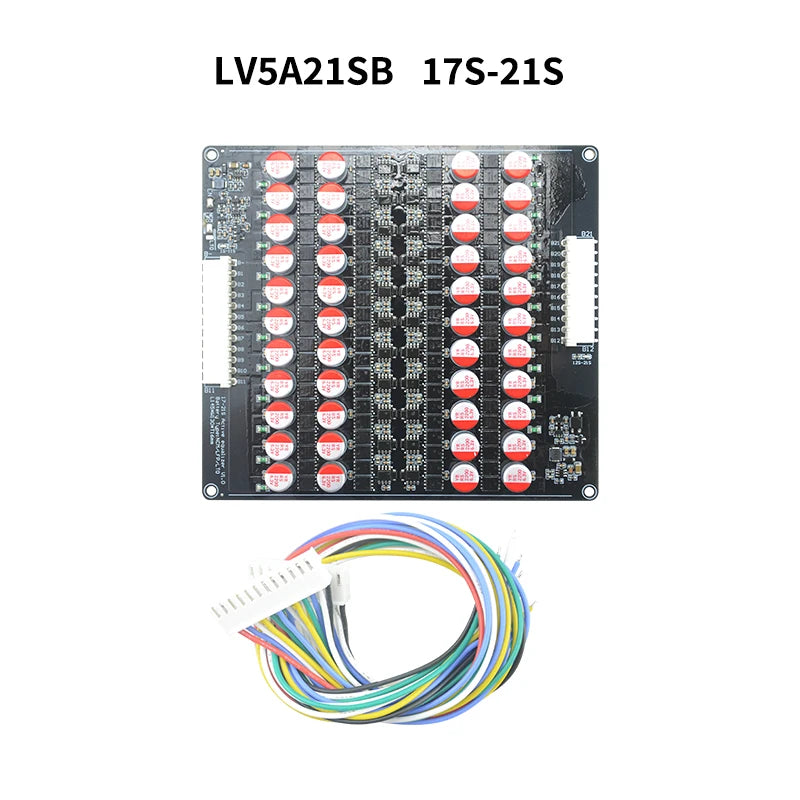

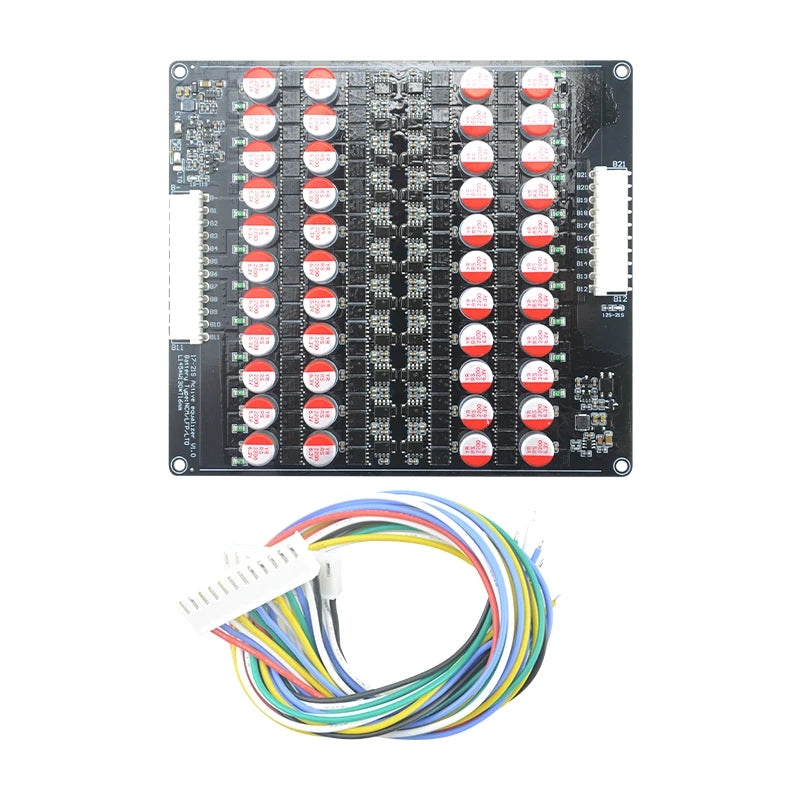

LVNOON 5.5A Active Equalizer Board LV5A21SB for NCM Li-onLifepo4 LTO Lithium Battery 5mV Precision 17S-21S 72V

Default Title

₱3,285.49

1/6

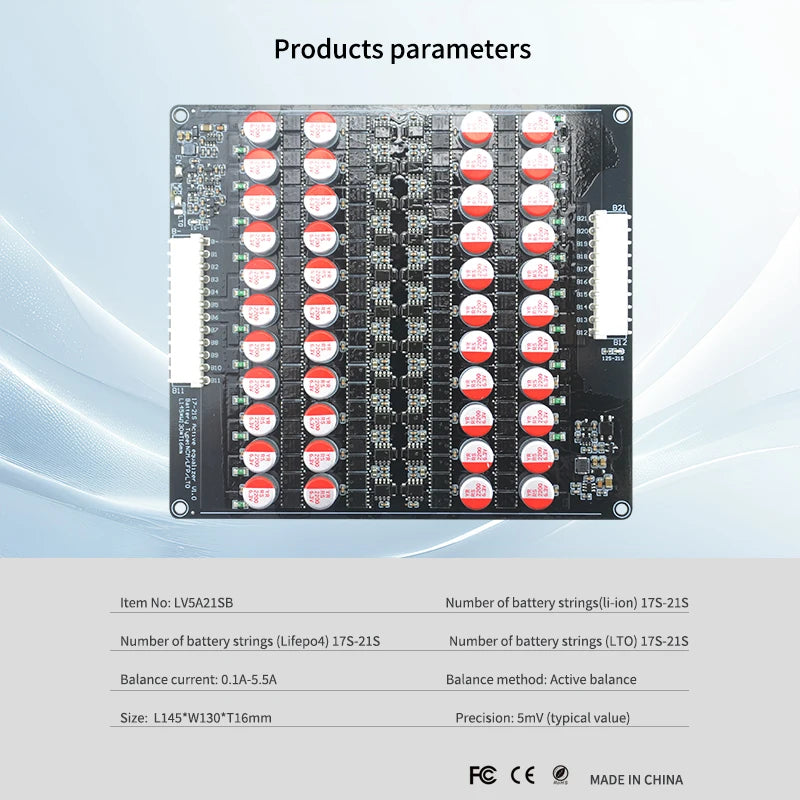

LVNOON 5.5A Active Equalizer Board LV5A21SB for NCM Li-onLifepo4 LTO Lithium Battery 5mV Precision 17S-21S 72V

₱3,285.49

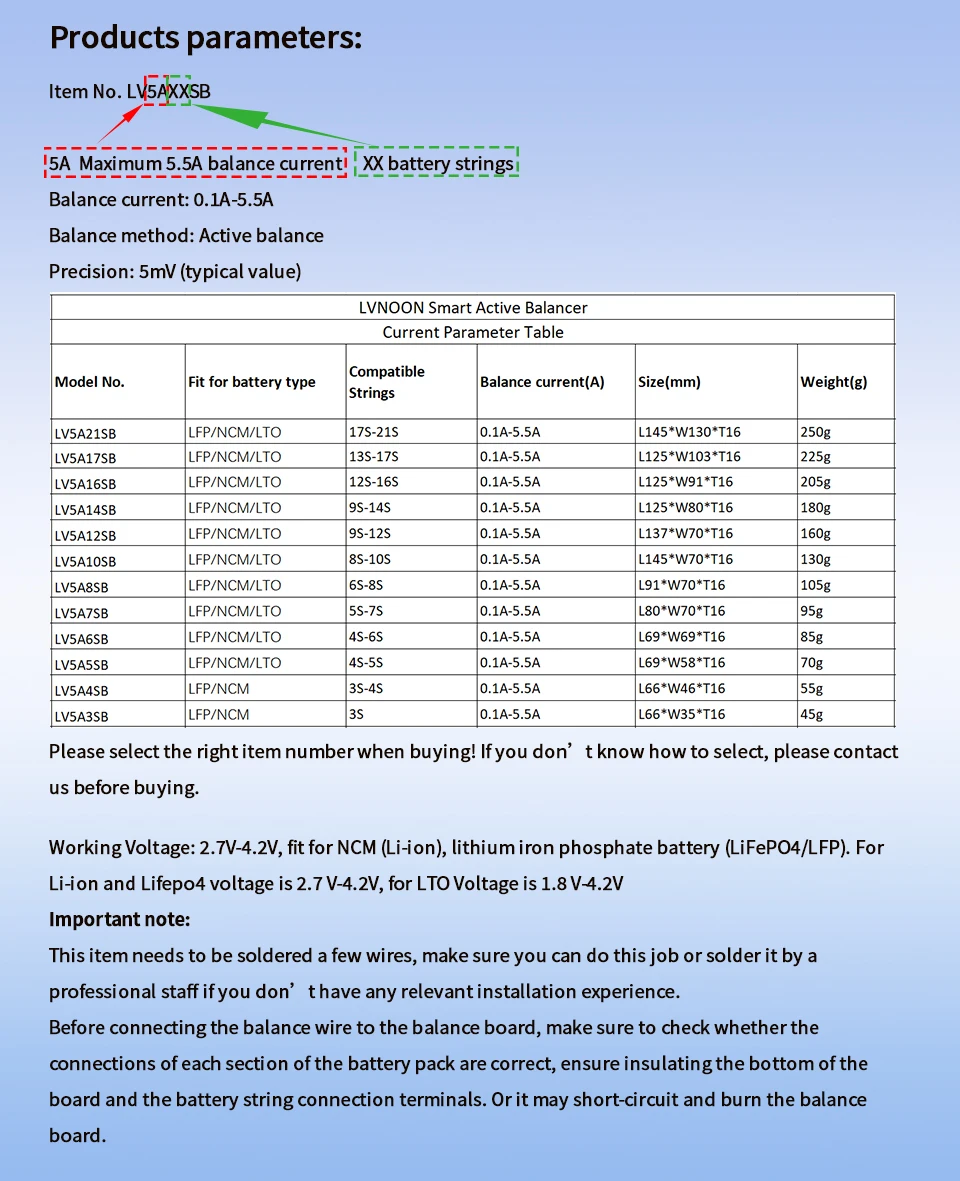

SPECIFICATIONS

Brand Name: LVNOON

Copper Thickness: 2 OZ

Model Number: LV5A21SB

Place of Origin: Guangdong, China

Type: bms pcba

feature 1: More efficient overall pack balance

feature 2: Join the effort to protect a greener earth with new sustainable energy

feature 3: Support balanced cascading for the battery packs

feature 4: Compatible with most of passive BMS on the market

product name: Active balance, automatic start to work, avoid battery risk

Products Description

LVNOON 5.5A Active Equalizer board LV5A21SB for NCM Li-onLifepo4 LTO Lithium Battery Active Capacitor Balancer 5mV Precision 72V

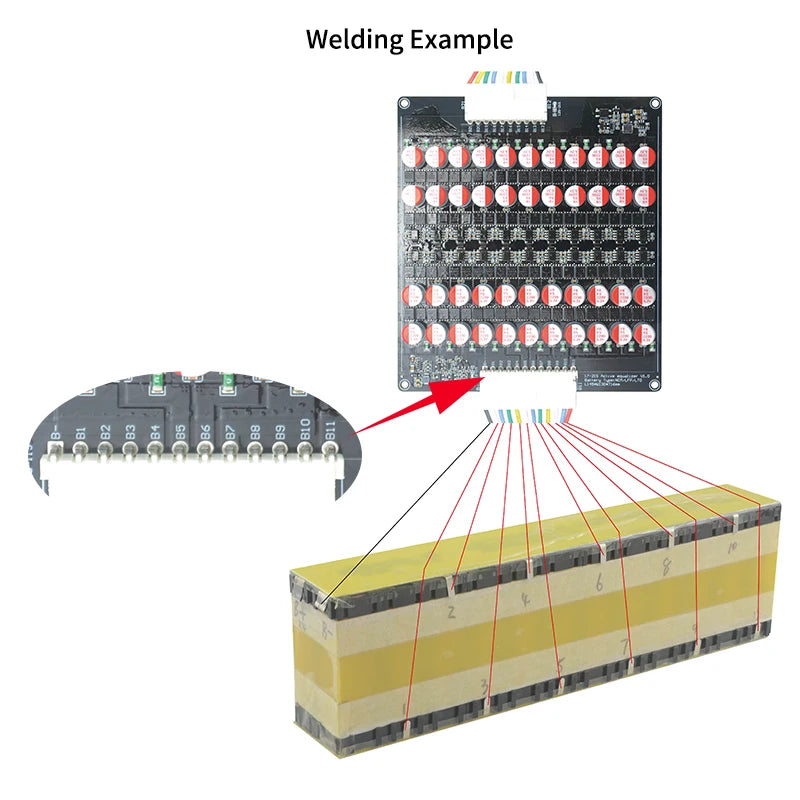

Important note: *This item needs to be soldered a few wires, make sure you can do this job or solder it by a professional staff if you don’t have any relevant installation experience. *Before connecting the balance wire to the balance board, make sure to check whether the connections of each section of the battery pack are correct, ensure insulating the bottom of the board and the battery string connection terminals. Or it may short-circuit and burn the balance board.

Working Voltage:

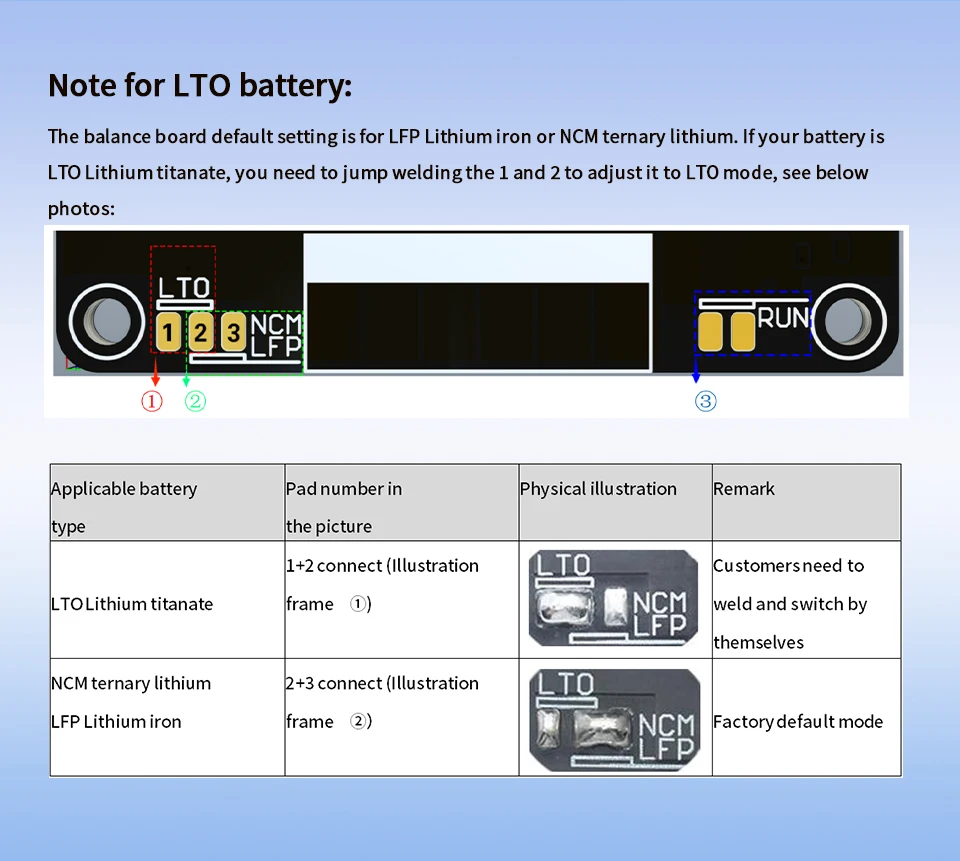

2.7V-4.2v, fit for NCM (Li-ion), lithium iron phosphate battery (LiFePO4/LFP). For Li-ion and Lifepo4 voltage is 2.7 V-4.2V, for LTO Voltage is 1.8 V-4.2V

Main features

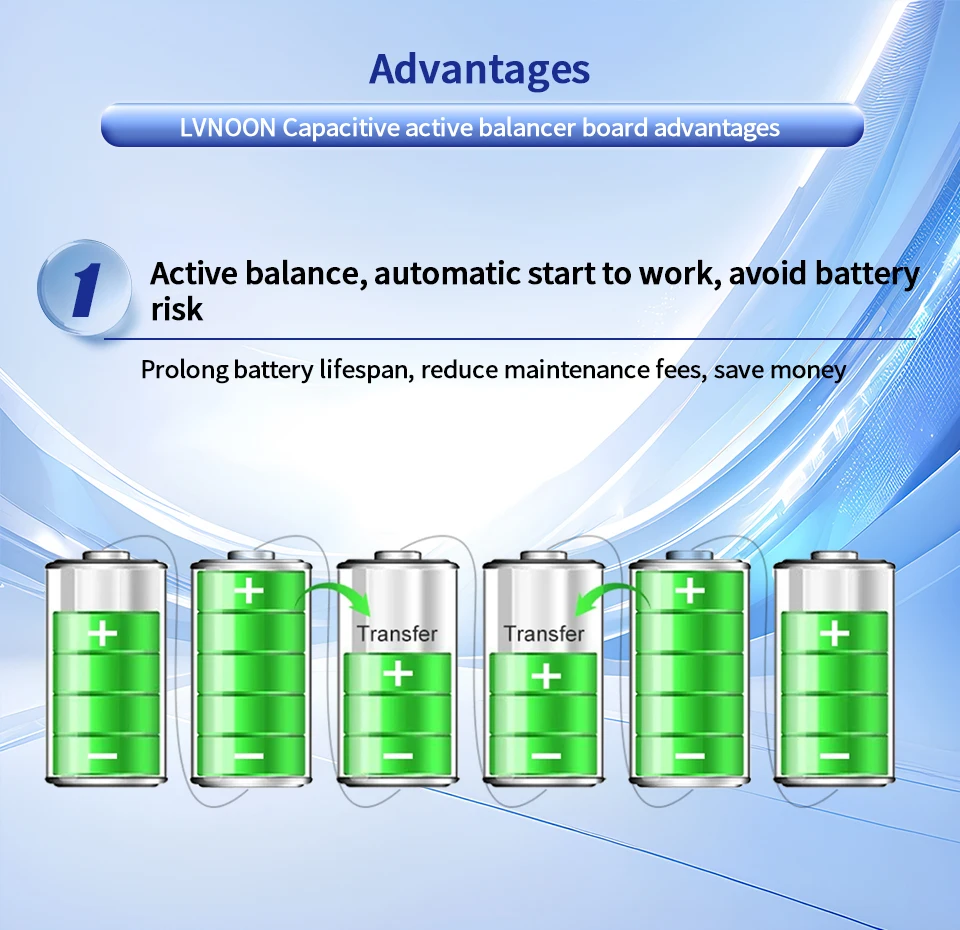

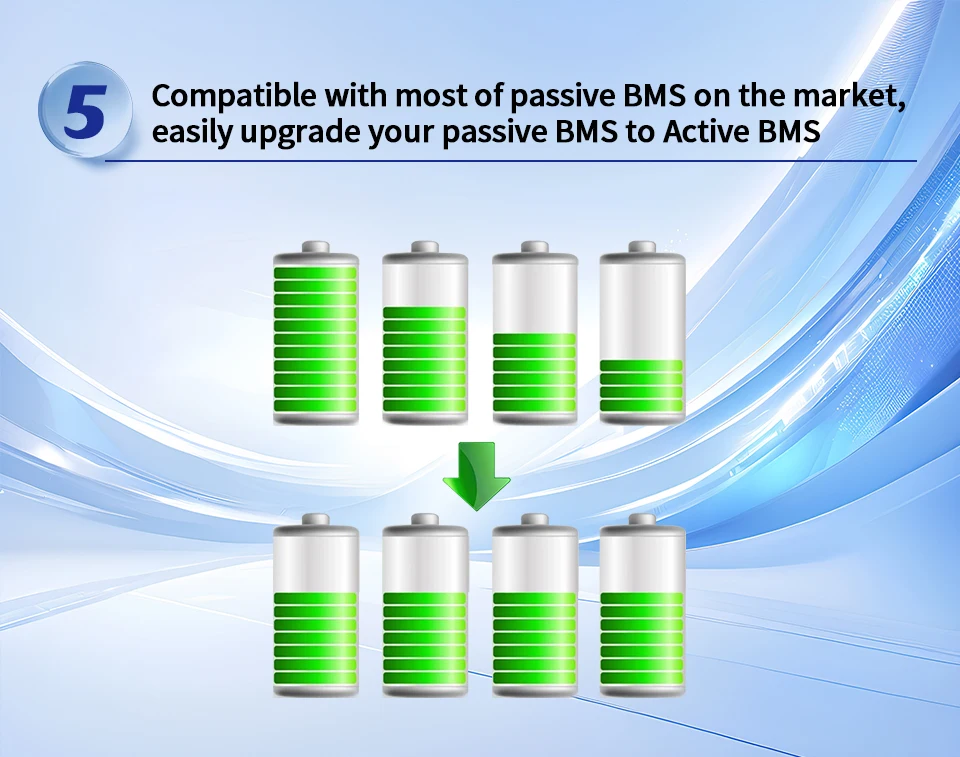

Advantages: 1.Active balance, automatic start to work, avoid battery risk Prolong battery lifespan, reduce maintenance fees, save money 2.More efficient overall pack balance, ultra-low loss of energy transfer, low heat generation during balance, with under-sleep protection. 2.0Z copper thick PCB. Balance current: 0.1-5.5A Balance accuracy: 5mV. Monitor the battery voltages all the time. 3.Join the effort to protect a greener earth with new sustainable energy. 4.Support balanced cascading for the battery packs like 24S, 36S, 48S etc. 5.Compatible with most of passive BMS on the market, easily upgrade your passive BMS to Active BMS.

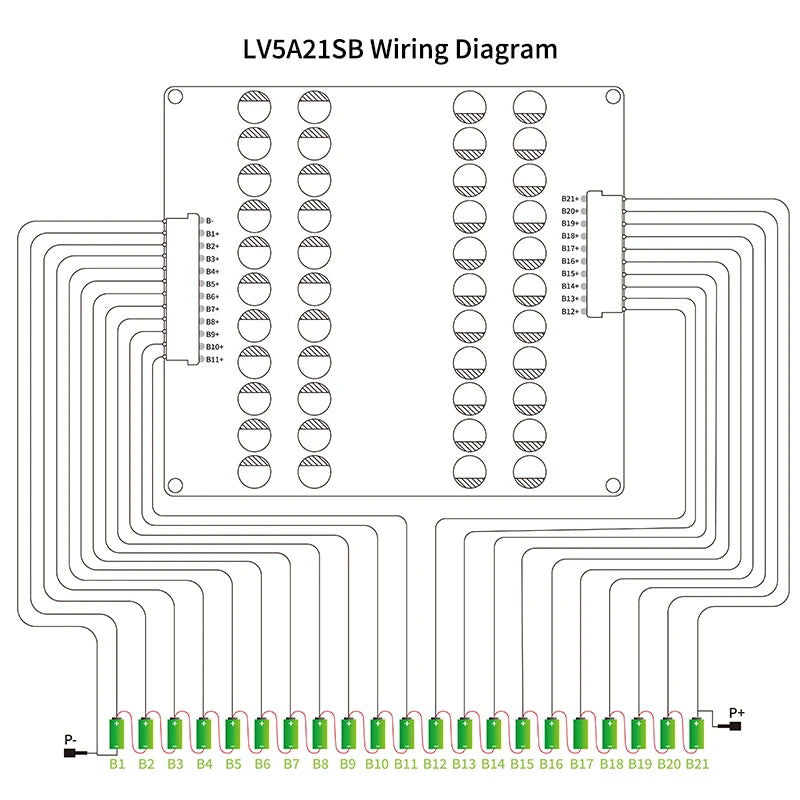

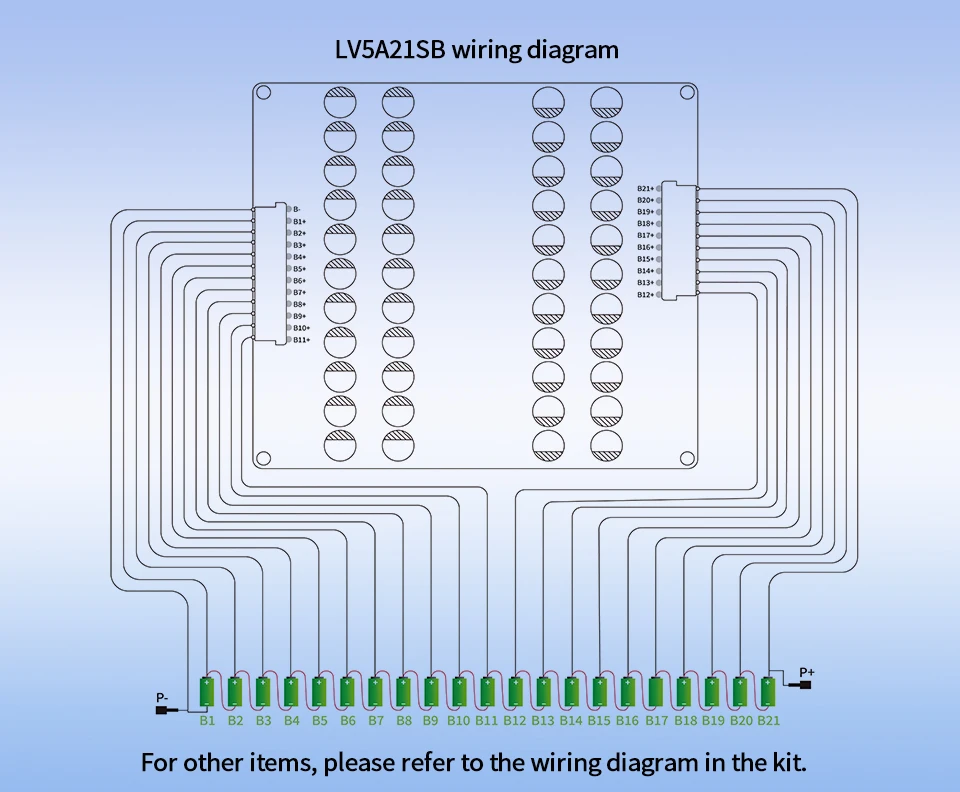

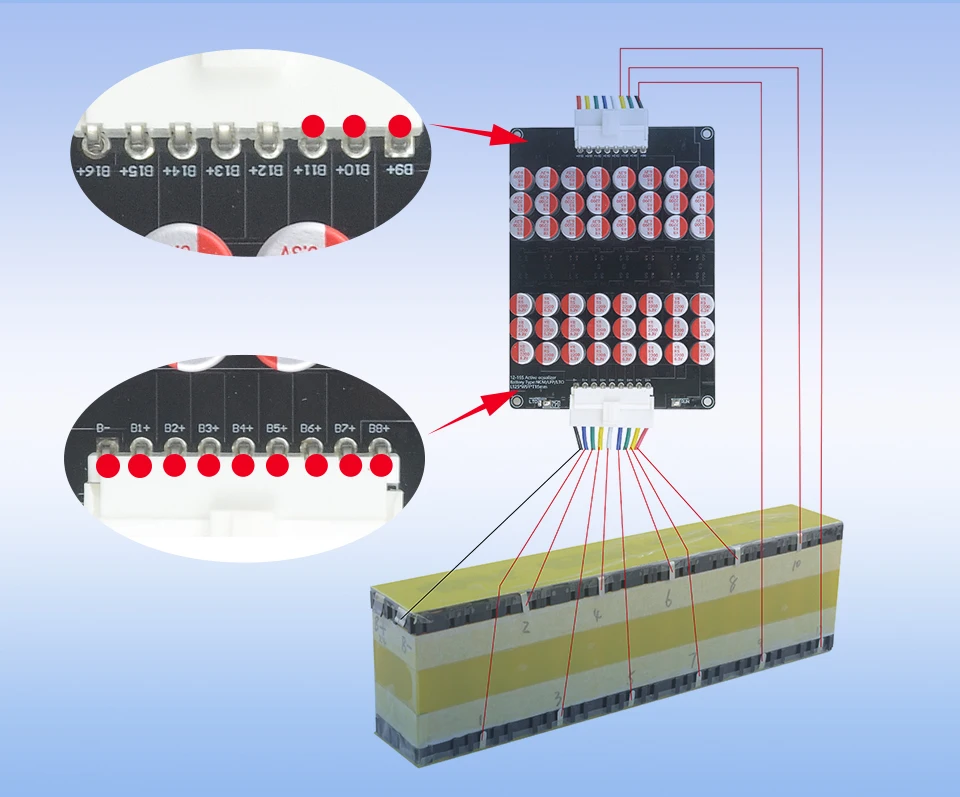

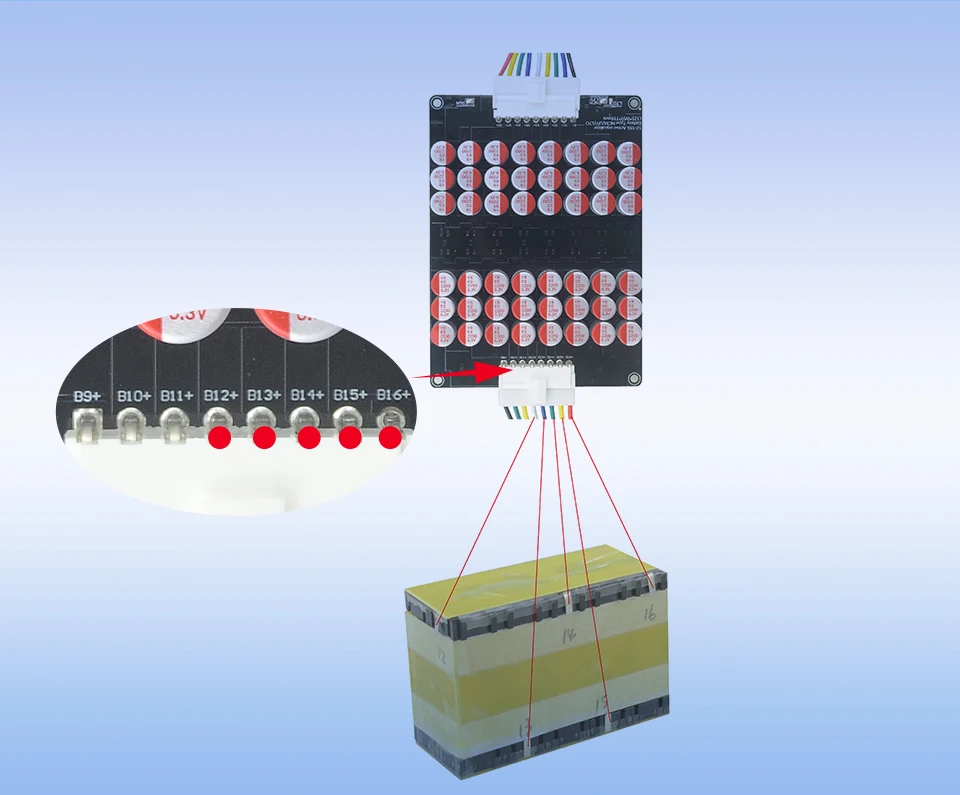

Wring diagram
