SPECIFICATIONS

Anode Material: LFP

Application: Toys,Power Tools,Home Appliances,Consumer Electronics,Boats,Golf Carts,SUBMARINES,Electric Bicycles/Scooters,electric vehicles,Electric Wheelchairs,Electric Power Systems,Solar Energy Storage Systems,Uninterruptible Power Supplies,Solar, Wind, UPS

Battery Size: 3.2V 100AH 206Ah 314ah 300ah lifepo4 cell

Battery Type: Liquid

Battery type: LiFePO4, NMC

Brand Name: LITHTECH

Cathode Materials: LiFePO4

Certificate: CE/RoHS/UN38.3/MSDS

Communication Port: RS232, RS485, CAN,bluetooth,WiFi

Cycle Life: 6000 cycles

Dimension (L*W*H): 483*170*240mm

Max Load Quantity(cells): 8

Model Number: HP1500K

Operating Temperature(℃): -20℃-60℃

Place of Origin: Guangdong, China

The charging ratio: 1C

The discharge rate: 1C

Usage: Motor home, Sailing Yacht, Solar storage, Home used solar

Warranty: 5 Year

Weight: 32KG

Smaller size and Higher capacity

Products Description

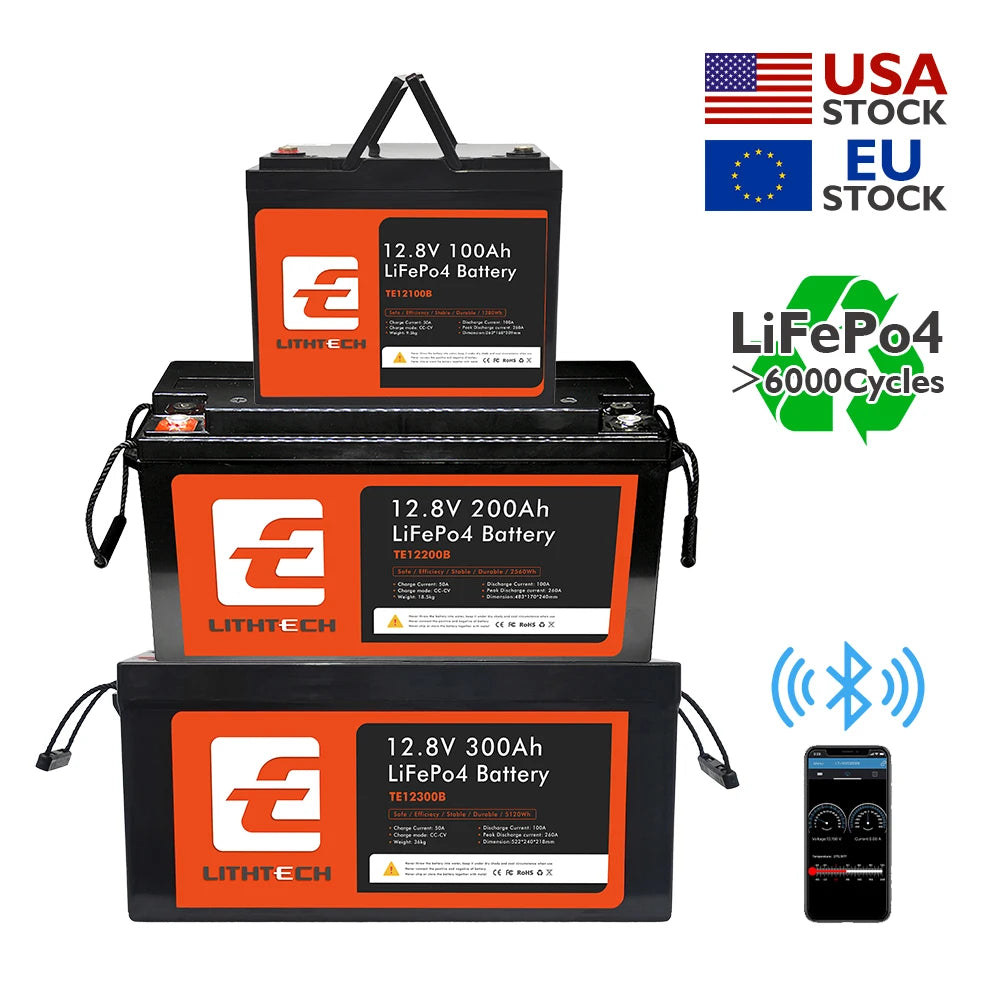

Smart Control with Bluetooth & App Integration

Lithtech’s custom Bluetooth system with dedicated App

31% Smaller, Same Powerful Capacity

Fits standard 4D and 8D battery boxes with ease.

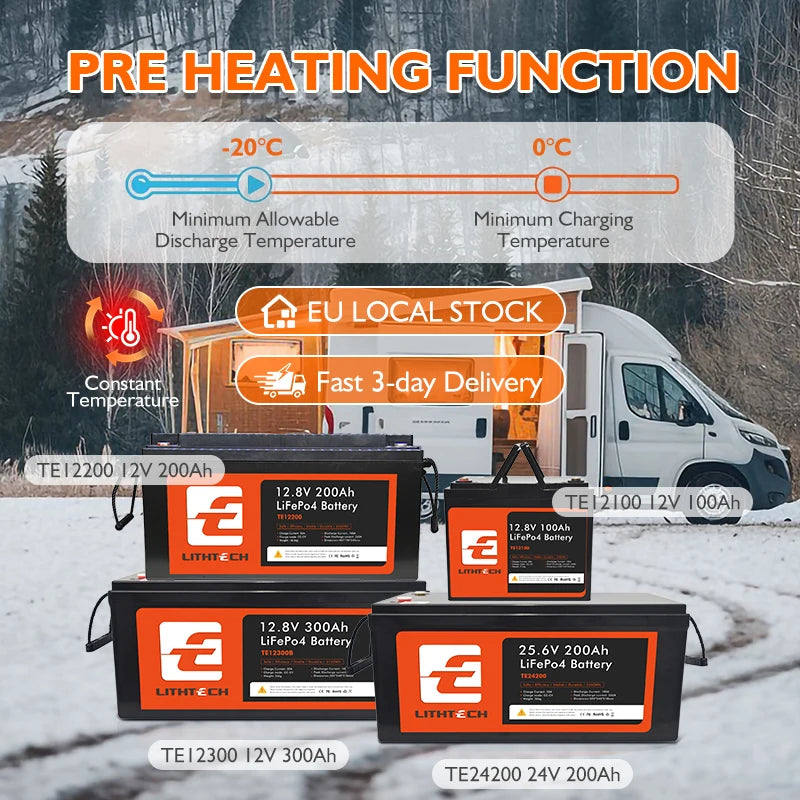

Cold Weather? No Problem

Optional built-in heating module

Up to 4.47 Days of Off-Grid Power

Enough to run your AC, refrigerator, washer, and TV—perfect for RVs or cabins.

Model No

TE1250 (Customized)

TE12100

TE12200

TE12300

TE12400 (Customized)

TE24100

TE24200 (Customized)

Voltage

12.8V

12.8V

12.8V

12.8V

12.8V

25.6V

25.6V

Capacity

50Ah

100Ah

200Ah

300Ah

400Ah

100Ah

200Ah

Energy

640 Wh

1280 Wh

2560 Wh

3840 Wh

5120 Wh

2560 Wh

5120 Wh

Communication

Bluetooth   Preheat   USB   CAN    RS485   RS232

58.4 Vdc

58.4 Vdc

58.4 Vdc

58.4 Vdc

Configuration

4S1P

4S1P

4S2P

4S3P

4S4P

8S1P

8S2P

Discharging current

5A-50A

Max.charging current

100A

100A

100A

100A

100A

Self Discharge

≤3.5% Per Month

Warranty

5 years

Recommend Charge Voltage

14.2V-14.6V

Short Circuit Protection

200-400μs

Life cycles(80% DOD, 25°C)

＞6000+ Cycles Times

5000+ Cycles Times

5000+ Cycles Times

Storage time / temperature

5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C

Operation temperature

-20°C to 60°C @60+/-25% Relative Humidity

Storage temperature

0°C to 45°C @60+/-25% Relative Humidity

Lithium Battery Standard

CE, IEC62133, UN38.3, MSDS

Enclosure protection rating

IP65

Dimensions(L×W×H)mm

Customized

260*168*209

483*170*240

520*269*220

520*268*220

483*170*240

520*269*220

Weight

Customized

10KG

20KG

28KG

40KG

22KG

36KG

Fast delivery and perfect warranty and after-sales service win the praise of customers

Delivery Time

Item	1-50PCS	50-1000pcs	1000+pcs	10000+pcs
Need Dangerous Goods Transport Certificate	10days	10-15days	20days	30days
Not Need Dangerous Goods Transport Certificate	7days	7-15days	15-20days	30days

After Sales Response Time

Beijing Time 9:00-22:00	Weekday	Saturday	Sunday	Chinese Statutory Holidays
Salesman GFL	≤1 Hour	≤2 Hour	≤ 4 Hour	/
CEO GFL	≤1 Hour	≤2 Hour	≤ 4 Hour	≤1 Day

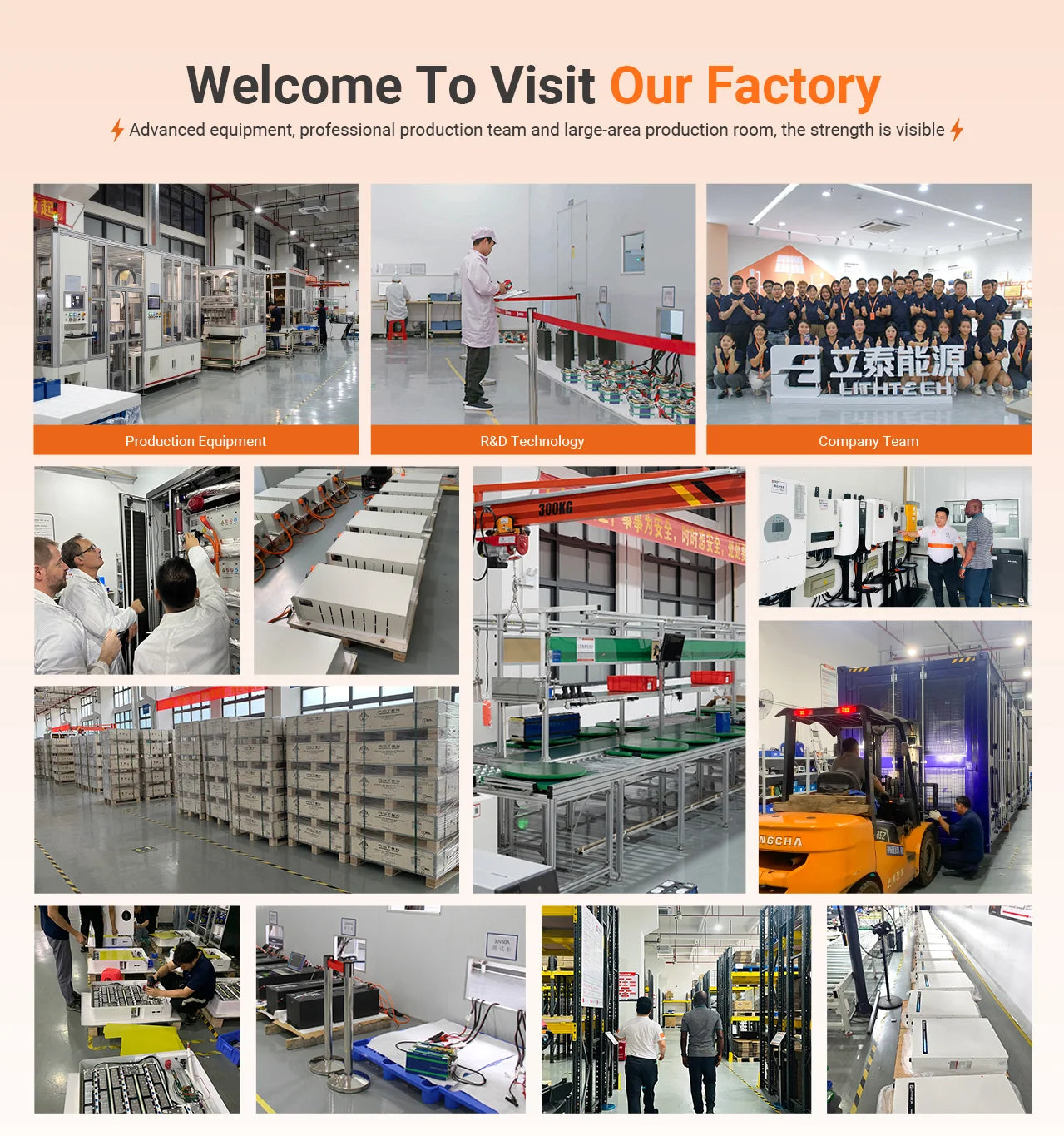

Factory Show

Regional agent

Package and Shipping

FAQ

Q1: Are you a factory or a trader?

A: Shenzhen Lithtech Energy Co., Ltd. is a professional manufacturer of LiFePO4 and Lithium Ion battery packs, with 5 advanced
production lines and over 300 professional technical R&D personnel and staff，Provide specialized battery customization solutions

Q2:Can you supply the sample and when you can delivery the goods?
A:Yes,and Sample order will delivery in 3-5 days ,mass order usually 15-25 days according to the quantity.

Q3:What kind of certification you have?
A: Products have TUV, IEC, CE, ISO, UL UN38.3 MSDS DNV and other related certifications.

Q4: What about after -sale service?
A: We will offer you 5 year guarantee. If there are any problems , please inform us,we will offer you positive solutions.

Q5: Can I get a lower price if I order large quantities?
A: Yes.

Q6: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always a final inspection before shipment.
