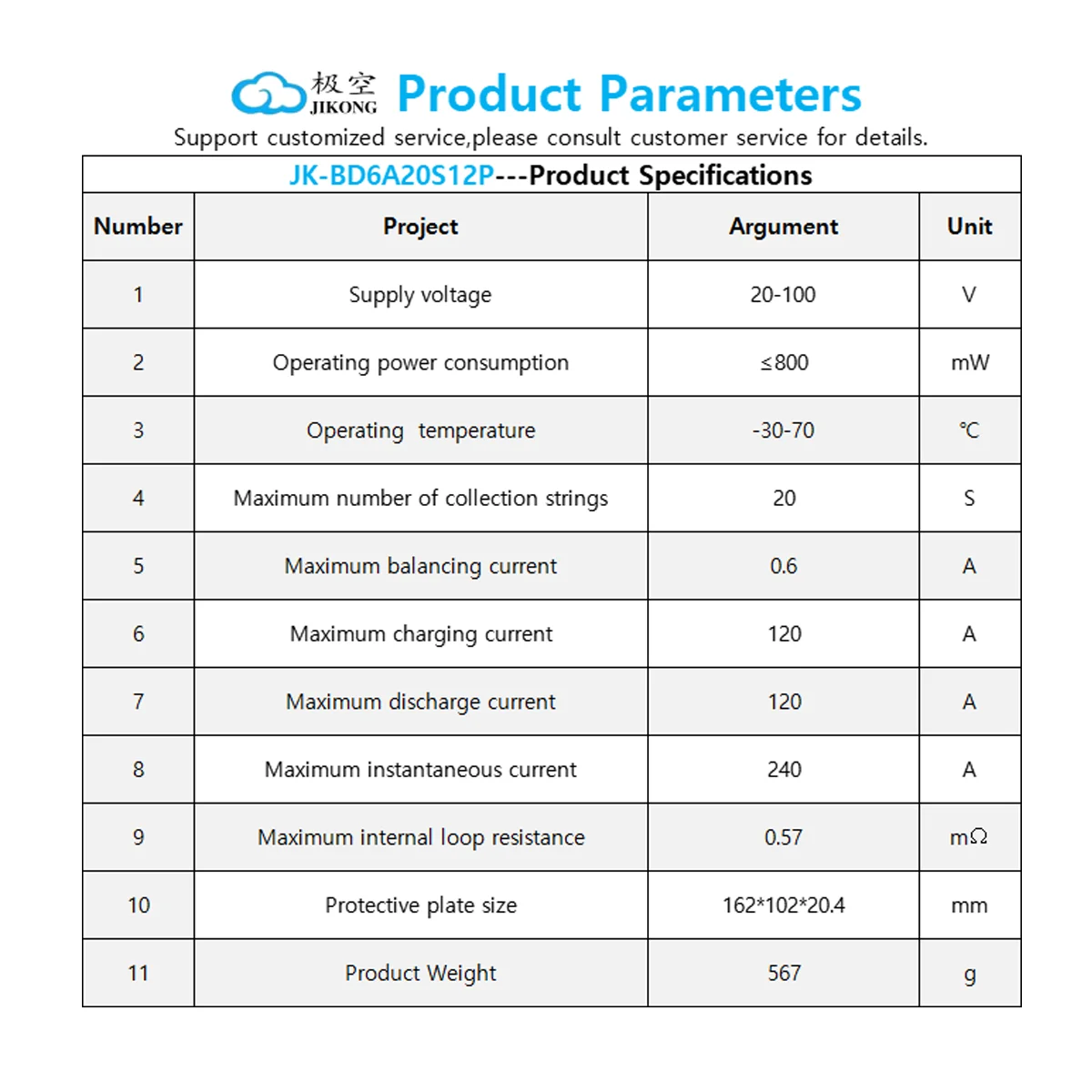

SPECIFICATIONS

Applicable Battery: 3.2V Lifepo4 Battery;3.6V/3.7V Li-ion Battery;LTO

Application field: inverter,Battery, E-Bike,E-Motorcycle,EV,Solar,RV, Energy storage UPS

BT Function: Internal

Balance Current: 0.6A

Balance Function: Active Balance

Brand Name: JIKONG

Copper Thickness: 2 OZ

Functional Application: Battery Charging

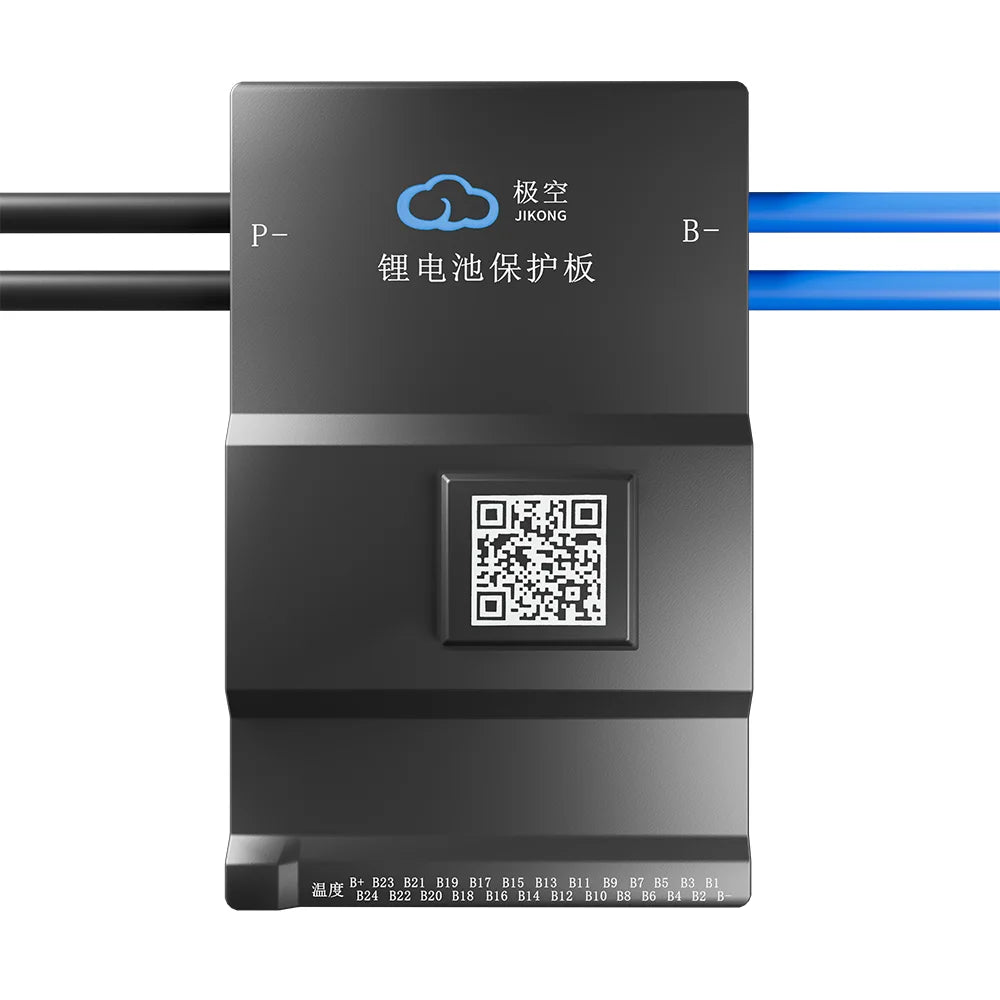

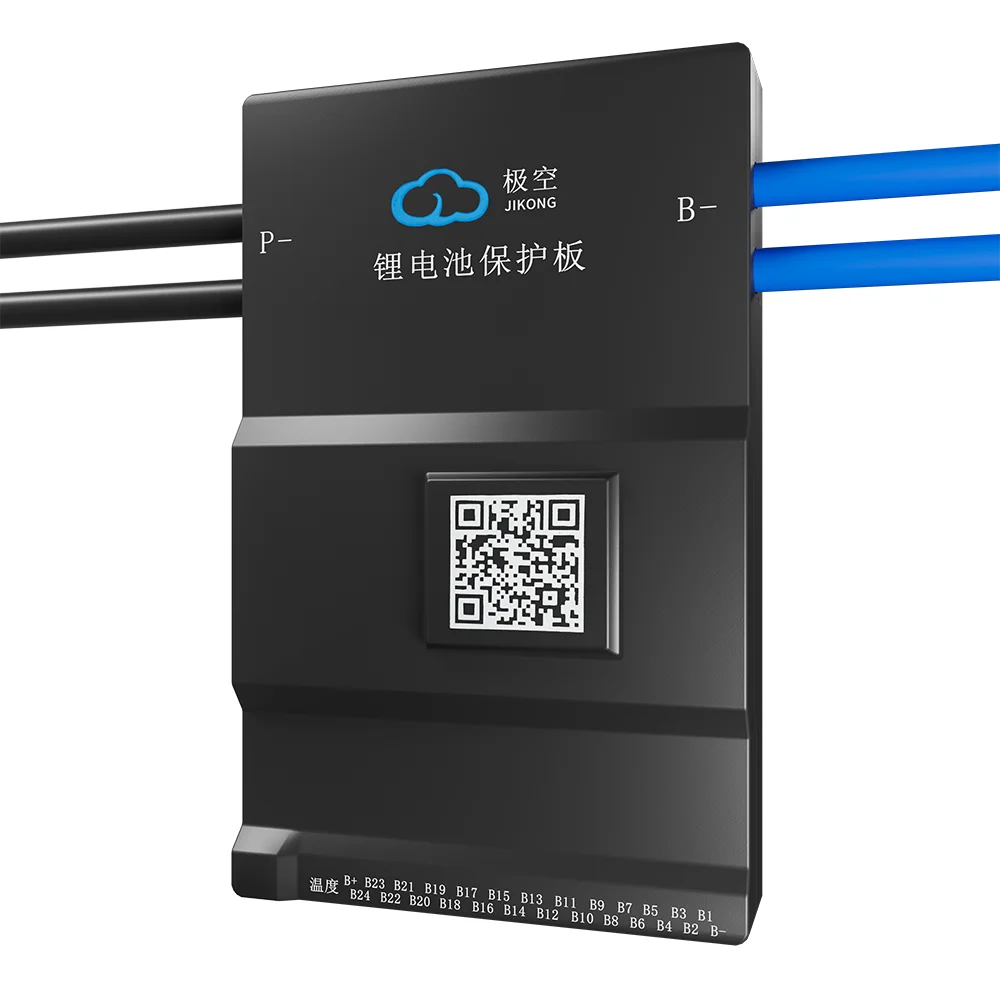

Model Number: JK-BD6A20S12P

Number of Strings: 8-20S

Place of Origin: Guangdong, China

Type: bms pcba

Voltage: 12V/24V/36V/48V/60V/72V

Working Current: 120A

Product Highlights

120A High Current Protection for Large Capacity Battery Packs

0.6A Active Balancing Improves Cell Performance and Battery Life

Supports 8S-20S Li-ion / LiFePO4 / LTO Battery Systems

FAQs

Q: Do all JIKONG BMS have built-in BT?

A: Answer 1- Yes,correct.

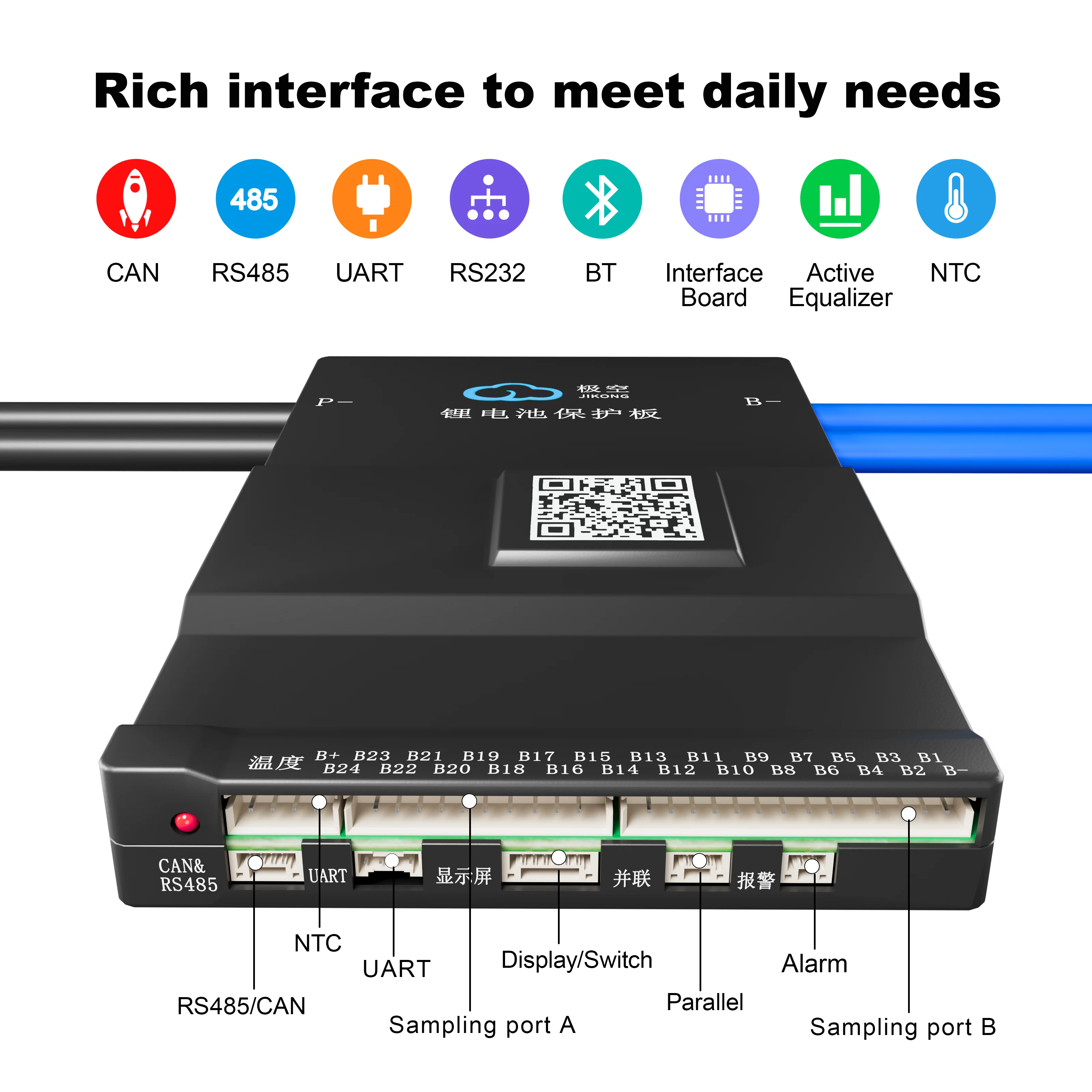

Q: All protection boards have Bluetooth communication by default. Do they also have RS485 or CAN communication?

A: No,default BMS with Only Bluetooth communication while no RS485&CANBUS communication, if need RS485&CANBUS communication, please contact customer service when place order.

Q: Can the RS485 communication box be used by directly inserting the default version JIKONG BMS?

A: Yes, cause every BMS(except ESS BMS in PB model)has GPS port which ok to support RS485 PC tool box.

Q: JIKONG BMS is with passive balance function or active balance function?

A: All JIKONG BMS is with active balance function.

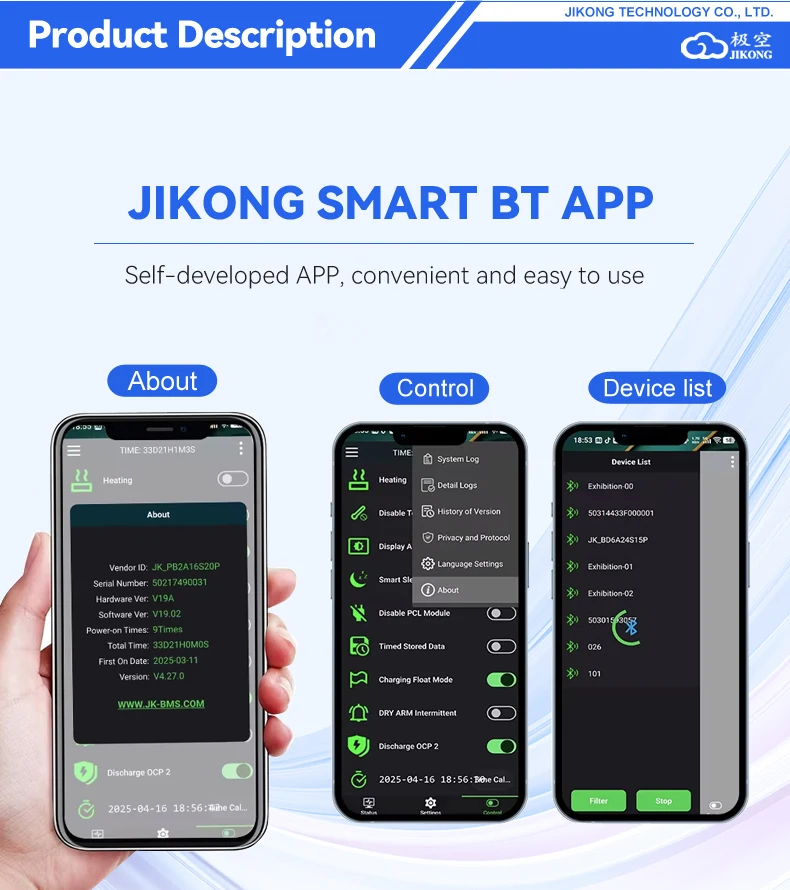

Q: Can you please tell me the APP connect password and data setting permission password?

A: Yes, bluetooth password is 1234, data setting password is 123456.

Q: Can all JIKONG BMS support parallel connection function?

A: No, only ESS BMS support parallel connection, other normal smart bms default versions not support parallel connection, if you need, please contact our customer service to add parallel connection when place order.
