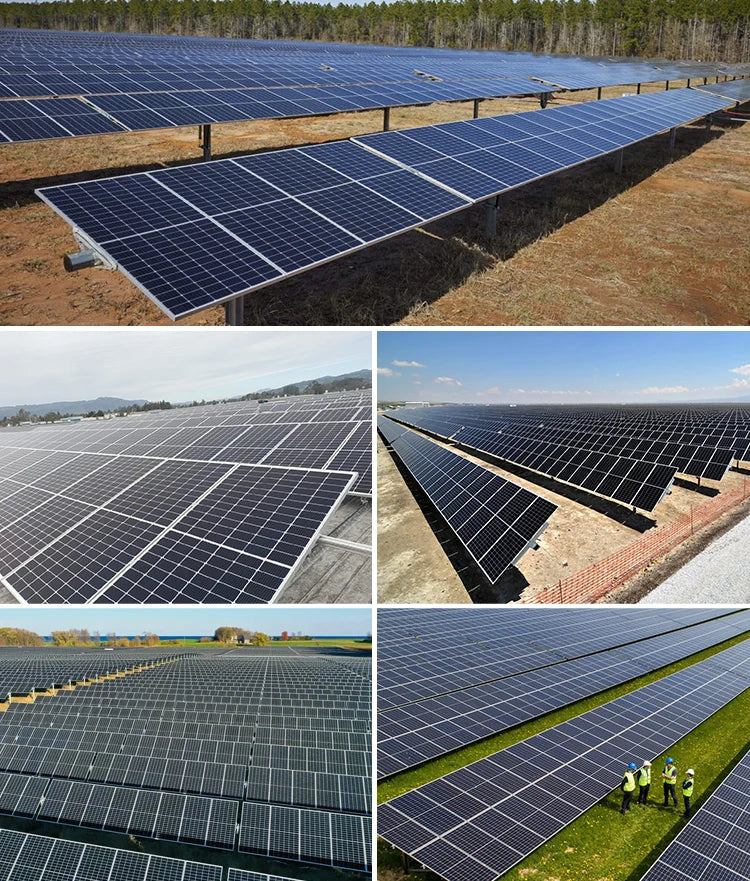

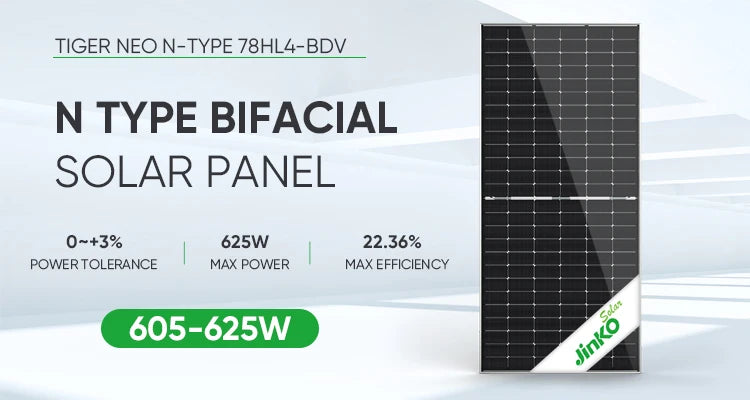

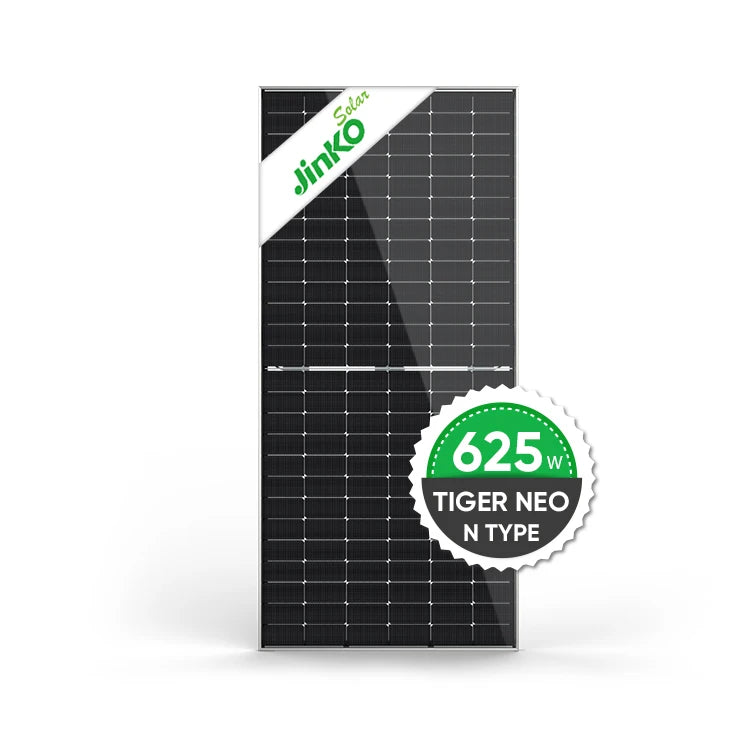

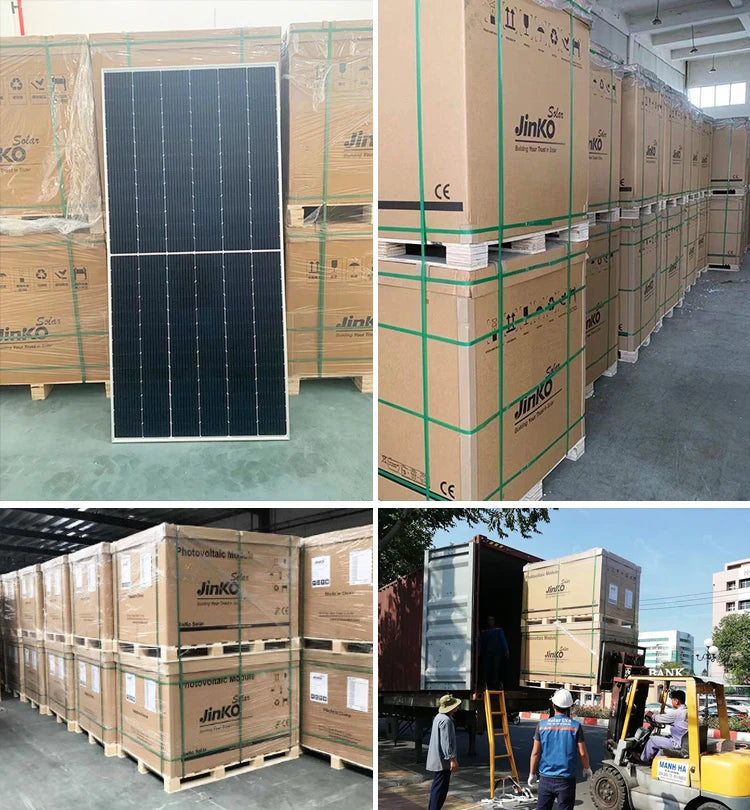

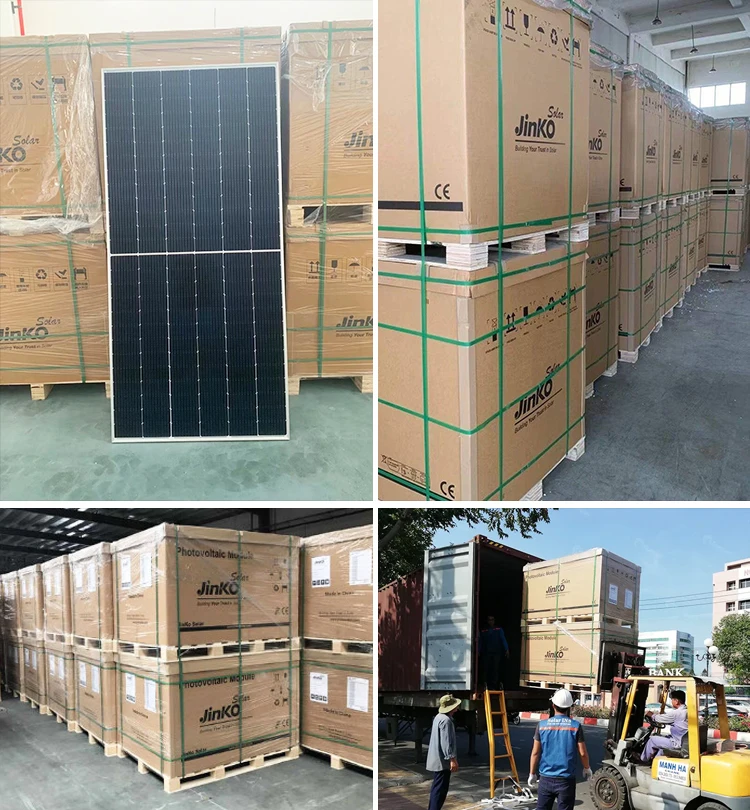

JINKO JKM605-625N-78HL4-BDV is an N-type monocrystalline bifacial solar panel designed for residential, commercial and solar power system applications.

Supplier-listed model range: 605W, 610W, 615W, 620W and 625W.

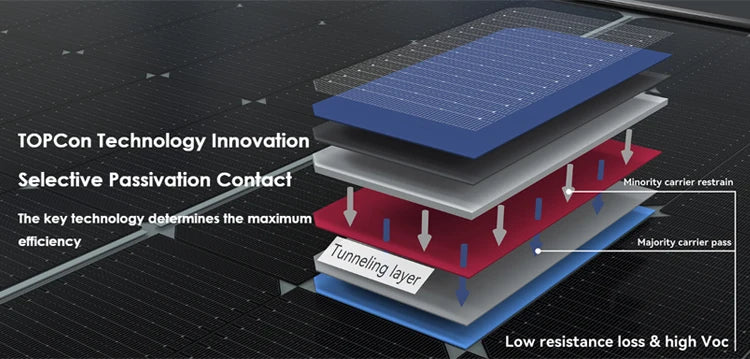

• Cell technology: N-type monocrystalline
• Cell configuration: 156 cells (2 × 78)
• Bifacial: Yes, dual-glass construction
• Panel efficiency: 21.64%–22.36% depending on model

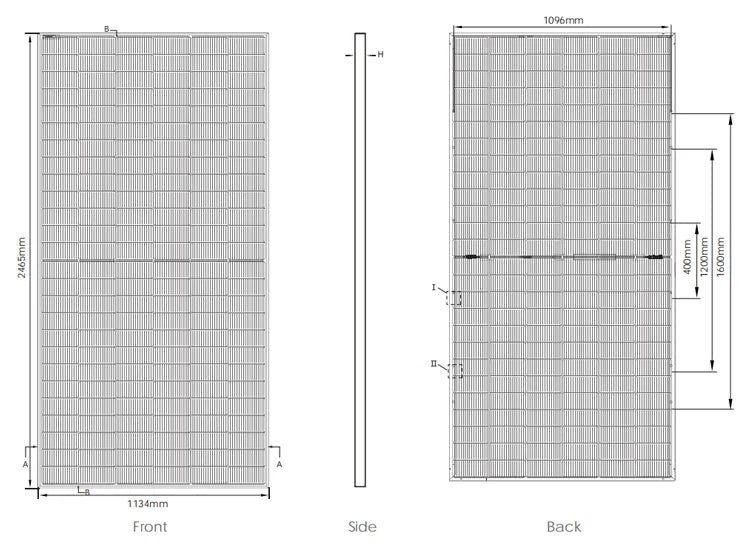

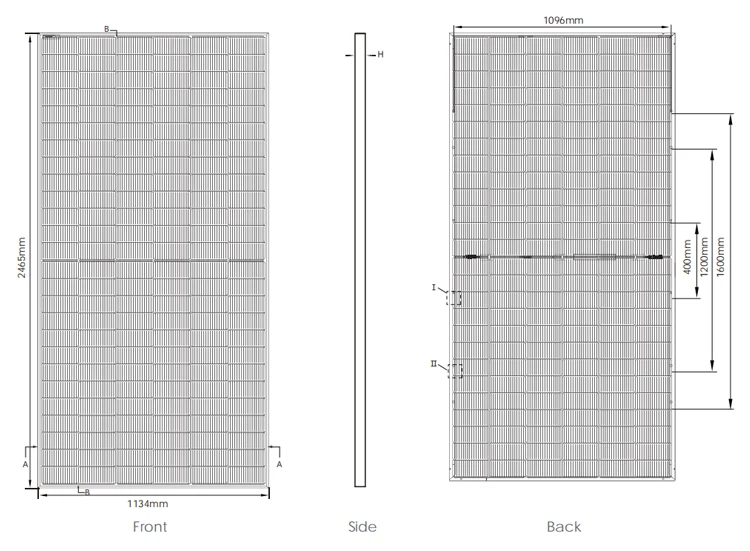

• Dimensions: 2465 × 1134 × 30mm
• Weight: 34.6kg
• Frame: Anodized aluminium alloy
• Junction box: IP68
• Maximum system voltage: 1500V DC (IEC)
• Maximum series fuse rating: 30A
• Operating temperature: -40°C to +85°C
• Power tolerance: 0 to +3%
• Warranty: Supplier-listed 30 years

Important: The current store listing has one default variant, so the exact wattage/model is not selectable on the product page yet. Please confirm the required wattage/model and current delivered price with PRIME RJ SOLAR PH before ordering.

For system design, panel quantity and inverter compatibility should be confirmed based on the customer's actual load and project requirements.
