SPECIFICATIONS

Apply For: Lifepo4/Li-ion/Lto Battery Pack

Base Material: PCBA

Board Size: 136*88.5*24.5

Board Thickness: 1MM

Brand Name: JIKONG

Copper Thickness: 1MM

Current: 40A 60A 80A 100A 150A 200A 500A

Functional Application: Battery Charging

Material: PCBA

Min. Hole Size: /

Min. Line Spacing: 2.54MM

Min. Line Width: 2.5MM

Model Number: LCD-4.3-TTL-P

Place of Origin: Guangdong, China

R485/CAN/GPS: support

Strings: 4s to 24s

Surface Finishing: PCBA

Type: JK BMS

Voltage: 12V ~ 96V

With BT: YES

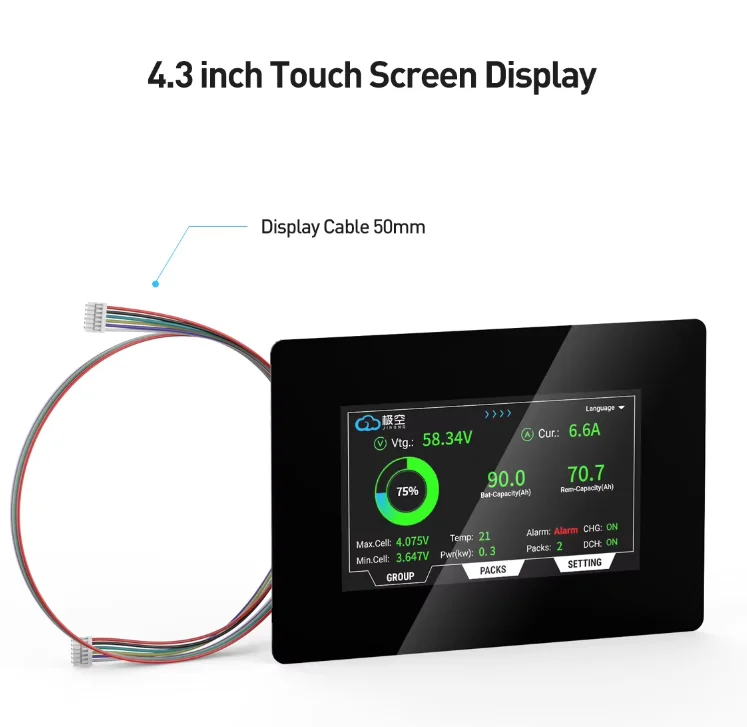

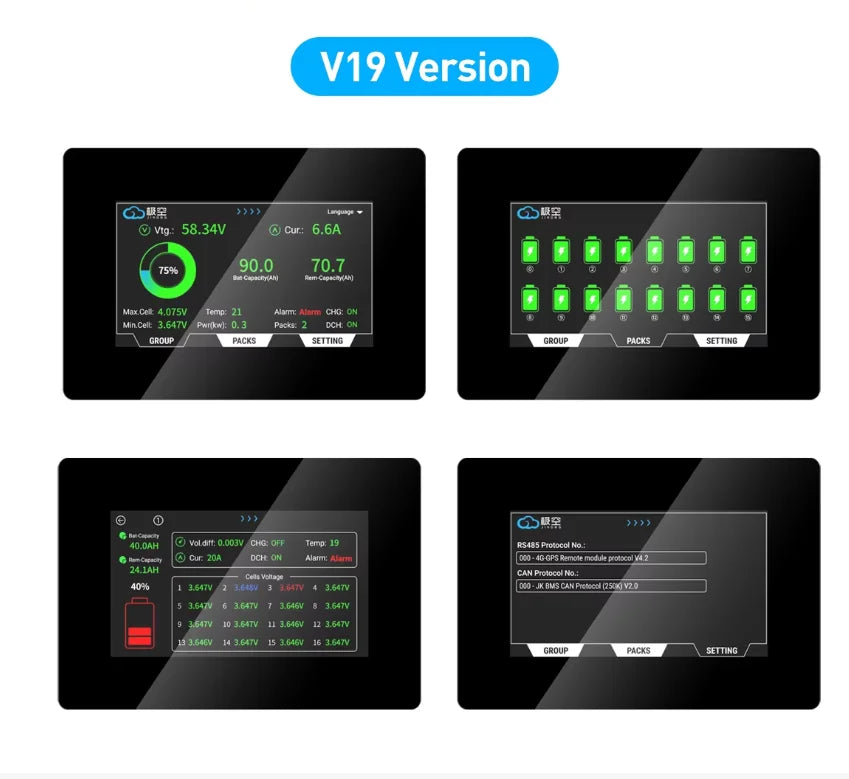

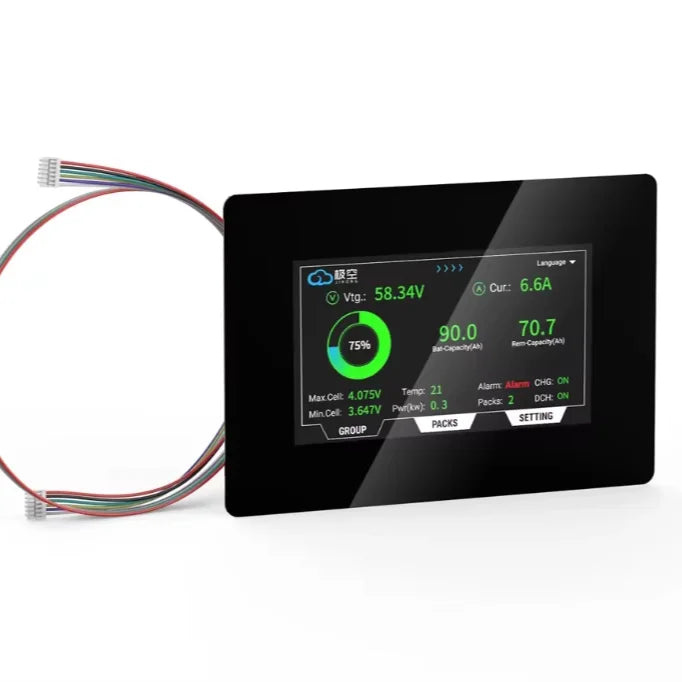

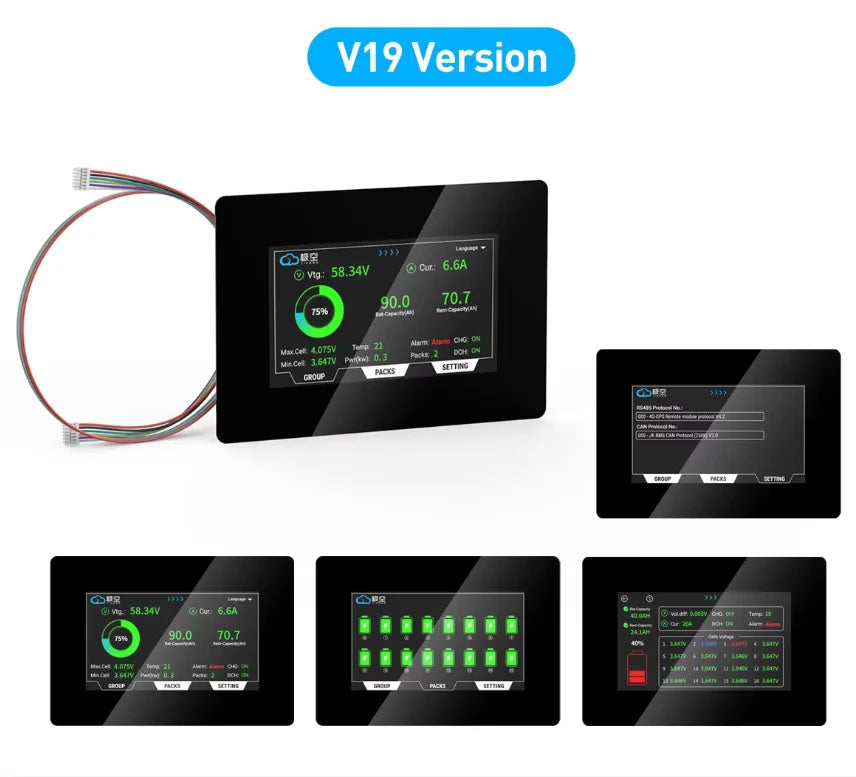

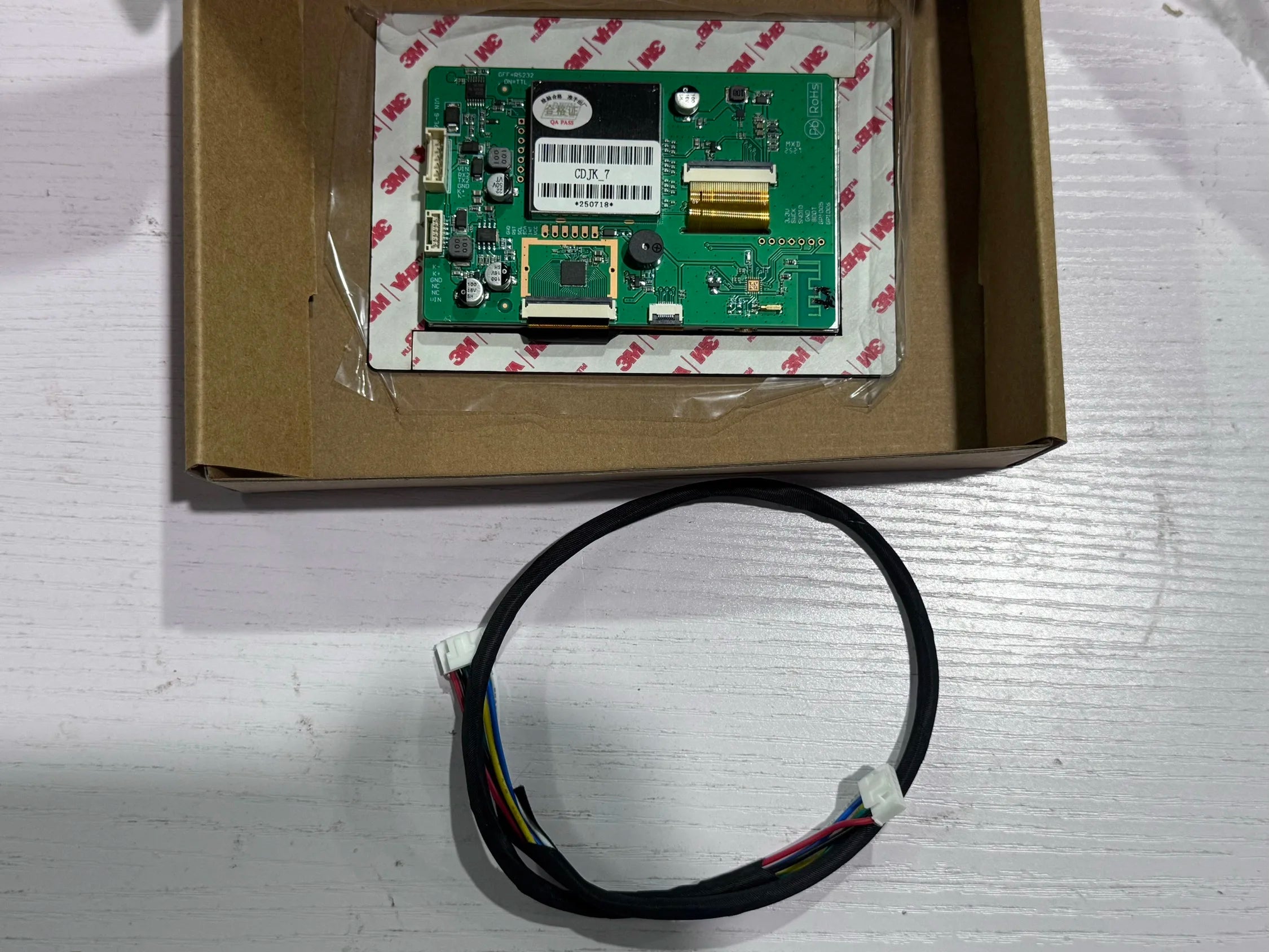

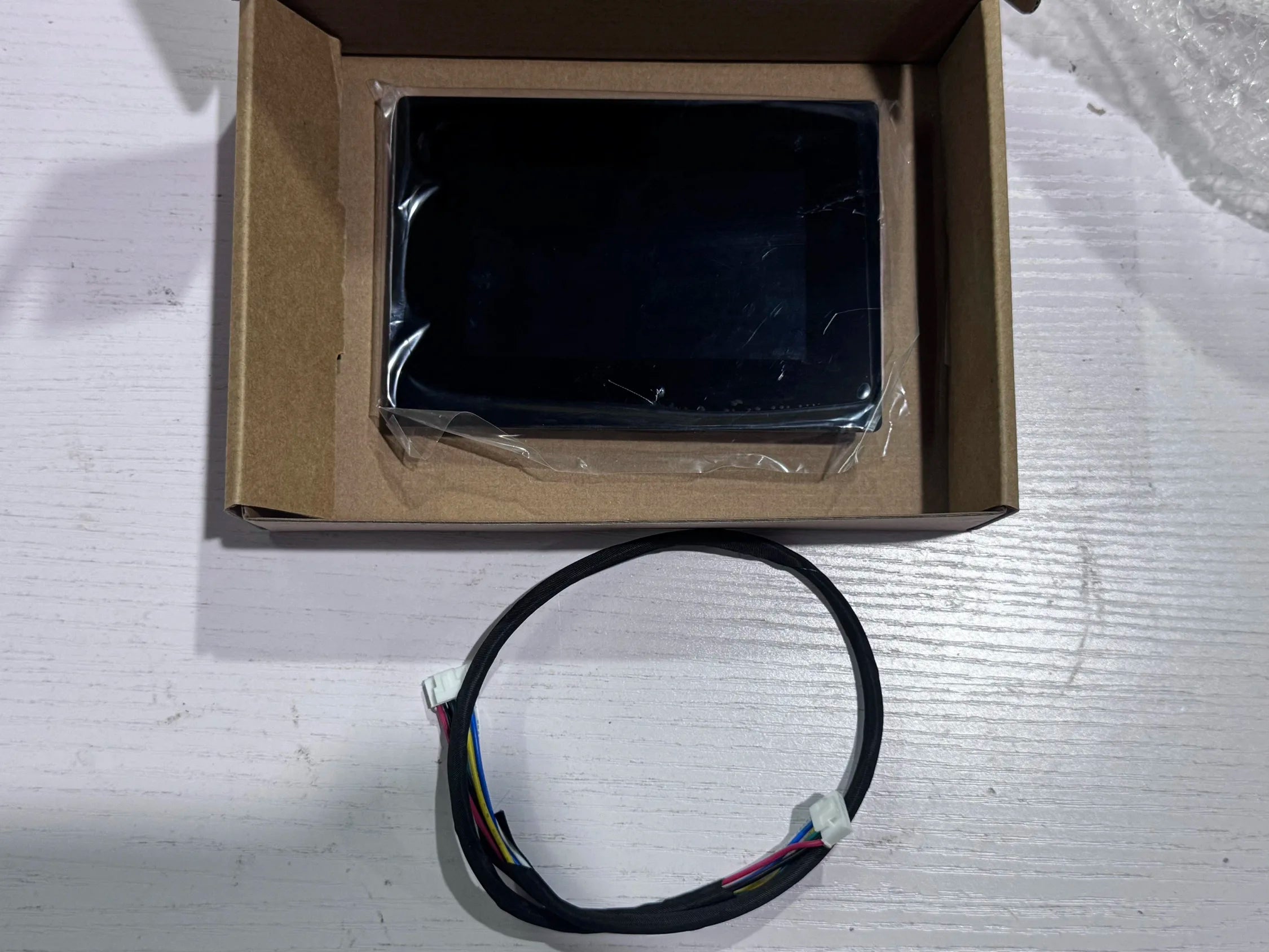

JIKONG LCD-4.3-TTL-P 4.3" LCD Touch Screen BMS PCBA for JK Battery Charging

Number of Strings	4s to 24s
Working Current	40A 60A 80A 100A 150A 200A 500A
Voltage	24V/36V/48V/60V/72V/84V
More Functions	Active Balance
Applicable Battery	3.2V Lifepo4; 3.6V /3.7V Li-ion;LTO
Communication	BT
Balance Current	/
TIP(Contact for purchase)	RS485/CANBUS/Heating/Temp Sensor/Parallel Connection/ACC

1. Do all JIKONG BMS have built-in BT?

Answer 1- Yes,correct.

2. All protection boards have Bluetooth communication by default. Do they also have RS485 or CAN communication?

No,default BMS with Only Bluetooth communication while no RS485&CANBUS communication, if need RS485&CANBUS communication, please contact customer service when place order.

3. Can the RS485 communication box be used by directly inserting the default version JIKONG BMS?

Yes, cause every BMS(except ESS BMS in PB model)has GPS port which ok to support RS485 PC tool box.

4.JIKONG BMS is with passive balance function or active balance function?

All JIKONG BMS is with active balance function.

5. Can you please tell me the APP connect password and data setting permission password?

Yes, bluetooth password is 1234, data setting password is 123456.

6.Can all JIKONG BMS support parallel connection function?

No, only ESS BMS support parallel connection, other normal smart bms default versions not support parallel connection, if you need, please contact our customer service to add parallel connection when place order.
