SPECIFICATIONS

Applicable Battery: 3.2V Lifepo4 Battery;3.6V/3.7V Li-ion Battery;LTO

Application field: inverter,Battery, E-Bike,E-Motorcycle,EV,Solar,RV, Energy storage UPS

BT Function: Internal

Balance Current: 2A

Balance Function: Active Balance

Base Material: PCB

Board Size: 162*100*24(±2mm)

Board Thickness: 25mm

Brand Name: JIKONG

Copper Thickness: 2 0Z

Functional Application: Battery Charging

Min. Hole Size: 20*20MM

Min. Line Spacing: Customzied

Min. Line Width: 10mm

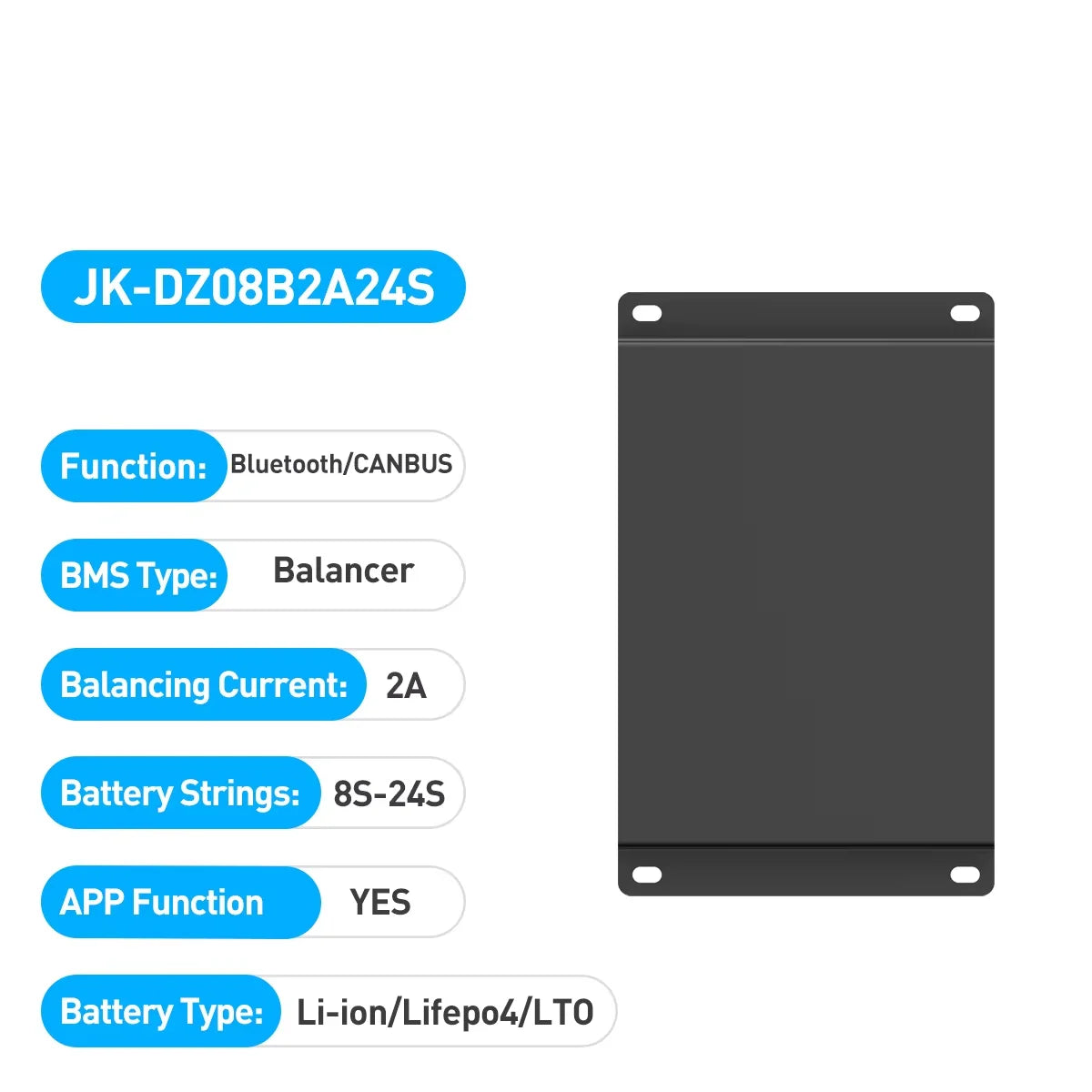

Model Number: JK-DZ08B2A24S

Number of Strings: 8-24S

Place of Origin: Guangdong, China

Surface Finishing: Aluminum

Voltage: 24V/36V/48V/60V/72V/84V

Working Current: /

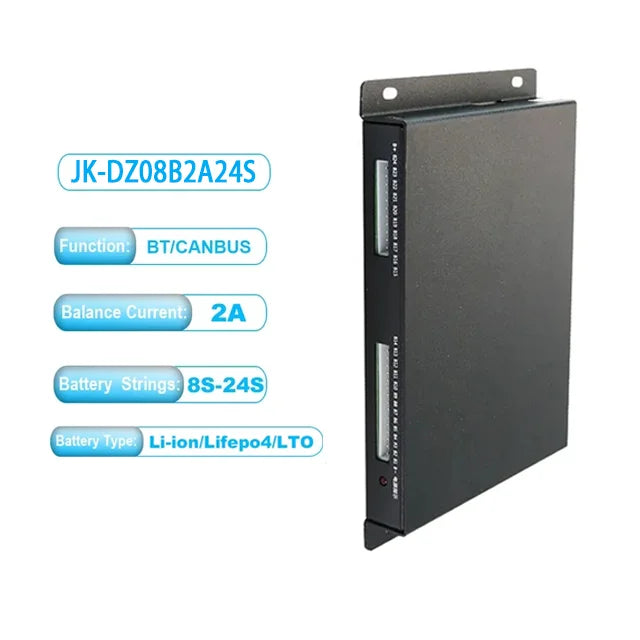

JIKONG 8-24S Equalizer 2A Active Balance Current

JK Smart BMS 72V with CAN Communication

Number of Strings	8-24S Smart Active BMS
Working Current	/
Voltage	24V/36V/48V/60V/72V/84V
More Functions	Active Balance
Applicable Battery	3.2V Lifepo4; 3.6V /3.7V Li-ion;LTO
Communication	BT
Balance Current	2A
TIP(Contact for purchase)	CANBUS

1. Do all JIKONG BMS have built-in BT?

Answer 1- Yes,correct.

2. All protection boards have Bluetooth communication by default. Do they also have RS485 or CAN communication?

No,default BMS with Only Bluetooth communication while no RS485&CANBUS communication, if need RS485&CANBUS communication, please contact customer service when place order.

3. Can the RS485 communication box be used by directly inserting the default version JIKONG BMS?

Yes, cause every BMS(except ESS BMS in PB model)has GPS port which ok to support RS485 PC tool box.

4.JIKONG BMS is with passive balance function or active balance function?

All JIKONG BMS is with active balance function.

5. Can you please tell me the APP connect password and data setting permission password?

Yes, bluetooth password is 1234, data setting password is 123456.

6.Can all JIKONG BMS support parallel connection function?

No, only ESS BMS support parallel connection, other normal smart bms default versions not support parallel connection, if you need, please contact our customer service to add parallel connection when place order.
