SPECIFICATIONS

Applicable Battery: 3.2V Lifepo4 Battery;3.6V/3.7V Li-ion Battery;LTO

Application field: inverter,Battery, E-Bike,E-Motorcycle,EV,Solar,RV, Energy storage UPS

BT Function: Internal

Balance Current: 0.4A

Balance Function: Active Balance

Base Material: PCB

Board Size: 116*83*17.6(±2mm)

Board Thickness: 25mm

Brand Name: JIKONG

Copper Thickness: 2 0Z

Functional Application: Battery Charging

Min. Hole Size: 20*20MM

Min. Line Spacing: Customzied

Min. Line Width: 10mm

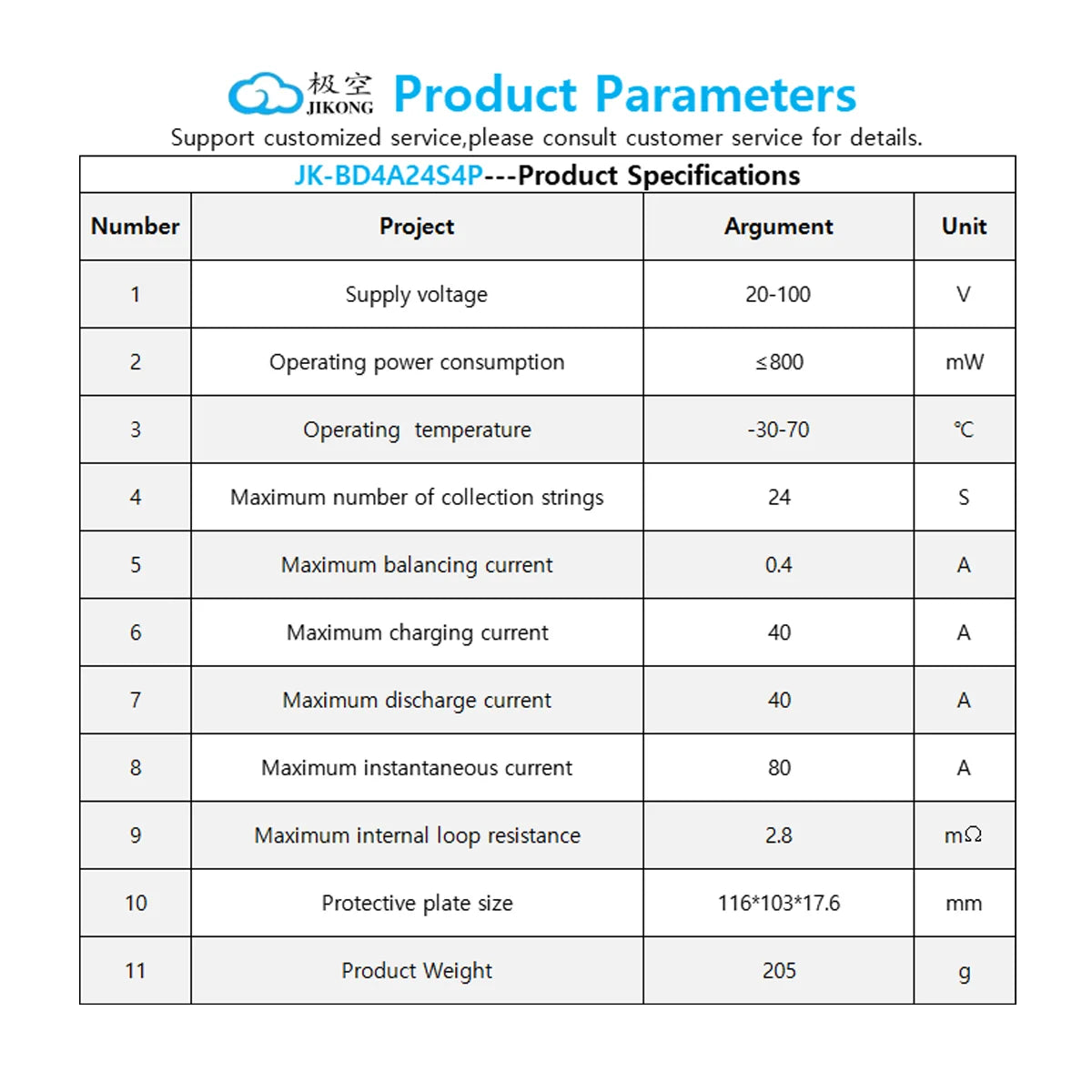

Model Number: JK-BD4A24S4P

Number of Strings: 8-24S

Place of Origin: Guangdong, China

Surface Finishing: Aluminum

Voltage: 12v/24v/36v/48v/60v/72v/84V

Working Current: 40A

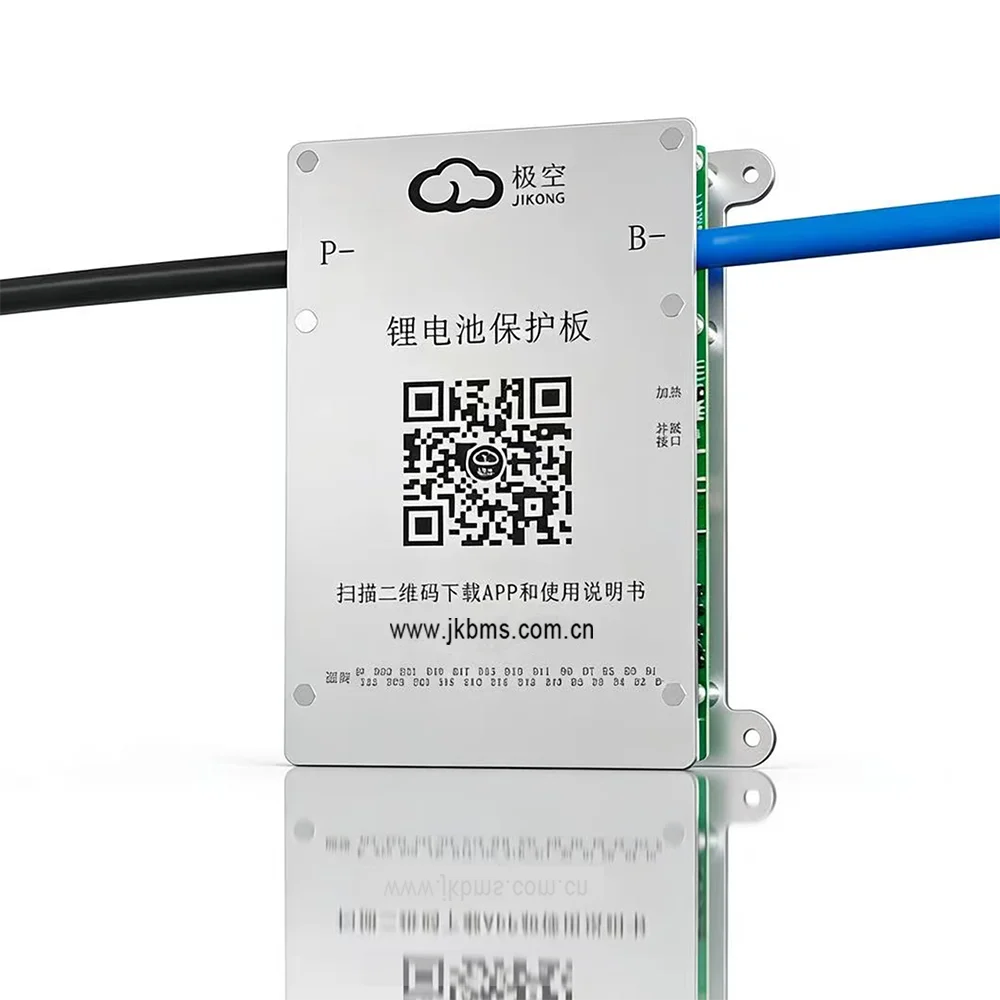

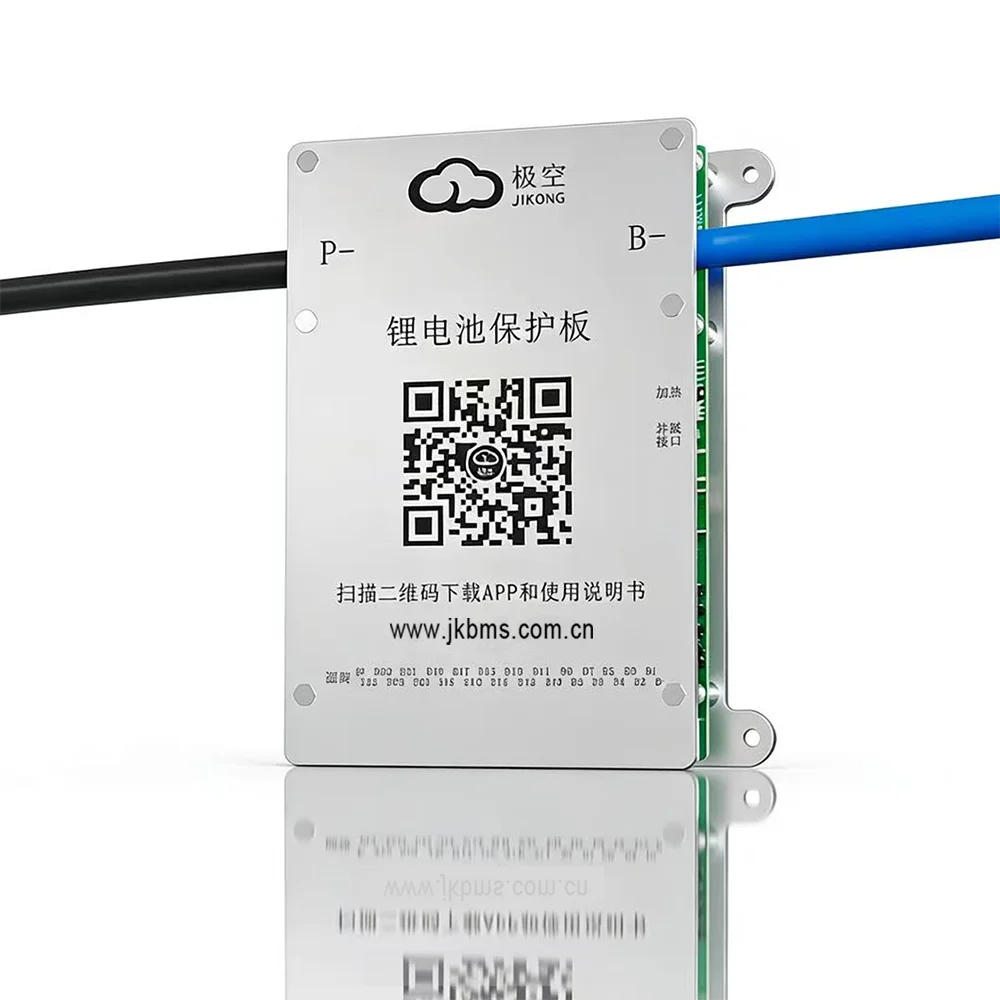

JIKONG 8-24S Active BMS JK Smart BMS 8S 24V Lifepo4

Number of Strings	8-24S Smart Active BMS
Working Current	40A
Voltage	12V/24V/36V/48V/60V/72V
More Functions	Active Balance
Applicable Battery	3.2V Lifepo4; 3.6V /3.7V Li-ion;LTO
Communication	BT
Balance Current	0.4A

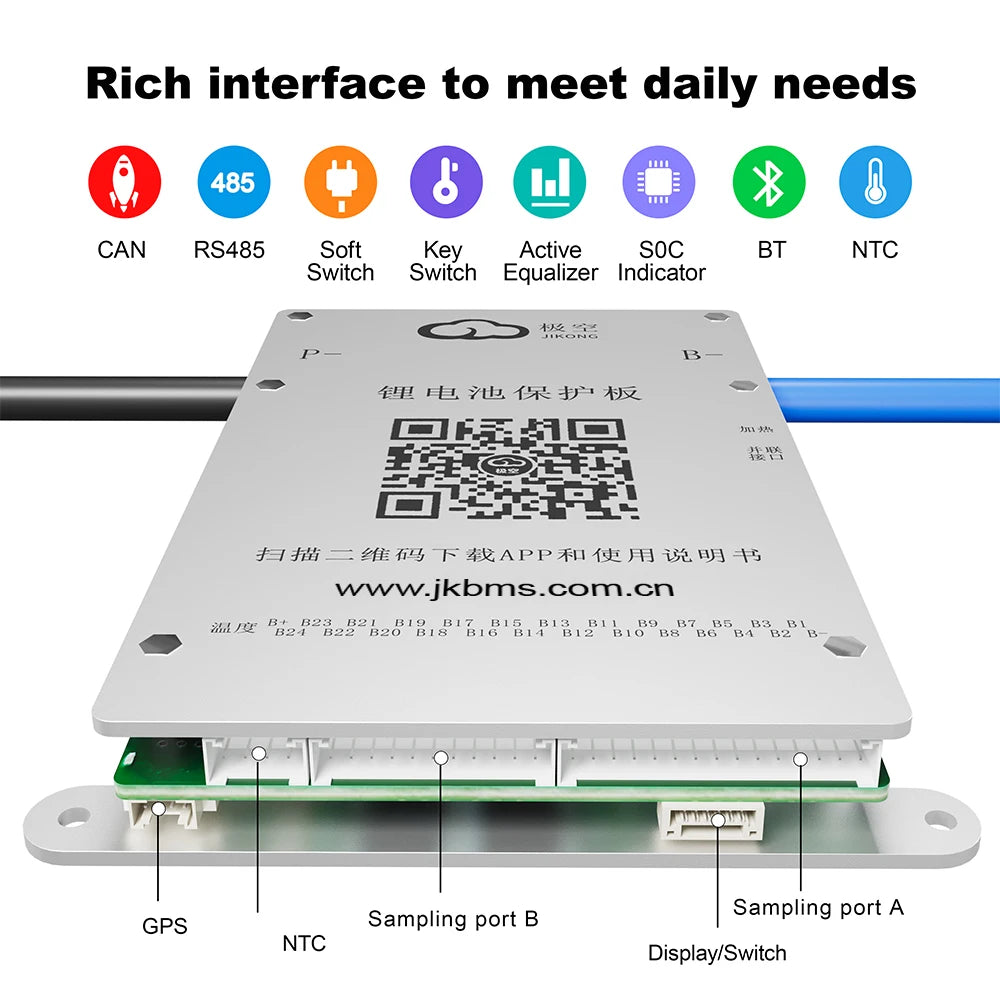

TIP(Contact for purchase)	RS485/CANBUS/Heating/Temp Sensor/Parallel Connection/ACC
