SPECIFICATIONS

Applicable Battery: 3.2V Lifepo4 Battery;3.6V/3.7V Li-ion Battery;LTO

Application field: inverter,Battery, E-Bike,E-Motorcycle,EV,Solar,RV, Energy storage UPS

BT Function: Internal

Balance Current: 2A

Balance Function: Active Balance

Base Material: PCB

Board Size: 300*100*18(±2mm)

Board Thickness: 25mm

Brand Name: JIKONG

Copper Thickness: 2 0Z

Functional Application: Battery Charging

Min. Hole Size: 20*20MM

Min. Line Spacing: Customzied

Min. Line Width: 10mm

Model Number: JK-PB2A16S15P

Number of Strings: 8-16S

Place of Origin: Guangdong, China

Surface Finishing: Aluminum

Voltage: 24V/36V/48V/60V

Working Current: 150A

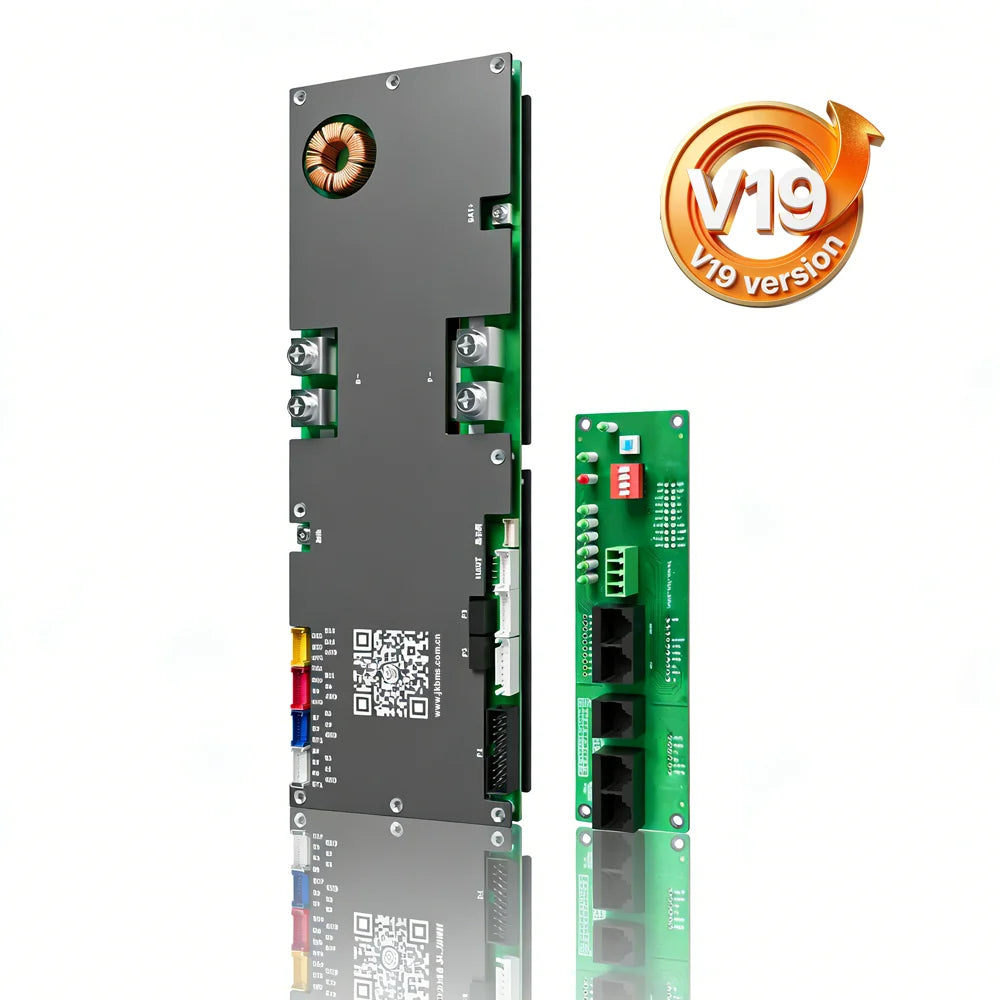

JIKONG 8-16S Active BMS Lifepo4 24V 150A JK Smart BMS

8S with Parallel Connection JK BMS V19

Number of Strings	8-16S
Working Current	150A
Voltage	12V/24V/36V/48V
More Functions	Active Balance
Applicable Battery	3.2V Lifepo4; 3.6V /3.7V Li-ion;LTO
Communication	BT
Balance Current	2A
TIP(Contact for purchase)	RS485/CANBUS/Heating/Temp Sensor/Parallel Connection/ACC
