SPECIFICATIONS

Apply to: Lifepo4/LTO/Li ion Battery Pack

Base Material: Aluminum,aluminum

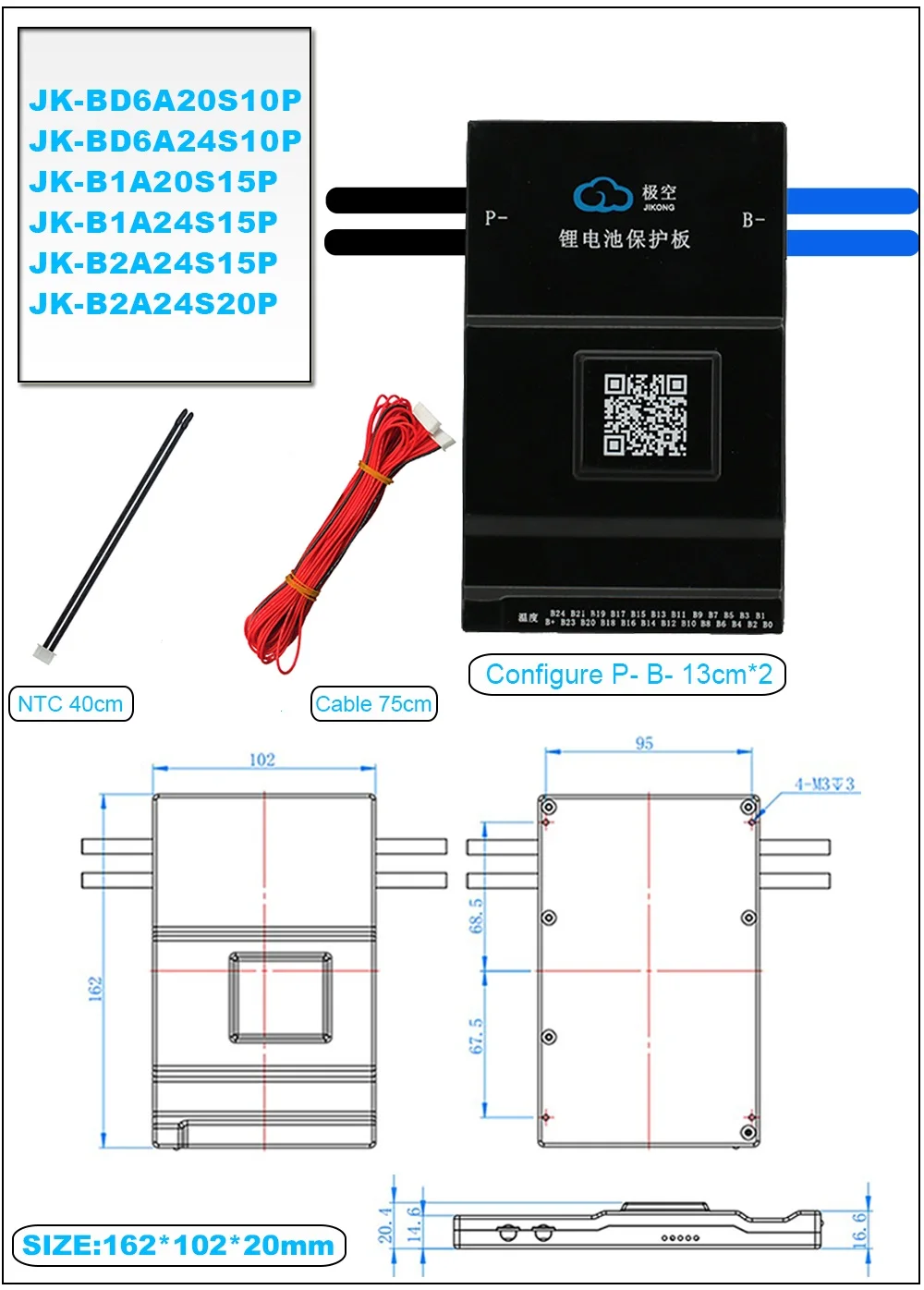

Board Size: HAL-Free,135*83*17.6mm/162*102*20mm

Board Thickness: 0.2~6mm,17.8mm-20.4mm

Brand Name: JK

Cerficate: CE

Communication: RS485/CANbus/UART

Copper Thickness: 1oz

Customize: YES

Discharge current: 60A 80A 100A 150A 200A

Min. Hole Size: <1mm

Min. Line Spacing: <3mm

Min. Line Width: <1mm

Model Number: JK BMS

Place of Origin: Sichuan, China

Product name: Jk smart Bms

Surface Finishing: <1mm

Voltage: 24v-96v

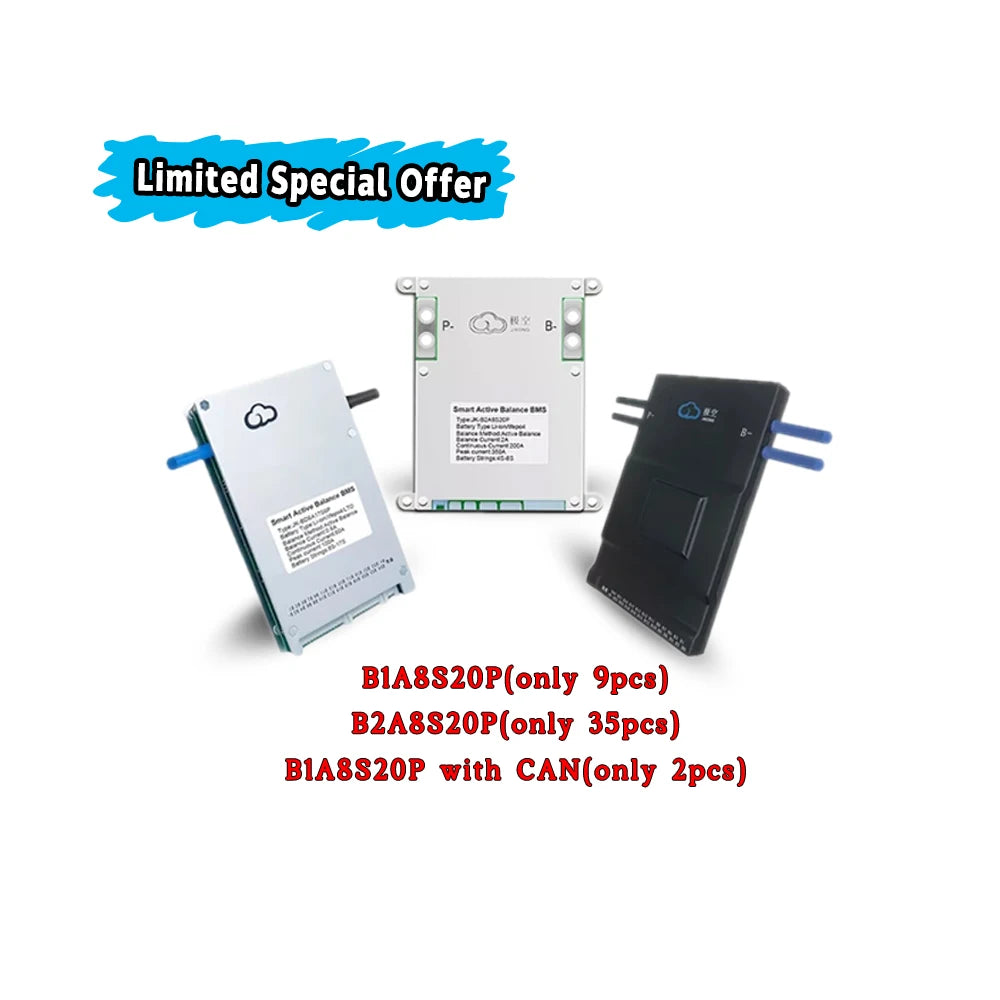

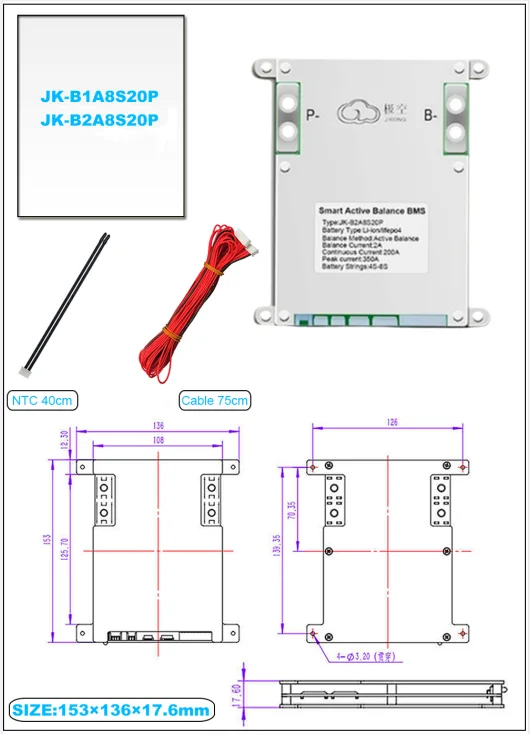

JK-B1A8S20P(b1a8s20p 4-8s 200ah)、JK-B2A8S20P（b2a8s20p 4-8s 200ah） IN STOCK

THE SAME DAY ORDER THE SAME DAY SHIPPING!

Product Paramenters

Note：

1. We are an authorized store of JK manufacturer with CE certificate 2. Each product is tested before shipment, brand new and authentic, imported and reliable IC&MOS 3. All models have built-in Bluetooth software, RS485 and LCD default interface 4. Each model can provide the latest version (compatible with 8s and support touch screen)

Products Description

NOTE:

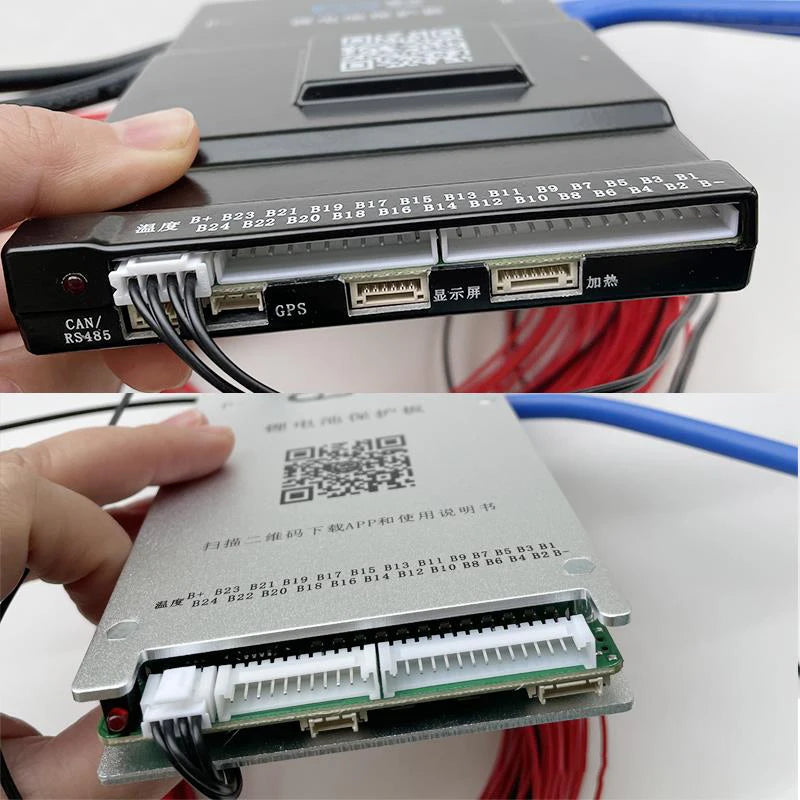

①:Temperature sensor
②:RS485 interface(At present, all JK BMS are configured with RS485 function by default)
③:LCD interface(At present, all JK BMS are configured with LCD interface by default)(Except of JK-BD4A17S4P)
④:Heat Function interface(At present, the heating function customized by customers can be accepted)
⑤:CANBUS interface ( Needs customized)

Schematic diagram of connection method

PS:Please contact us for documentation version instructions

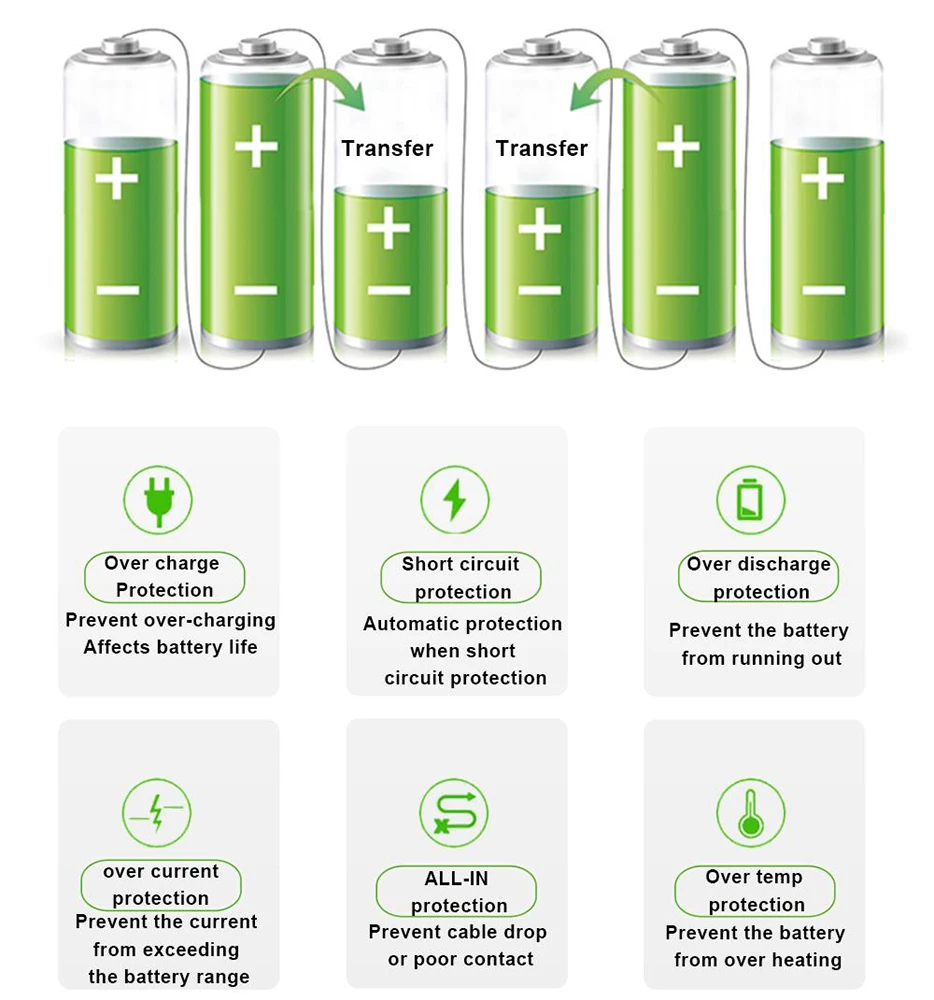

6 layers of intelligent guardian

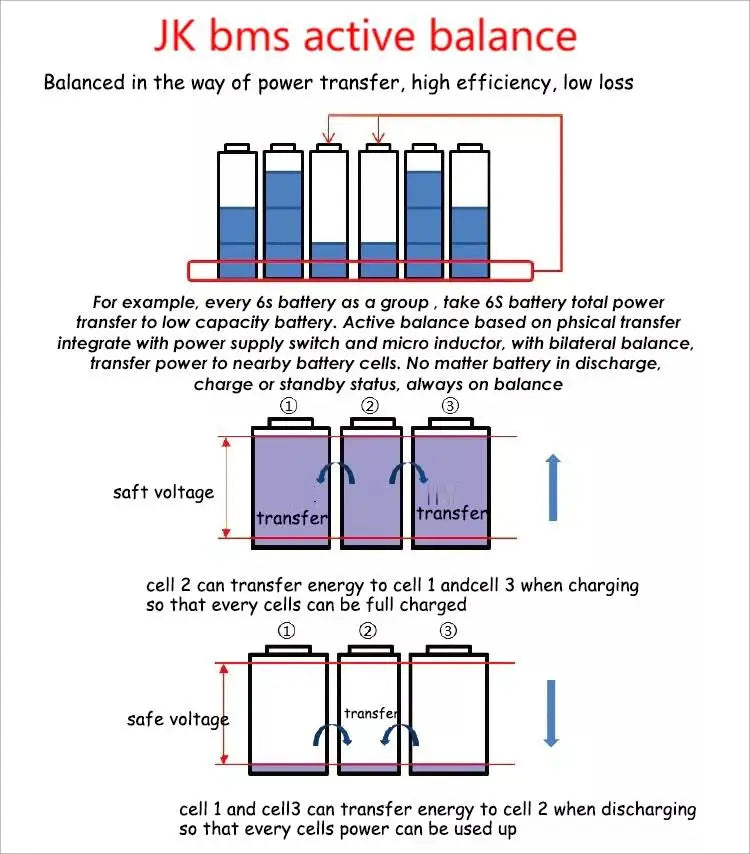

JK Energy transfer with independent patent design

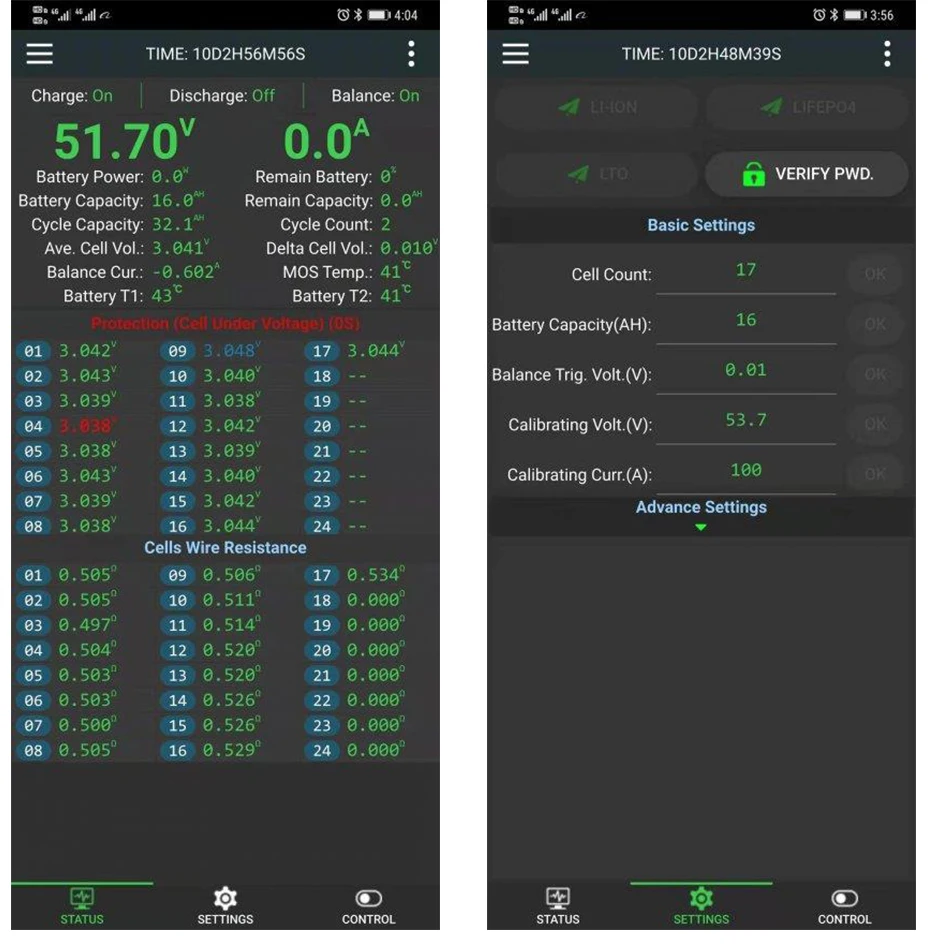

Switch between Chinese and English，Both Android and Apple

Download link-IOS : Search (JIKONG BMS) in the APP STORE; Download link-Andriod : https://www.pgyer.com/Cfq3

Product Application

Battery Rental BMS

Digital Product BMS

E-bike E-scooter BMS

Electric Car BMS

Electrical Tools BMS

Storage Battery BMS

Customer praise

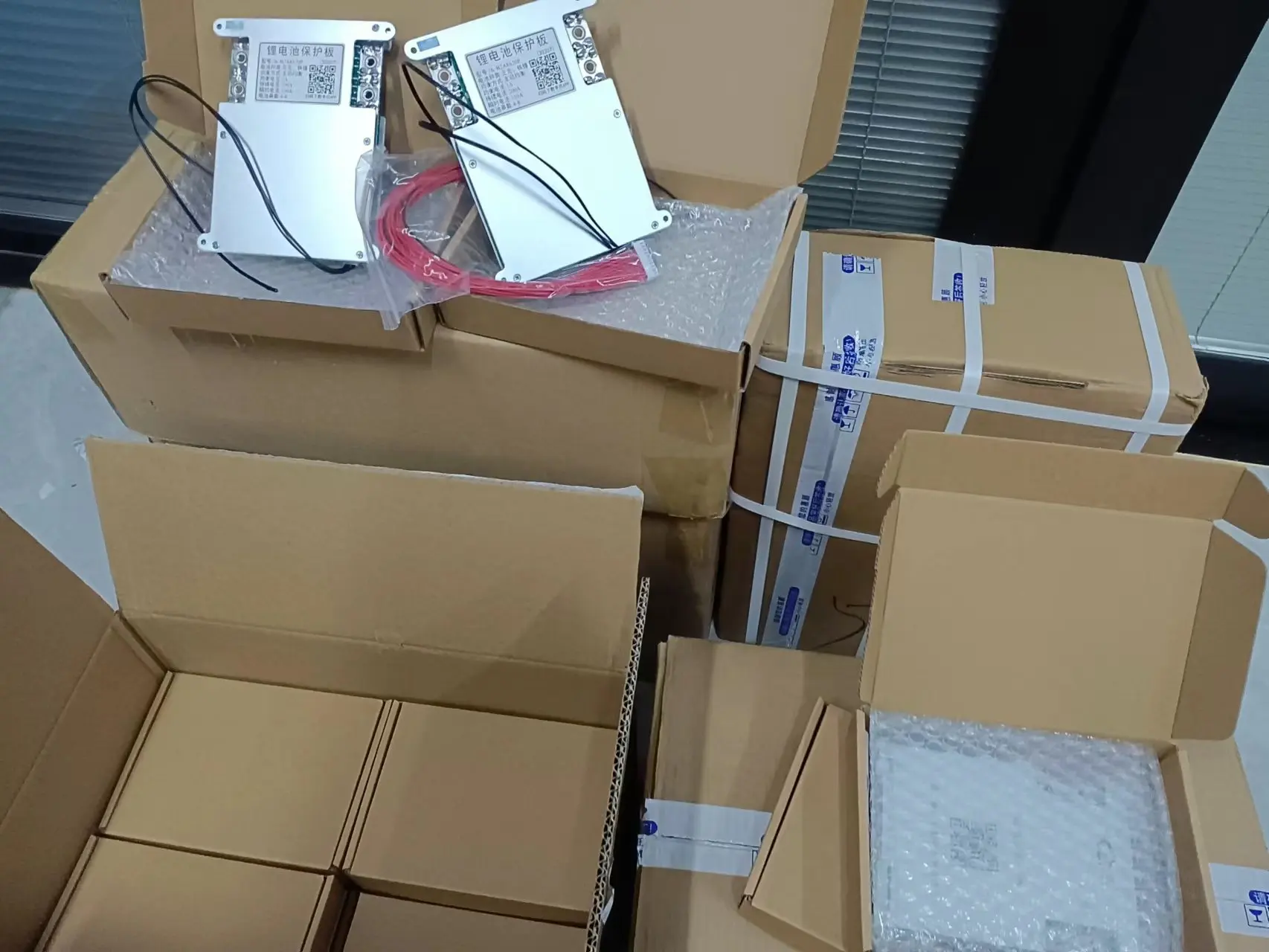

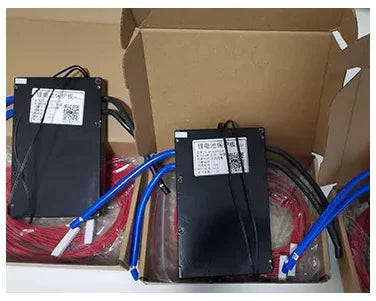

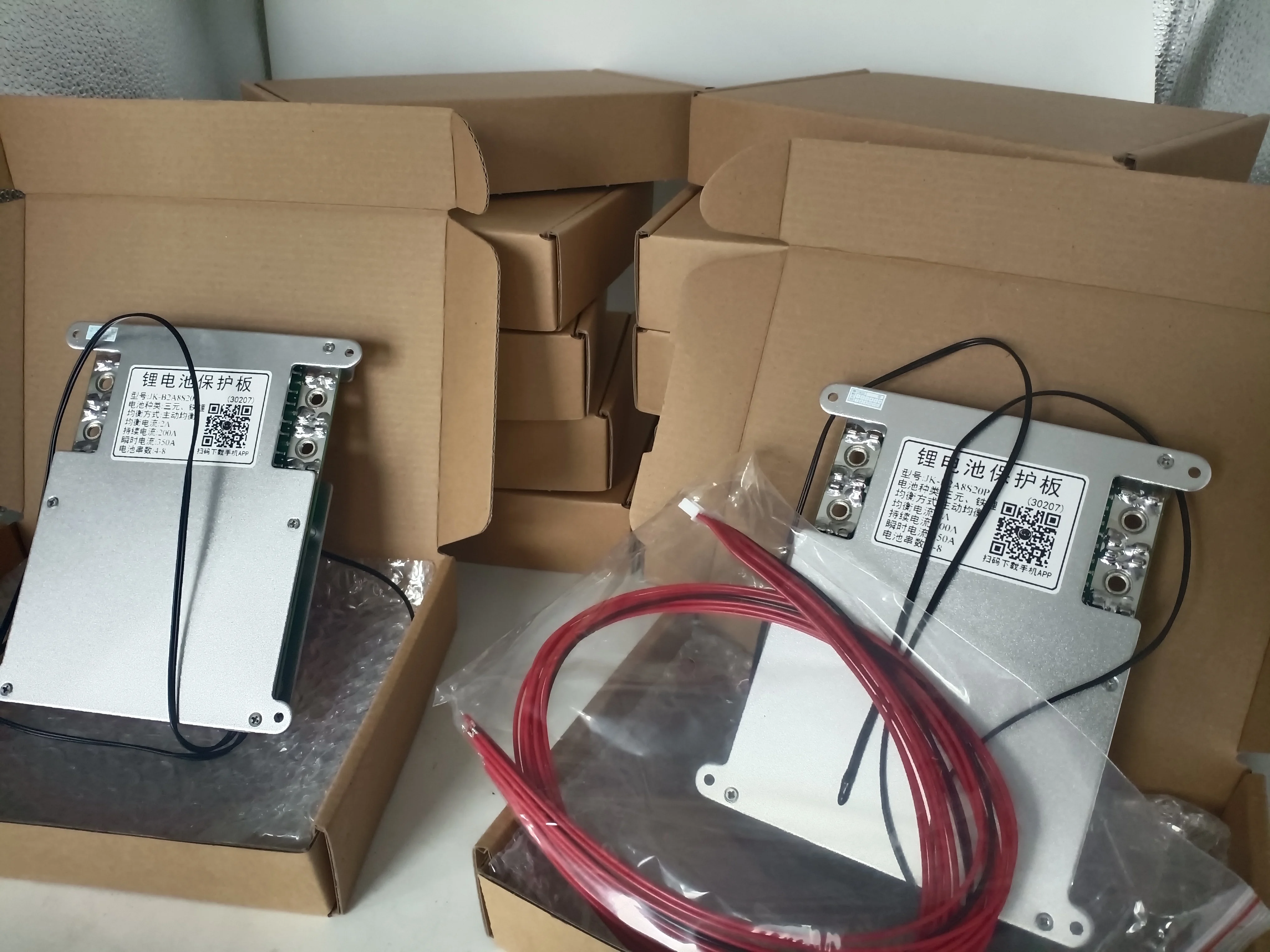

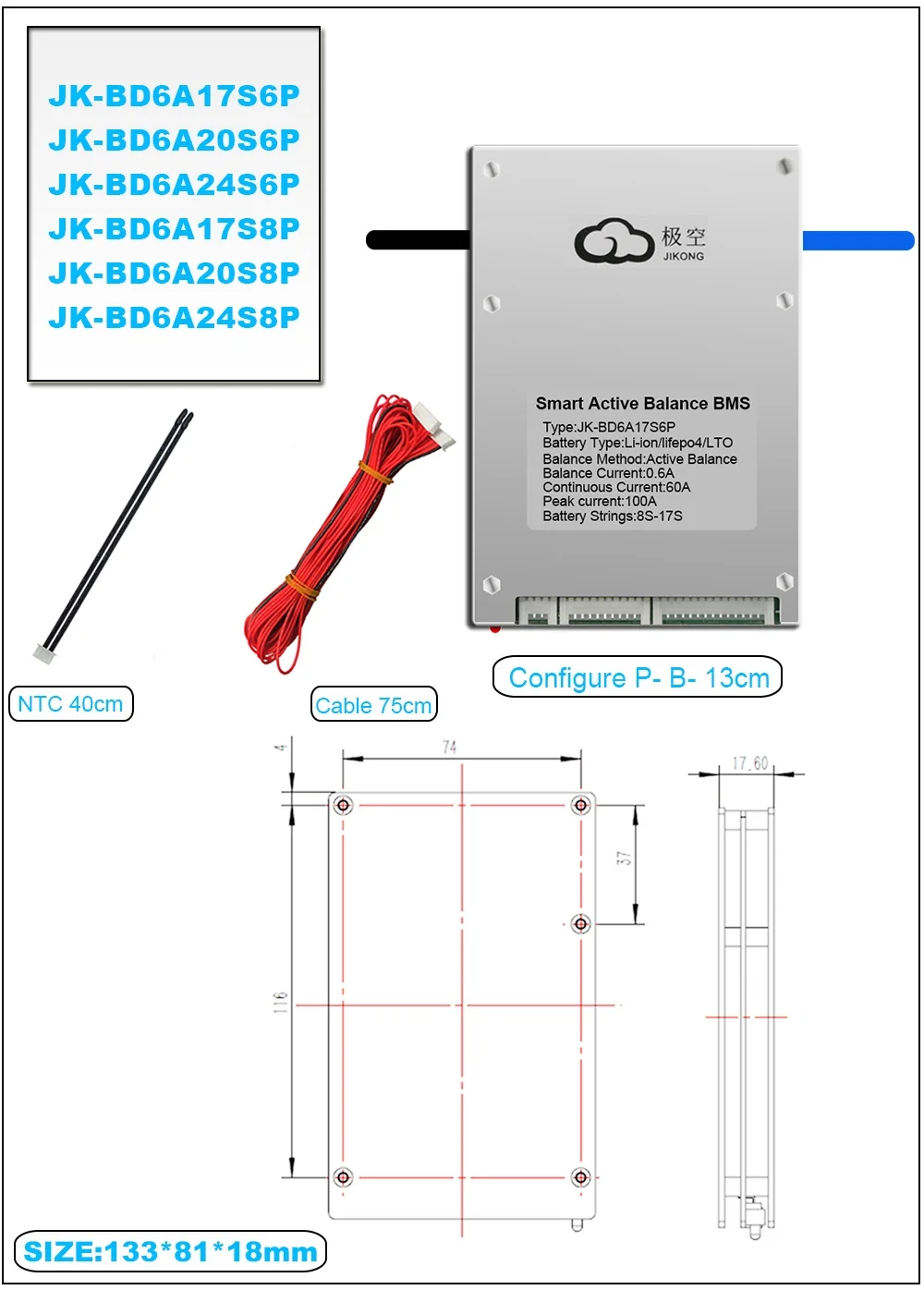

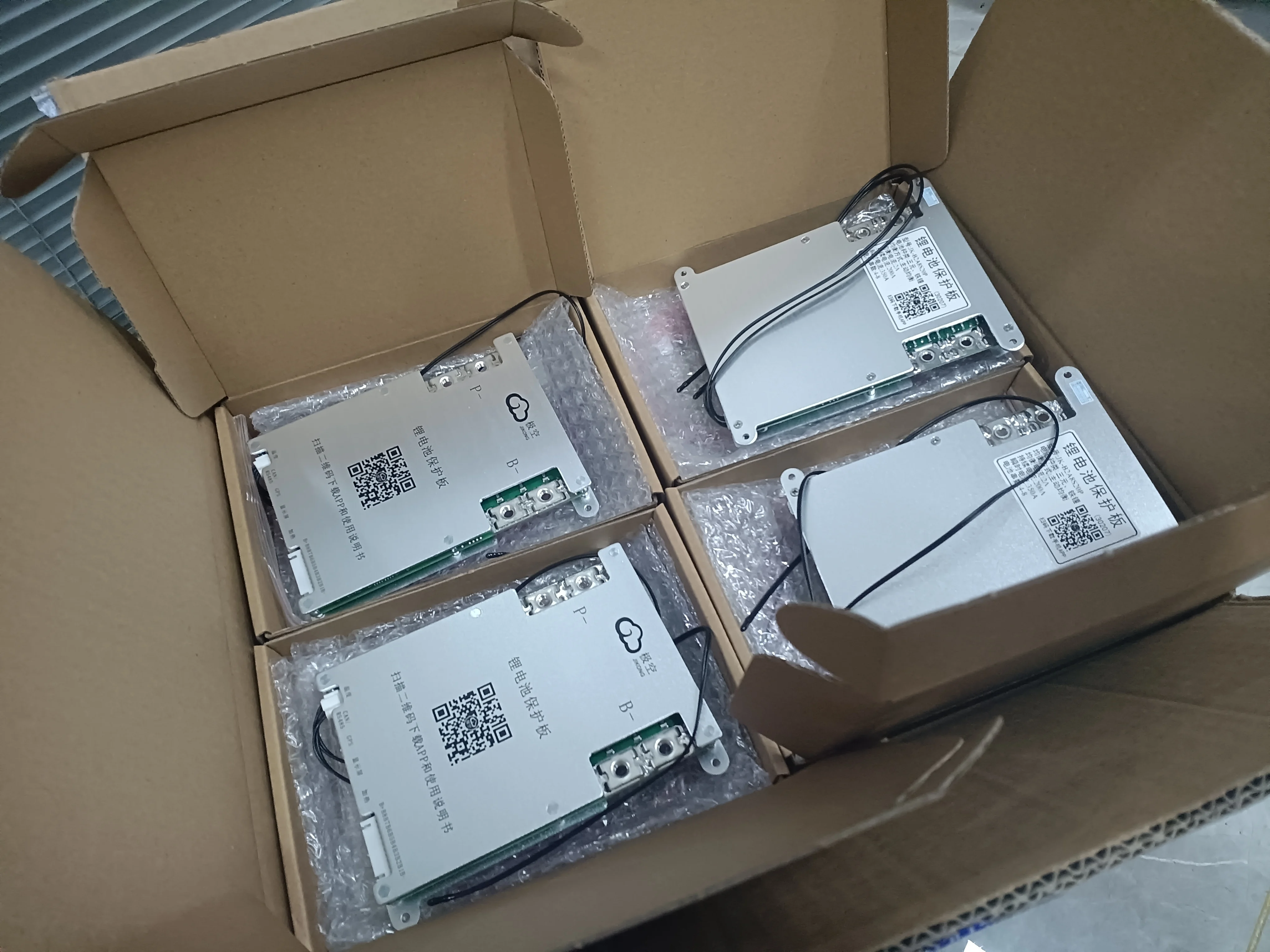

Product packaging

BMS {Bluetooth bulit(with P and B-7AWG 13cm*2)}

*Temperature sensor(40cm)
*Balance Wires (75cm)

Please Note：

*About the activation switch ，It is not included in the product price. If necessary, please contact customer service！

*B1A8S20P/B2A8S20P Without power cable，if necessary, please contact customer service！

Please confirm the package picture with customer service. Thank you！

Company Profile

Shenzhen King Fung Technology Co., Ltd. is a high-tech enterprise exporting samples and bulk production of printed circuit boards.We have nearly 10,000 square meter production plants, specializing in the production of HDI phone boards, communication boards, as well as a variety of single-sided, double-sided, multi-layer, high-frequency TG circuit boards and aluminum base boards with high technical content and strict quality requirements. Our products are widely used in communications, computers, industrial control,automobiles, household appliances, aerospace and other high-tech fields, and mainly exported to Europe, the United States and Southeast Asia. We have professional production equipment for aluminum PCBs.

FAQ

Q: How to choose a suitable BMS for my battery packs? A: Please tell us following required details and we will advice for you:Battery material & Battery series & Capacity & working current & Application (For example: LiFePO4 BMS, 13 series, charge 40A, discharge 40A, application for e-bike 1800W.) Q: How do I know what material or type my battery is? A: Please look your battery body, if the normal voltage of your battery shows 3.2V, the battery is LiFePo4. If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Li-polymer battery. Q: The relationship between battery capacity and BMS current? A: There is no direct relationship between battery capacity and BMS current, big capacity doesn't mean big current, but rely on continue current, that is to say if your engine is powerful, you should choose high current of BMS, it is not relied on battery capacity. Q: What is the Common port and Separate port? what is the difference? A: We take 10S 36V 20A BMS for example: Common port 20A means your charge cathode and discharge cathode are connected in the same point end (our P-), charge cathode and discharge cathode are used in the common connection port, so the charge current and discharge current are same as 20A. Separate port is separately connected by charge cathode (our C-) and discharge cathode (our P-), so the charge current and discharge current are different, discharge current is 20A, charge current is 10A. Q: How should I choose the right charger? A: LiFePo4 battery charger voltage = number of battery strings X 3.6V, Li-ion battery charger voltage = number of battery strings X 4.2V.

Q: Whether my BMS damaged? A:If you want to judge if the BMS is damaged, please take the following steps, to test if each cell voltage is the same with voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displayed as no charge, no discharge, no discharge while the battery has voltage.
