SPECIFICATIONS

Application: Toys,Power Tools,Home Appliances,Consumer Electronics,Boats,Golf Carts,SUBMARINES,Electric Bicycles/Scooters,electric vehicles,Electric Wheelchairs,Electric Power Systems,Solar Energy Storage Systems,Uninterruptible Power Supplies,Electric Forklifts

BMS: Built-in 250A BMS Protection

Brand Name: Lightning

Cathode Materials: LiFePO4

Charge Temperature: 0~45°C (32~113°F)

Cycle Life: 8000 Cycles

Cycle life: 8000 Cycles

Dimension (L*W*H): 388*193*250±0.5mm

Discharge Temperature: -20~60°C (-4~140°F)

Energy: 4096Wh

Max Charge Current: 250A

Max Discharge Current: 250A

Max Load Quantity(cells): 32

Model Number: 12V 320Ah

OEM/ODM: Yes (Accepted)

Operating Temperature(℃): -20-65℃

Place of Origin: China

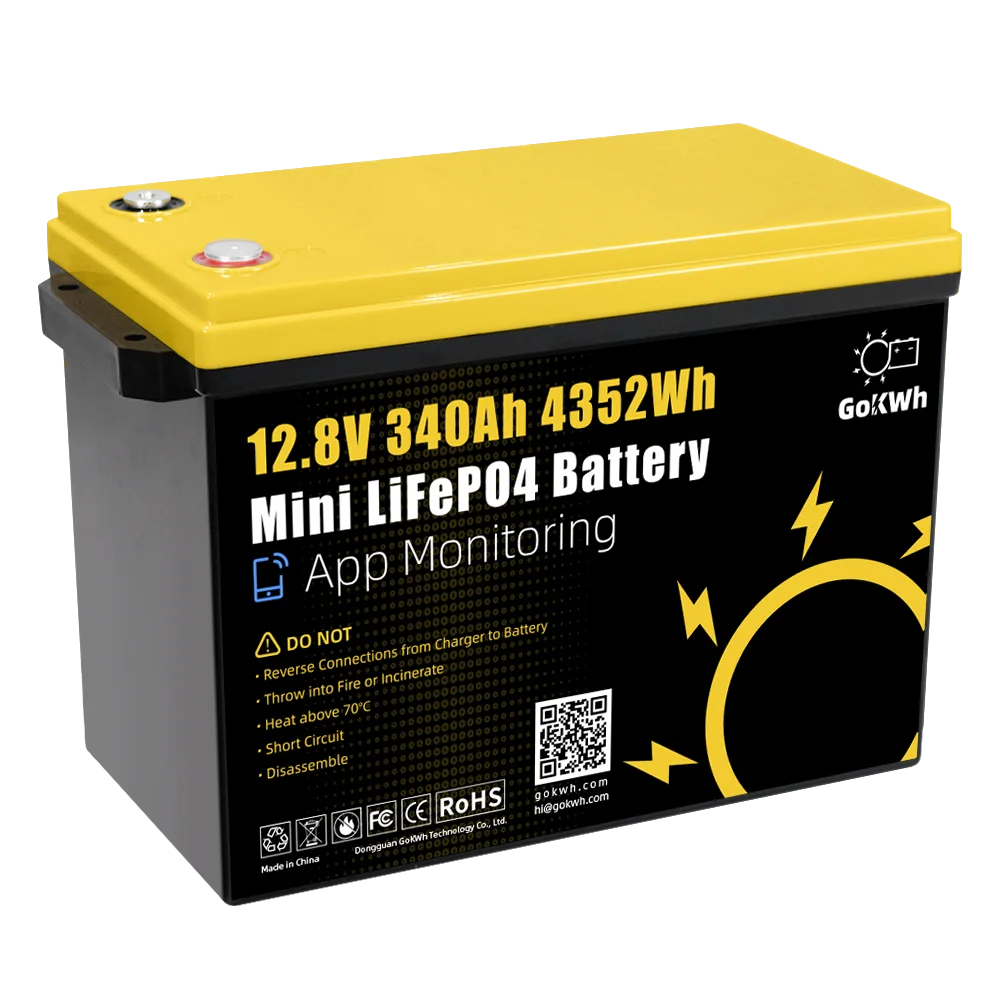

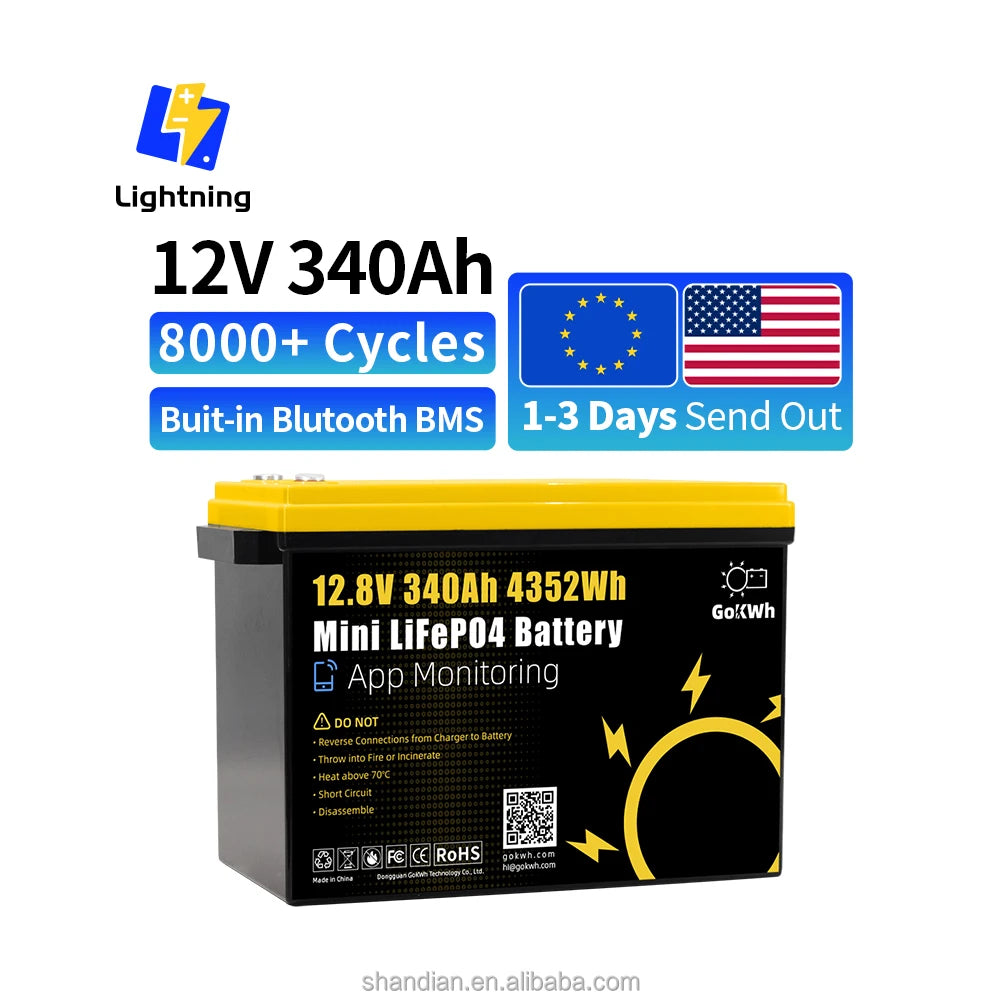

Product name: Mini 12V 320Ah Lifepo4

Service Life: 10 Years (25°C/77°F)

Weight: Approx 25kg

Products Description

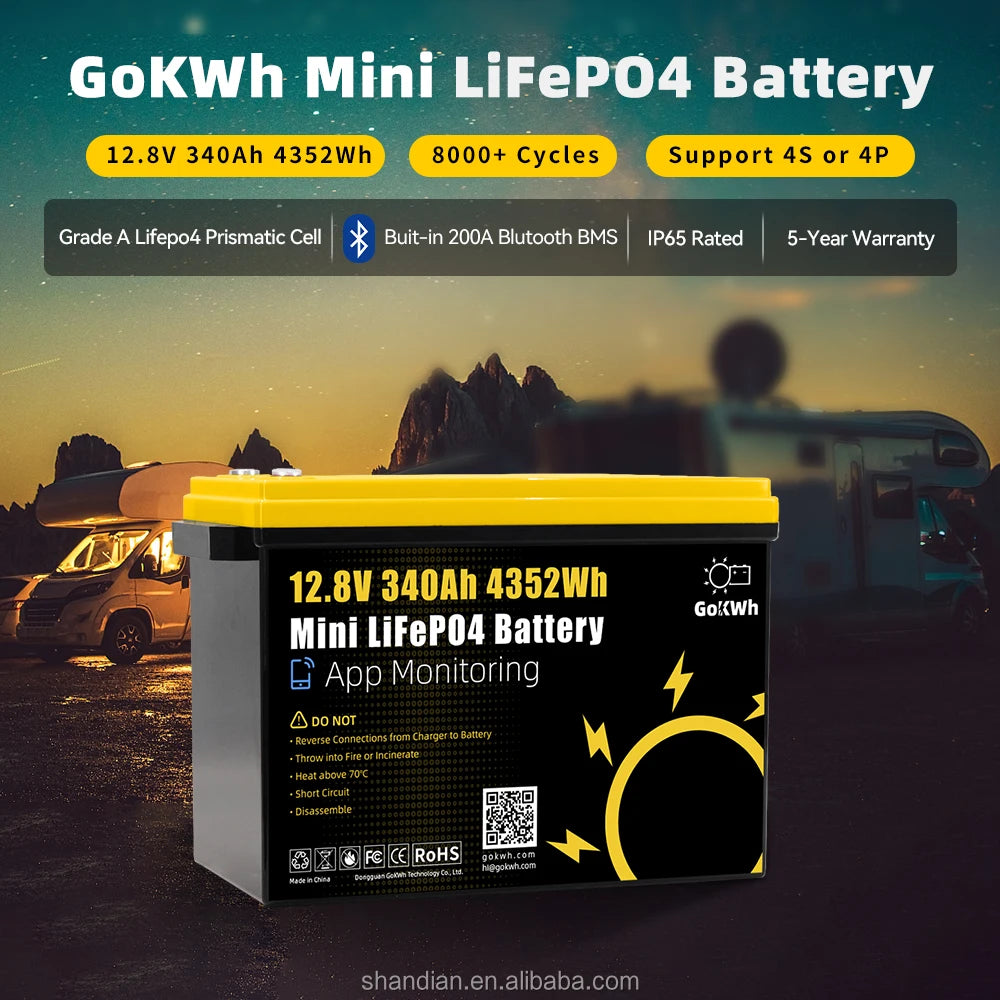

Overview	Grade A Lifepo4 12V 320Ah Solar Energy Storage Battery for Home Lithium ion Battery Pack #Grade A Blade Cell #Buit-in 200A BMS
Specifications	BASICAL SPECIFICATIONS	Model: 12V 340Ah
			Rechargeable:Yes
			Cell Type:LiFePO4(LFP)  Cell
			Dimensions: 384*204*270±0.5mm
			Case Material:ABS
			Warranty:5 Years
		ELECTRICAL     SPECIFICATIONS	Nominal Voltage: 12.8V
				Nominal Capacity: 340Ah
	Dimension and Weight			Nominal Energy: 4352 Wh
				Standard Charge Voltage: ≤14.6 V
				Max Charge Current: 250A
				Discharge Cut-Off Voltage: ≥10V
				Max Discharge Current: 250A
				Internal Resistance: ≤30mΩ
		PERFORMANCE SPECIFICATIONS	Cycle Life: ≥8000 Times (80%DoD)
				Service Life: 10 Years (25°C/77°F）
				Charge Temperature Range: 0~45°C (32~113°F)
				Discharge Temperature Range: -20~60°C (-4~140°F)
				Protection: IP65, Built-in BMS

For More Specification Click Here

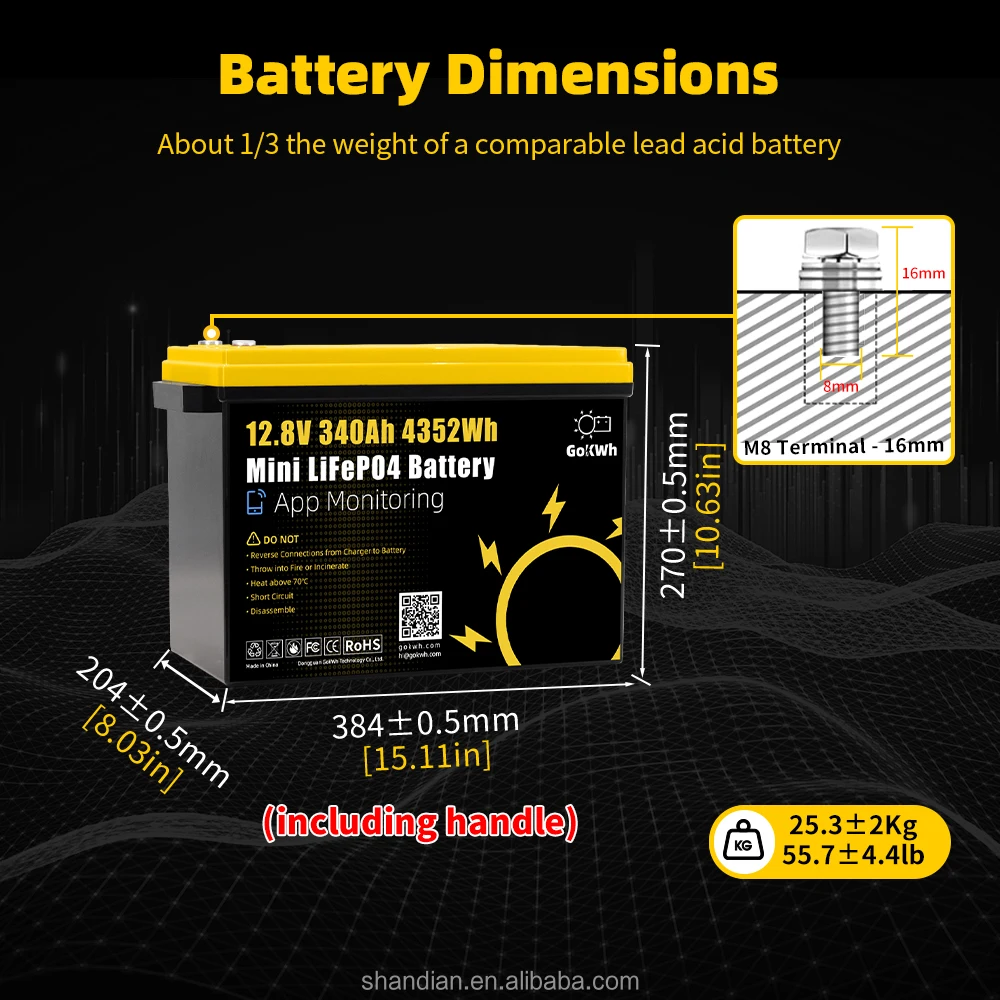

Battery Dimensions

About 1/3 the weight of a comparable lead acid battery. M8 Terminal - 16mm

Why Choose Us

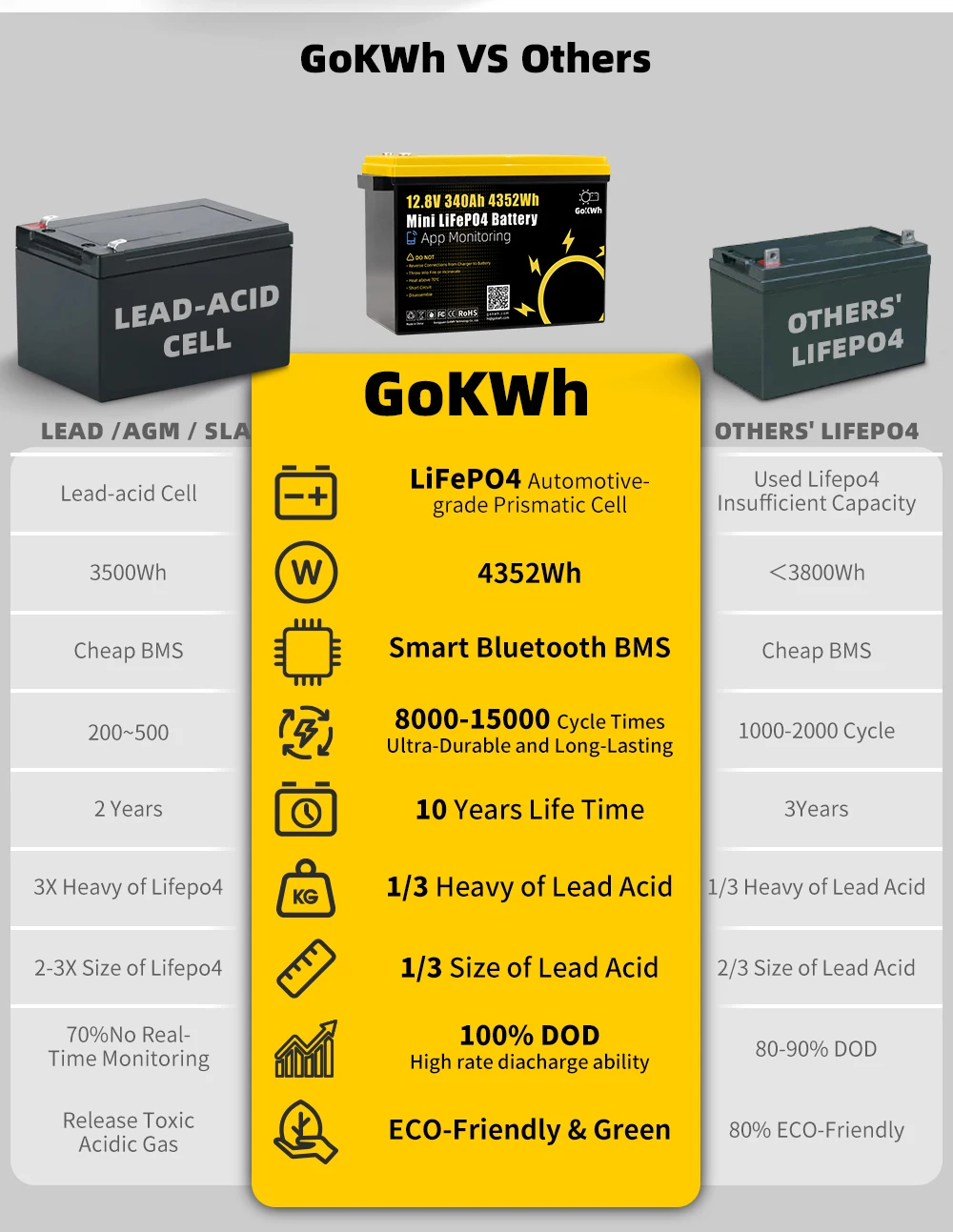

GoKWh VS Others

Automotive-grade Prismatic Cell

Usable Energy 4352W 100% DOD

8000+ Cycles and 10 Years Life Time

Light Weight and Samll Size of Lead Acid

Eco-Friendly&Green

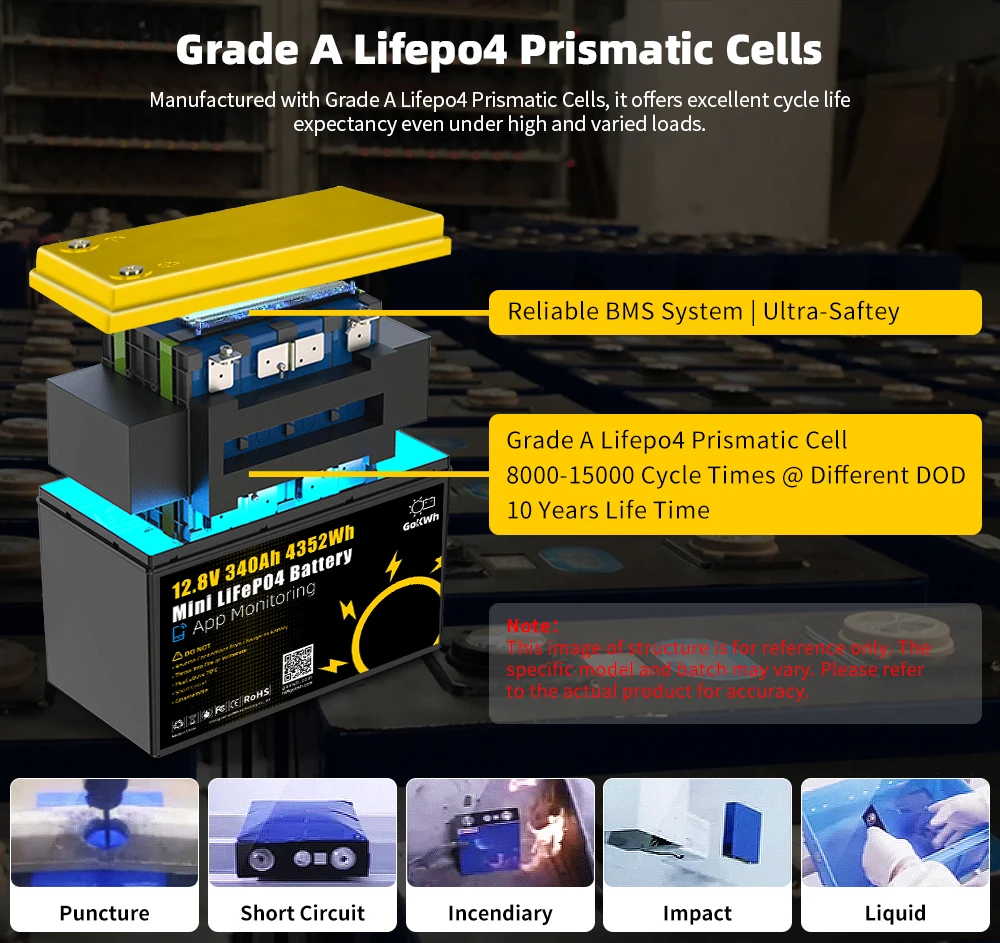

Genuine LiFePO4 Prismatic Cell

Manufactured with automotive-grade battery cells, it offers excellent cycle life expectancy even under high and varied loads.

8000+ Cycle Times @ Different DOD 10 Years Life Time

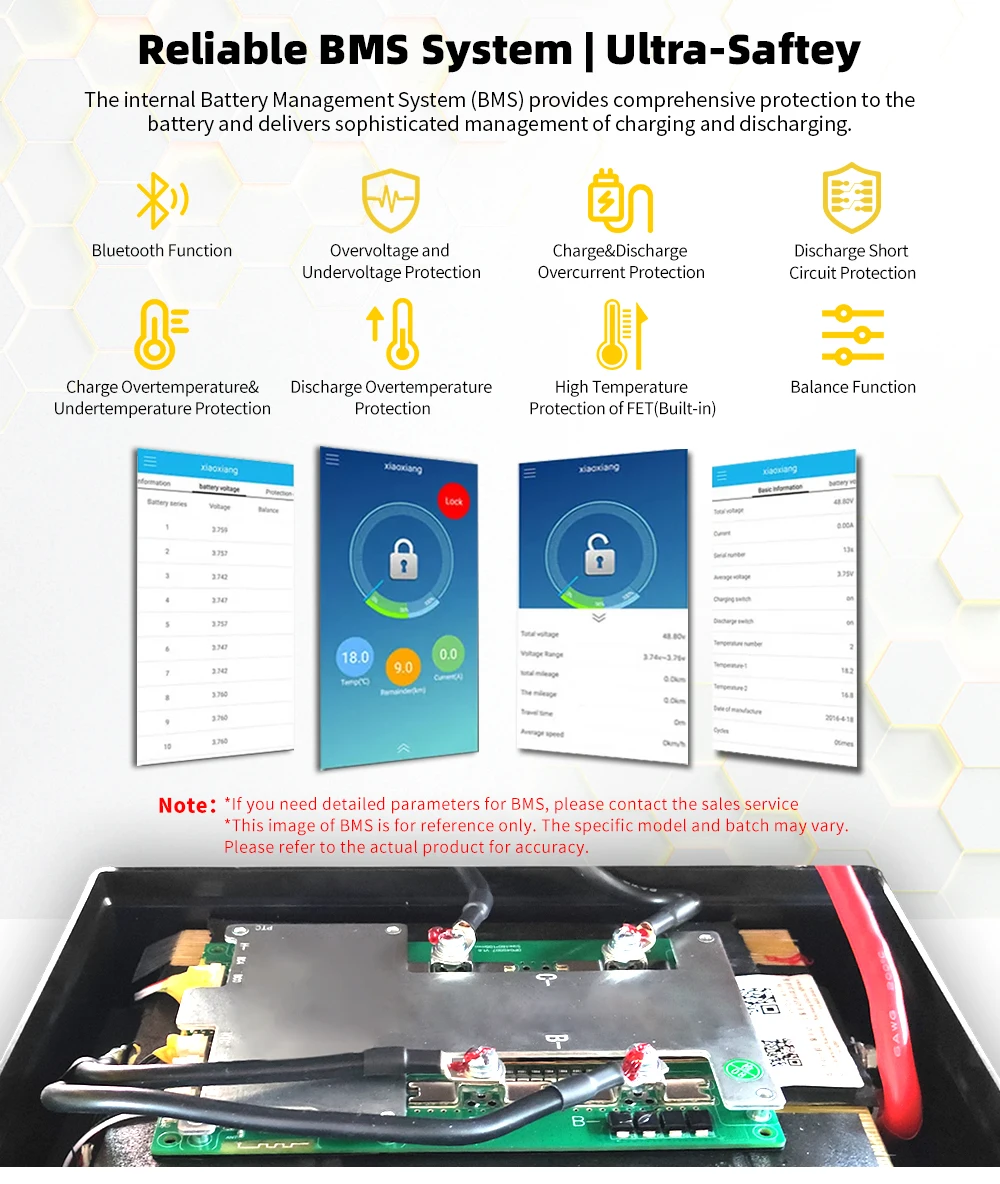

Reliable BMS System | Ultra-Saftey

The internal Battery Management System (BMS) provides comprehensive protection to the battery and delivers sophisticated management of charging and discharging.

DIY Your Battery Bank System

In Parallel (up to 4P) 12.8V 1280Ah | 16.384 kWh In Series (up to 4S) 51.2V 320Ah | 16.384kWh

Due to the limitations of BMS, the default model does not support series and parallel connection at the same time. If necessary, please contact our Sales

Note

Not A Starting/Power Battery • Do not use it as a starting battery • Do not use it to run Golf Cart • Charge the battery between 32°F and 122°F Series/Parallel Tips • The same model (capacity & voltage & BMS) • The same brand • Recent purchases (within 3 months) Battery Mounting Direction • The sides and tops of batteries can not be placed face down.

High Output Power

Suitable for A Variety of Home or Outdoor Devices 4096Wh Uasble Energy

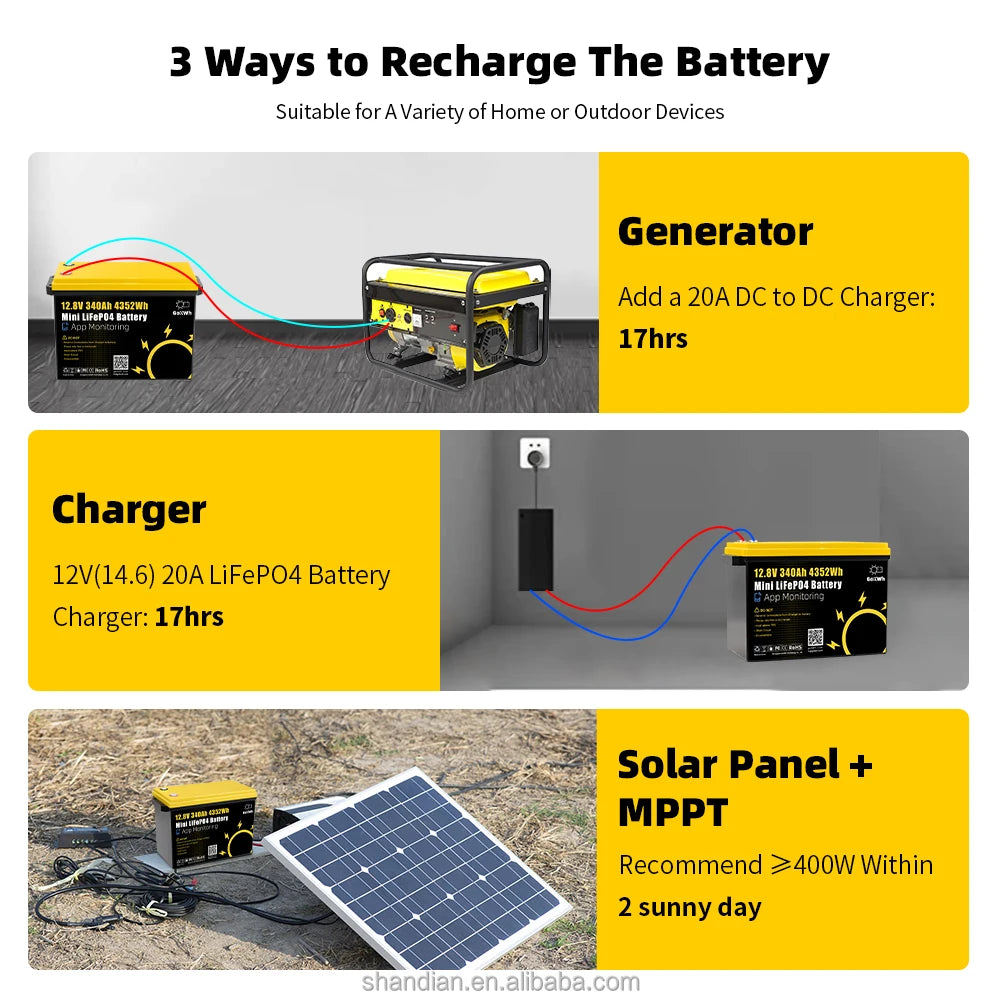

3 Ways to Recharge The Battery

• Charger 12V(14.6) 20A LiFePO4 Battery Charger: 17hrs • Generator Add a 20A DC to DC Charger: 17hrs

• Solar Panel + MPPT Recommend ≥400W Within：2 sunny day * Please make sure your charger supports lithium batteries. * Due to the difference in charging voltage, it is recommended to choose only one method of charging at a time.

What's in the box

1 * GoKWh 12V 320Ah LiFePO4 Battery 2 * M8 Post Bolts 2* Insulation Caps 1 * User Manual

Certification

MSDS UN38.3 CE

Shipping&Delivery

Total Delivery Time = Handling Time + Transit Time (+ any holidays and weekends)

Purchase Region	Warehouse	Shipping Option	Handling Time	Estimated Delivery Time
USA/Canada	USA/CA	FedEx/DHL/UPS	1~7 working days	2~7 working days
		CN		By sea+Express(FedEx/DHL/UPS, Tax free)		30~60 working days
EU Country	DE(*2)/PL	DPD/UPS/TNT	1~7 working days	2~7 working days
		CN		By railway or sea+Express(DPD/UPS/TNT, Tax free)		30~60 working days
Asia	CN	By sea/railway+Express(DPD/Toll/UPS/FedEx/TNT, most country are Tax free)	1~7 working days	25~60 working days
Australia or other	CN
We can't deliver the following address directly
A	USA: PO box address are not acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional freight, Please contact us online.
B	Portugal: Azores and Madeira
C	Spain:Canary Islands, hueda,Missily and melilia and some other Island
D	Russia: Kamchatka Peninsula
E	Other:Some remote areas not listed，Please provide shipping address and zip code to to us to check.
Noted: *The above transportation time is only the reference time of most orders, excluding inspection time or other special time,such as natural accidents, congestion and other uncontrollable factors.*The tracking will be update after pick up by local express. Please wait patiently or contact us for help. *Countries that do not appear in the table, Please Clickhttps://shandian.en.alibaba.com/contactinfo.html Here to consult us for freight charges

FAQ

1). Q: I need more function such Bluetooth and LED screen,i also want anti vibration design for using at my Marine/RV/Vehicle can i customized my battery pack?

A: Yes of course, just let me know what exactly you need, our professional engineer team will give you an excellent solution, more than you expection.

2).Q: I'm very sensible in price, i am a wholesaler of battery pack, if i sell your battery pack in my city , the profit is very low,can i get a cheaper price? and i can see your competitor sells more cheap then you.
A: It is highly suggest that you can have a comparision with our competitor. Indeed, there are also some supplier provide low price battery pack but using cheap material. Pls pay attention to the cycle life and the warranty, and we have anti vibration design and communication design. maybe you know the price of cylindrical cell is far cheap then prismatic cell.besides, we also provide cylindrical cell solution , pls contact us directly and we will tell you more. Most Importantly, we can give you a professional solution according to your local market? low profit? Don't worry about that, our engineer team will help you help you to solve it.

3).Q: I can see the post that your company shows the warranty is 5 Years, so no matter what the battery pack be used for, all 5 Years?
A: No sir, maybe you know the cycle life of cell is not only depends on the quality itself , but also be affected by the
discharge/charge rate the actual temperature. So it is unresponsibility at all if a supplier tell you the cycle life but no
talking about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles and warranty 5 Years, only energy storage usage.

4).Q: Can these battery pack be compatible with my inverter? do you have a company list of the inverter which is compatible?
A: Yes sir, our battery pack can compatible with most brand of inverter on the market, contact us and let me tell you more.

5).What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.

6).Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel connection for use and no any additional device.

Pls kindly know due to the limitations of BMS, the default model does not support series and parallel connection at the same time.
