SPECIFICATIONS

Application: Pump,Motor,Industrial,Compressor,Automotive,Home,Air Conditioner

Brand Name: ampinvt

Efficiency: 99%

Model Number: TG

Output Current: 35 A,100A

Output Frequency: 50 Hz,60 Hz

Output Type: Dual

Phase: Split phase

Place of Origin: Guangdong, China

Type: DC/AC Inverters

Weight: 36

Products Description

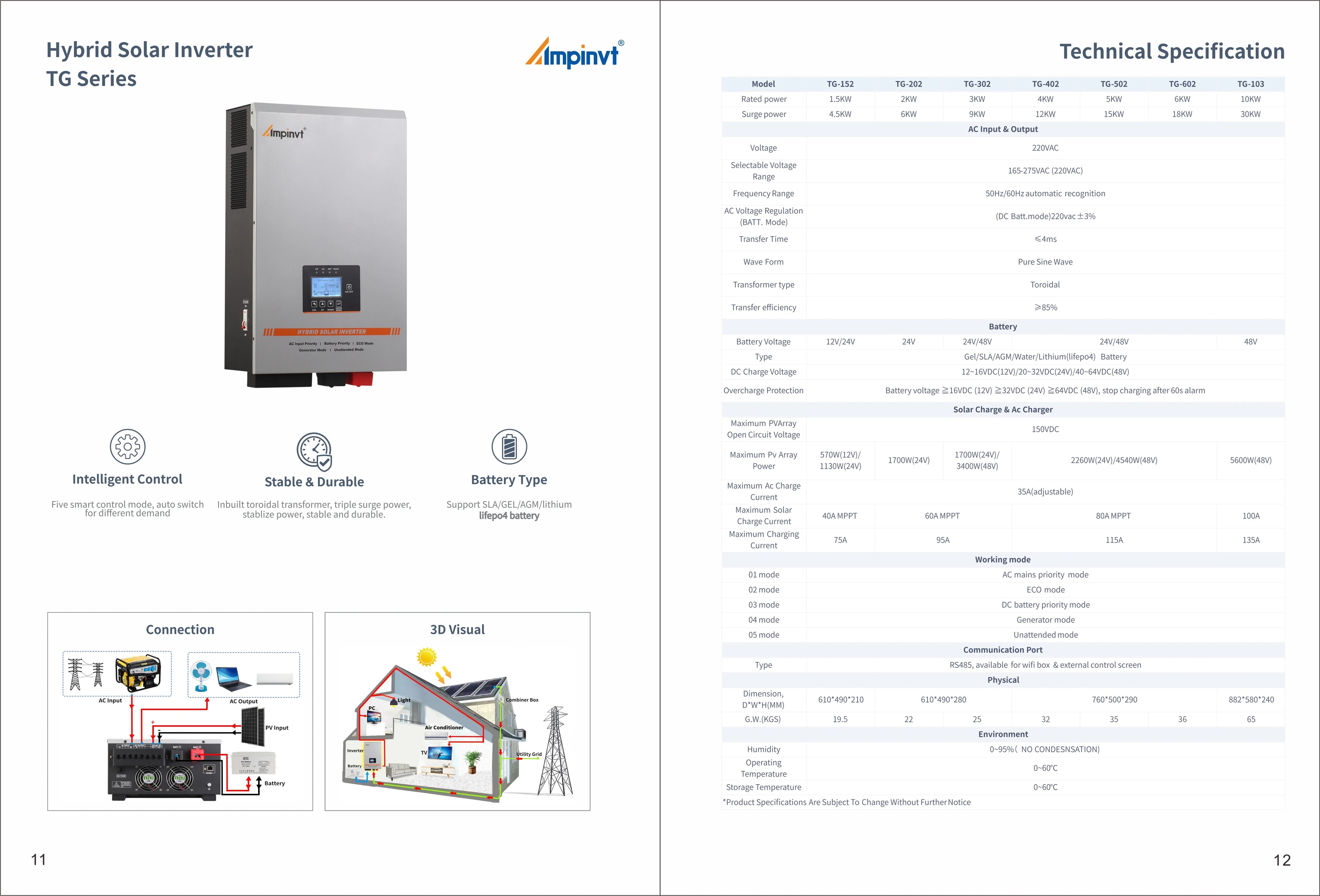

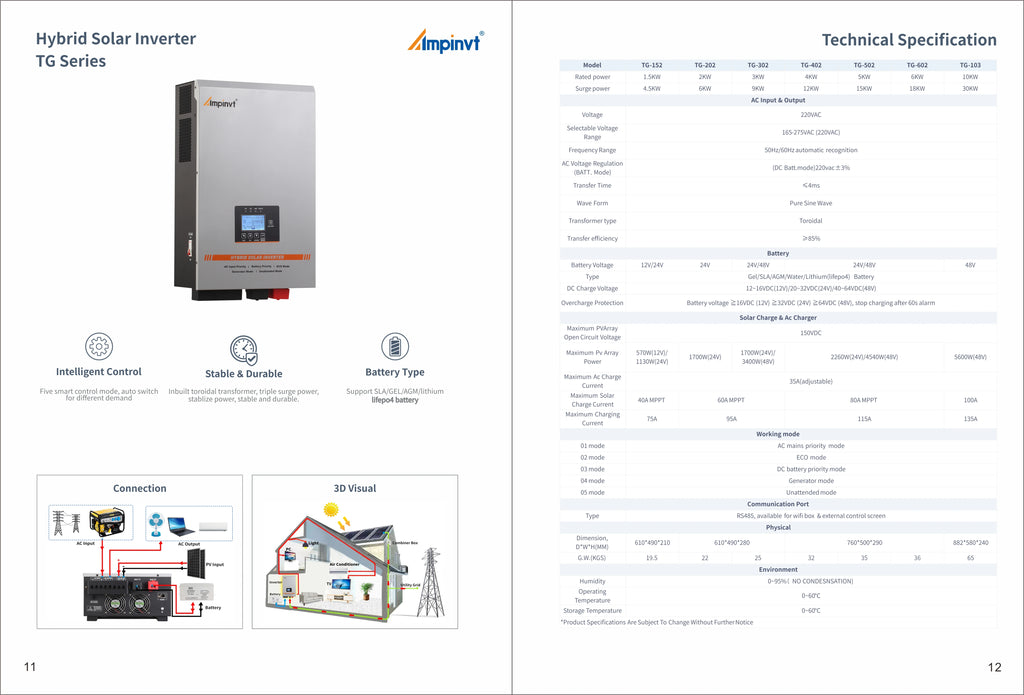

Product Paramenters

Model

TG-152

TG-202

TG-302

TG-402

TG-502

TG-602

Rated power

1.5KW

2KW

3KW

4KW

5KW

6KW

2KVA

3KVA

4KVA

5.5KVA

7KVA

8KVA

Surge power

4.5KW

6KW

9KW

12KW

15KW

18KW

AC Input & Output

Voltage

220VAC

Selectable Voltage Range

165-275VAC (220VAC)

Frequency Range

50Hz/60Hz automatic recognition

AC Voltage Regulation (BATT. Mode)

(DC Batt.mode)220vac±3%

Transfer Time

≤4ms

Wave Form

Pure Sine Wave

Transformer type

Toroidal

Transfer efficiency

≥85%

Battery

Battery Voltage

12V/24V

12V/24V/48V

24V/48V

Type

Gel/SLA/AGM/Water/Lithium(lifepo4) Battery

DC Charge Voltage

12~16VDC(12V)/20~32VDC(24V)/40~64VDC(48V)

Overcharge Protection

Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm

Solar Charge & Ac Charger

Maximum PVArray Open Circuit Voltage

150VDC

Maximum Pv Array Power

600W(12V)/ 1200W(24V)

900W(12V)/ 1700W(24V)

900W(12V)/ 1700W(24V)/ 3400W(48V)

4200W(24V)/5600W(48V)

Maximum Ac Charge Current

60A(adjustable)

Maximum Solar Charge Current

40A MPPT

60A MPPT

80A/100A MPPT

Maximum Charging Current

75A

120A

140A

Working mode

01 mode

AC mains priority mode

02 mode

ECO mode

03 mode

DC battery priority mode

04 mode

Generator mode

05 mode

Unattended mode

Communication Port

Type

RS485, available for wifi box & external control screen

Physical

Dimension, D*W*H(MM)

560*440*190

650*440*220

G.W.(KGS)

18

21

25

34

36

38

Environment

Humidity

0~95%（NO CONDESNSATION)

Operating Temperature

0~60℃

Storage Temperature

0~60℃

*Product Specifications Are Subject To Change Without Further Notice

Why Choose Us

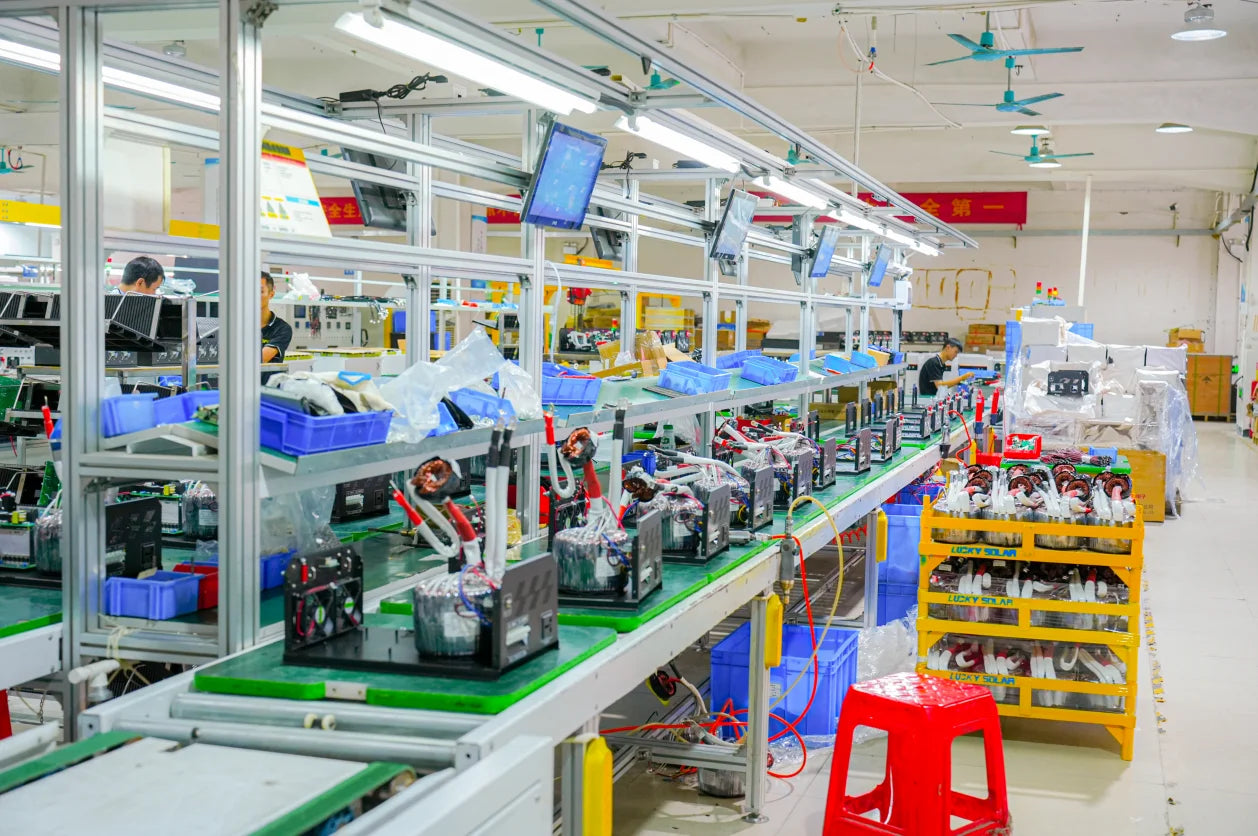

Company Profile
