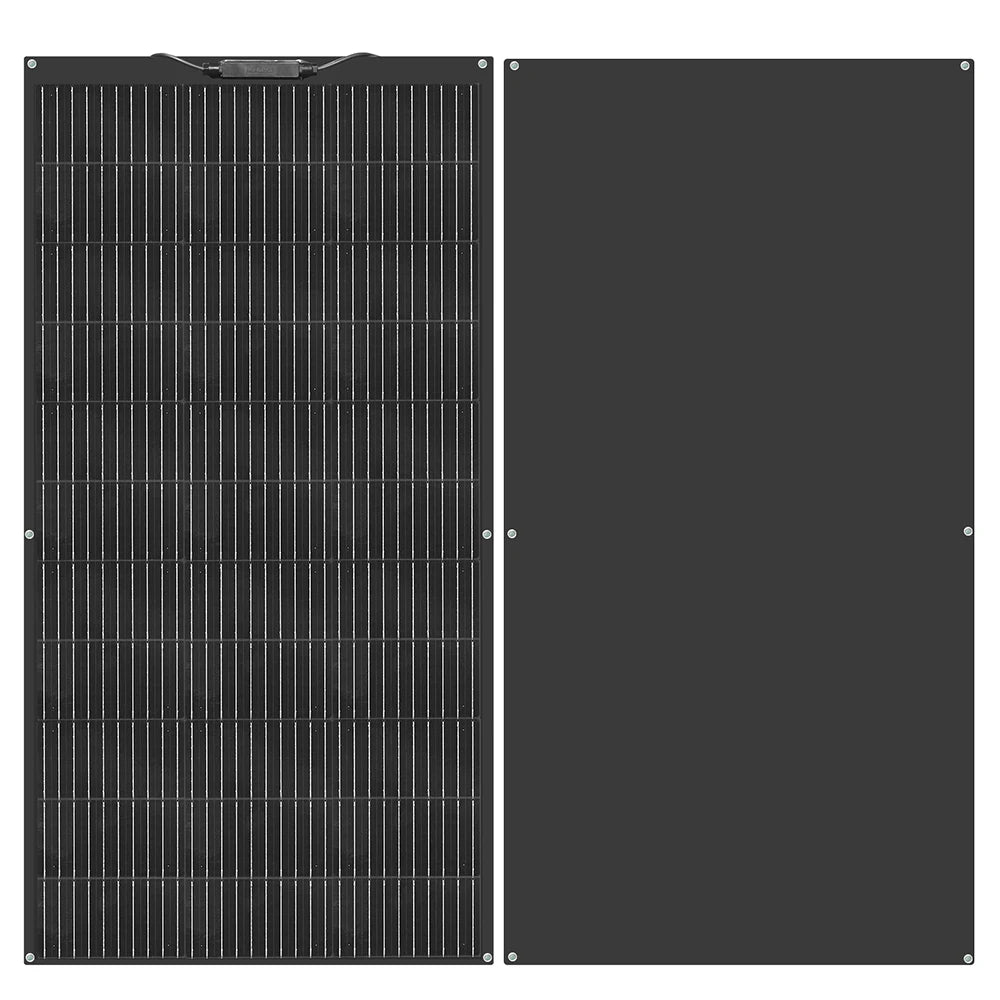

WUZECK 120W 240W 1200W 12V Flexible Solar Panel Cell 1-10 Pcs RV Caravan Boat Roof Battery Charging CE FCC RoHS WEEE
WUZECK 120W 240W 1200W 12V Flexible Solar Panel Cell 1-10 Pcs RV Caravan Boat Roof Battery Charging CE FCC RoHS WEEE
Pickup currently not available
SPECIFICATIONS
Brand Name: WUZECK
Certification: CE,FCC,RoHS,weee
Flexible Solar Panel: Yes
Foldable Solar Panel: No
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 1200 W -120W
Model Number: Solar Panel
Module Efficien: 24%
Nominal Capacity: 120 Watt -1200 Watt
Number of Cells: 33pcs solar cell
Number of Panels: 1
Origin: Mainland China
Rigid Solar Panel: No
Size: 1065*550*3mm
Type: Solar Panel
is_customized: Yes
[High Efficiency]PERC technology monocrystalline solar cell.WUZECK solar panel provides high conversion efficiency up to 24%,

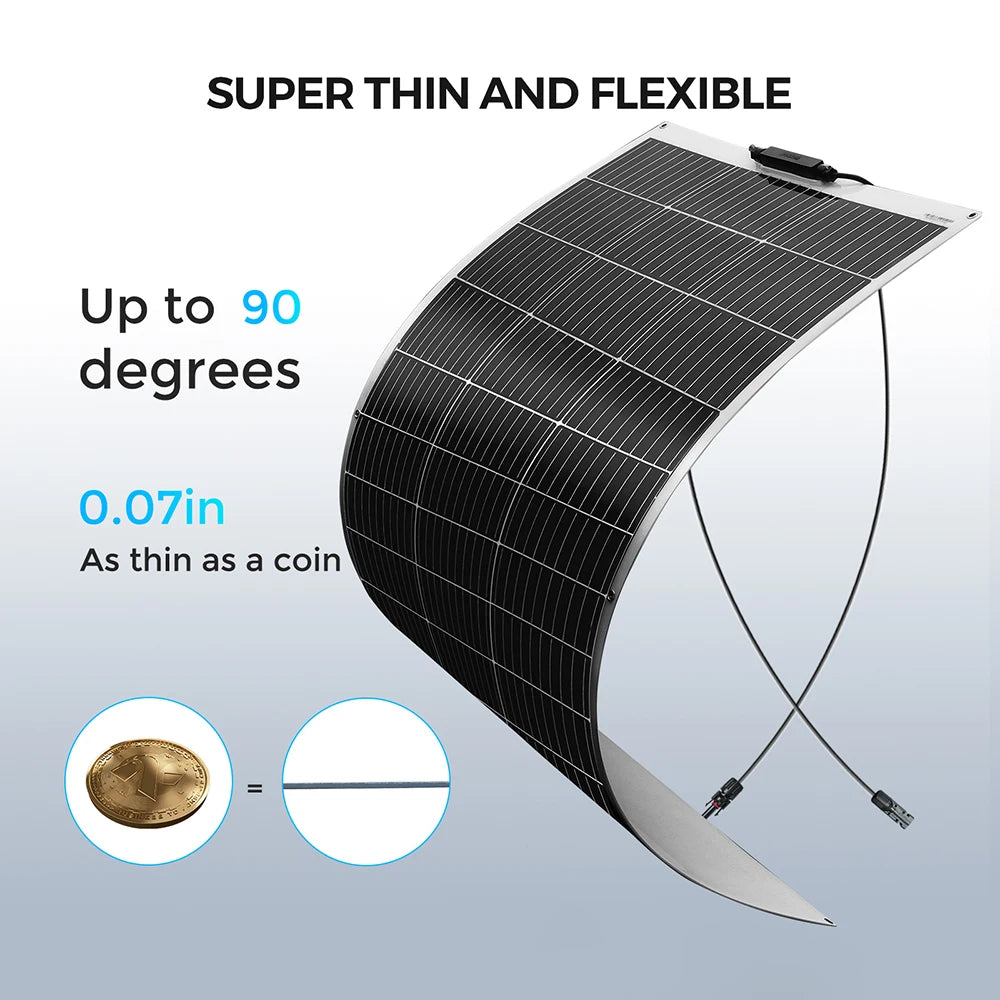

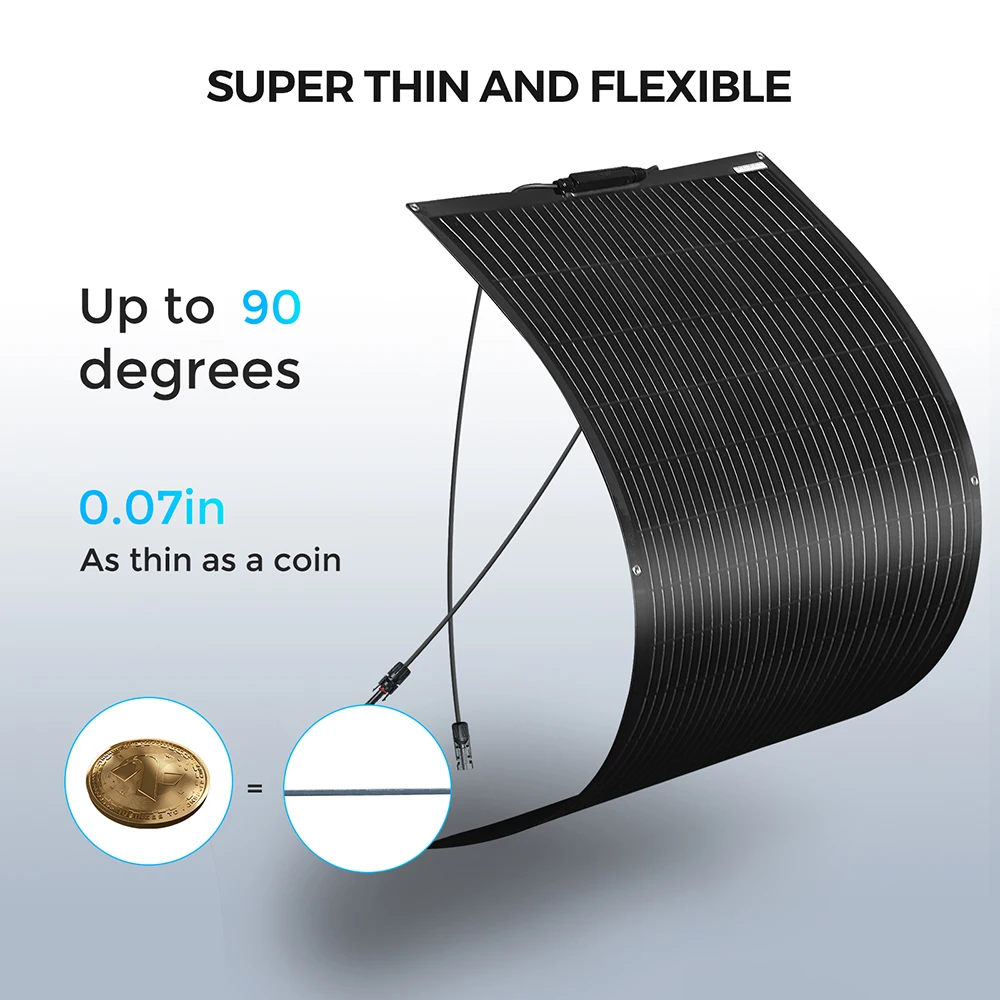

[Ultra-thin and ultra-lightweight design] Flexible solar panels are lightweight and portable, weighing 4.0 lb and 0.11inch thick.Solar panels are easy to transport, install, hang and remove.

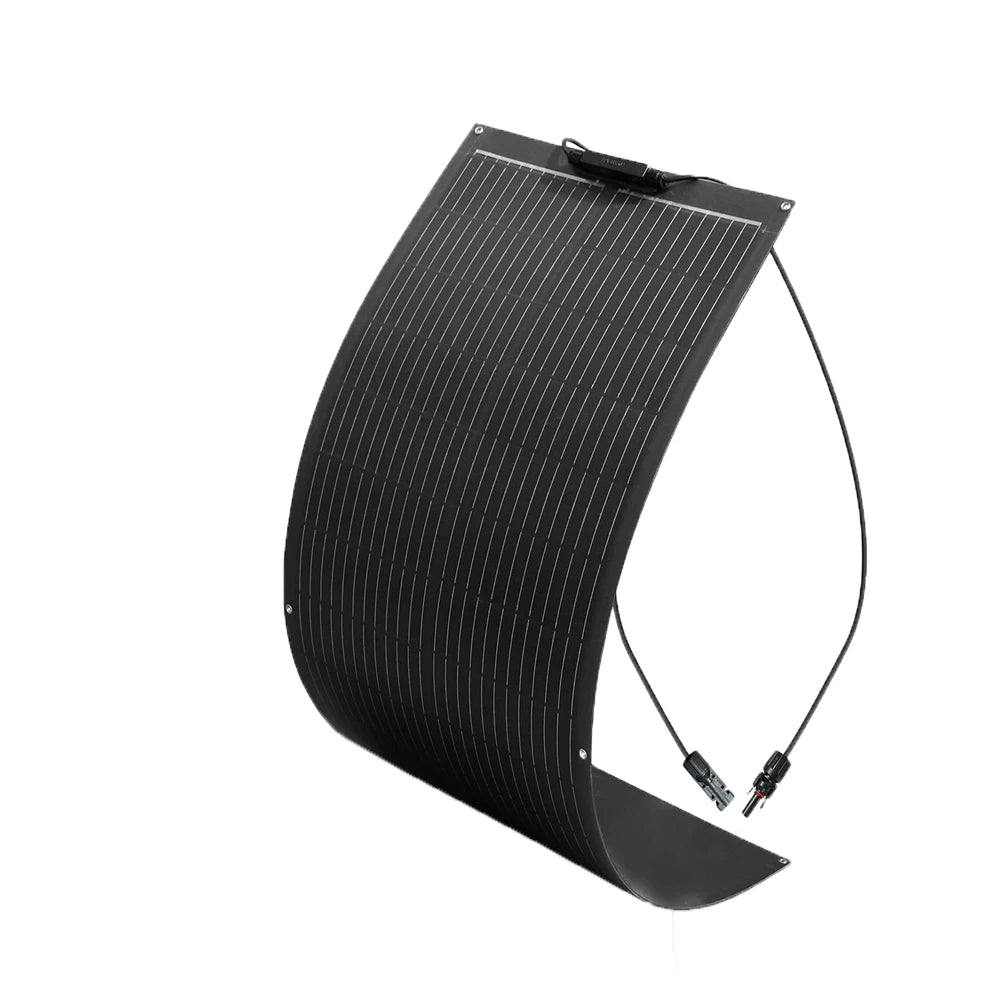

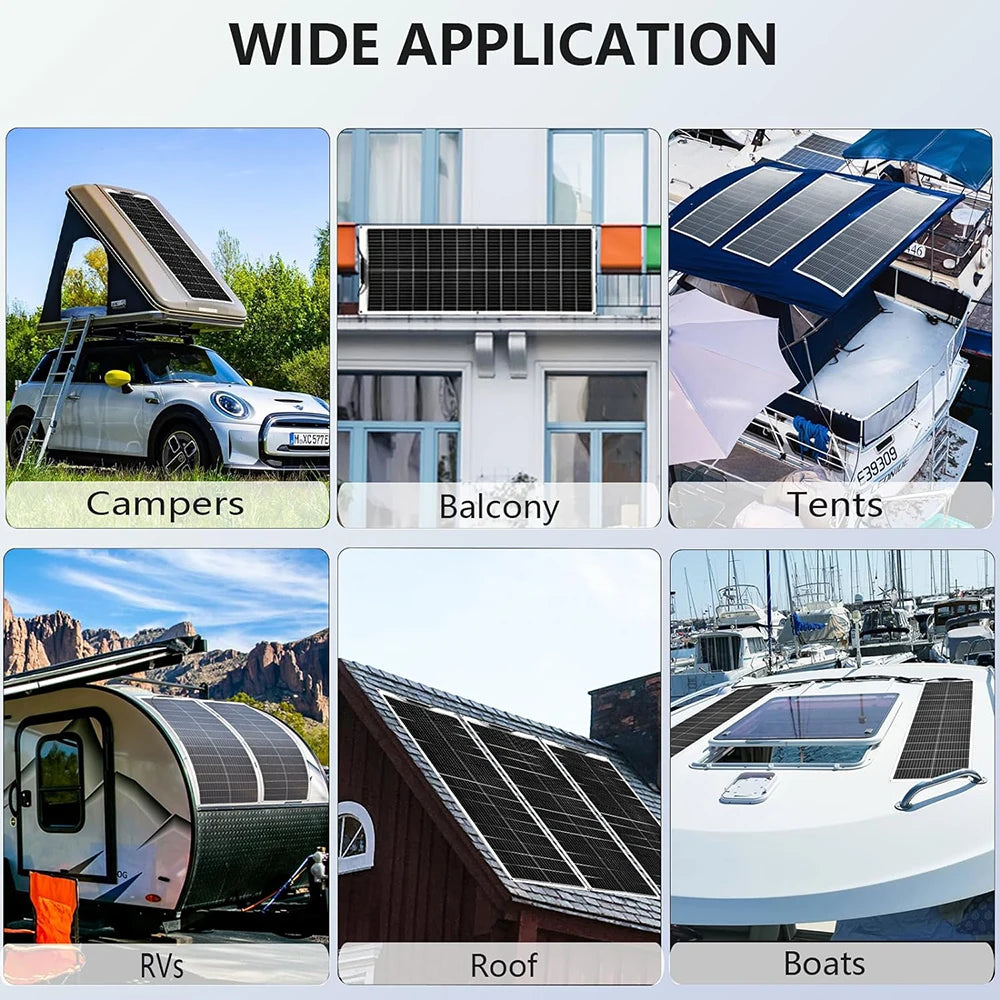

[Bendable and versatile ] Flexible solar panels are bendable and can be shaped to fit a variety of surfaces, This makes them a great choice for use on boats, RVs, trailers,and other vehicles.
[Easy to install] Flexible solar panels are easy to install and can be mounted using a variety of methods, including adhesive backing, grommets, and tie-downs. This makes them a great choice for DIY enthusiasts who want to install own solar panels.

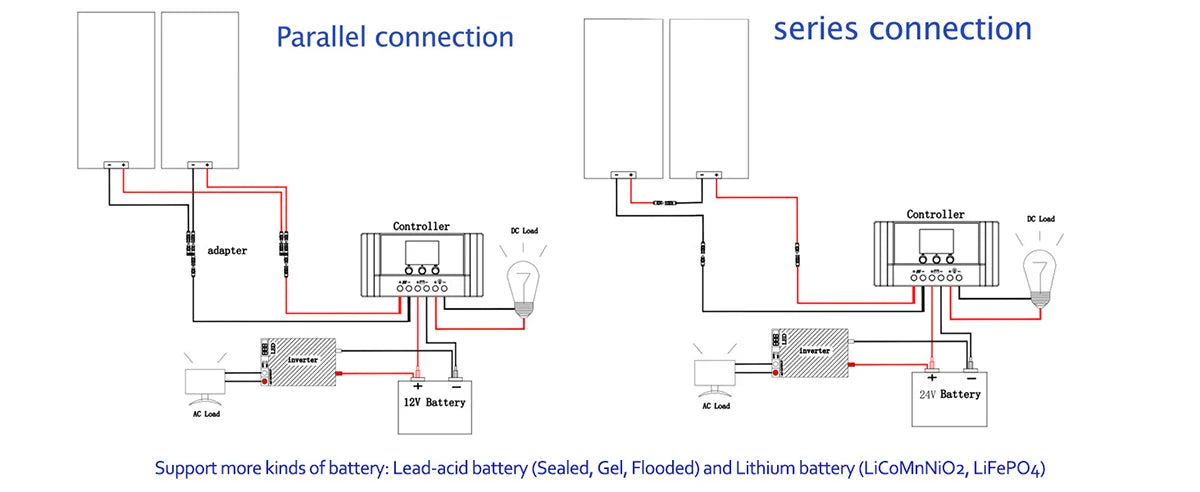

[Compatible with for a variety of batteries] Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4),Multiple protection functions can better protect the battery.
18.15V 120W Solar Panel Product Description
OR

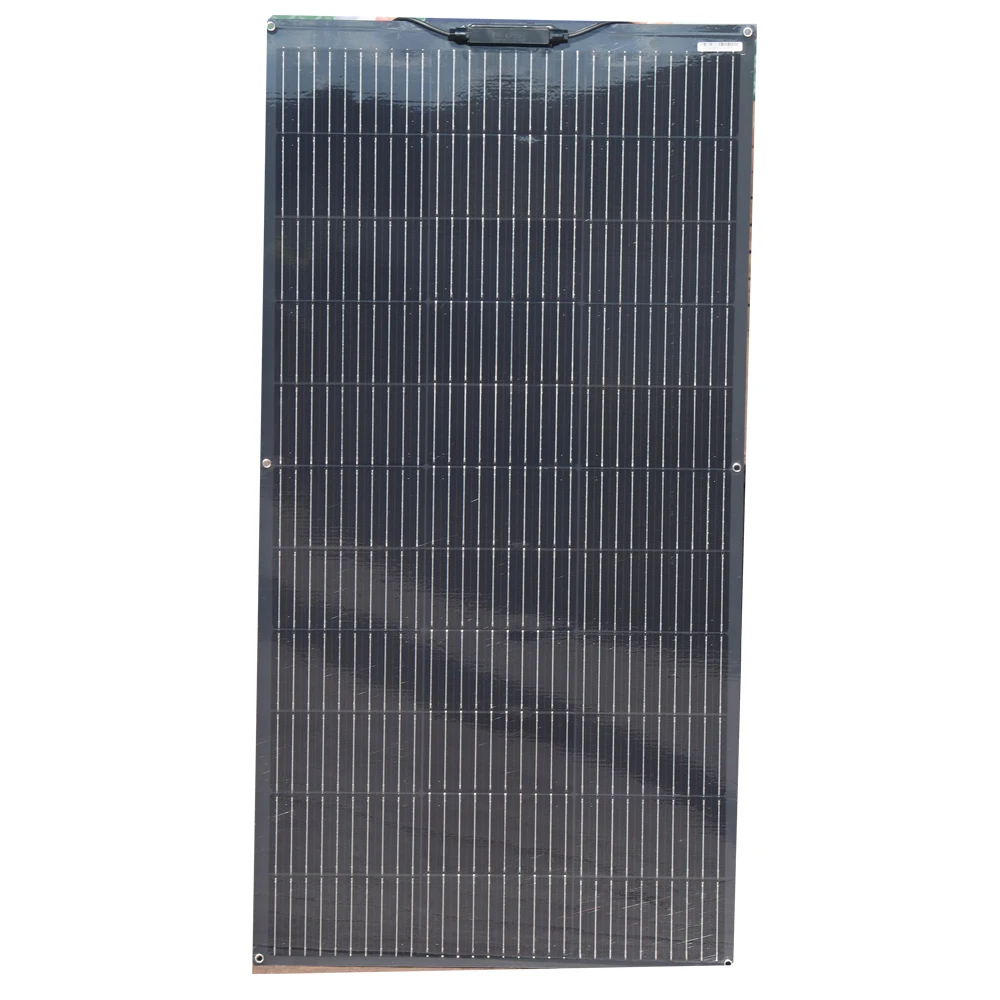

18.15V 120W Flexible solar panel Specification
Maximum power(Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g

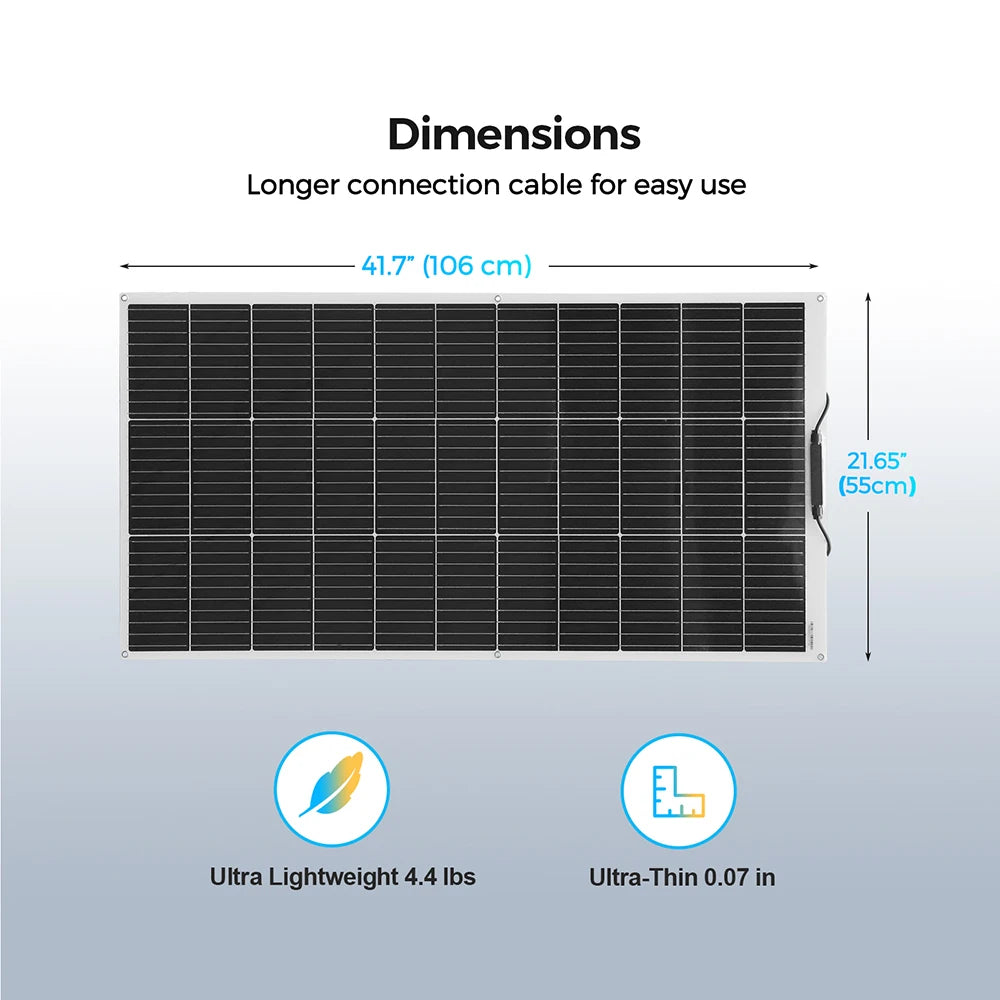

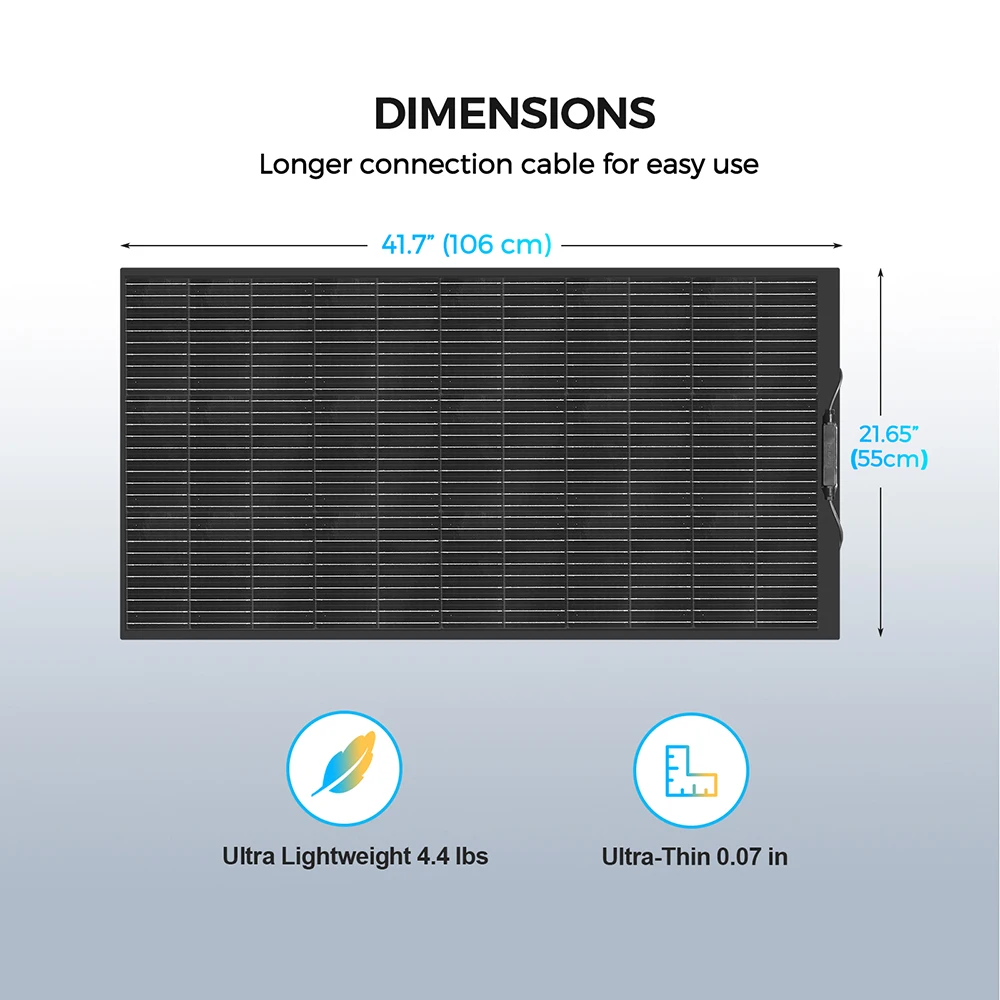

Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

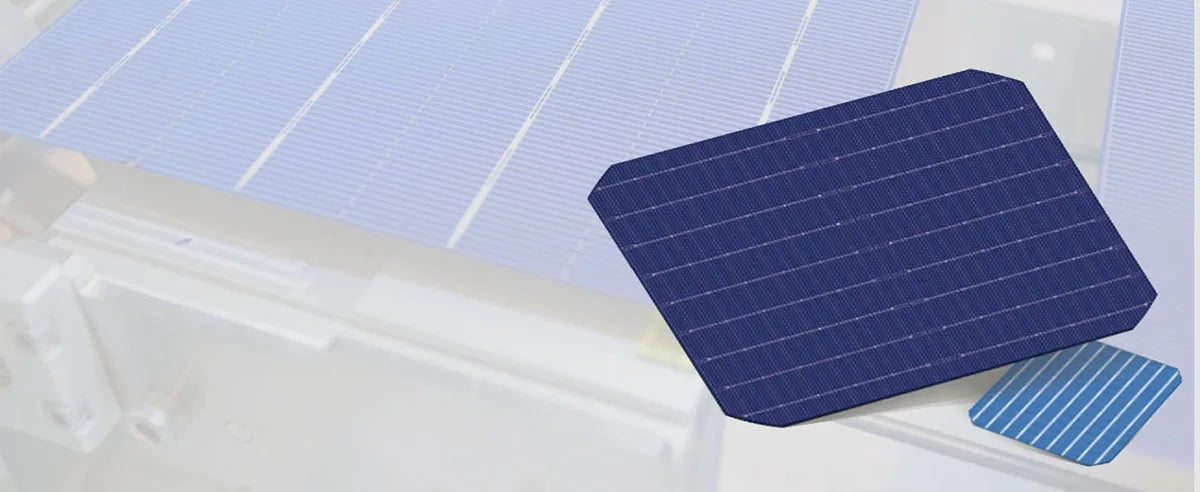

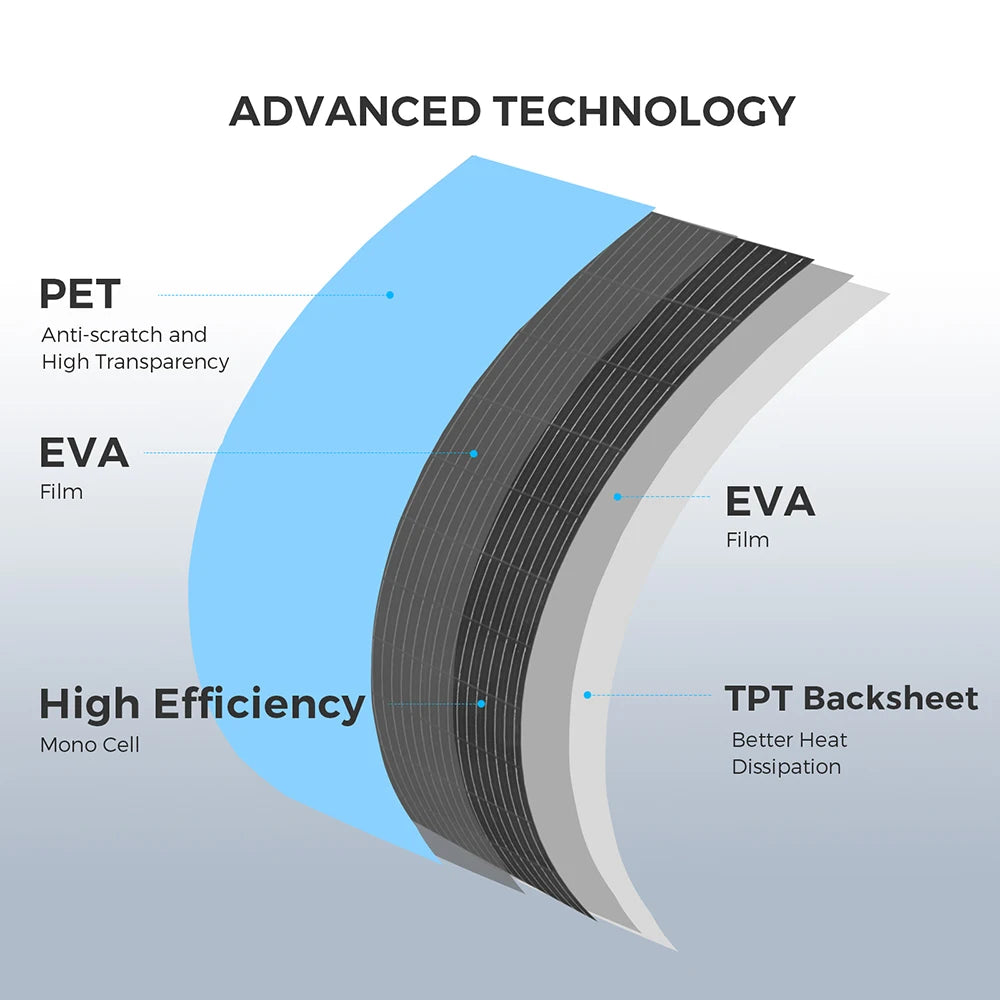

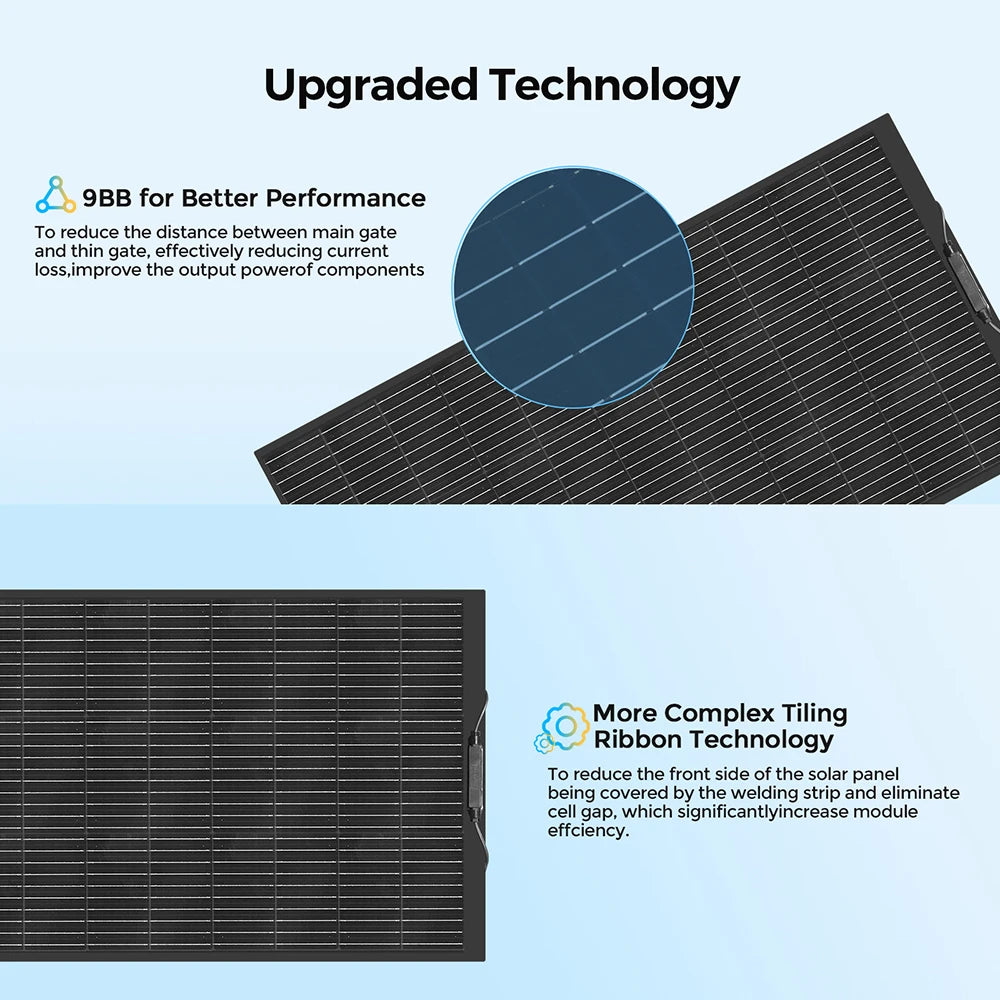

PERC technology monocrystalline cells with conversion rate up to 24%.
Water resistance

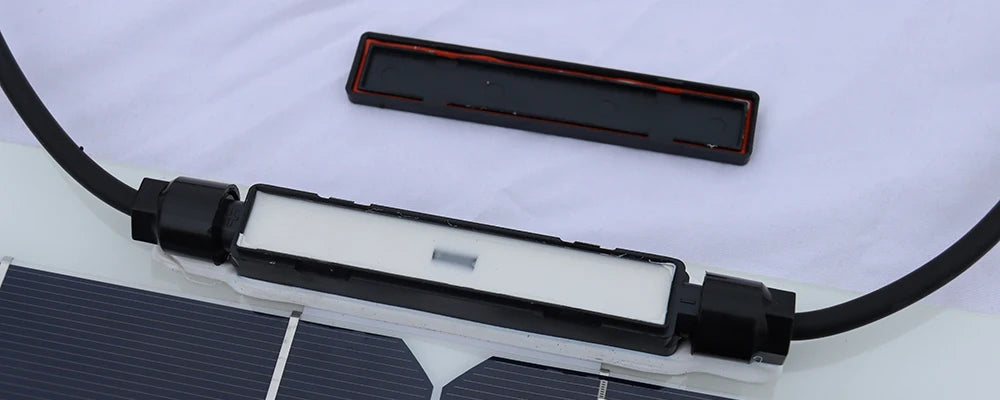

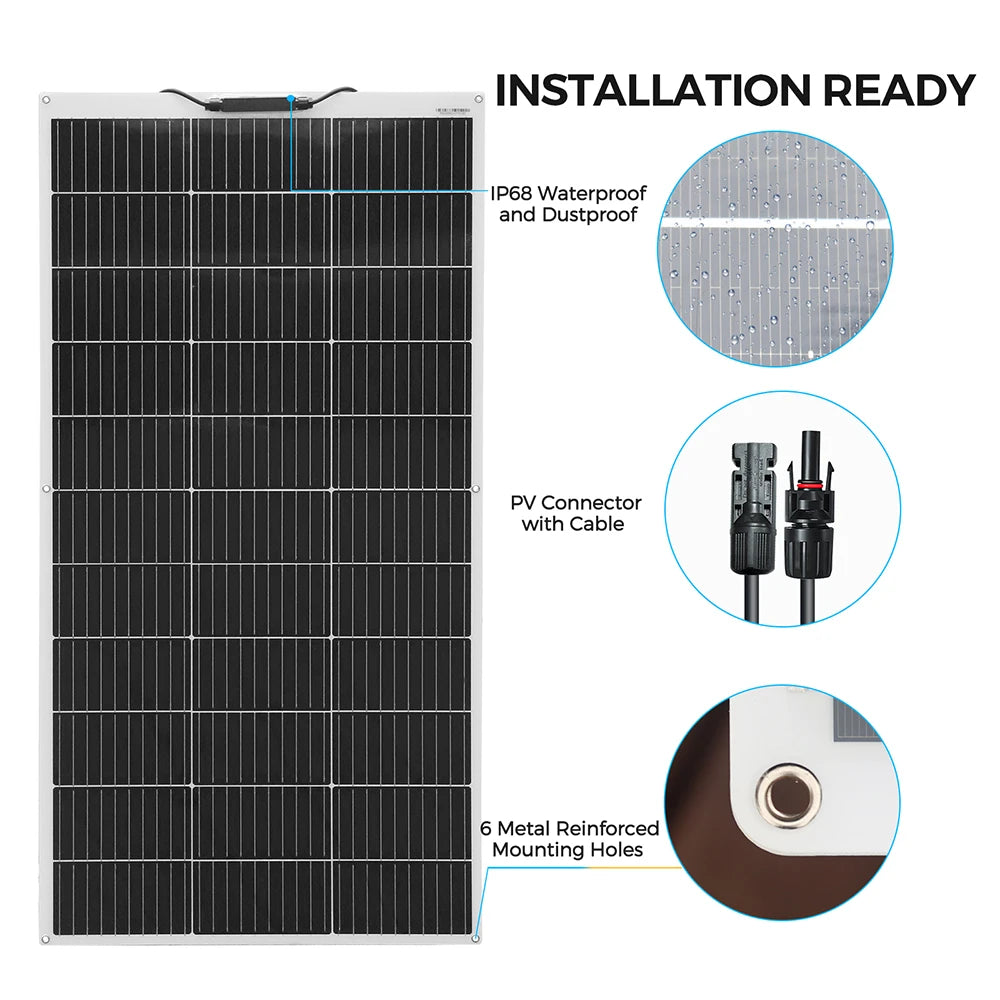

Waterproof IP67 junction box and PV connector，Ideal for outdoor environment.

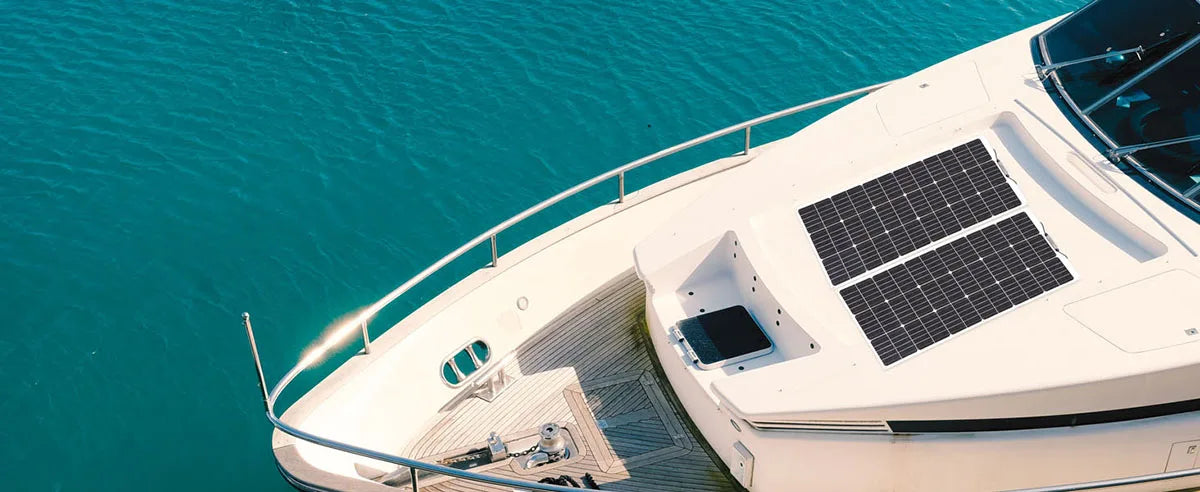

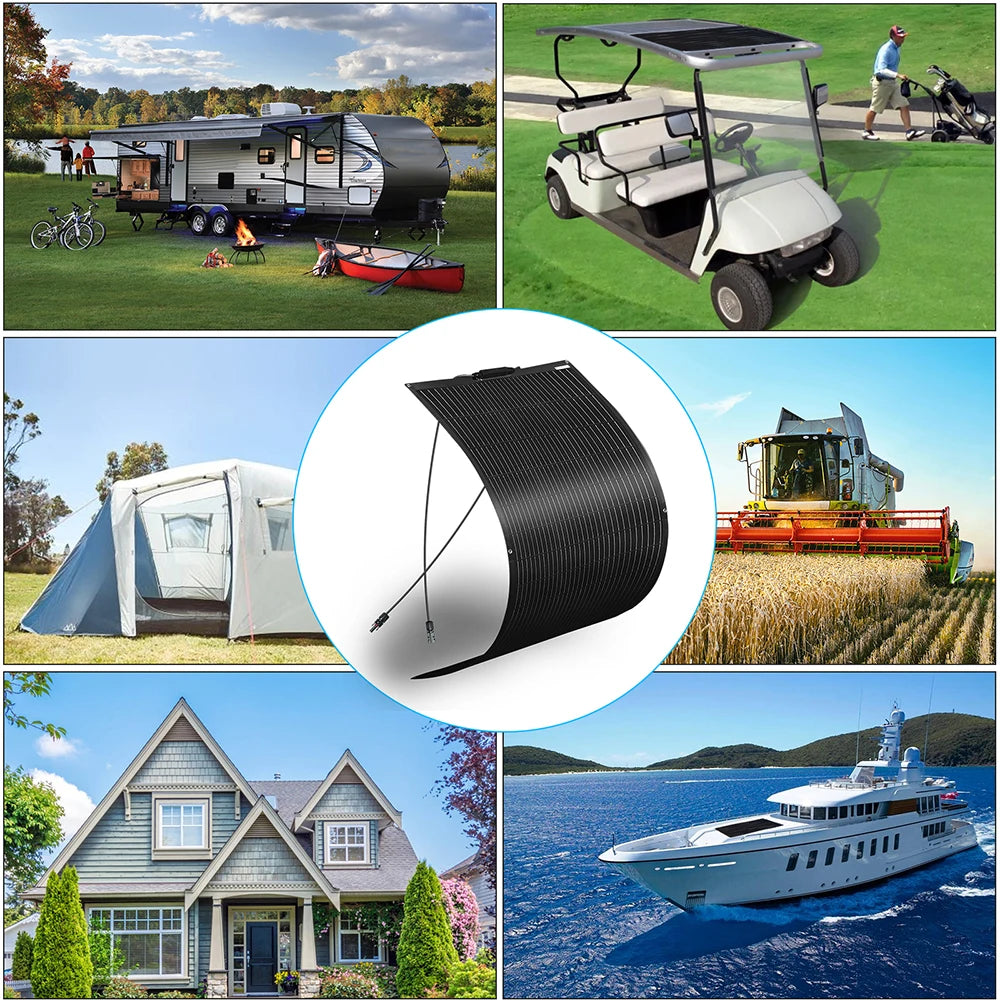

2 Boat

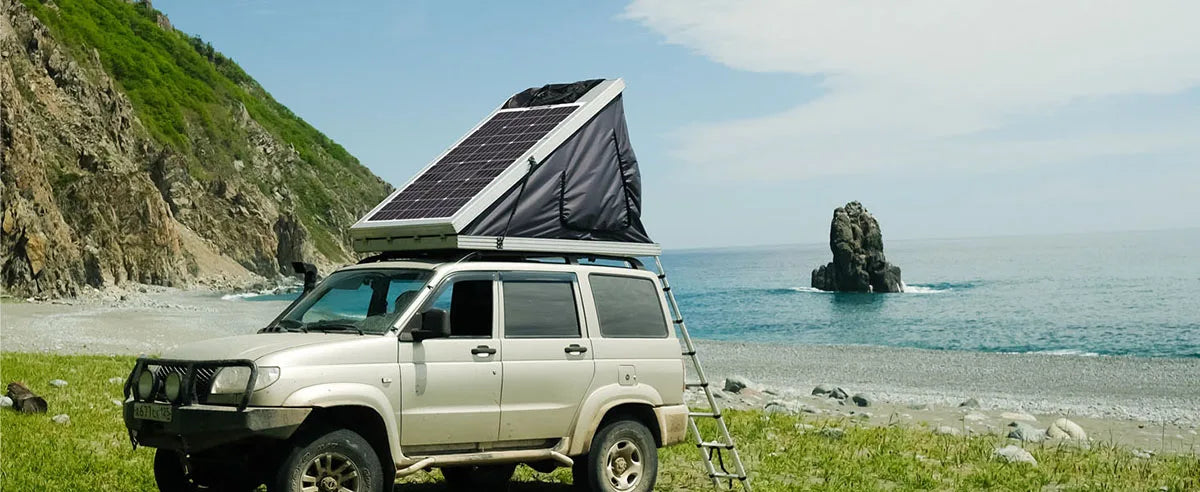

3 RVs/Trailer

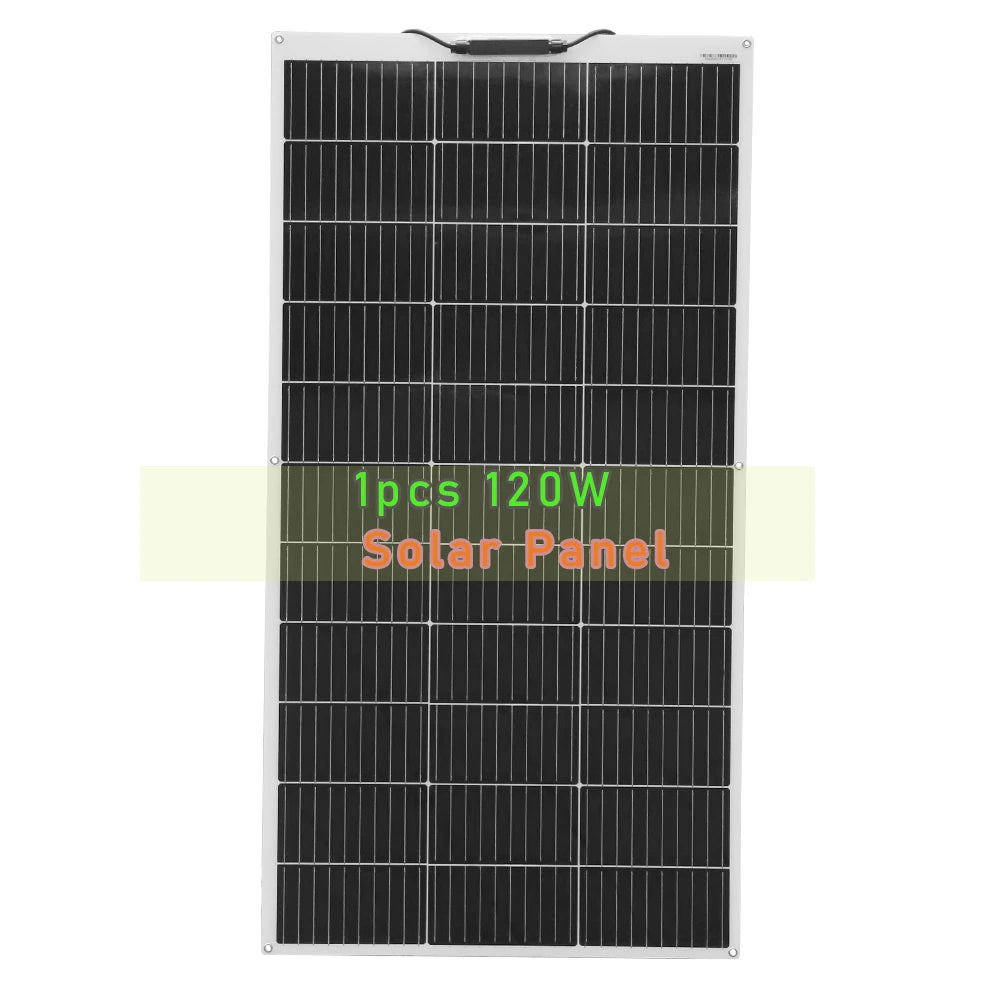

120W Included Components :
1pcs solar panel.
OR

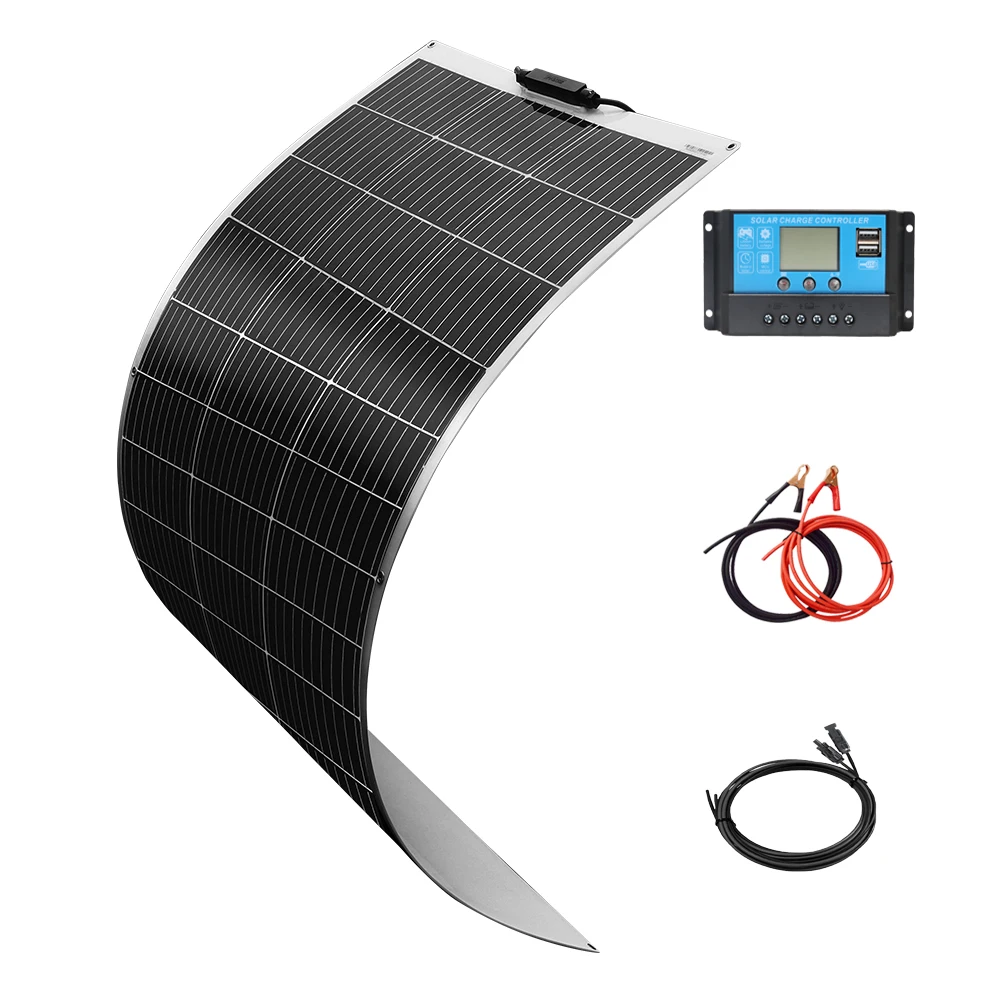

120W solar panel kit Components Includes:
1. 1x 120W high efficiency flexible solar panel
2. 1x 10A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 1.5M alligator clip solar cable
OR

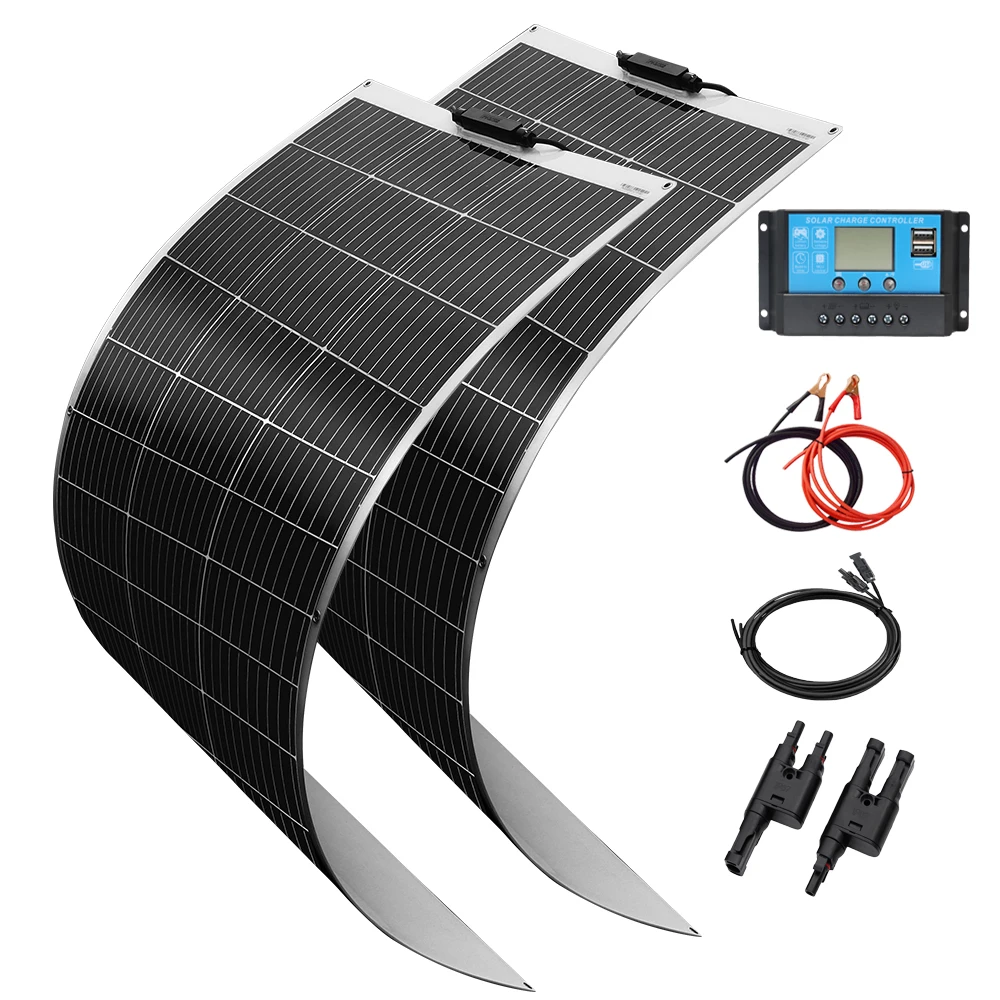

240W solar panel kit Components Includes:
1. 2x 120W high efficiency flexible solar panel
2. 1x 20A 12V/24V solar controller
3. 1x 3M PV extending connecting cable
4. 1x 1.5M alligator clip solar cable
5. 1x 2 in 1 connector

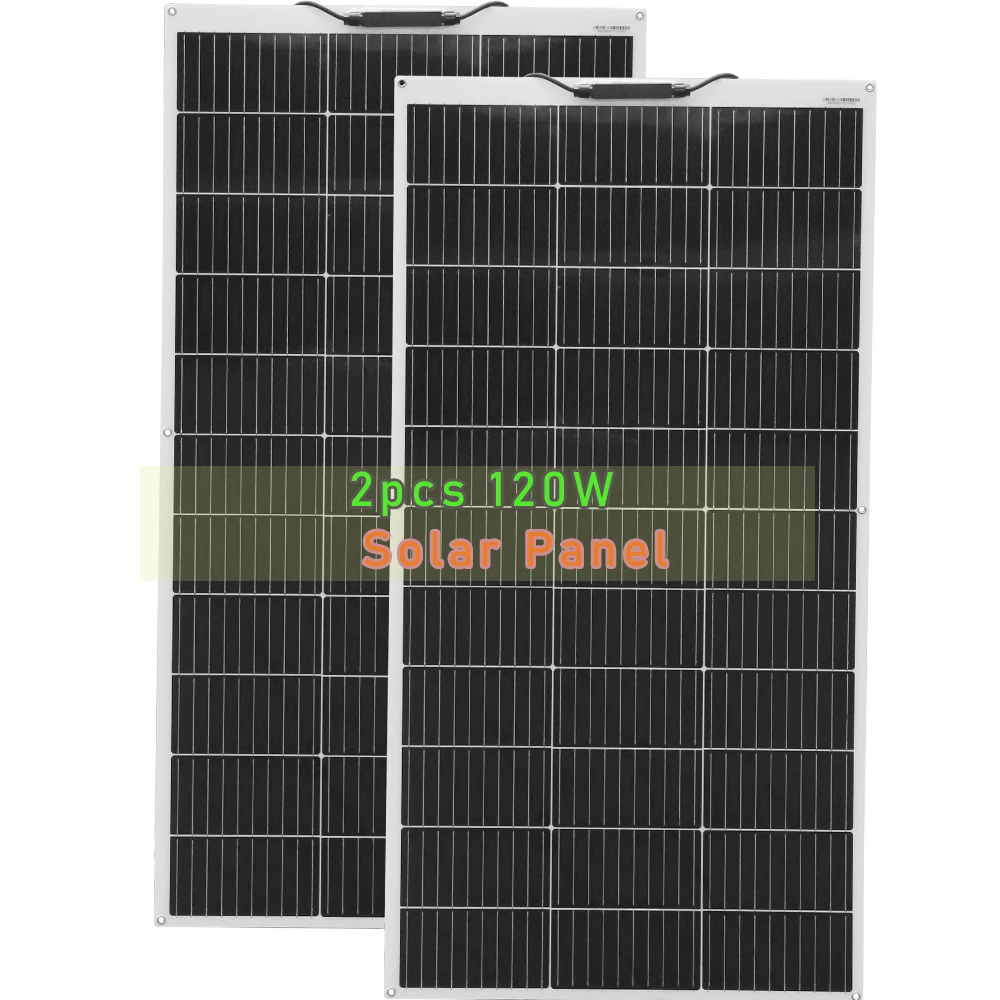

240W Included Components :
2 PCS 120W Solar Panel

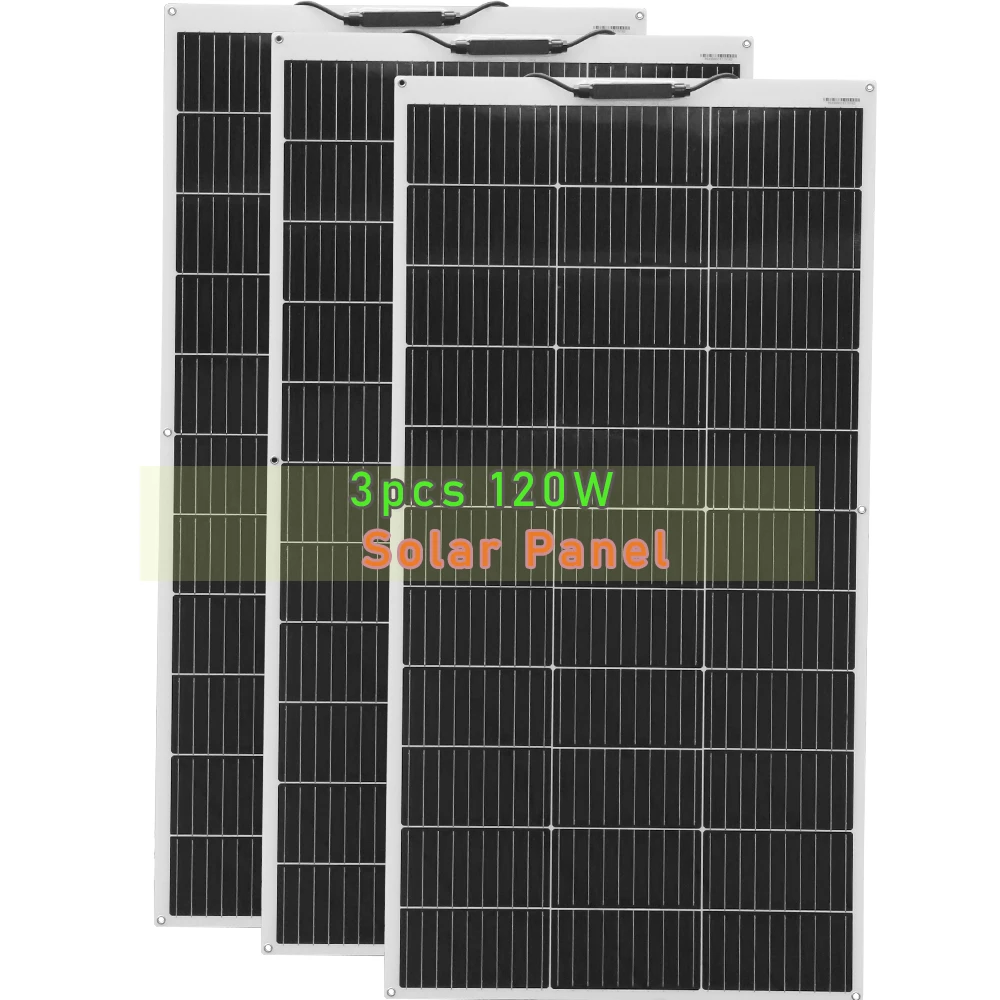

360W Included Components :
3 PCS 120W Solar Panel

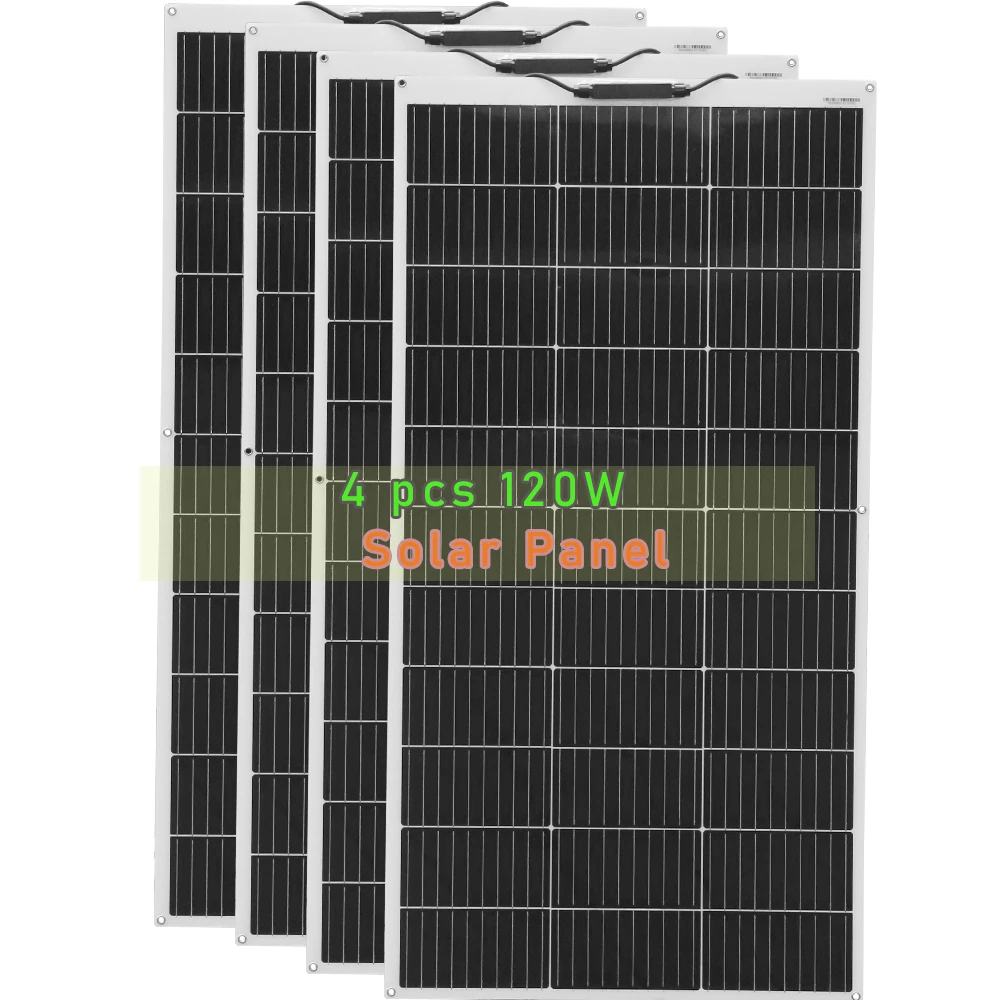

480W Included Components :
4 PCS 120W Solar Panel

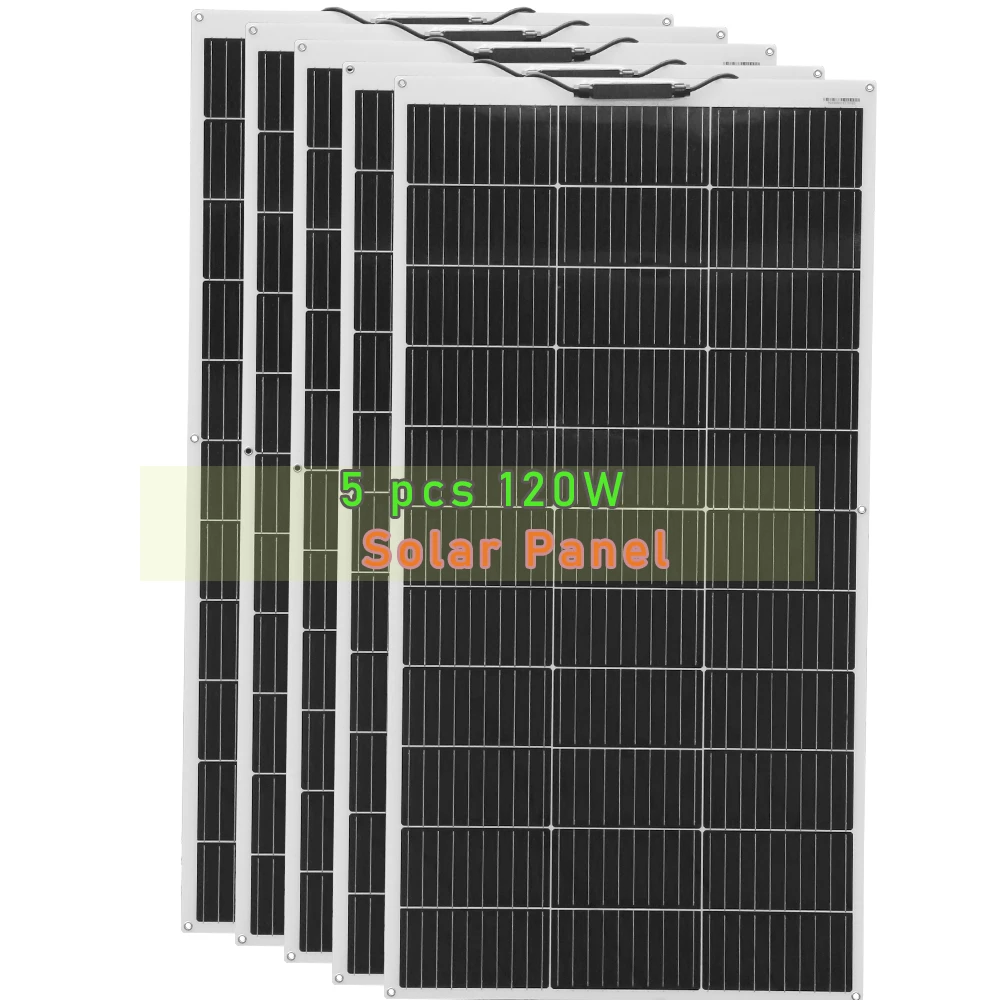

600W Included Components :
5 PCS 120W Solar Panel
720W Included Components :
6 PCS 120W Solar Panel

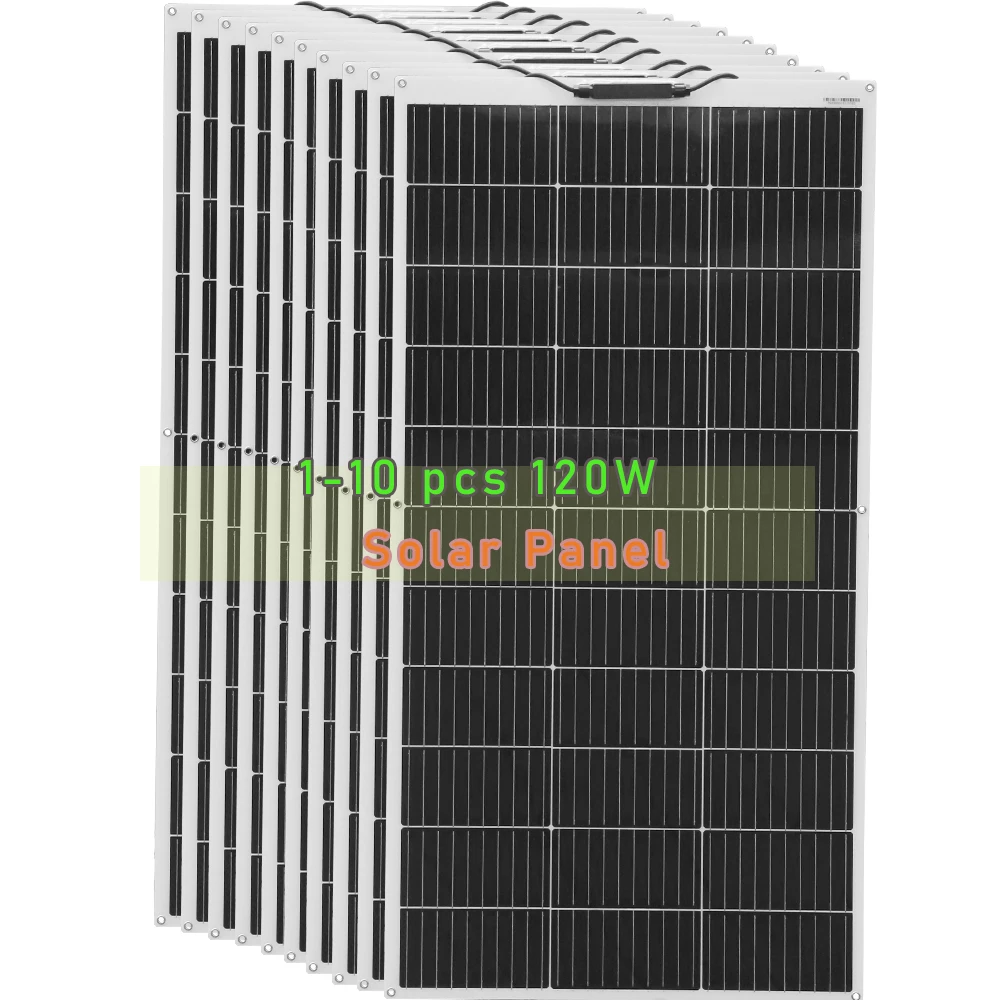

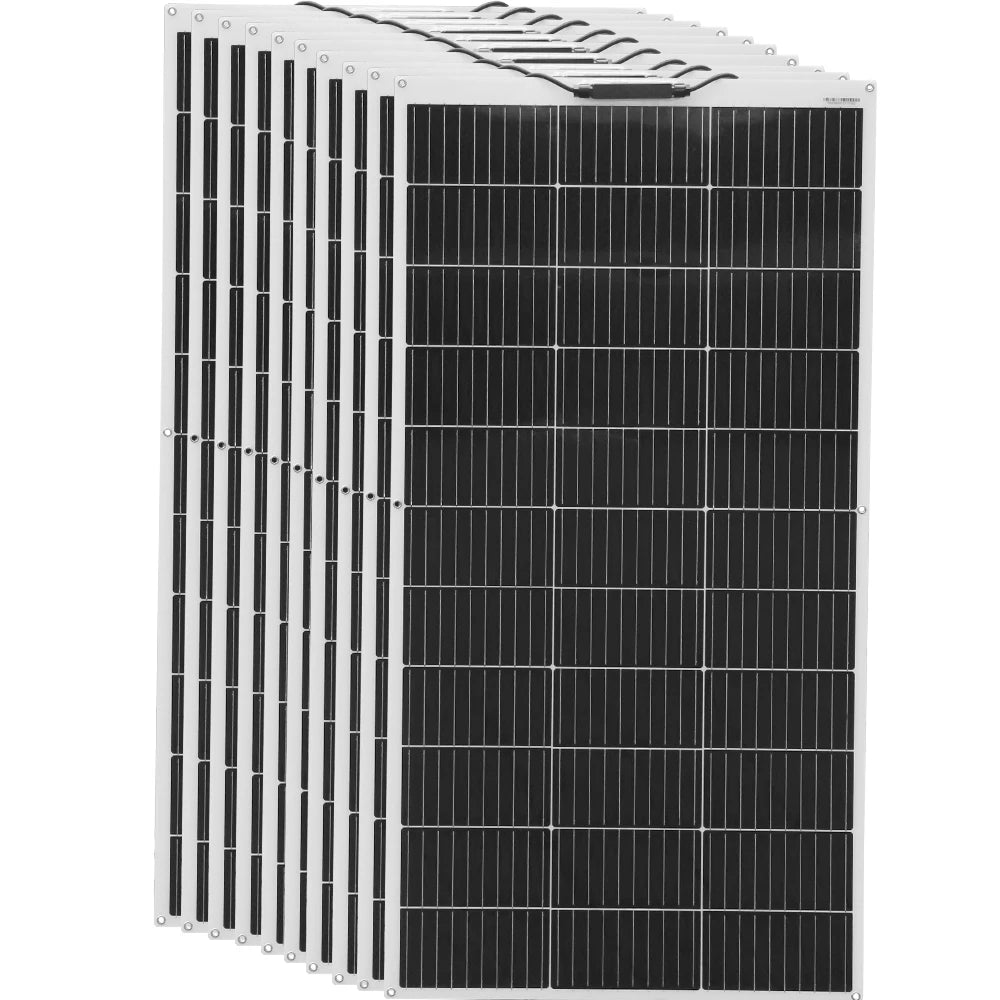

1200W Included Components :
10 PCS 120W Solar Panel
PET Solar Panel Features:
[Multiple Compatibility] Perfect solar power kit for a variety of off-grid applications like shed, cabin, gate opener, etc where 12V battery is used, as well as to charge and maintain AGM, Flooded, GEL, Deep Cycle and Seal Lead Acid, etc batteries in the car, Rv, boat, marine, trailer, camper, pump, etc.
[Light weight] Made of high efficient solar cells,withstand extreme weather conditions like UV, anti-rusting, IP65 waterproof.
[Intelligent Charging] Optimized 3-stages charging algorithm allows to charge the battery more efficiently, and prevent the battery from overcharge, over-discharge, over-voltage, short circuit, etc, fully protect battery and extend the lifetime.
[Visual Monitor] Visual bright LED indicators help to monitor battery conditions and better understand the status of solar panel and load. Exclusively equipped three working modes for load, allowing to set up the load to work under dusk to dawn automatically plus working hours according to personal requirement, very practical and useful.
The solar panels can be directly connected to a portable battery with control function (note the voltage input required for the battery)
What is the meaning of 12V in the product title，Why is this value different from the voltage of the solar panel？
When you open the product page, you will see a title like "xxx Watt 12 Volt Solar Panel". The "12V" here does not refer to the voltage of this solar panel (VOC or VMP), but to the fact that one xxxW solar panel is suitable for 12V system.
What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use.
Why is my solar panel under producing ?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
How many solar panels do I need ?
To determine solar panel needs, calculate the power load (Watts) and capacity (Watt-hours). Size the battery bank based on minimum capacity, then adjust panel quantity or power input accordingly.

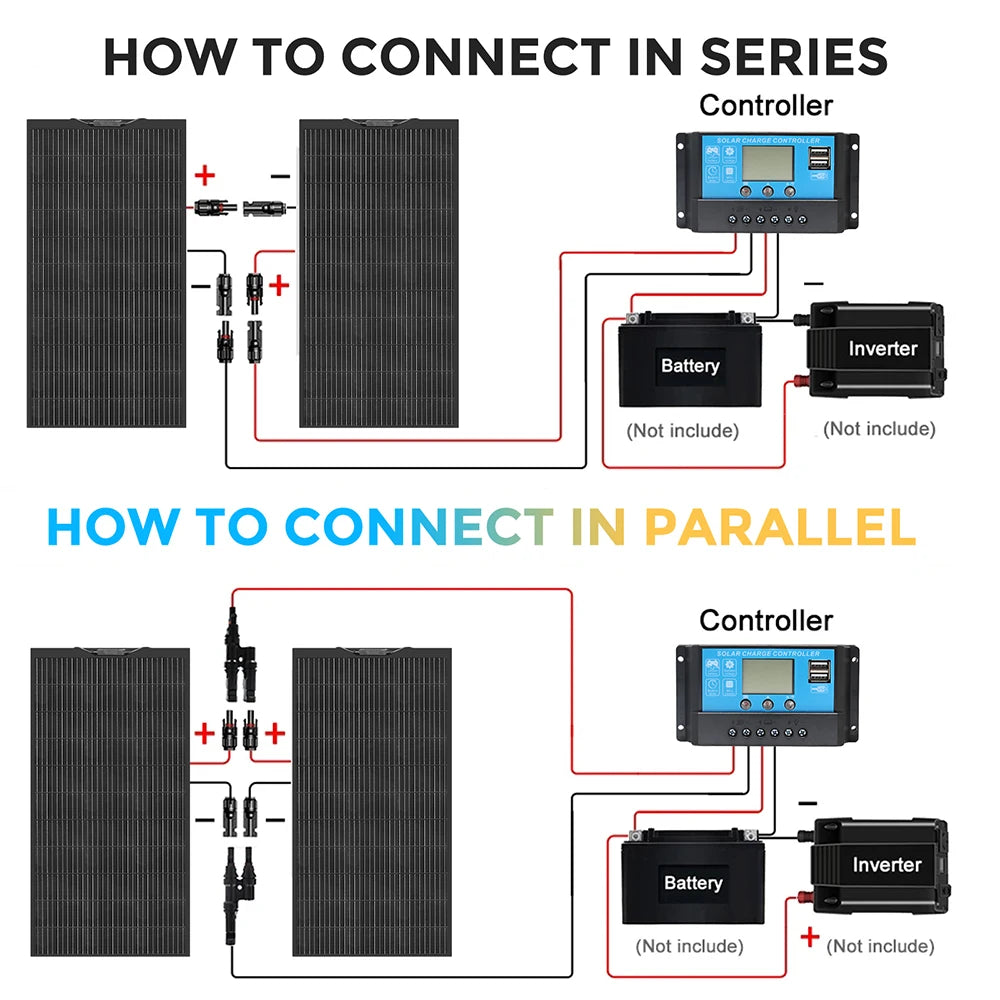

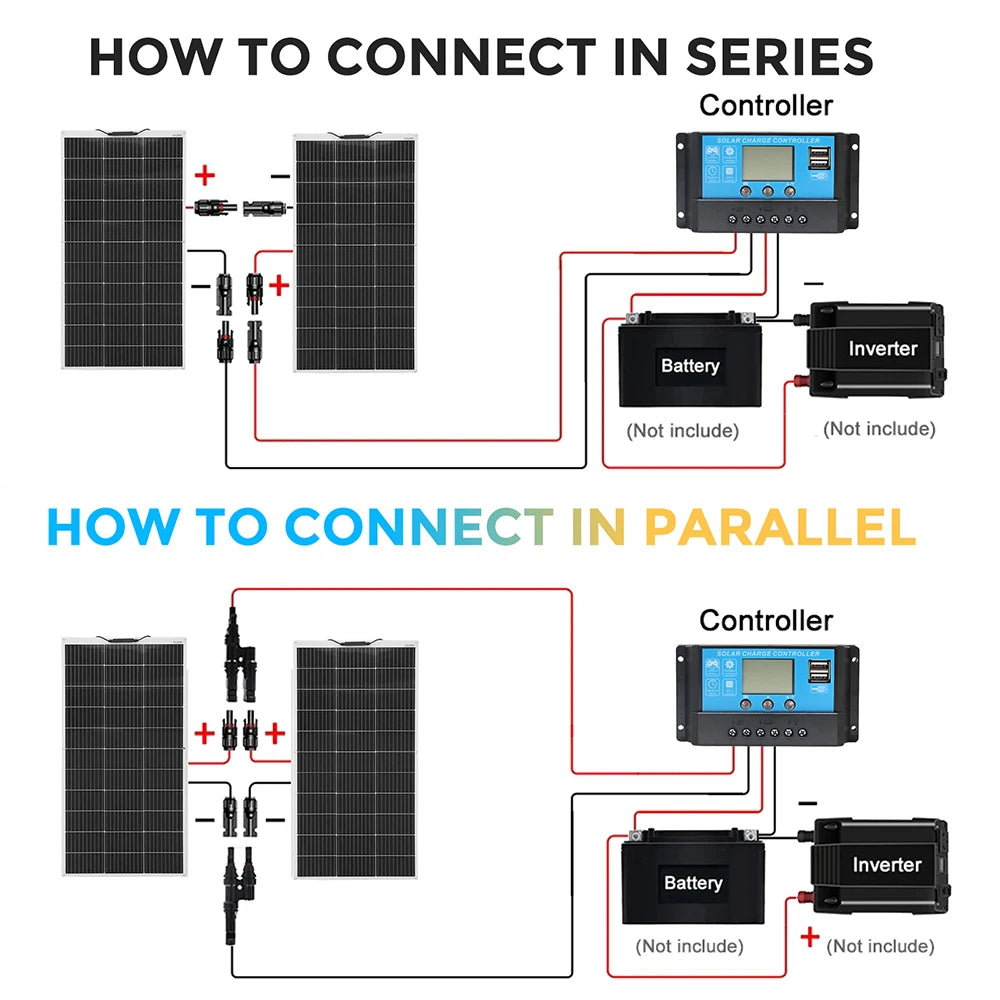

What do I need to complete my off-grid solar power system ?
A solar panel must be connected to a charge controller to regulate current and to a battery to store power. You’ll need adapter kit cables to connect the panel(s) to the controller, plus tray cables to link the controller to a deep-cycle battery.
