EU Stock JK Inverter BMS V19 4.3 LCD XR12 48V 280AH 15KW Solar Home Energy Storage LiFePO4 Battery Case DIY Kit for 280AH 314AH

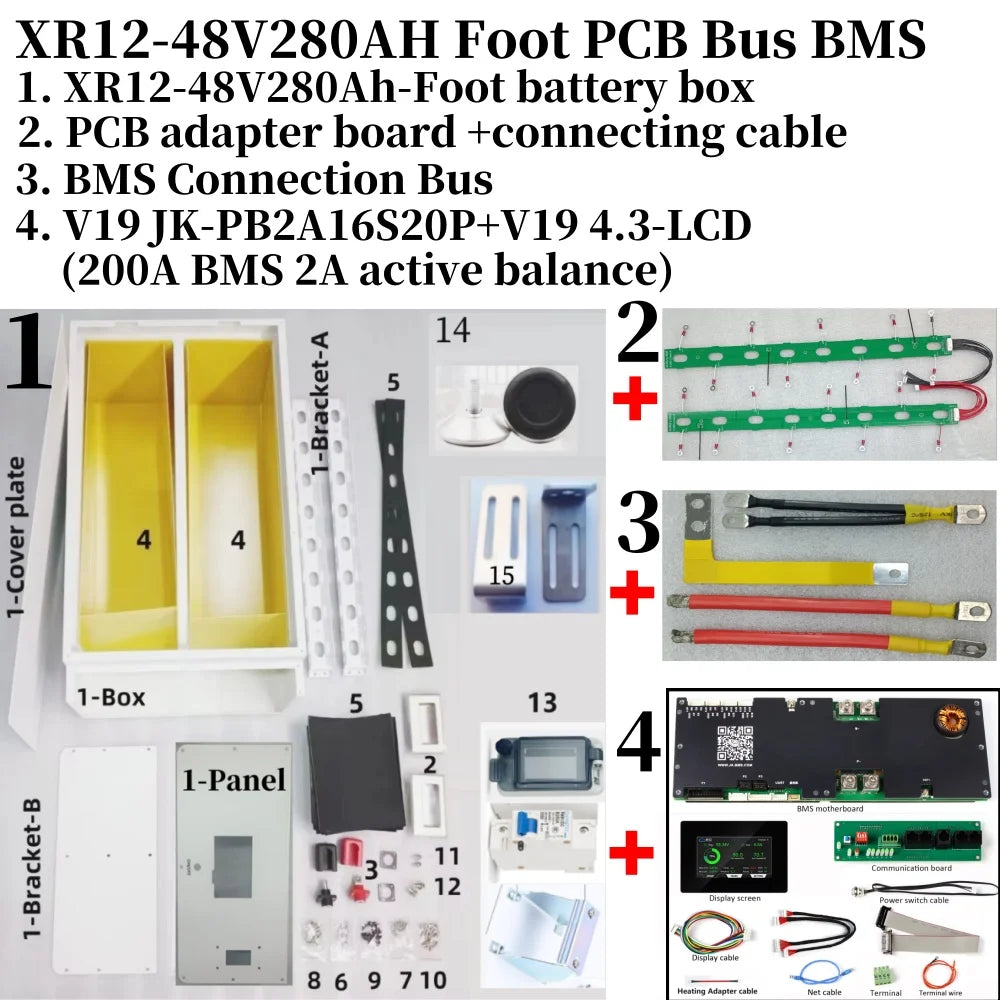

XR12-48V-280AH-Foot-PCB-Bus-BMS
₱31,085.18PHP
Sale price
₱31,085.18PHP
Regular price
Skip to product information
EU Stock JK Inverter BMS V19 4.3 LCD XR12 48V 280AH 15KW Solar Home Energy Storage LiFePO4 Battery Case DIY Kit for 280AH 314AH
₱31,085.18PHP
Sale price
₱31,085.18PHP
Regular price
Pickup currently not available
SPECIFICATIONS
BMS: compatible V19 JK-PB2A16S20P+ V19 4.3 inch LCD(LCD-4.3-TTL-P)
CELL Type: compatible EVXX CATXX 270AH 280AH 304AH 314AH 320AH
Feature: LiFePO4 Battery BOX
Material: sheet metal
brand name: XinRong
model number: XR12-48V-280AH-Battery Case DIY Kit
place of origin: Guangdong, China
private mold: Yes
product type: Battery Case DIY Kit
Note: Ignore the information shipped from China (because filling in China can cover all countries in Europe).
The package is sent from Poland, please feel free to order. Thanks.
Send from: Poland Grodzisk Mazowiecki.
Transportation method: UPS, DHL, FEDEX, INPOST.
Transportation time: All European countries: Delivery in 1-10 Working Day.
For example, Poland: 1-2 days delivery.
Send from: Poland Grodzisk Mazowiecki.
Transportation method: UPS, DHL, FEDEX, INPOST.
Transportation time: All European countries: Delivery in 1-10 Working Day.
For example, Poland: 1-2 days delivery.
1. Overview
1.1 Suitable Battery:
207 X174 X72 mm
EXX/CAXX 270Ah280Ah 304Ah 310Ah Cell
1.2 Suitable BMS:
V19 JK-PB2A16S20P
V19 4.3 LCD
1.3 Battery Pack Type:
Stand upright OR Stackable
1.4 size:720(780)x420x240mm
Compatible CELL model size:
Exx/CAxx 270Ah 280Ah 304Ah 310Ah 320Ah CELL
Dimensioning drawing

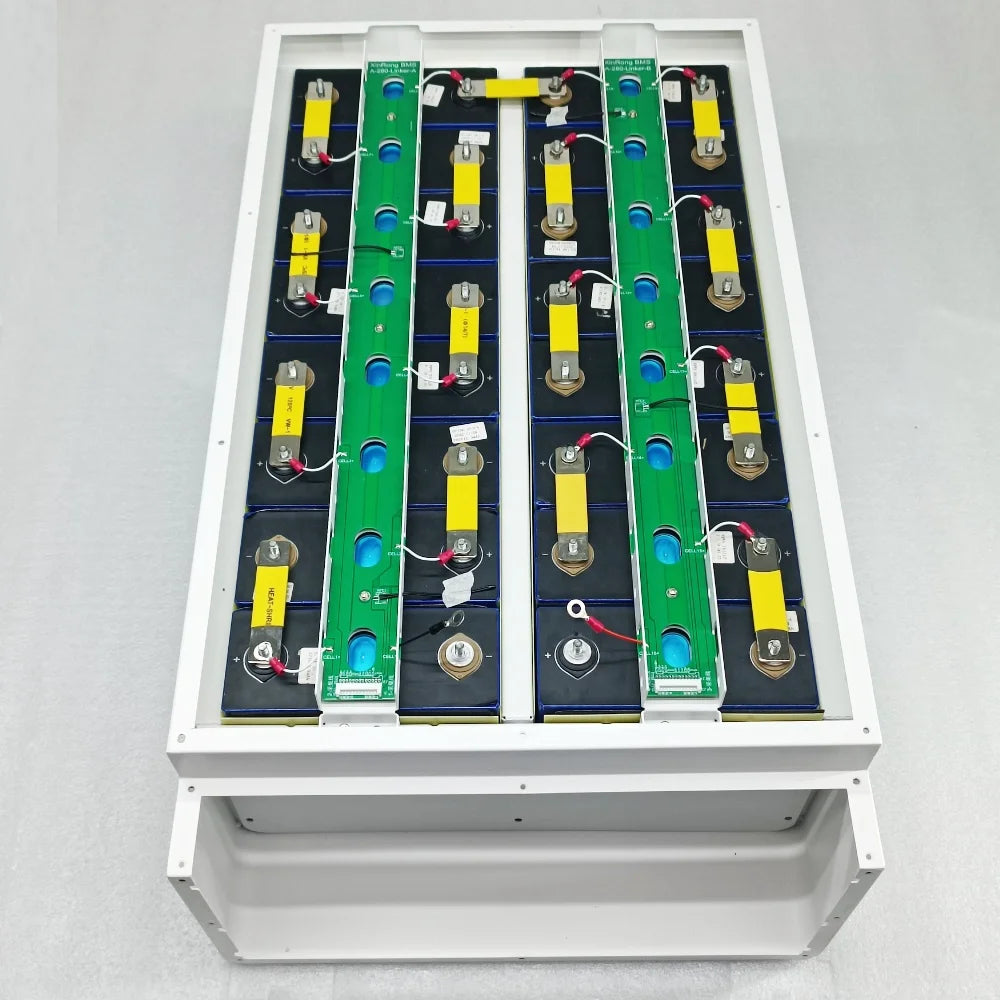

CELL arrangement reference diagram
Assembly steps diagram
Supporting BMS model:
System usage:V19 JK-PB2A16S20P + V19 4.3 inch LCD

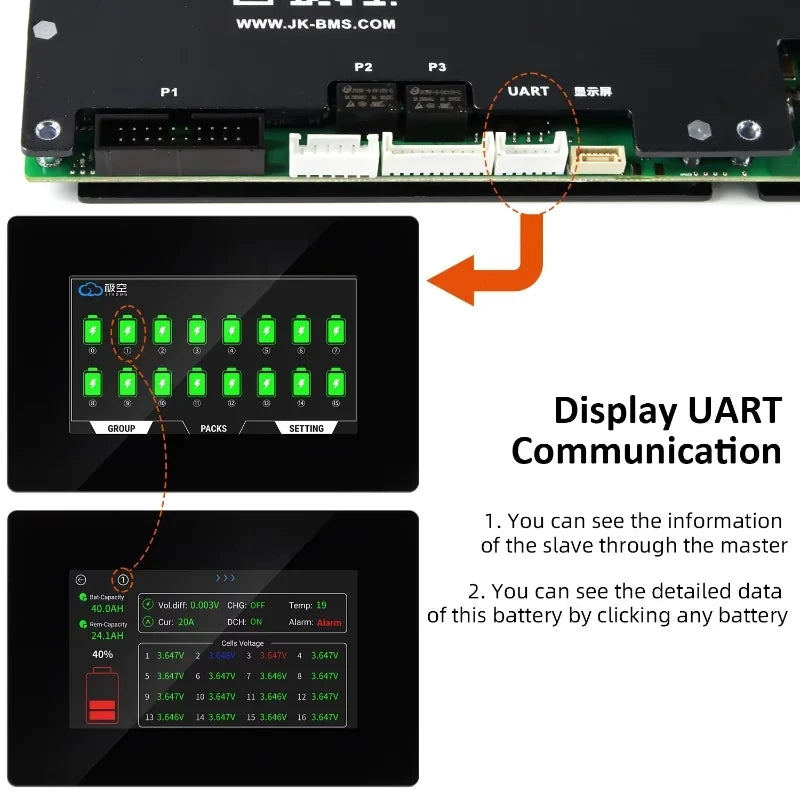

Communication cable connection
