SPECIFICATIONS

Application: Consumer Electronics,Power Tools,Boats,Toys,Uninterruptible Power Supplies,Electric Wheelchairs,Solar Energy Storage Systems,Golf Carts,Electric Power Systems,Electric Bicycles/Scooters,Electric Forklifts,Home Appliances,SUBMARINES,electric vehicles,Drone,Robot Vacuum Cleaner

BMS: Built-in BMS Protection

Battery Type: Liquid

Brand Name: DELONGTOP/OEM

Cathode Materials: LiFePO4

Certification: CE/UN38.3/MSDS/IEC62619

Connector: M8

Cycle Life: 6000 cycles

Dimension (L*W*H): 384*194*255mm

Features: Long Cycle Life

Max Load Quantity(cells): 4

Max charge current: 50A

Model Number: LFP12200

Operating Temperature(℃): -10~55℃

Package: Individual Box Package

Payment: Paypal.TT.Western Union/Trade Assurance

Place of Origin: Guangdong, China

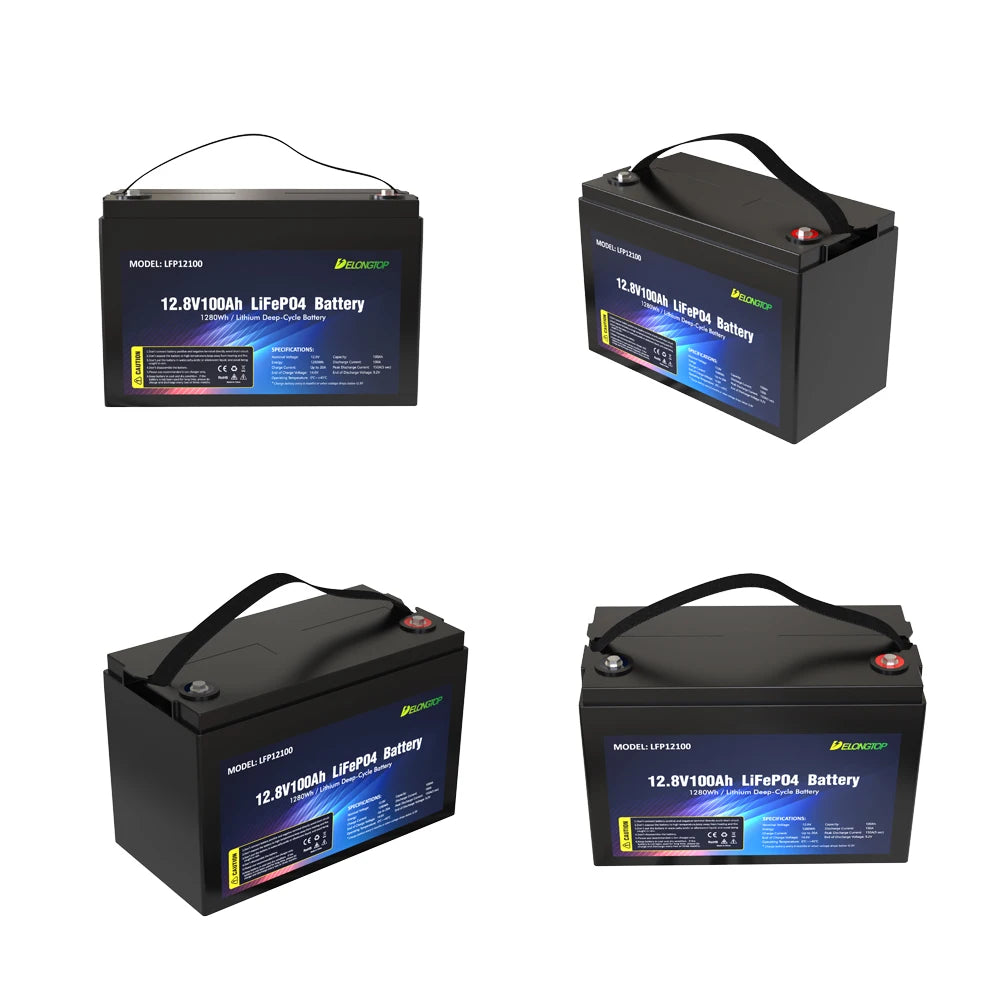

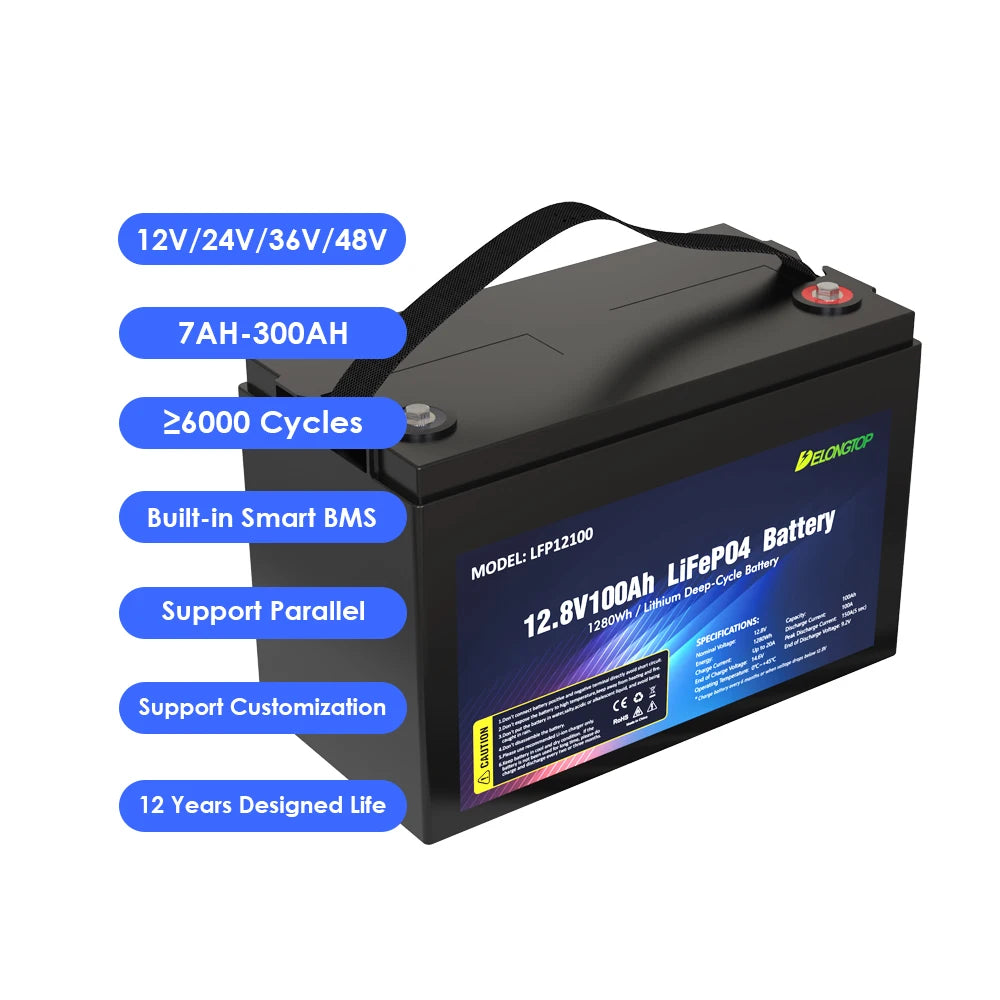

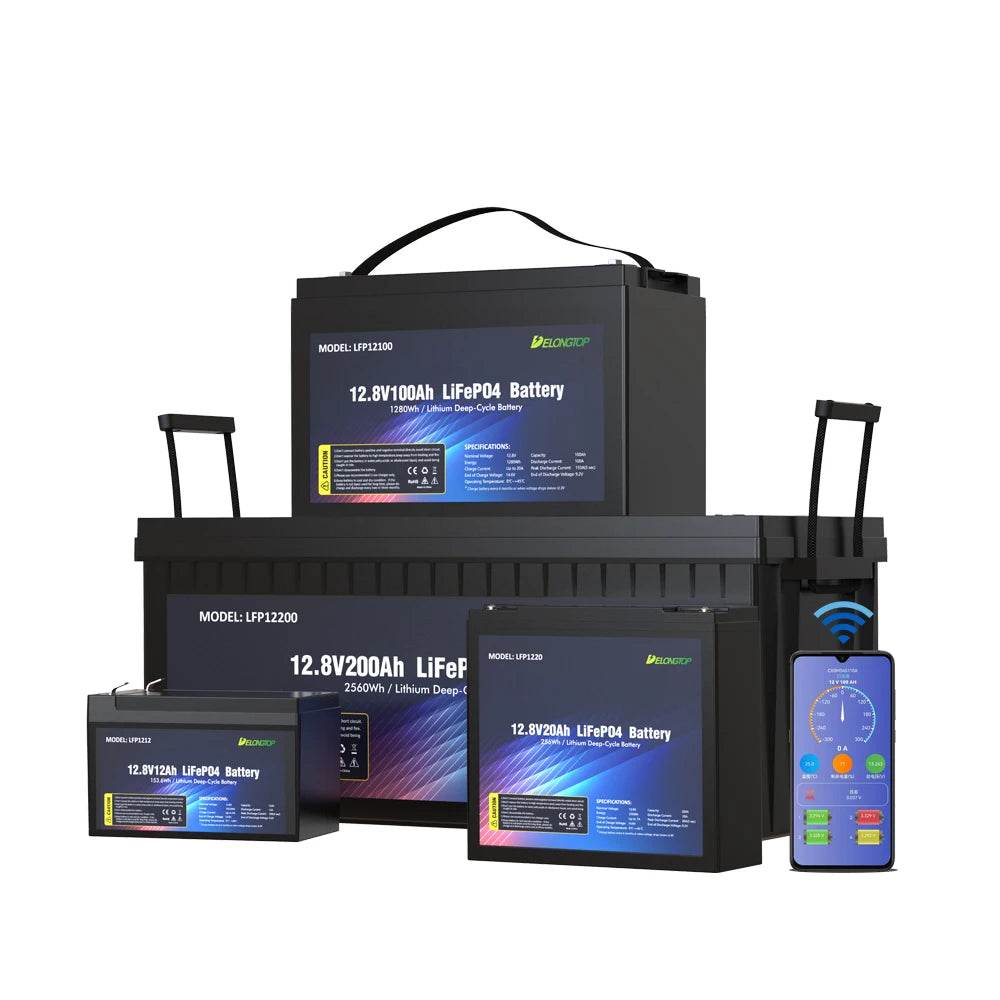

Product name: 12.8V 100Ah 200Ah 300Ah LiFePO4 battery

Shipping: by air or by sea

Warranty: 10 Years

Weight: 19.18kg

Why choose DELONG?

1. With more than 10 years experience in lithium ion battery field

2. Direct factory price
3. Provide OEM and ODM services
4. We provide 10 year warranty
5. On time delivery time
6. We are gold suppliers on Alibaba for 12 years
7. Our factory is certificated by IS9001,ISO14001,ISO45001
8. We can provide CE,MSDS,UN38.3,IEC62619 certificates and test reports

Product Paramenters

Nominal Voltage	12.8V
Nominal Capacity	100Ah
Battery Energy	1280Wh
Case dimension	329*173*216mm(L*W*H)
Battery cell	Grade A LiFePO4 battery cell
Internal Resistance	≤56mΩ
End of charge voltage	14.6V
End of charge current	100mA
End of discharge voltage	9.2V
Charge Method	CC/CV
Standard charge current	20A
Max continuous charge current	50A
Continuous discharge current	100A
Peak discharge current	150A
Weight	9.8kg
Charge temperature	0～45℃
Discharge temperature	-10～55℃
Storage temperature	-10～45℃
CycleLife	6000 times
Case material	ABS+PC
IP Level	IP54
Certifications	CE/MSDS/UN38.3/IEC62619
Terminal	M8
BMS protection	over-charge,over-discharge,over-current,short circuit and balance functions

Main Applications

Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walkerk,motocycle & electric tricycle etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys

Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)

Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrument

Features of LiFePO4 battery

1. 10 Years Lifespan Maximum performance

2. Intelligent long-term solution
Over the lifetime of the LiFePO4 battery costs more than 100% less than a standard AGM battery, making them a worthwhile investment and a smart long-term solution.

3. The hightest class of energy
LiFePO4 batteries have a decisive advantage over all batteries available on the market

4. Higher efficiency
The possibility of putting a lot of energy back in a short time.

5. Lightness
Only 1/3 weight of lead acid batteries

6. Countless uses
LifePO4 battery are widely used for electric cars,golf cart,camping car,RV,trolling motro,electric boat,solar energy storage systems.,etc

Package&Shipping

Packaging Information

12.8V 100Ah LiFePO4 Battery*1piece/UN box

Gross weight:11KG

Net weight:9.8KG

Carton dimension:38.5*22*27CM

720PCS/1*20'FCL container;1440PCS/1*40'FCL container

Shipping Methods

1. For samples,we normally ship them by air which will take around 4-6 days

2. For bulk order,we usually deliver them by sea which will take around 10-15 days

Built In Smart BMS

The batteries are equipped with a high class BMS (battery management system).The task of this system is to monitor the voltage and temperature of the cells during both charging and discharging.If dangerous values are exceeded,the system cuts off the power
supply,thus ensuring the safety of the battery,connected devices and most of all,the user!

What Cells Does DELONG use?

We only use the highest quality battery cells, meaning our batteries have an expected minimum lifespan of at least 10 years. This ensures maximum return on investment on the Powerplant as well as long term energy independence.

There are two kinds of cells we normally use for big capacity LifePO4 battery pack,one is pouch LifePO4 battery cells which is light and cheap,it is better for customized size.At present, the minimum internal resistance of domestic soft-pack battery cells can be less than 35mΩ, which greatly reduces the battery's self-consumption.The other one is prismatic LifePO4 battery cells which is mature on the market,the single battery capacity is large, the assembly is large, and the capacity battery process is simple,the internal resistance is low and sustainable high current discharge.

Certifications

Customers reviews

Company Profile

Shenzhen Delong Energy Technology Co., Ltd. Is one of leading lithium ion battery Supplier in China, our management teams have been in lithium ion battery field for over 10 years, we have own associated factory, testing room and sales center. Our factory is located in Dongguan city, Guangdong Province which is occupied with over 5,000 square meters, we have strong R & D department,well trained workers who can ensure to make high quality and more stable products. Delong Energy is I S O 9 0 0 1 : 2 0 1 5 certificated high-tech factory.

We specialized in developing, manufacturing new energy customized products which cover Lithium iron phosphate battery, lithium ion battery pack, lithium polymer battery pack and Portable power station. we have been exporting our batteries to many countries like Europe, North America, Middle East and Southeast Asia. Our products are widely applied on Alternative lead-acid batteries, Solar and wind energy storage system, Outdoor emergency standby, Golf cart, R V, A G V, Robot, Marine, electric boat and others. All of our products are approved C E, RoHS, I E C 6 2 1 3 3, M S D S, U N 3 8.3, K C. We can provide D G certifications as well.

FAQ

Q1:Are you trading company or factory?

A:We are professional lithium ion battery factory,we have more than 10 years lithium
ionproduction experience,welcome to visit.

Q2:What kind of battery cells do you use?
A2:We normally use Grade A high quality LifePO4 battery cells,we purchase the battery cells from the factory directly like
EVE,CALB,GanfengLithium,Lishen and so on.

Q3:How do you ususally ship the batteries?
A3:We usually ship them by air or by sea.

Q4:What kind of certifications can you provide?
A4:We can provide CE,FCC,MSDS,UN38.3,IEC62133 and dangerous packaging certificates.

Q5:What is your leadtime?
A5:5-7 days for samples;25-30 days for mass production.

Q6:What is your payment terms?
A6.For samples,we can accept Paypal,T/T,you also can place trade assurance order on Alibaba;for bulk order,30% deposit and balancepayment before shipment or against copy of BL;if your order quantity is big,then we can accept L/C at sight as well.

Q7:What is your warranty?
Q7:We provide 10 years warranty policy;replace new battery within 1st year;provide free components within 2nd to 5th years;provide free technical support within 6th to 10th years.

Q8:What is your advantages?
A8:We are direct factory,we can provide more competitive price;we always provide high quality and affordable price,and the defective rate is low;we normally provide best solution for our customers;on-time delivery.
