DELONGTOP All in One 5Kwh LifePO4 Battery + Inverter 5Kva Solar 48V 100Ah Lithium Battery 10Kwh 15Kwh for Energy Storage System
On-Grid Solar System / 5 kW / String Inverter
₱40,216.46
Sale price
₱40,216.46
Regular price
₱0.00
Skip to product information
DELONGTOP All in One 5Kwh LifePO4 Battery + Inverter 5Kva Solar 48V 100Ah Lithium Battery 10Kwh 15Kwh for Energy Storage System
₱40,216.46
Sale price
₱40,216.46
Regular price
₱0.00
Pickup currently not available
Specifications
Application: Solar System/Solar Panel system
Battery type: LiFePO4 Battery Pack 100Ah cell
Brand Name: Delong
Capacity: 48V 51.2V 100Ah
Certificate: CE / MSDS/ ISO9001 / Rohs/un38.3
Communication: CAN/RS485/WIFI/4G/Blue Tooth Communication
Cycle time: 6000 times
Input Voltage: 51.2V
Inverter Efficiency: 5KW
Inverter Matched: Bluesun Goodwe Deye Growatt Sungrow
Model Number: DL5000TL-48-SP
Output Current: 100Ah
Output Frequency: 50/60Hz
Output Type: Single
Output Voltage: 58.4V
Place of Origin: Guangdong, China
Product name: Solar 48V 100Ah Lithium Battery 10Kwh 15Kwh for Energy Storage System
Protection: Built-in BMS 100A
Size: 55*55*28cm
Type: DC/AC Inverters
Weight: 52KG
EU Stock All in One 5Kwh LifePO4 Battery + Inverter 5Kva Solar 48V 100Ah Lithium Battery 10Kwh 15Kwh for Energy Storage System
Product Specification
|
Item
|
Model
|
5Kwh+5Kw
|
10Kwh+ 5Kw
|
15Kwh +5Kw
|
|
Battery Module
|
Voltage
|
48/51.2V
|
48/51.2V
|
48/51.2V
|
|
|
Battery Capacity
|
DL-LFP-HS51100*1 100Ah
|
DL-LFP-HS51100*2 200Ah
|
DL-LFP-HS51100*3 300Ah
|
|
|
Battery Energy Power
|
5.12Kwh
|
10.24Kwh
|
15.36Kwh
|
|
|
Charger Voltage
|
52.5V--58.4V
|
52.5V--58.4V
|
52.5V--58.4V
|
|
|
Discharge cut -off Voltage
|
42V--44.8V
|
42V--44.8V
|
42V--44.8V
|
|
|
Charger Current
|
40A
|
40A
|
40A
|
|
|
Max Charger Current
|
70A
|
70A
|
70A
|
|
|
Discharge Current
|
100A
|
100A
|
100A
|
|
|
Max Discharge Current
|
150A 100mS
|
150A 100mS
|
150A 100mS
|
|
|
Communication Protocol
|
RS485/232/Canbus
|
RS485/232/Canbus
|
RS485/232/Canbus
|
|
Hybrid
Inverter
|
Power
|
5Kw
|
5Kw
|
5Kw
|
|
|
Output /Input Voltage (AC)
|
200-240V AC
|
200-240V AC
|
200-240V AC
|
|
|
Frequency
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
|
|
Input Power(PV)
|
7000W
|
7000W
|
7000W
|
|
|
Input Voltage Range (PV)
|
150V-500VDC
|
150V-500VDC
|
150V-500VDC
|
|
|
Communication
Connect Port
|
RS485/232/Canbus
|
RS485/232/Canbus
|
RS485/232/Canbus
|
|
Parameter
|
Material /Color
|
Metal
White + Black
|
Metal
White + Black
|
Metal
White + Black
|
|
|
Size/Dimension
|
483*200*940mm
|
483*200*1390mm
|
483*200*1840mm
|
|
|
Weight
|
62KG+-2KG
|
107KG+-2KG
|
152KG+-2KG
|
|
|
Temperature
|
Charge : 0-50 ℃ Discharge :-5-55 ℃
|
Charge : 0-50 ℃ Discharge :-5-55 ℃
|
Charge : ℃ Discharge :-5-55 ℃
|
Details Images

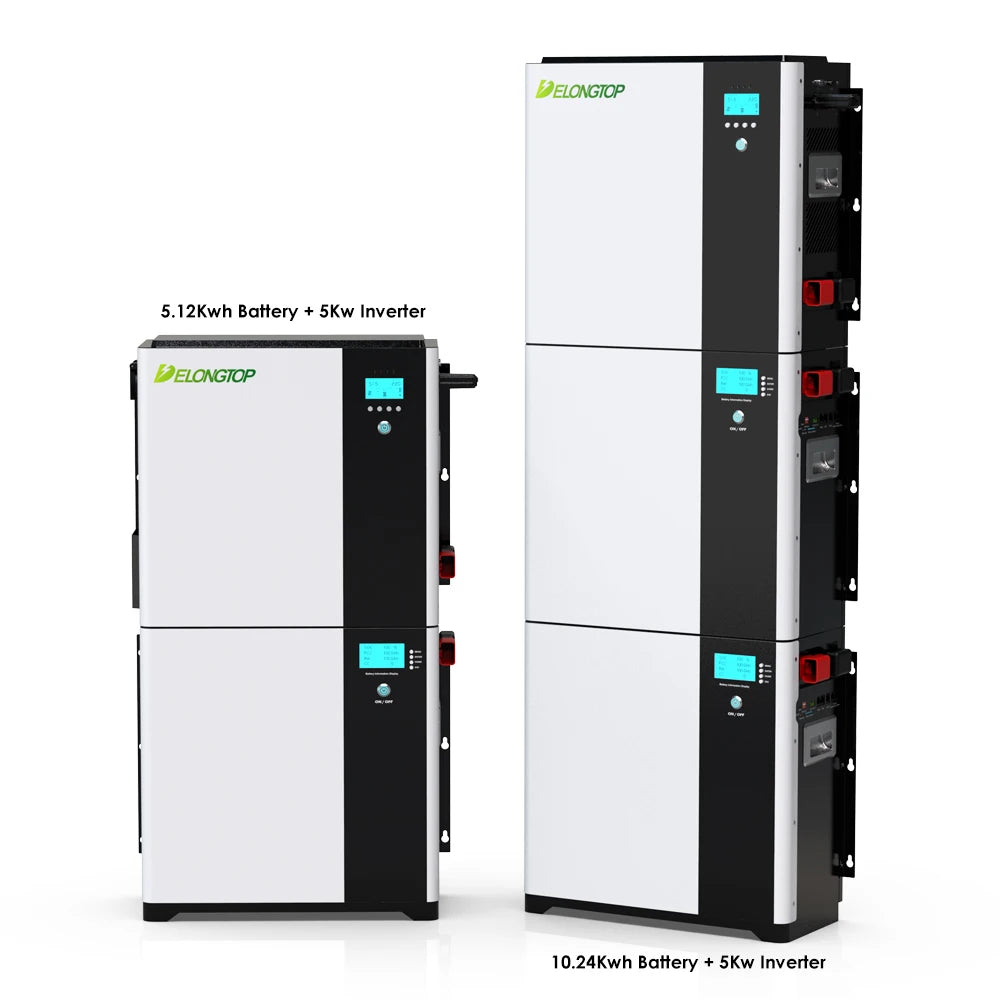

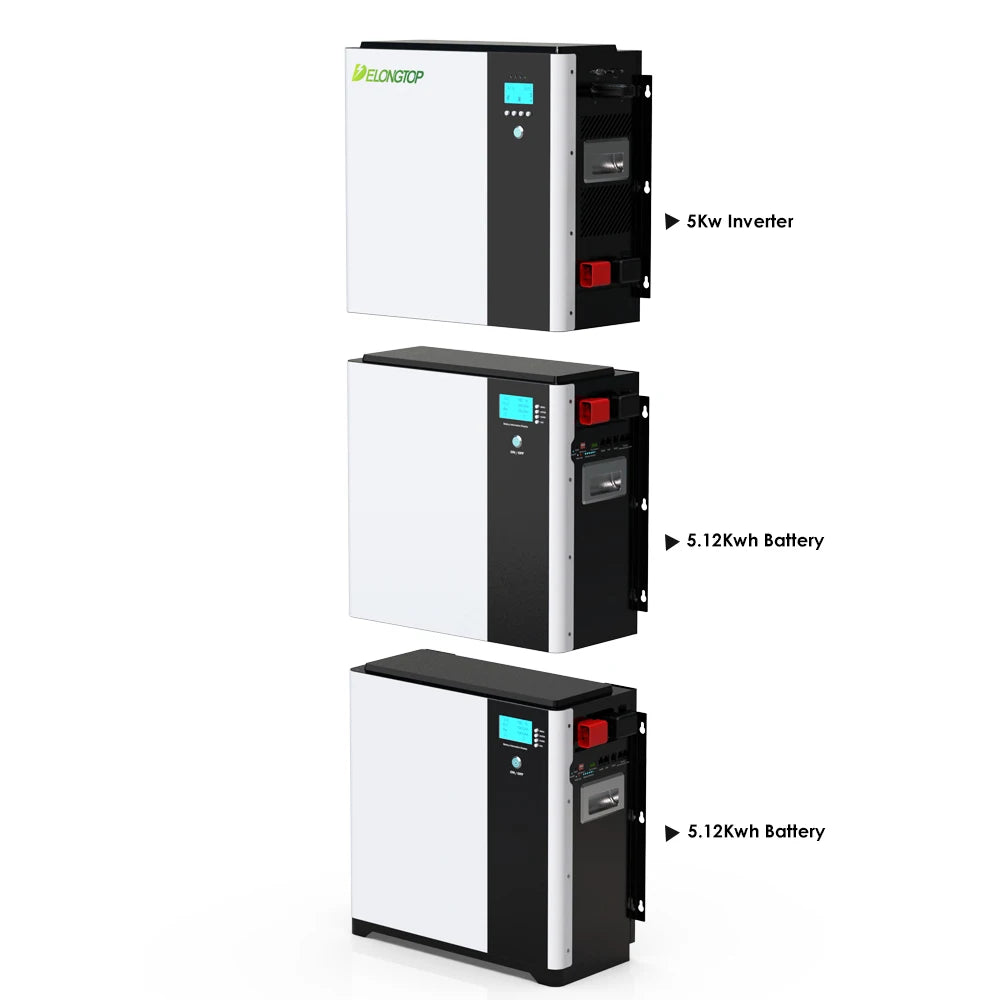

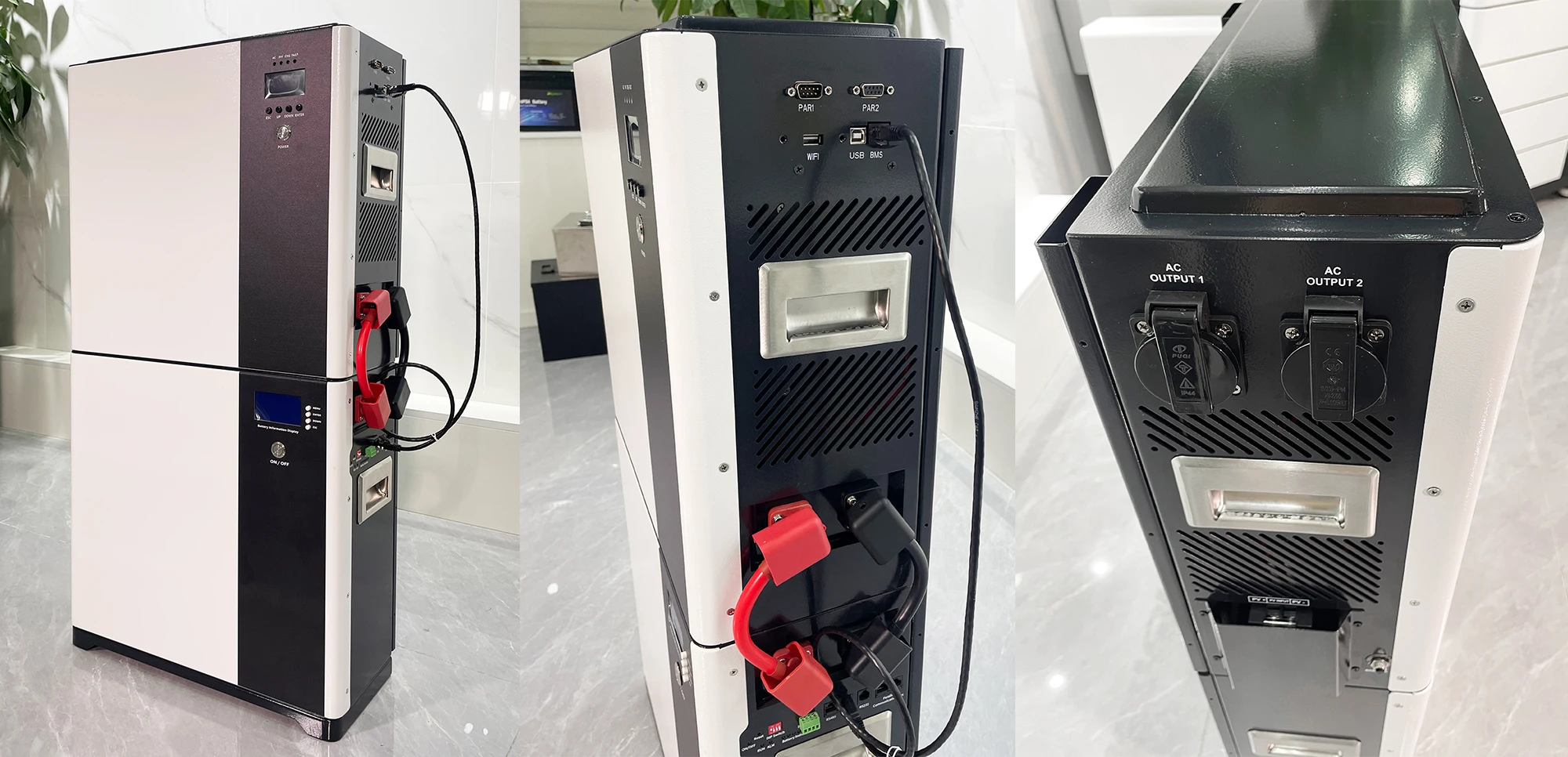

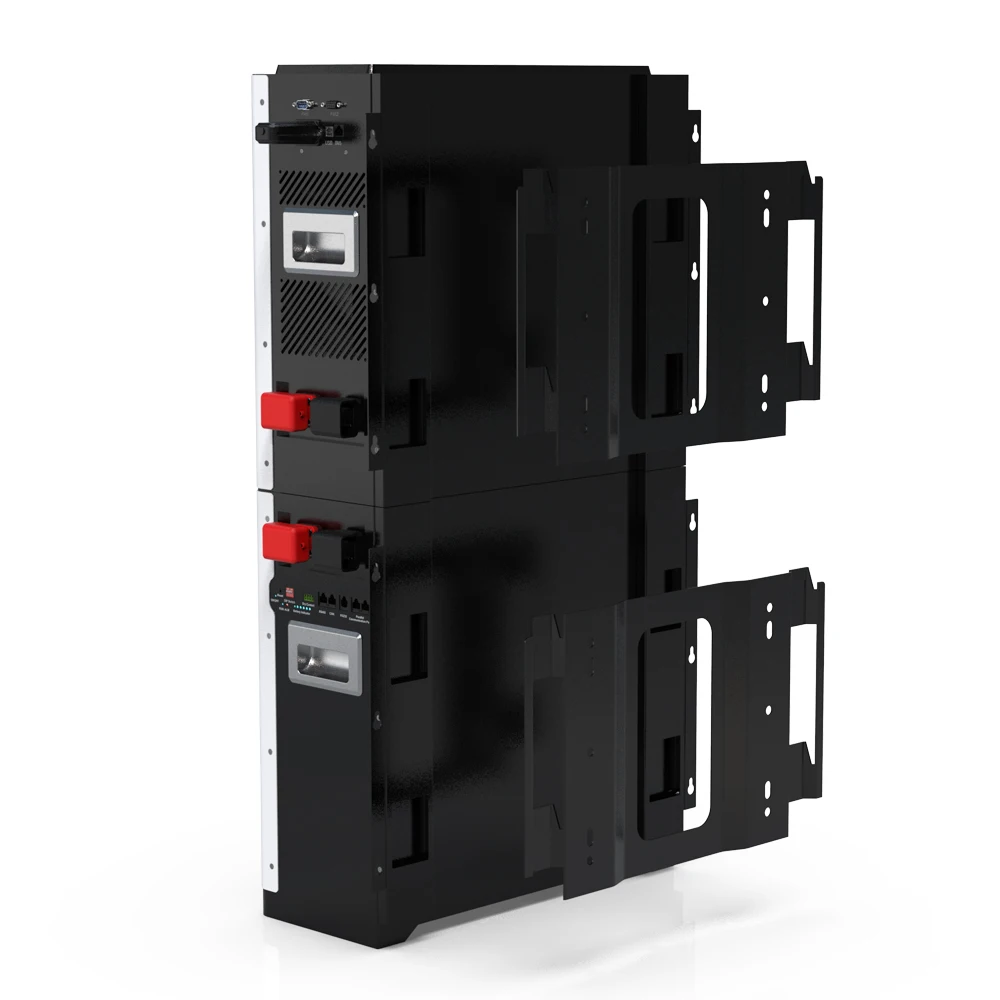

Images of 48V Wall-Mounted LIFEPO4 Battery Inverter
Related Products
Company Profile
1. Shenzhen Delong Energe Technologe Co. Ltd. was established in 2012.
2. Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory with over 10 years experience on this battery filed.,We hae a technician team with over 10 people.
2. Our factory is a CE,ROHS,IEC62133,ISO9001:2015 certificated high-tech factory with over 10 years experience on this battery filed.,We hae a technician team with over 10 people.
3 Specialized in Developing,Manufacturing new energy, customized products mainly is LIFEPO4 Battery Pack,also 18650/ 21700 lithium ion battery pack, lithium polymer battery pack,AC output power banks etc..
4. Factory occupied with more than 5,000 square meters & strong R&D department,over 200 well-trained workers.
Package & Shipping
1 PC in a CARTON， 30pcs/Pallet, CARTON: 56*29*28cm , Pallet: 110*110cm
FAQ
1. Are you a trader or manufacturer?
A: We are a manufacturer. Factory in Dongguan Guangdong!

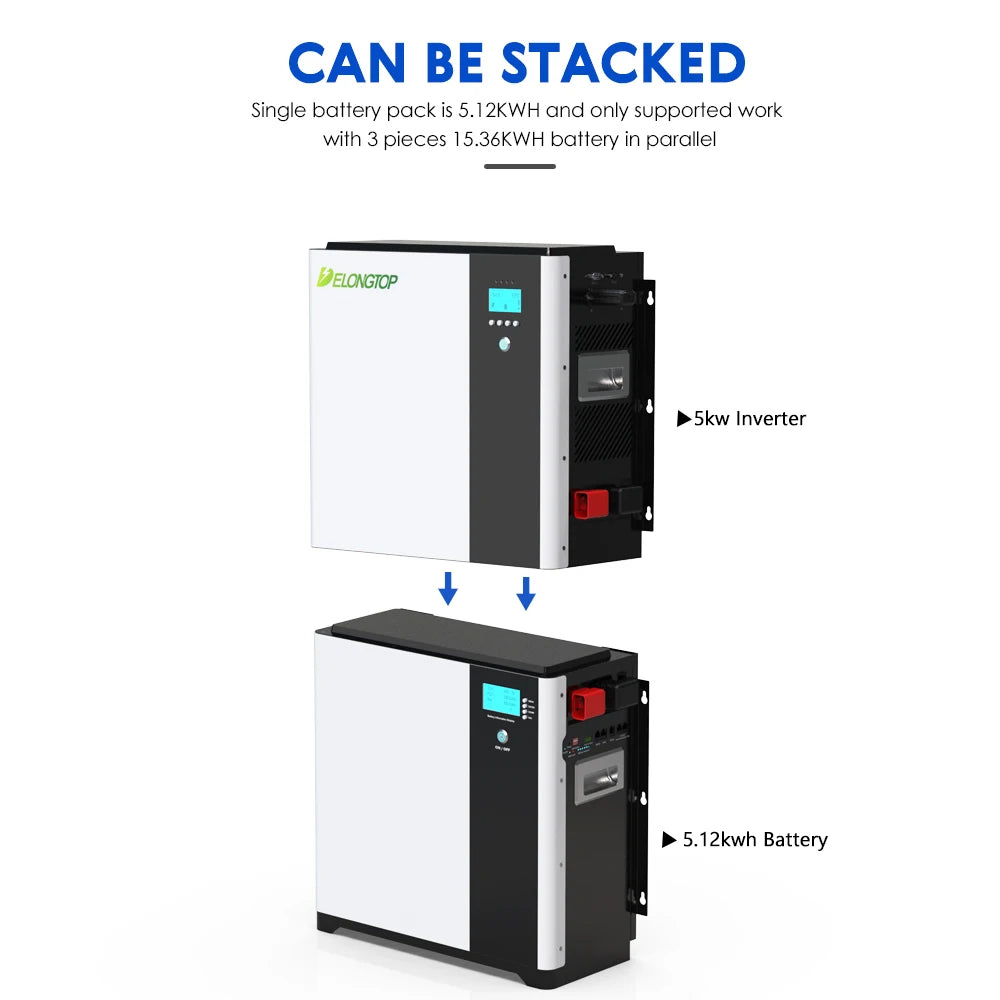

2. Is the battery able to make in Series or Parallel?
A: YES，from 24V 100Ah to 1000Ah,24V to 96V even higher.
3. Can the BMS and Cell be removed and replaced ?
A: YES, you can open the case and replace the BMS & cells,but you need to be a professional on this.
4. Do you have any communication Apps for batteries?
A: YES,you can add RS485 & RS232 & CANbus Protocol,even with Blue-tooth.we have APP for you.
You can connect to your phone and see the Voltage and Capacity changes.
It's English version.
5.What certificates do you have?
A:We have CE/ MSDS/ UN38.3 etc./ certificates.
6. Delivery time? Warranty time?
A: 3 to 7 days,depends on air or sea or Express shipping you use.
10 years warranty!We would provide repair or replacement if quality problem.
You can connect to your phone and see the Voltage and Capacity changes.
It's English version.
5.What certificates do you have?
A:We have CE/ MSDS/ UN38.3 etc./ certificates.
6. Delivery time? Warranty time?
A: 3 to 7 days,depends on air or sea or Express shipping you use.
10 years warranty!We would provide repair or replacement if quality problem.
7. Can I print LOGO on it？
A: YES, LOGO/sticker/OEM/ODM is accepted.
8. Package details
A: Each battery with a carton box,with bubble inside to protect the battery,
Big battery we will use a wooden box,mostly 500kg /Pallet,means about 30 PCS/Pallet.
A: YES, LOGO/sticker/OEM/ODM is accepted.
8. Package details
A: Each battery with a carton box,with bubble inside to protect the battery,
Big battery we will use a wooden box,mostly 500kg /Pallet,means about 30 PCS/Pallet.
9. What kind of payment do you accept?
A:Credit card/TT/Bank Wire transfer/PayPal/L/C,Any currency we accept .
Like RMB/USD/EURO/AU/HK Dollars etc..
