SPECIFICATIONS

Application: Electric Folklifts

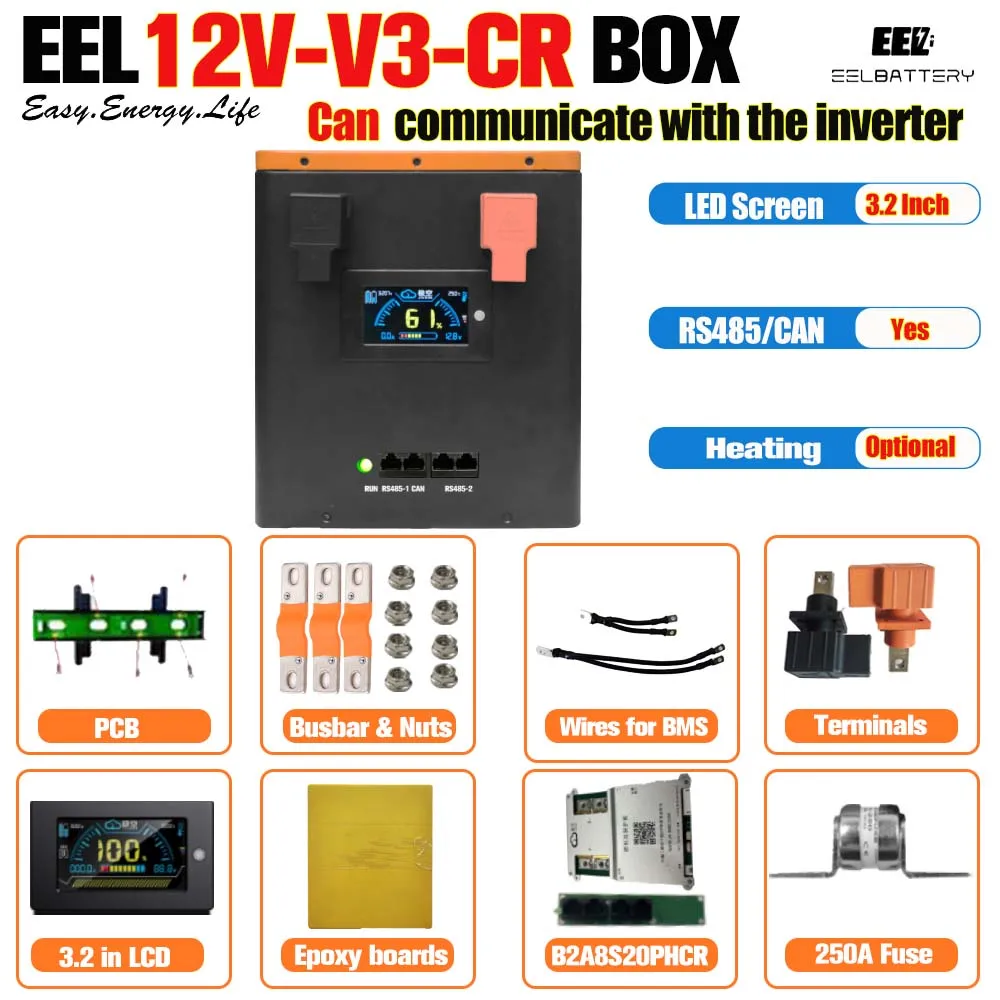

BMS: JK-B2A8S20PHCR

Battery Management System: Y

Battery Size: AAA

Battery Type: Prismatic

Brand Name: EELBATTERY

Certification: ce

Chargeable: Yes

Charger: 1C

Delivery Time: 3-15 days

Dimension (L*W*H): 395*220*250mm

Features: IP54

Material: iron metal,LiFePO 4

Max Load Quantity(cells): 4

Model Number: EEL-A01

Output Power: 3kwh-5kwh

Place of Origin: Guangdong, China

Warranty: 5years

Weight: 15kg,15Kg

Products Description

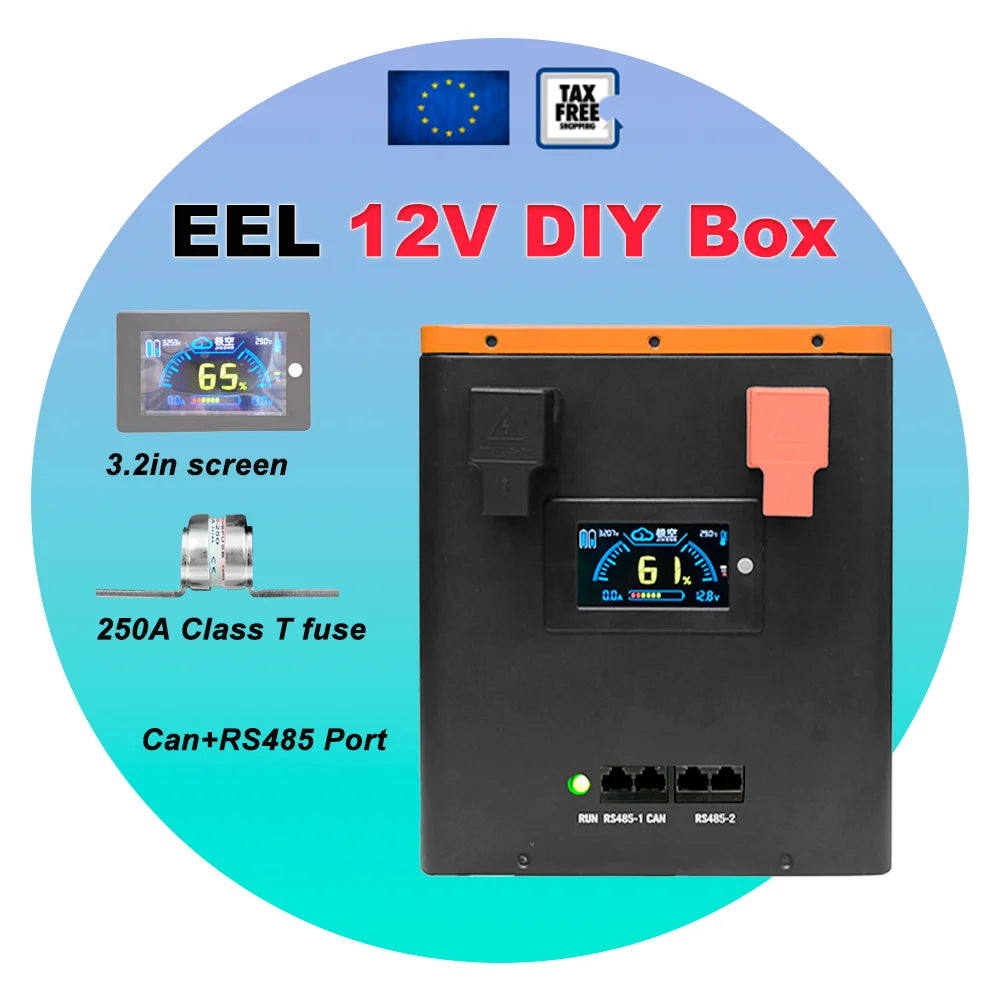

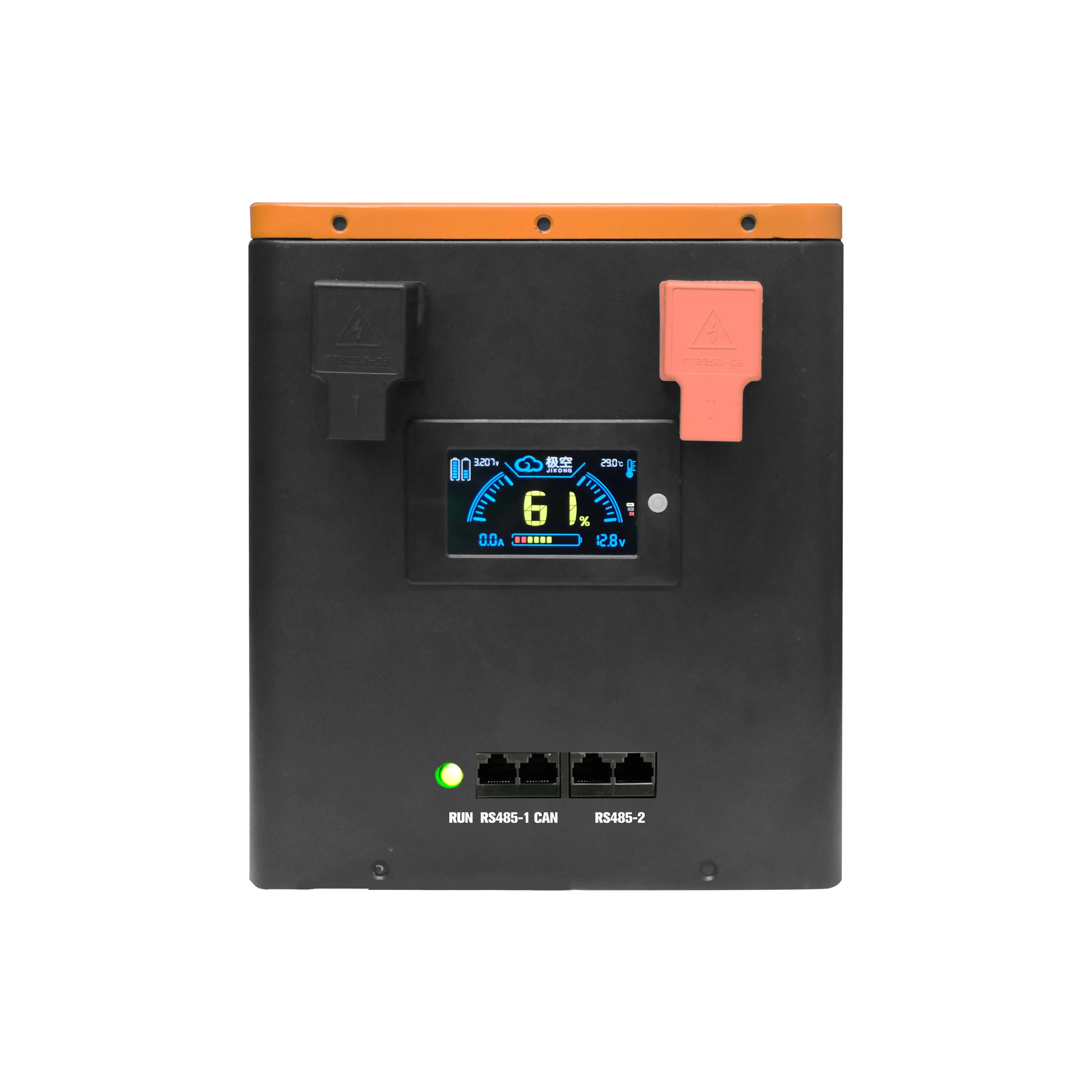

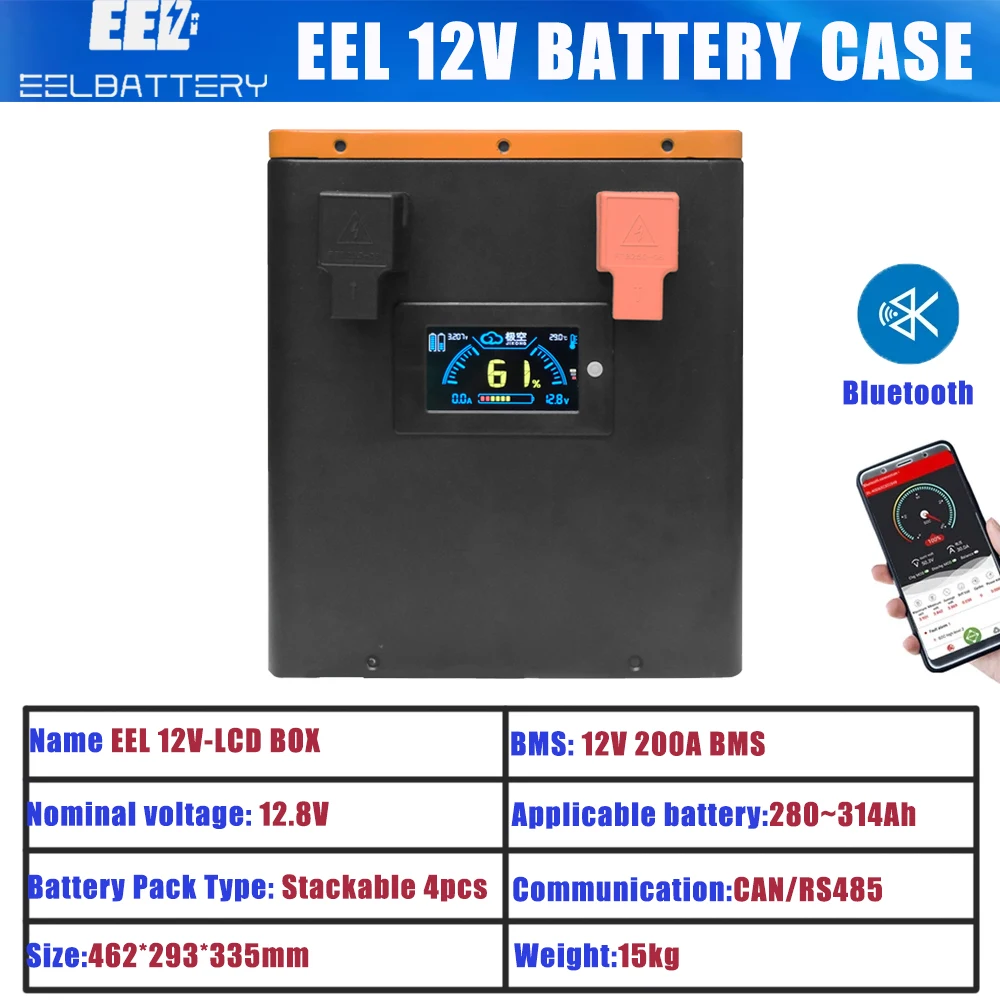

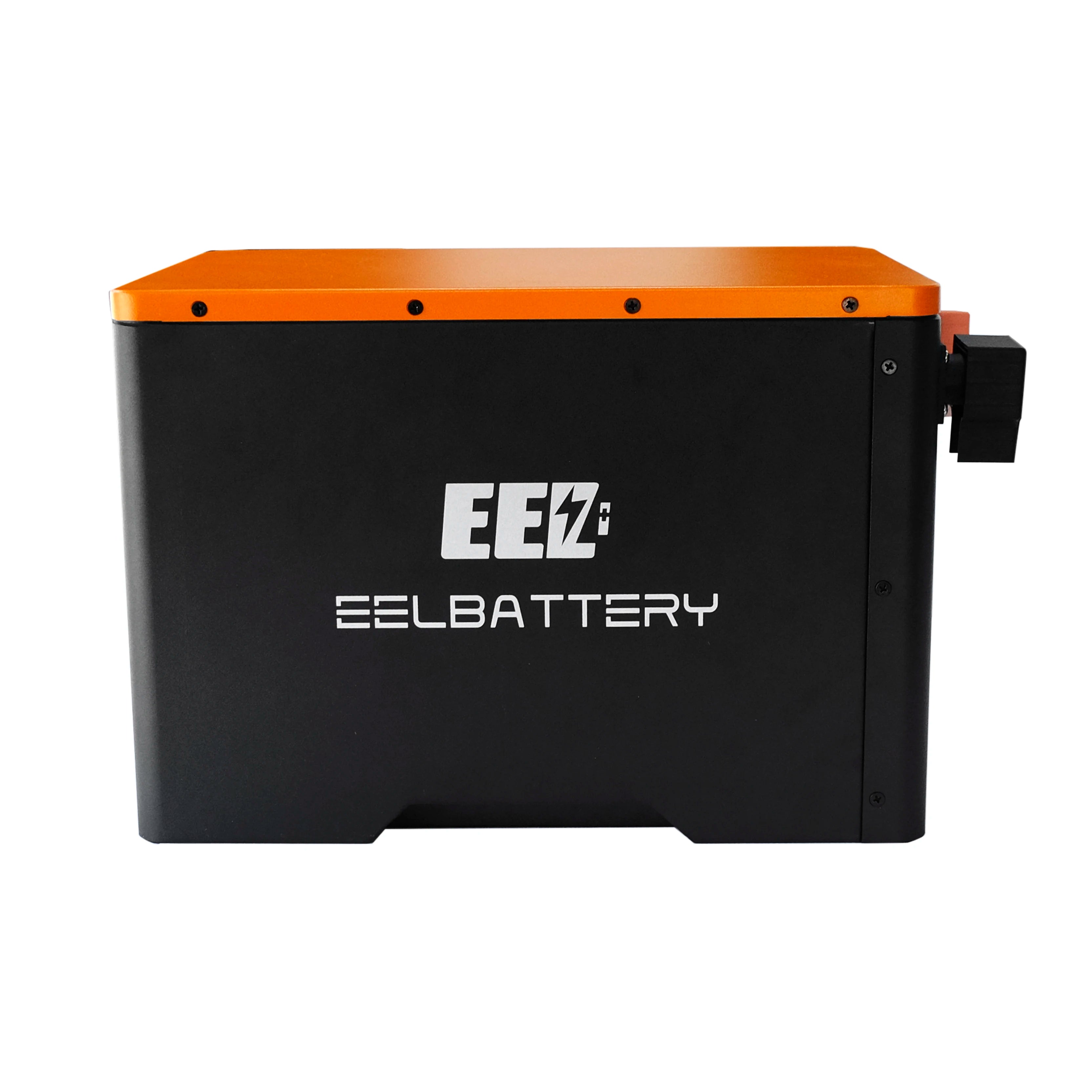

Product Name			12V 280Ah LiFePO4 Battery Box
Specifications			EEL--Jupiter-LFP 12V 280Ah
Nominal Voltage			12.8 V
Nominal Capacity (25°C , 0.2C)			280 Ah
Weight (Approximate)			15Kg

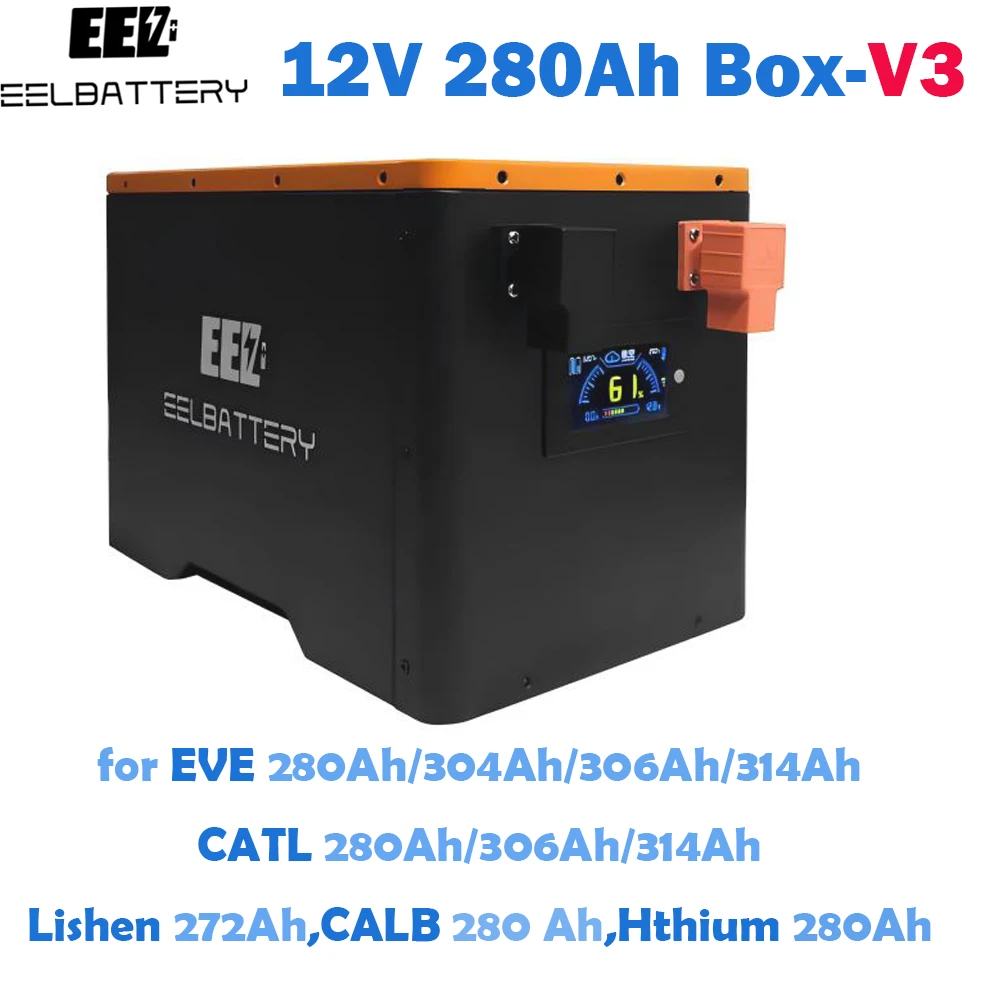

Cell Model			CATL / Lishen / REPT / EV-E 280Ah cell

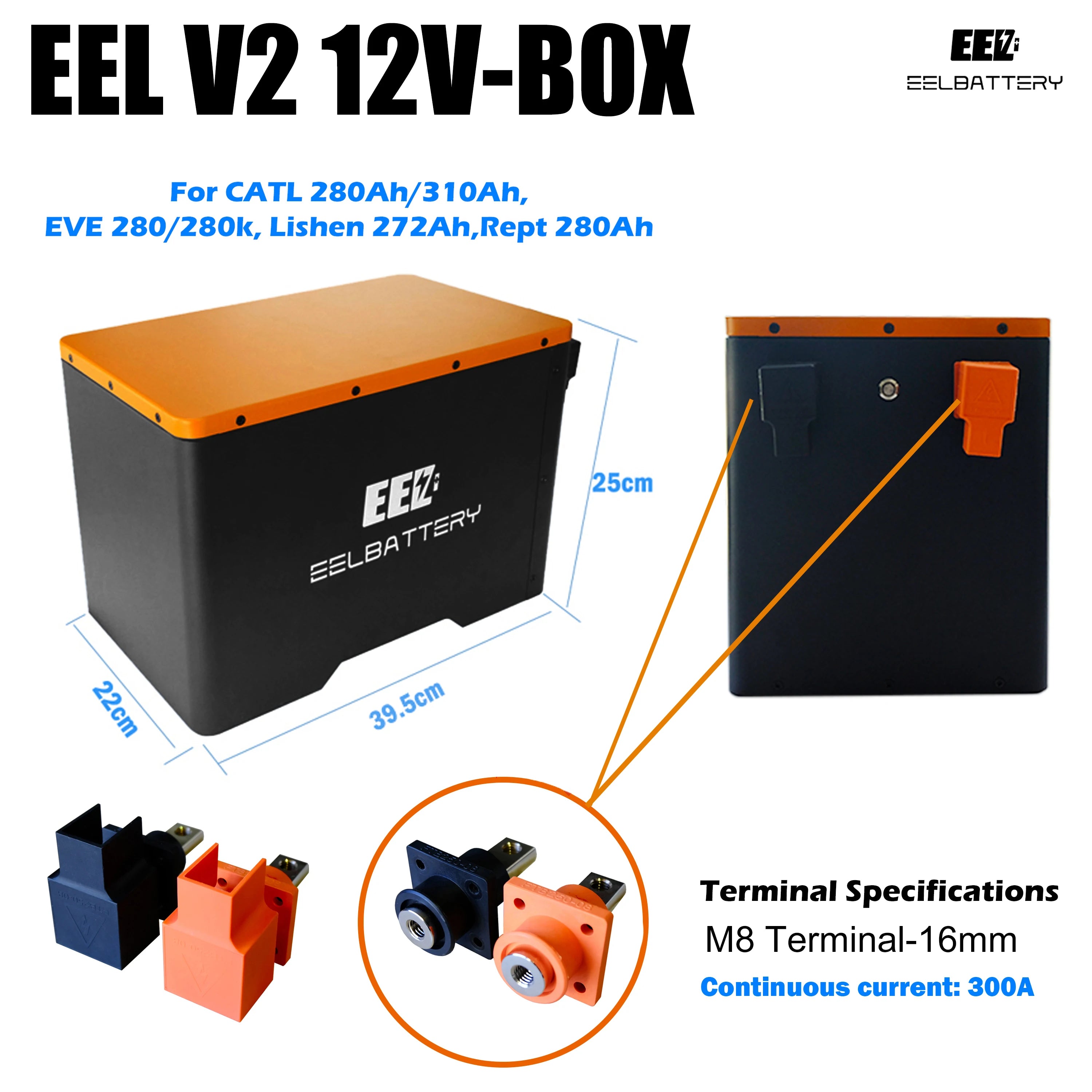

Dimension L*W*H			39.5 * 22* 25CM
Battery Power			3584 Wh
Standard Discharge 25°C	Max. cont. current	200 A
		Max.10sec.pulse	380 A
		Cut-off Voltage	10 V
Standard Charge	Charge Voltage	14.6 V
		Float	13.8 V
		Style	CC / CV
		Recommended Charge Current	100 A
Working Temperature		Discharge -30 to 60℃; Charge -20 to 60℃		Discharge -30 to 60℃; Charge -20 to 60℃
Widely Application			Engine starting battery, electric motorcycle/scooter, golf trolley/carts, power tools, Solar and wind energy storage power system, RV, caravan, yacht, boat, trailer.

Advantages

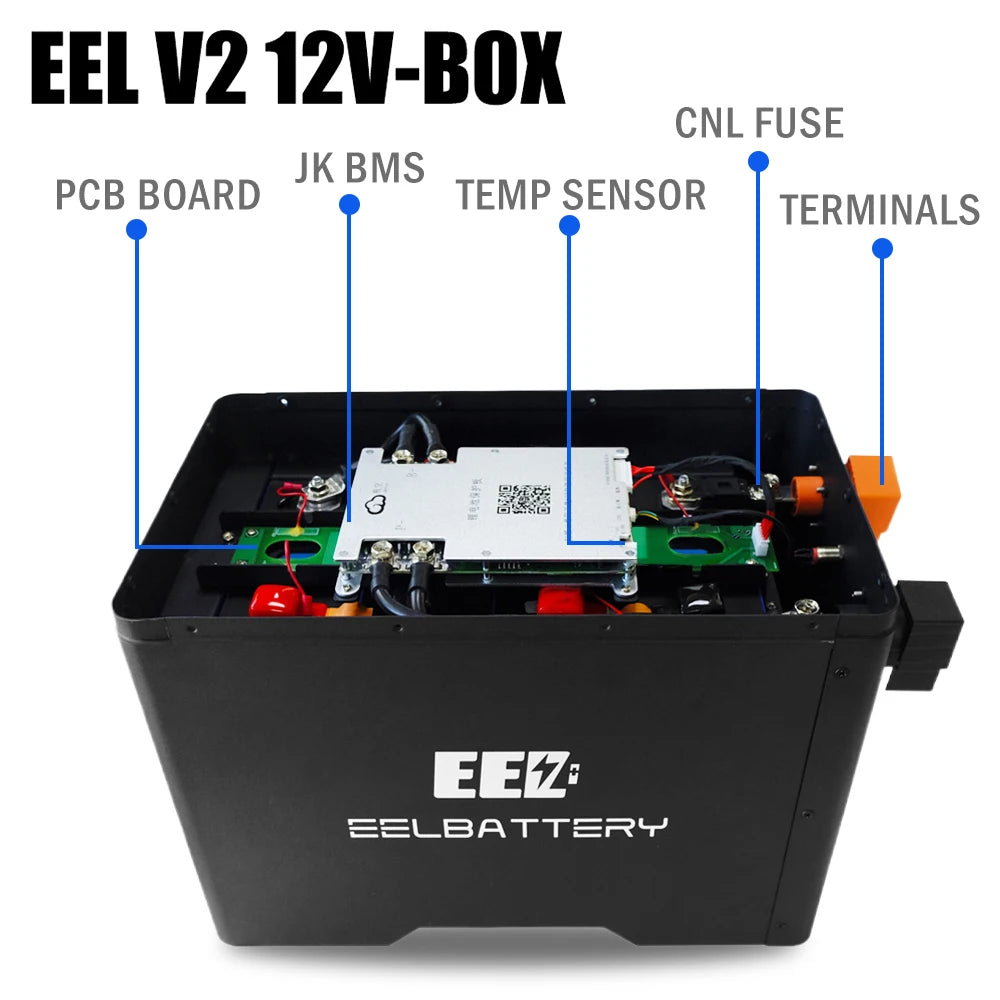

Battery box and BMS are all with screws fixation, it's easy to check battery pack condition anytime, BMS support series and parallels.

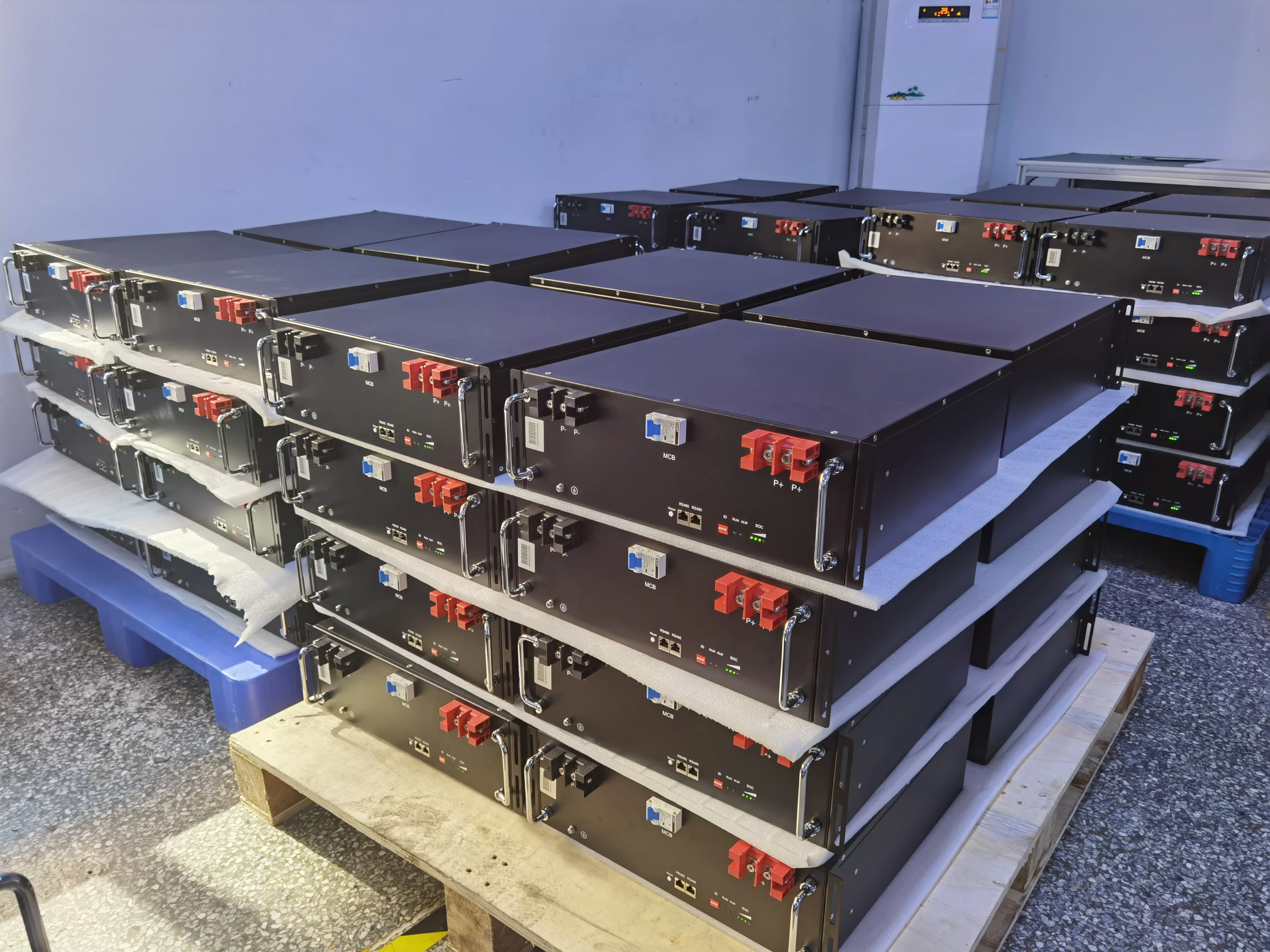

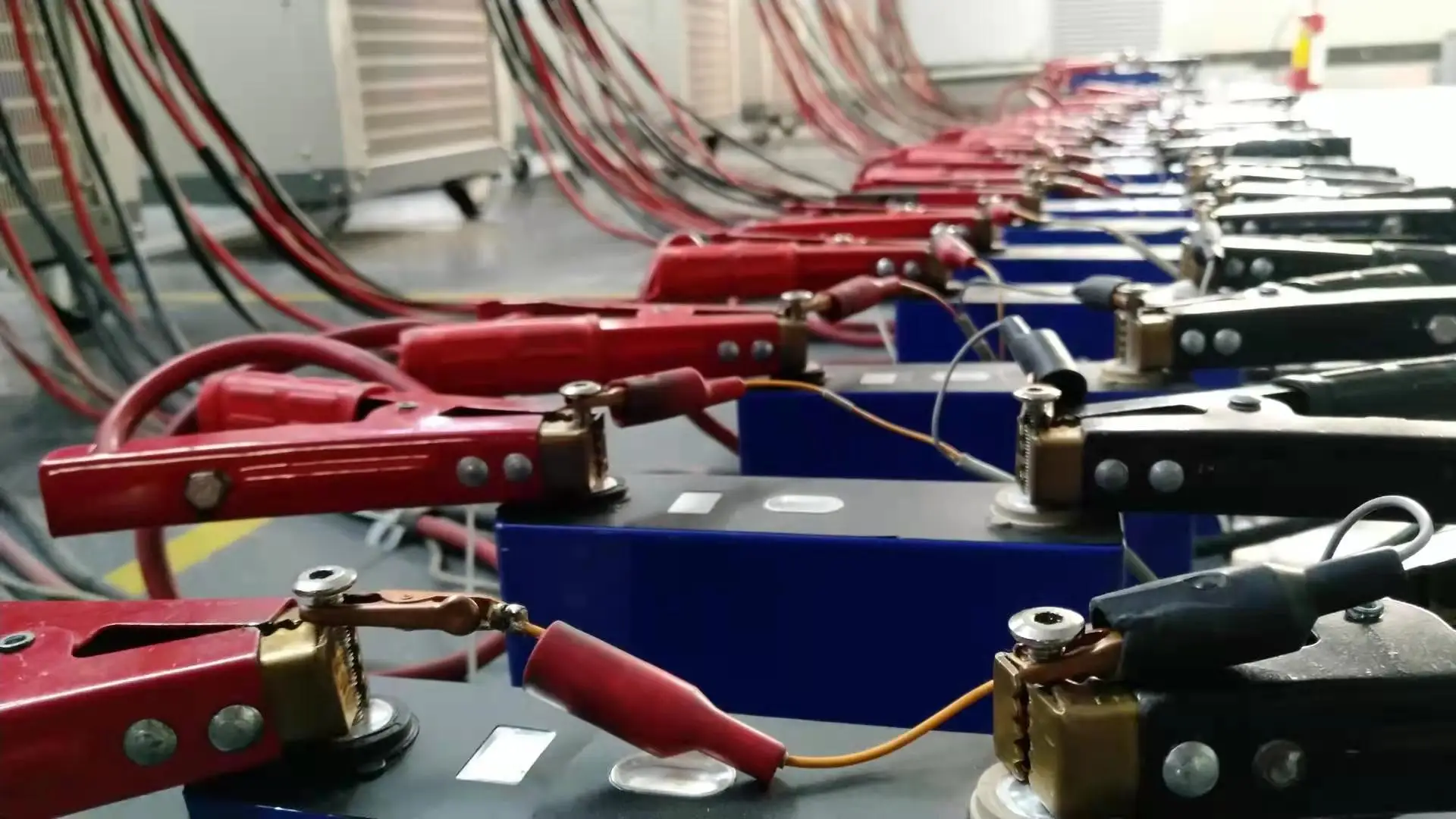

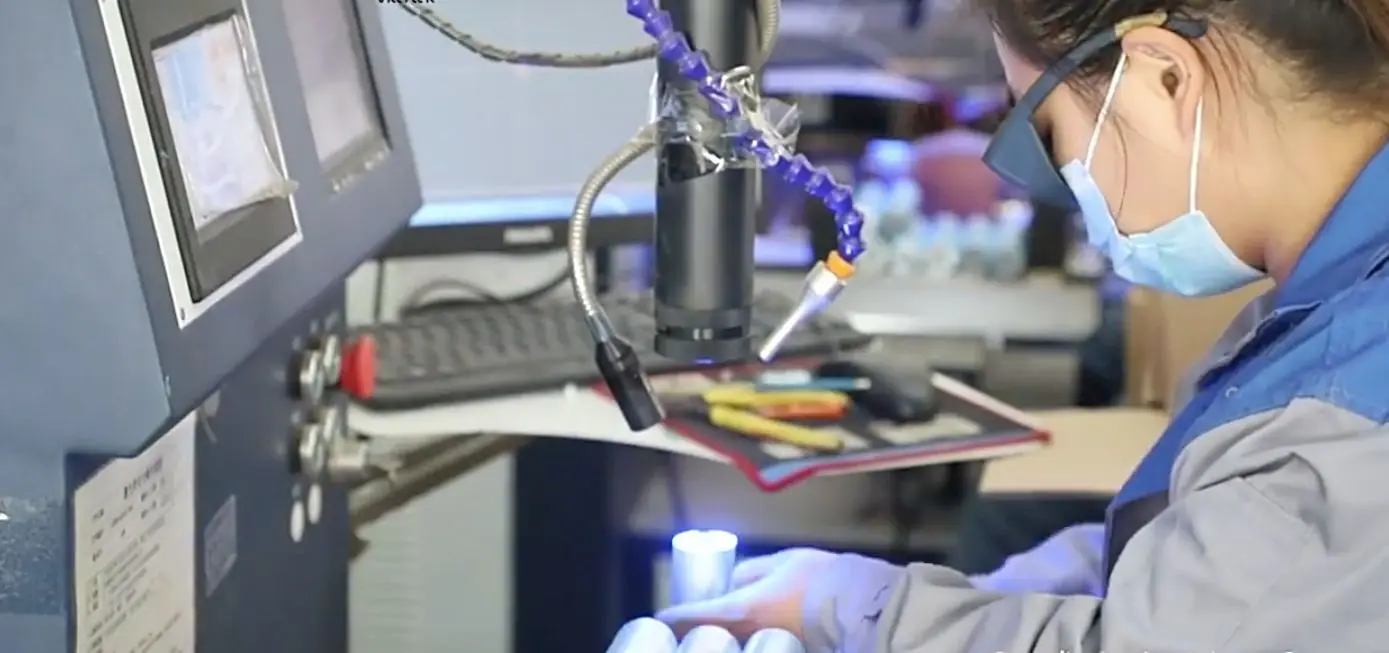

Company Profile

Shenzhen EEL Battery CO., Ltd is a specialized company dedicated to R&D, production, and marketing of LiFePO4 battery packs, 18650 lithium battery packs, e-bike batteries, LiFePO4 cells, Li-ion polymer battery products. After 10years of rapid development, EEL has accumulated core technology and comprehensive solution for power battery products, meanwhile, we have obtained the approval and praise of customers from all over the world. Most of our battery models have MSDS, UN38.3, CE, UL1642 certificates. Depending on professional R&D engineers, an enthusiastic sales team, and reliable after-sales service, our battery products are widely used in the field of off-grid solar power systems, solar street lights, RVs, electric vehicles, golf carts, power tools, backups power, medical devices. Our goal is to provide competitive, safe, and superior battery products for customers, we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy. Believe in us, EEL will be your trustworthy partner in battery business!

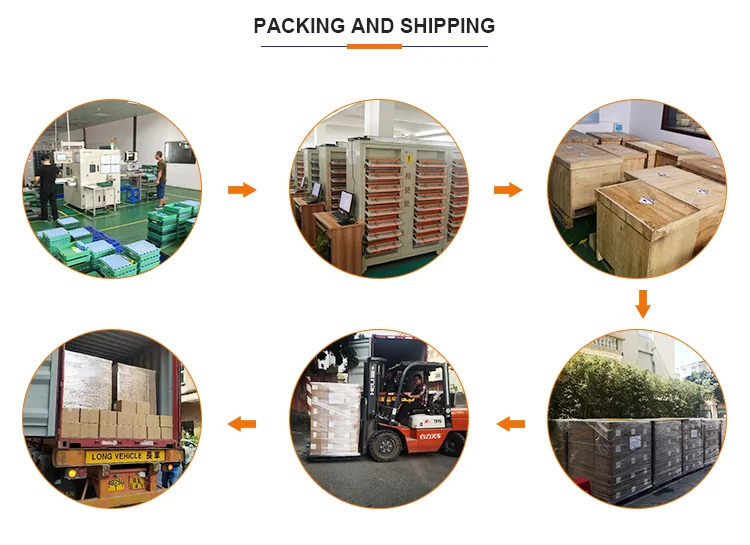

Product packaging

* High hardness customized PE foam for batteries, 5 layers of corrugated carton for DG; * Positive and negative electrodes are pasted with insulation tape; * We will label test results on each cell before delivery; * Wooden packing for shipping can be provided if customer requires.
