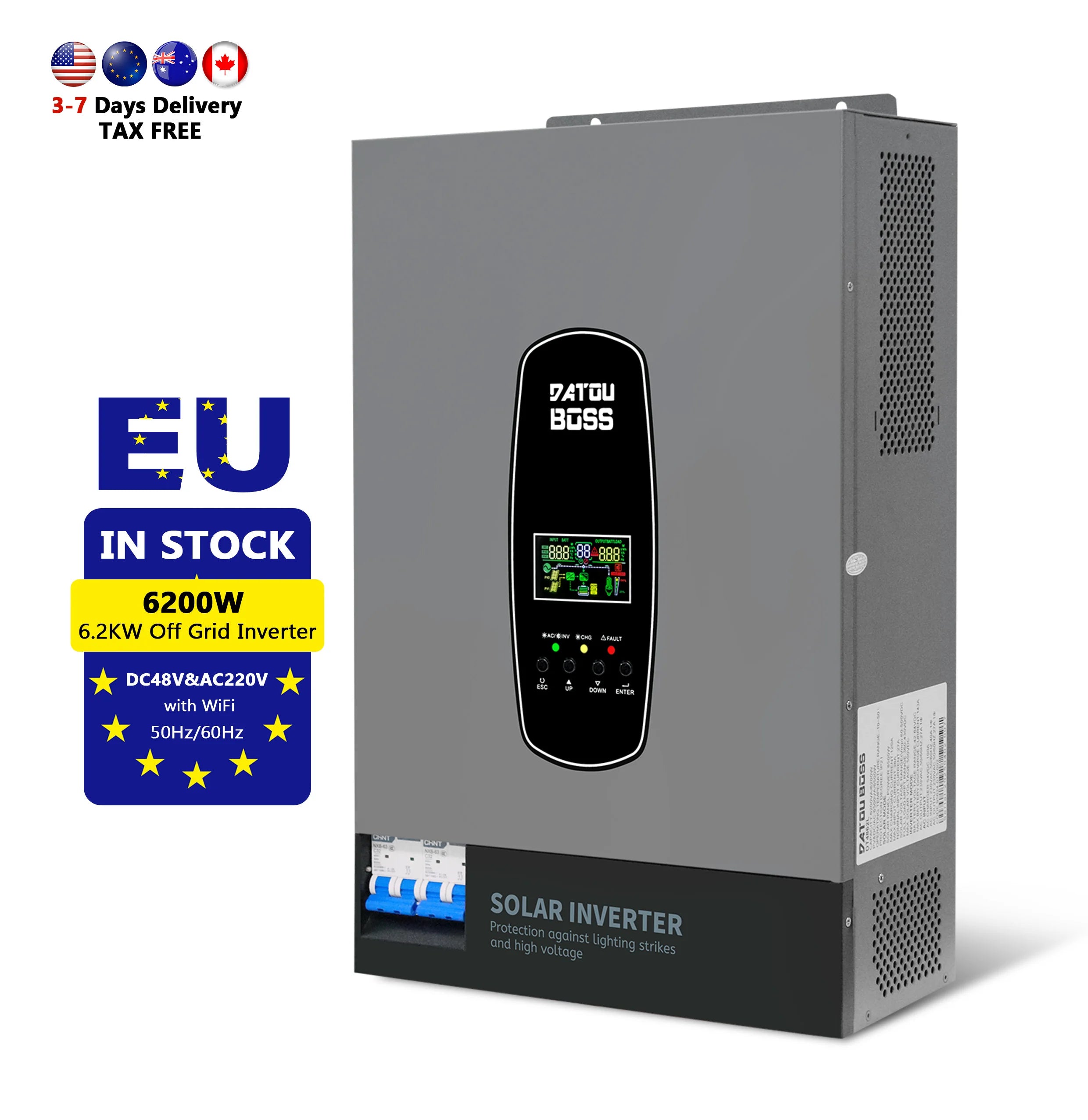

SPECIFICATIONS

Brand Name: DATOUBOSS

Certificate: CE RoHS

DC Ouput: 6200W

Input Voltage: 24V

Inverter Efficiency: 98%

Keyword: MPPT Hybrid solar inverter

MPPT Voltage range: 90-500VDC

Model Number: DT4862L

Nominal AC Output Voltage: 220/230/240VAC

Operating Temperature Range: 0~55℃

Output Current: 13.6A

Output Frequency: 50/60Hz

Output Type: Single

Output Voltage: 220V/230V/240V

Output waveform: pure sine wave

Place of Origin: Henan, China

Product name: DT4862L

Rated Voltage: 48VDC

Size: 56*36*20CM

Type: DC/AC Inverters

Warranty: 2 Years

Weight: 12KG

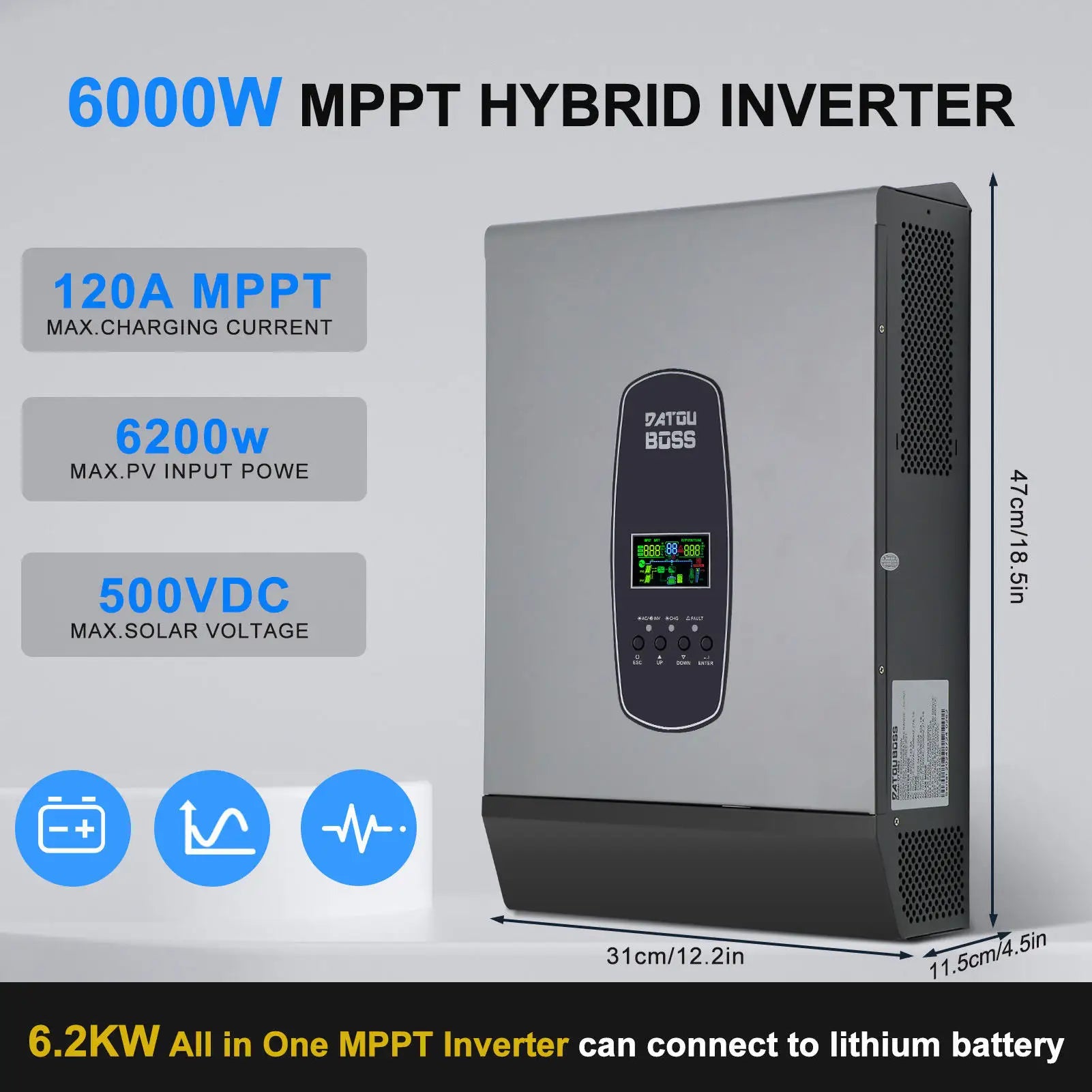

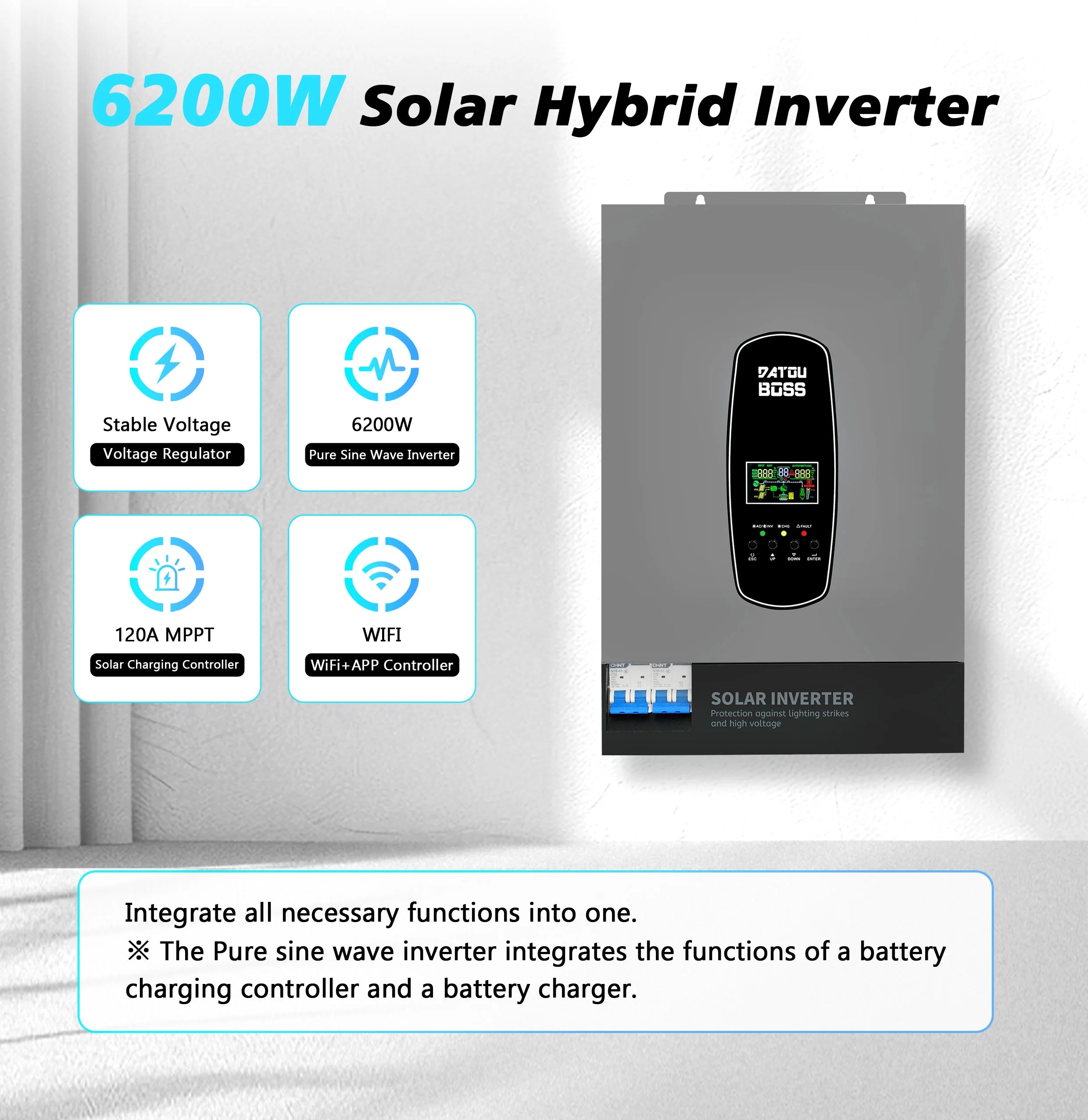

DT-4862L｜Turn Sunlight Into Savings, Faster

✅ 90-4862L VAC Range 👉 Handles global voltage swings
✅ 6200W Rated + 12400VA Peak 👉 Runs ACs, tools, fridges non-stop
✅ Pure Sine Wave 👉 Protects laptops, TVs from damage
✅ ＜10ms Outage Switch 👉 Saves fridge food, keeps Zoom calls alive
For homes & small biz — stable, flexible, no power anxiety.

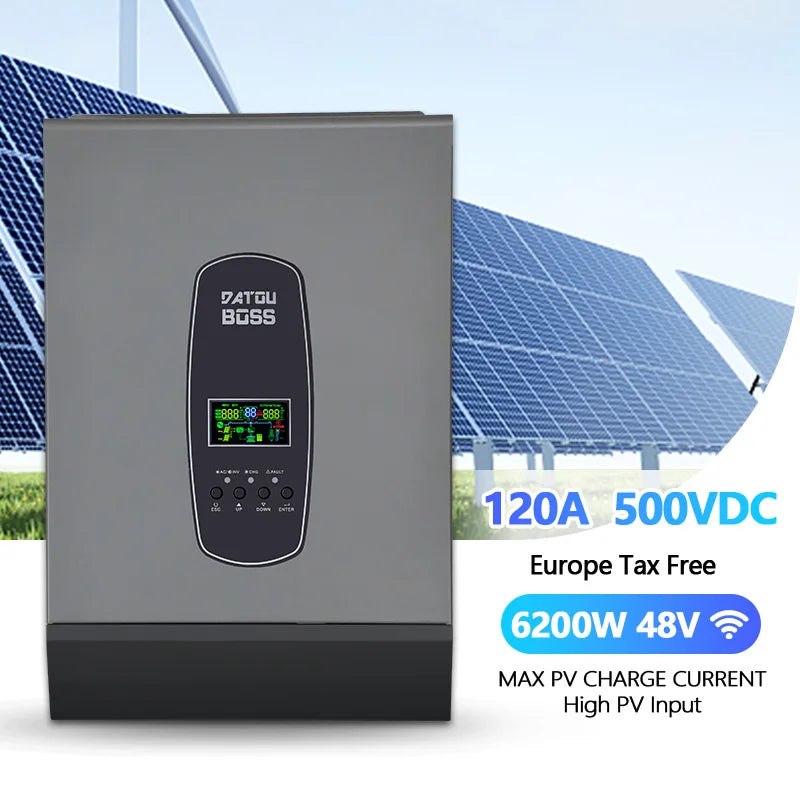

MPPT Tech + 8500W PV Input 👉 Max solar energy capture
90-500Vdc Wide Tracking 👉 Works in cloudy/weak light
120A Fast Charging 👉 Refuels batteries in half the time

6200W Continuous Output 👉 Powers day & night, no grid 依赖

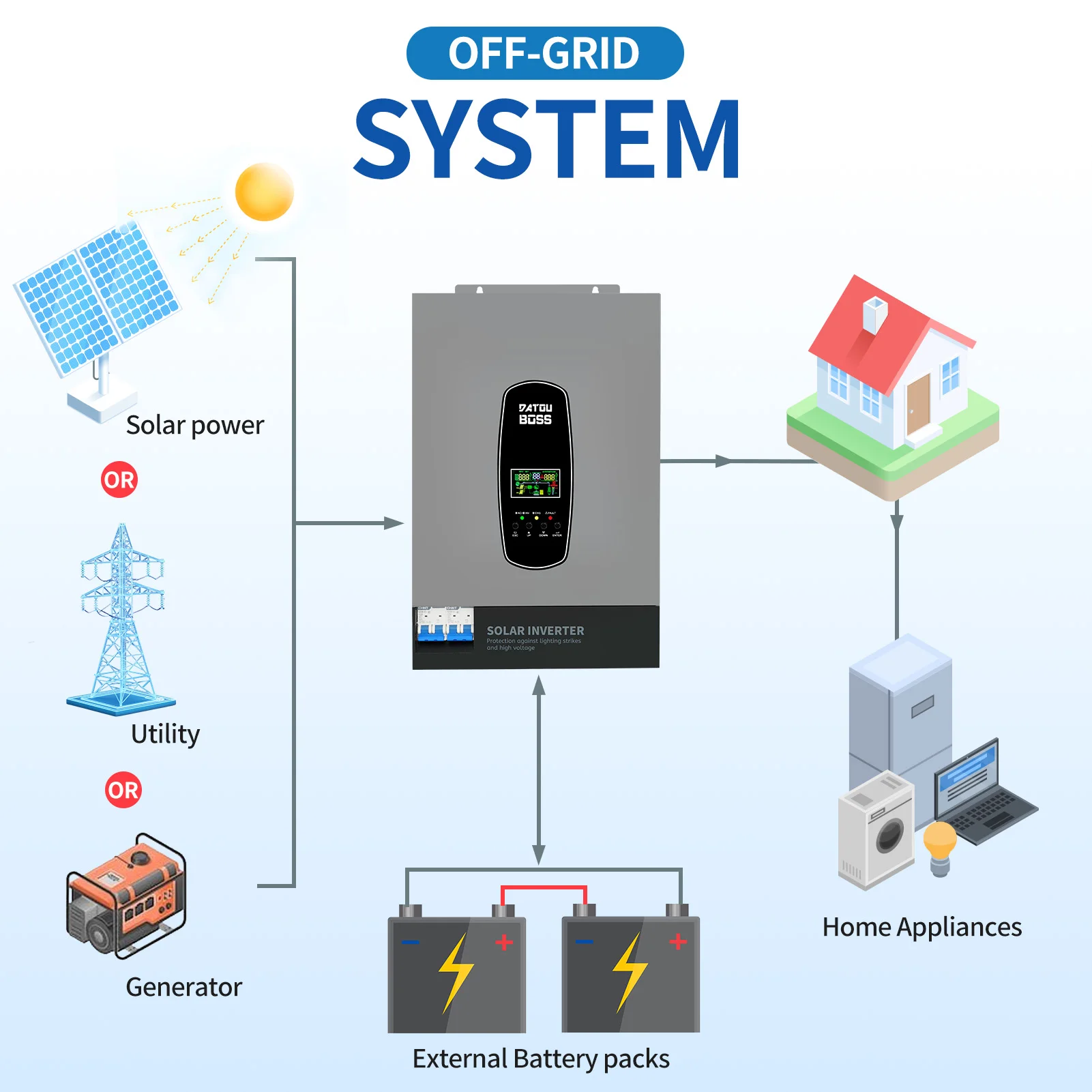

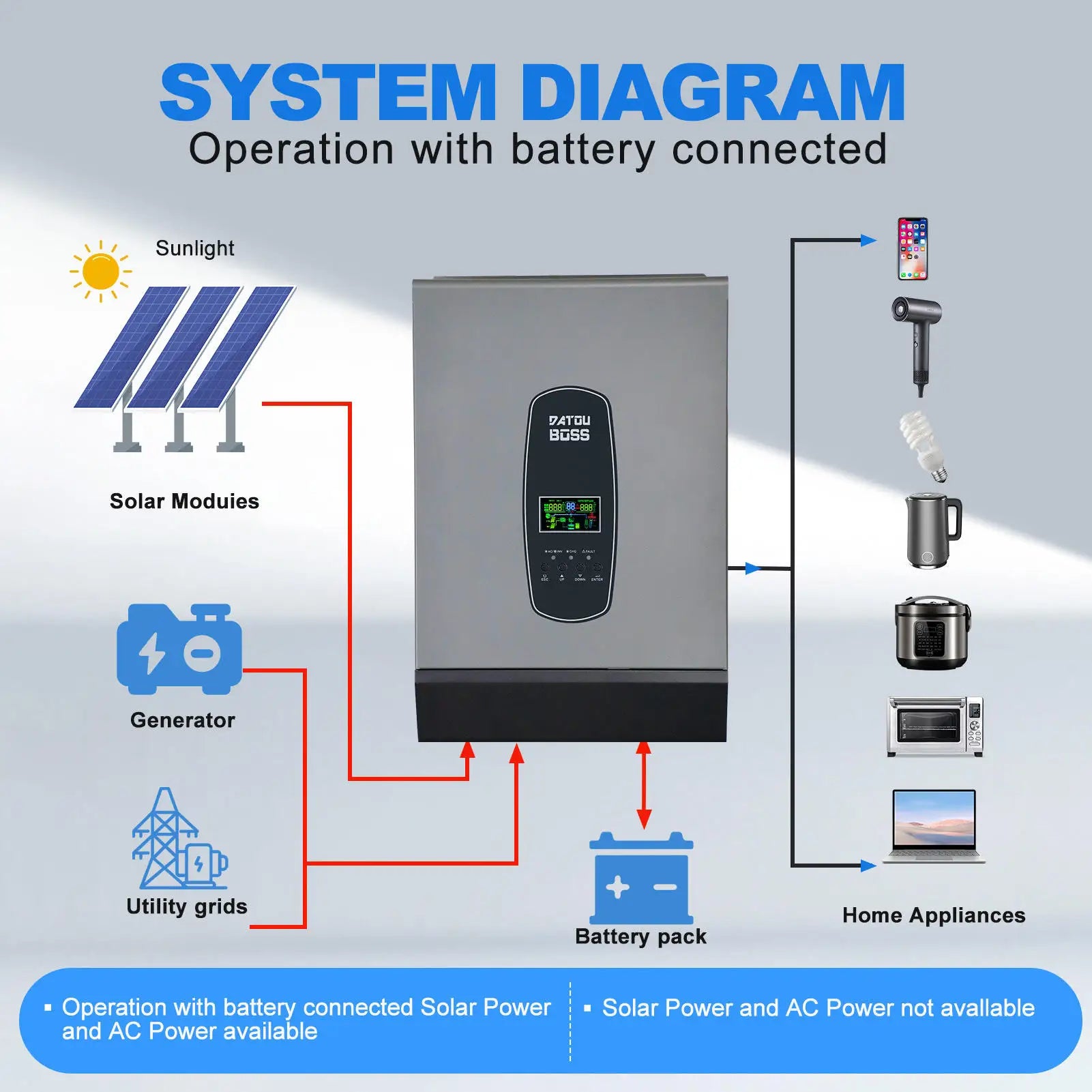

For solar projects — smarter energy, lower bills, full self-sufficiency.

-20℃~60℃ Operation 👉 Works in deserts, mountains, arctic

≤50dB Quiet 👉 No noise for campsites/bases

RS232 + Expansion Slots 👉 Links BMS, smart systems easy

90-480VAC Compatibility 👉 Fits global off-grid projects

For tough jobs — rugged, expandable, unstoppable.

Product Description

AC Input Voltage	AC Input	220/230/240V,50/60Hz
		Input Voltage Range	90 - 280VAC±3V(Normal Mode); 170 - 280VAC±3V(UPS Mode)
		Rated Power	6200W
Output Voltage	DC Output	6500W
		Out Voltage	220/230/240VAC±5%, 50/60Hz
		Output wave	Pure Sine Wave
		Transfer Time	≤10ms(UPS)/≤20ms(INV)
		Peak Power	12400VA
		Overload Ability	Battery Mode: 1:105% - 150%Load; 2:150% - 200%Load, 400ms; ≥200%Load
Charger	Rated Voltage	48Vdc
		Constant Charging	56.4Vdc
		PV Charging Mode	MPPT
		Max PV Input Power	8500W
		MPPT Input Voltage Range	90 - 500Vdc
		Max PV Input Current	27A
		Max Charging Current	120A
Grid-connected Operation	Output Voltage	220/230/240VAC
		Rated Output Current Current	34.7A
		Peak Efficiency (DC/AC)	98%

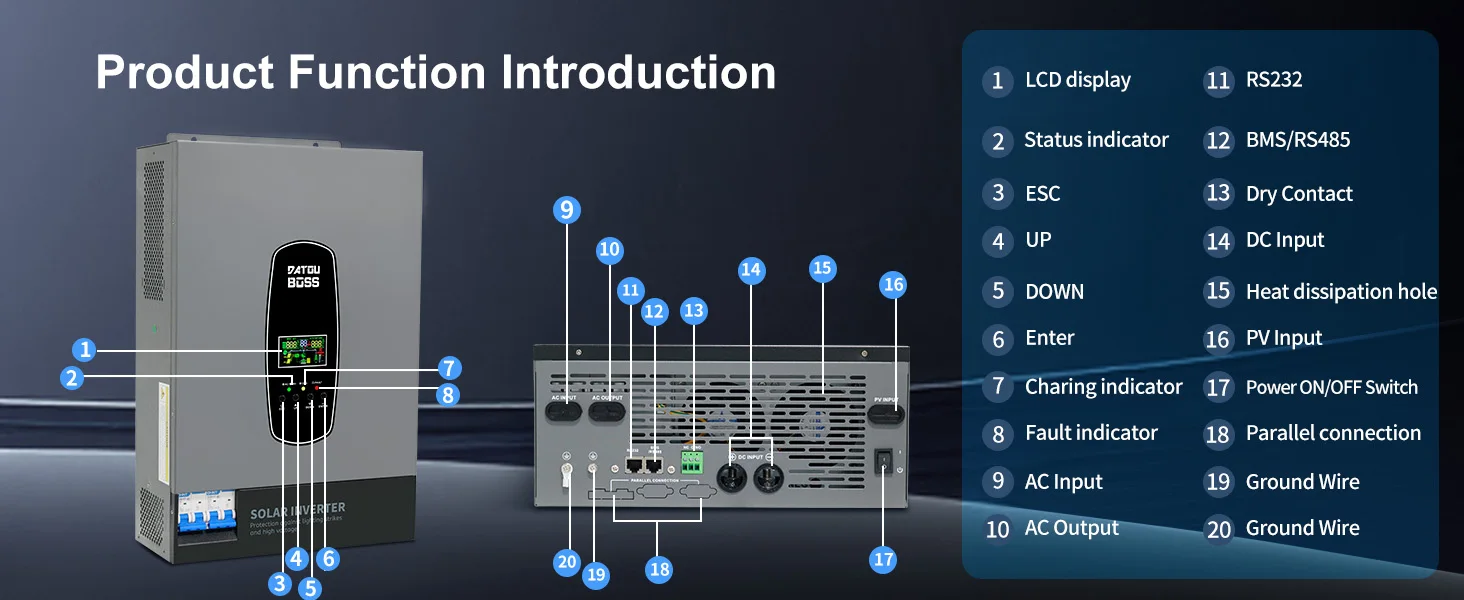

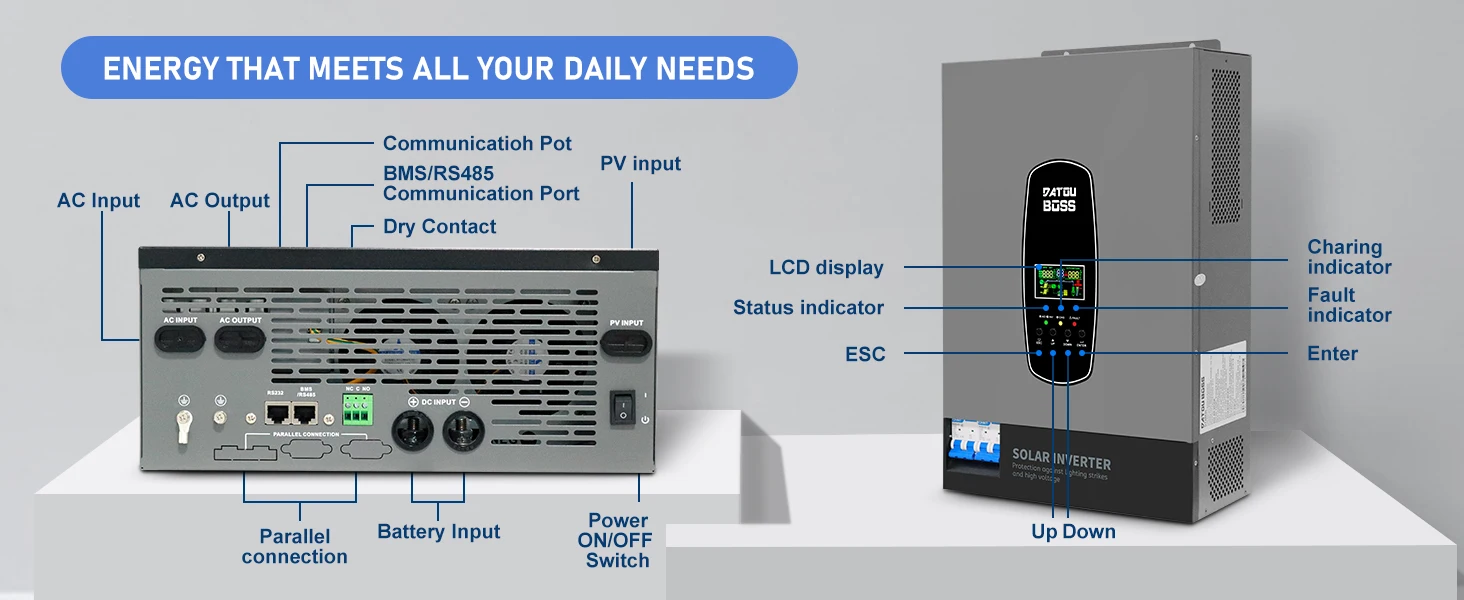

Display	LCD Interface	Display operating mode/load/input/output
Interface	R232	Baud Rate 2400

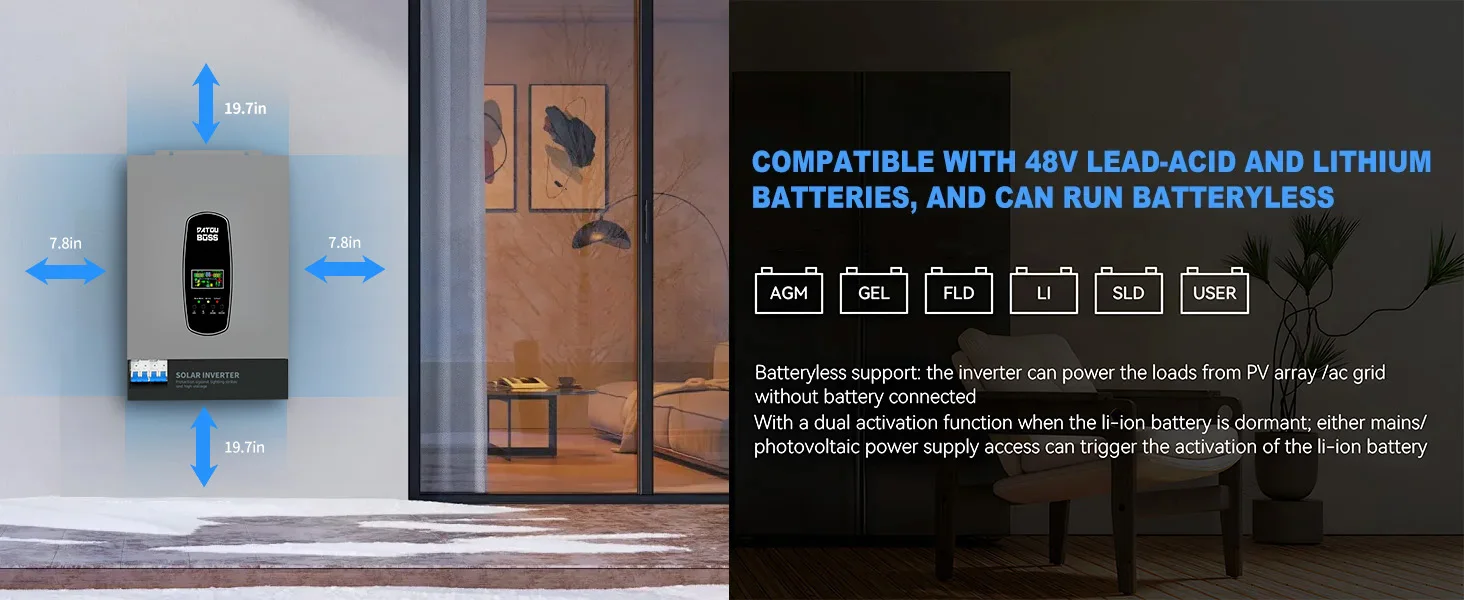

		Expansion Slot	Lithium Battery BMS Communication Card,
		Communication interface	WIFI / Pitch2.54mm
		Parallel Interface	Support Parallel
Ambient Temperature	Ork Altitude	No more than 1000m, Rate power will lower than MAX if >1000m,Refer to IEC62040
		Storage Temperature	20% - 90%, Non Condensing
		Noise	≤50dB
