SPECIFICATIONS

Brand Name: Dokio

Cable: 60cm

Cell Size: 182mmx91mm

Certificate: CE

Connector: PV Compatible Connector

Efficiency: 18.2%

G.W.: 2.0KGS

Junction box: IP65 Rated

Model Number: DFSP-100M

N.W.: 1.05KGS

OEM Order: Acceptable

Panel Dimensions: 970*565*2mm

Panel Efficiency: 18.24%

Place of Origin: Zhejiang, China

Solar cell: 182*91mm

Type: PERC,Half Cell,Flexible

Warranty: 10 Years

Most of the panels are in stock in our Europe warehouse and American warehourse.

FREE SHIPPING FROM EU/USA OVERSEAS WAREHOUSE.
SAMPLE IS ALLOWABLE, FAST SHIPPING WITHIN 72 HOURS.

Delivery is not supported in the following areas:
*Spanish island region. The zip code starts with "35" and "38".
remote areas in France, and areas subject to transportation restrictions.
Ukraine supports offline delivery.

Recommend Products

Product Description

Specification

Model Number	DFSP-100M
Rating power (Pm)	100w±3%
Cells	Mono Perc 182x91 mm
Number of cells	30 (3x10) series connected

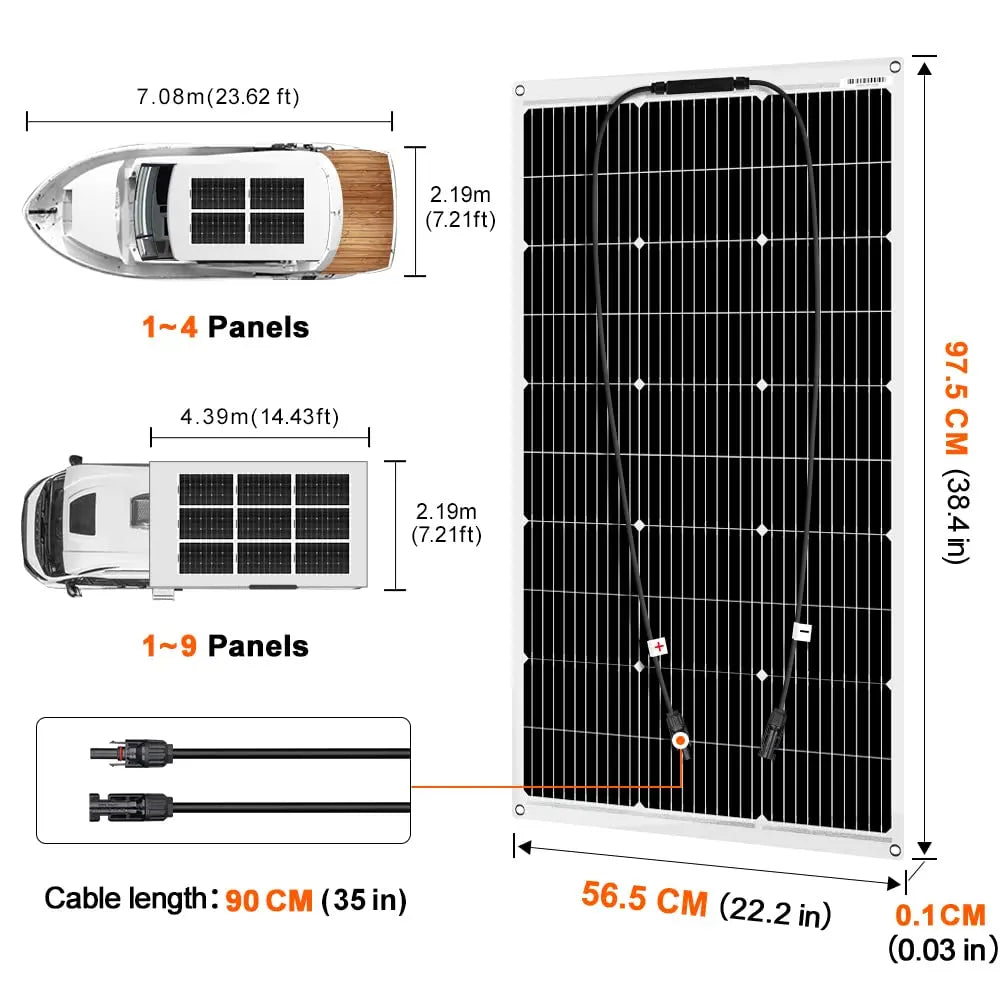

Size	970(L) x565(W) x0.8(H)mm
N,W.	0.7kgs
G.W.	1.5Kgs
Typical application	12V DC
Maximum voltage	600V DC
Operating temperature	45°C
Hail diameter @ 80Km/h	Up to 25 mm
Continuous wind pressure	Up to 24 m/s
Efficiency of cell	≥22%
Rated current (Im)	5.56A
Rated voltage(Vm)	18V
Short circuit Current(Isc)	5.81A
Open circuit Voltage(Voc)	22.5V

Packing & Delivery

Certifications

Company Profile

Jinhua Dokio Technology Co.,Ltd, with an international Brand of “DOKIO”, which is registered in Madrid, Spain for photovoltaic module. Dokio Soar company is a professional manufacturer of solar panels, solar power station system, solar roof system, balcony system, garden solar system, flexible solar panels, portable folding solar panels and others.

Since our inception in 2007, DOKIO have more than 15 years of experience in production and sales of solar panels. Dokio solar committed to providing the user with cleanest, most efficient and most economical solar panel and solar systems, committed to achieving the “double carbon” goal, adopted advanced equipment with solid techniques and a rigorous technical team make high-quality products, for every solar module from sorting to testing, from welding to lamination, from framing to cleaning, from final testing and packing, then can be put into the market.

DOKIO sincerely hold the tenet of “DO AND KEEP IT OUTSTANDING” in mind when conducting business. At present, Dokio solar company has more than 100 products designs and invention patents, is a national high-tech enterprise and a "little giant" business incubator. DOKIO acquired a wide range of customers from 50 countries and regions in the world, have more of 10 oversea warehouses, which is American, Poland, Germany, France, United Kingdom, Ukraine, Russia, Japan, Australia, United Arab Emirates(UAE), We can ship within 3 days after receiving the order, you can receive the package at home within 7-10 days!! Super
service from the beginning to the end!!

Welcome to DOKIO solar energy, join us together!

Exhibition

FAQ

Q1. Can I have a sample order for solar panel?
A: Yes, we welcome sample order to check and test quality.
Mixed samples are acceptable.

Q2. How do you send the goods?

A: Normally sample order is sent by DHL, UPS, FedEx or TNT, bulk order ship by sea.

Q3.What about the lead time?
A:Sample needs 5-10days.
Mass production time: 15--20 days.

Q4.Do you accept custom design and size ?
A: Yes, we can accept custom design and size.

Q5. Is it OK to print my logo on package?
A: Yes.we can do printing customer logo based on customer's requirement.
