SPECIFICATIONS

Application: Consumer Electronics,Power Tools,Boats,Toys,Solar Energy Storage Systems,Electric Power Systems,Home Appliances

Battery Size: 18650

Battery Type: Solid state,Lithium Ion

Brand Name: KXD

Cathode Materials: LiCoO2

Charge current: 0.5C

Cycle Life: 800 cycles

Model Number: 18650

OEM/ODM: Customized OEM ODM Battery Pack

Operating Temperature(℃): -20~60

PCM: china one and japan imported one for choice

Place of Origin: Guangdong, China

Product name: 8000mah 8800mah 12v 8Ah 8.8AH li-ion 3s4p battery pack 11.1v

Protection: over-charge,over-discharge,OCP,short circuit

Terminal and wires: customized

Type: Li-Ion

Weight: 0.65kg

Working current: 1C

Working voltage: 9v -12.6v

Hot Sales

Product Description

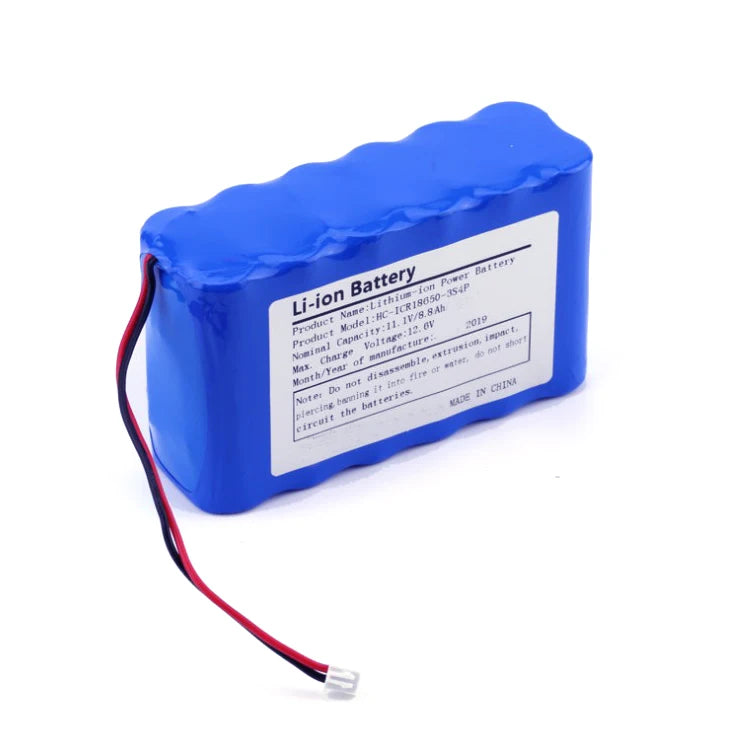

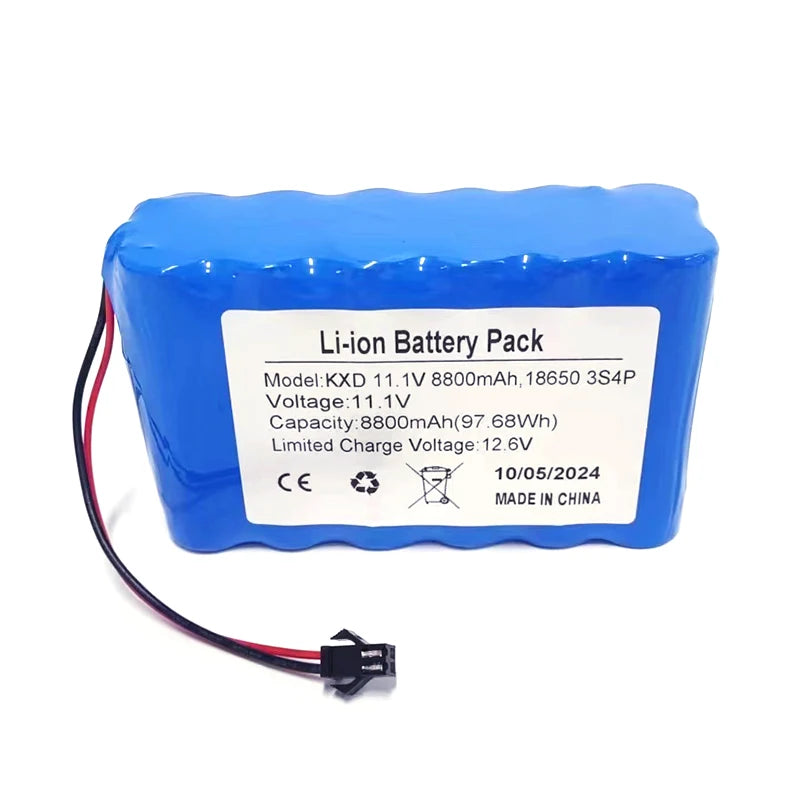

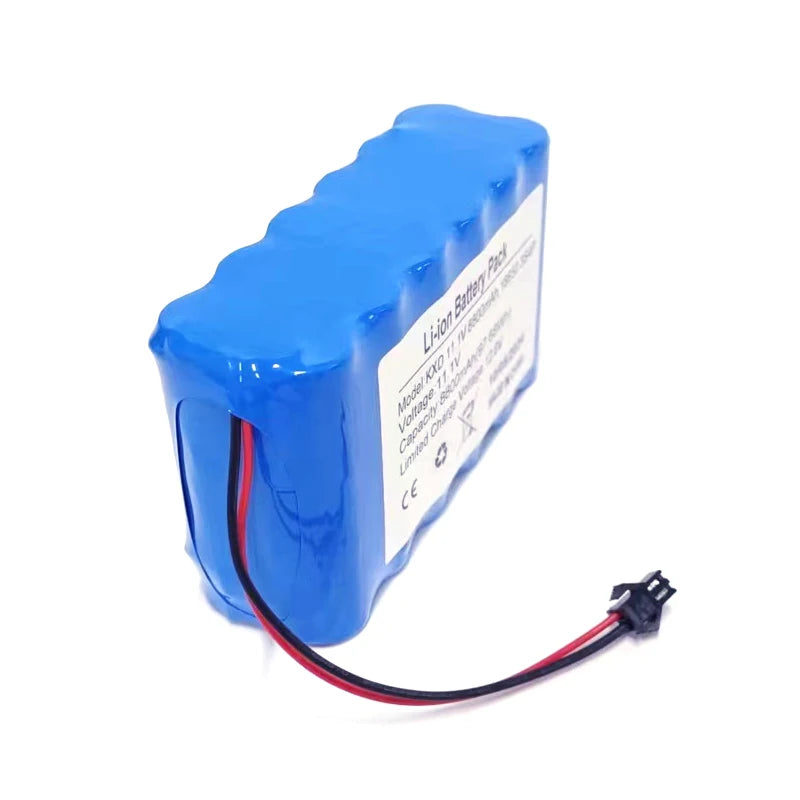

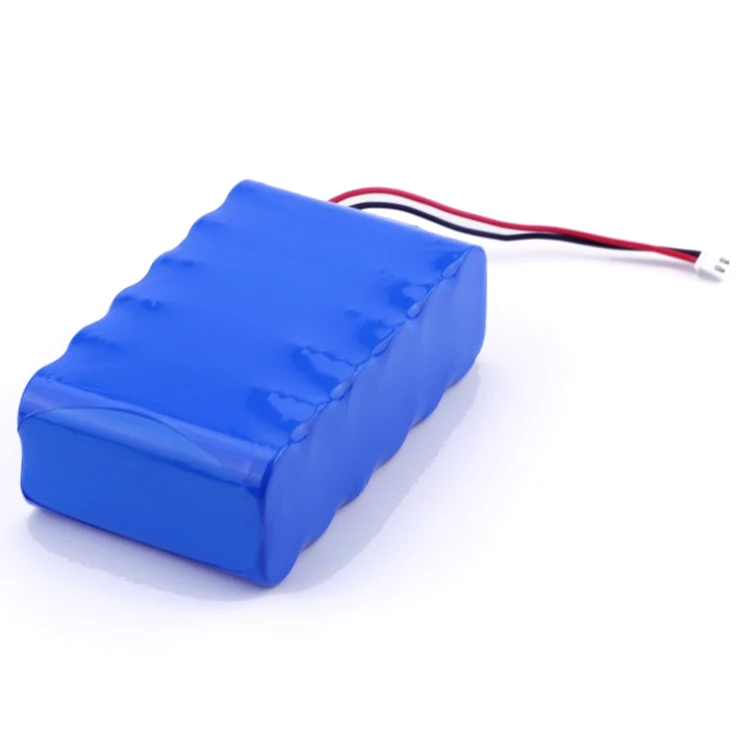

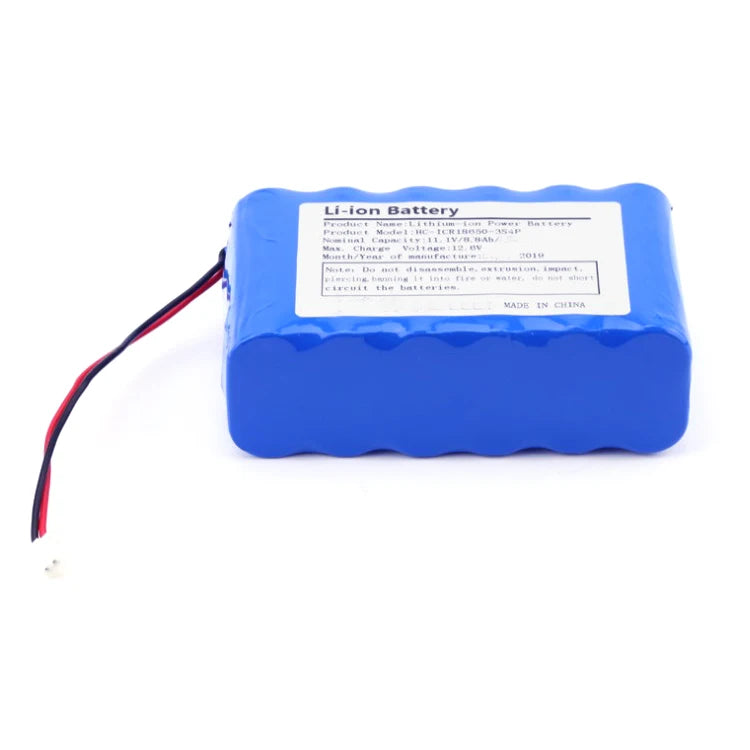

Customized Rechargeable li ion battery lithium 18650 3s 10ah 8000mah 8800mah 12v 8Ah 8.8AH li-ion 3s4p battery pack 11.1v for sale

Main Features:

1. Lighter in weight, heavier on power than lead acid battery.
2. Use a grade cells. More than 800 cycle times.
3. Max discharge continuous current, 1C TO 3C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.

6. Lithium Battery built with BMS

Normal parameters
NO.	Item	General Parameter
1	Type	Lithium Ion Battery Pack
2	Model	KXD-12V-8800mAH/KXD-11.1V-8800mAH
3	Casing material for single cell	Nickel plated steel
4	Standard capacity(0.2C5A)	8800mAh
5	Rated voltage	12V/11.1V
6	Max.charge voltage	12.6V
7	Cut-off voltage	9.0V
8	Standard charge current	2A /Customized
9	Max continuous discharge current	3A /Customized
10	Peak discharge current	5A /Customized
11	Battery dimension	About L115*H38*W68mm/Customized
12	(Approx.)Total weight(Approx.)	about 0.65KG
13	Standard charging temperature	0℃~45℃
14	Discharge temperature	-20℃~60℃
15	Storage temperature	-20℃~45℃
16	Cycle life	>800 times
17	Case	blue PVC wrap
18	Option	Connectors/other Capacity

Built in BMS overall protection:

1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection

Connectors :

Related Other Batteries
Model	Size	BMS	Connector	Other voltage and capacity
12V 5AH	Customized /as your specific requirement
12V 8AH
12V 10AH
12V 20AH
12V 60AH
12V 100AH
12V 200AH

12v 5200mah lithium battery

12v 10ah Lithium ion battery

12v 4.4ah Lithium ion battery

12v 3500mah Lithium ion battery

12v 40ah Lithium ion battery

12v 6600mah Lithium ion battery

Main Applications:

1.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Vehecle.
2.Back-up System and UPS:Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Equipment.
3.Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light / LED Backup /Engine Starting Battery.

4.Other applications
