SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

High-concerned chemical: None

Item Type: Cables

Model Number: PoE-3.5

Origin: Mainland China

Plug Type: None

semi_Choice: yes

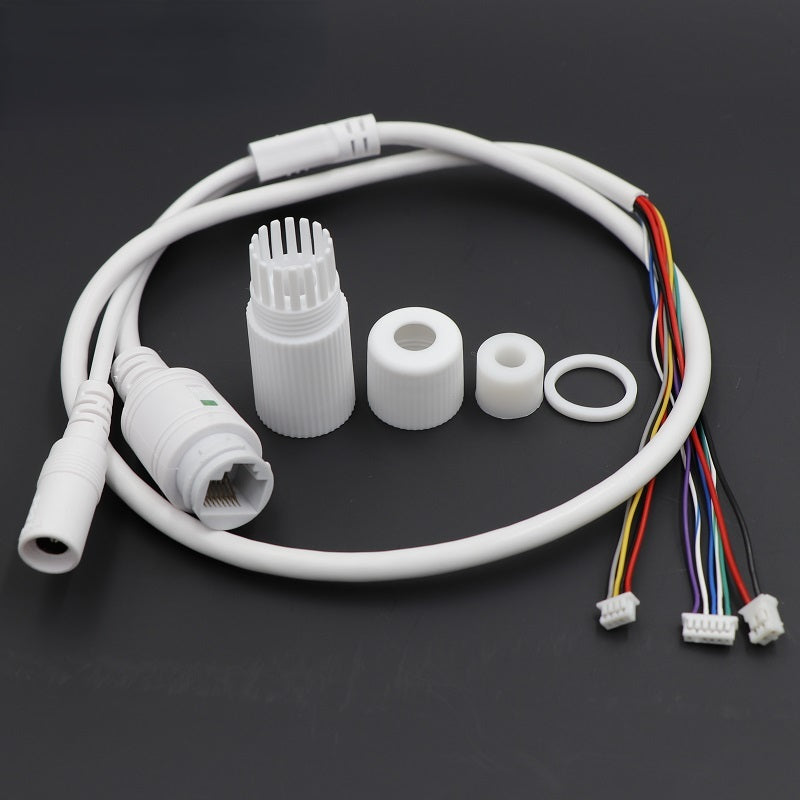

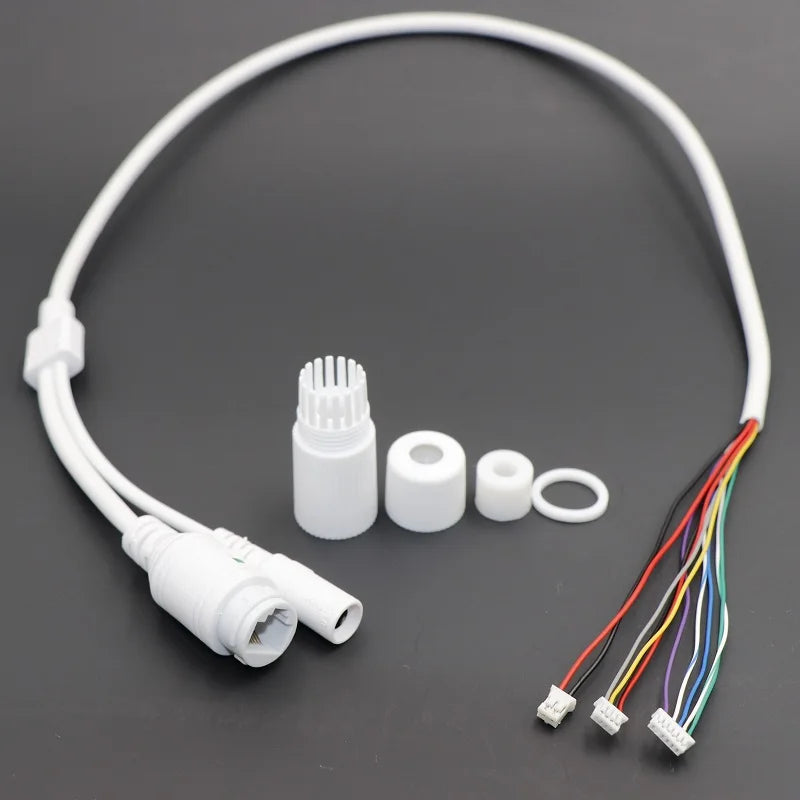

CCTV POE IP network Camera PCB Module video power cable Withe, 65cm long, RJ45 female connectors with Terminlas,waterproof cable

Size: length 700mm,Φ5mm

Cable color: Withe

-----------------------------------------------------------------------------------

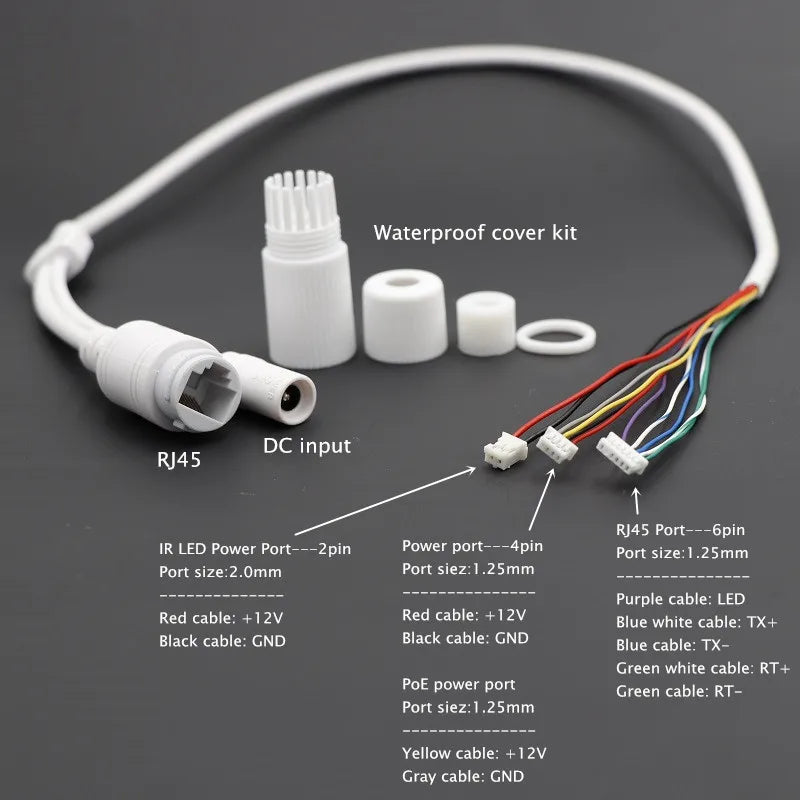

2 PIN---2.0mm

Red: + 12V

Black: GND

2 PIN---1.25mm

Red: + 12V

Black: GND

2 PIN---1.25mm

Yellow: PoE +12V (4/5 of RJ-45)

Gray:  PoE GND (7/8 of RJ-45)

5 PIN---1.25mm

Blue: TX-

Blue+White: TX+

Green: RX-

Green+White:RX+

Purple: LED



-----------------------------------------------------------------------------------

Packing list:

1 pcs network video cable

1 pcs 2pin port(2.0mm)

1 pcs 4pin port (1.25mm)

1 pcs 6pin port (1.25mm)



Please note: 1 pcs 2pin port (2.0mm), 1 pcs 4pin port (1.25mm), 1 pcs 6pin port (1.25mm) and cable are separate,Please according to their own needs,Arrange the cable sequence.

-----------------------------------------------------------------------------------
