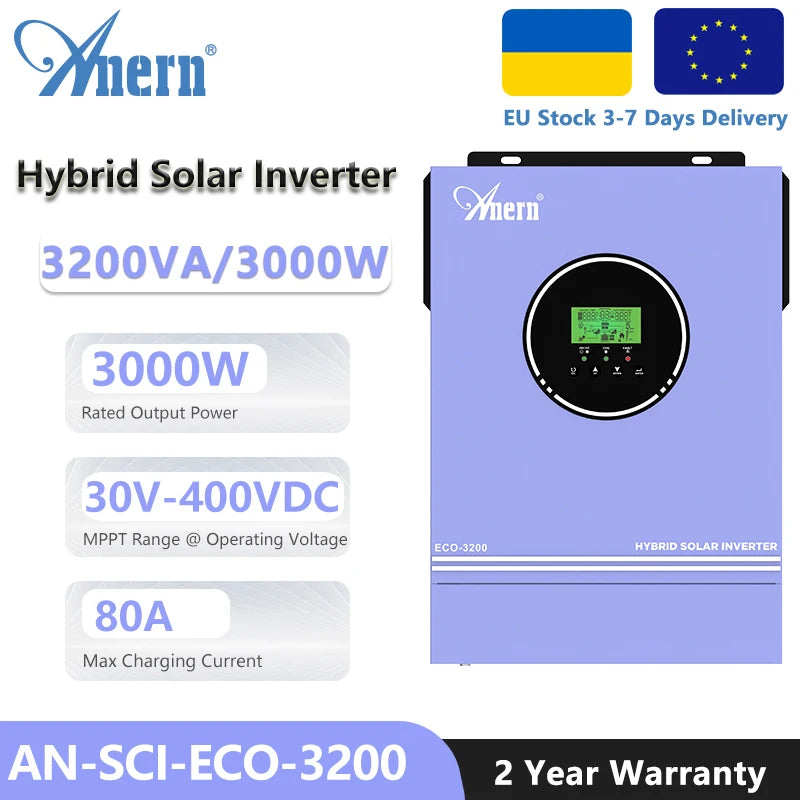

1600W 3000W Hybrid Solar Inverter 12V 24V 220V Pure Sine Wave Inverter Built in MPPT 80A Solar Charger Controller Max PV 400VDC
1.6KW NO WIFI 12V / 220V-240V / Russian Federation
₱10,806.56PHP
Sale price
₱10,806.56PHP
Regular price
Skip to product information
1600W 3000W Hybrid Solar Inverter 12V 24V 220V Pure Sine Wave Inverter Built in MPPT 80A Solar Charger Controller Max PV 400VDC
₱10,806.56PHP
Sale price
₱10,806.56PHP
Regular price
Pickup currently not available
SPECIFICATIONS
Brand Name: ANERN
Certification: CE
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
High-concerned chemical: None
Is Smart Device: Yes
Model Number: SCI-ECO-2000/3200
Origin: Mainland China
Output Current: 80A
Output Frequency: 50HZ/60HZ
Output Power: 500 - 1000W
Output Type: SINGLE
Size: 390*270*100mm
Solar inverter hybrid 1600W: Solar inverter hybrid 1KW 3KW
Weight: 6.5kg
is_customized: Yes
|

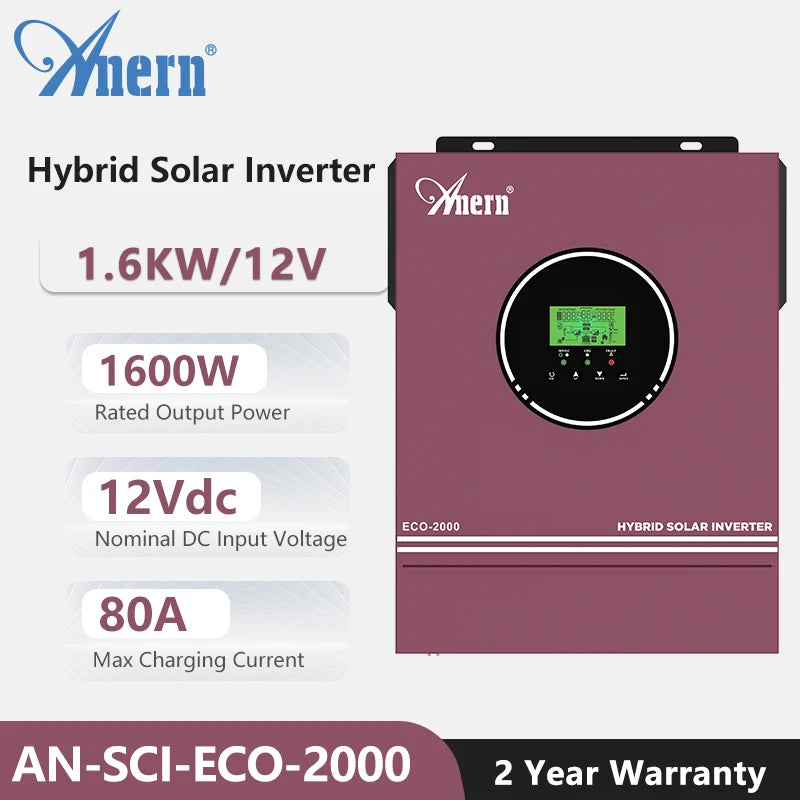

Model |
SCI-ECO-2000 |
SCI-ECO-3200 |
|
RATED POWER |
2000VA/1600W |
3200VA/3000W |
|
AC INPUT |
|
AC Input Voltage |
230VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) |
|
Selectable Voltage Range |
90-280 VAC (For Home Appliances) |
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
AC OUTPUT |
|
AC Voltage Regulation (Batt. Mode) |
230VAC ± 5% |
|
Surge Power |
4000VA |
6400VA |
|
Efficiency (Peak) PV to Inverter |
98% |
|
Efficiency (Peak) Battery to Inverter |
94% |
|
Transfer Time |
10 ms (For Personal Computers); 20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY & AC CHARGER |
|
Battery Voltage |
12VDC |
24VDC |
|
Floating Charge Voltage |
13.5VDC |
27VDC |
|
Overcharge Protection |
16VDC |
33VDC |
|
Maximum AC Charge Current |
60A |
|
SOLAR CHARGER |
|
Maximum PV Array Power |
2000W |
3000W |
|
MPPT Range @ Operating Voltage |
30-400VDC |
|
Maximum PV Array Open Circuit Voltage |
400VDC |
|
Maximum Charging Current |
80A |
|
PHYSICAL |
|

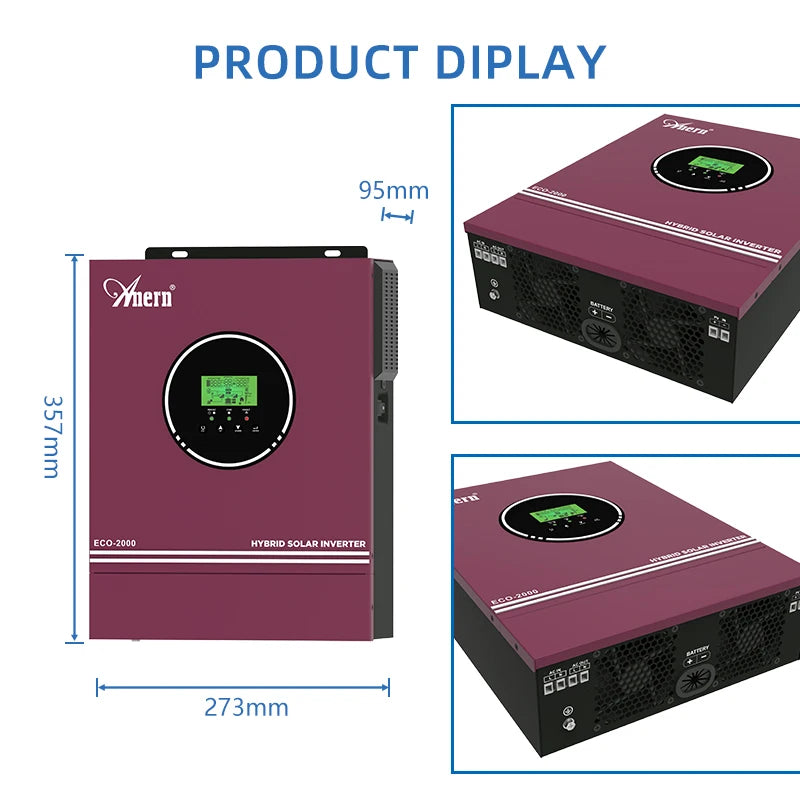

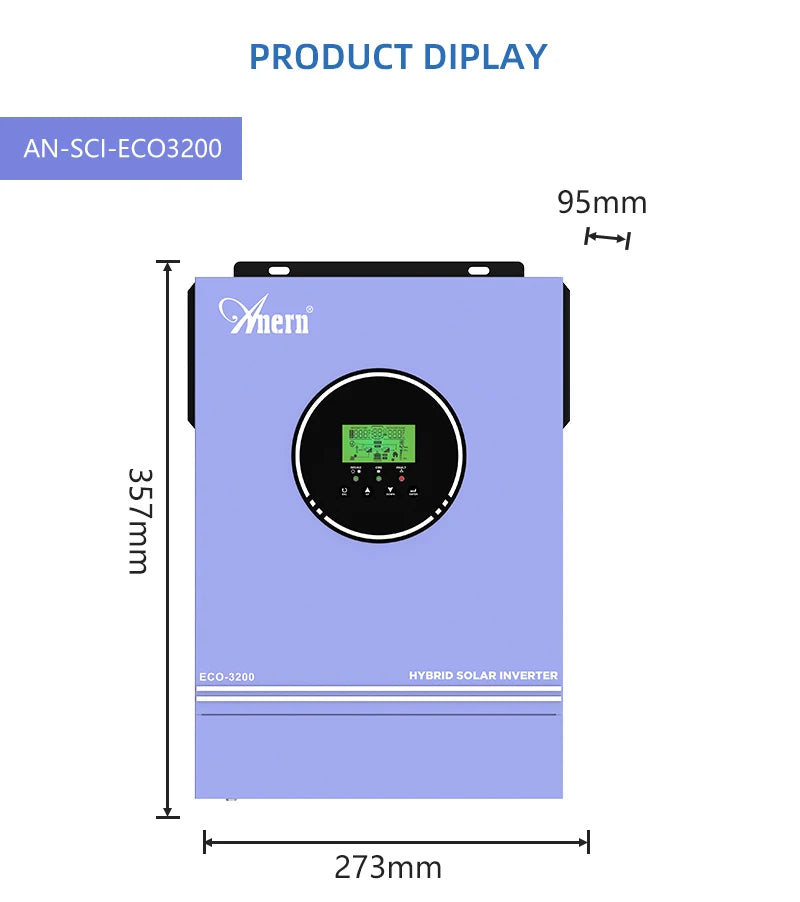

Dimension, D x W x H (mm) |
360*270*100mm |
390*270*100mm |
|
INTERFACE |
|
Communication interface |
WIFI |
|
OPERATING ENVIRONMENT |
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
–10°C - 50°C |
|
Storage Temperature |
–15°C - 60°C |
Features(1600W and 3000W model)

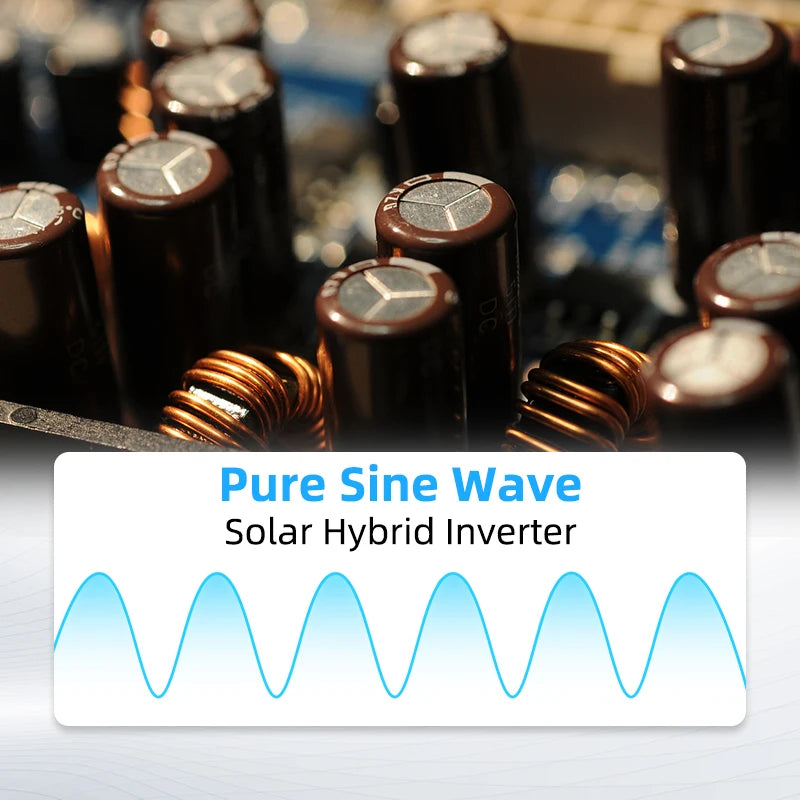

Pure sine wave inverter.
Configurable input voltage range for home appliances and personal computes via LCD setting.
Configurable battery charging current based on applications via LCD setting.

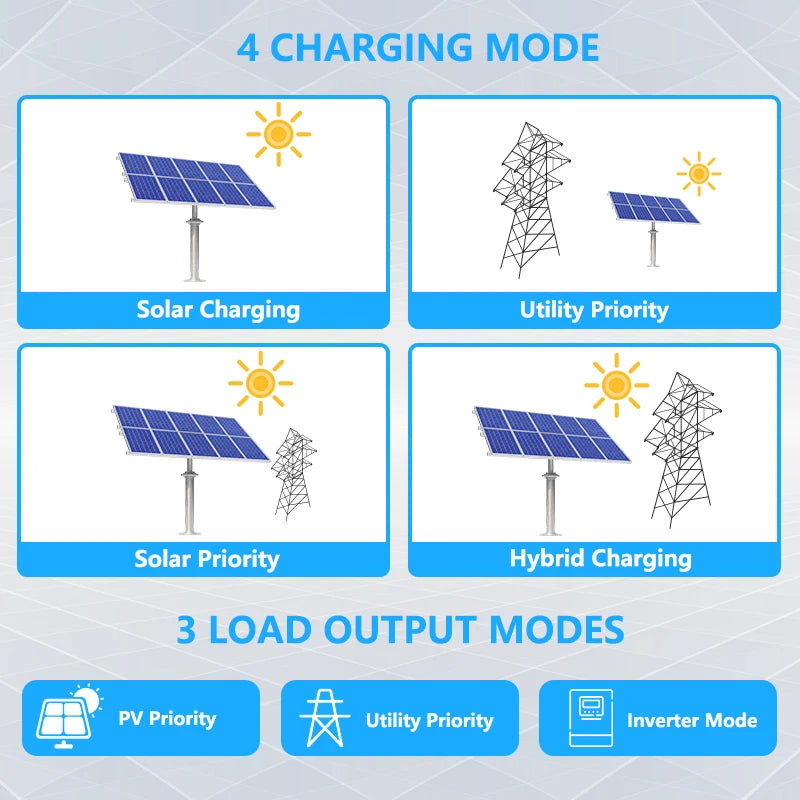

Configurable AC/Solar Charger priority via LCD setting.
Compatible to mains voltage or generator power.
Auto restart while AC is recovering.
Overload/Over temperature/short circuit protection.
Smart battery charger design for optimized battery performance.
Cold start function.
Can connect to lithium battery.
Note:
1: Orders from EU buyers are prioritized for shipment from EU warehouses. Expected delivery time is 3 to 7 days.（Excluding Ukraine）
2: Free return and refund service, return to local warehouse in the European Union
3: Buyer protection for over 90 days
4: Provide a two-year warranty period
5: If you have any questions, please contact us and we can provide technical support

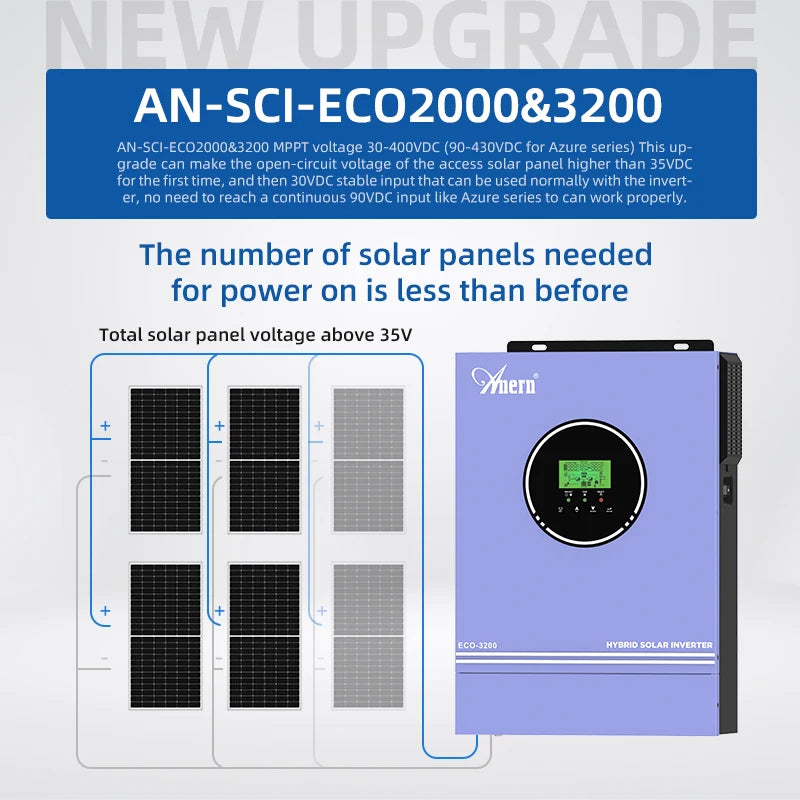

3W 1.6KW MPPT Range @Operating Voltage: 30-400VDC. (This upgrade allows the open-circuit voltage to access the solar panels to be higher than 35VDC for the first time, and the inverter can be used normally with a stable input of 30VDC behind.)
|

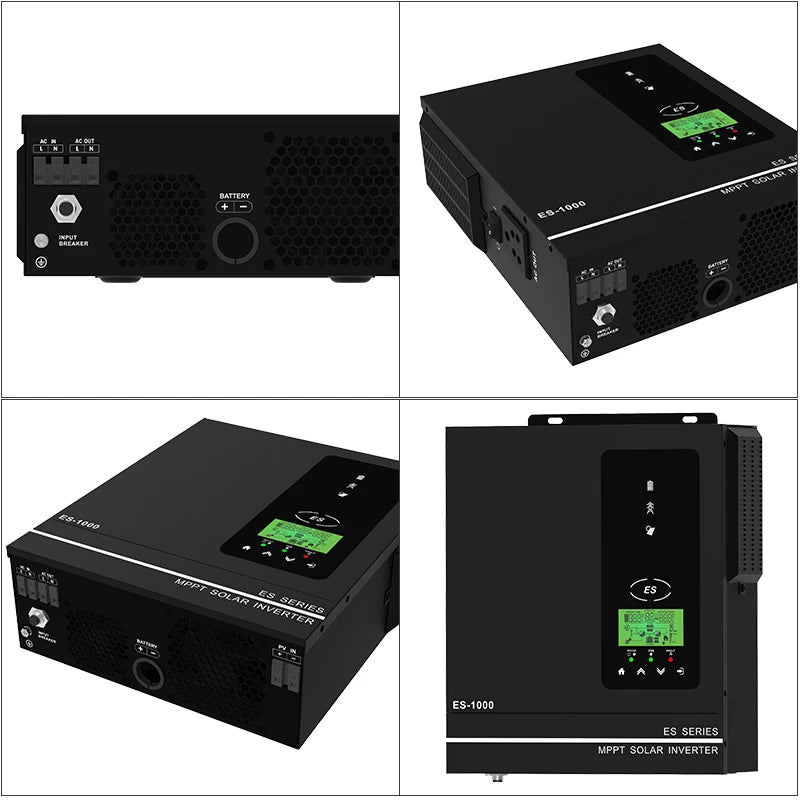

Model |
SCI-ES-1000 |
|
RATED POWER |
1000VA/1000W |
|
AC INPUT |
|
AC Input Voltage |
230VAC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) |
|
Selectable Voltage Range |
90-280 VAC (For Home Appliances) |
|
Frequency Range |
50 Hz/60 Hz (Auto sensing) |
|
AC OUTPUT |
|
AC Voltage Regulation (Batt. Mode) |
230VAC ± 5% |
|
Surge Power |
2000VA |
|
Efficiency (Peak) PV to Inverter |
98% |
|
Efficiency (Peak) Battery to Inverter |
94% |
|
Transfer Time |
10 ms (For Personal Computers); 20 ms (For Home Appliances) |
|
Waveform |
Pure sine wave |
|
BATTERY & AC CHARGER |
|
Battery Voltage |
12VDC |
|
Floating Charge Voltage |
13.5VDC |
|
Overcharge Protection |
16VDC |
|
Maximum AC Charge Current |
40A |
|
SOLAR CHARGER |
|
Maximum PV Array Power |
600W |
|
MPPT Range @ Operating Voltage |
20-150VDC |
|
Maximum PV Array Open Circuit Voltage |
150VDC |
|
Maximum Solar Charging Current |
40 |
|
Maximum (AC+Solar)Charging Current |
80A |
|
PHYSICAL |
|

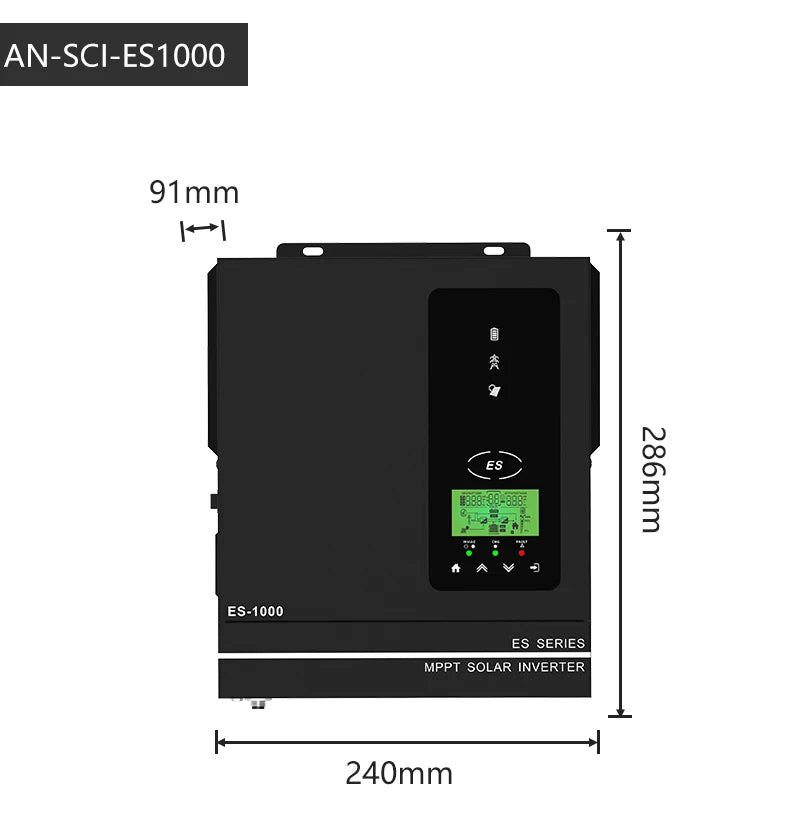

Dimension, D x W x H (mm) |
286*240*91mm |
|
INTERFACE |
|
Communication interface |
WIFI |
|
OPERATING ENVIRONMENT |
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
Operating Temperature |
–10°C - 50°C |
|
Storage Temperature |
–15°C - 60°C |

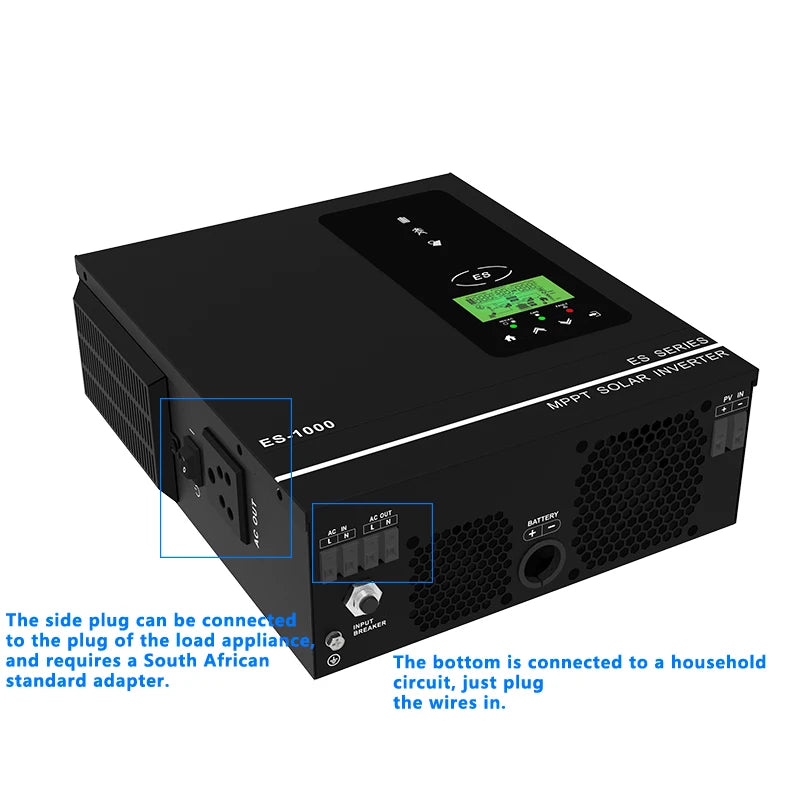

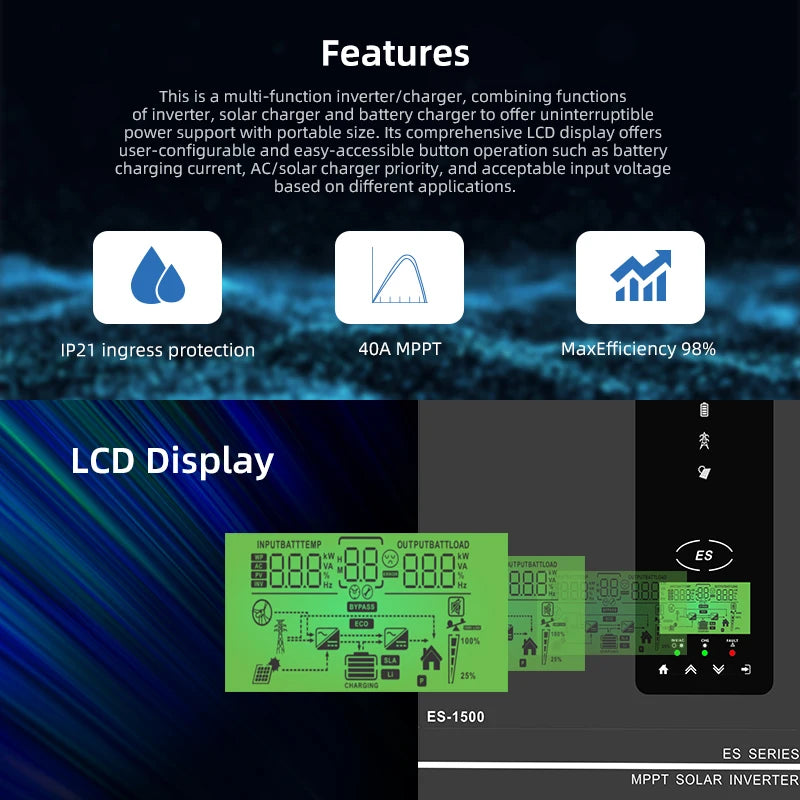

Features(1000W and 1500W model)
Pure sine wave solar inverter.
Built in 40A MPPT solar charger.
PV input voltage range 20-150VDC(for 1000W),30-150VDC(for 1500W).
Built-in anti-dust kit for harsh environment.
Smart battery charge design to optimize battery life.
Meet rich customized demands.
Solar energy is provided directly to the load first.
FQA
Q: Can inverters be connected in series or parallel?
A: NO.
Q: What types of batteries can be used?
A: Lead-acid batteries, gel batteries,Lithium Iron Phosphate(LiFePo4) and lithium batteries can be used. 24V battery for 3.6KW, 48V battery for 6.2KW. The battery cannot be less than 100AH.
Q: Can it be used in air conditioners, water pumps, and wind turbines?
A: It can be used in air conditioners, but not in water pumps and wind turbines.
Q: How to choose the power of the inverter according to the household appliances?
A: If household appliances contain inductive load appliances, such as refrigerators, washing machines, air conditioners, etc., the power of the inverter is at least three times the total power of the inductive load appliances, otherwise the appliances may not be able to start.

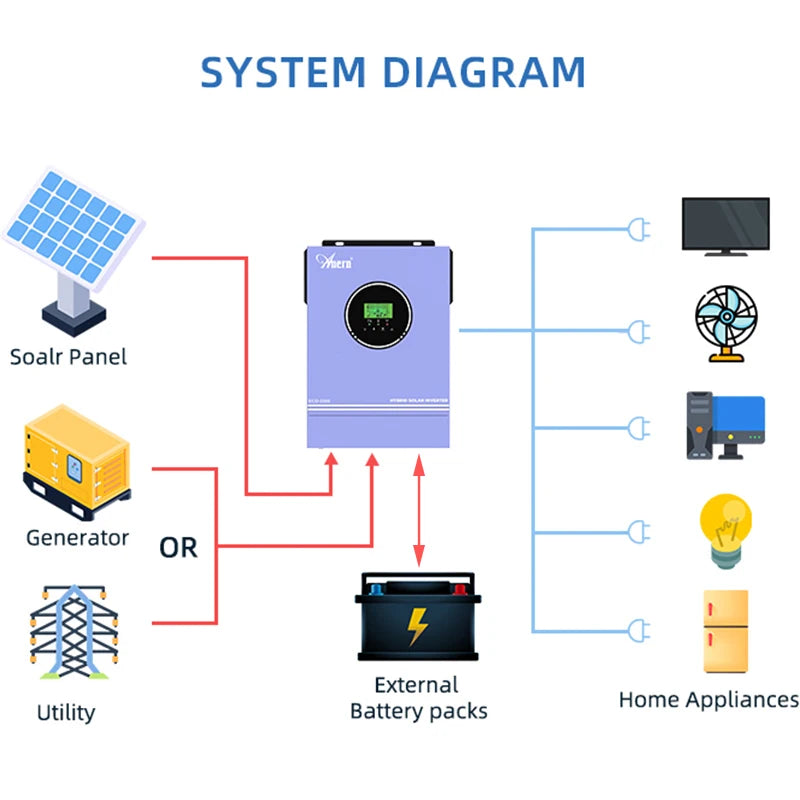

Q: Is it possible to use PV, battery, grid supply at the same time?
A: YES. The default PV priority mode, when the PV input is insufficient, the battery and utility will be used.
Inverter Use Notice:
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.
1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.

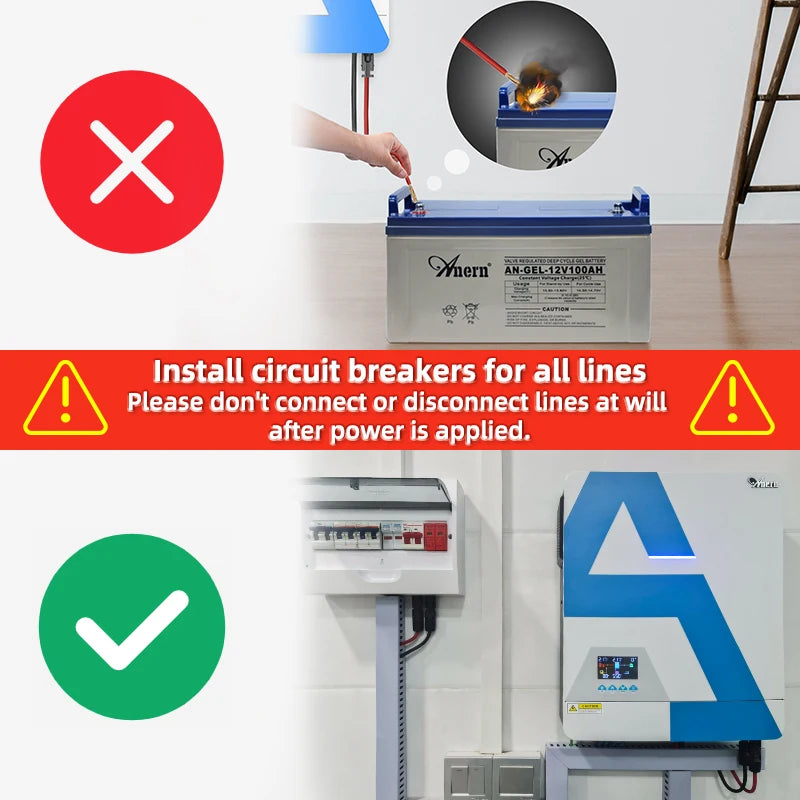

Please connect the circuit correctly according to the instructions, and install circuit breaker switches for each circuit.
